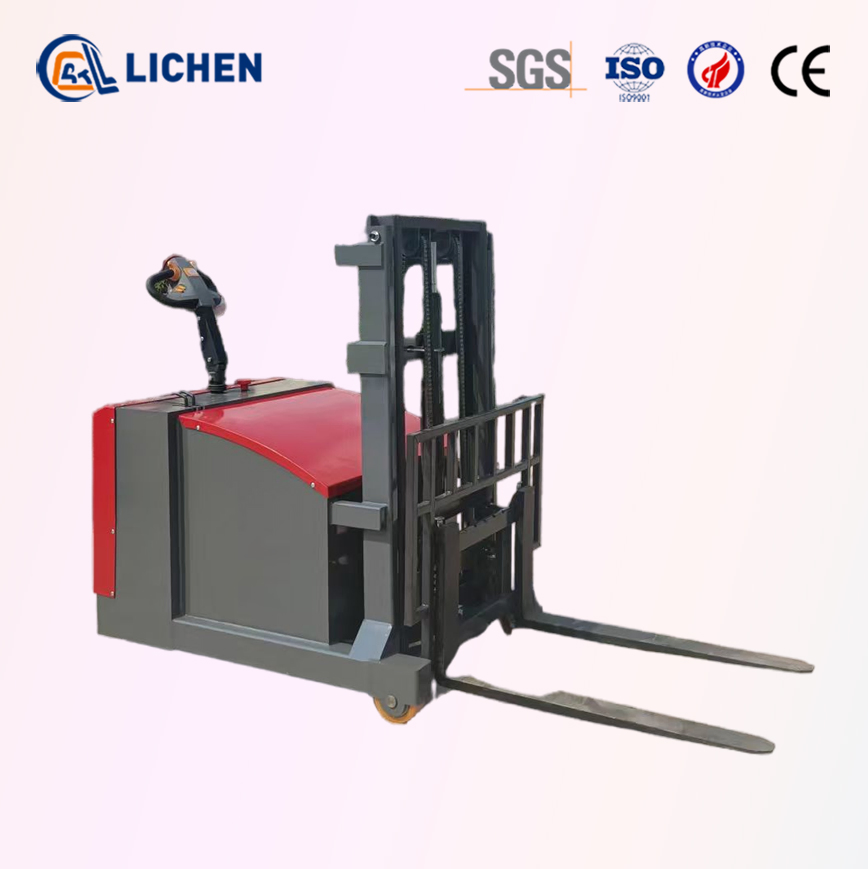

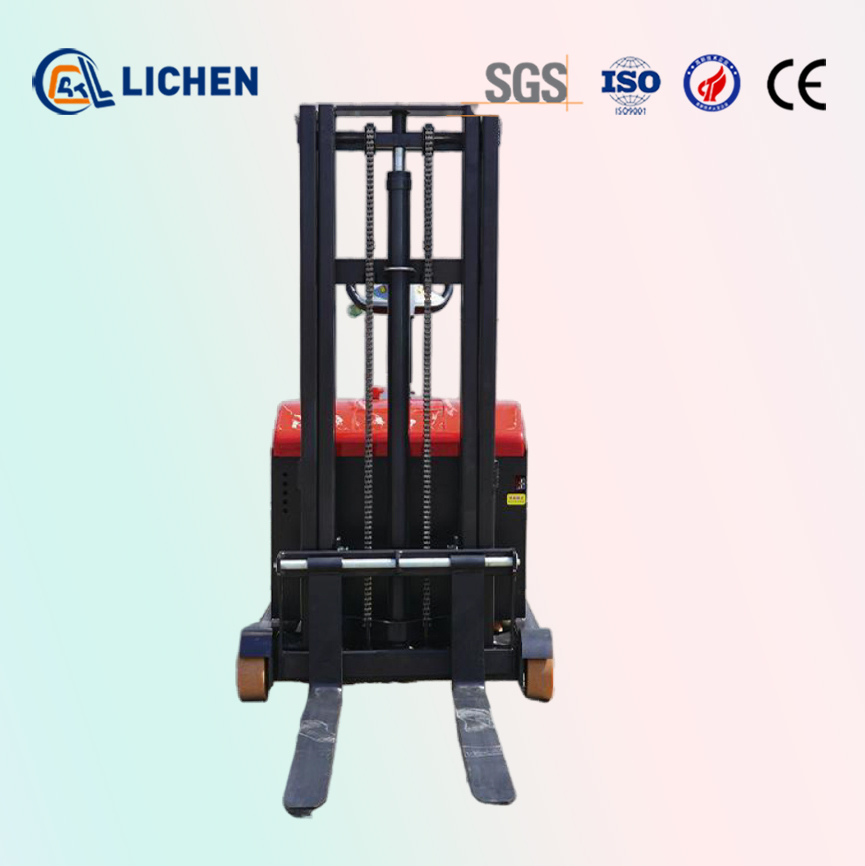

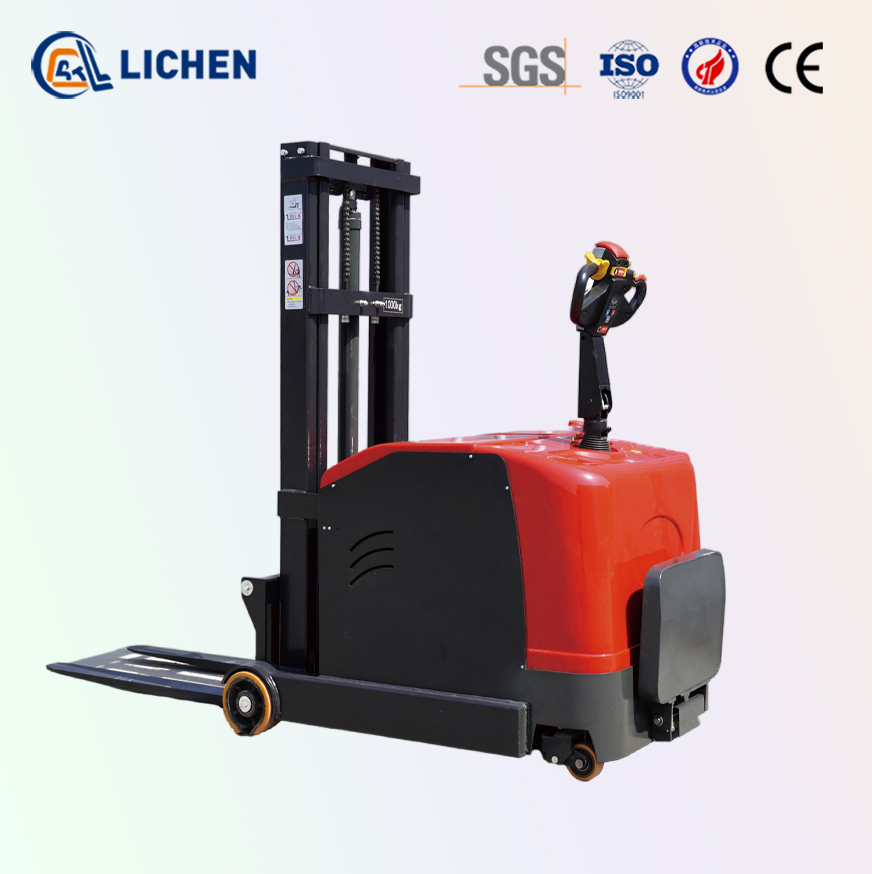

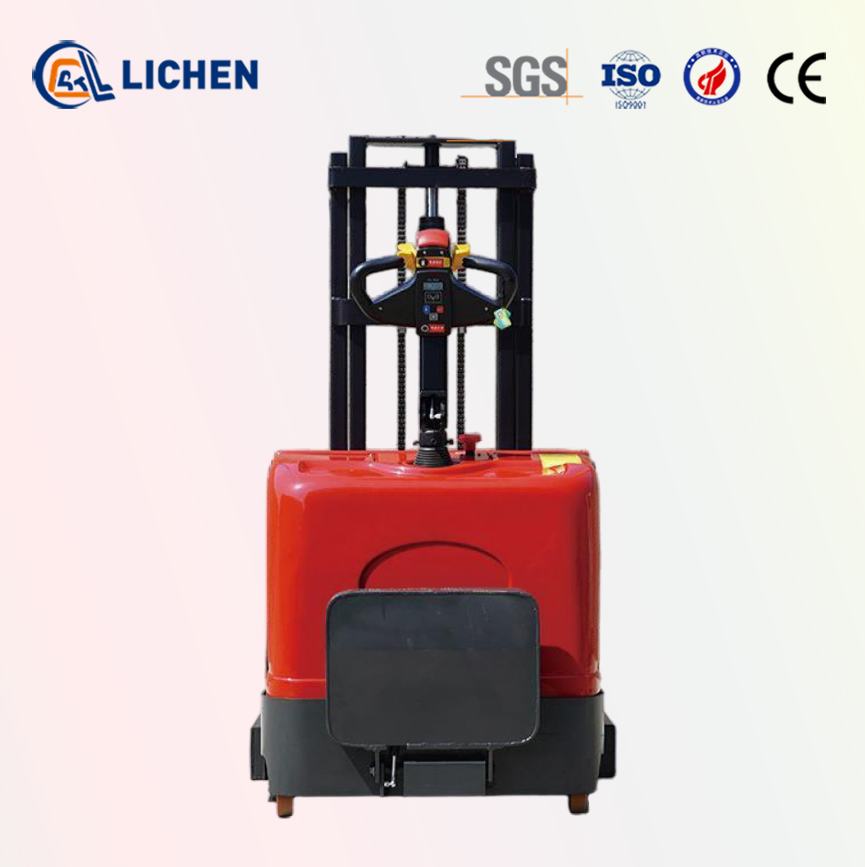

LC Factory Price 1000 2000kg Stand-up Pallet Stacker with 48V Battery Fully Electric 1/2 Ton Reach Truck Stacker

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
CPD1/2T
Type
Stacker
Power
AC Motor
Load Capacity
1T - 5T
Lift height
3000~5000mm
Drive Type
Electric, Battery-Powered
Battery
48V/200ah (Lead-Acid/Lithium Optional)
Chassis Material
Q235 High-Strength Steel
Travel Speed
Max ≤6km/H
Certification
CE, ISO9001
Product Description
Electric Pallet Stacker
📘 1/2T Counterweight Stand-on Stacker

This electric pallet stacker is specifically engineered for small-to-medium tonnage warehouse applications. Combining efficiency and stability, it serves as core equipment for boosting operational efficiency. Equipped with a powerful electric drive system, it delivers smooth power output while being energy-efficient and environmentally friendly.

The stand-up operator design follows ergonomic principles, featuring a clearly laid-out control panel that allows one-button control of lifting, steering, and travel. It adeptly navigates complex warehouse environments like narrow aisles, boasting a small turning radius and outstanding maneuverability.

Technology Characteristics
✅ Rated load capability on 5% slope.
✅ Turtle speed switch for precision.
✅ Adjustable balance wheel for stability.
✅ High-quality steel frame construction.
Technical Specifications
Overall dimensions 2460*980*1580mm (Customizable) Fork Width 490mm/690mm
Rated load capacity 1000/2000kg Wheel type Polyurethane
Load center distance 500mm Full-load speed 3.5km/h
Lifting height 3000mm (Customizable) Self-weight 830kg
Turning radius 1350mm Operation Type Stand-on type

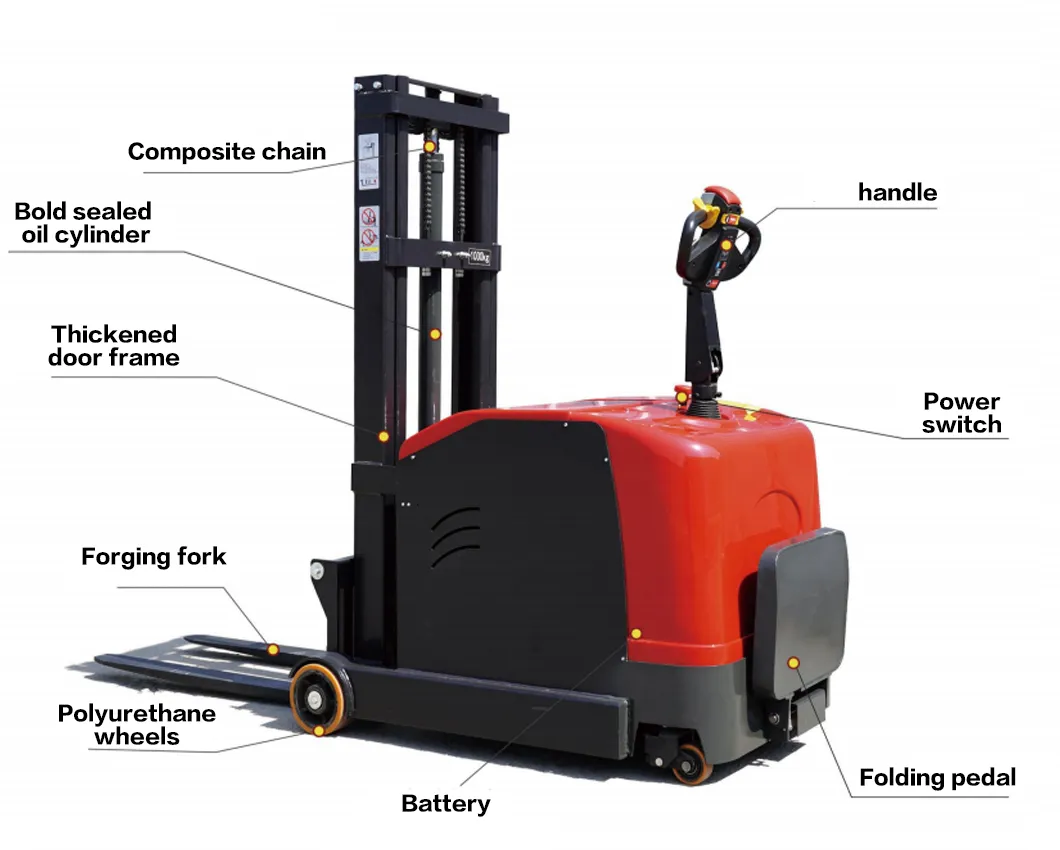

Specification Diagram
Packaging & Delivery
Package Size
260cm * 98cm * 158cm
Gross Weight
1800kg
Lead Time (1-10 pcs)
3-7 Days
Certifications
Packaging
Service Support

Comprehensive After-Sales System: We provide a 1-year warranty for each vehicle. Within the warranty period, if any parts failure is caused by quality issues, new parts will be sent free of charge within 5 working days. Our professional department is available to support you at any time.

Service Support
Frequently Asked Questions
Q: How long is the warranty period for this equipment?
A: We provide 12 months or 2000 working hours warranty as standard, whichever comes first.
Q: What are the accepted payment terms?
A: Normally, we accept a 30% deposit by TT for production and a 70% balance before shipping.
Q: What is the estimated lead time for an order?
A: 15-20 days for electric pallet stackers and attachments, and 5-10 days for spare parts.

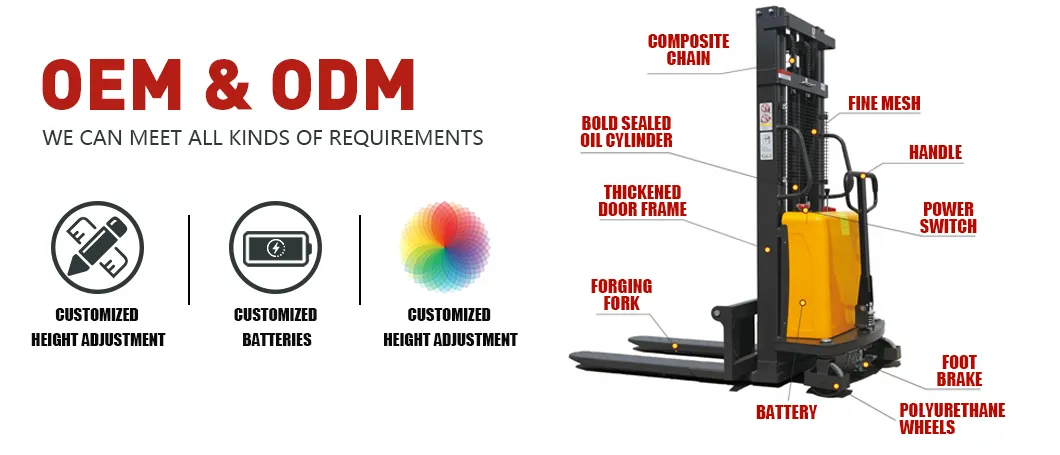

Q: Is customization available for logos and colors?
A: Yes, we support OEM/ODM customization including configuration, logos, labels, and colors.
Q: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 unit for most products. For very small equipment, we can discuss on a case-by-case basis.
Q: Are the batteries optional?
A: Yes, we offer both Lead-Acid and Lithium battery options to suit your operational requirements.
