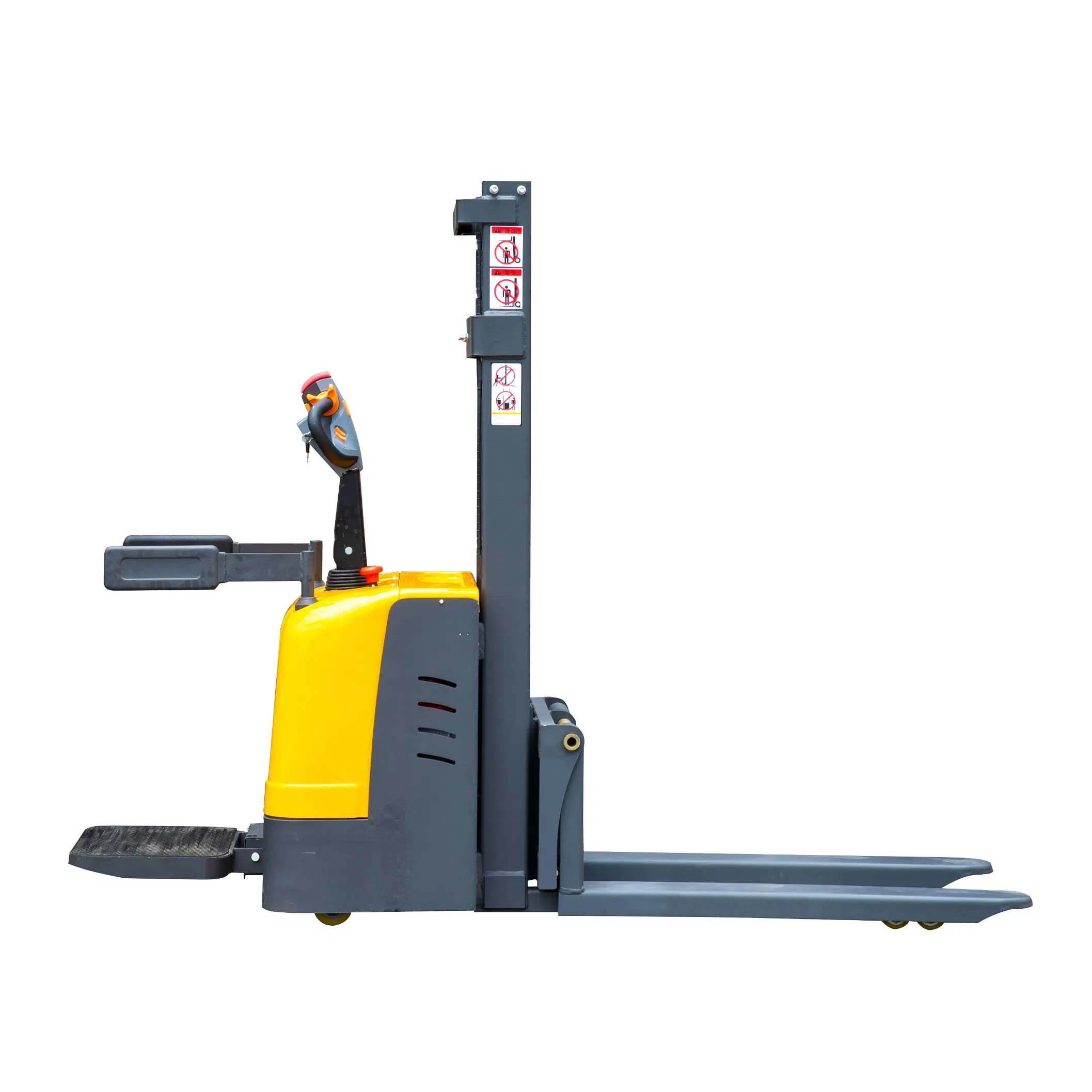

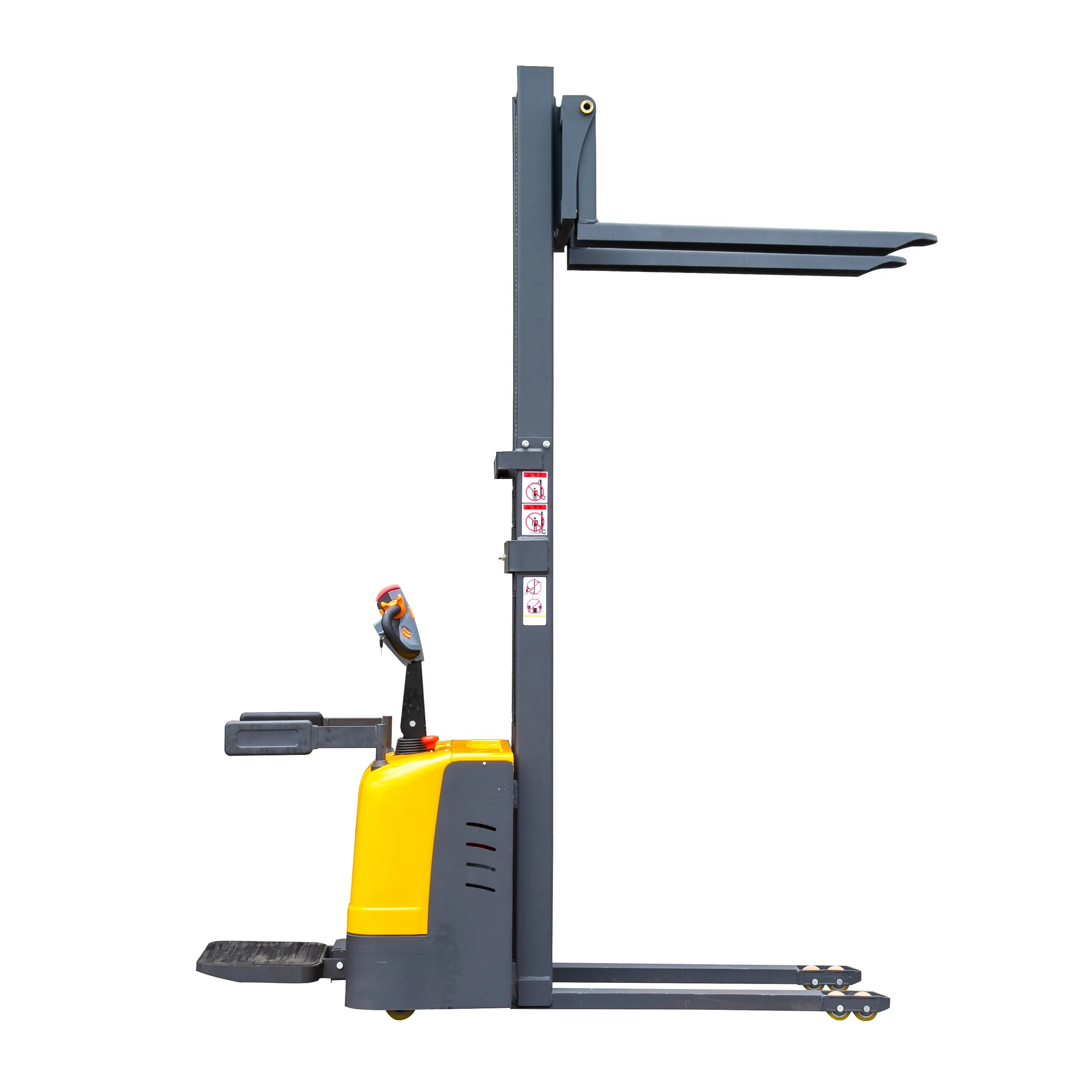

1.5t 1500kg Lifting 5m 5000mm Standing Fully Electric Hydraulic Pallet Stacker

1 / 5

1.5t 1500kg Lifting 5m 5000mm Standing Fully Electric Hydraulic Pallet Stacker

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

CDD-B

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load center

500mm

Lift height

1600mm-5000mm

Colour

Red or Yellow

Fork Type

Fixed or Movable

Certification

Transport Package

Bubble Wrap

Specification

L1760mm*W800mm*H1840mm

Origin

Jiangsu

HS Code

8427109000

Production Capacity

10000pieces/Year

Product Application Technology Characteristics

Emergency reverse device
Built-in unloading valve protects against overloading
Emergency power off switch
Turtle-shaped slow speed switch
Infinitely variable speeds control
Foldable, thickened pedals and guard bar for safety
Side cylinder ensures wide field of view and stability
Spring adjustment balance wheel for durability

Technology Parameters

Model	Unit	CDD-B10	CDD-B15
Rated load	kg	1000	1500
Load center distance	mm	500	500
Weight (with battery)	kg	680-1080	700-1100
Wheel material	-	PU	PU
Lifting height	mm	1600-5000	1600-5000
Overall length	mm	2140	2140
Overall width	mm	850	850
Turning radius	mm	1600	1600
Driving speed (full/no load)	km/h	4/5.6	4/5.6
Driving motor power	kw	1.5(AC)	1.5(AC)
Lifting motor power	kw	2.2(DC)	2.2(DC)
Battery capacity	v/ah	120/210	120/210

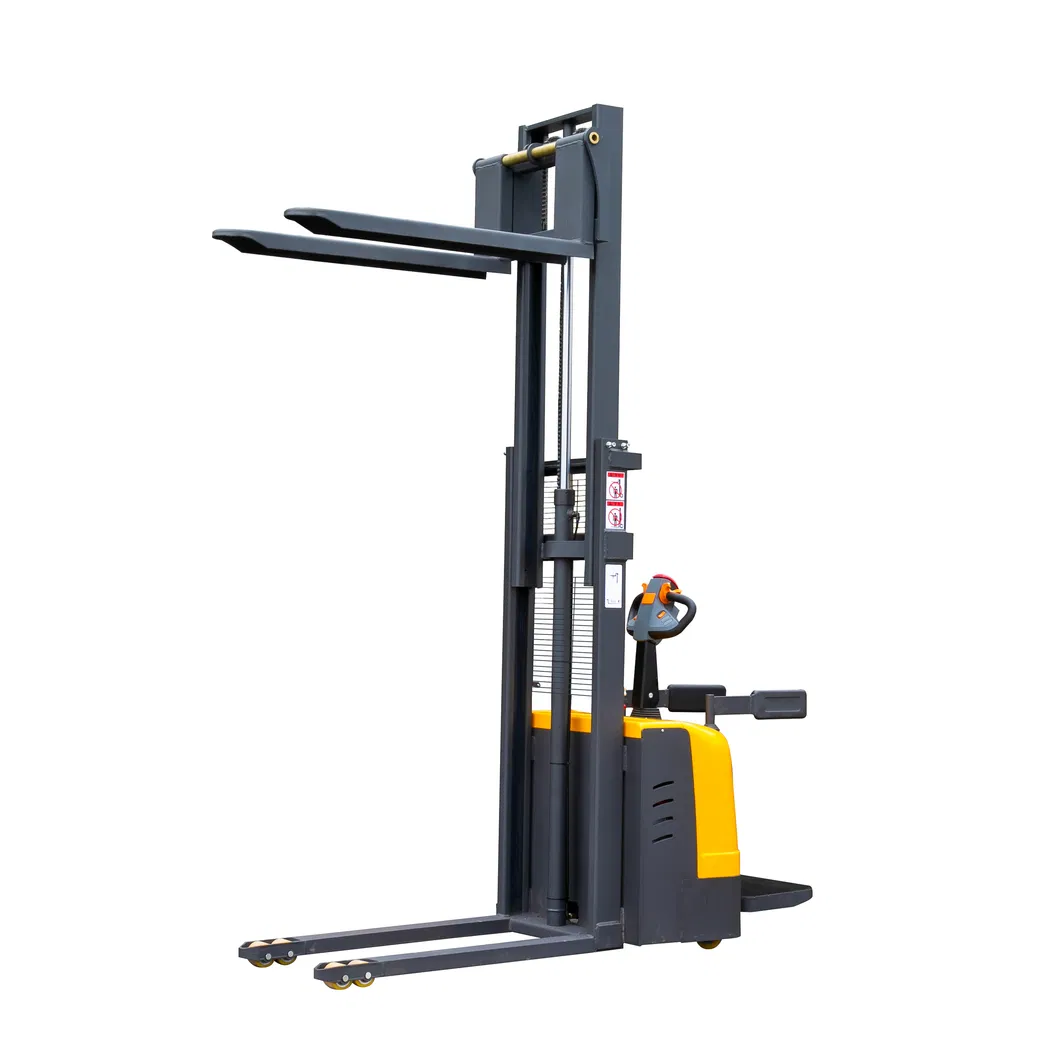

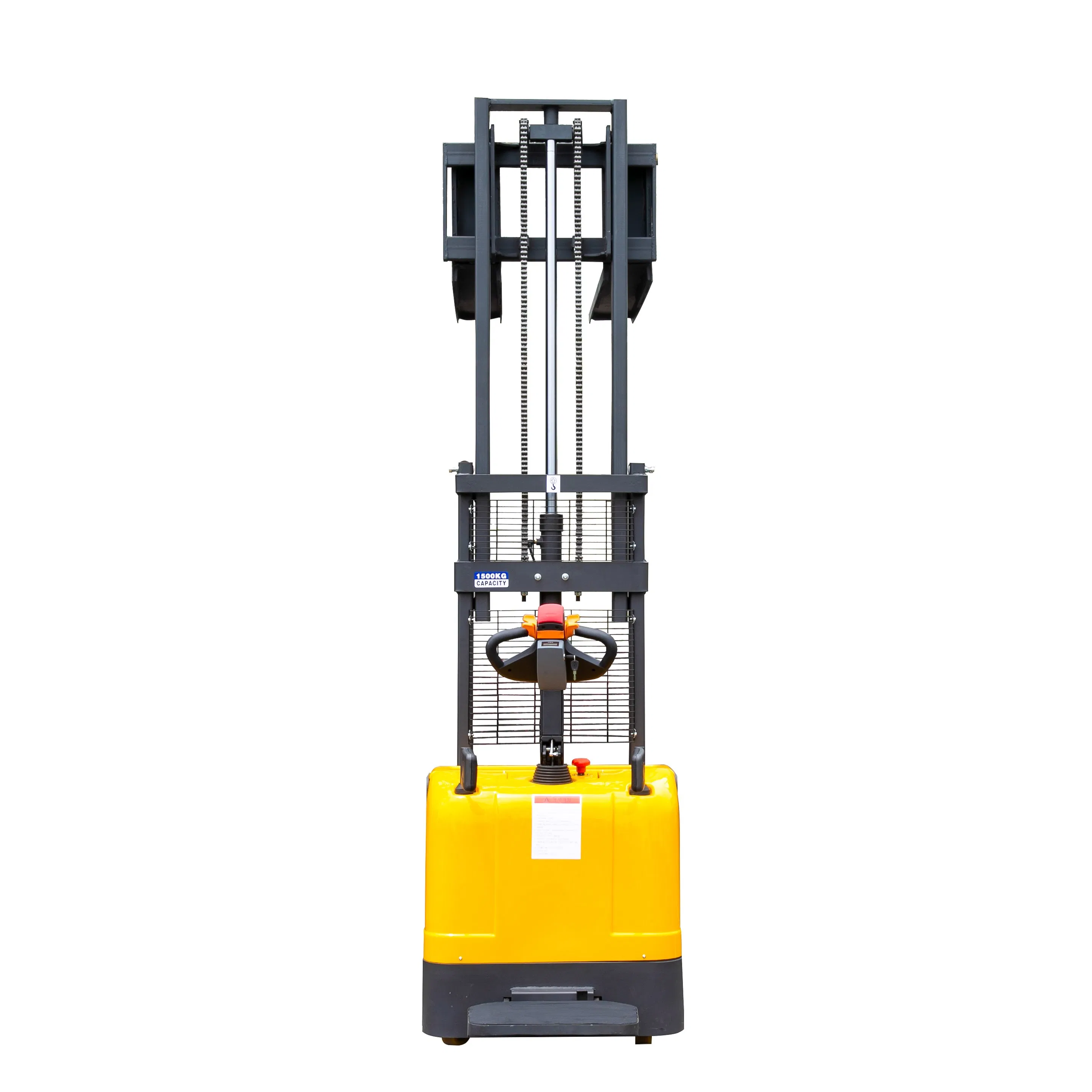

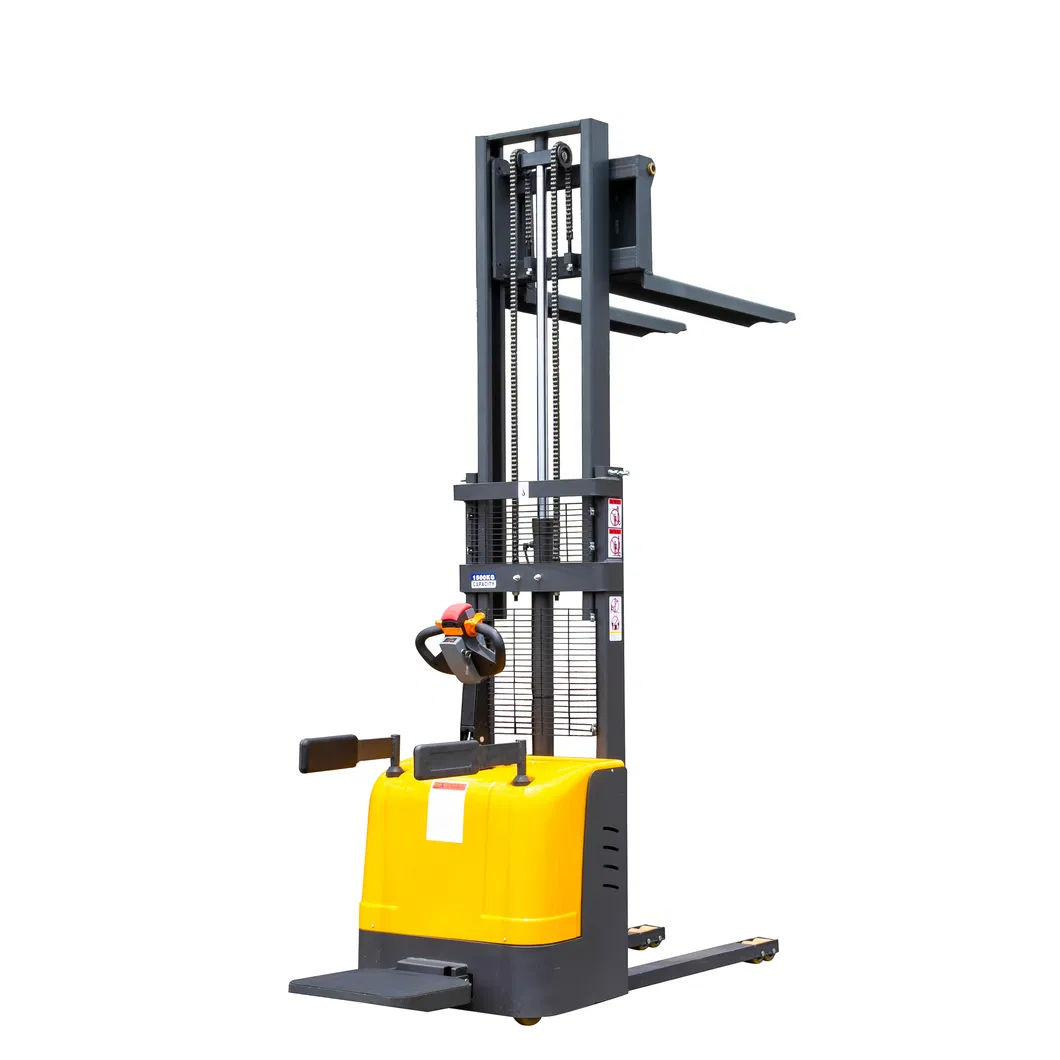

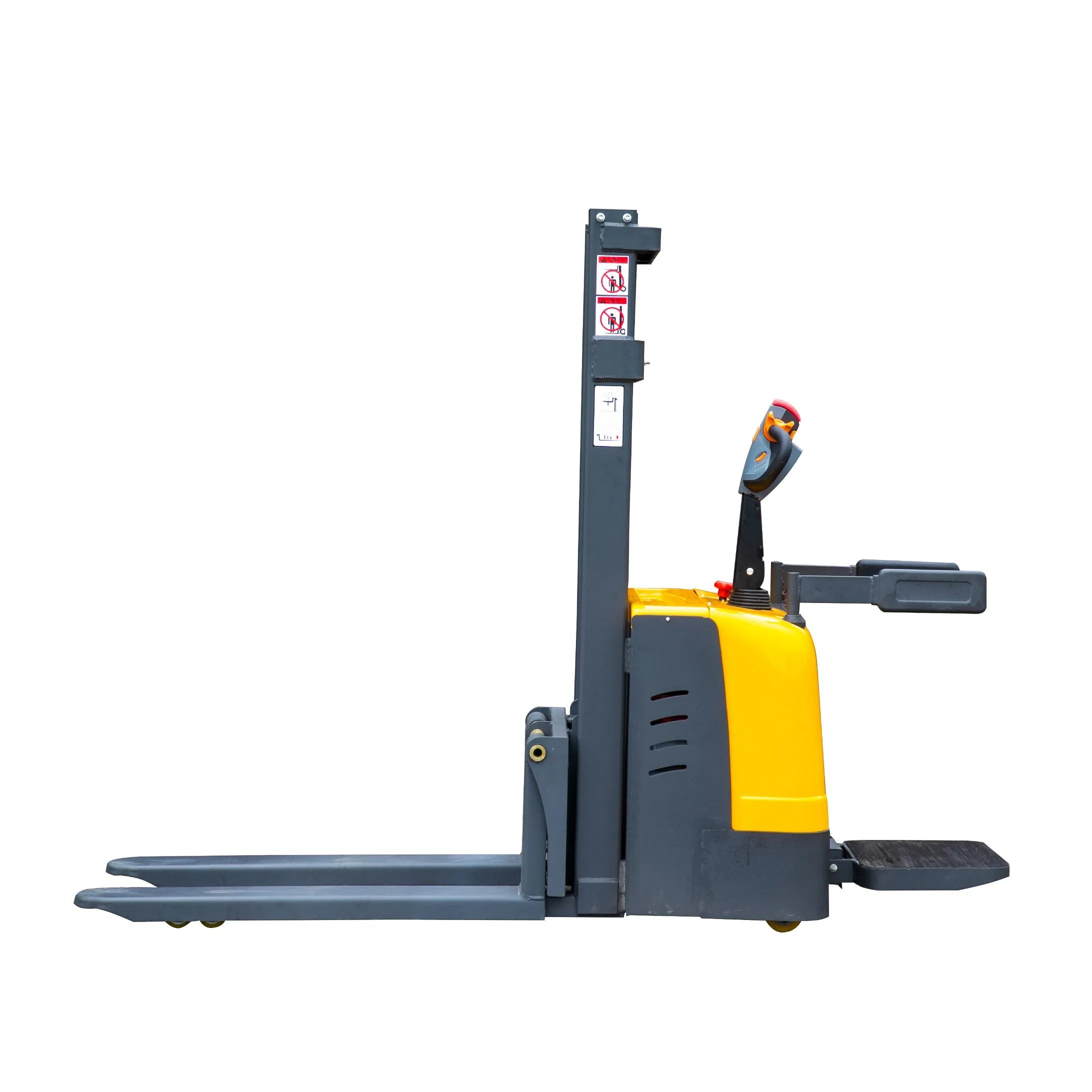

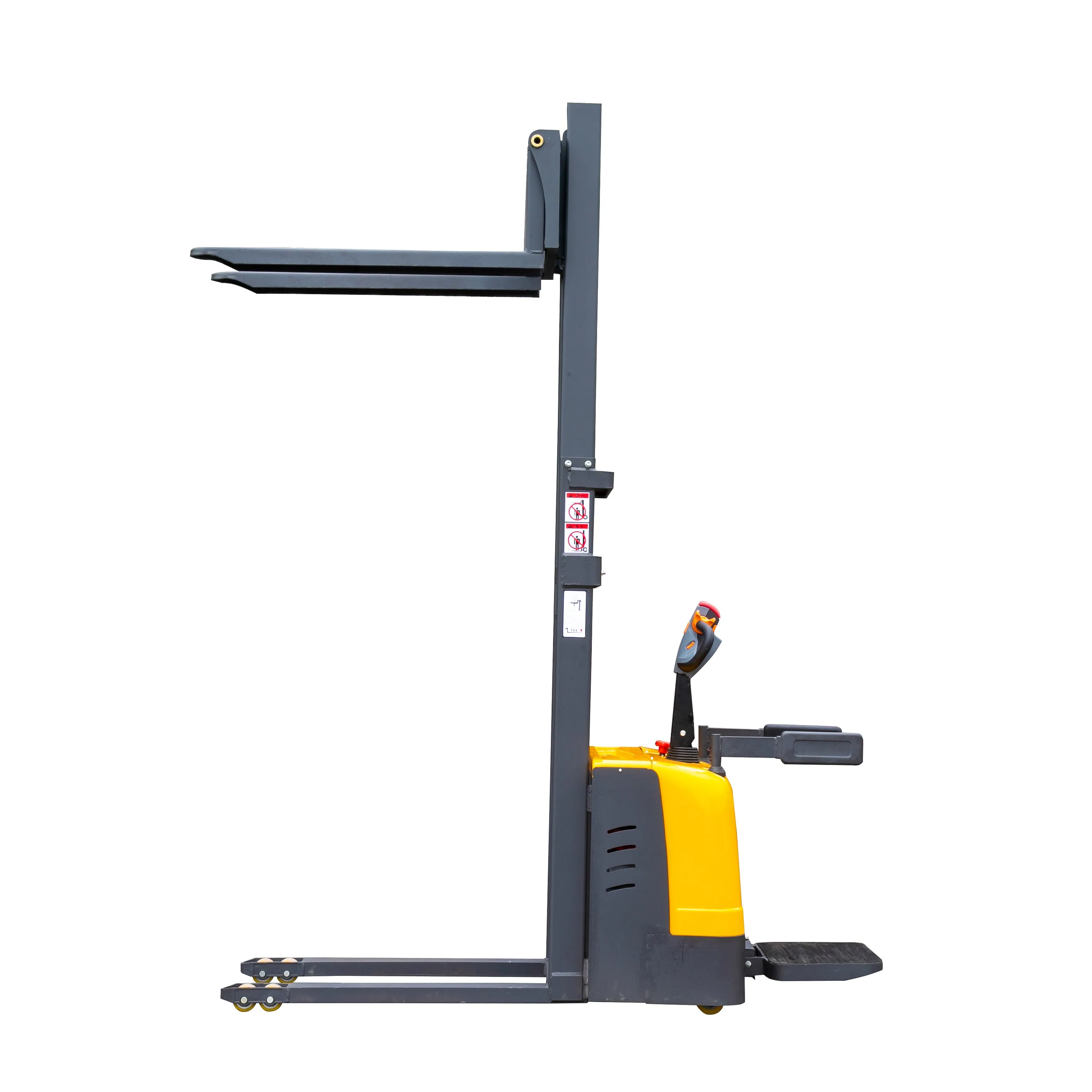

Product Display

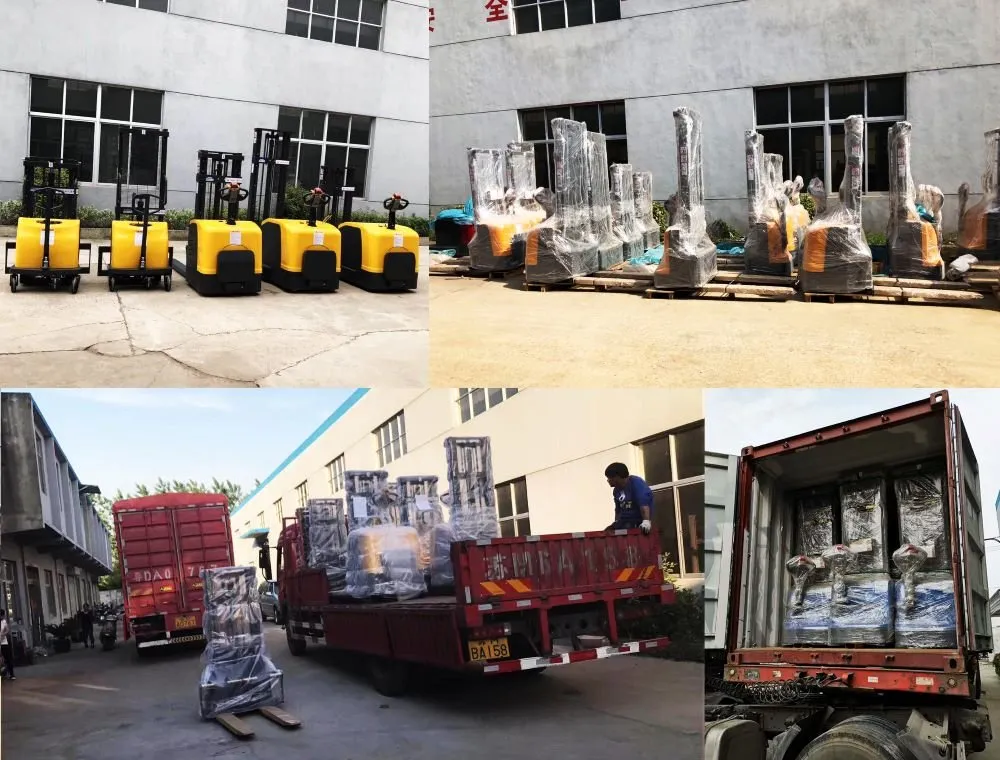

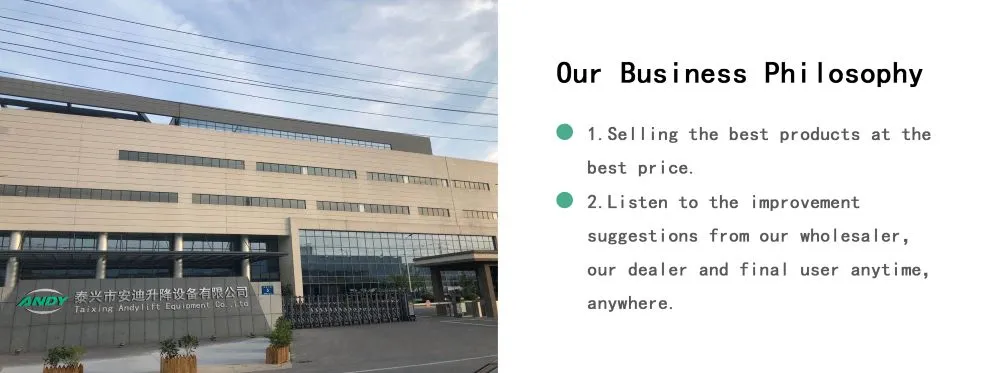

Factory Profile & Advantages

Founded in 2009, we possess powerful R&D capabilities and advanced production technology ensuring premium product quality. With extensive experience in manufacturing semi-electric stackers, all-electric stackers, manual pallet trucks, and electric pallet trucks, we have established a professional reputation worldwide. Our products are exported to Indonesia, Vietnam, Myanmar, Korea, Malaysia, South Africa, and more.
