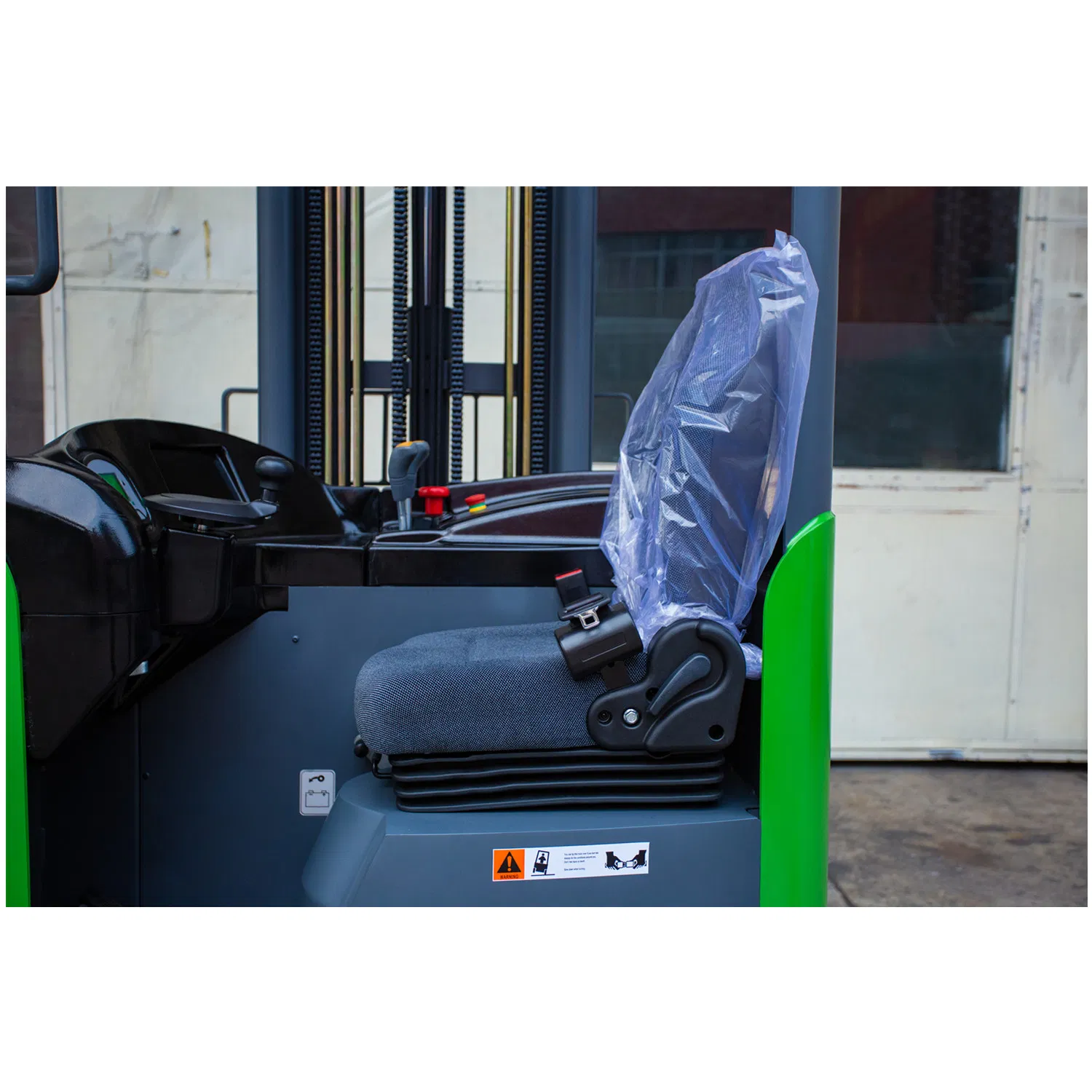

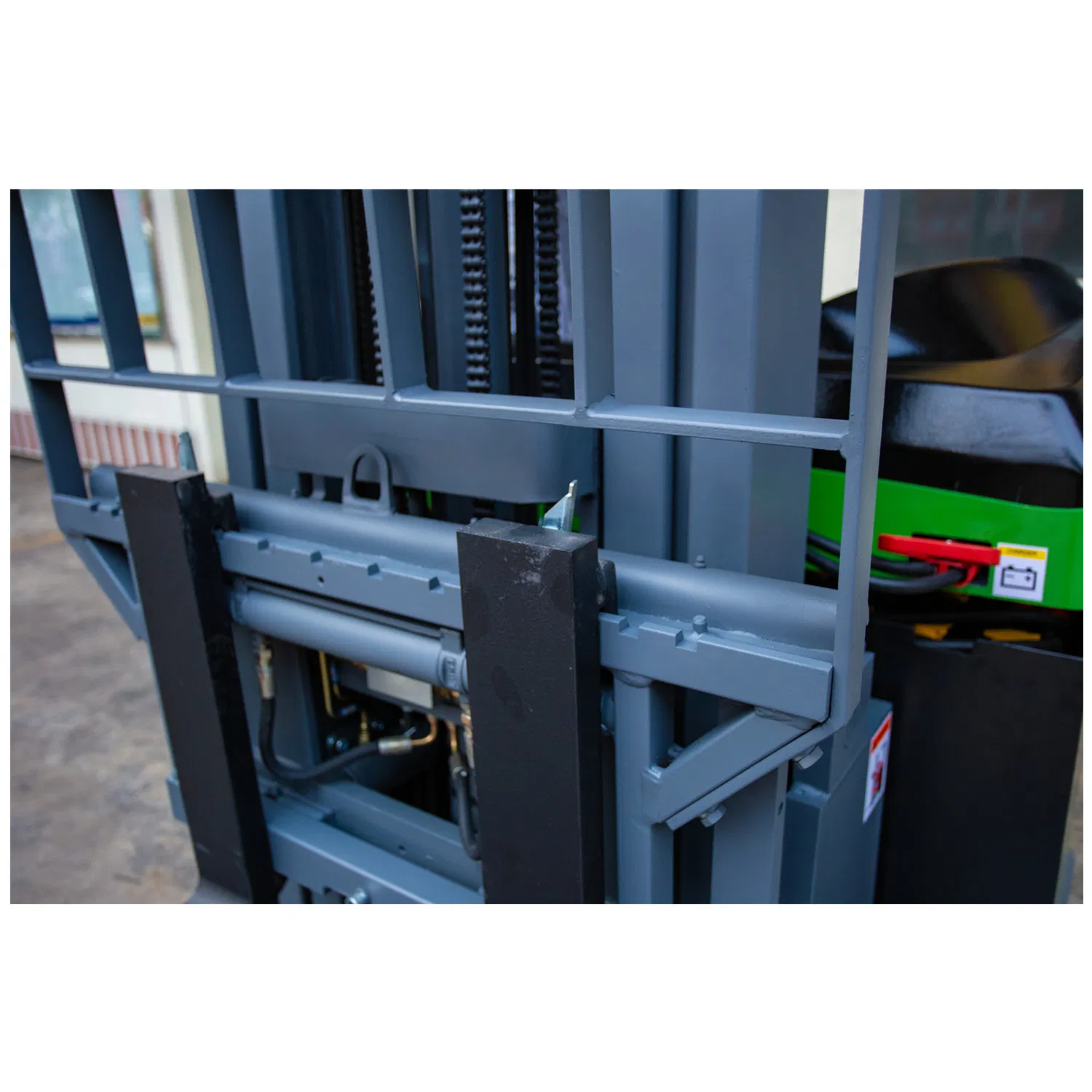

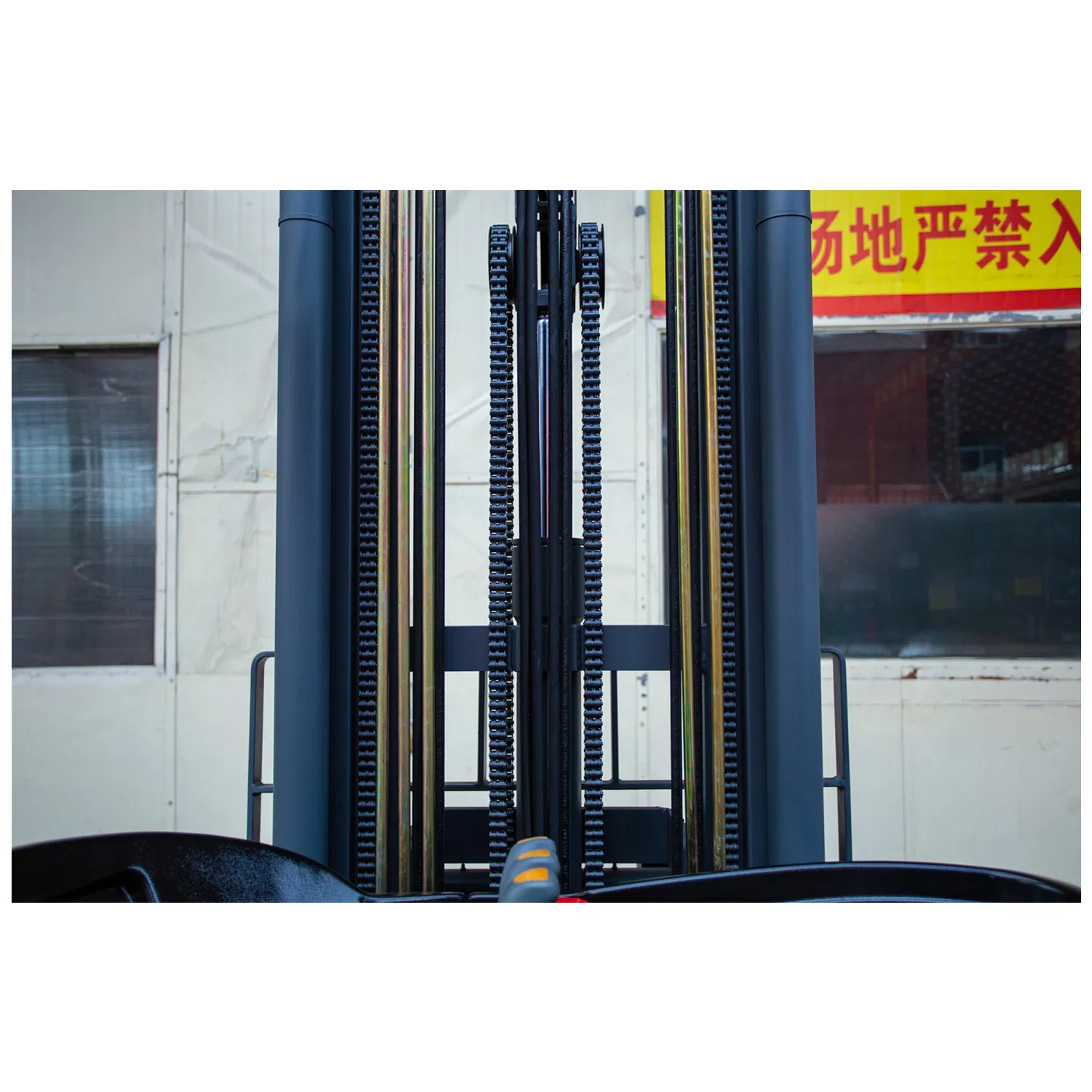

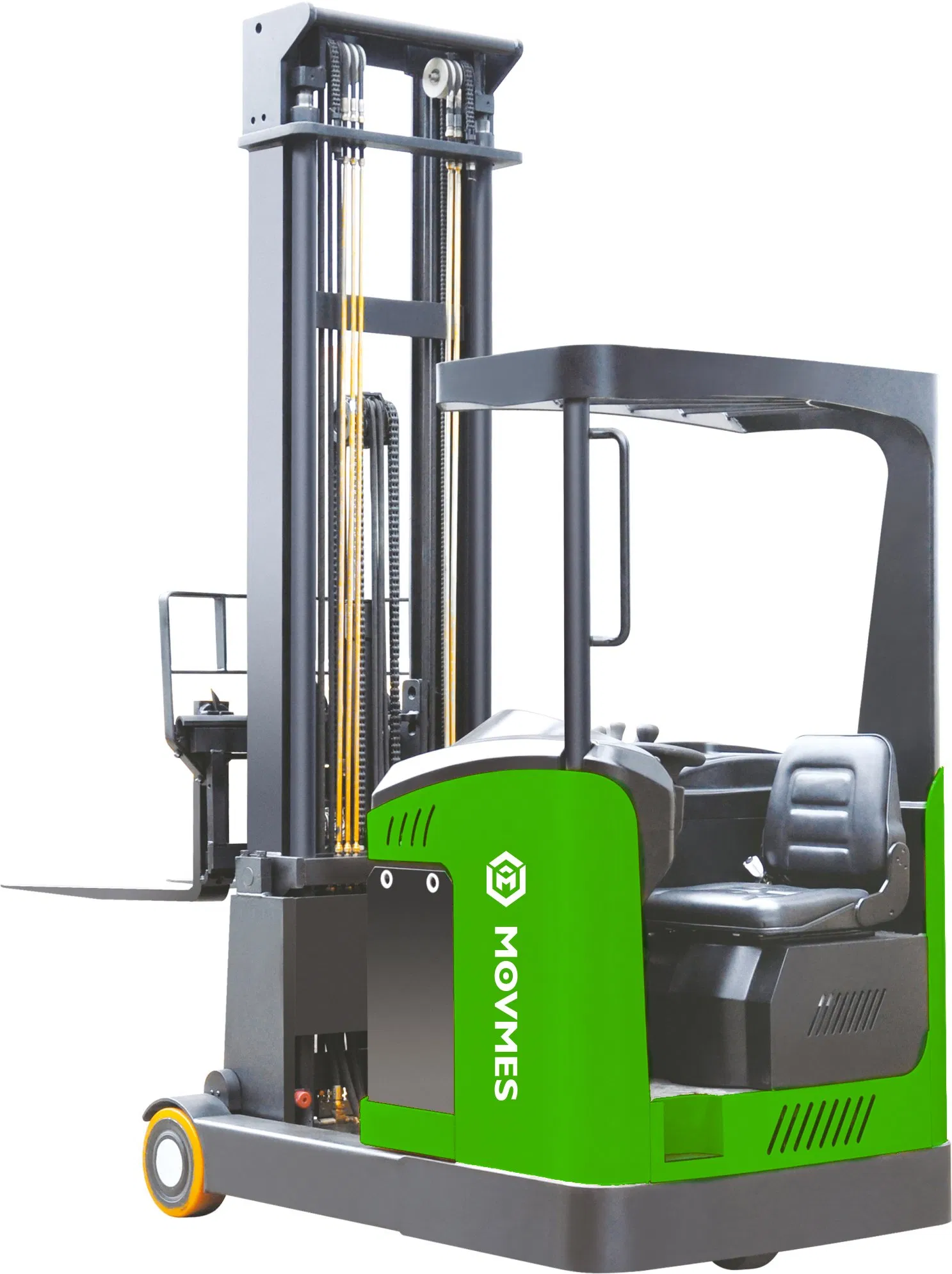

1.5t 1500kg Narrow Aisle Truck Electric Reach Truck

Basic Information

Model NO.CQD15

TypeReach Forklift

PowerAC Motor

Load Capacity1.5 Ton

FuelElectric

Lift Height3000-8000 mm

Turning Radius1780 mm

Battery48V/400Ah

Product Description

1.5T 1500KG Narrow Aisle Truck Electric Reach Truck. Designed for heavy-duty chassis requirements, offering extra-large compartments and unequalled visibility.

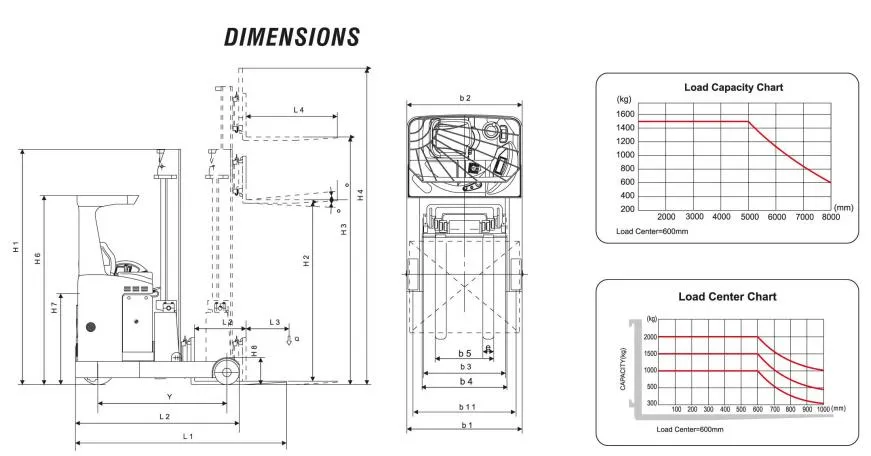

Technical Parameters

Model	CQD15
Capacity/rated load	1500 kg
Max.lift height	3000/5000/6200/7400/8000 mm
Load centre distance	600 mm
Drive wheel	Dia310x125 mm
Overall length	2370 mm
Overall width	1200 mm
Travel speed, laden/unladen	8/8.3 Km/H
Lift speed, laden/unladen	0.45/0.36 M/S
Service weight	2900-3300 Kg

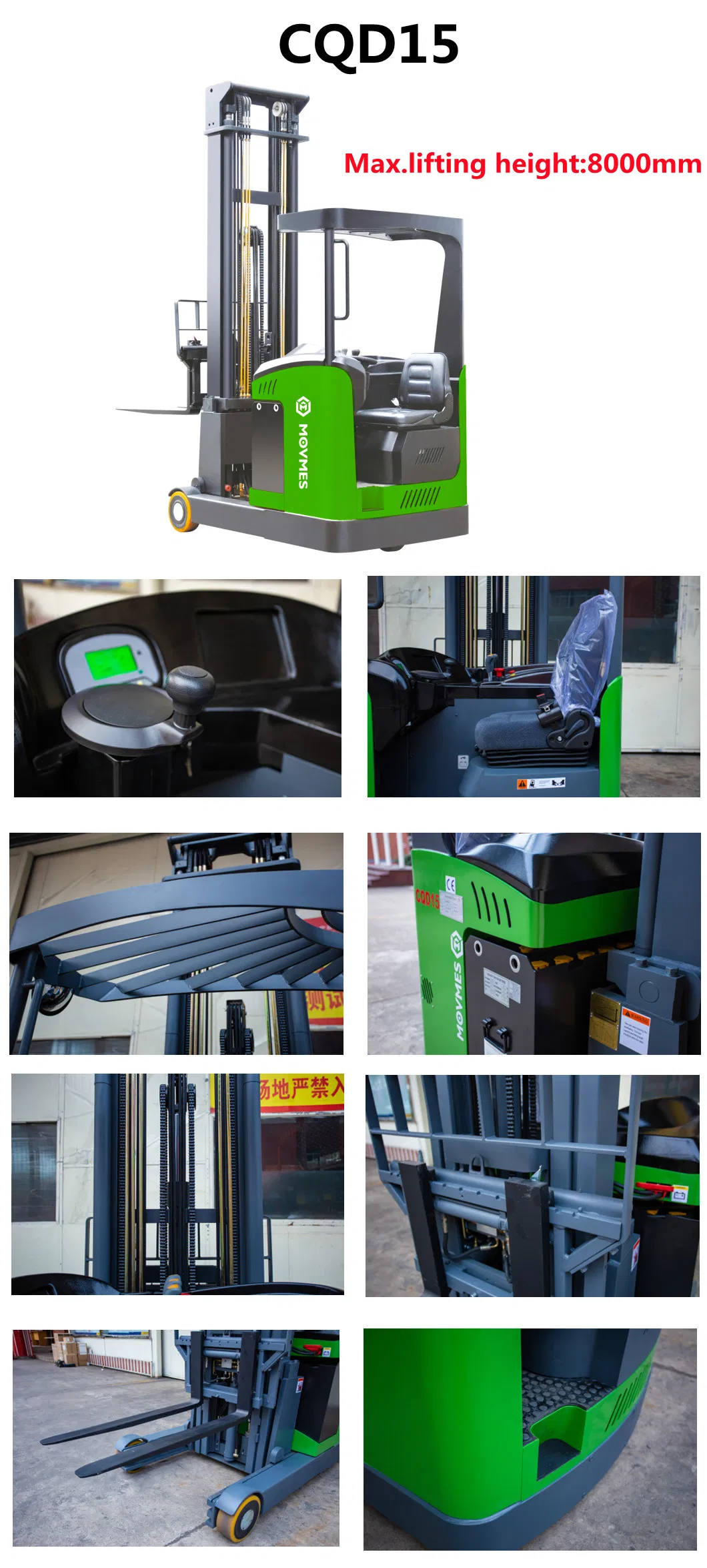

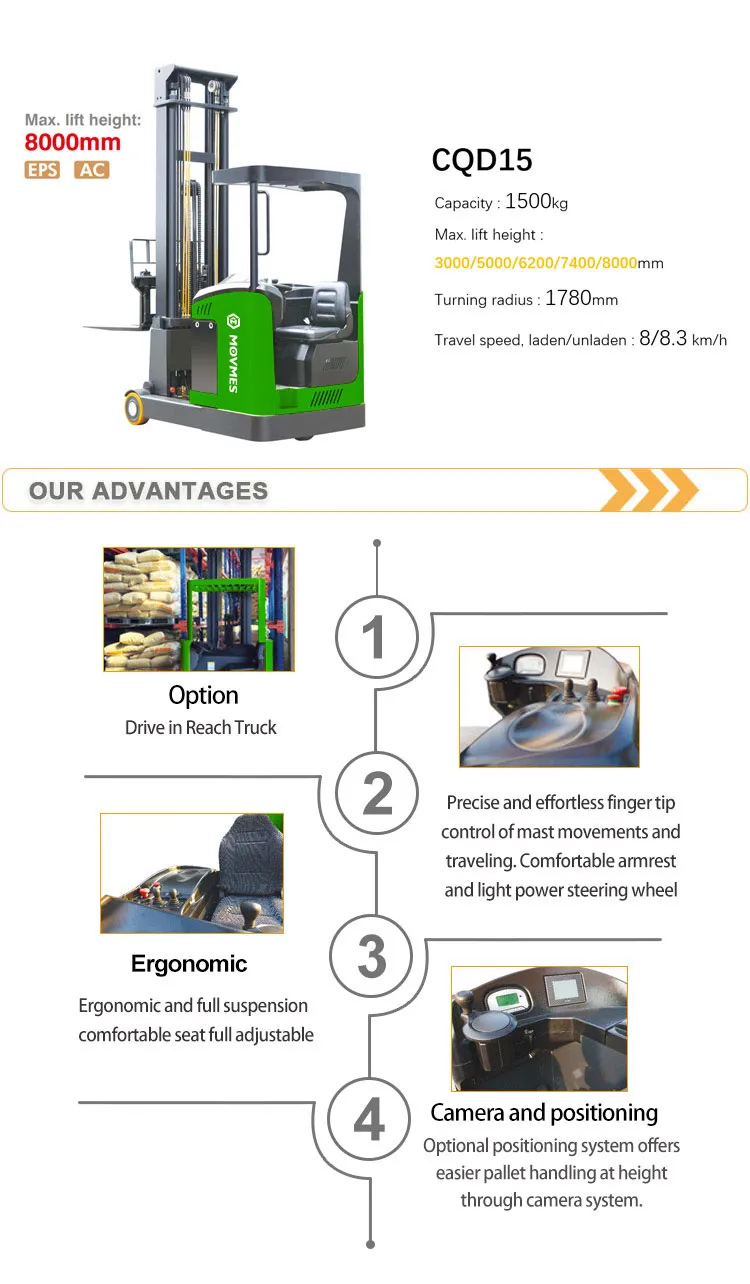

Design & Advantages

The professional design team focuses on reducing costs while improving work efficiency and safety. Compact cabin design is ideal for drive-in racking.

Standard Configuration

AC control system

Powering steering system (EPS)

Multi-function display (brake, speed, fault codes)

German ZF brand gear box

Traveling speed limited device for high lift

Electronic height limited device

Optional Features

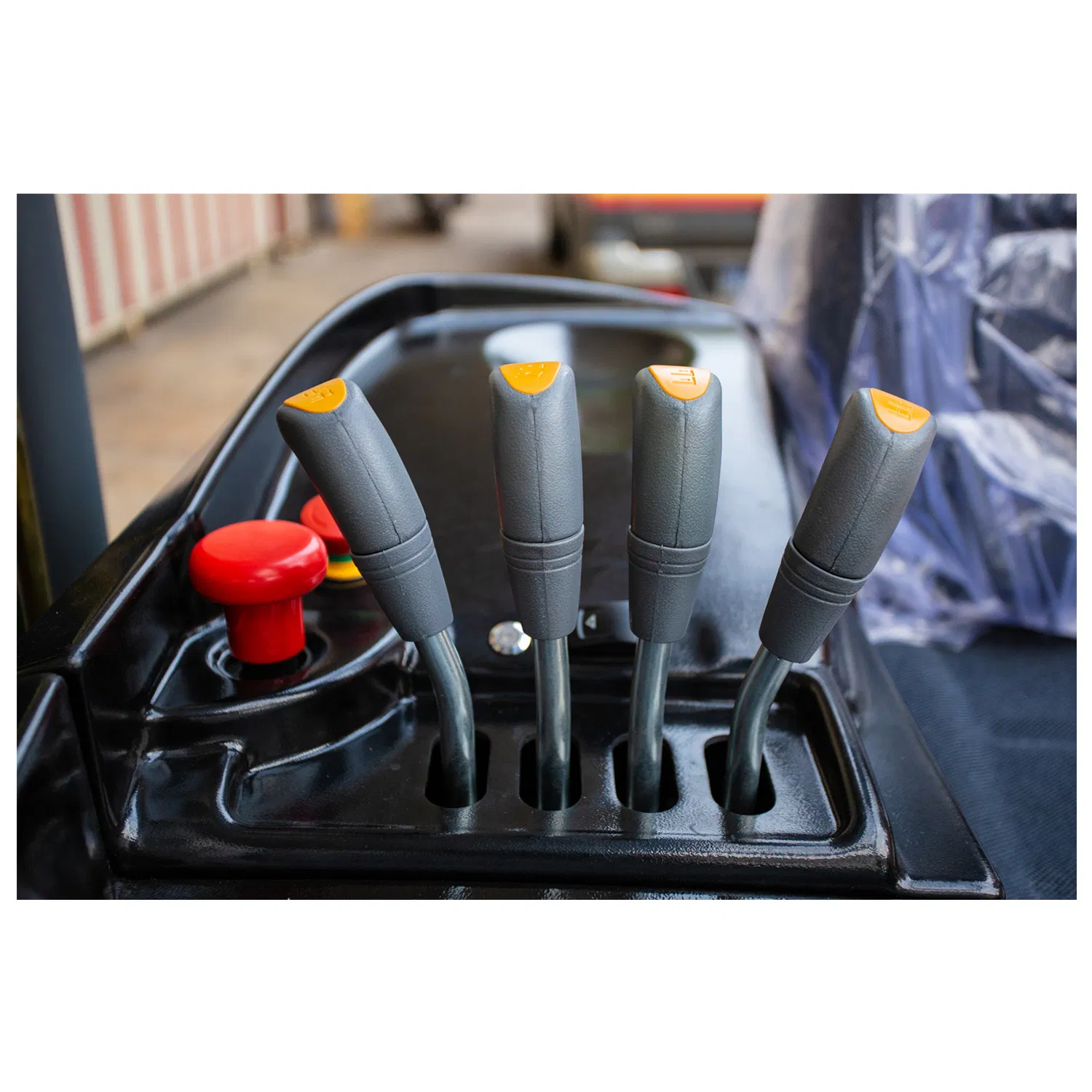

Electronic multi valve / Finger-tip control

Side shift

Height selection and position system

LCD display and camera

Side-way battery removal

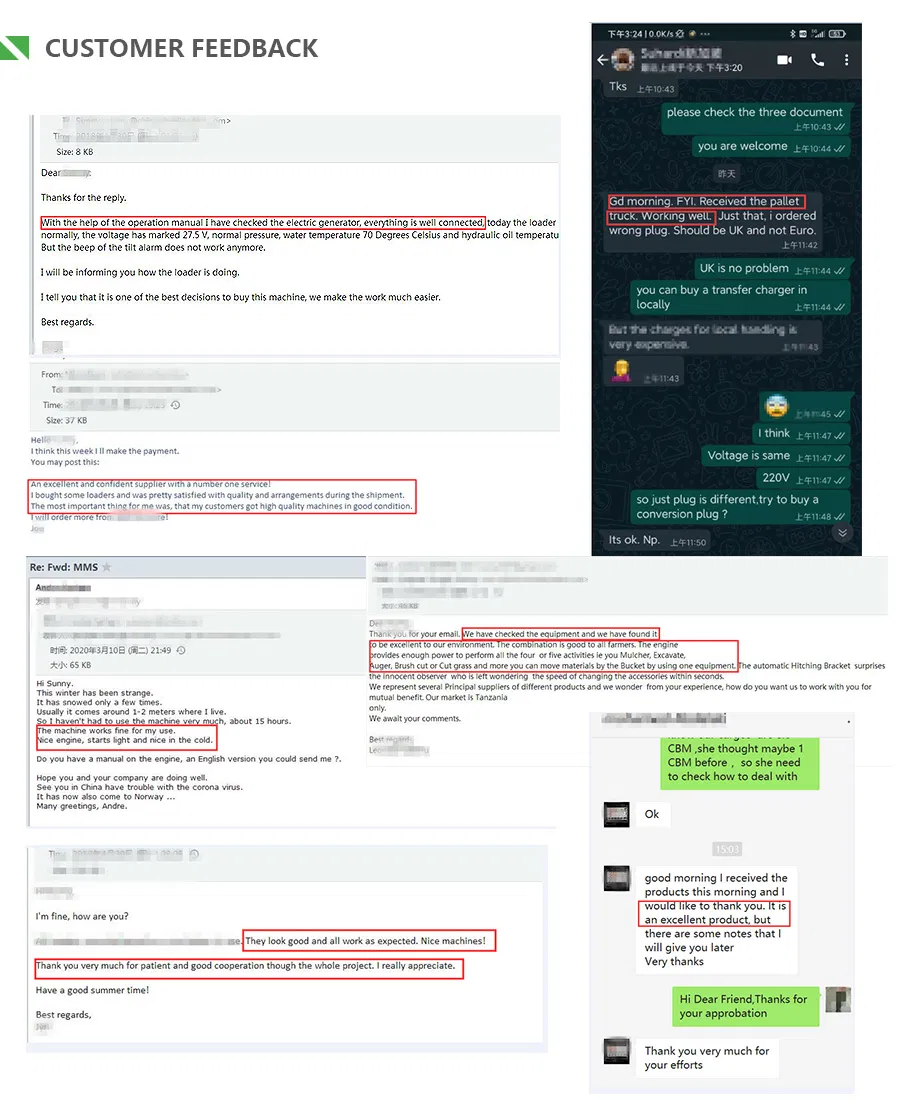

Hot Sales & Feedback

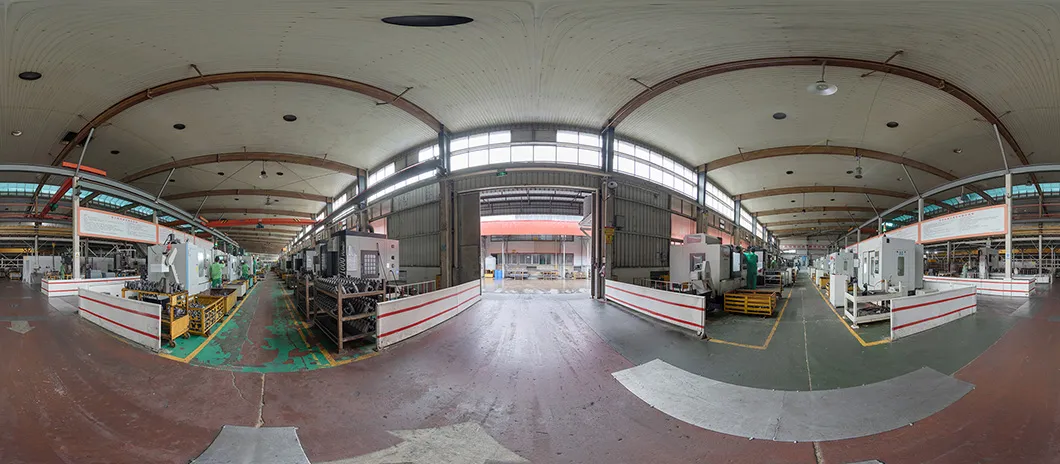

Manufacturing Excellence

Certifications: ISO9001:2008, ISO14001:2004, OHSAS18001:2007. Products meet TUV/GS/CE standards.

36 YearsExperience

150,000m²Factory Area

1,200Employees

157Countries Exported

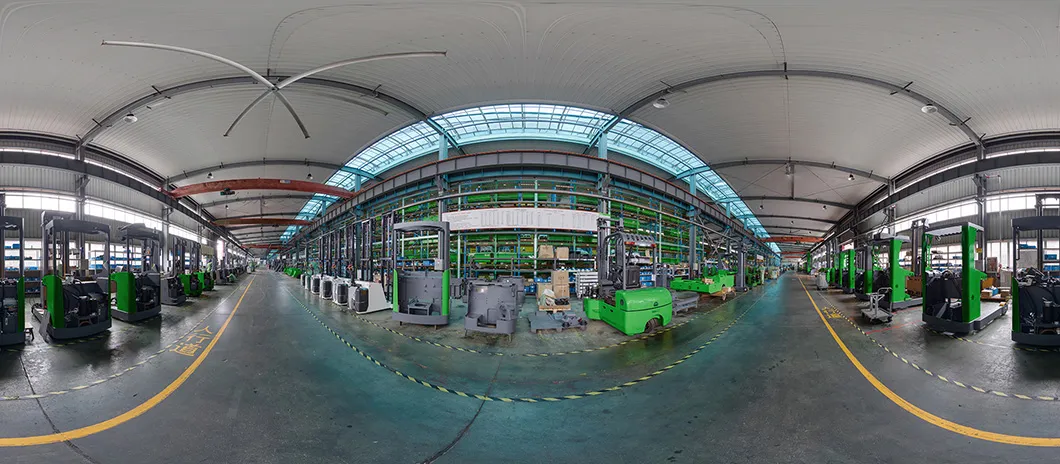

Testing & Delivery

5-Step Testing Procedure:

Strengthening test detection

Stability detection

Climbing performance and current detection

Braking performance debugging

Technical parameters verification

Frequently Asked Questions

Q1: What is the continuous working time and charging duration?

The continuous working time is approximately 3-6 hours depending on battery volume. Charging typically requires 3-6 hours.

Q2: What are the charger specifications and plug standards?

Chargers are available in 24V or 48V. Power plugs can be customized to USA, UK, Australia, or European standards.

Q3: Can you provide customized or OEM/ODM products?

Yes, there is extensive experience in producing customized warehouse logistics equipment, including reach trucks and forklifts, for global brands.

Q4: What is the warranty period for the reach truck?

We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.

Q5: What safety features are standard on the CQD15?

Standard safety features include a traveling speed limiter for high fork levels, an electronic height limit device, and a multi-function display for real-time fault monitoring.

Q6: How is the quality of the truck verified before delivery?

Every truck undergoes a comprehensive 5-step test including stability, climbing performance, braking systems, and technical parameter verification before shipment.
