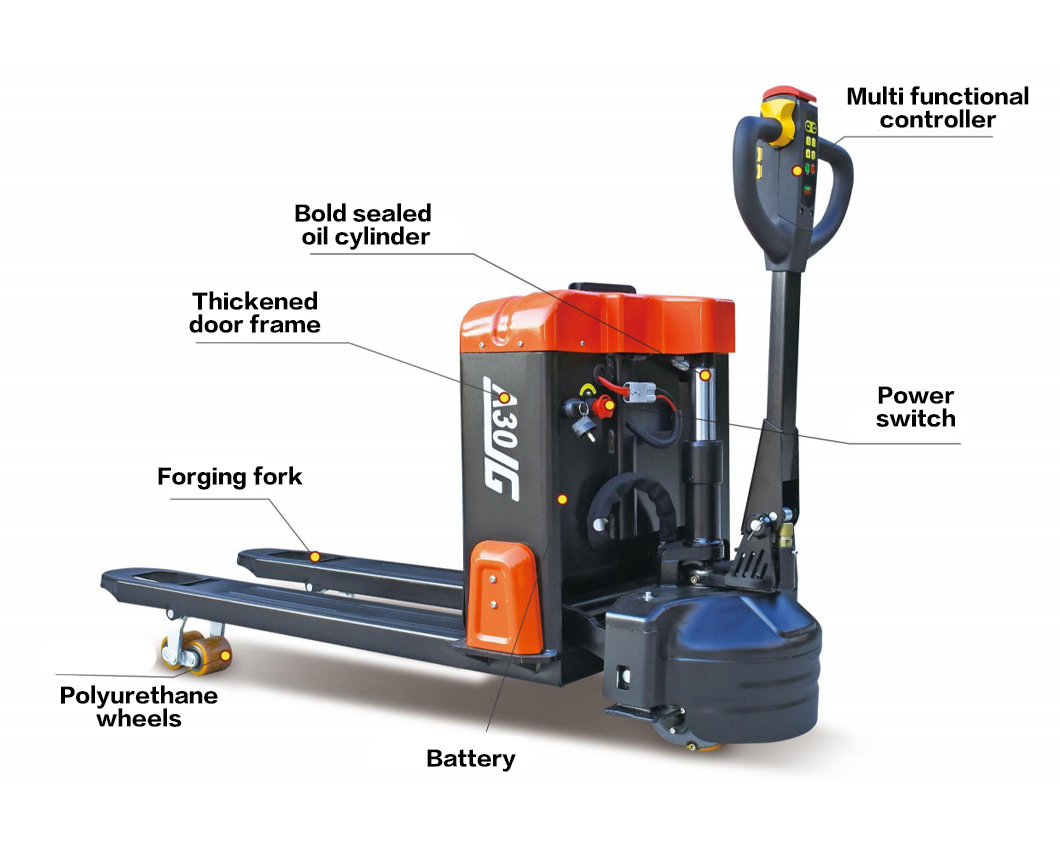

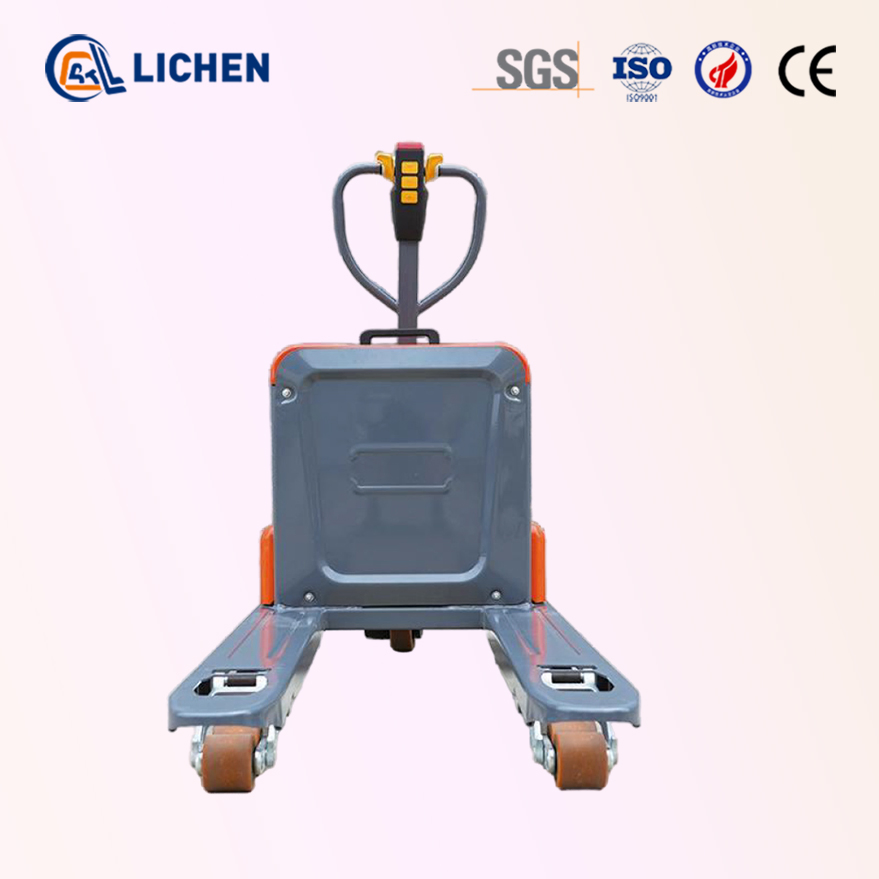

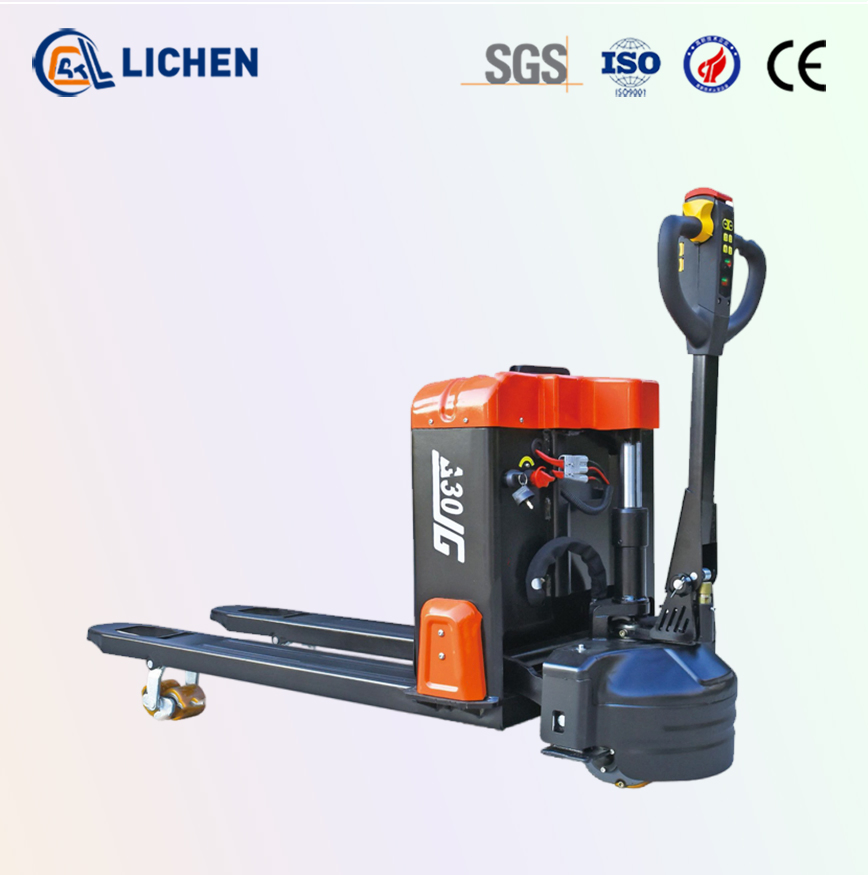

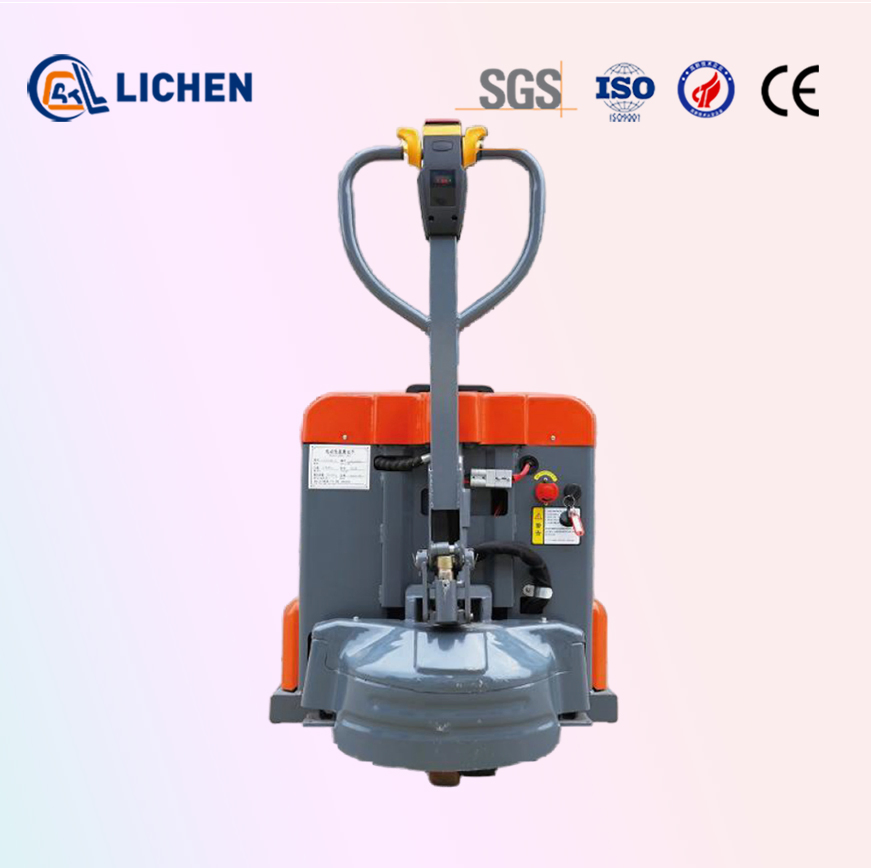

2026 Safe Electric Pallet Truck, Explosion-Proof Motor, Safety Protection, Hazardous Material Handling in Chemical Workshop

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Product Information
Model NO.
CTX20/30Q
Type
Powered Pallet Truck
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift height
200mm
Battery Type
Lead-Acid / Lithium Battery (Optional)
Fork Material
High-Strength Steel
Braking System
Electromagnetic Braking
Vehicle Size
1625*695*1280mm
Product Description
Electric Pallet Truck Banner

2/3T Walking Electric Pallet Truck: The Efficient Logistics Workhorse

This 2/3T walkie electric pallet truck is engineered to boost warehouse logistics efficiency, with a load capacity ranging from 2000 to 3000kg, suitable for diverse cargo transfer scenarios. Equipped with a high-quality drive motor, it delivers robust power while consuming less energy, ensuring extended runtime for all-day operations and eliminating the hassle and fatigue of manual handling.

Ergonomic design permeates the entire vehicle. Walk-behind operation offers flexibility and convenience, with a compact turning radius enabling effortless navigation through narrow aisles and significantly improving space utilization. The forks, constructed from high-strength steel, are robust and durable, ensuring stable load-bearing. Combined with a precise lifting control system, they provide smooth lifting and lowering, effectively safeguarding cargo integrity.

Technical Specifications
Overall Dimensions1625*695*1280mm Wheel TypePolyurethane
Rated Load Capacity2000/3000KG Battery Voltage48V 20/32Ah
Load Center Distance600mm Self-weight175kg
Lifting Height200mm (Customizable) Walking Motor48V 0.8Kw
Outer Fork Spacing550/685mm Oil Pump Motor48V 0.8Kw
Turning Radius1350mm Noise Level≤ 70dB(A)
Climbing Angle10° Drive Wheel Size∅170*52mm
Specification Diagram
Certifications & Quality
Product Certifications
Packaging & Shipping
Package Size
162.00cm * 69.00cm * 120.00cm
Gross Weight
178.000kg
Packaging Logistics
After Sales Service

Comprehensive Support System

We provide a 1-year warranty for each vehicle. During this period, if any parts fail due to quality issues, new parts will be dispatched free of charge within 5 working days. Our professional after-sales department is available at all times to ensure your operations remain uninterrupted.

After Sales Support
Frequently Asked Questions
What is the quality control process for your electric pallet trucks?
We maintain strict quality control throughout the entire production cycle. Every product undergoes comprehensive inspection before packaging and shipment to ensure it is free of any defects.
What are the standard payment terms?
Normally, we accept a 30% deposit by TT for production, with the 70% balance required by TT before shipping.
Can the products be customized to specific requirements?
Absolutely. We can customize configurations to your specifications, including color, logo, tire size, motor model, and other core components.
What is the typical delivery lead time?
Lead times vary by quantity: 3 days for 1 unit, 7 days for 2-10 units, and approximately 15 days for orders up to 50 units.
Can I request samples for market testing?
Yes, we offer sample orders to enable you to conduct quality inspections and market testing before committing to larger orders.
What support is available if a part needs replacement?
Under our 1-year warranty, quality-related part failures are covered. Replacement parts are sent free of charge within 5 working days, supported by our technical team.
