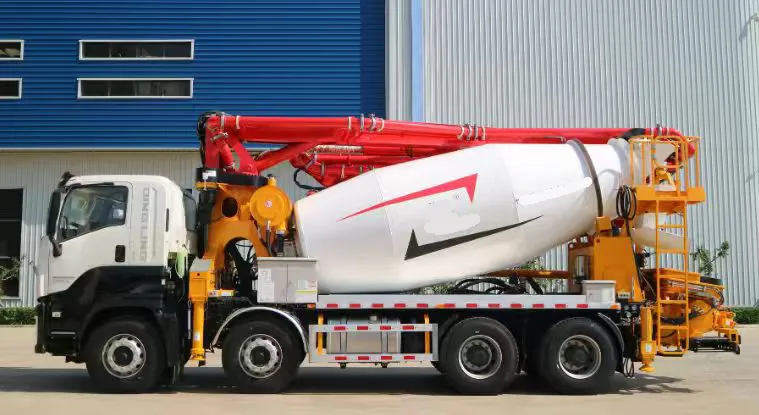

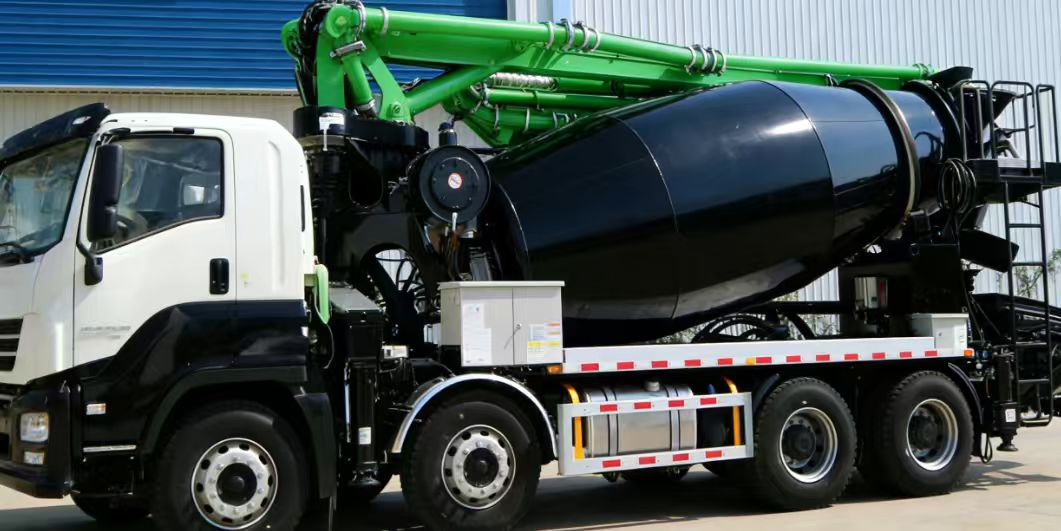

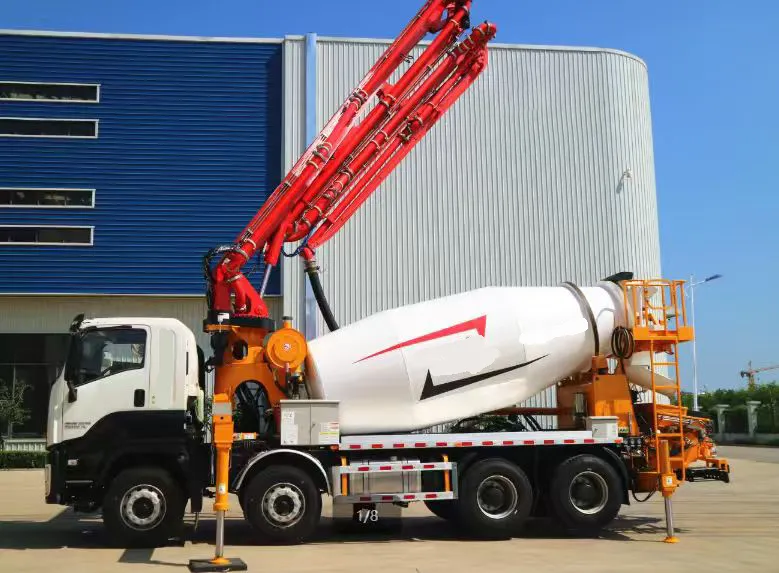

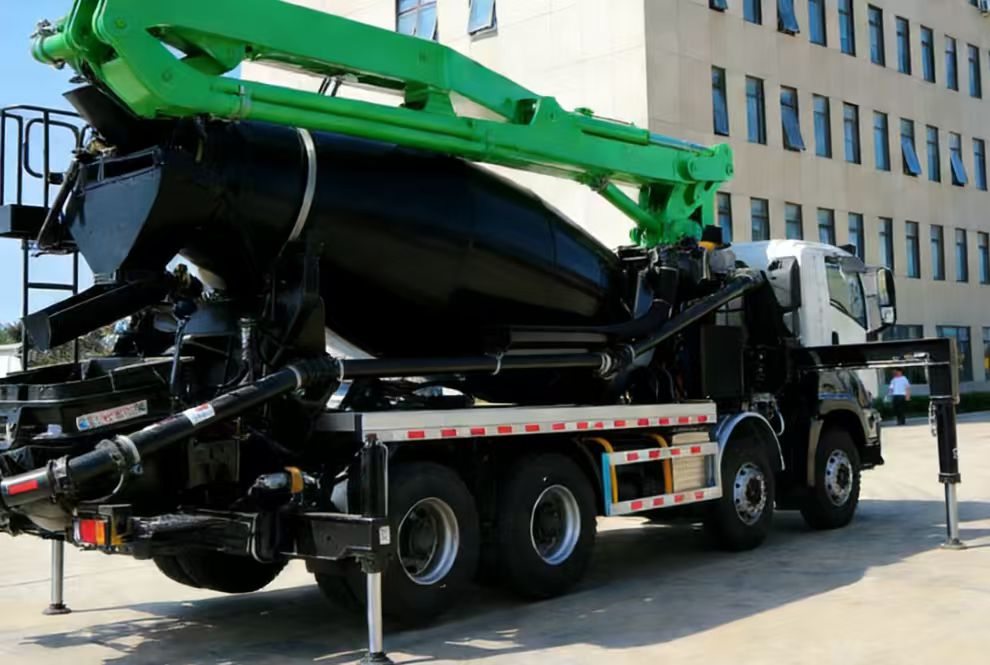

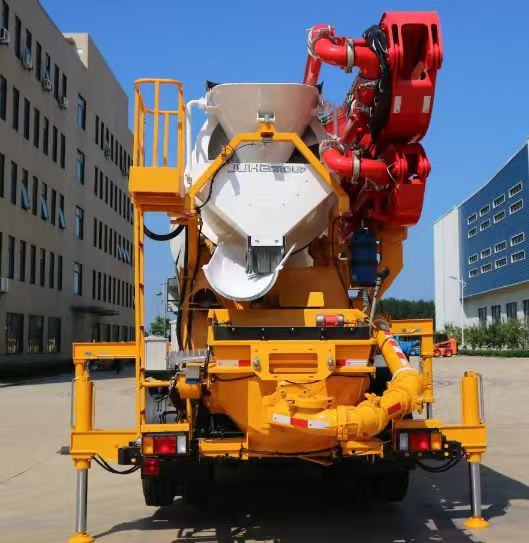

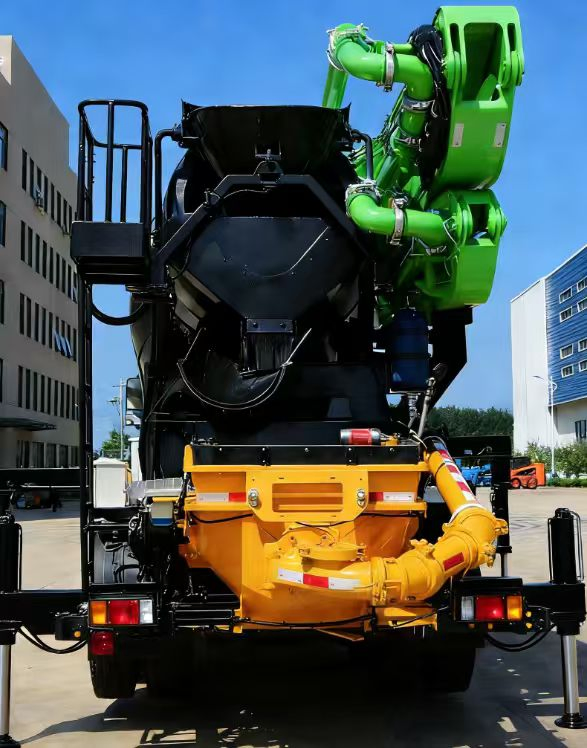

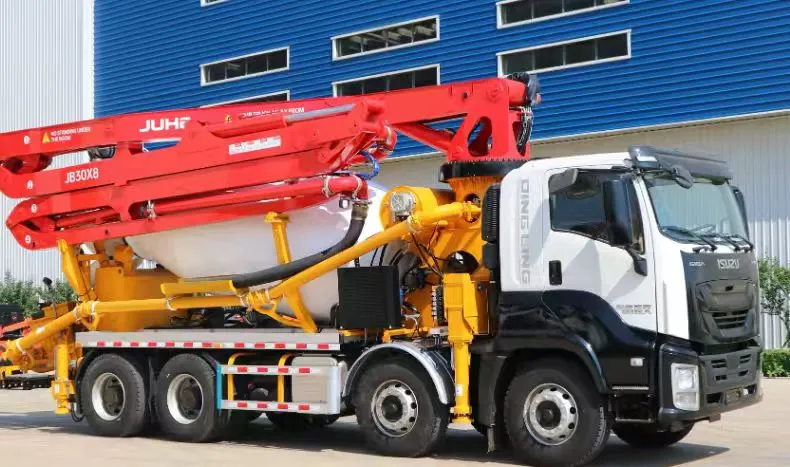

The pump mixer is equipped with a suspension rod featuring a fully Z-shaped opening system. The design of the boom makes the machine highly user-friendly without compromising convenience or increasing operational weight.
A pump cylinder with a diameter of 200 mm is capable of achieving a pumping pressure of up to 75 bar. This allows the machine to handle various types of concrete at a flow rate of up to 60 cubic meters per hour. The Rexroth hydraulic pump is driven by a switchable PTO transmission and supported by an accumulator.
The mixing drum has a geometric volume of 8 cubic meters, providing ample loading capacity. The drum is powered by the engine PTO and can be remotely operated automatically via the cab, control box, or in combination with the pump device.

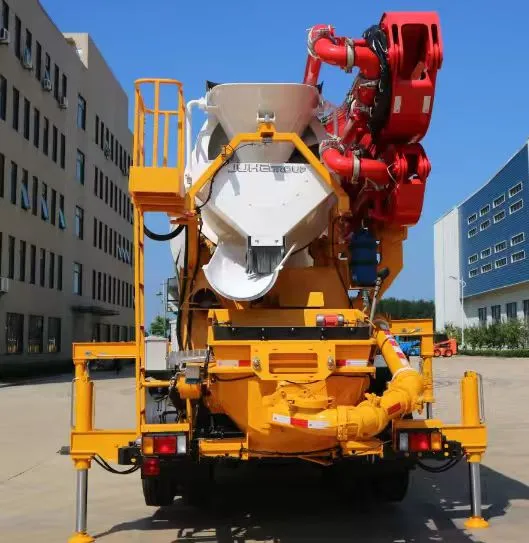

The boom is controlled using a wireless remote control, with all information centralized in a CAN controller. The CAN controller communicates directly with the truck to optimize performance. The front support legs, which extend horizontally, are equipped with roller bearings to ensure the stability of the machine.
| Boom System Parameters | Specifications | |
|---|---|---|
| 1 | Maximum vertical height of boom (M) | 29.6 |
| 2 | Horizontal distribution radius (M) | 25.4 |
| 3 | Depth of distribution (M) | 17.7 |
| 4 | Opening height of boom (M) | 6.7 |
| 5 | Folding type of boom | M type |
| 6 | Rotating angle of turret | 470° |
| 7 | Span distance (Front/Rear) | 4450 / 3400 mm |
| 8 | Diameter of delivery pipe | 125 mm |
| Pumping & Mixing System | Value | |
| 1 | Concrete outlet pressure (Mpa) | 8 |
| 2 | Delivery cylinder (Dia/Stroke) | 200 / 1000 mm |
| 3 | Hopper capacity (M³) | 0.8 |
| 4 | Slump of pumped concrete | 160-240 |
| 5 | Rated Mixing Capacity (M³) | 8.0 |
| 6 | Mixing Drum Rotation Speed | 0-14 r/min |
| 7 | Water Tank Capacity (L) | 500 |
