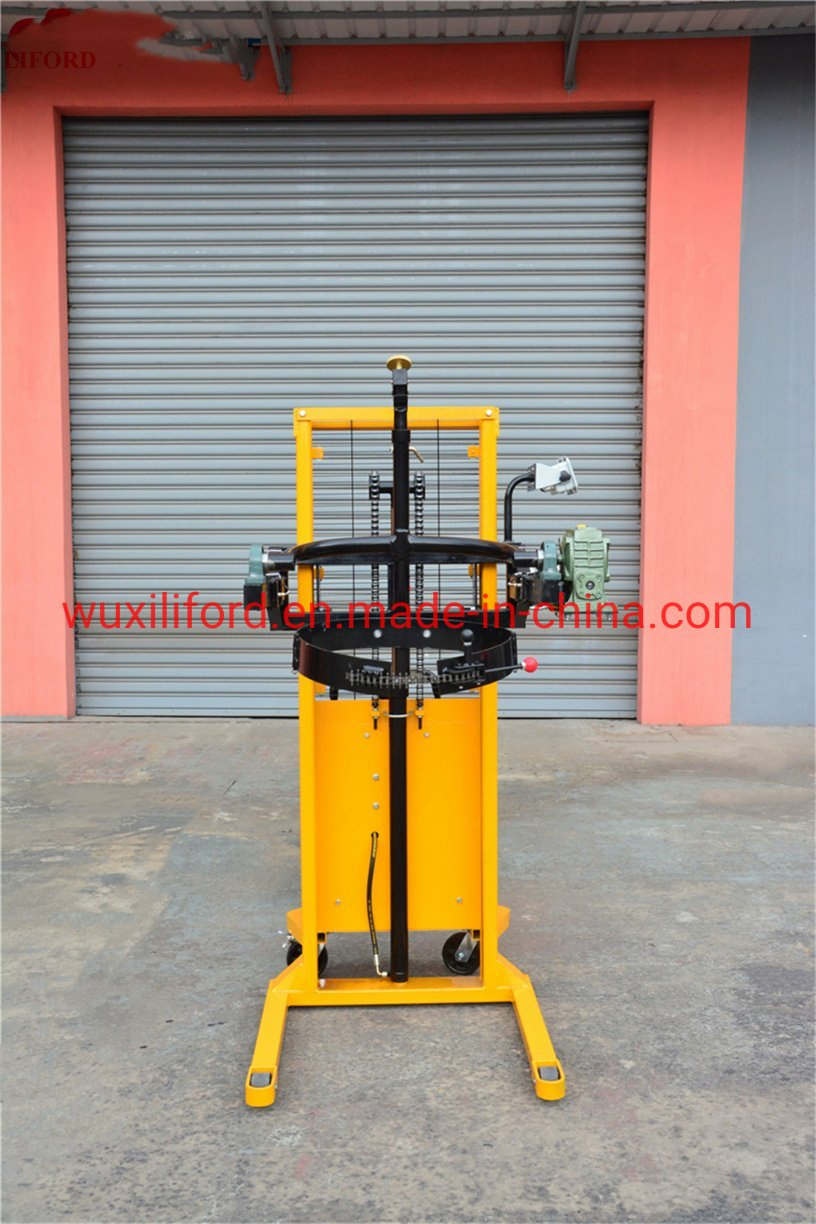

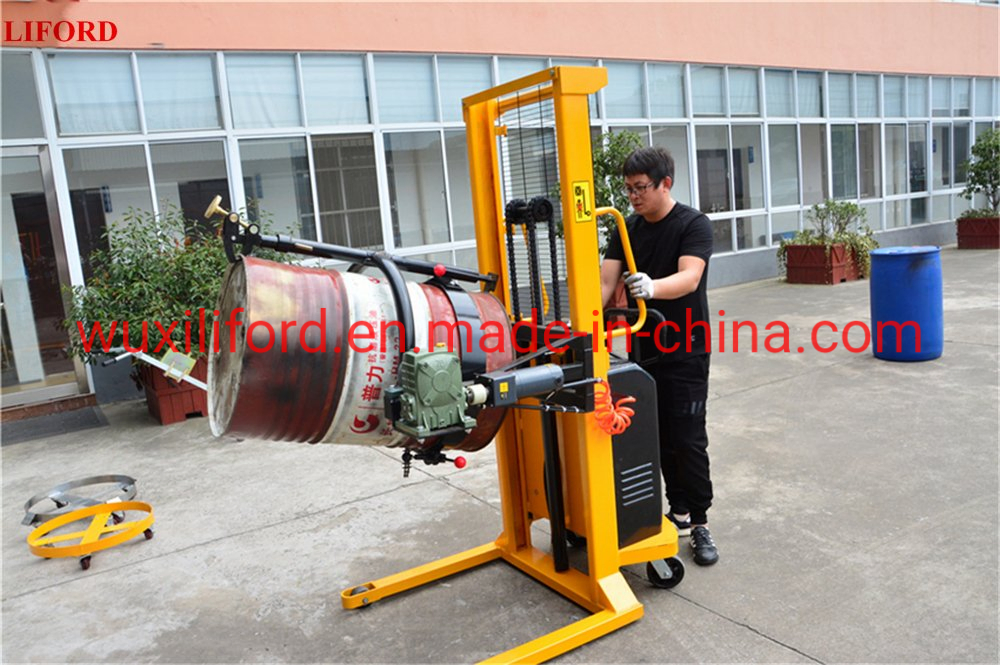

520kg DC Drum Lifter Rotator with Powered Lift and Rotation

Basic Specifications

Model NO.	YL520-1, YL520
Pump Unit Power	1.6kw/H
Front Leg Width (Inner/Outer)	640/800mm
Turning Radius	1620mm
Certificates	ISO9001:2015, ISO14001:2015
Type	Semi-Electric
Capacity	520kg
Lifting Height	1580mm
Lifting Speed	120mm/S
HS Code	84279000

Product Overview

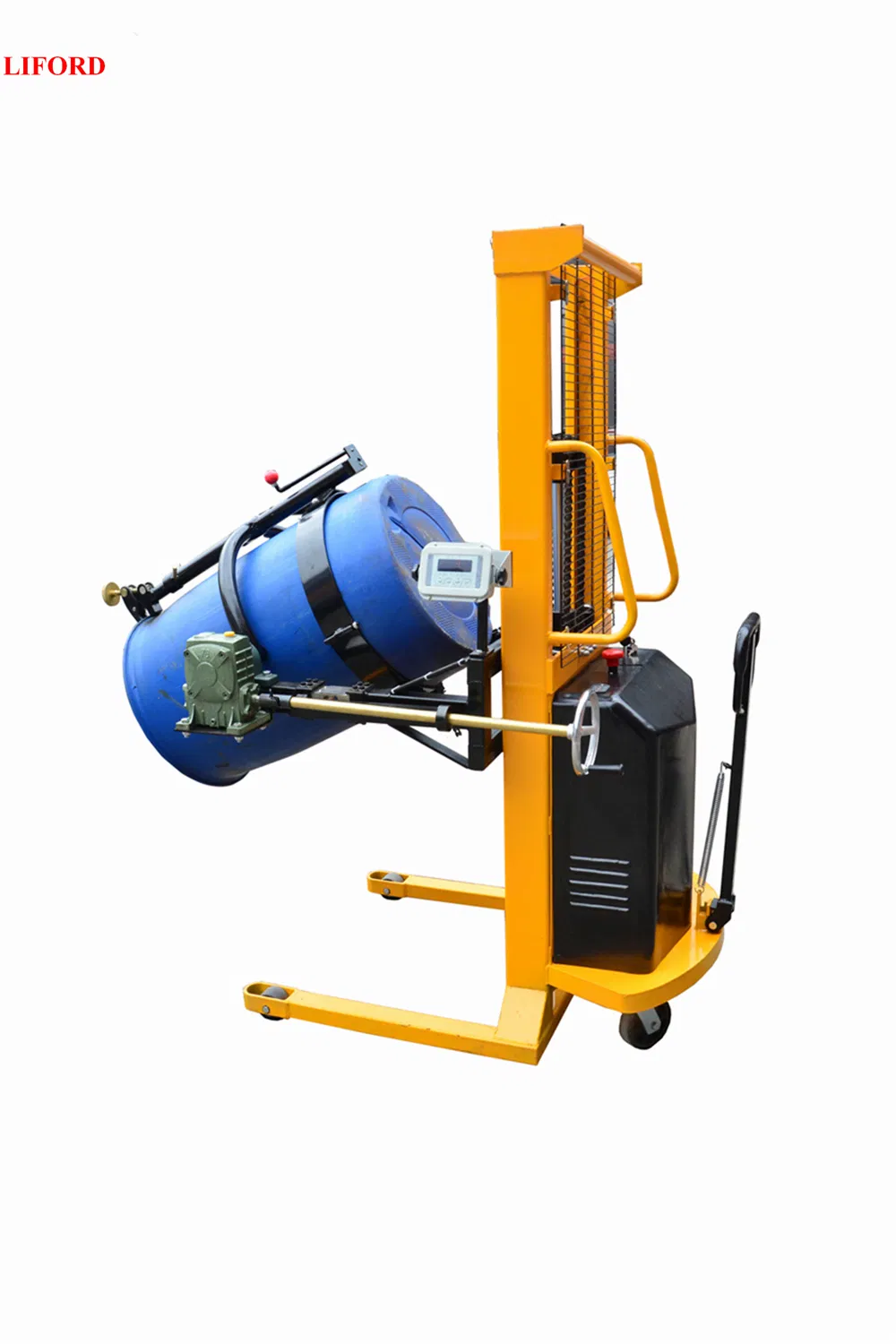

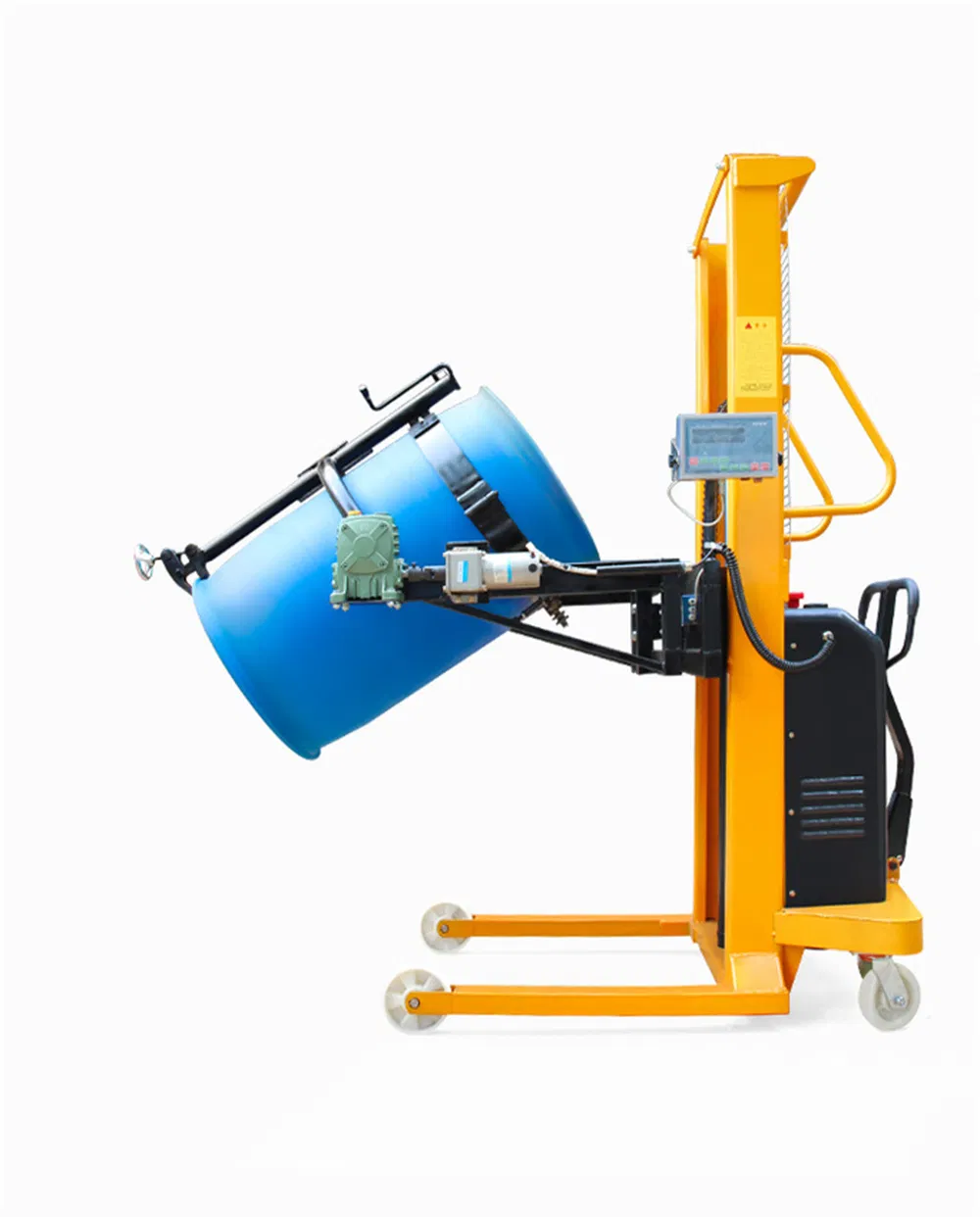

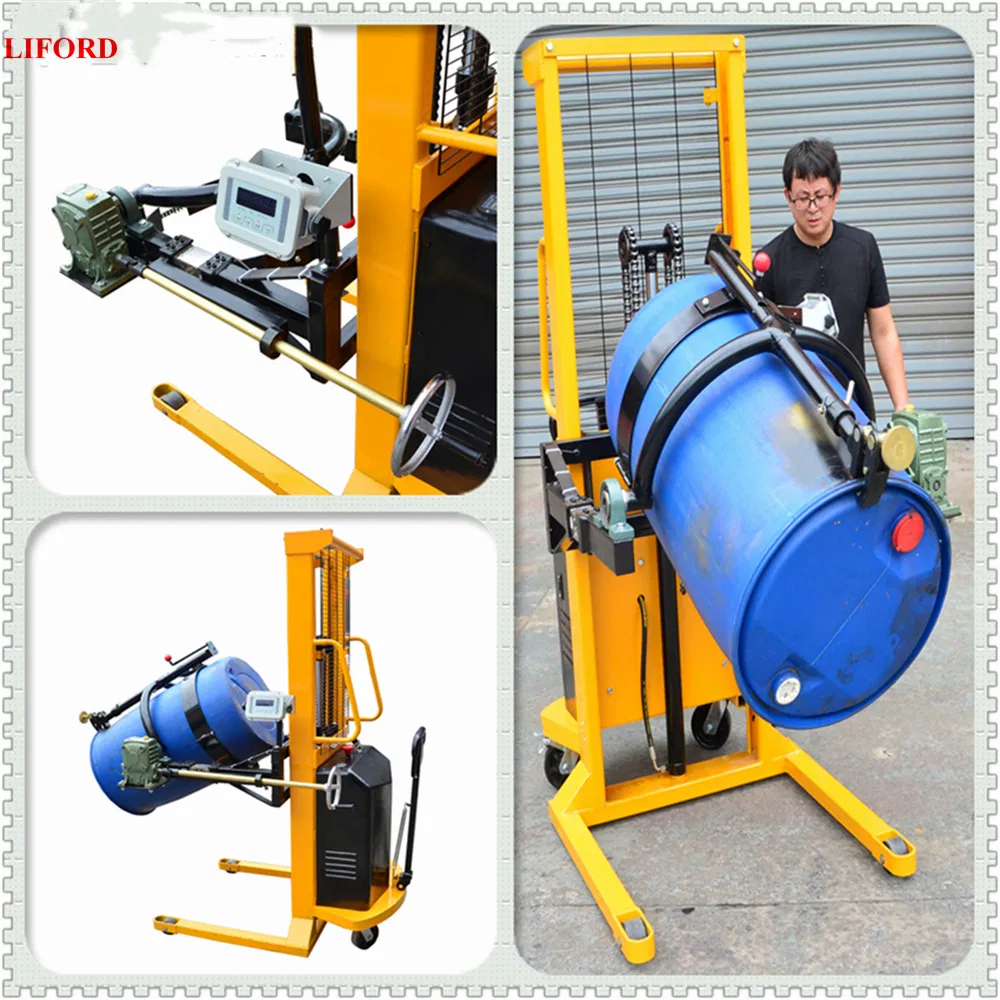

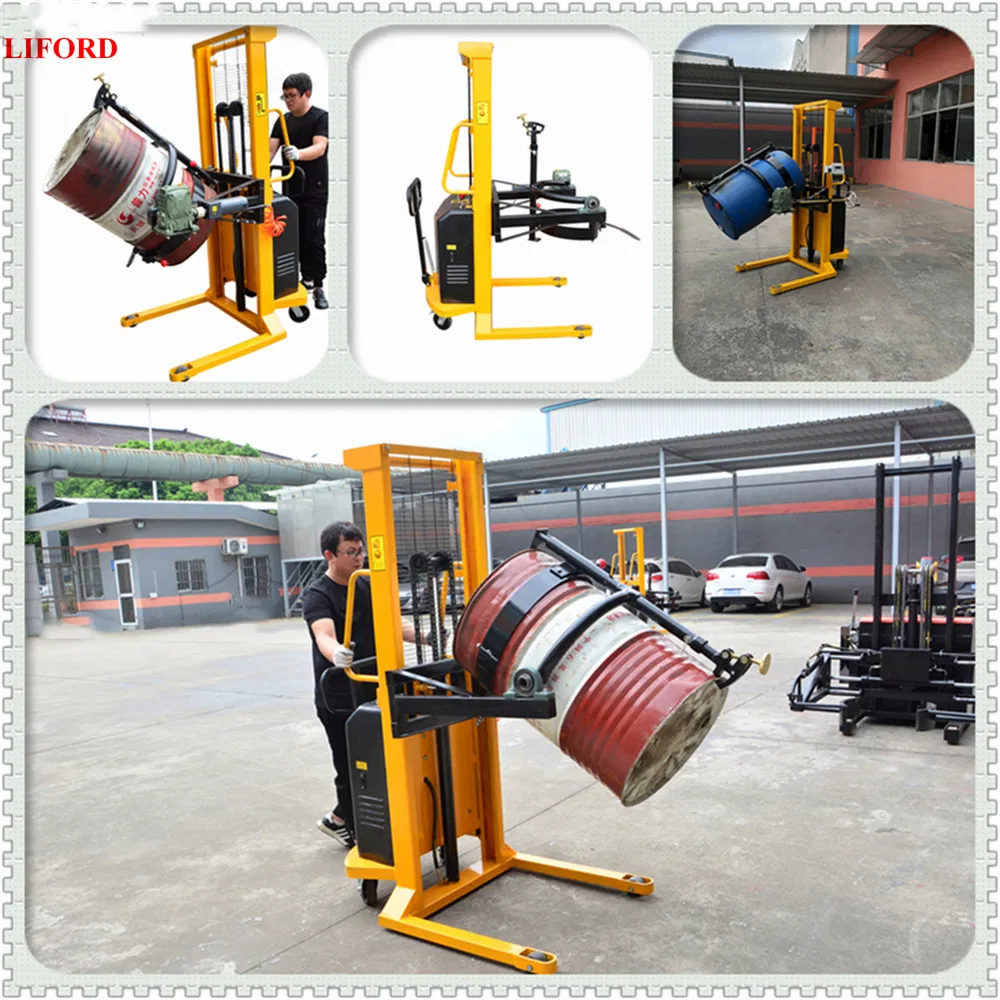

This Multi-function Electric Drum Dumper is designed for lifting, transporting, stacking, and controlled pouring of drums. It securely handles 520kg steel and plastic drums, allowing precise 180-degree rotation from vertical to horizontal for efficient discharge operations.

Key Features

★ High quality hydraulic power unit and maintenance-free battery.

★ Special rolling technology C-type frame for enhanced security.

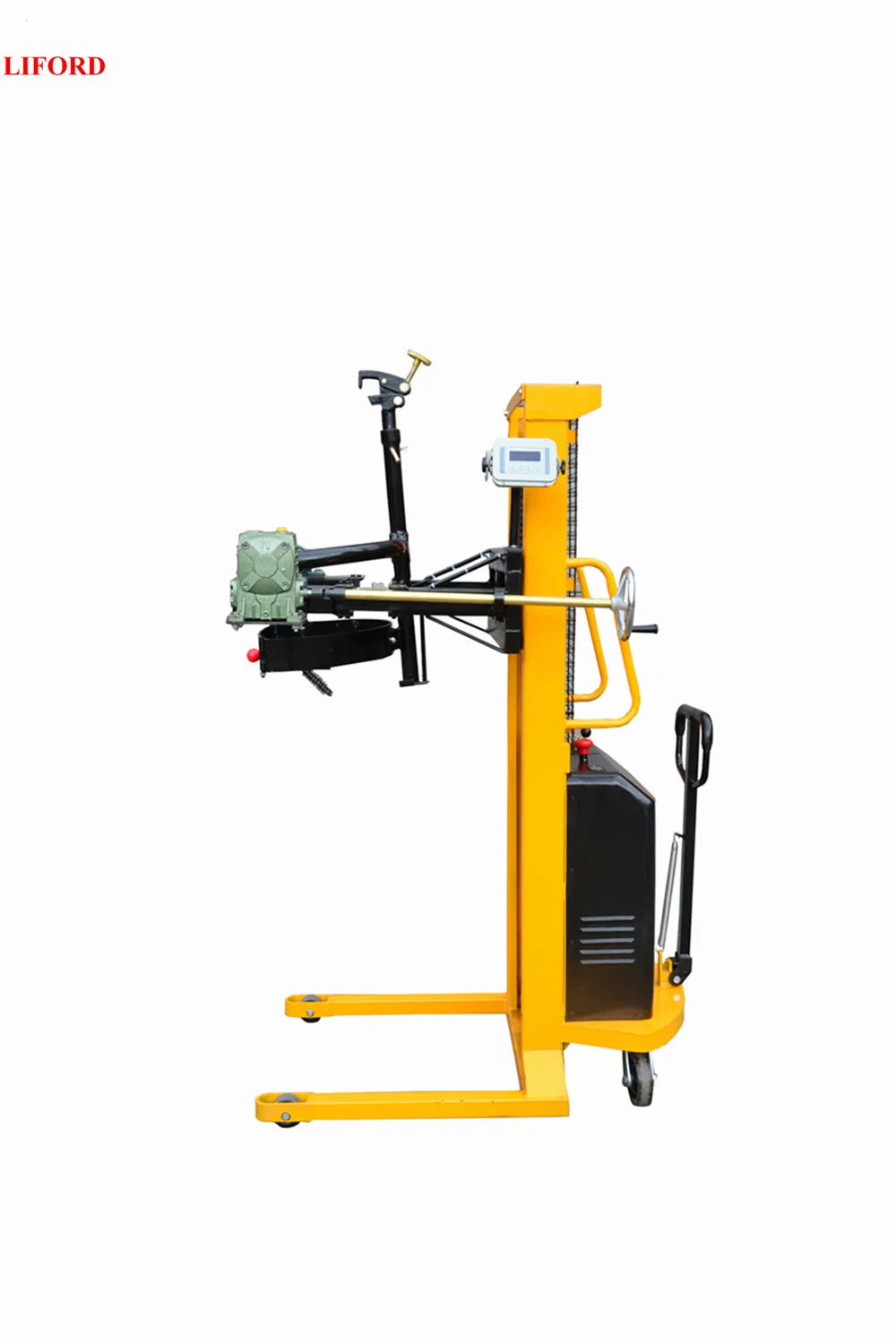

★ Combined Eagle-grip and Anchor-ear structure compatible with steel and plastic drums.

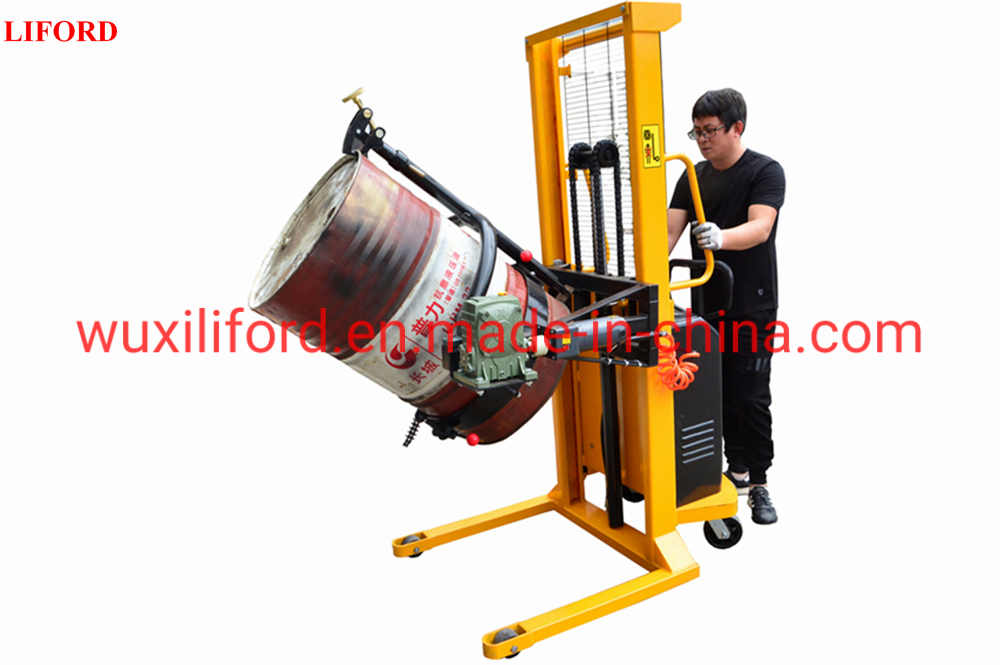

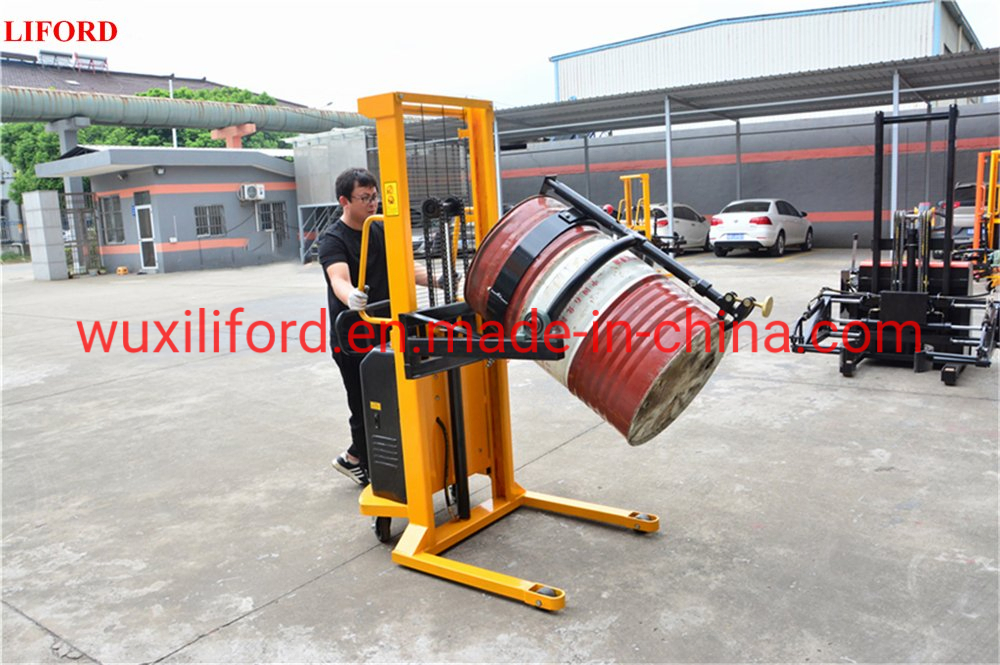

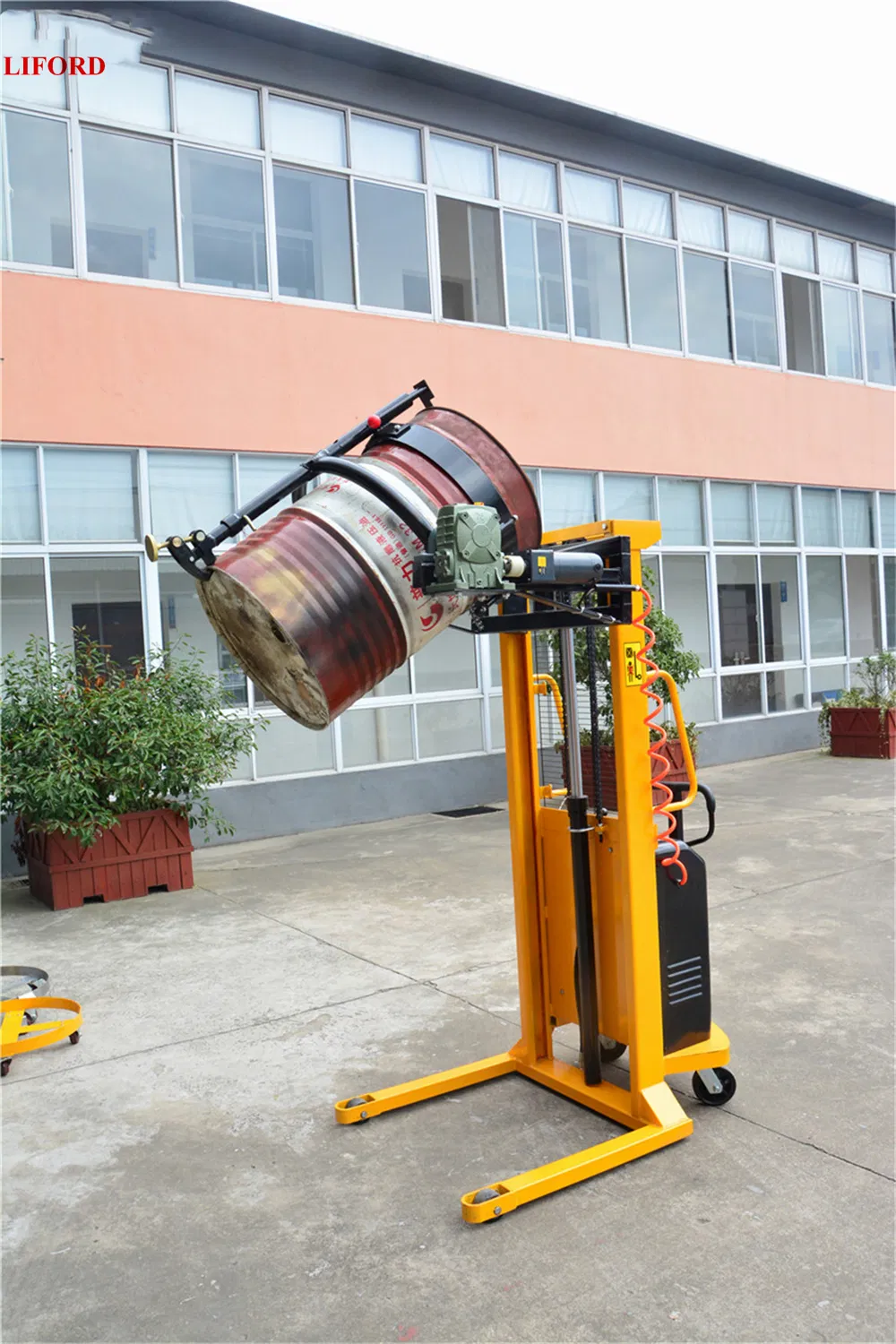

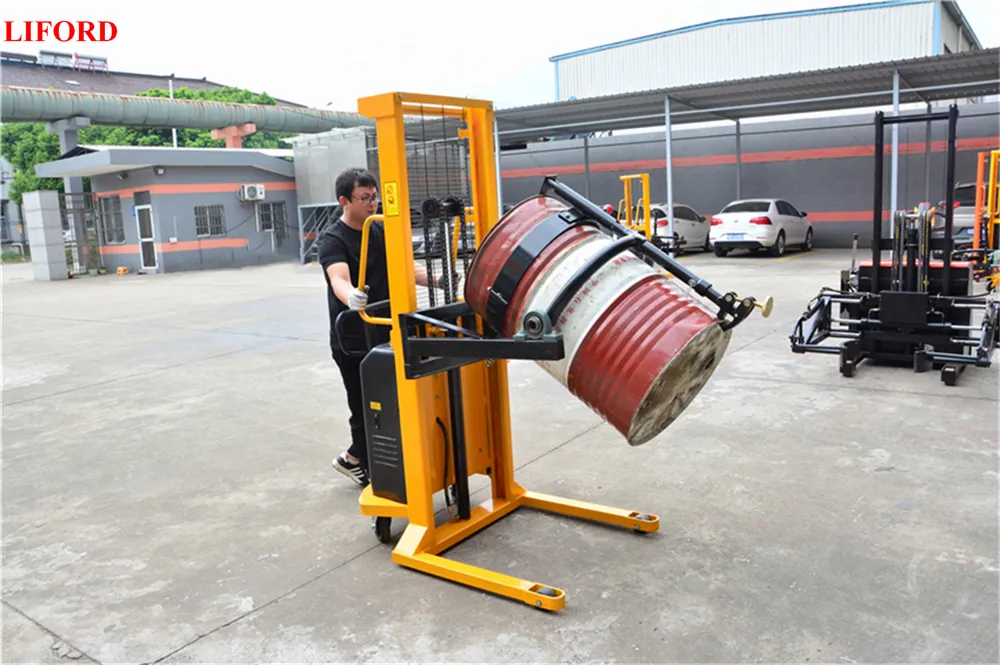

★ Electric 180° rotation for ergonomic pouring and dumping.

★ Maximum lifting height reaches 1580mm.

★ Exclusive auto grip lock prevents drum drops.

★ Step-down foot floor locks for operator safety.

Technical Data

Specification Item	Unit	Value (YL520)
Load Capacity	kg	520
Net Weight	kg	273
Wheel Dimension (Front/Rear)	mm	Ø8055 / Ø15050
Inner/Outer Width of Front Leg	mm	640/800
Outline Dimension	mm	14009802080
Turning Radius	mm	1620
Pump Unit Power	KW/h	1.6
Battery Parameter	Ah/V	120/12
Lifting Height	mm	1580
Lifting Speed	mm/s	120

Industrial Applications

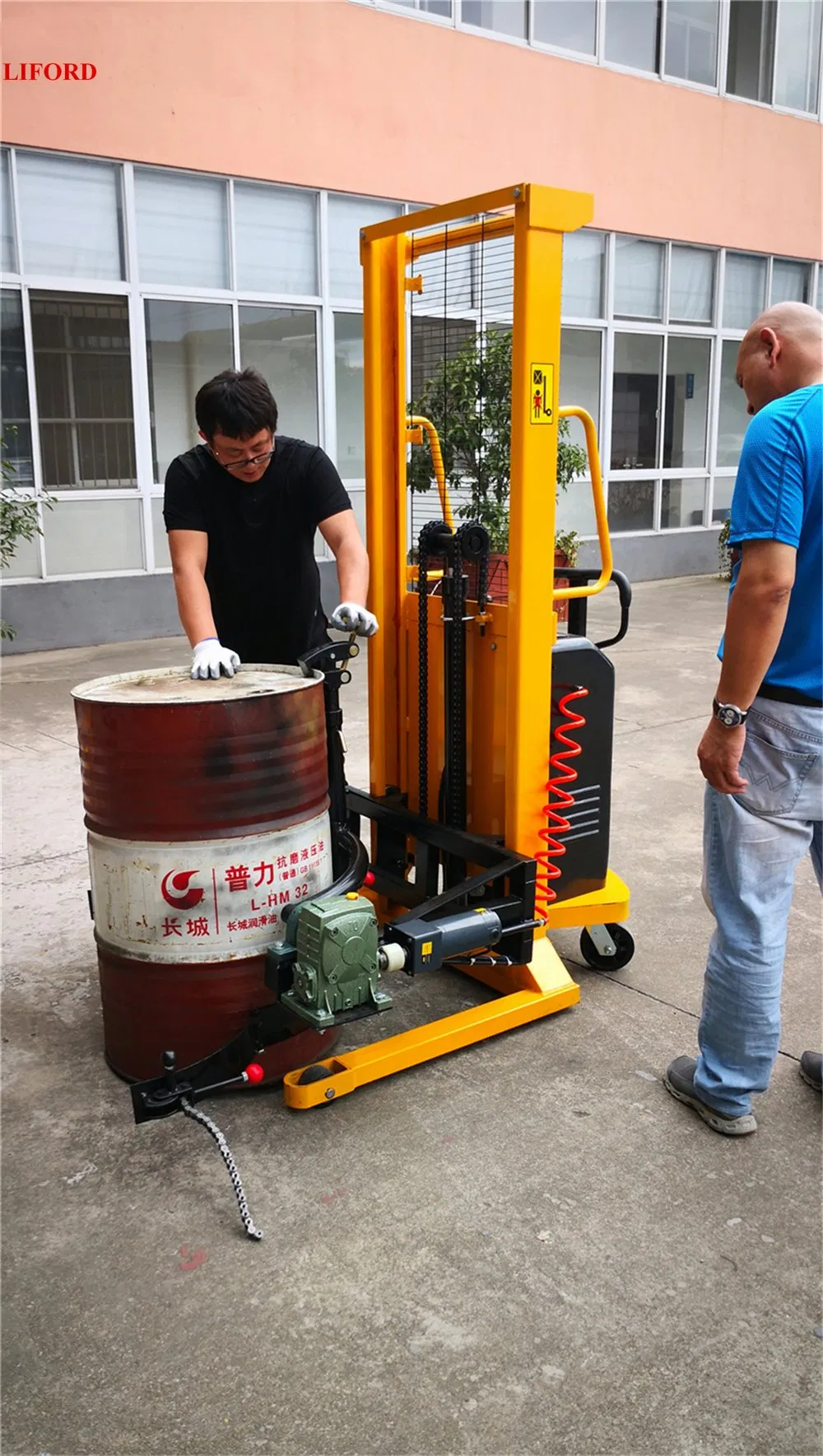

This equipment is widely used in chemical plants and food processing facilities. It is the ultimate solution for handling 55-gallon steel and 200L plastic drums containing dyes, paints, adhesives, petrol, and edible oils.

Why Choose This Solution?

✔ Over 10 years of professional experience in material handling.

✔ Fast production and on-time delivery.

✔ OEM/ODM services available for non-standard parts.

✔ 100% inspection before shipment.

✔ Robust packing for air and sea delivery (pallets/strong cartons).

Frequently Asked Questions

Q1: What is the maximum load capacity of the YL520? A1: The YL520 model has a maximum load capacity of 520kg, suitable for most industrial 55-gallon steel and plastic drums.

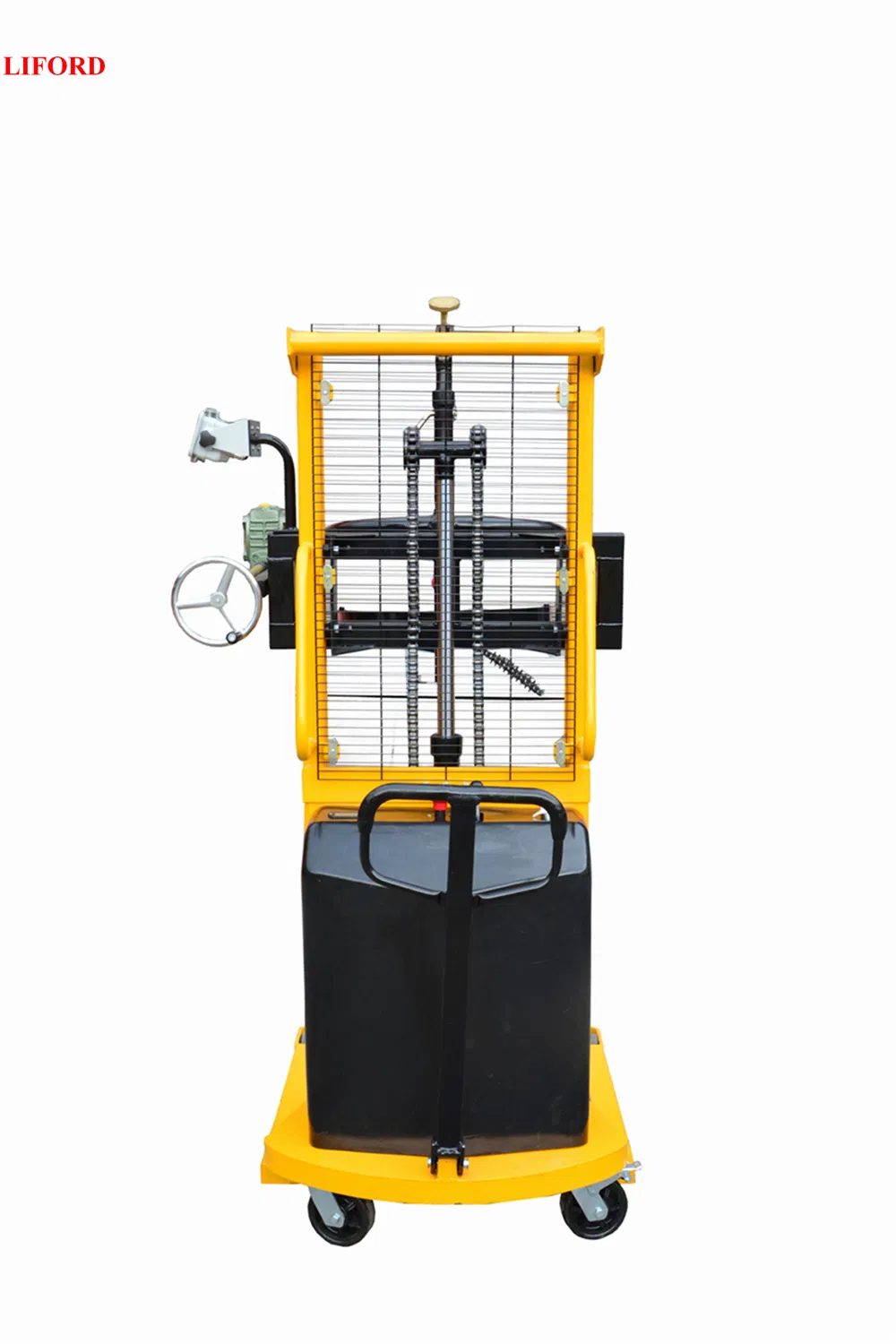

Q2: Can this drum lifter rotate the drum electrically? A2: Yes, it features powered rotation up to 180 degrees, allowing for precise and ergonomic pouring and dumping operations.

Q3: Is the equipment compatible with both plastic and steel drums? A3: Absolutely. It uses a combined Eagle-grip and Anchor-ear structure specifically designed to handle both steel and 200L plastic drums securely.

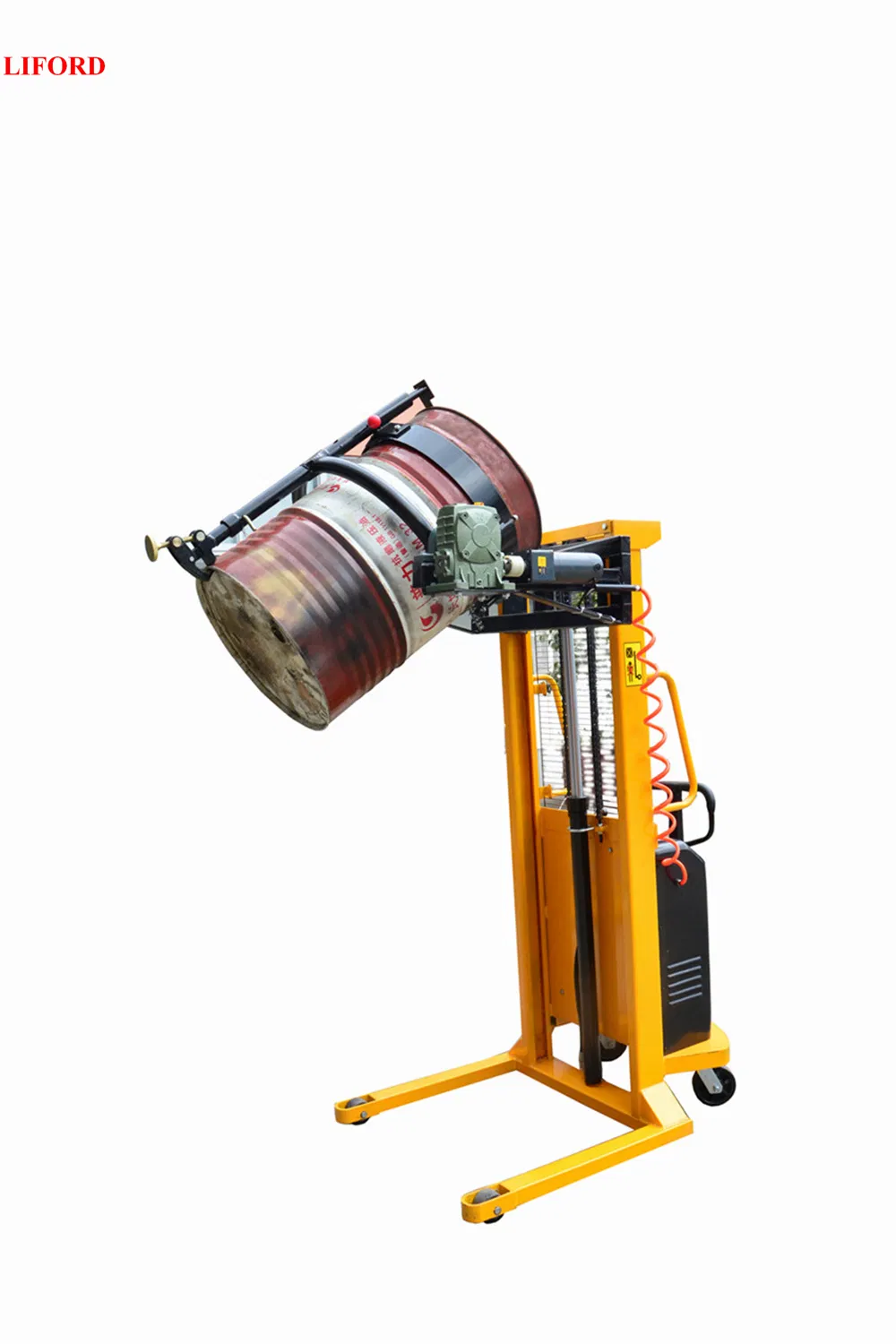

Q4: What is the maximum lifting height? A4: The vertical-lift mechanism allows the drum to be raised to a maximum height of 1580mm.

Q5: What power source does the drum lifter use? A5: It is equipped with a high-quality 1.6KW hydraulic power unit and a 12V/120Ah maintenance-free battery for reliable semi-electric operation.

Q6: In which industries is this equipment most commonly used? A6: It is widely used in chemical, food, and petroleum industries for transferring, loading, and compounding fluids like oils, dyes, and adhesives.
