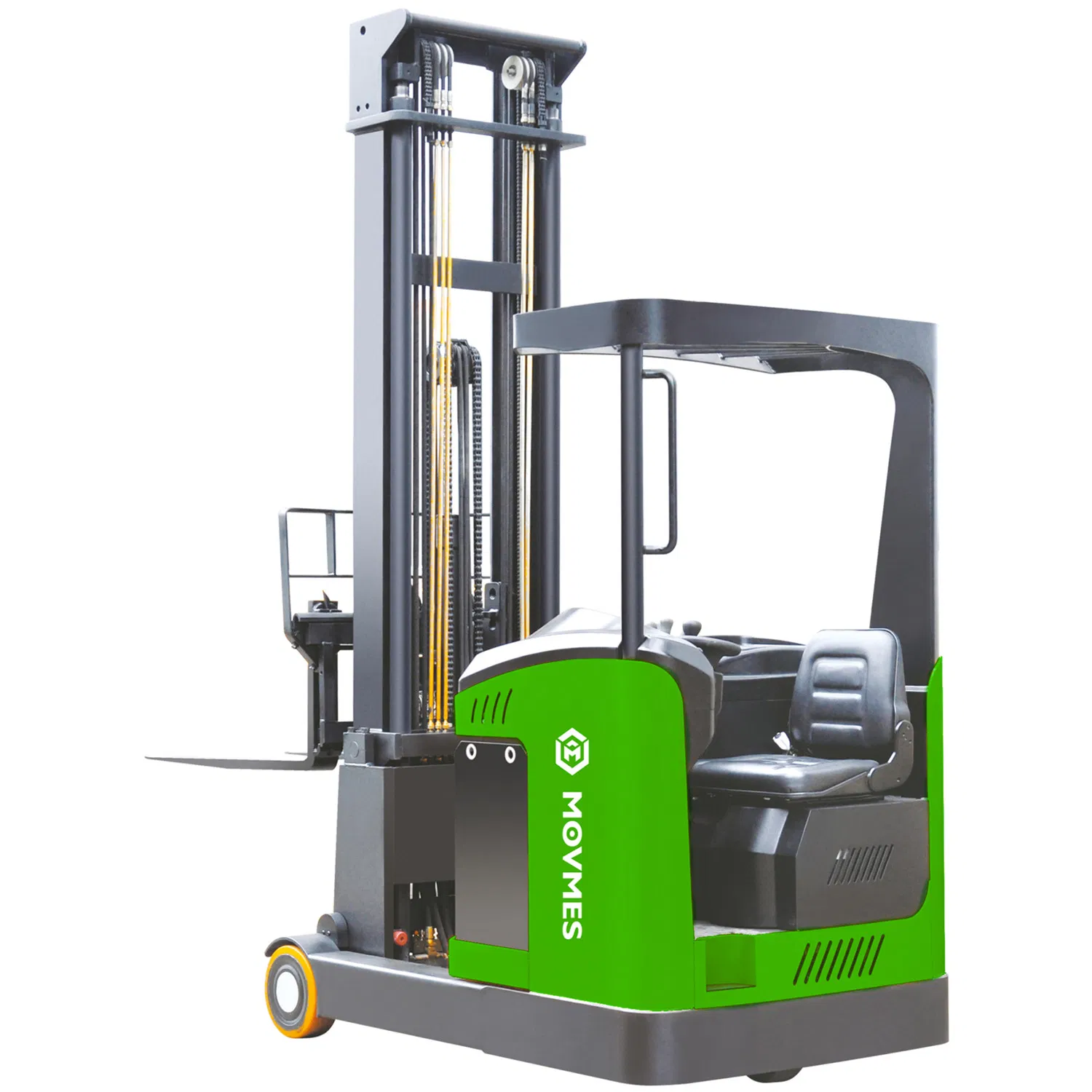

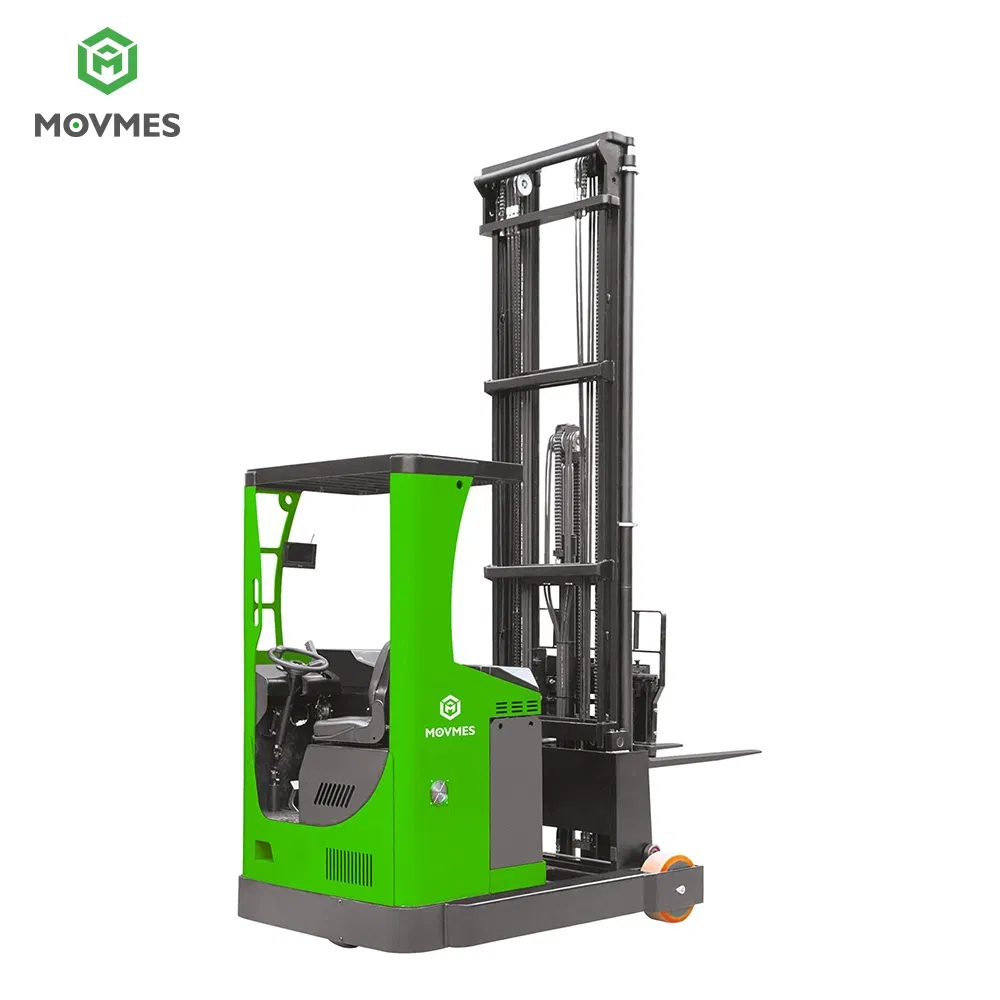

AC Motor 2t/2000kg/4000lb/4400lb 3 Wheel High/Very Narrow Aisle Reach Truck Forklift for Material Handling/Warehouse/Loading/Electric/Counterbalance/Side Loader

1 / 5

AC Motor 2t/2000kg/4000lb/4400lb 3 Wheel High/Very Narrow Aisle Reach Truck Forklift for Material Handling/Warehouse/Loading/Electric/Counterbalance/Side Loader

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specification

Model NO.:CQD20-D

Type:Stacker

Power:AC Motor

Load Capacity:1T - 5T

Fuel:Electric

Lift height:>5000mm

Wheel:PU

Turning Radius:1780mm

Battery:48V400ah

Condition:New

Product Overview

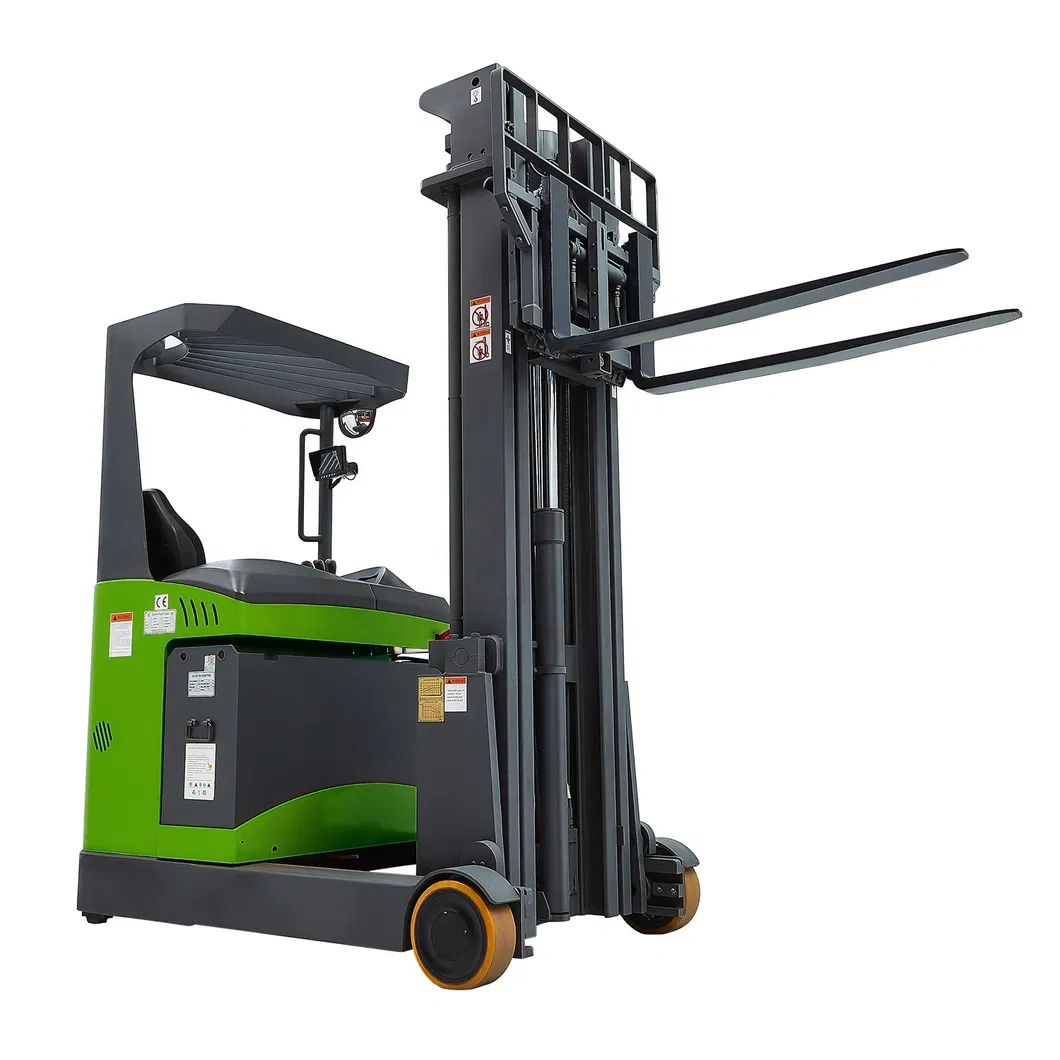

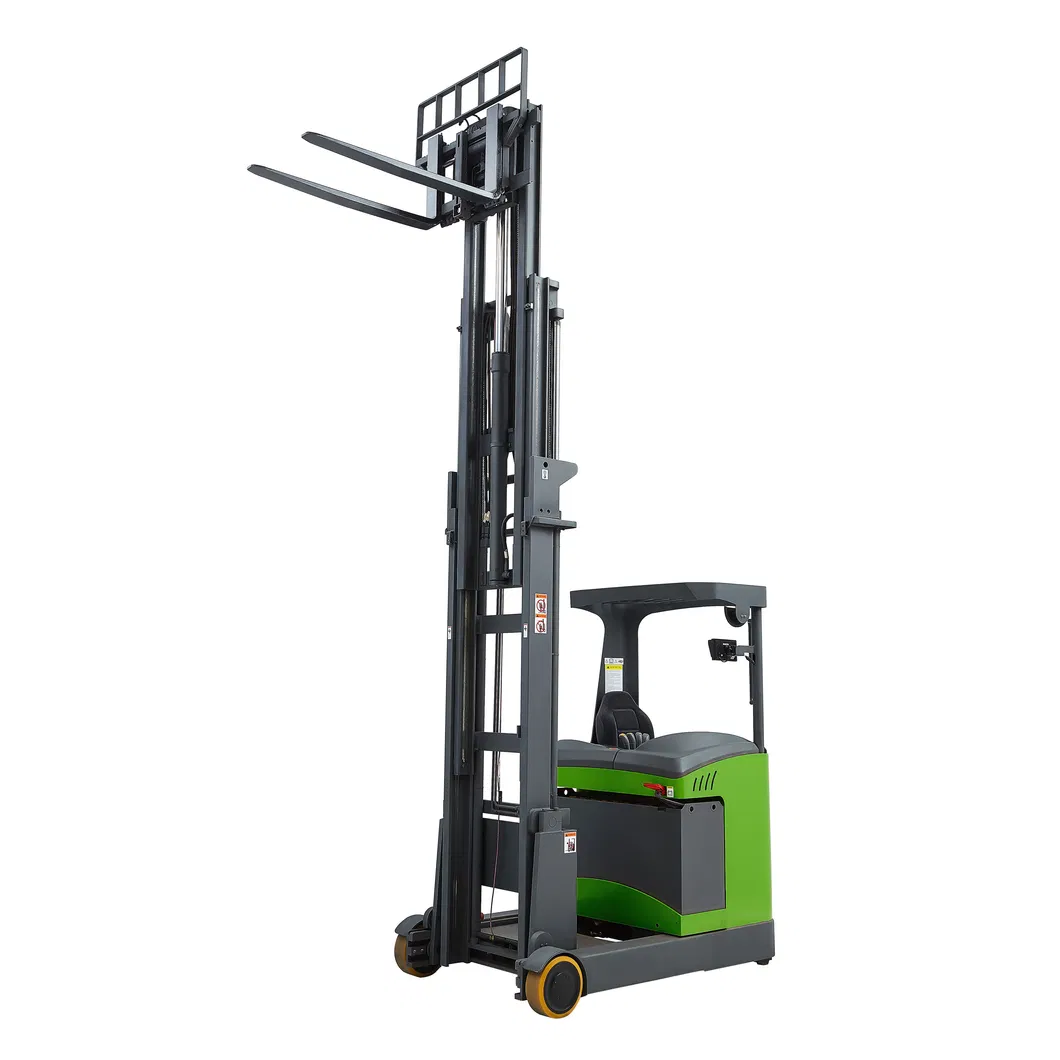

Max lifting height 14000mm electric reach truck 2000kg rated load

Main Configuration

48V AC POWER
CURTIS CONTROLLER

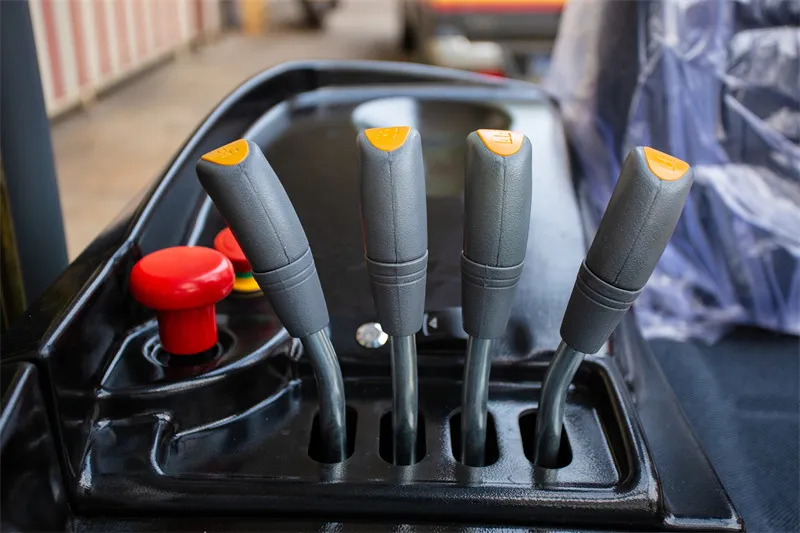

4 LEVELS HYDRAULIC CONTROL

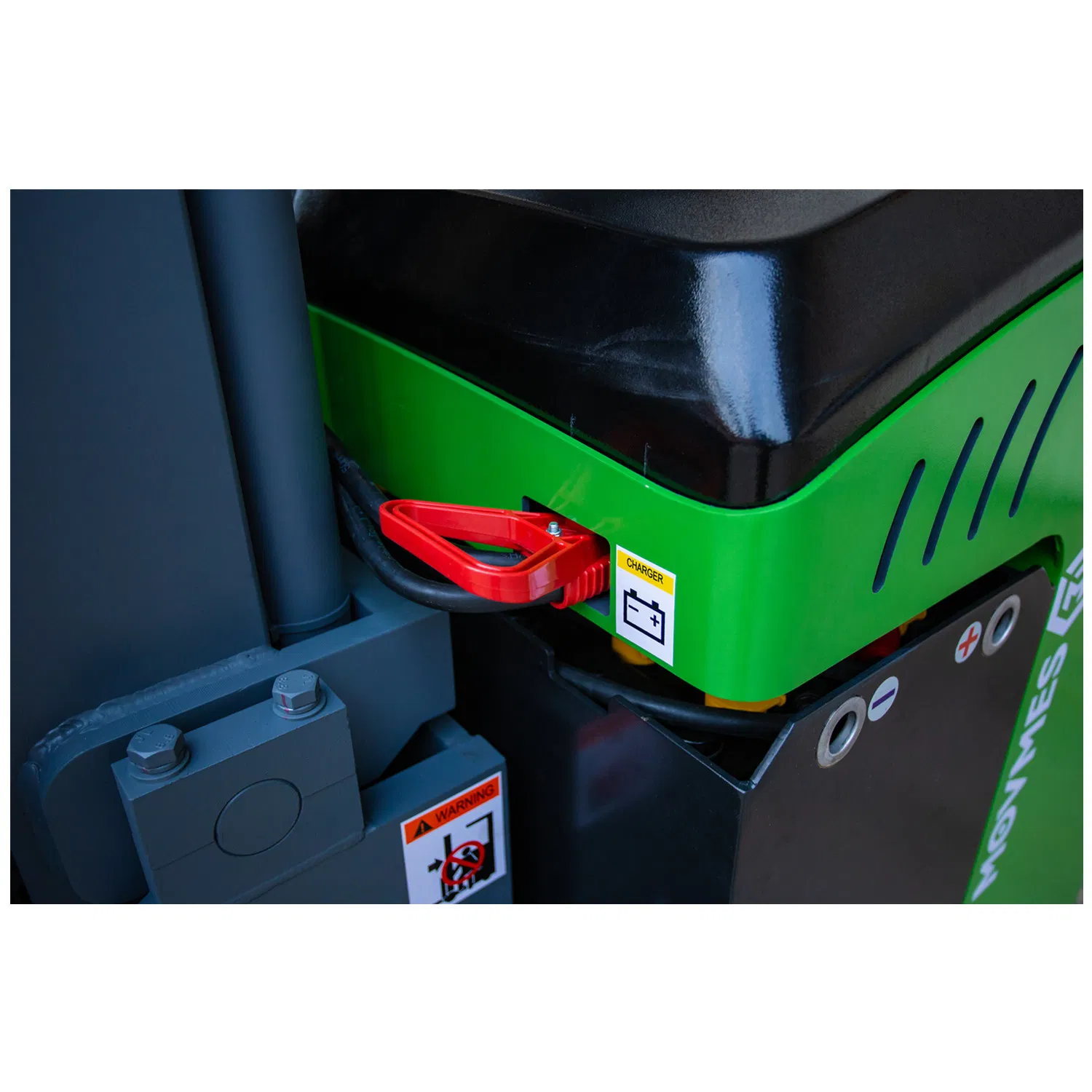

48V400AH LEAD-ACID BATTERY
48V50A CHARGER
SIDE SHIFT
EPS SYSTEM

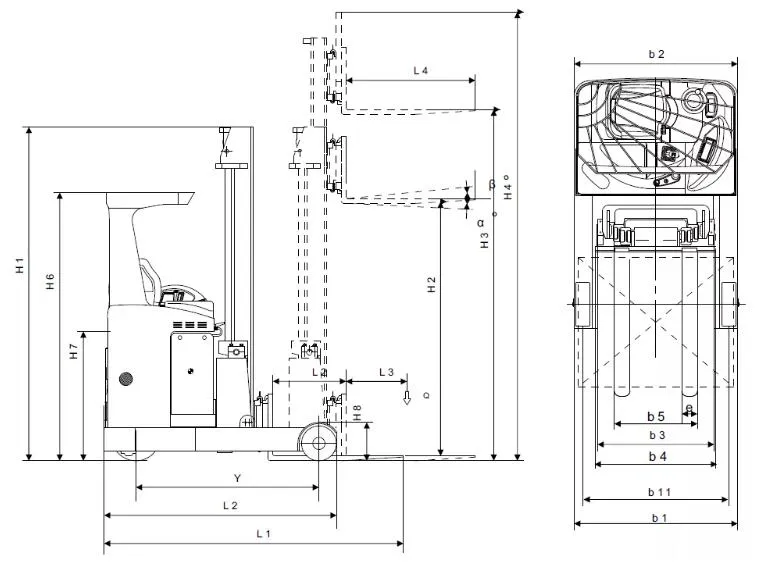

Technical Parameters

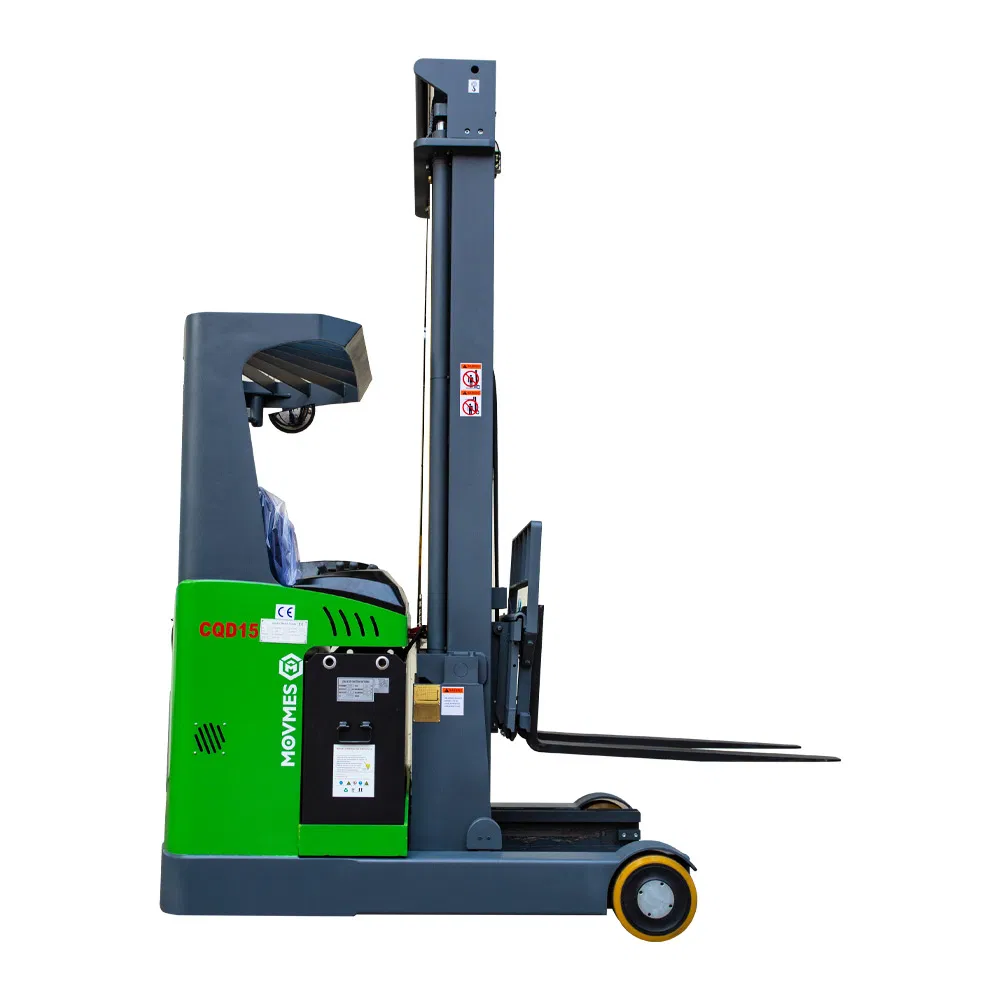

Description	Unit	Value (CQD15)
Capacity/rated load	Q(kg)	1500
Max.lift height	h3(mm)	3000-8000
Load centre distance	C(mm)	600
Overall length	I1(mm)	2370
Overall width	b1(mm)	1200
Turning radius	Wa(mm)	1780
Travel speed (laden/unladen)	Km/h	8/8.3
Lift speed (laden/unladen)	M/s	0.45/0.36
Battery voltage/capacity	V/Ah	48/400
Service weight	kg	2900-3300

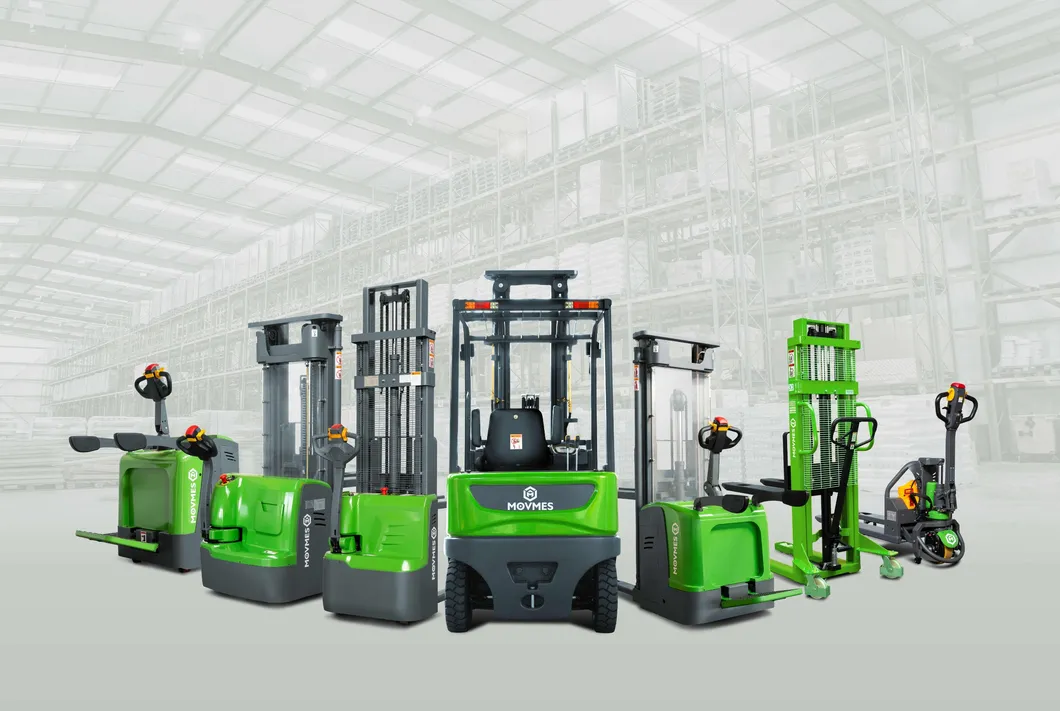

Related Series

CDDR15 Walkie Electric Stacker
1.5ton, 1600-3000mm lifting height, DC motor, CURTIS controller.

CDDR15-III Walkie Electric Stacker
1.5ton, 2500-5600mm lifting, 24V AC, 200Ah Battery.

CDDK15-III Rider Electric Stacker
1.5ton, 1600-5600mm lifting, 24V AC power, 200AH Battery.

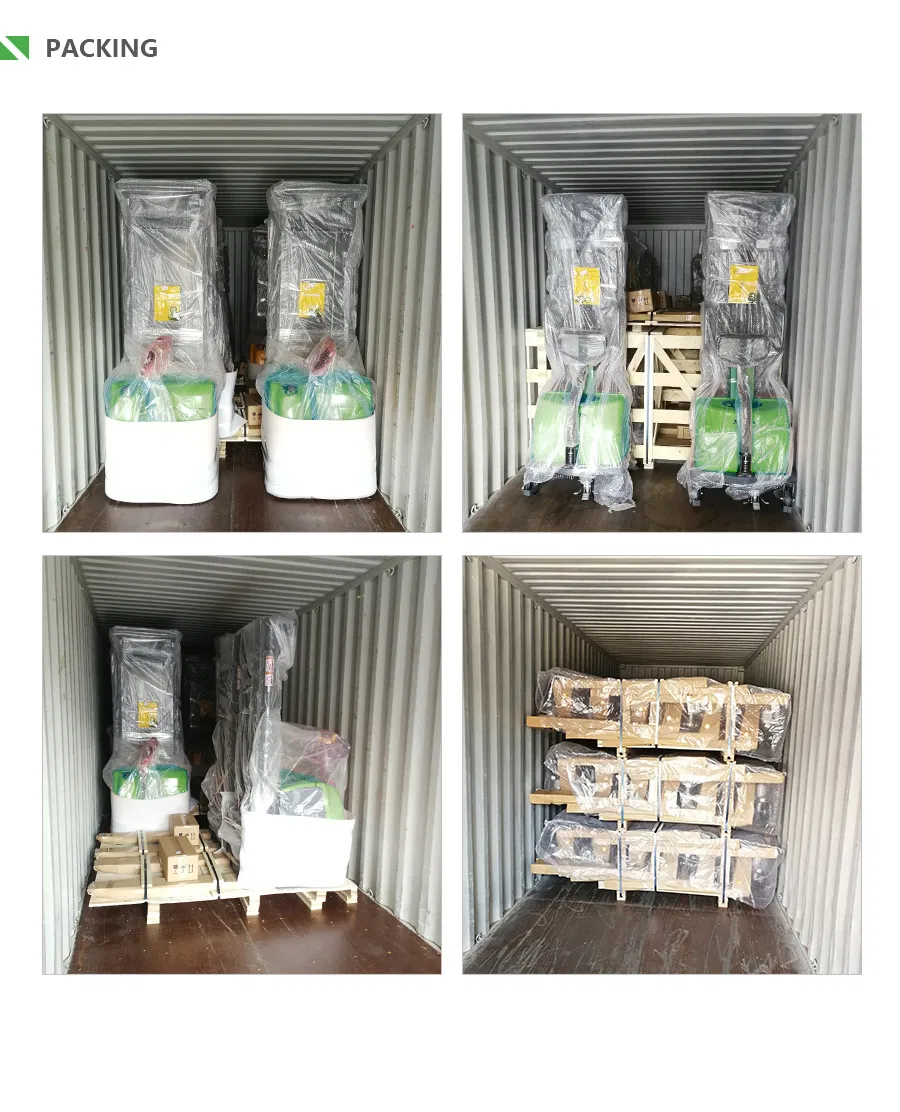

Packing and Delivery

According to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, photos and videos are taken for customer approval. Production time is usually 30-45 days after receiving the advance payment.

Certifications & Strength

Holding multiple international standards including ISO9001, ISO14001, and OHSAS18001. Most products are TUV/GS/CE approved since 1991.

✓ 36 Years Experience

✓ 150,000m² Factory Area

✓ 1,200 Dedicated Employees

✓ 188 Mechanical Technicians

✓ 500 Types of Equipment

✓ Exported to 157 Countries

Frequently Asked Questions

How long is the continuous working time and charging time?

Continuous working time is approximately 3-6 hours depending on battery volume. Full charging typically requires 3-6 hours.

What are the charger specifications for the CQD series?

Our chargers support 48V400Ah Lead-acid batteries. Power plugs can be customized to USA, UK, Australia, or European standards.

Do you provide customized OEM or ODM products?

Yes, the factory has been professional in developing and producing warehouse logistic equipment since 1985 and provides OEM services for many world-famous brands.

What is the warranty period for your lifting equipment?

We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.

Which international certifications do your products hold?

Our products comply with TUV/GS/CE standards including ISO3691-1, EN1175-1, and EN16307-1.

What is your manufacturing capacity and scale?

With a 150,000m² factory area and 1,200 employees, we produce 100 sets per month and export to 157 countries.

Global Agent Recruitment

The electric warehousing industry is developing vigorously. We provide high-end products and factory strength support for agents worldwide. Cooperate with us for quality equivalent to world-famous brands.
