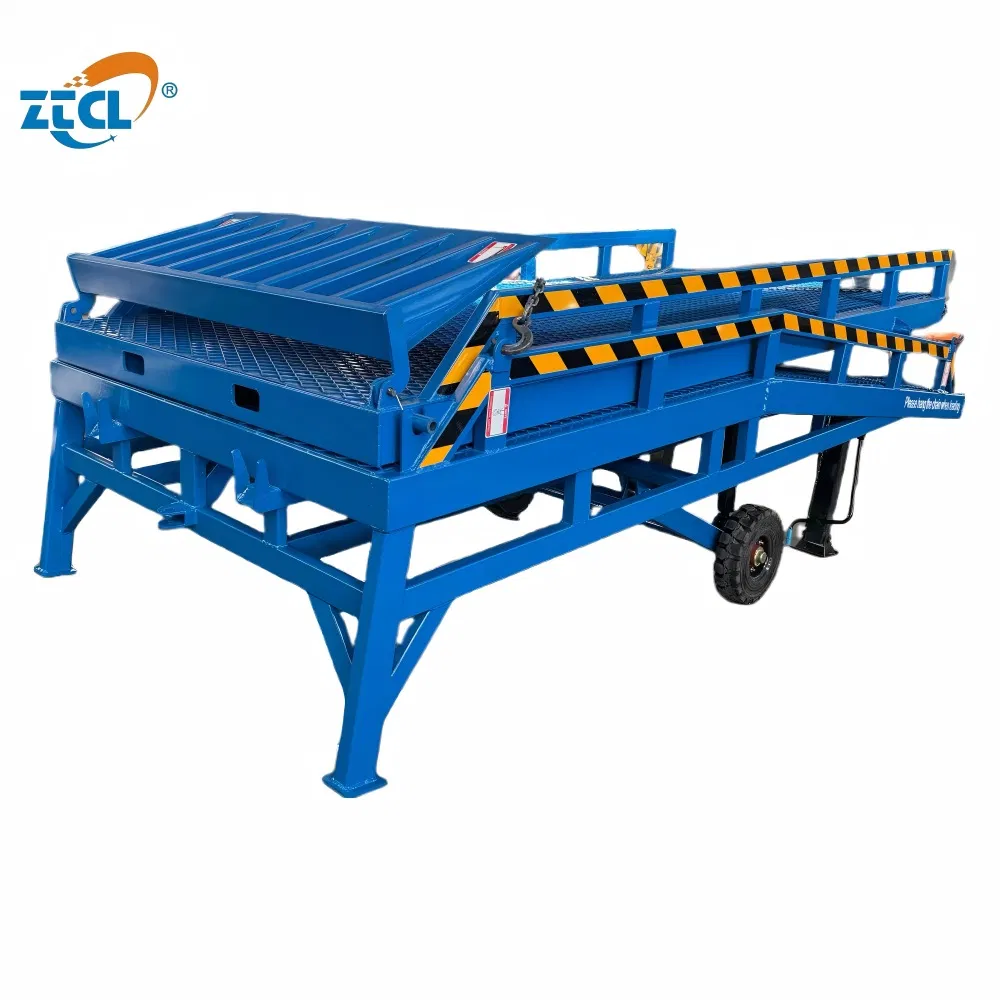

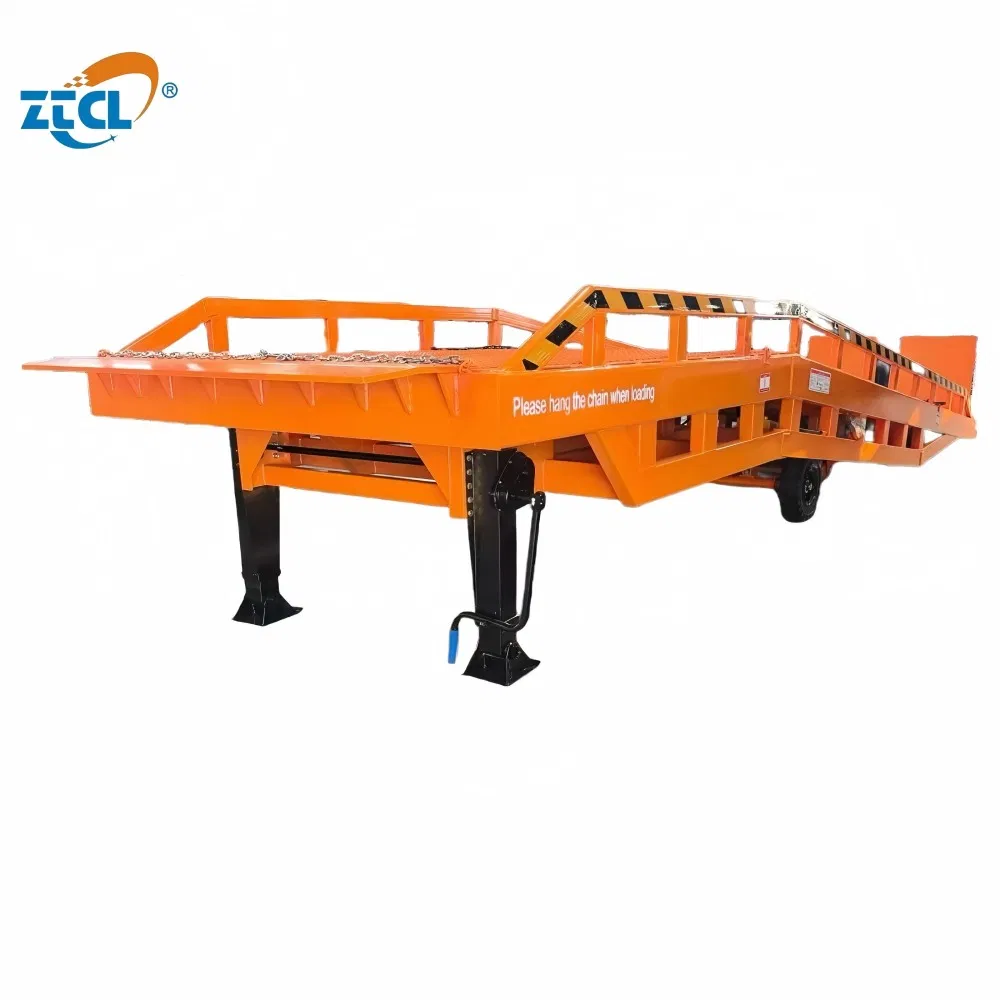

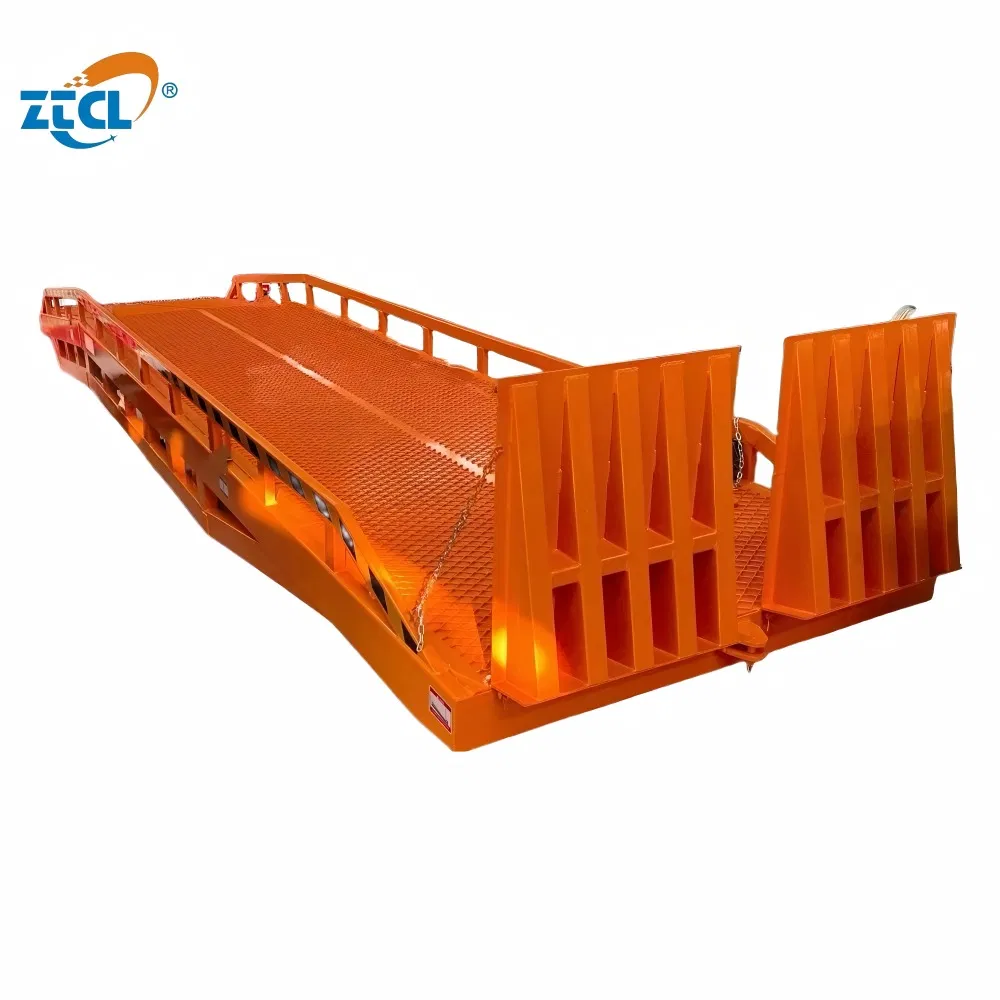

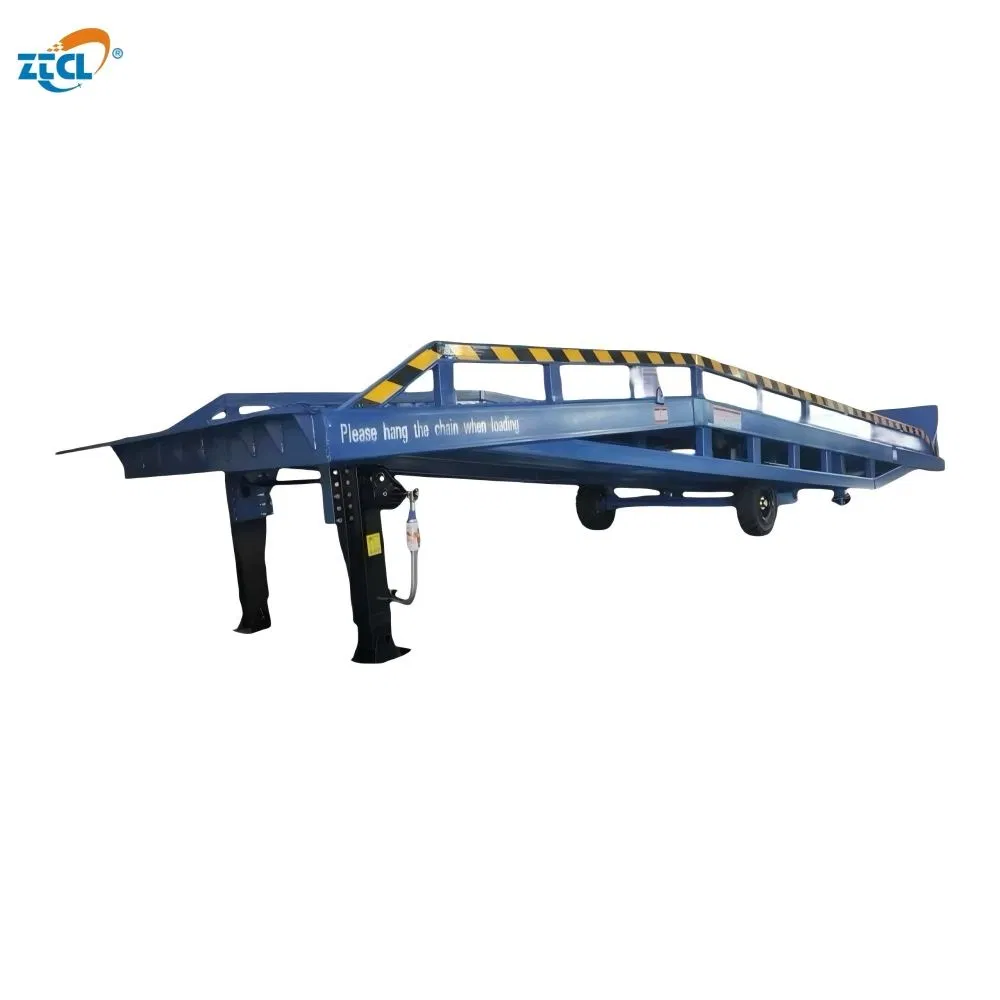

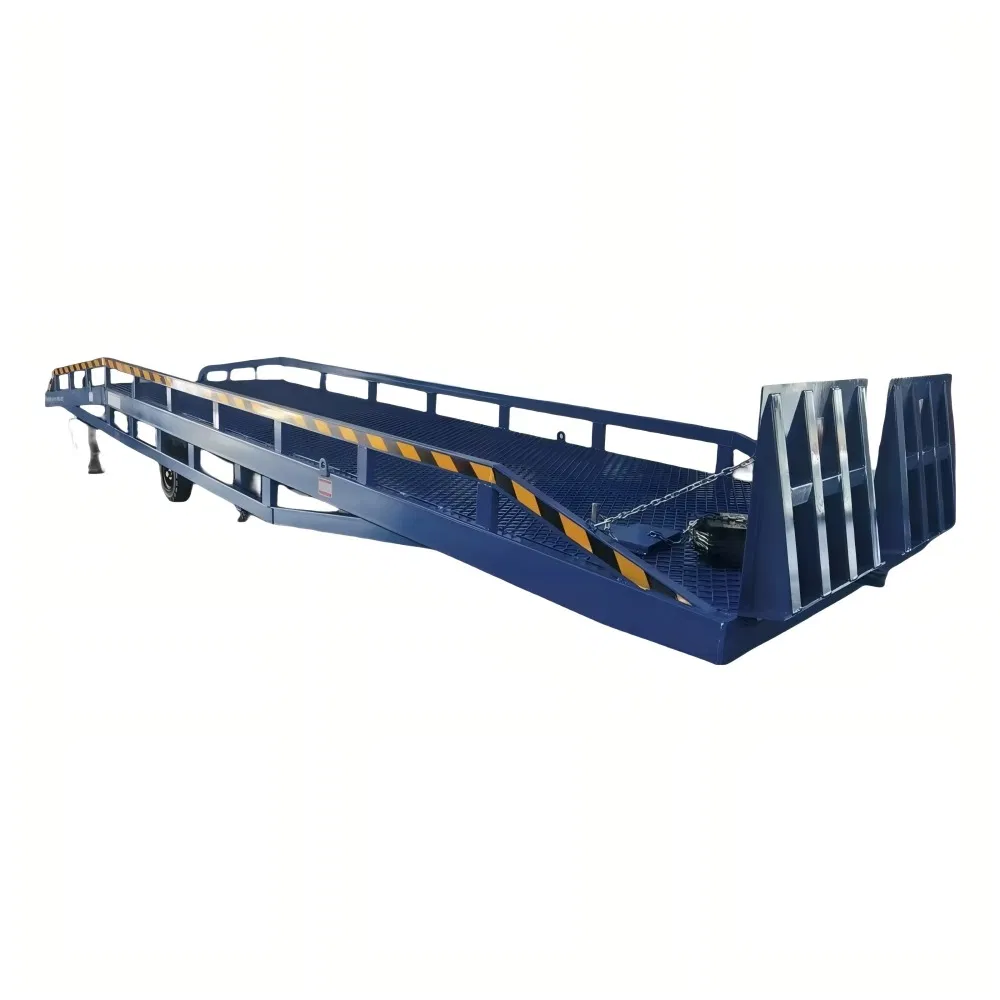

6-15ton Adjustable Height Container Hydraulic Mobile Loading Dock Yard Unloading Ramps Dock Ramp Yard Ramp for Forklift Truck Warehouse

Customization: Available
After-sales Service: Free Parts
Warranty: 12month

Product Description

📋

Basic Information

Model NO.ZTDCQY
ApplicationWorkshop, Shipboard, Warehouse Crane
MechanismHydraulic Lift Chain
Driven TypeHydraulic
Capacity6-15 Ton (Customizable)
MaterialHigh Strength Steel
CertificationGS, CE, ISO 9001
Specification11000*2100*1100mm
⚙️

Product Description

Mobile Loading Dock Ramp

The mobile loading ramp is essential auxiliary equipment for cargo handling and forklifts. It features an adjustable height designed to match the level of the truck or automobile. This allows the forklift to drive directly into the interior of the vehicle for bulk cargo handling. With only a single operator required, rapid loading and unloading of goods can be achieved, significantly reducing labor costs and improving operational efficiency.

📊

Product Parameters

Model ZTDCQY-6 ZTDCQY-8 ZTDCQY-10 ZTDCQY-12 ZTDCQY-15
Load Capacity 6t 8t 10t 12t 15t
Overall Size 11300*2100*1100mm 11300*2100*1100mm 11300*2100*1100mm 11300*2100*1100mm 11300*2100*1100mm
Slope Length 7150mm 7150mm 7150mm 7150mm 7150mm
Width 2100mm 2100mm 2100mm 2100mm 2100mm
Adjustable Range 1100-1800mm 1100-1800mm 1100-1800mm 1100-1800mm 1100-1800mm
Solid Tire 600-9 600-9 600-9 700-9 700-9

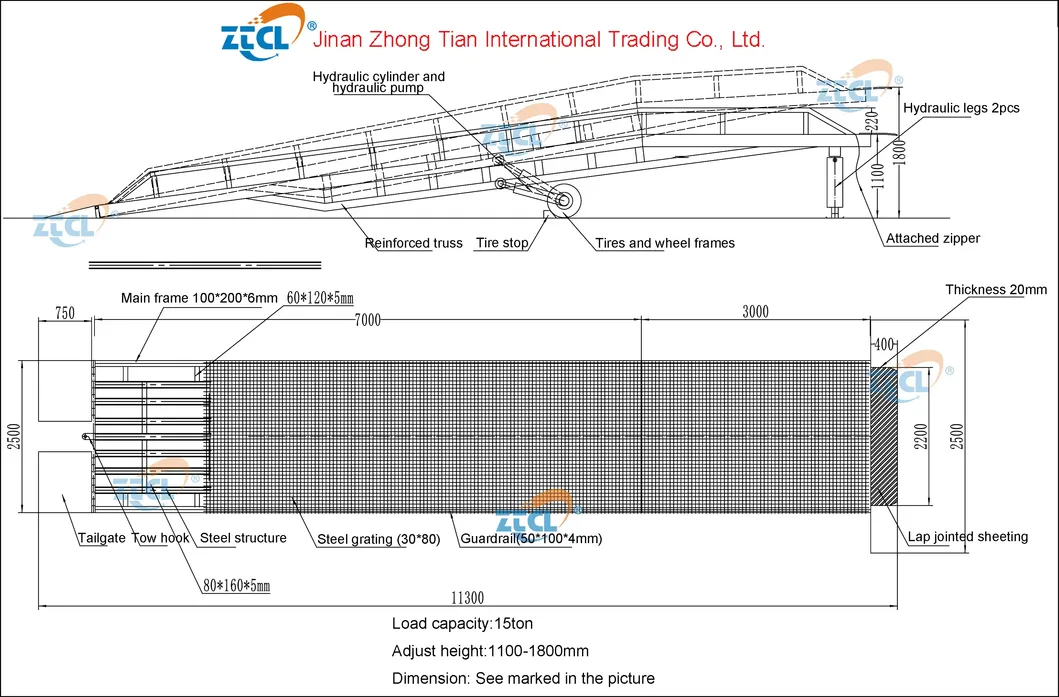

Hydraulic Ramp Specs
📷

Detailed Photos

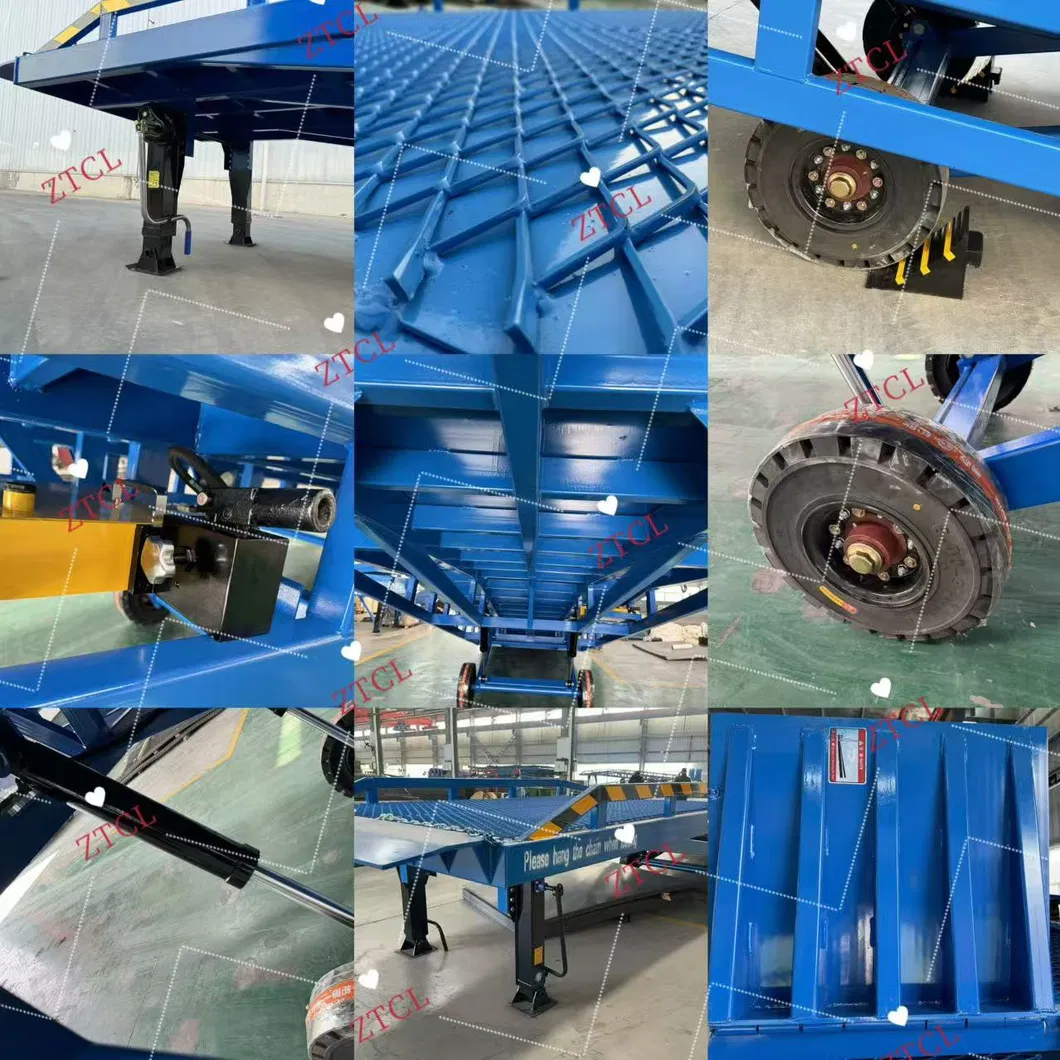

Detailed Photos of Dock Ramp
🌟

Key Advantages

  • Heavy-duty Solid Tires: Non-inflatable, durable tires coupled with brake pads for maximum operational safety.
  • Adjustable Support Legs: Prevents vehicle overturn by concentrating gravity correctly; suitable for various truck heights.
  • Manual Hydraulic System: Equipped with a handle hydraulic device for height adjustment without the need for electricity.
  • Antiskid Steel Mesh: Rhombic grid plate ensures excellent slip resistance, allowing operation even in rain or snow.
  • High-Strength Structure: Bridge body made of manganese steel for large carrying capacity and durability.
  • Fold-down Transition Board: Provides smooth transition between the ramp and the vehicle for forklifts.
📦

Packaging & Shipping

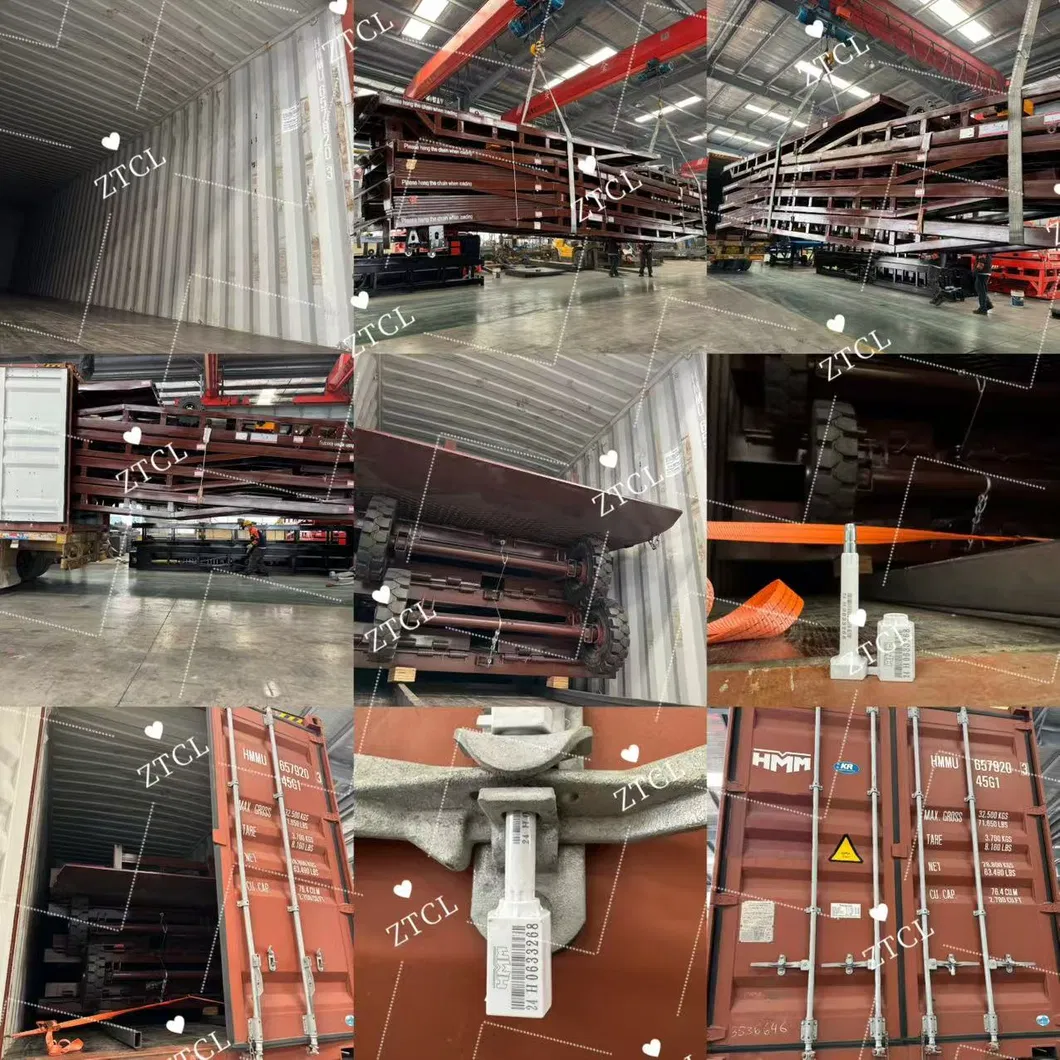

Shipping 1

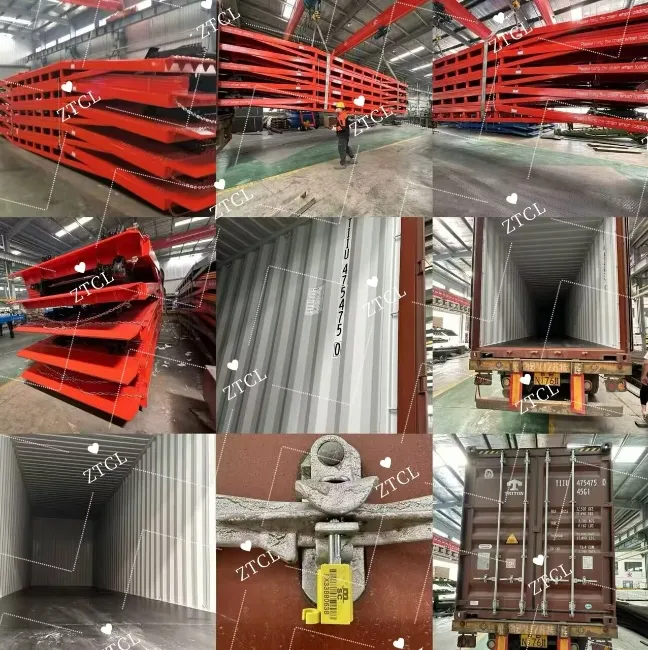

Shipping 2

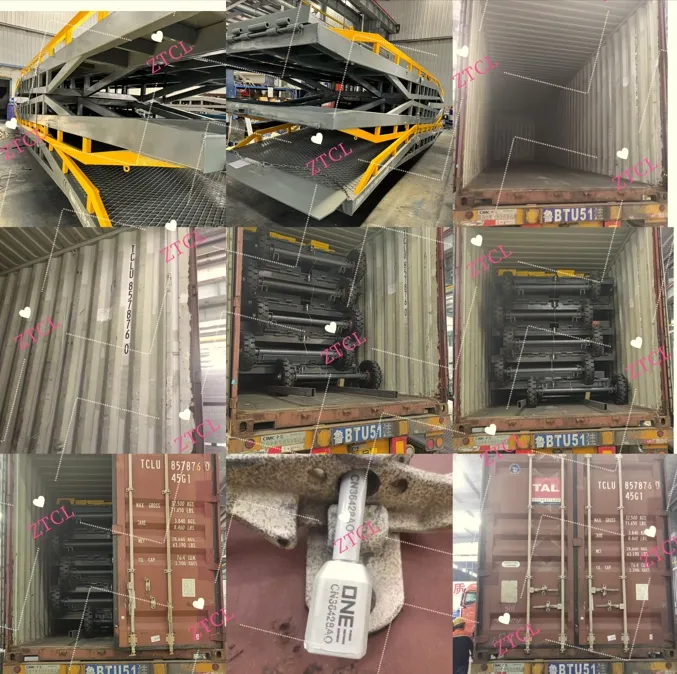

Shipping 3
📜

Certifications

Certifications

Frequently Asked Questions

Q1. What is the typical delivery time? It usually takes about 10 working days after receipt of the deposit.
Q2. What payment methods are supported? We generally support T/T, L/C, and Western Union.
Q3. How do I proceed with an order? First, share your requirements and photos of the intended use area. We will then provide suggestions and a quote.
Q4. How is the machine transported? It is usually shipped by sea using plywood packaging or loaded directly into containers.
Q5. Can I customize the ramp with my logo? Yes, please provide your high-pixel logo formally before production begins.
Q6. What kind of after-sales service is provided? We offer 24-hour technical support and can arrange delivery of spare parts within 48 hours if required.
