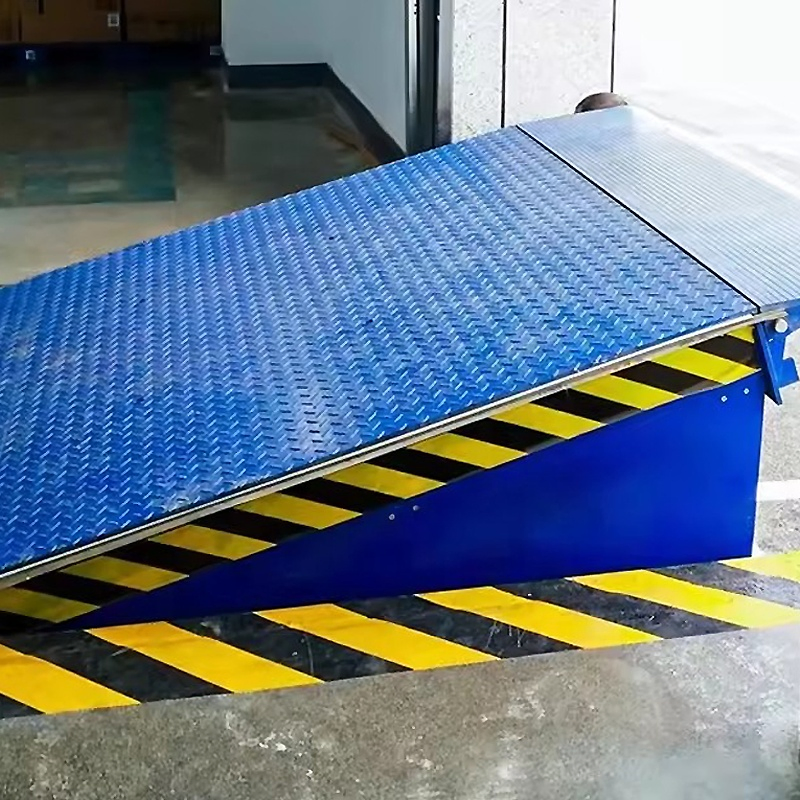

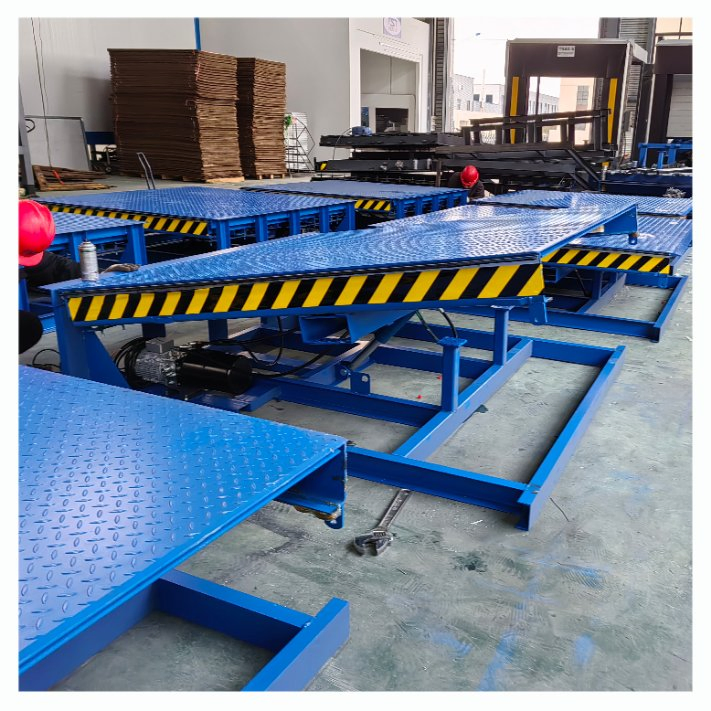

Adjustable Hydraulic Dock Leveler for Truck and Container Loading
Adjustable Hydraulic Dock Leveler for Truck and Container Loading
Adjustable Hydraulic Dock Leveler for Truck and Container Loading
Adjustable Hydraulic Dock Leveler for Truck and Container Loading
Adjustable Hydraulic Dock Leveler for Truck and Container Loading
1 / 5
Adjustable Hydraulic Dock Leveler for Truck and Container Loading
Adjustable Hydraulic Dock Leveler for Truck and Container Loading
Adjustable Hydraulic Dock Leveler for Truck and Container Loading
Adjustable Hydraulic Dock Leveler for Truck and Container Loading
Adjustable Hydraulic Dock Leveler for Truck and Container Loading

Adjustable Hydraulic Dock Leveler for Truck and Container Loading

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Specifications

Application
Warehouse Crane
Lift Mechanism
Hydraulic
Carrying Capacity
Weight Level
Moves
Folding Dock Leveler
Driven Type
Hydraulic
Running Mode
Stationary
Certification
CE, ISO 9001
Size
2000X2000/2000X2500/2000X1600mm
Dynamic Load
6t/8t/10t/15t/20ton
Power Source
Electric Hydraulic
Height Adjustment Range
-300/+300mm
Adjustment Time
< 30 Seconds

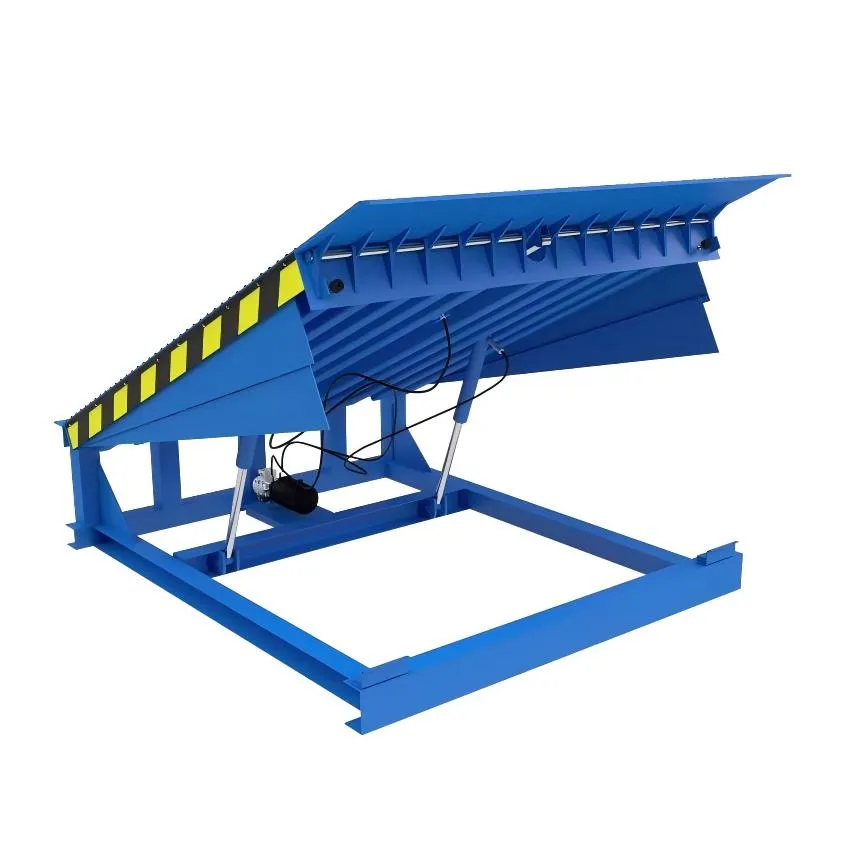

Hydraulic Dock Leveler Loading Dock Equipment
📋

Product Configuration Details

Hydraulic Dock Leveler with 6/8/10 /15/20Ton Configuration
Equipment Size L2000/2500*W2000*H600mm Customizable
Rated Load Dynamic Load: 6 tons, Static Load: 9 tons 8/10/12/15/20 tons available
Lip Thickness 12mm*400mm 14/16mm*400mm (Optional)
Platform Thickness 6mm tread plate 8mm integrated tread plate
Motor Power 380V, 50Hz, 1.1KW Station Brevini / Oiltec / Bucher Options
Main Frame L-shaped bent parts (4mm) 14# I-beam structure
📸

Production & Application Gallery

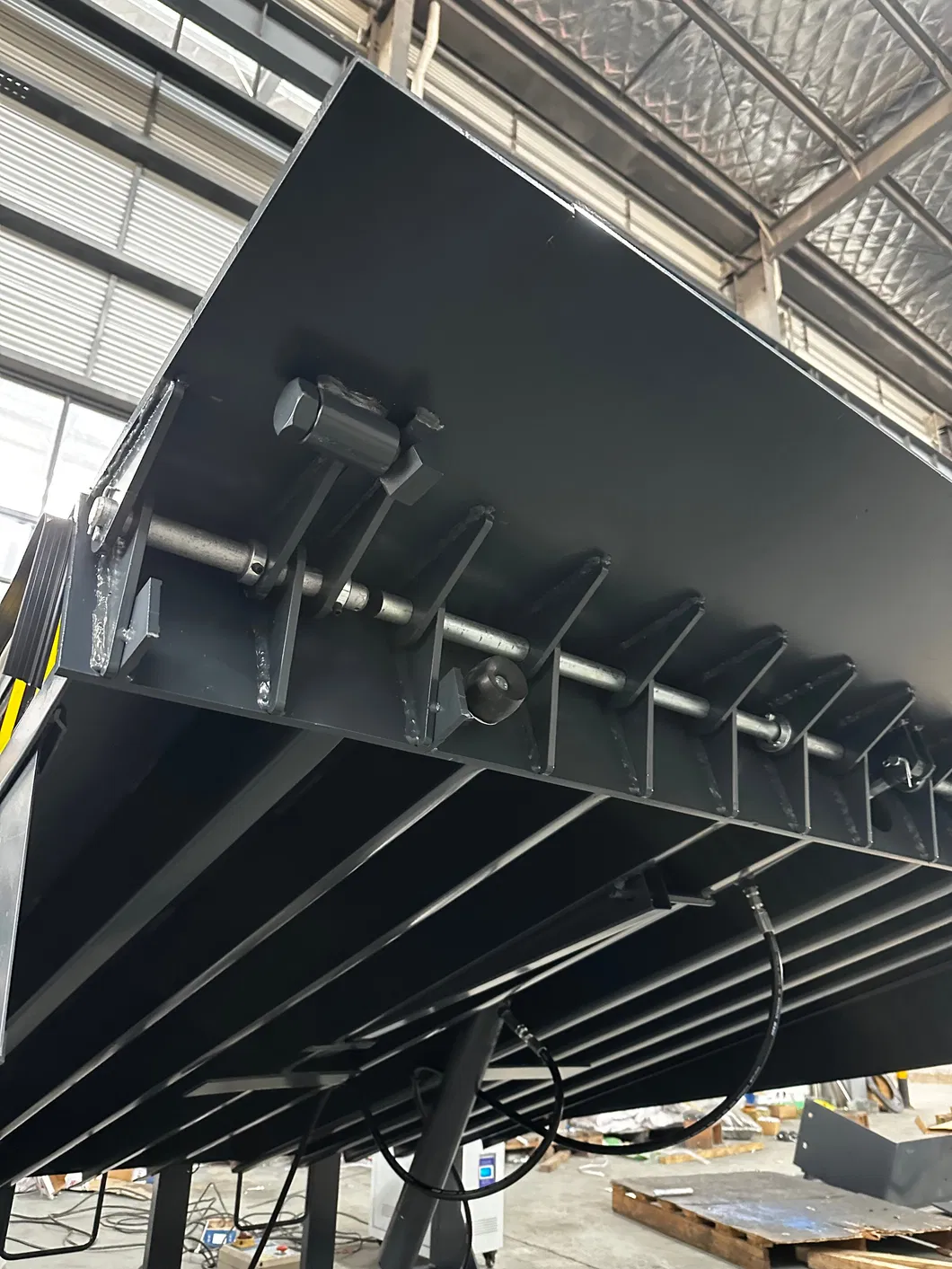

Dock Leveler Detail

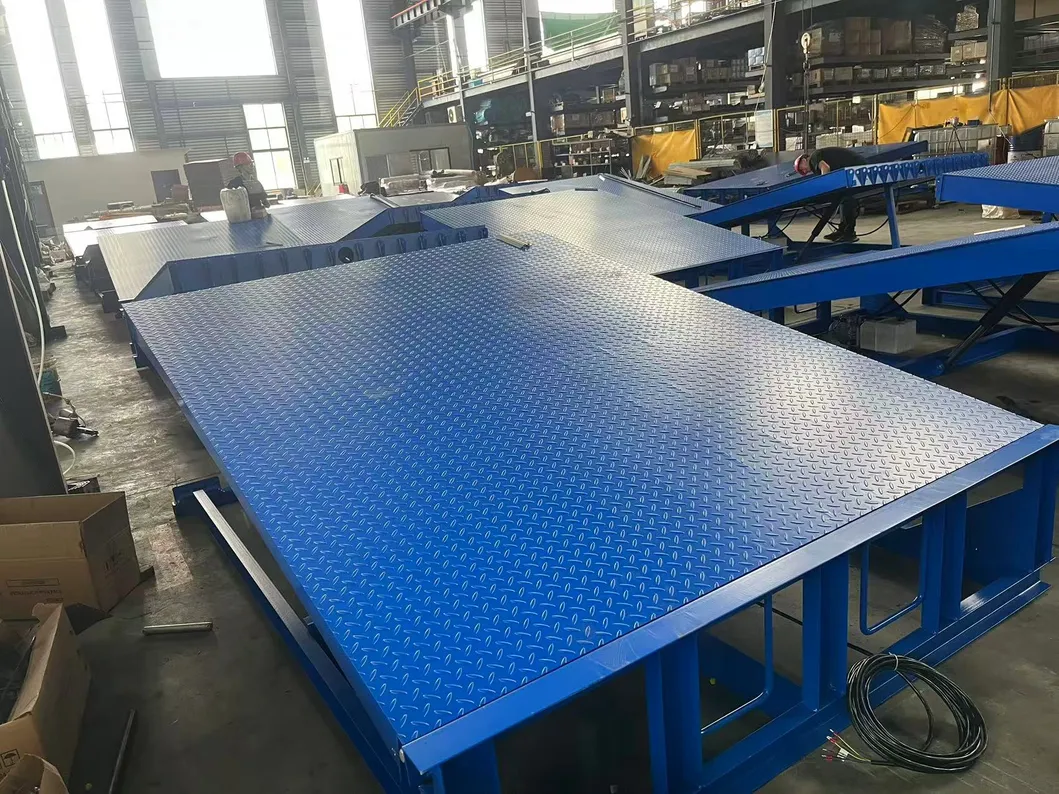

Dock Leveler Side View

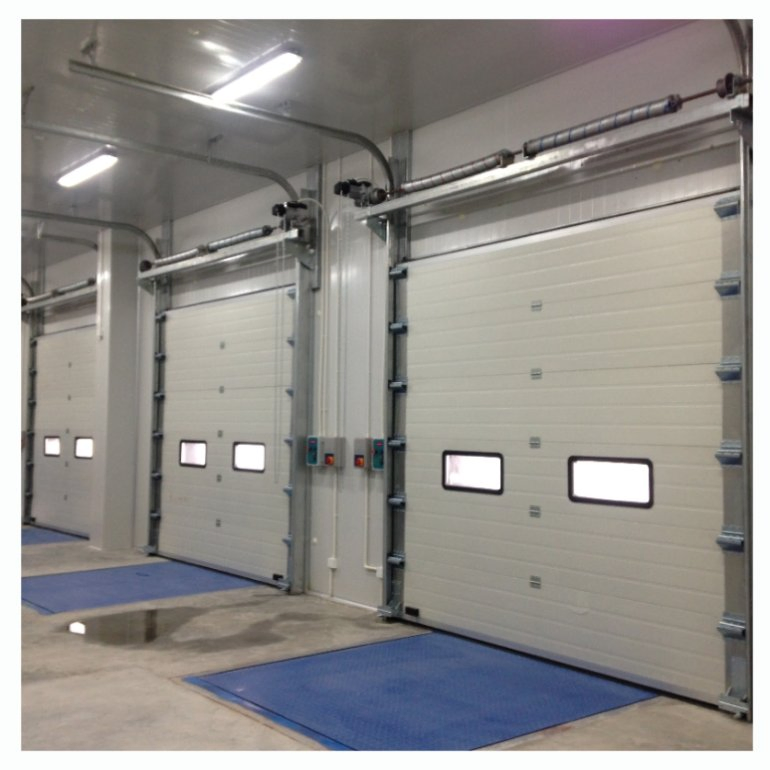

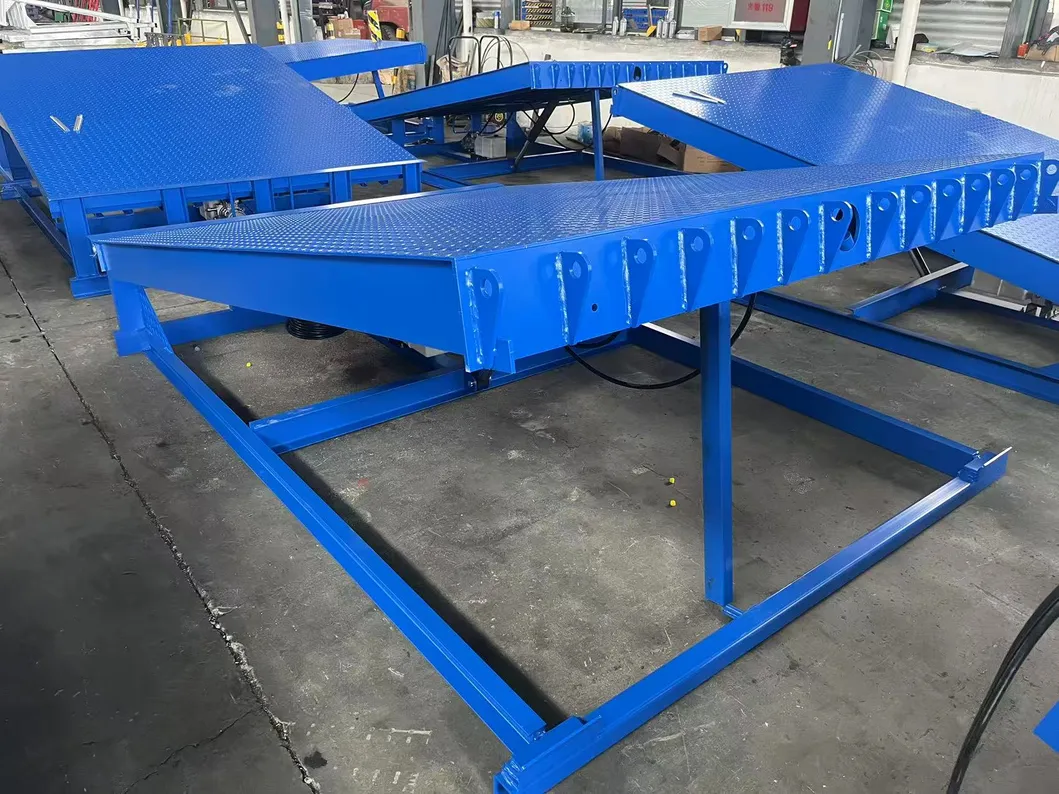

Warehouse Loading

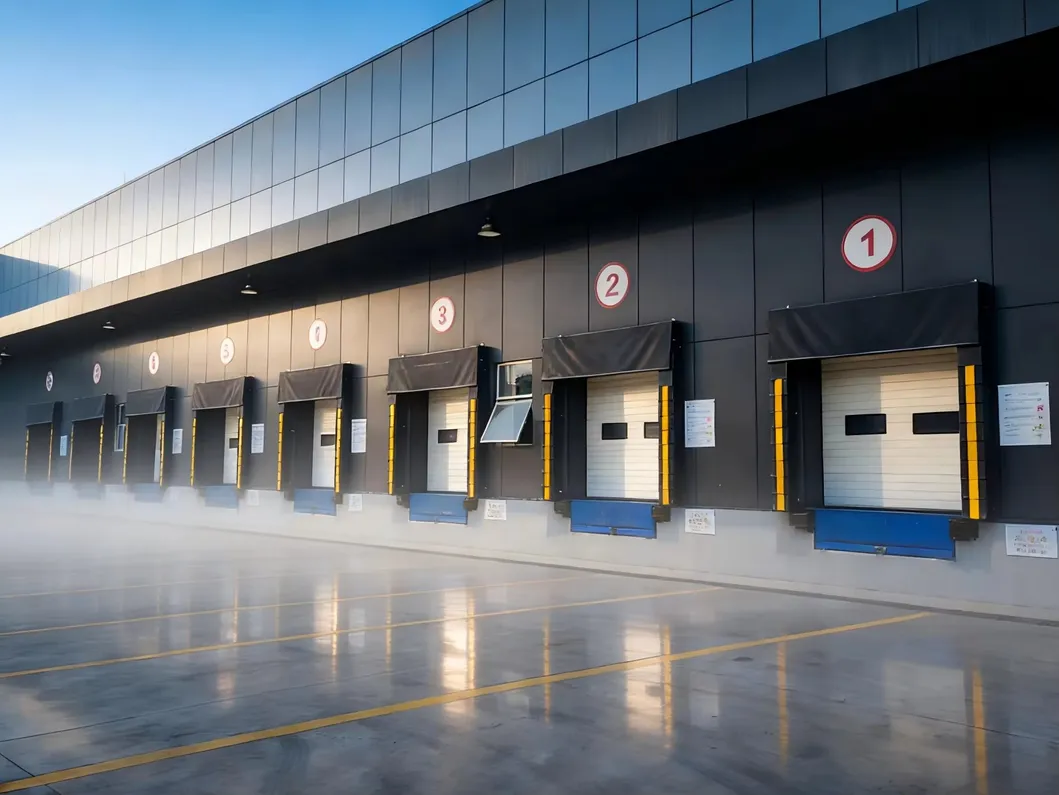

Installation

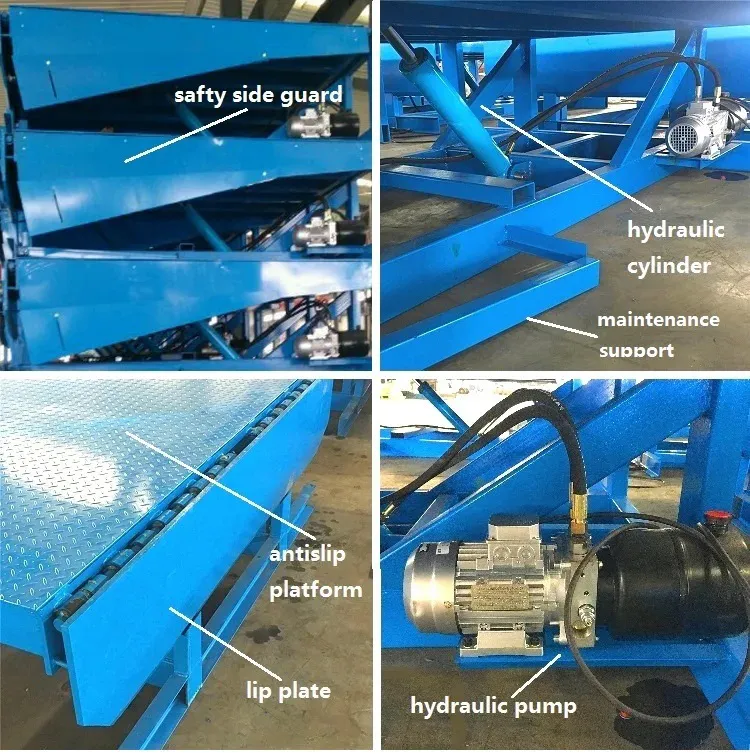

Hydraulic Pump

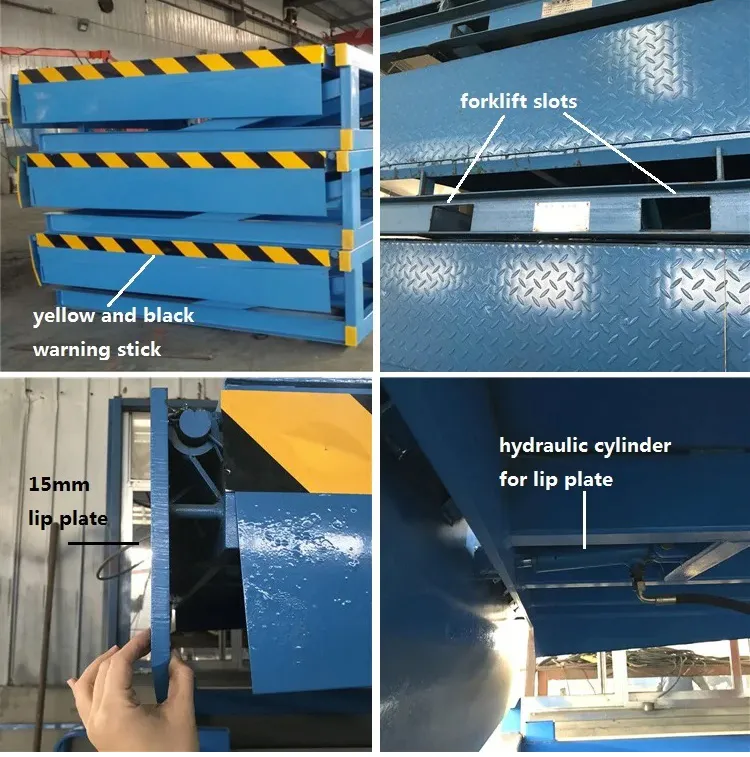

Control System

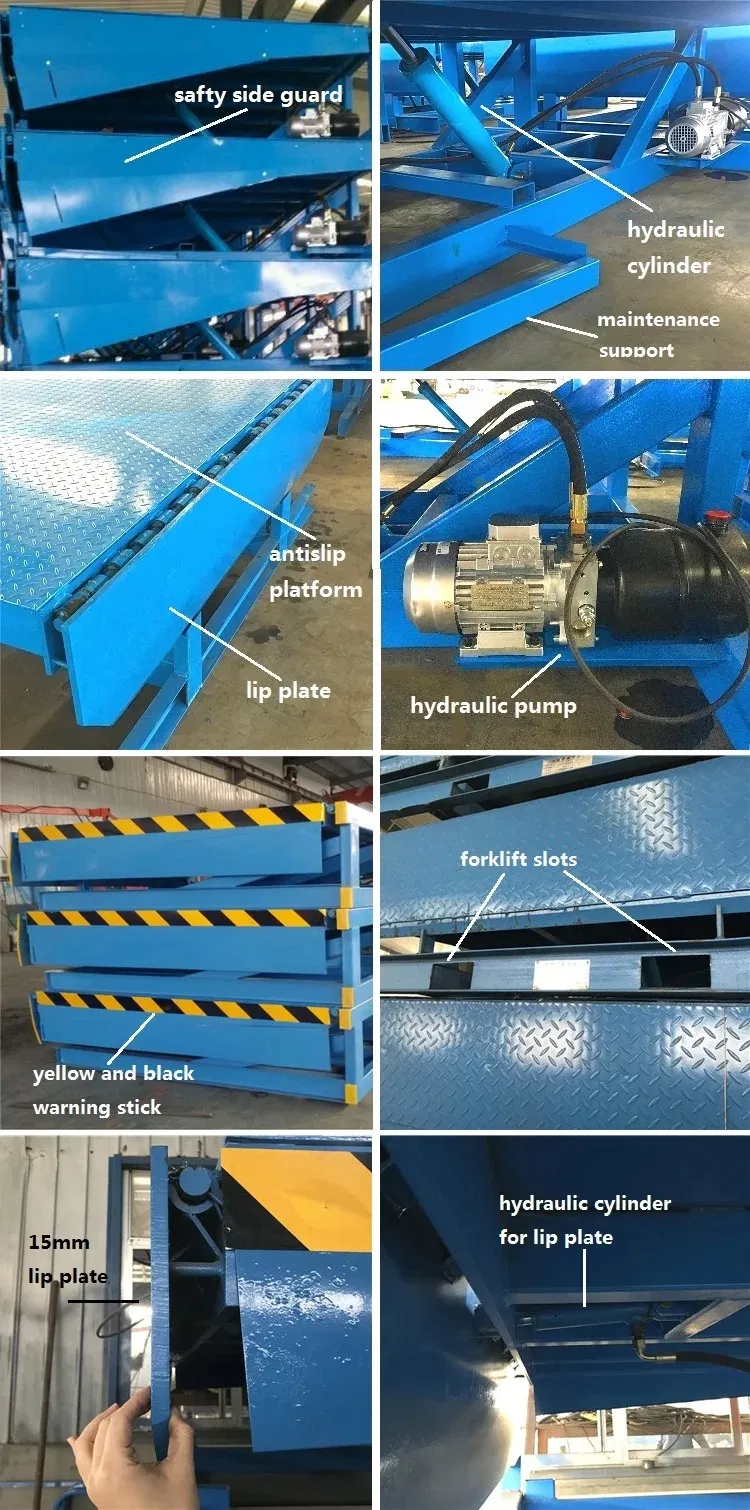

Structural Frame
Safety Features

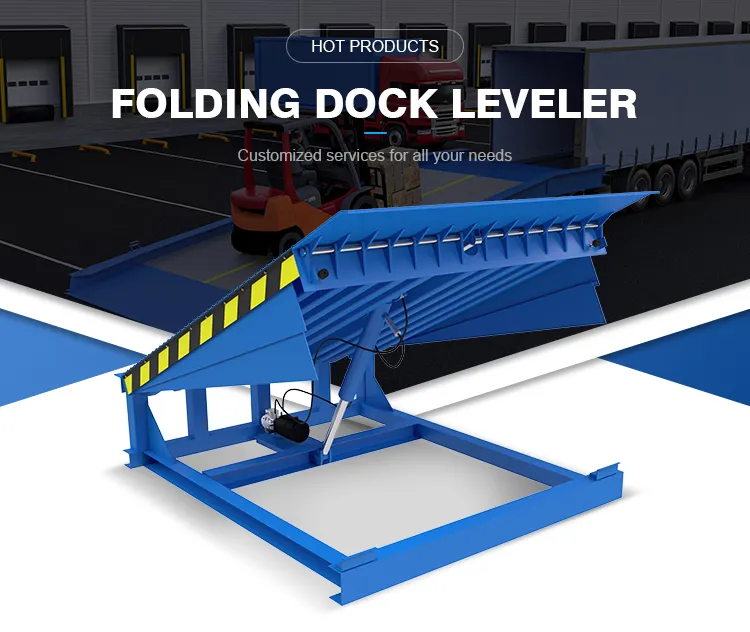

Surface Finish

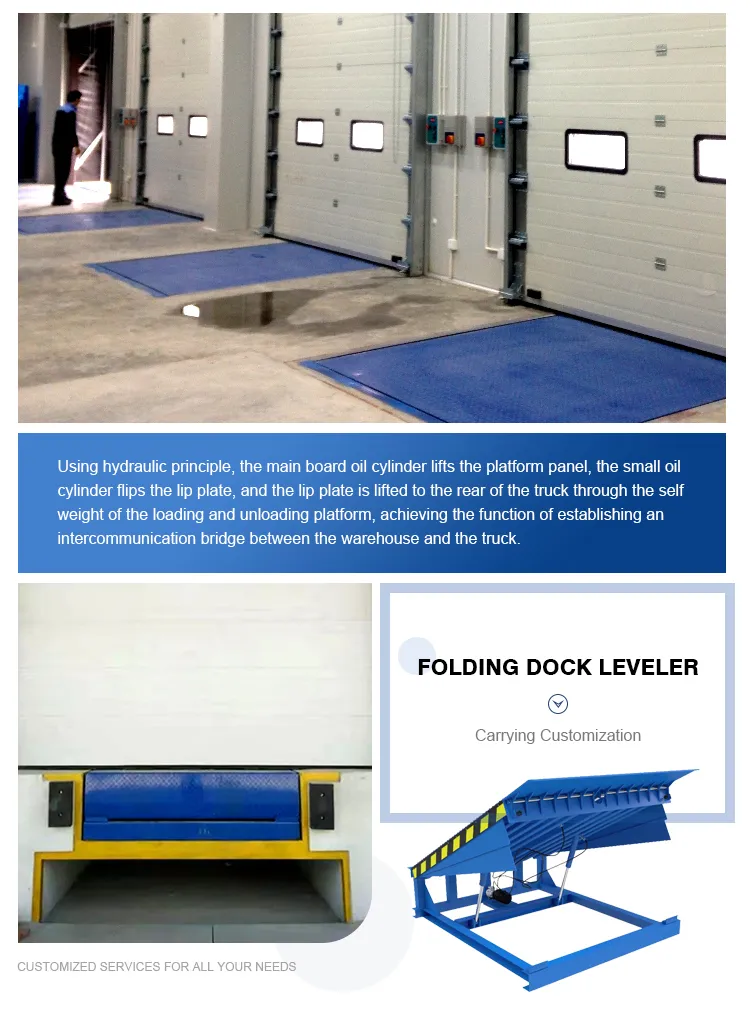

Finished Product
Testing Phase
Packaging
Full Unit Usage Guide
❓

Frequently Asked Questions

What is the range of dynamic load capacity for these dock levelers?
Our hydraulic dock levelers are available in various capacities, including 6t, 8t, 10t, 15t, and 20 tons to suit different heavy-duty requirements.
What is the maximum height adjustment range?
The platform offers a versatile height adjustment range of +300mm upward and -300mm downward, ensuring seamless connection with various truck heights.
How fast does the adjustment process take?
The electric hydraulic system is highly efficient, completing the adjustment from any position to the corresponding loading height in less than 30 seconds.
Can the equipment dimensions be customized for our specific dock?
Yes, while standard sizes like 2000x2000mm are popular, we offer full customization of the equipment size and platform thickness to fit your facility's requirements.
What safety certifications do these products hold?
All our dock levelers are manufactured under strict quality control and are fully CE and ISO 9001 certified for international safety standards.
What kind of power source is required for operation?
The units operate on an electric hydraulic system, typically requiring a 380V/50Hz power supply for the 1.1KW motor pump station.
