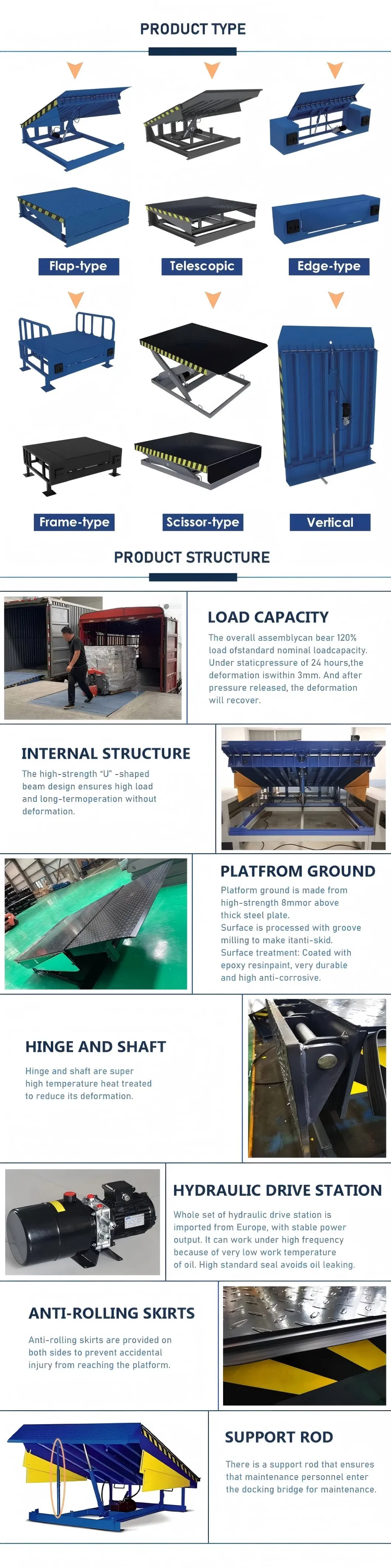

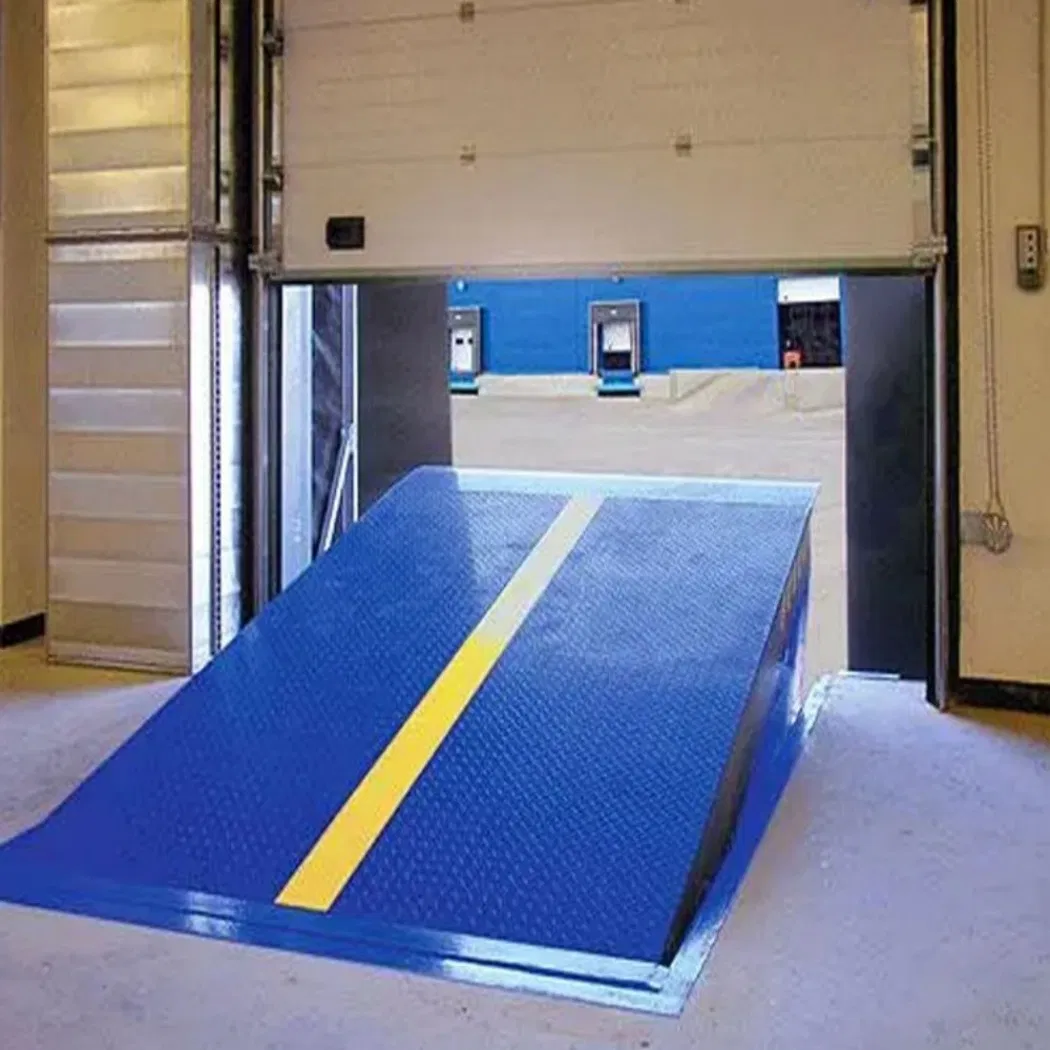

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential. We offer a wide range of dock levelling solutions, including Hydraulic, Telescoping lip, Mechanical, Vertical standing, and Air-powered dock levelers.

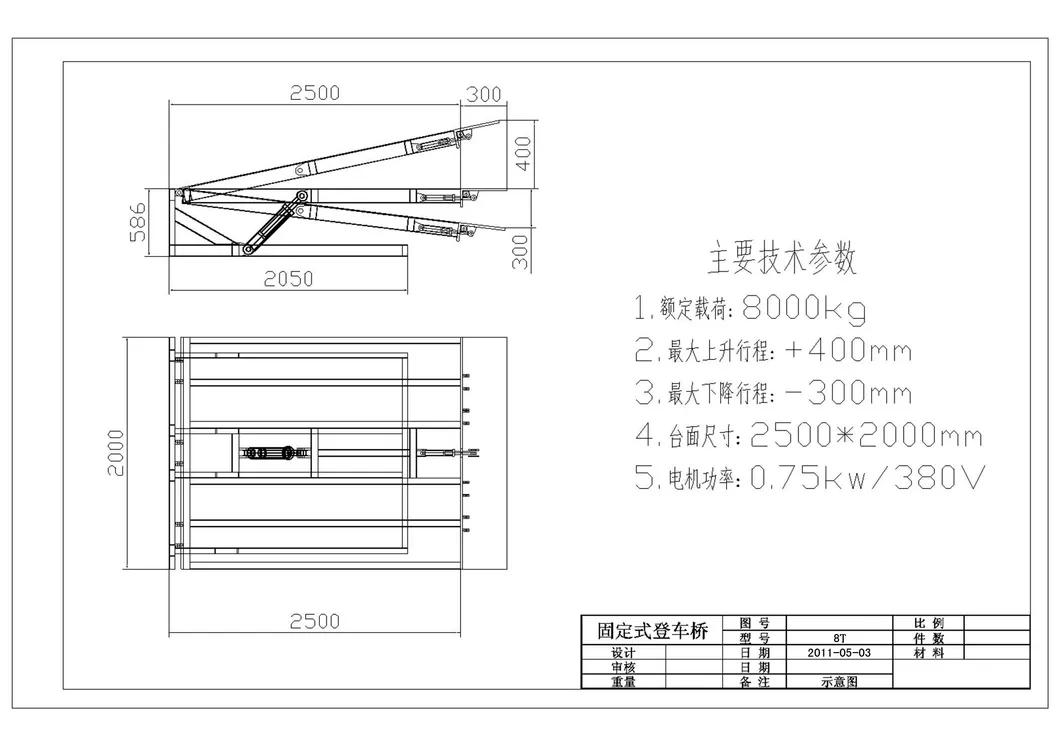

| Model | Capacity (T) | Platform Size | Distance | Lip Board Size | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ6 | 6 | 2000*2000mm | 100 | 400mm | 0.75KW |

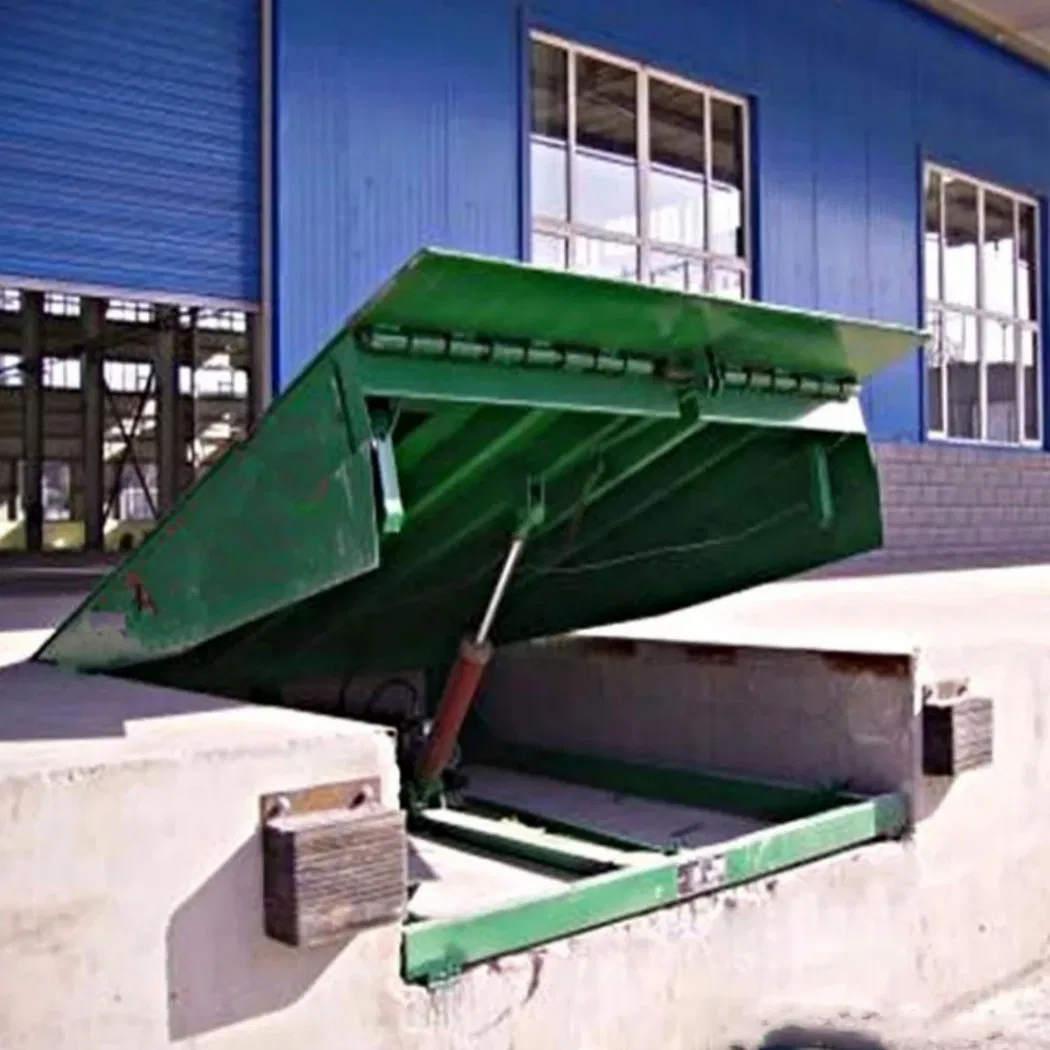

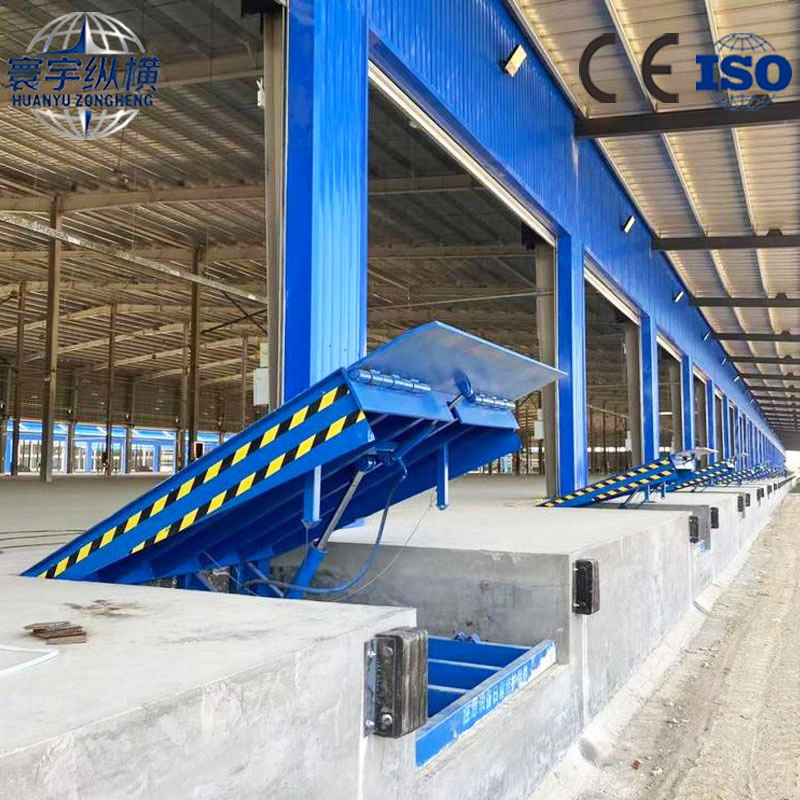

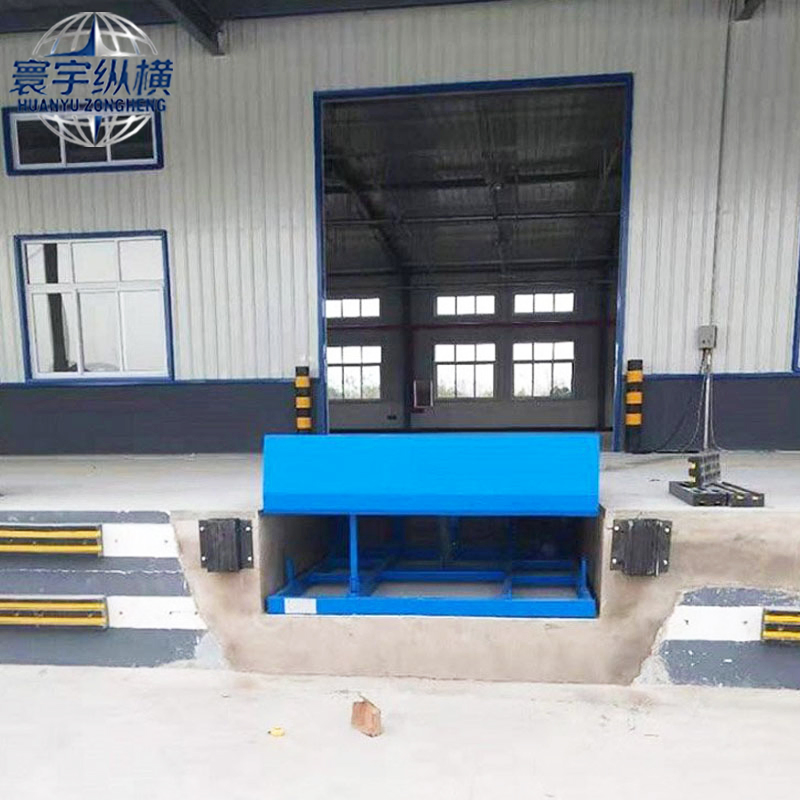

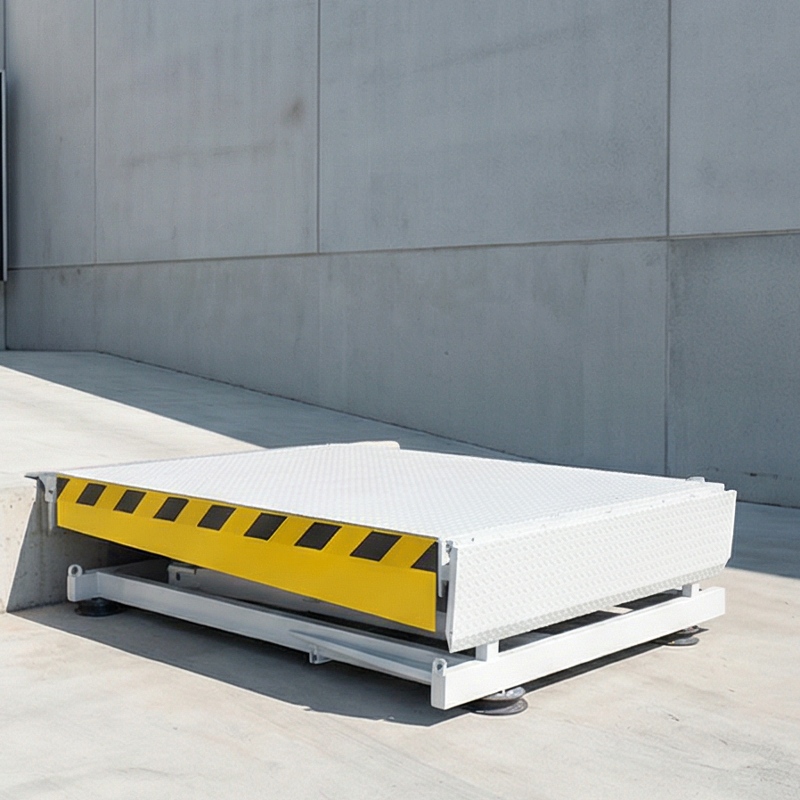

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It provides lightweight and efficient operation within containers. Equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to ensure maximum safety for personnel and goods.
| Design | Hydraulic driving system for main deck and lip. Pump, pipe, and tank are integrated under the deck for space-saving. |
| Safety | Full range foot guards, safety support bars for maintenance, and hydraulic velocity fuses for emergency stops. |
| Structure | Main plate made of 8mm high-strength non-slip steel. Extension lip is 15mm thick. Reinforced with 14# I-beam steel. |

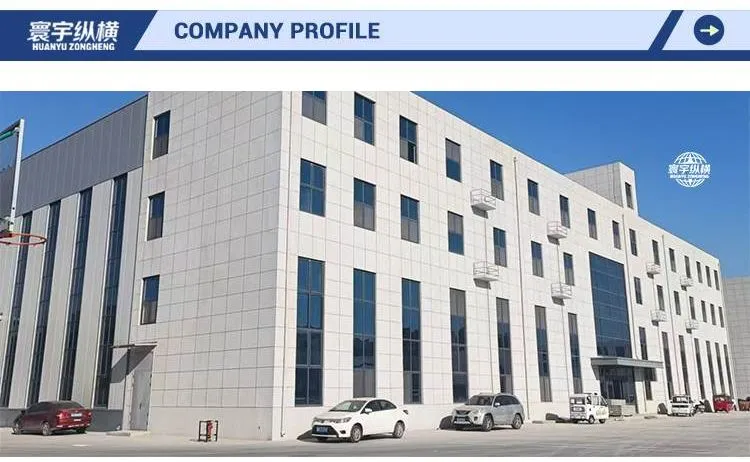

Located in a major production base for lifting platforms, we are a modern technology-based manufacturing enterprise integrating design, production, sales, installation, and after-sales service. Our product portfolio includes Wrapping Machines, lifting work platforms, and vehicle boarding bridges. Our equipment has successively obtained ISO system certification, CE safety certification, and multiple national invention patents, serving industries such as glass, papermaking, chemicals, food, and metallurgy globally.
