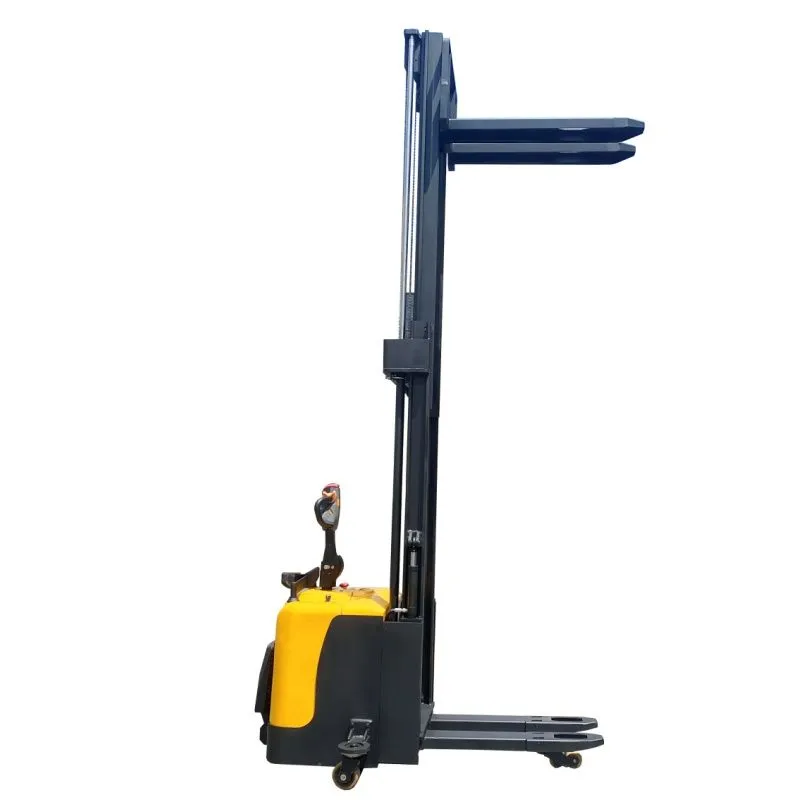

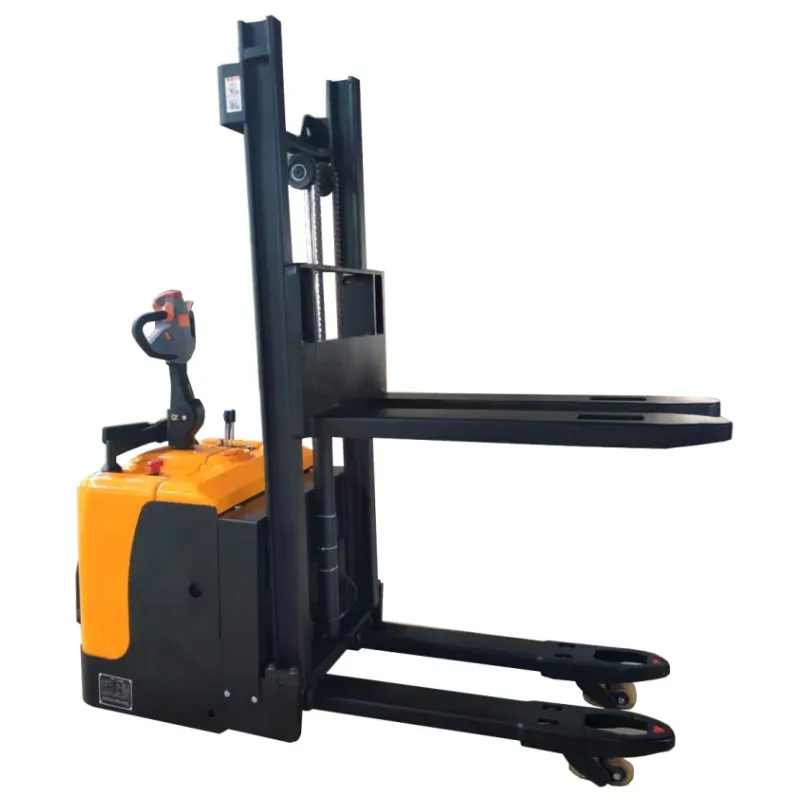

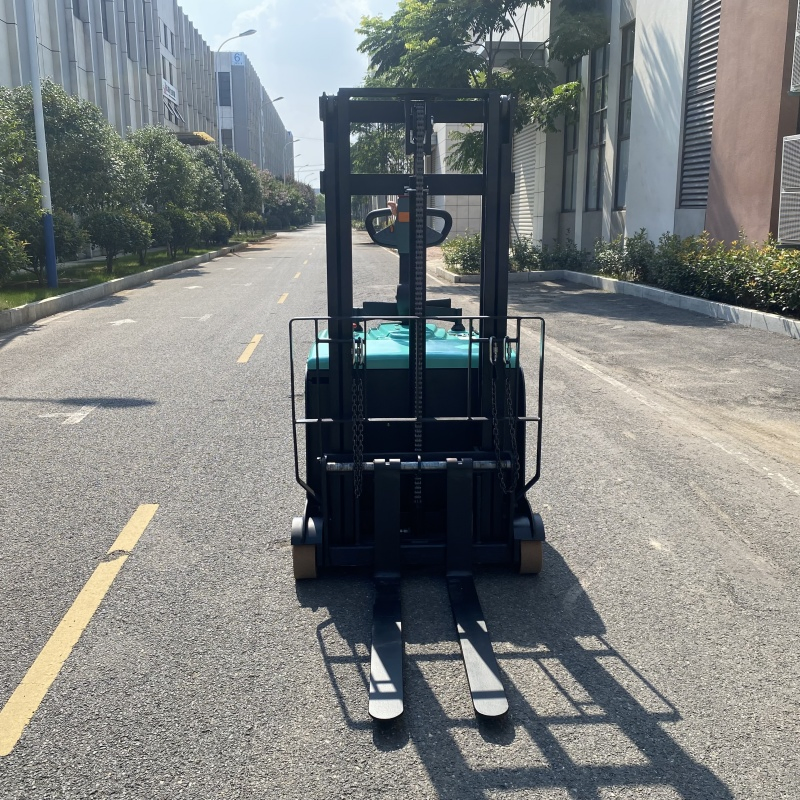

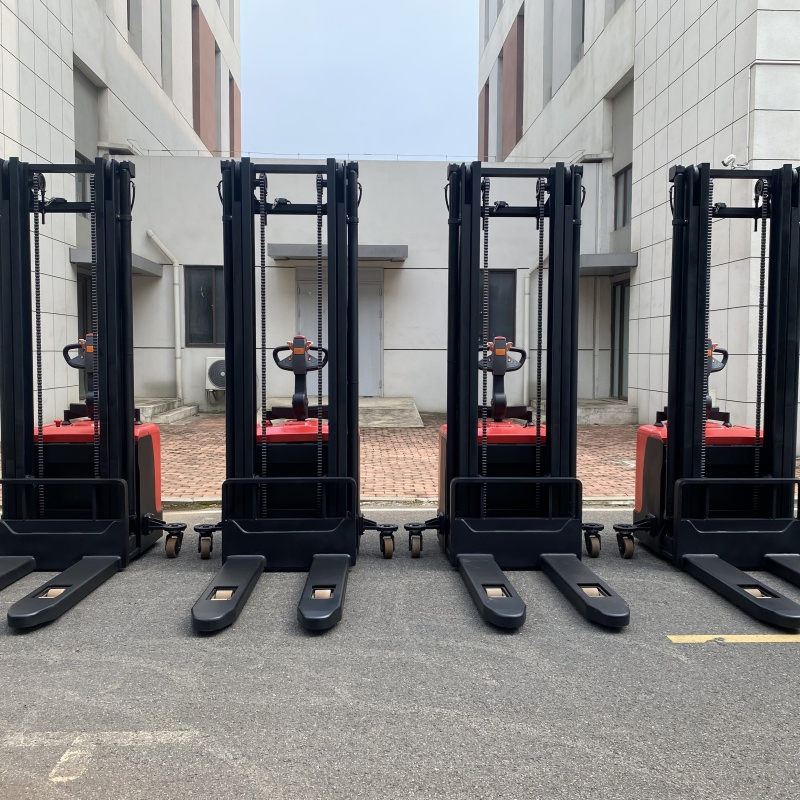

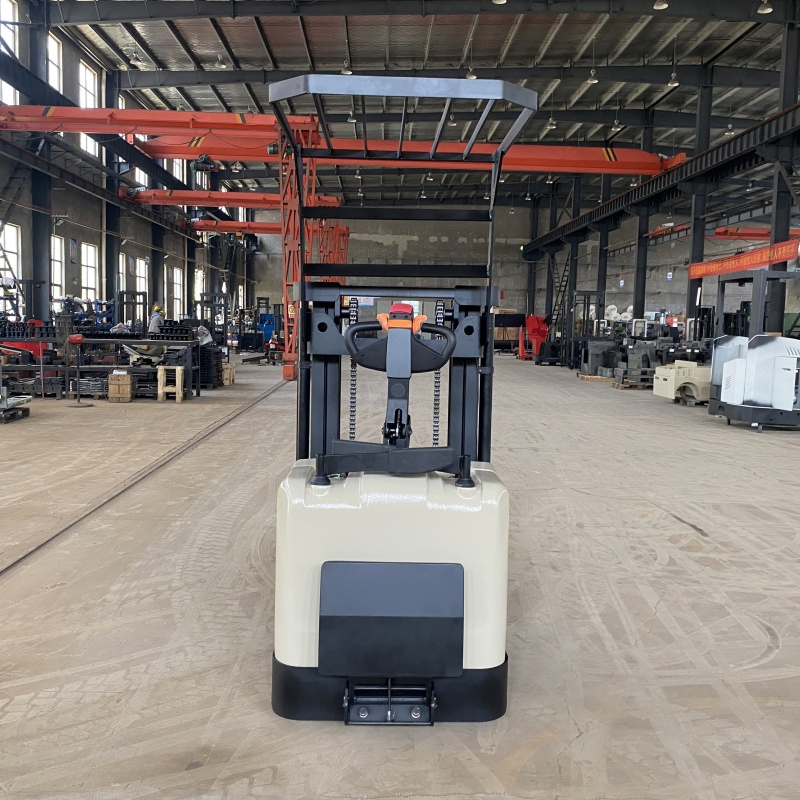

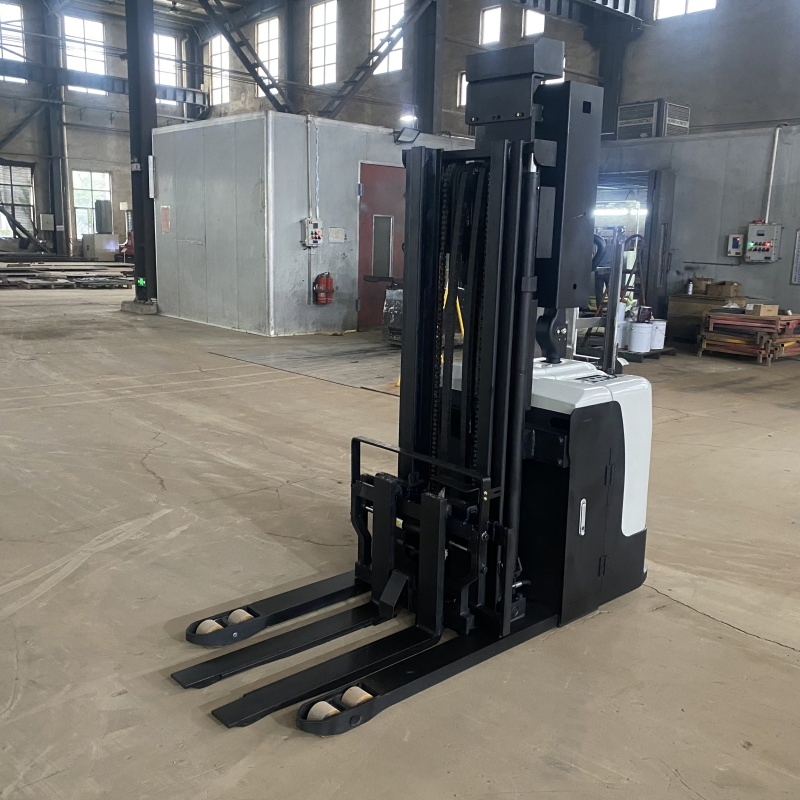

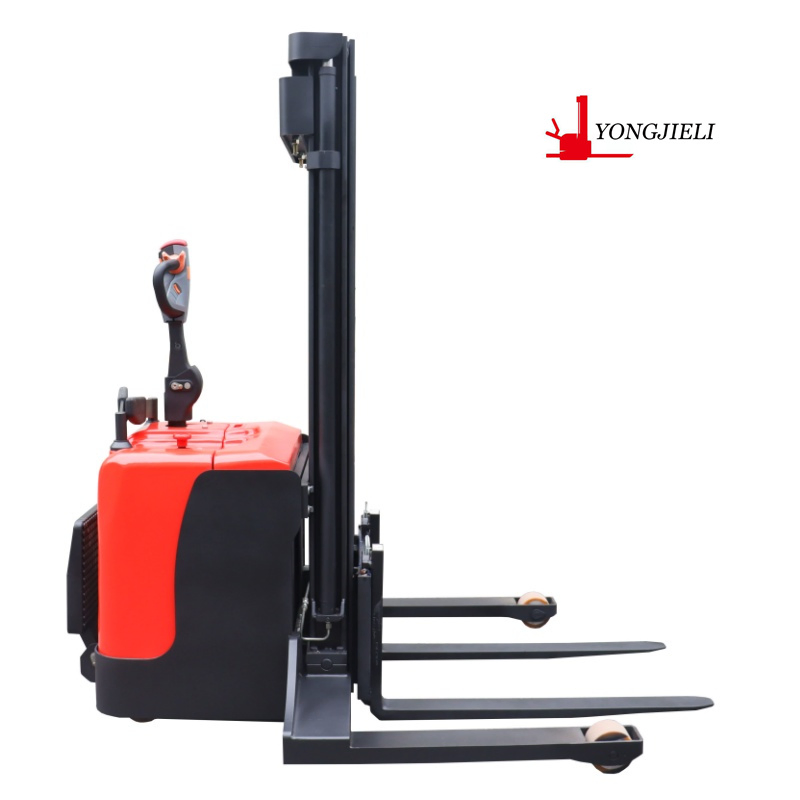

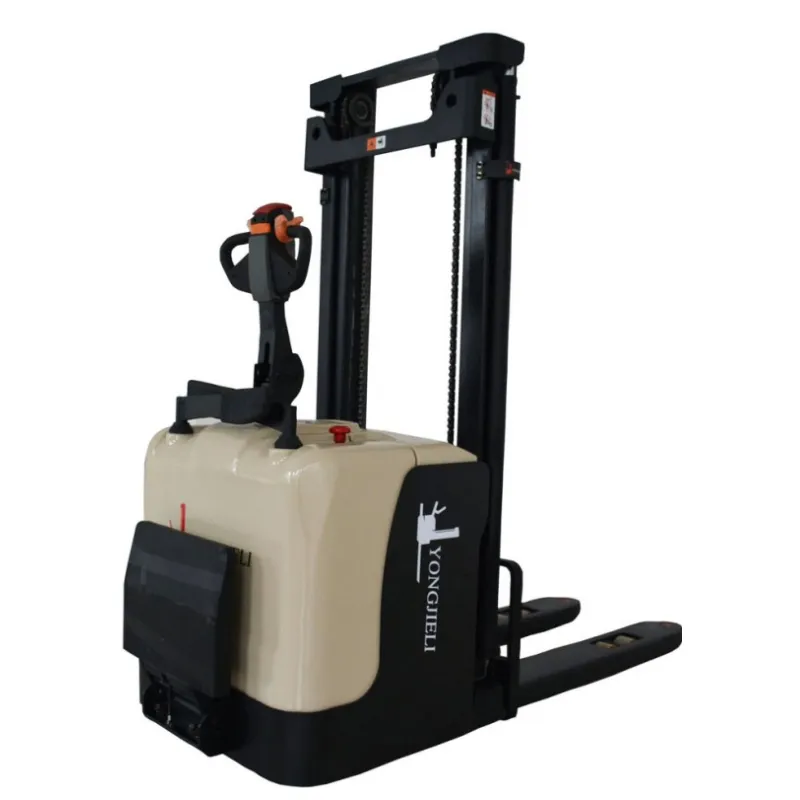

Fully Automatic Electric Pallet Stacker with Electronic Steering

Basic Specifications

Model

CDD

Type

Stacker

Power

AC Motor

Load Capacity

0.5-10ton

Fuel

Electric

Lift height

500mm-6000mm

Braking Mode

Electromagnetic Brake

Steering Mode

Electronic Steering

Controller

Original Imported Curtis Controller

Battery

Lithium or Lead Acid Battery

Product Description

The electric stacker is a modern piece of equipment designed for warehouse and material handling, widely used in logistics, warehouses, factories, and supermarkets. It utilizes electric power and a hydraulic system to achieve stacking and transport operations. Compared to traditional manual stackers, it offers higher efficiency and operational convenience, making it an essential tool for improving warehouse management.

Technical Parameters

Parameter	Unit	CDD20	CDD25
Drive mode	-	Electric	Electric
Driving style	-	Walking (pedal type)	Walking (pedal type)
Load rating	Q(kg)	2000	2500
Lifting height	mm	4500	2500
Load center distance	C(mm)	600	600
Wheelbase	y(mm)	1426	1426
Vehicle weight	kg	1200	1280
Tire type	-	Polyurethane	Polyurethane
Drive Motor Power	kw	1.6(AC)	2.2(AC)
Battery voltage/capacity	V/Ah	24/210	24/210
Steering mode	-	Electronic steering	Electronic steering

Key Features

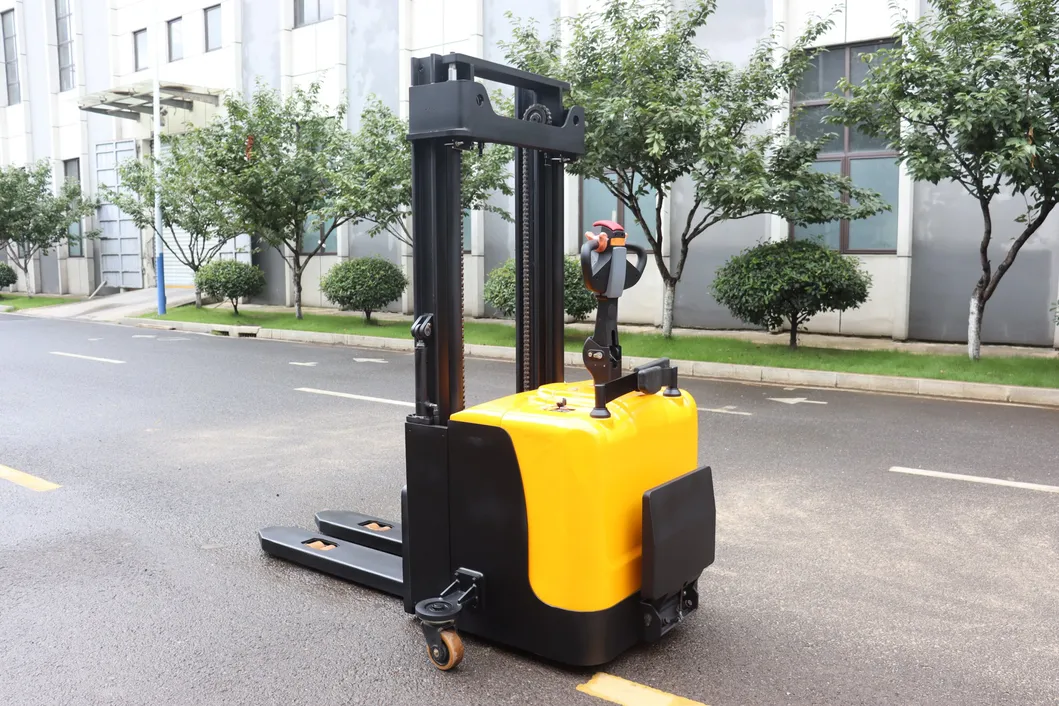

High-Efficiency Power System

The electric stacker is driven by a powerful motor, providing robust power for long-duration and heavy-duty operations. Its high-performance battery ensures long-lasting operation and supports fast charging.

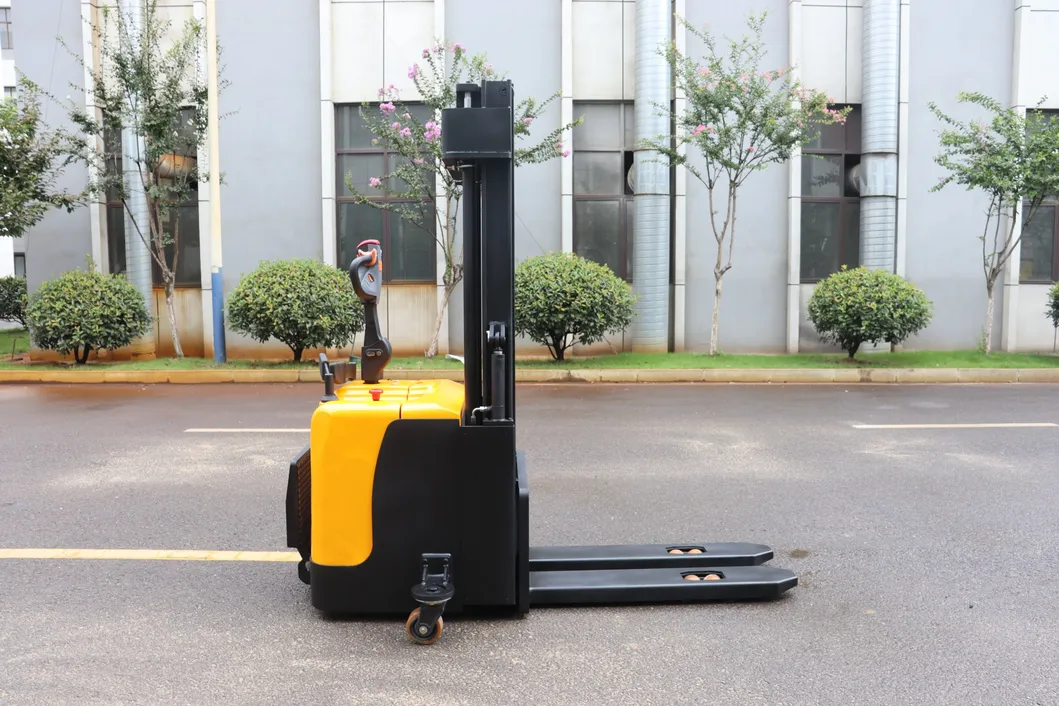

Safety and Stability

Equipped with emergency brake buttons, overload protection, and low-speed switches. The base features stabilizing support legs and premium polyurethane wheels for maximum durability.

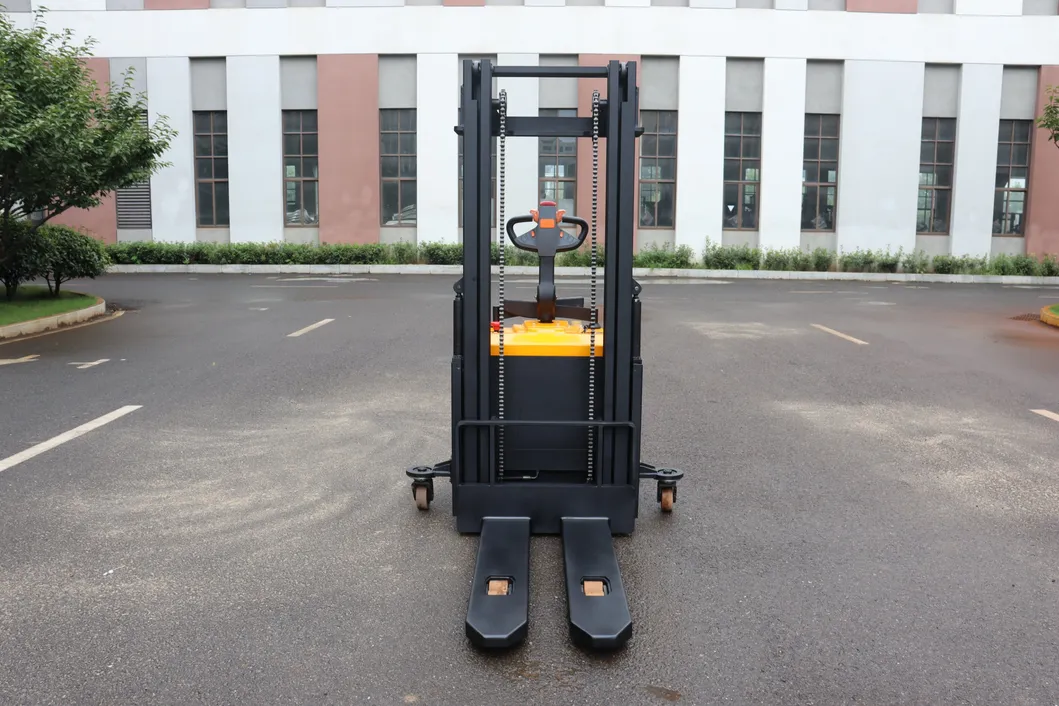

Ergonomic Design

The ergonomic handle provides comfortable operation, reducing fatigue. Integrated buttons for driving, lifting, and horn simplify the entire handling process.

High Maneuverability

Compact body structure and small turning radius allow efficient operation in narrow spaces. Customizable fork options accommodate various pallet sizes.

Main Product Range

Our product line encompasses nine major series with more than 100 varieties, including fully electric pallet stackers, trucks, reach trucks, tow tractors, order pickers, and AGVs. Solutions range from 500KG to 100,000KG.

Certifications & Global Reach

Recognized as a High-tech enterprise, we hold ISO E1/S1/Q1 certifications and specialized equipment production licenses. Our global sales network covers over 40 countries, including North America, Europe, South America, and Southeast Asia.

Packaging & Logistics

Frequently Asked Questions

Q1: How to proceed with an order for the product?

Firstly, let us know your requirements or application. Secondly, we quote according to your requirements. Thirdly, you confirm samples and place payment for the formal order. Fourthly, we arrange production and shipping.

Q2: When can I get the quotation?

We usually quote within 12 hours after receiving your inquiry. If urgent, please mention it in your communication so we can prioritize your request.

Q3: Can I have a sample order for testing?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q4: Do you have any MOQ limits?

There is no quantity limitation; you can order any quantity of products needed.

Q5: Can you provide OEM services?

Yes, we accept all OEM orders. Just contact us and provide your design; we will offer a reasonable price and make samples as soon as possible.

Q6: What is the lead time for production?

Production times vary depending on order quantity and customization requirements, generally arranged immediately after order confirmation.
