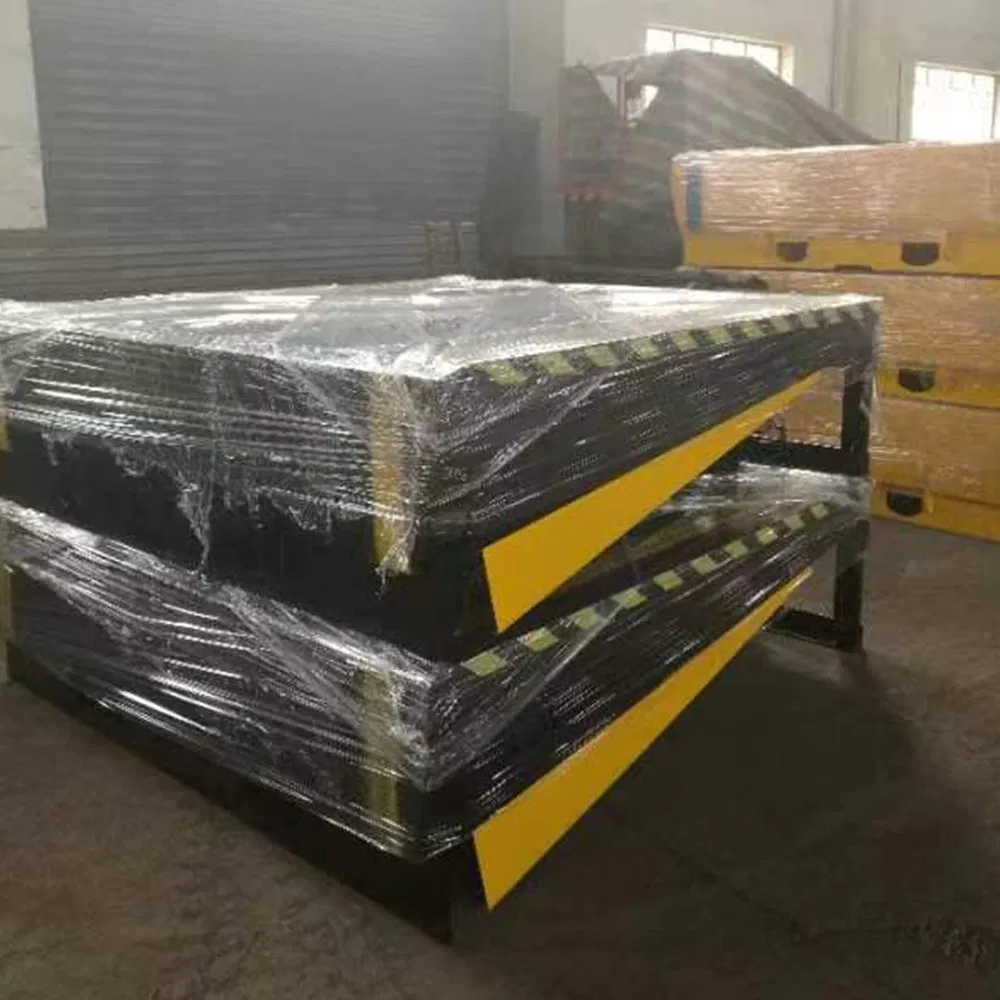

Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp
Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp
Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp
Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp
Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp
1 / 5
Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp
Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp
Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp
Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp
Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp

Best Price 6ton Electric Leveler Lift Fixed Hydraulic Container Load Dock Ramp

After-sales Service: Free Parts Lifetime
Warranty: 1 Years
Application: Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Send Inquiry

Product Description

📋

Basic Information

Model NO.
DCQ6-0.7
Lift Mechanism
Lift Chain
Carrying Capacity
6ton-10ton
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Material
High-Duty Steel Structure
HS Code
8479899990
🏗️

Product Description

The Stationary Yard Ramp/Container Loading Ramp is the auxiliary equipment for loading and unloading goods which is used in conjunction with the forklift truck. The height can be adjusted according to the height of the carriage. It only needs one person to complete the task. Quick loading and unloading of cargos.

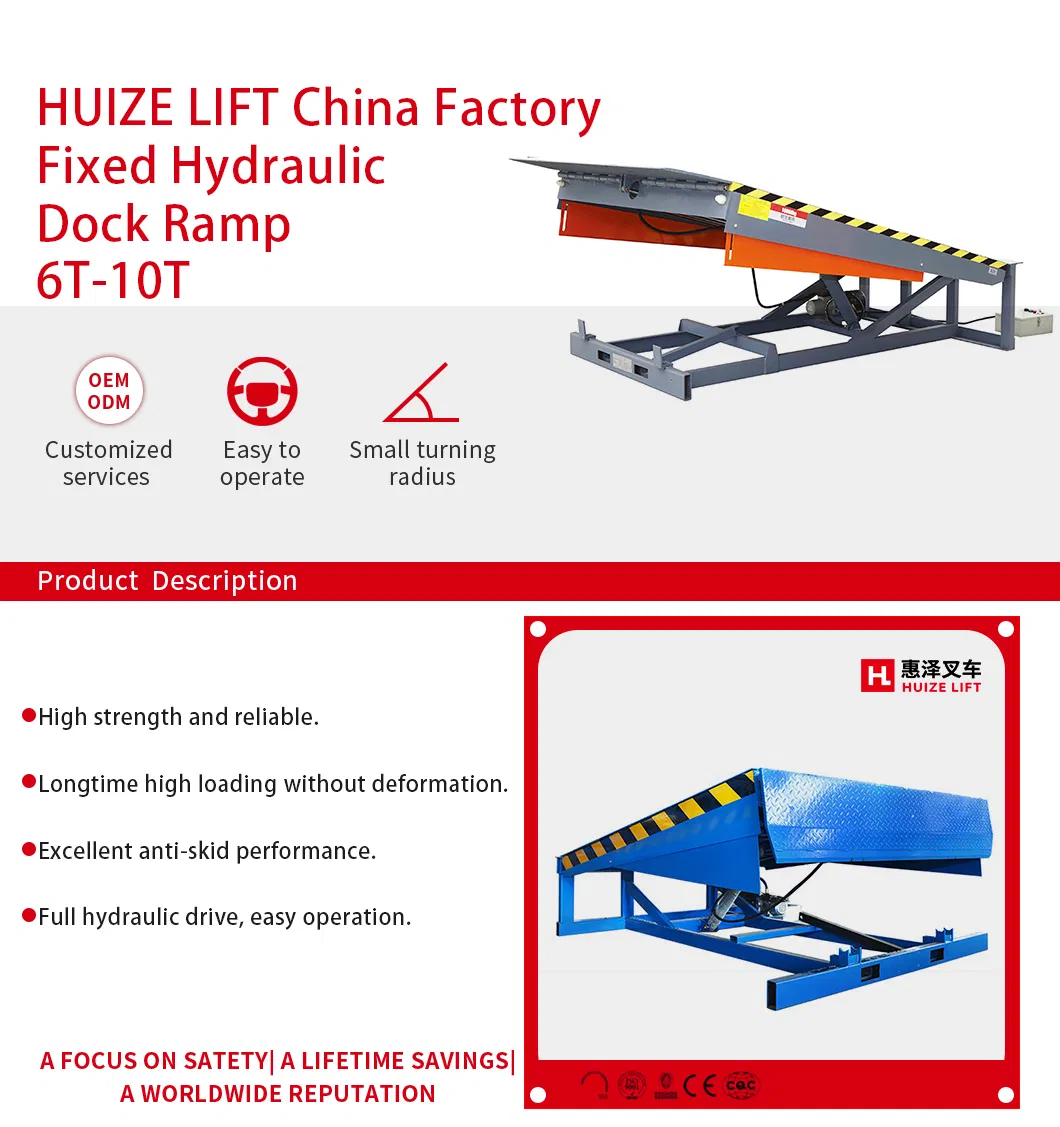

Container Loading Ramp
🔹
Stationary hydraulic yard ramp is also called stationary dock leveler, which is variously used in logistics, warehouse work as accessory equipment.
🔹
The yard ramp can be fixed on the pit that is deserved in the platform, and it will adjust the height to the cargo trucks.
🔹
This equipment can save labor work and promote the efficiency safely and conveniently.

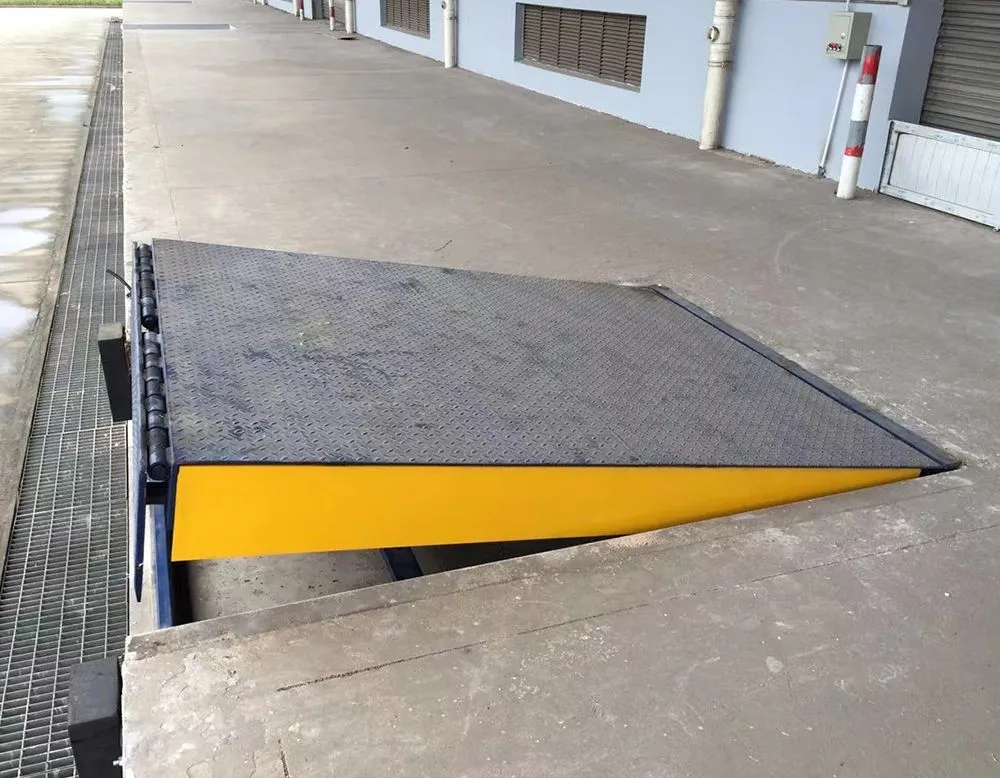

Dock Leveler Detail

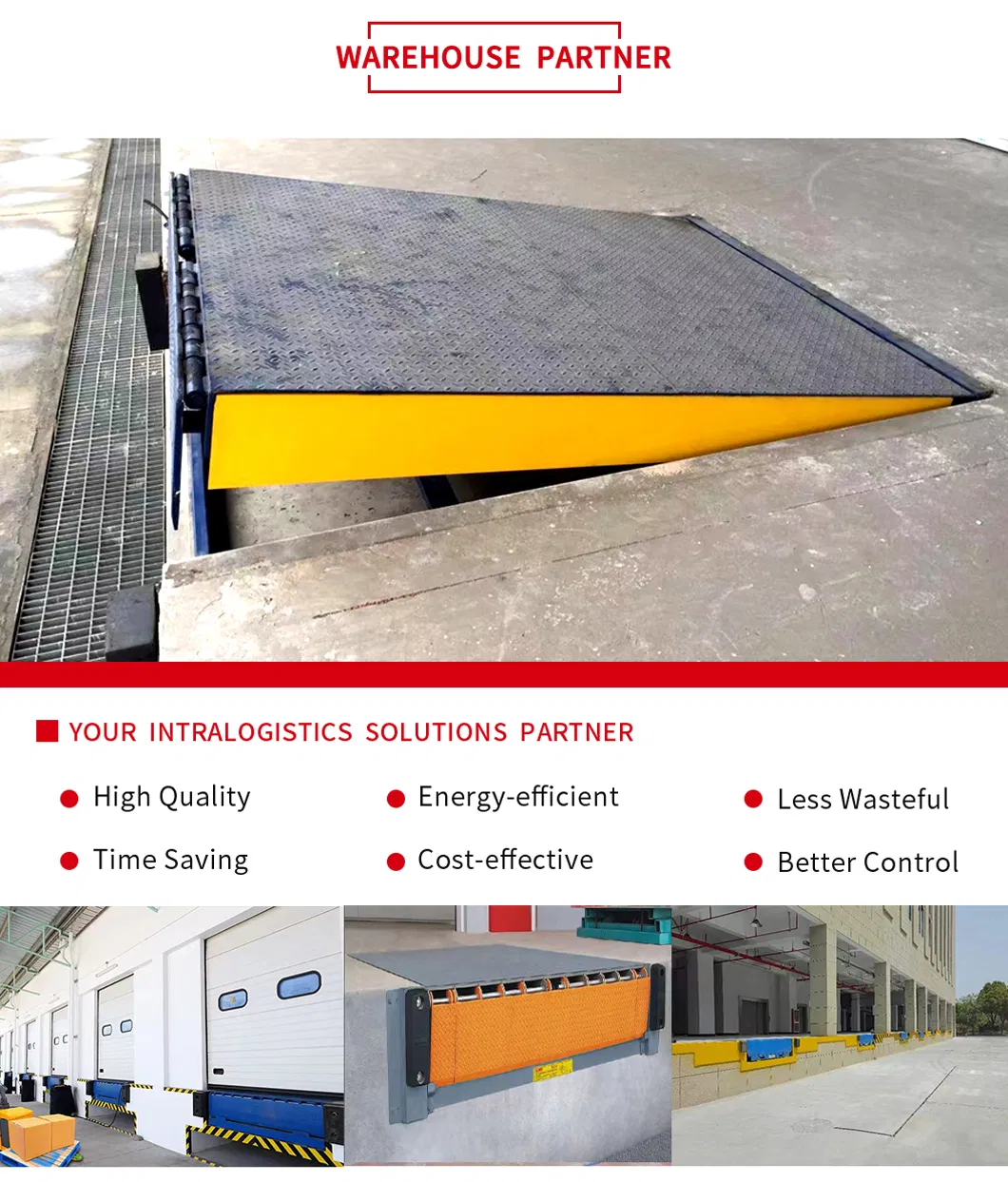

Loading Ramp Operation
Hydraulic System
📊

Product Parameters

Model Rated Load (Kg) Original height (mm) Upward tilt H1(mm) Downward tilt H1(mm) Table size LxW(mm) Motor power (kW) Supply voltage (v)
DCQ6-0.5560005903502002000×20000.75AC380/50
DCQ6-0.760005904003002500×20000.75AC380/50
DCQ6-0.5580005903502002000×20000.75AC380/50
DCQ6-0.780005904003002500×20000.75AC380/50
DCQ6-0.55100005903502002000×20000.75AC380/50
DCQ6-0.7100005904003002500×20000.75AC380/50
🔍

Product Showcase

Lift Series 1

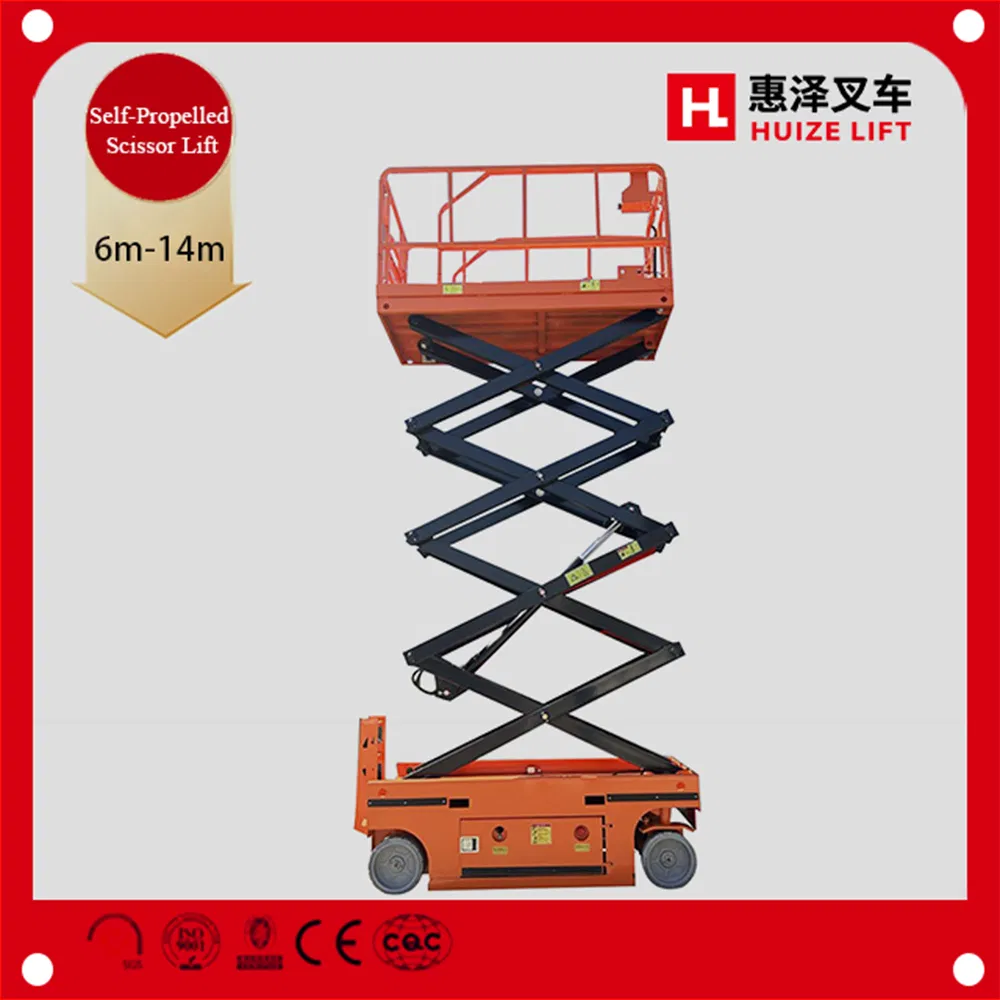

Lift Series 2
Lift Series 3
Lift Series 4
Lift Series 5

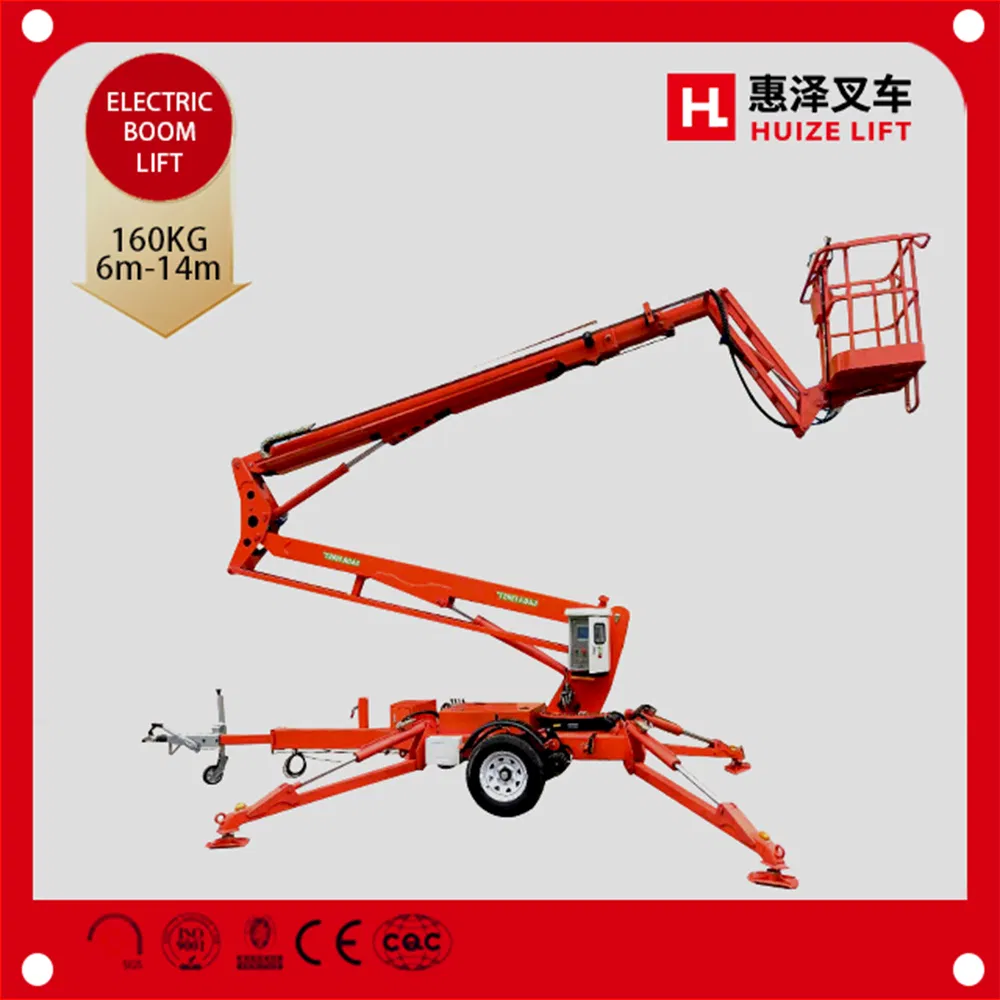

Lift Series 6
✅

Key Features & Benefits

Factory Feature 1
Factory Feature 2
Factory Feature 3
1
Platform ground is made from high-strength 8mm or above thick steel plate. Surface is processed with groove milling to make it anti-skid.
2
Hinge and Shaft are Super-High-Temperature heat treated to reduce deformation.
3
Whole set of hydraulic drive station is imported, with stable power output. High standard seal avoids oil leaking.
4
Surface treatment: Coated with epoxy resin paint, very durable and high anti-corrosive.
❓

Frequently Asked Questions

What is the primary function of a stationary dock leveler?
It serves as auxiliary equipment for loading and unloading goods, bridging the height gap between the warehouse floor and the truck bed for seamless forklift access.
What weight capacities are available?
Our stationary yard ramps are classified into several capacities, including 6 tons, 8 tons, and 10 tons, to suit different logistics needs.
Is the platform surface safe for operation?
Yes, the platform is made from high-strength steel plate (8mm or thicker) with a groove-milled anti-skid surface to ensure safety during use.
Can one person operate this equipment?
Absolutely. The hydraulic system allows for easy operation via electricity, meaning only one person is required to complete the loading task.
What kind of surface treatment is applied?
The equipment is coated with epoxy resin paint, which provides excellent durability and high anti-corrosive properties for long-term use.
Where are these ramps typically used?
They are widely used in warehouses, stations, wharfs, postal transportation hubs, and logistics distribution centers to improve work efficiency.
