Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps
Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps
Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps
Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps
Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps
1 / 5
Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps
Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps
Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps
Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps
Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps

Boonai Movable Hydraulic Dock Leveler Mobile Container Loading Ramps

Customization: Available
Warranty: 12 Months Apart From Man-Made Faults
Certification: ISO, CE
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
DCQY10-0.6
Condition
New
Rated Load
>9t
Transmission
Hydraulic
Load/Unload Mode
Front Discharge
Walking Mode
Stationary
Loading Capacity
10 Ton
Max Height
1800mm
Slope Length
7500mm
Overall Length
11200mm
Inside Width
2000mm
HS Code
8428909090
🏗️

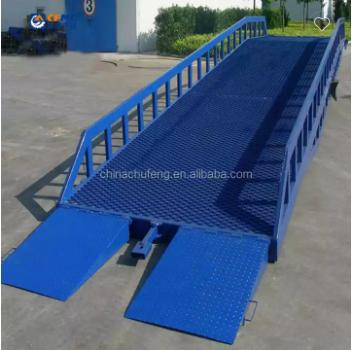

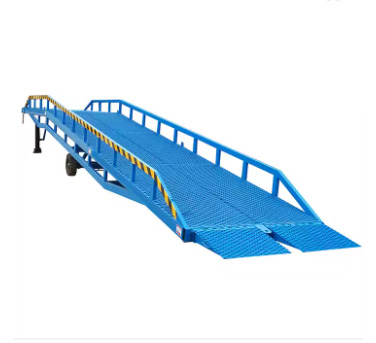

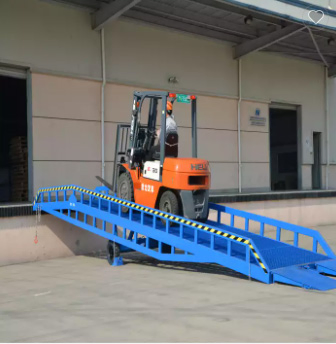

Movable Hydraulic Dock Leveler

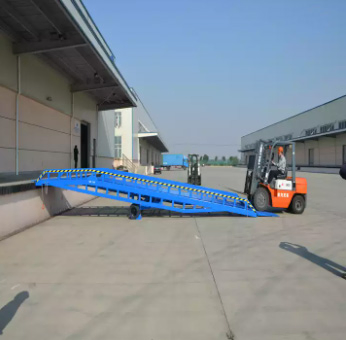

Movable hydraulic dock leveler mobile container loading ramps are primarily used to transport stock between truck and warehouse. It conveys stock in workshops between processes involving different heights, offering high efficiency and maximum loading capacity. One person can complete the task independently, achieving rapid loading and unloading of goods.

Container Loading Ramp
📋

Technical Parameters

Model DCQY6/8-0.6 DCQY10-0.6 DCQY12-0.6
Loading capacity(T) 6/8 10 12
Slope length(MM) 7500 7500 7500
Platform length(MM) 2400 2400 2400
Overall length(MM) 11200 11200 11200
Slope inside width(MM) 2000 2000 2000
Stroke(MM) 600 600 600
Max height(MM) 1800 1800 1800

Presentations with machine: Seals, Lubricant filling gun, screwdriver, Manual, Warranty Card, Certificate.

🌟

Key Product Features

High efficiency loading/unloading, single-person operation.
Forklift compatible for fast and safe movement.
Manual hydraulic pressure; no external power supply required.
Rust-proof, non-slip, and explosion-proof design.
High-quality seal system prevents oil leakage.
Non-slip mesh surface prevents deformation (30 * 25mm density).
Security-chain fixed to prevent displacement during use.
Comfortable operating handle and reliable hydraulic system.
🛠️

Standard Configurations

Main diameter: 150×50×5mm Manganese steel tube
Platform material: Serrated steel grating
Cylinder: Fine grinding Ф80mm (2 pieces)
Seals: Japan-NOK import seals
High-pressure tubing: Double steel mesh structure
Tires: 500-8 wear-resistant solid tires
Hydraulic hand pump: DC-20 type
Paint: Conventional Peacock Blue
Load safety: Designed for 1.33x max capacity
Vertical diameter: 100×50×2.75mm steel tube
📸

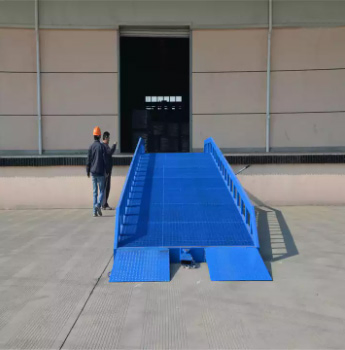

Equipment Gallery

Work Process

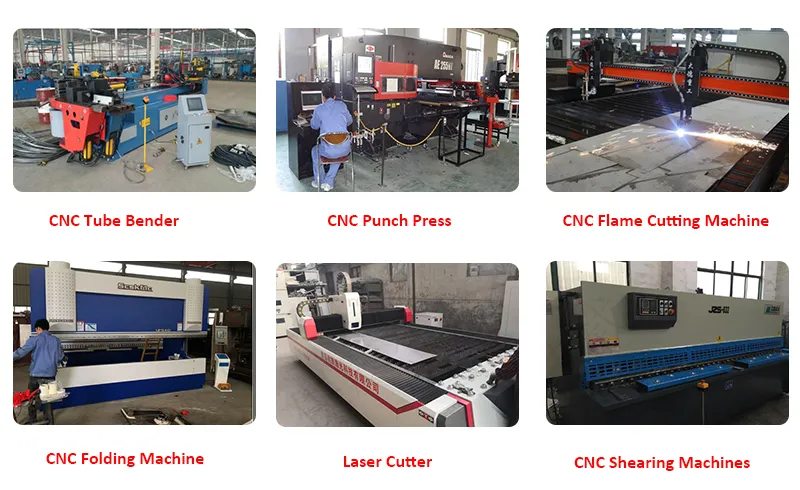

Production Equipment
Certificates
Clients
Packing
🛡️

Warranty & Support

1. User-friendly English manual for machine using and maintenance.

2. One year warranty for the whole machine without man-made fault.

3. Free replacement parts for non-human factor problems during warranty time.

4. 24-hour technical support via email or online communication.

5. Response within 2 hours of inquiry, even on weekends and holidays.

❓

Frequently Asked Questions

Q1: What is the maximum loading capacity of these ramps?
The loading capacity varies by model, ranging from 6 tons, 8 tons, 10 tons, up to a maximum of 12 tons.
Q2: Does the dock leveler require an electrical power source?
No, it uses a manual hydraulic pressure system, meaning it does not need an external power supply and operates without sparks.
Q3: How many people are needed to operate the loading ramp?
The system is designed for high efficiency; only one person is needed to complete the loading and unloading tasks.
Q4: Is the platform surface safe for use in wet conditions?
Yes, the surface is designed with a non-slip serrated steel grating to ensure safety and prevent slipping, even in rainy conditions.
Q5: What kind of tires are used for movement?
The ramps are equipped with 500-8 wear-resistant solid tires, ensuring durability and stability during relocation.
Q6: What is covered under the warranty?
We provide a one-year warranty for the entire machine. This covers free parts for any non-human related malfunctions during the warranty period.
