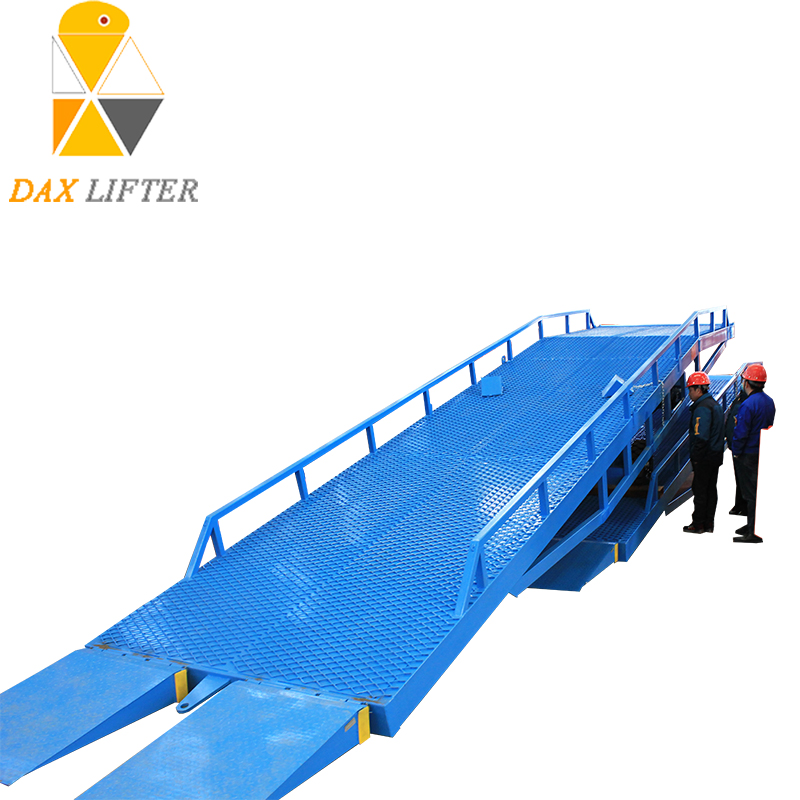

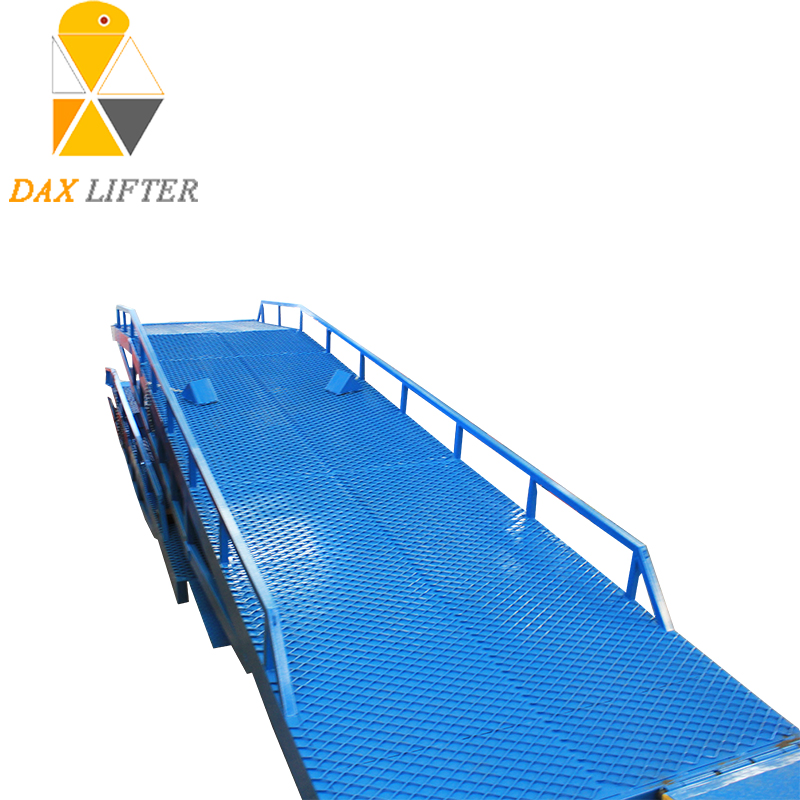

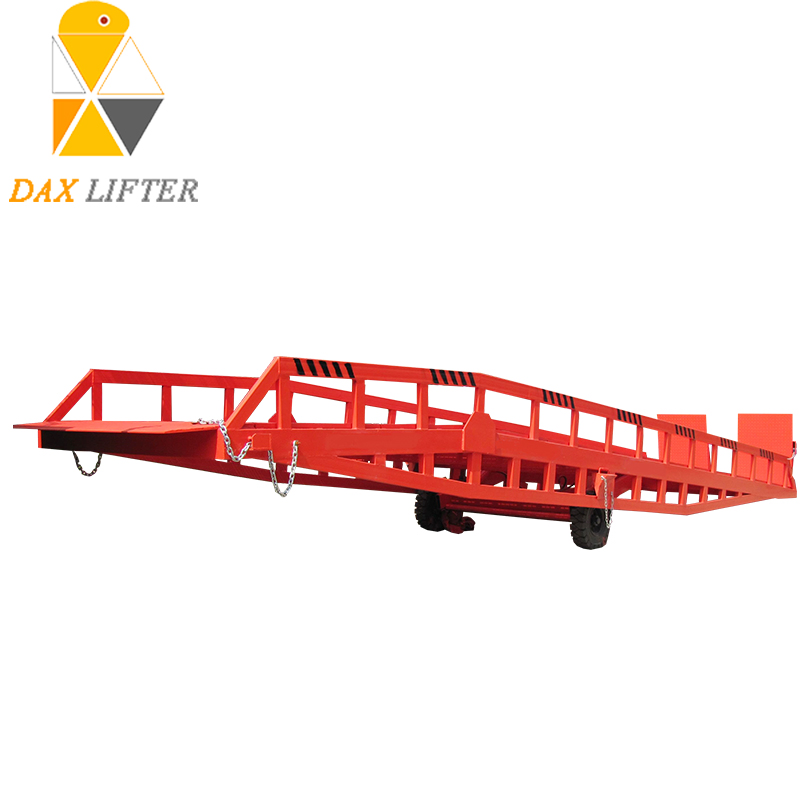

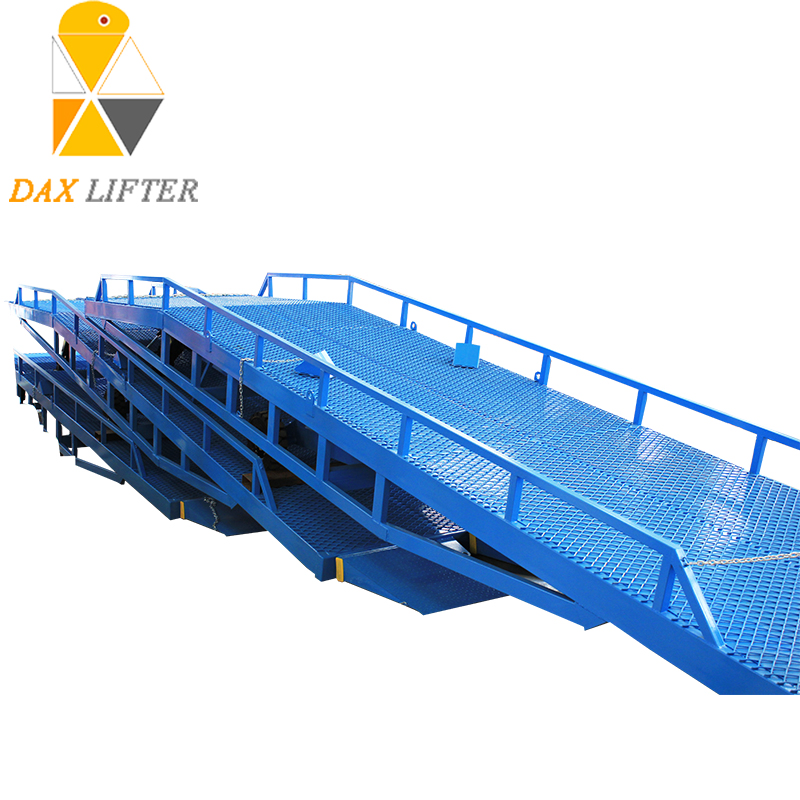

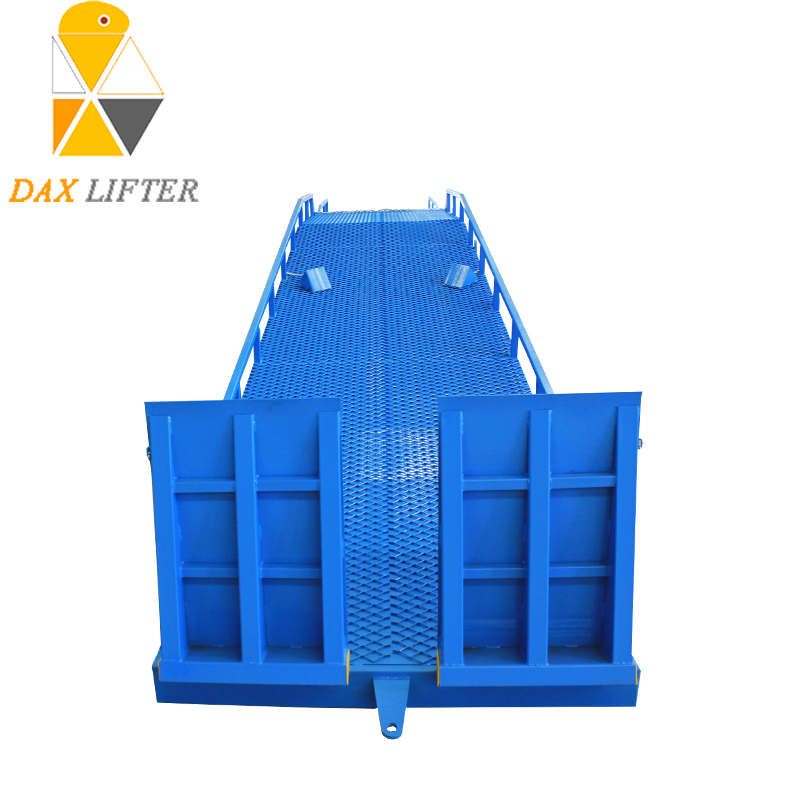

CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp
CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp
CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp
CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp
CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp
1 / 5
CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp
CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp
CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp
CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp
CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp

CE Certified Container Unloading Trucks Mobile Hydraulic Loading Dock Ramp

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
MDR
Driven Type
Hydraulic
Running Mode
Moving
Certification
CE
Features
Custom Made Service
Duty Type
Heavy Duty
Parking
Multiple Position
Working Mode
Quasi Unmanned
Inlet/Outlet
Up
Lift Mode
Hydraulic Cylinder
Safety Device
Ladder Lock
Voltage
Custom Made
Package
Steel Structure
Capacity
15T Max
Origin
China
HS Code
8428909090
🚀 Mobile Dock Ramp Overview

Mobile Dock Ramp - OEM & ODM SERVICE

Confidence. Repairability. These mobile dock ramps are equipped with high-quality wheels, making it easier to be towed and moved to different work sites. Constructed from high-performance steel, these ramps ensure more time on the job and less time on routine maintenance.
📊 Technical Data
Model MDR-8 MDR-10 MDR-12 MDR-15
Capacity 8t 10t 12t 15t
Platform Size 11400*2100*1100mm
Steel Plate Thickness 3mm 4mm 5mm 6mm
Steel Grating Size 6mm 8mm
Lifting Height Range 1100-1750mm
Tire Type 600-9 Solid rubber 700-9 Solid rubber
Surface Treatment Shot blasting + plastic spraying
Operation Mode Manually
N.W (kg) 2300kg 2450kg 3000kg 3600kg
📸 Product Gallery
Mobile Hydraulic Loading Dock Ramp

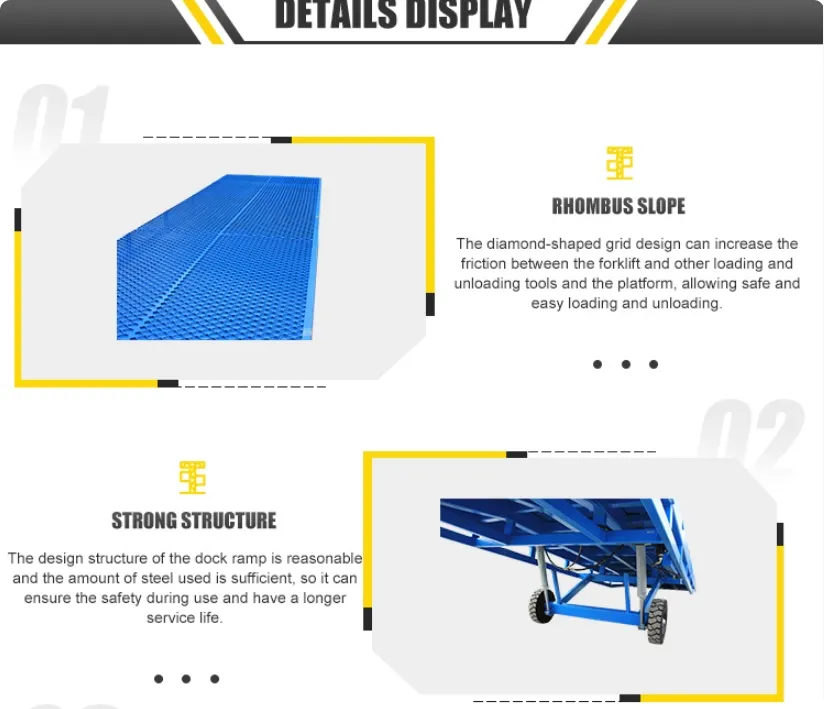

Container Unloading Ramp

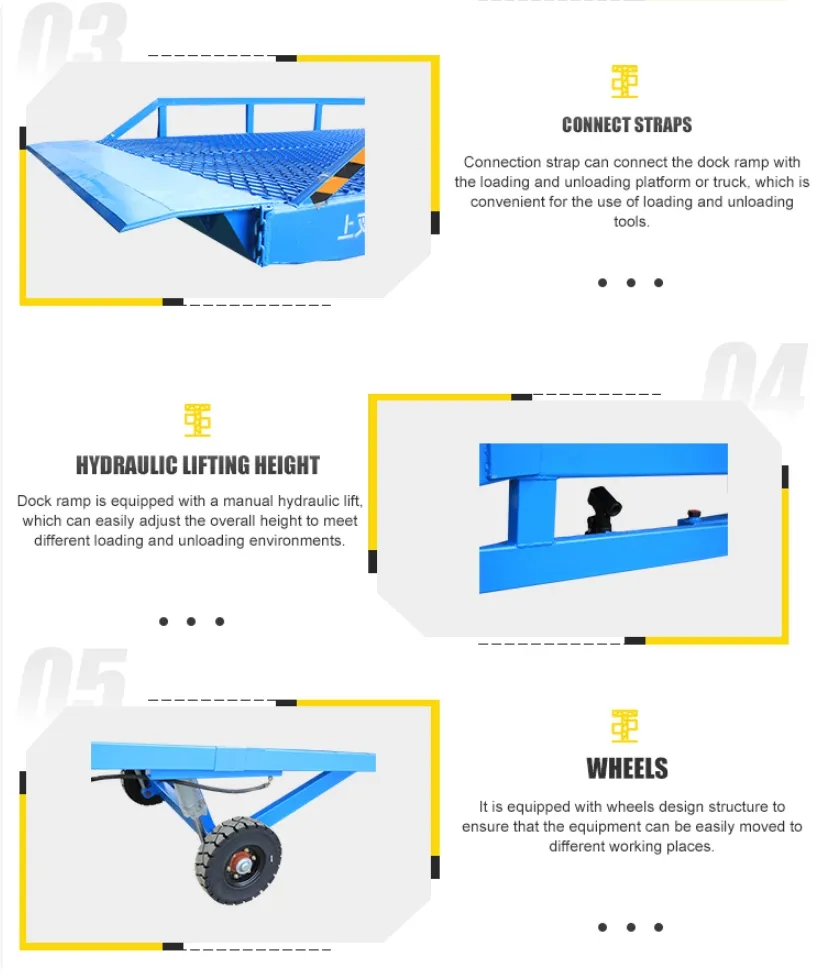

Hydraulic Dock Ramp Details

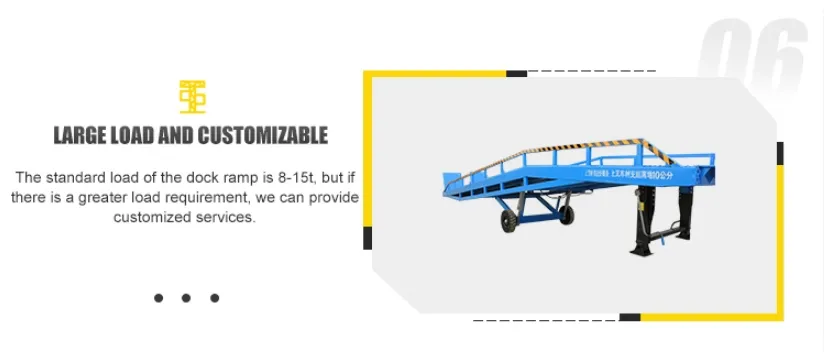

Heavy Duty Dock Ramp
Solid Rubber Tire System
Manual Operation System
Steel Grating Platform
Safety Guard Bar
Lifting Mechanism
Mobile Loading Solution
Dock Ramp Structure
Full View of Mobile Dock Ramp
💎 Professional Advantages

As a professional supplier, we provide safe and reliable equipment globally. Our design focuses on balancing affordable pricing with excellent operational performance. With dedicated after-sales support, we ensure your material handling processes remain efficient and secure.

❓ Frequently Asked Questions
What is the weight capacity range of the MDR series?
The MDR series mobile dock ramps are available in various capacities, including 8 tons, 10 tons, 12 tons, and a heavy-duty 15-ton model.
How is the ramp height adjusted for different trucks?
The ramp uses a manual hydraulic system allowing for an adjustable lifting height range between 1100mm and 1750mm to match different vehicle heights.
What safety features are integrated into the design?
Safety is a priority, featuring ladder locks for falling prevention, robust guard bars, and high-traction anti-skid steel grating.
Are the tires suitable for different terrains?
Yes, the ramps are equipped with heavy-duty solid rubber tires (600-9 or 700-9) that provide stability and durability across various work site conditions.
Can the dock ramp be customized?
Absolutely. We offer OEM and ODM services, including custom voltage configurations and specific dimension adjustments to meet your unique requirements.
What kind of surface protection does the ramp have?
Every ramp undergoes a thorough shot blasting process followed by plastic spraying to ensure a durable, rust-resistant finish.
