Basic Information
Model NO.:DT400A, DT400A-1
Certificate:ISO9001:2015, ISO14001:2015
Product Name:Hydraulic Drum Lifter Stacker
Type:Hydraulic Drum Stacking Equipment
Capacity:400kg
Lifting Height:1500mm
Wheel Dimension:150*50mm
Feature:Floor Lock
Transport Package:Packed Onto Pallet
Specification:1110*900*2100mm
Origin:Jiangsu
HS Code:84289090
Production Capacity:5000PCS/Month
Product Description

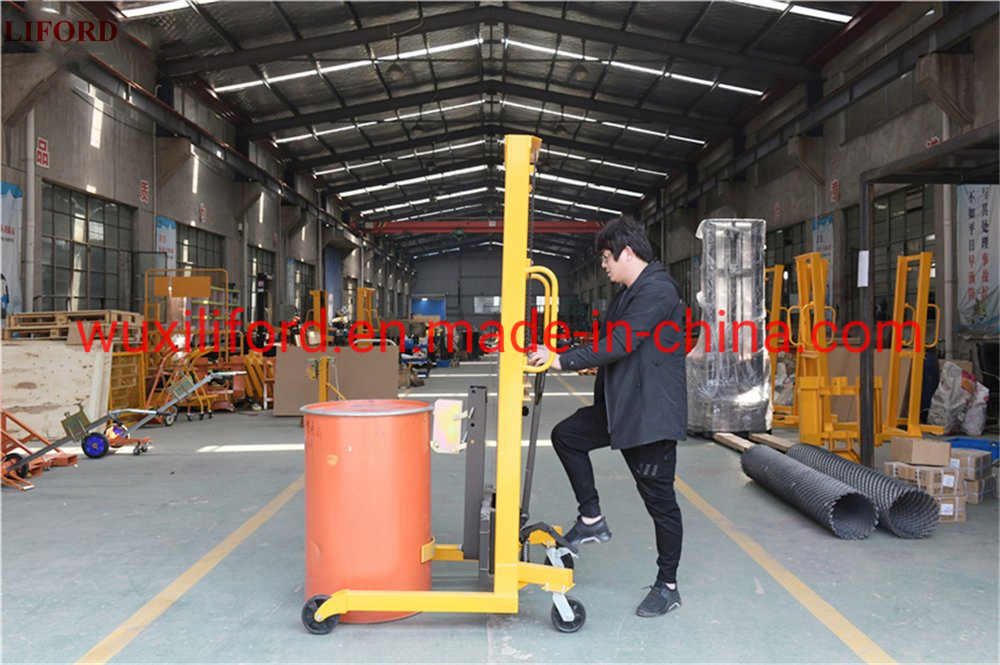

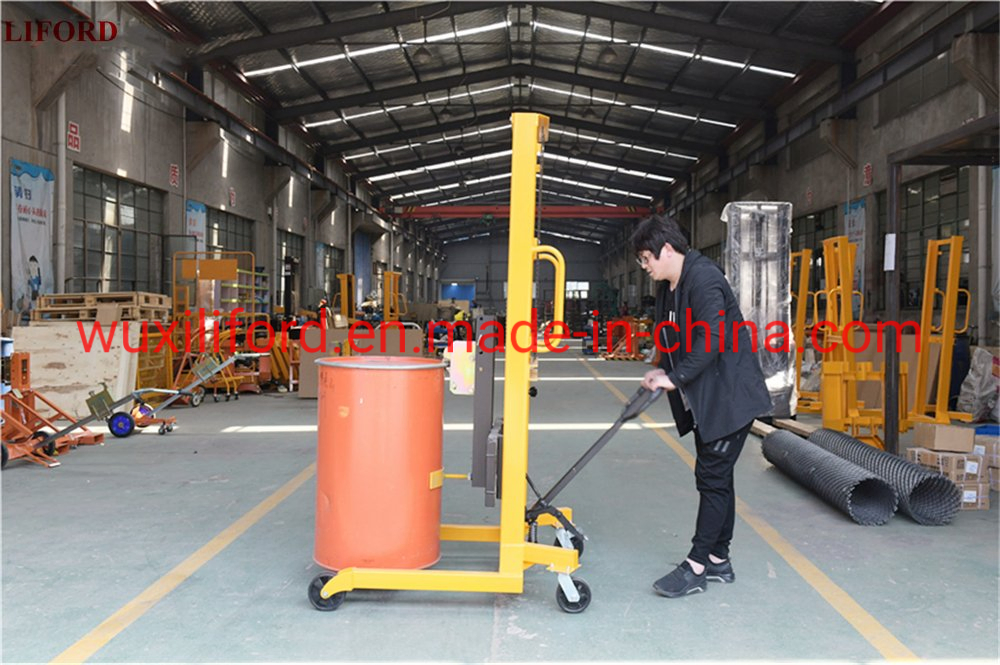

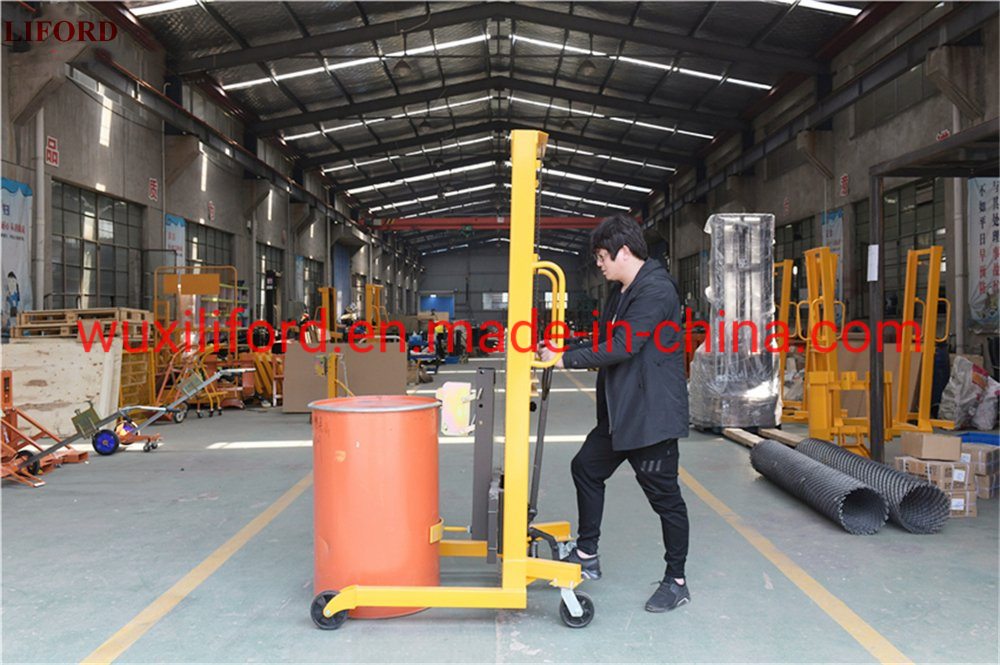

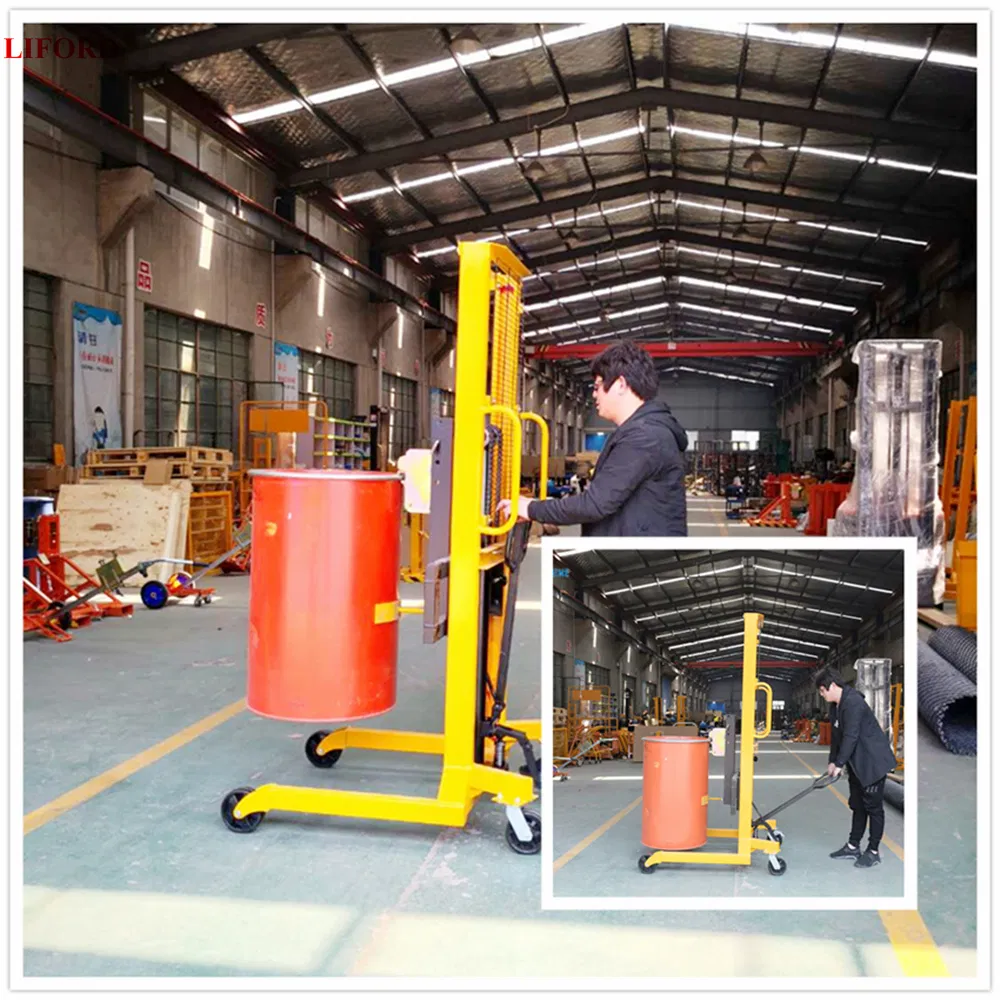

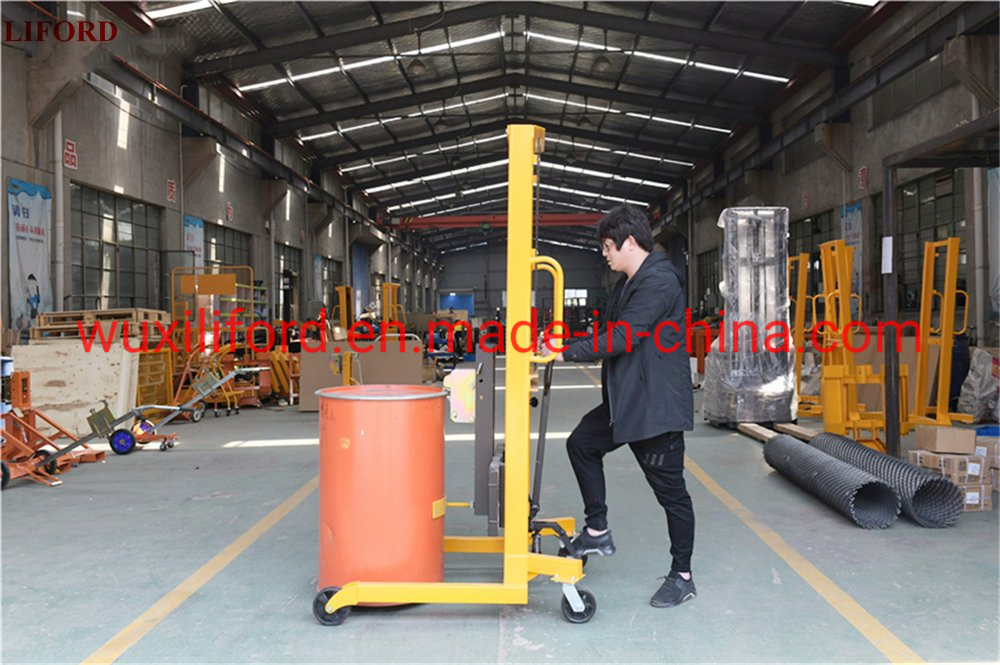

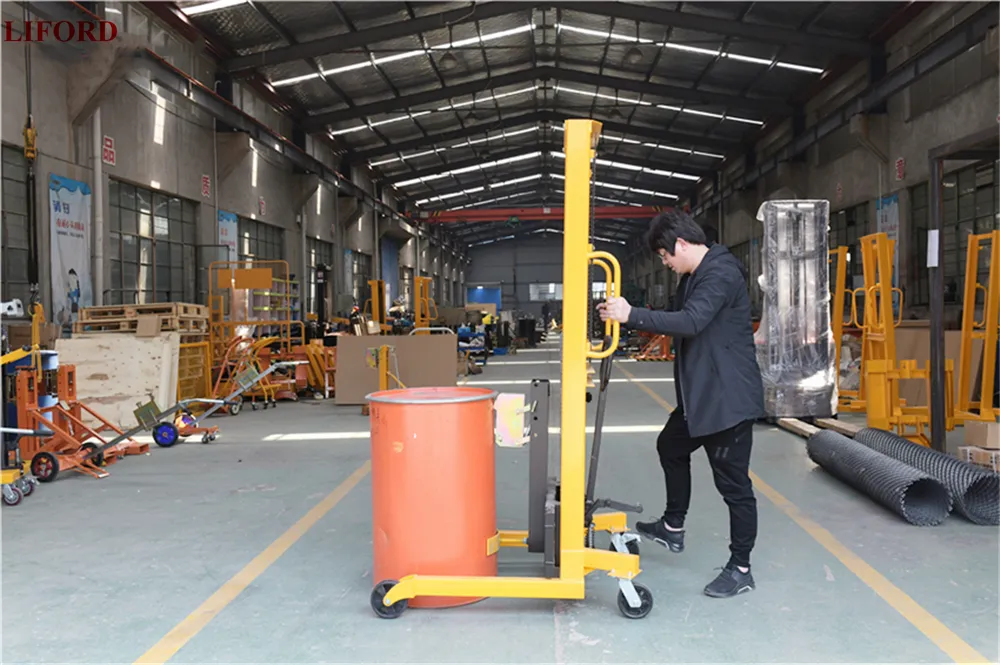

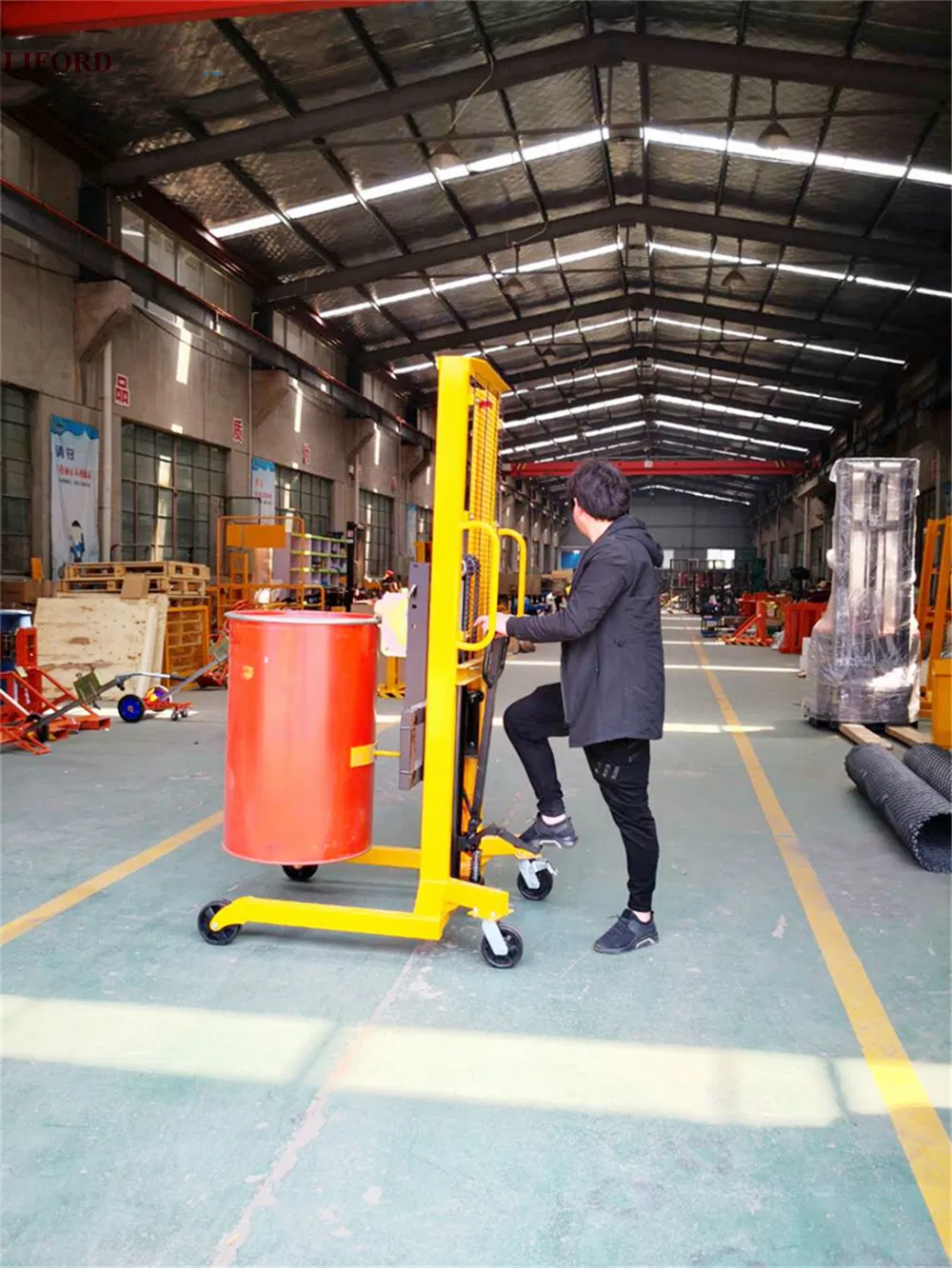

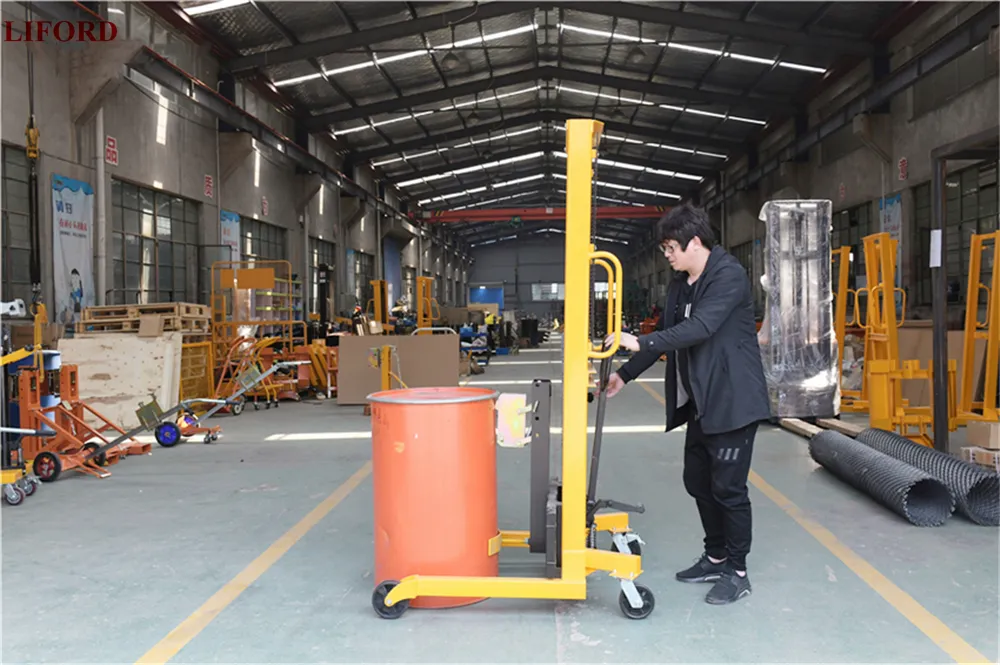

Capacity 400kg Hydraulic Drum Lifter Tilter DT400A/DT400A-1

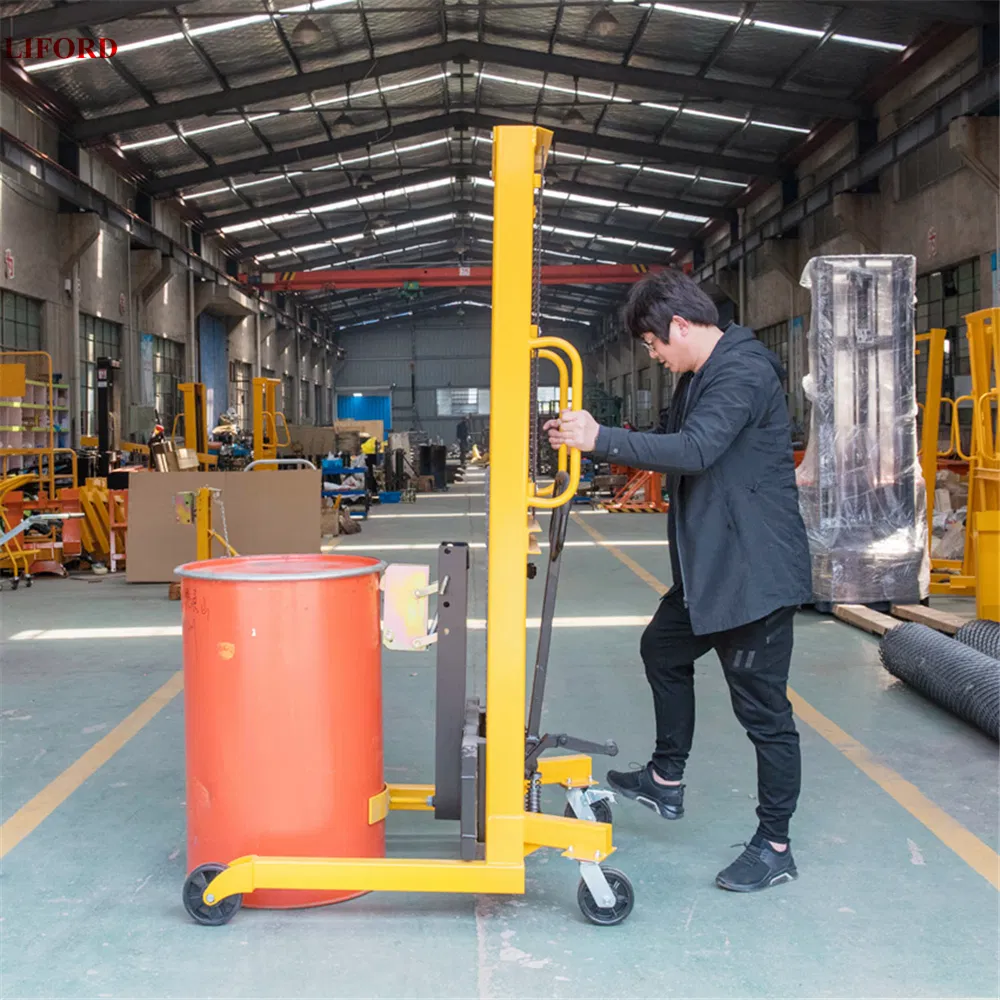

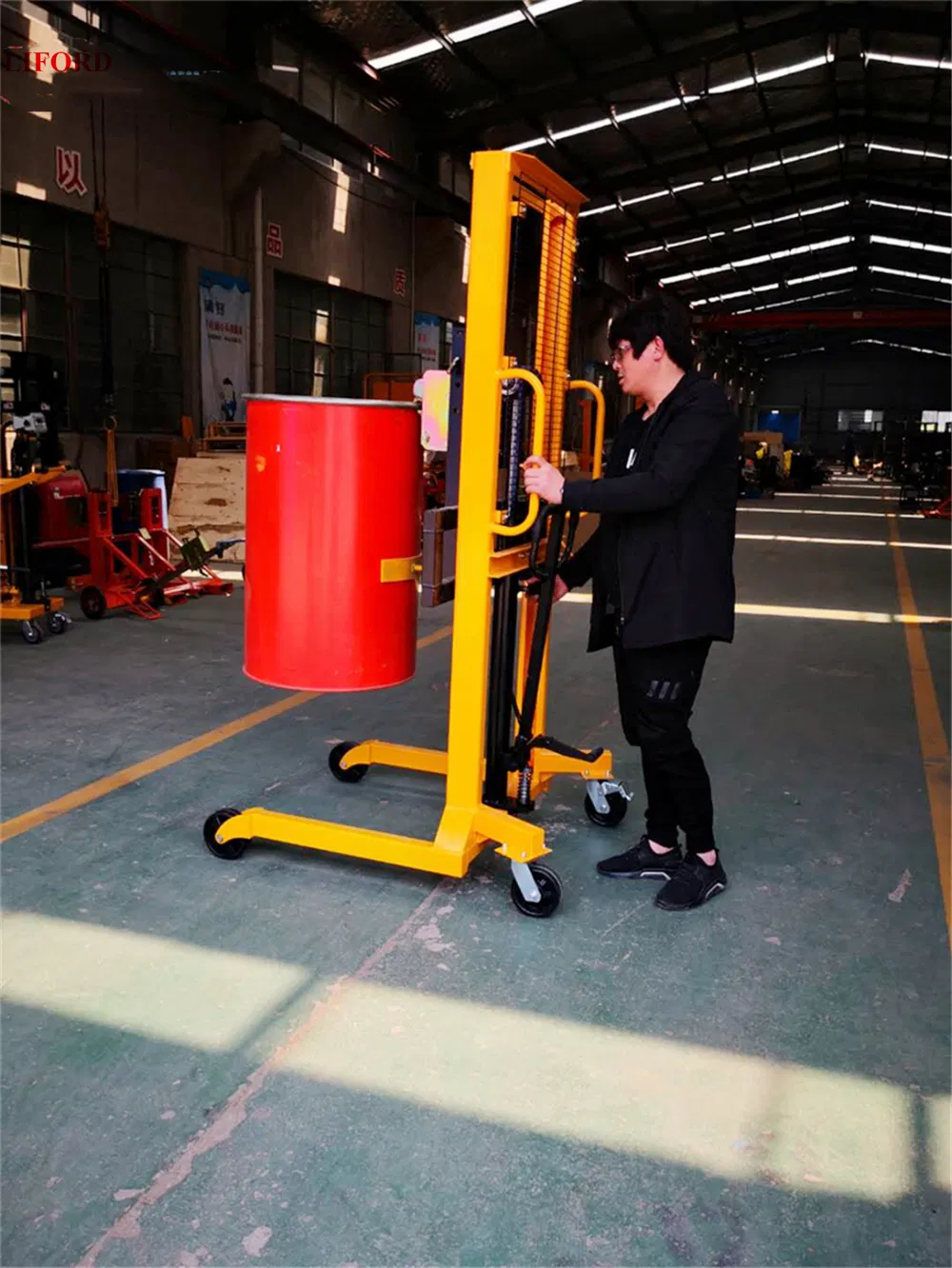

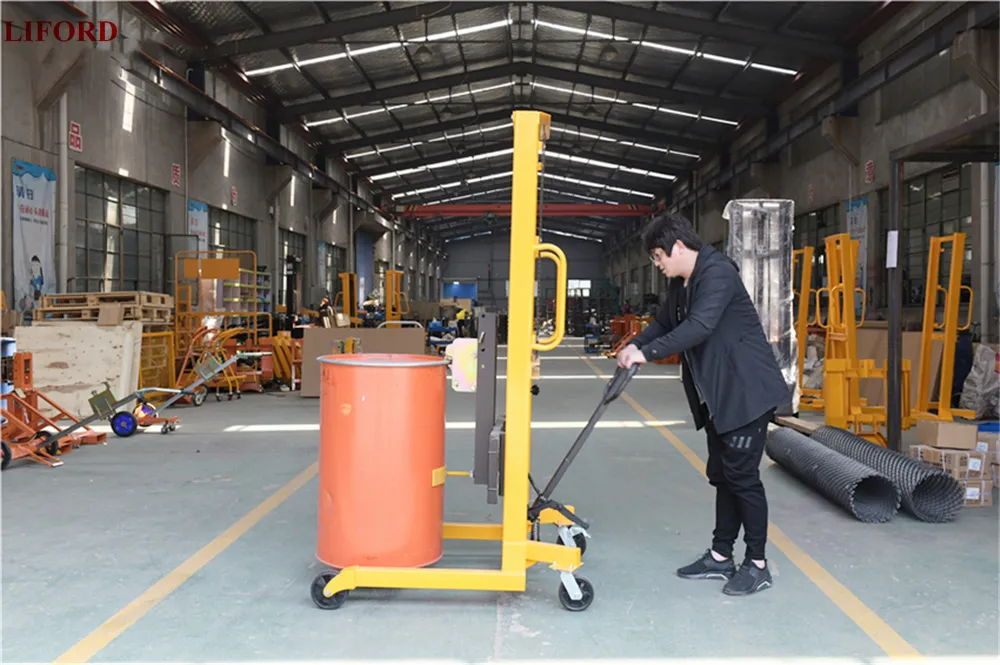

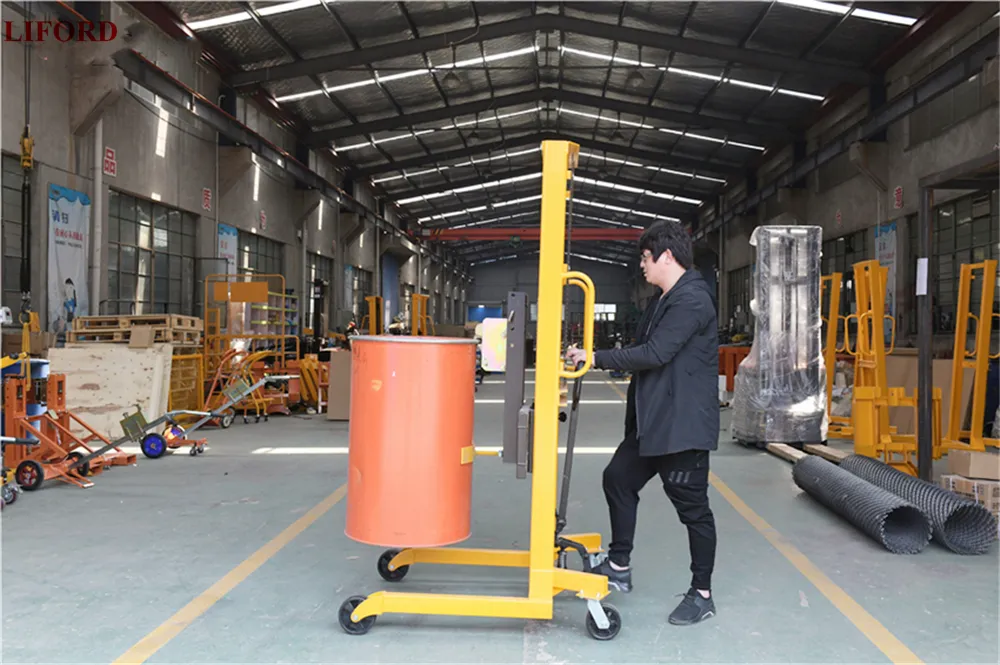

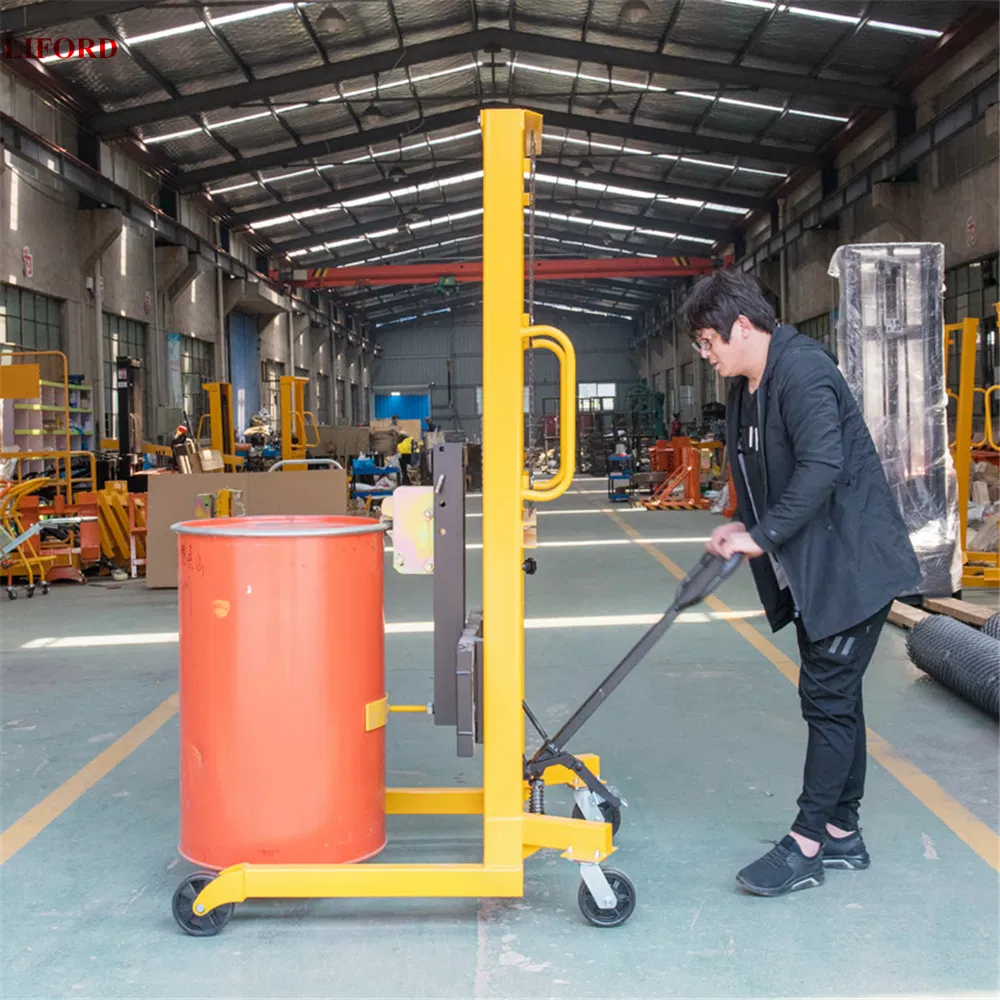

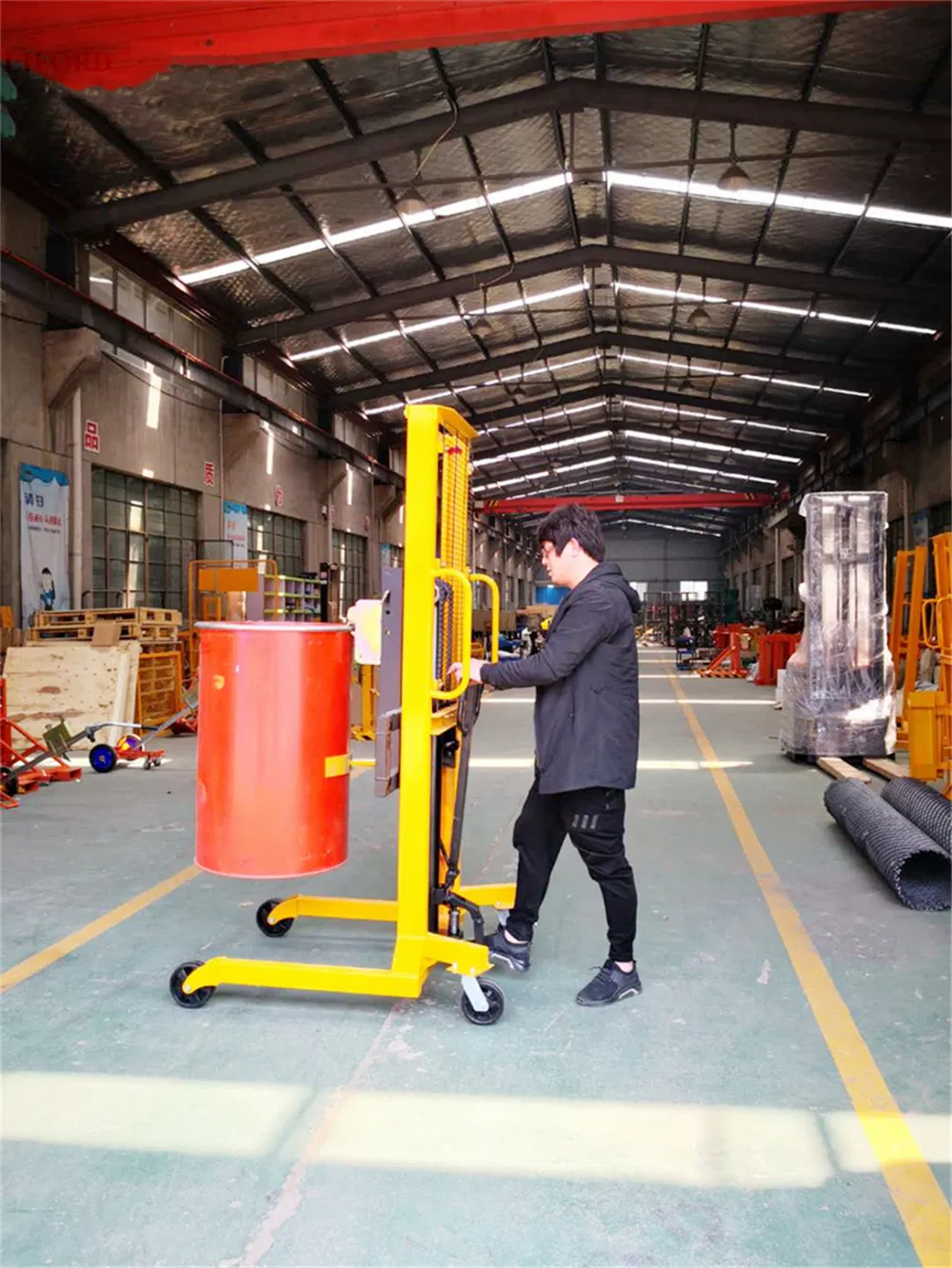

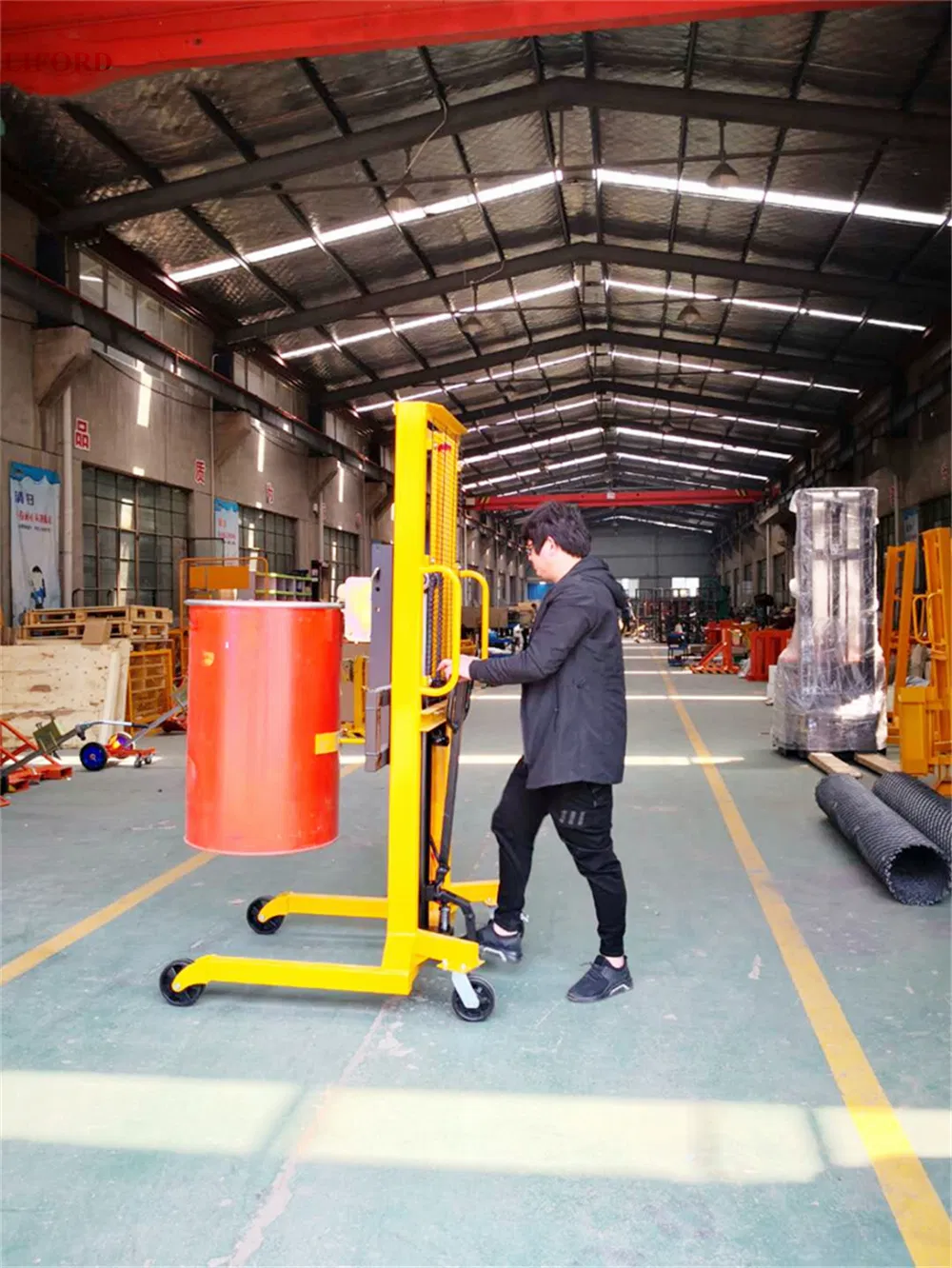

Equipped with an Automatic Clamping Mechanism for handling rimmed drums, this manual hydraulic drum lifting stacker allows operators to safely and efficiently grip, lift, move, and stack steel, fiber, and plastic rimmed drums in trucks, warehouses, and other material-handling environments. It is capable of moving drums to racks up to 1500mm high.
Key Features
- Ergonomic Casters: Two Swivel & Two Rigid
- Ergonomic step-Down Foot Floor Lock for Added Safety
- Safety Yellow Powder Coating for high visibility
- Easy to lift, transport and stack 55-gallon steel and 210L plastic drums
- Designed to carry the drum to racks 1350mm-1500mm high
- C-shaped steel frame: Strong, safe, and manufactured with special rolling technology
- Eagle-grip structure suitable for rimmed drums (steel, poly & fiber)
- Foot-operated hydraulic pump
- Optional Single Eagle-grip and Double Eagle-grip
- Adjustable clamp that can be quickly repositioned for different barrel heights

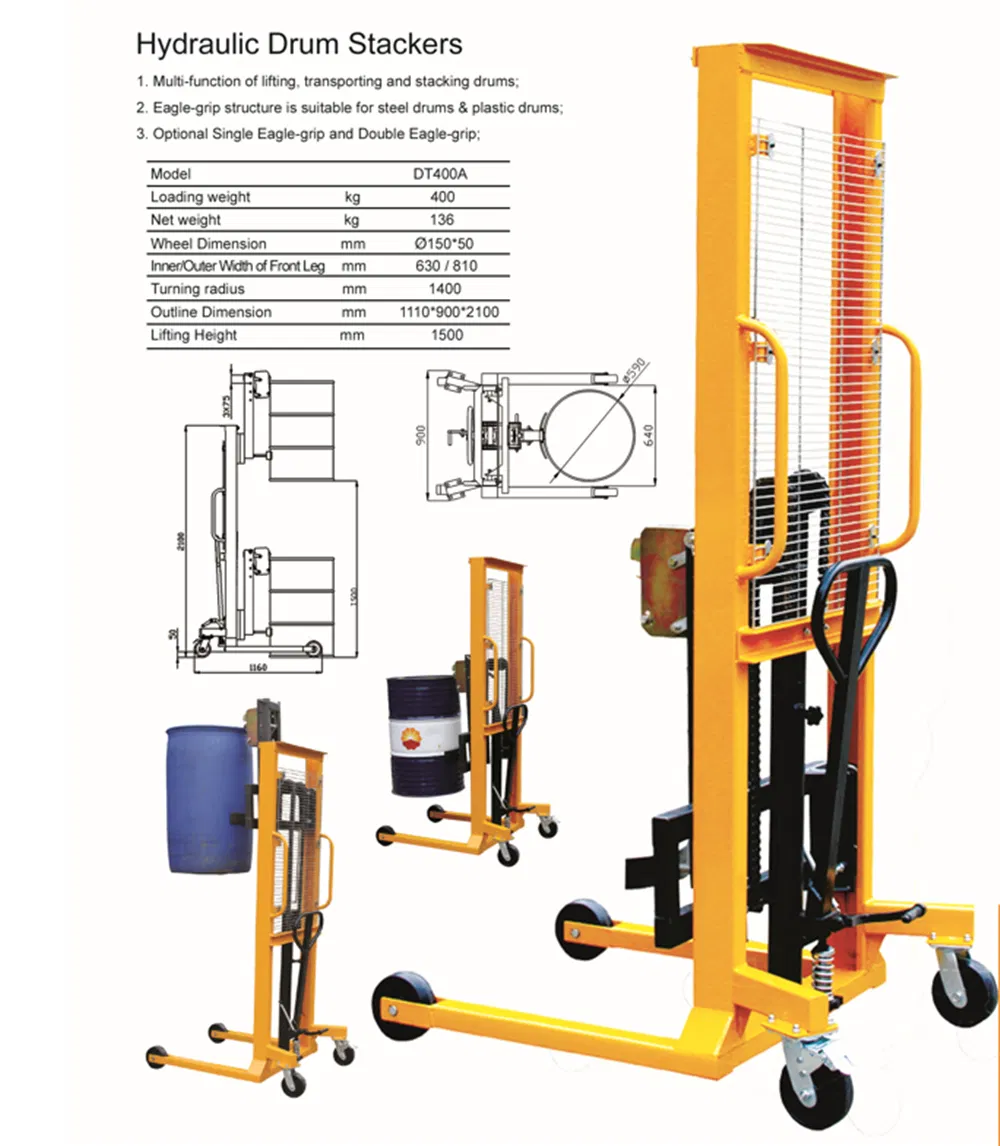

Technical Specification
| Parameter |
Unit |
Value (DT400A) |
| Loading Weight |
kg |
400 |
| Net Weight |
kg |
136 |
| Wheel Dimension |
mm |
Ø150*50 |
| Inner/Outer Width of Front Leg |
mm |
630 / 810 |
| Turning Radius |
mm |
1400 |
| Outline Dimension |
mm |
1110*900*2100 |
| Lifting Height |
mm |
1500 |
Applications
This drum handler is widely used to grip, lift, and transport rimmed steel and plastic drums. Its simple and light-structure design allows a single person to complete transporting, stacking, and loading/unloading tasks. Ideal for chemical and food plants to handle fluids such as dyes, paintings, adhesives, petrol, and edible oils.
Professional Service & Advantages
- Over 10 years of professional experience in material handling
- Fast production and on-time delivery
- One-stop custom service and OEM/ODM availability
- 100% inspection before shipment
- Strong and secure packaging for sea and air delivery
- Professional technical support within 2 hours
- Original customized designing for coating and handling lines
Frequently Asked Questions
Q1: What is the maximum load capacity of this drum stacker?
A1: The DT400A model has a rated capacity of 400kg.
Q2: Can it handle both plastic and steel drums?
A2: Yes, the eagle-grip structure is designed to handle 55-gallon steel drums and 210L plastic rimmed drums efficiently.
Q3: How high can this equipment lift a drum?
A3: It features a lifting height of up to 1500mm, making it suitable for stacking on racks.
Q4: What safety features are included for floor stability?
A4: The equipment is equipped with an ergonomic step-down foot floor lock to ensure stability during loading and unloading.
Q5: Is the lifting mechanism manual or electric?
A5: This model features a foot-operated manual hydraulic pump for lifting.
Q6: Do you offer customization options like OEM or ODM?
A6: Yes, we provide OEM/ODM services and can design various non-standard parts based on your specific material handling needs.
