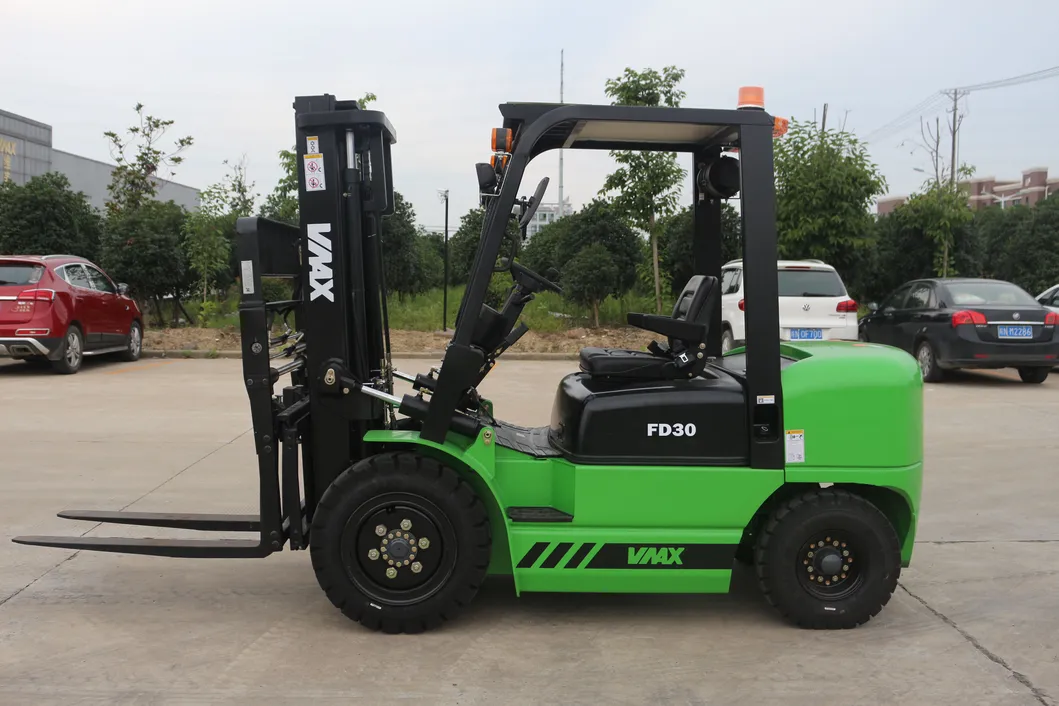

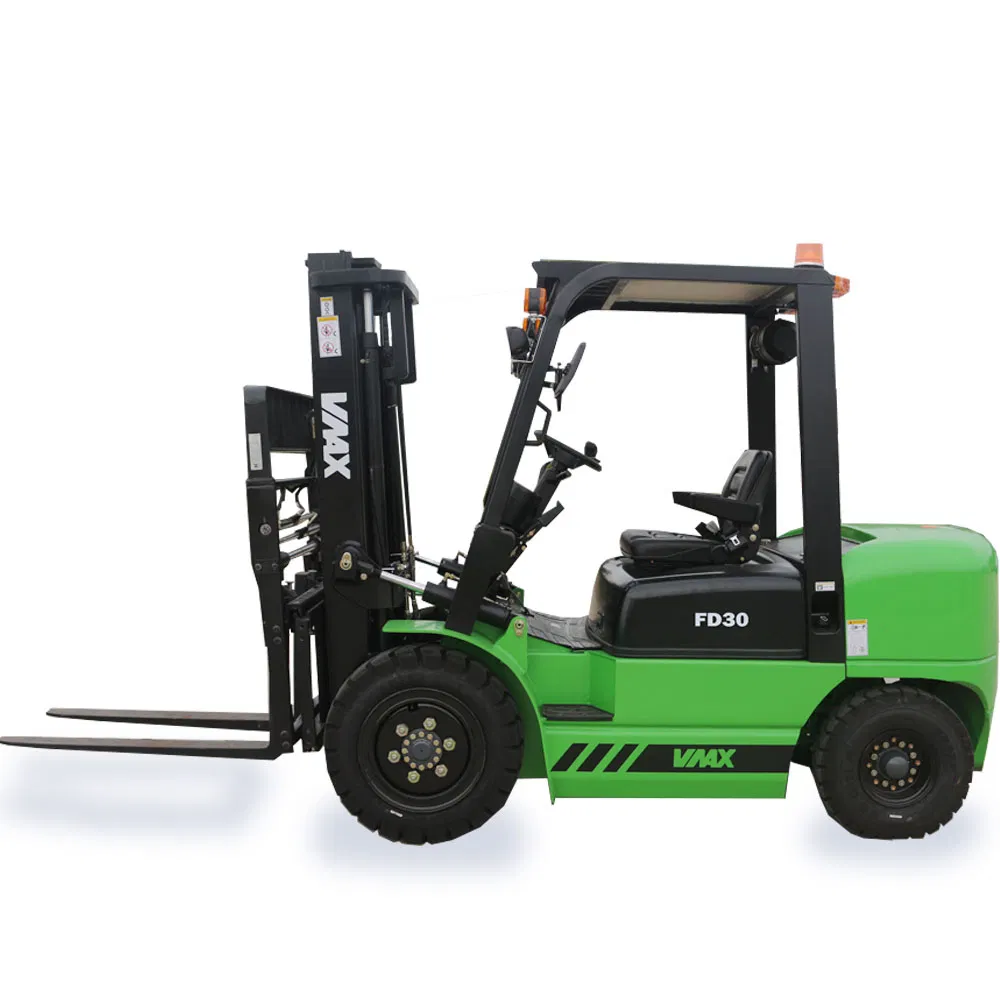

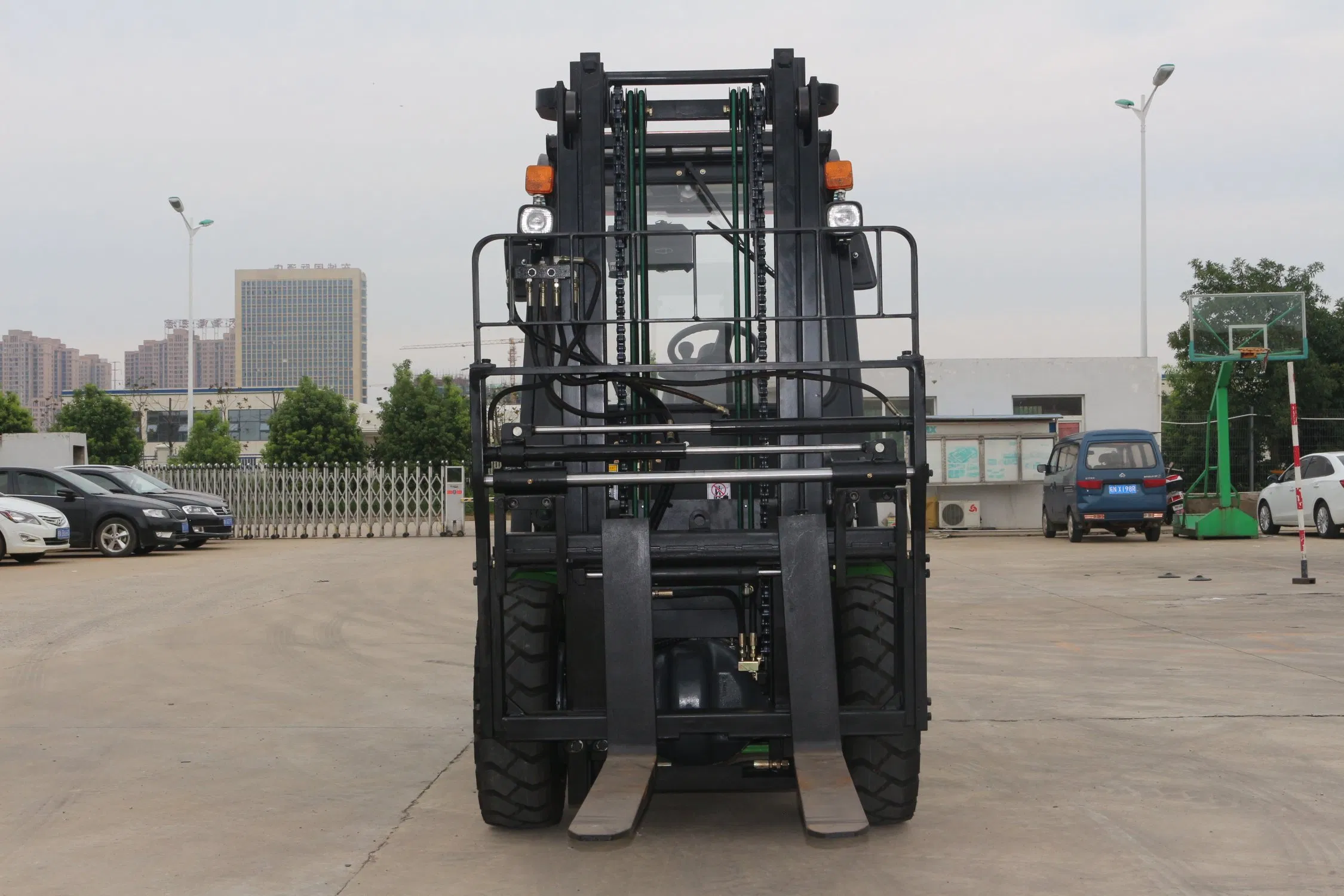

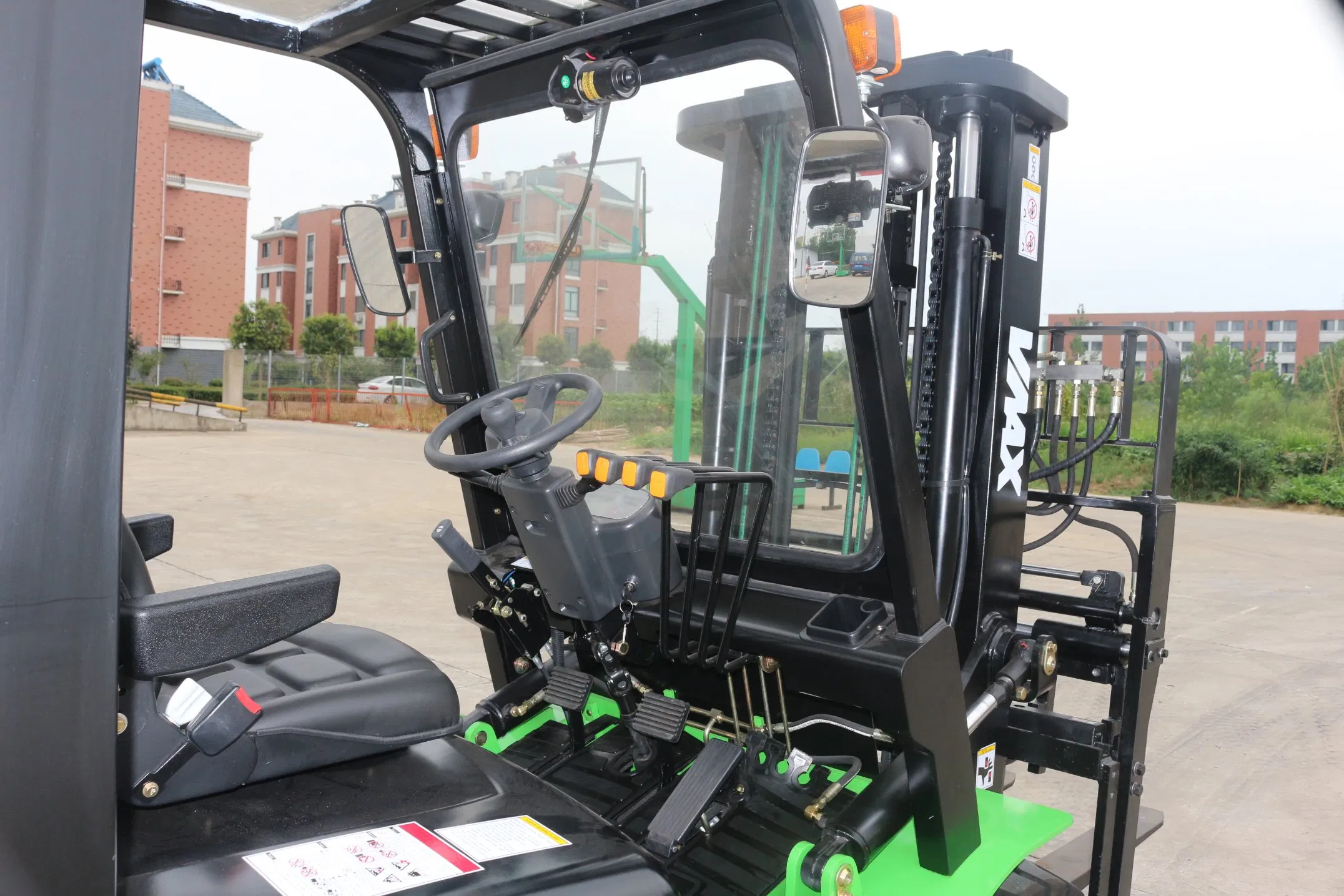

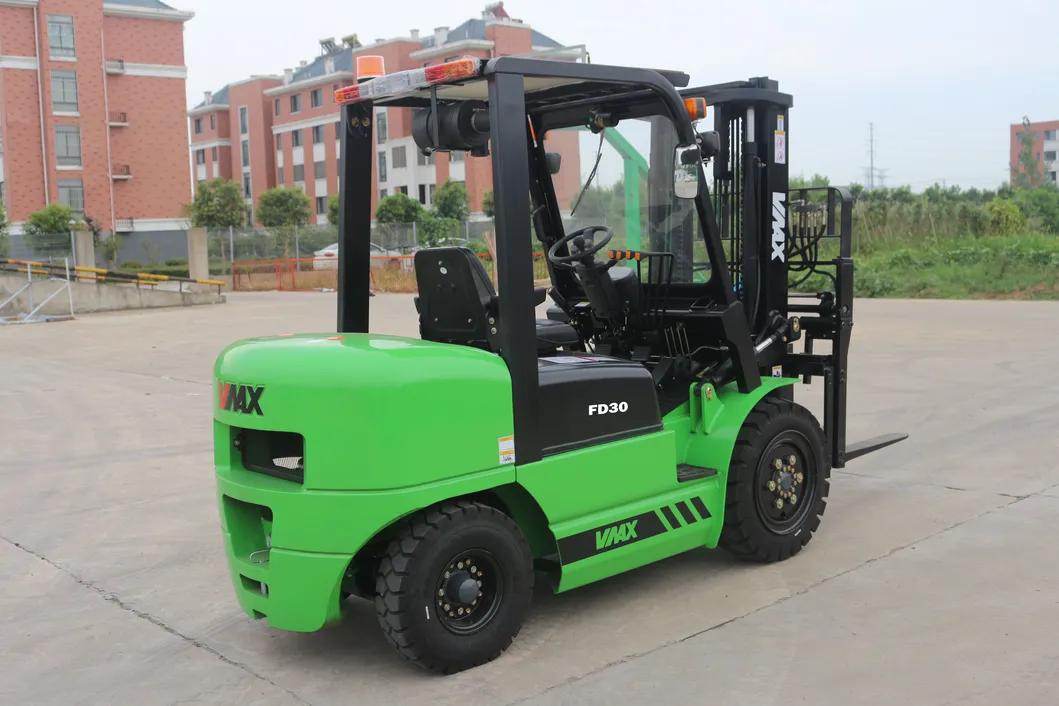

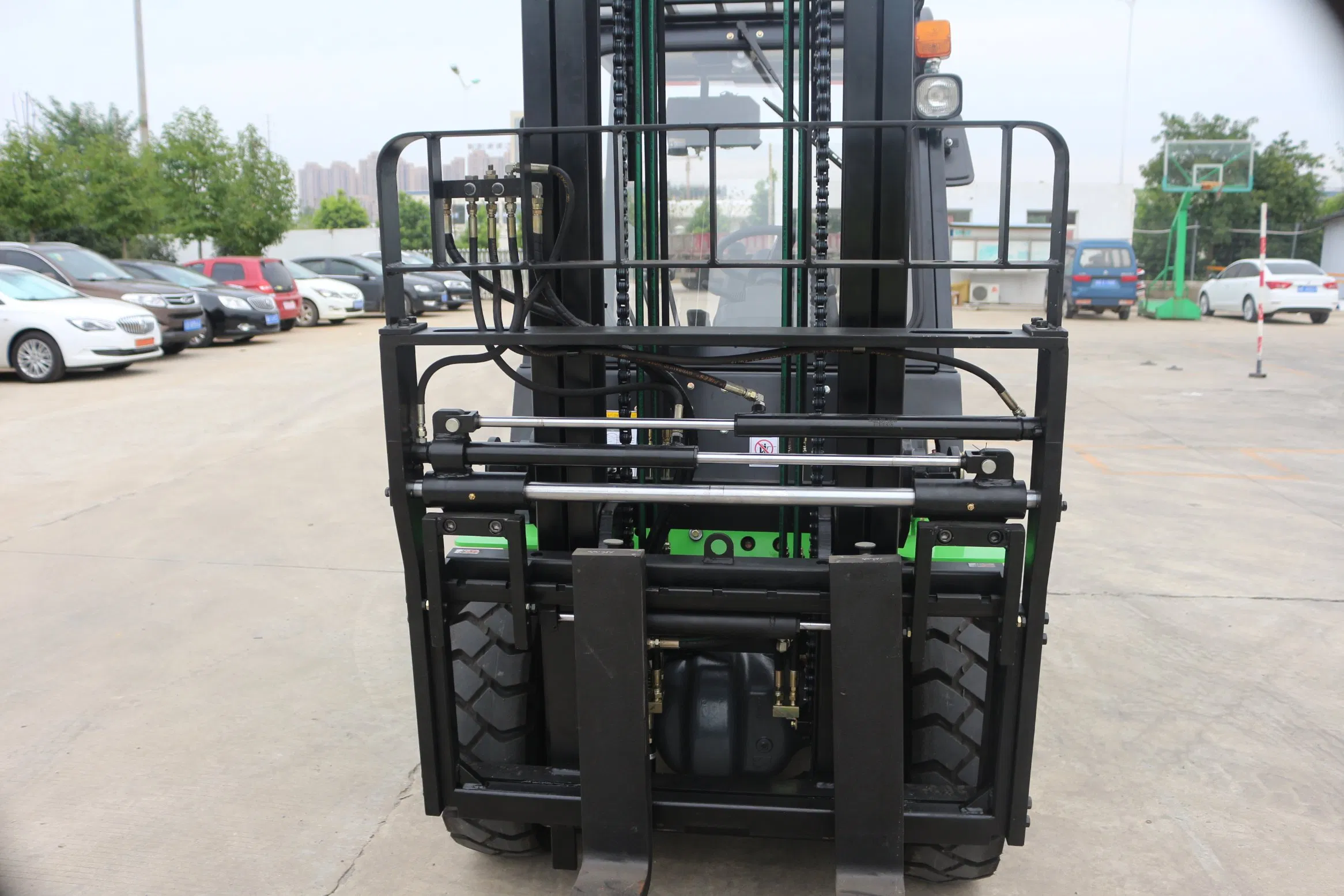

Diesel Forklift Truck is widely used in ports, stations, airports, freight yards, factory workshops, warehouses, distribution centers and distribution centers, etc., and can enter the cabin, carriages and containers for pallet cargo loading and unloading, handling operations, is an essential equipment in pallet transportation, container transportation.
Diesel Forklift Trucks are usually used outdoors, in workshops or other places with no special requirements for exhaust emissions and noise. Due to the convenience of fuel replenishment, it can achieve continuous operation for a long time, and can work in harsh environments (such as rainy days).

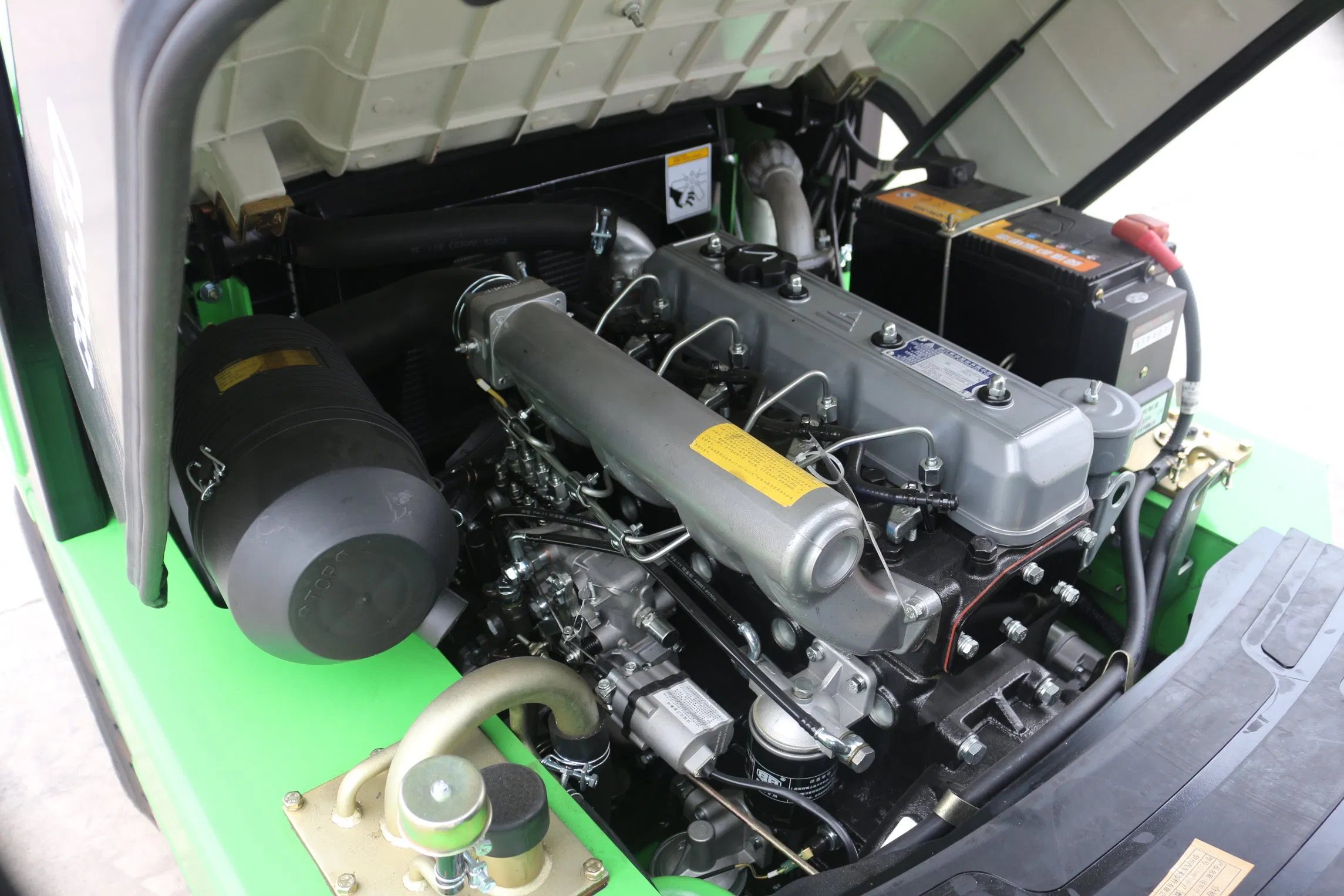

The diesel forklift truck is based on the working principle of diesel engine and drives the walking and cargo lifting system through four strokes of intake, compression, combustion and exhaust. It has the advantages of strong power, economic practicality and strong durability.
| Item | Category | Basic Model | Unit | FD30 | FD35 |
|---|---|---|---|---|---|
| 1 | General | Power type | - | Diesel | Diesel |
| 2 | General | Rated capacity | Kg | 3000 | 3500 |
| 3 | General | Load centre | mm | 500 | 500 |
| 4 | Dimension | Lift height | mm | 3000 | 3000 |
| 6 | Dimension | Fork size (LxWxT) | mm | 1070x125x45 | 1070x125x50 |
| 14 | Dimension | Length to face of fork | mm | 2685 | 2750 |
| 15 | Dimension | Overall width | mm | 1210 | 1210 |
| 19 | Performance | Turning radius (outside) | mm | 2430 | 2450 |
| 21 | Performance | Travel Speed (Unladen) | Km/h | 19 | 19 |
| 32 | Weight | Self weight | kg | 4310 | 4750 |
