DLI AutoLogix
1 / 5
| Model | Dock Leveler | Lift Mechanism | Scissor Lift |
|---|---|---|---|
| Carrying Capacity | Weight Level | Moves | Stationary |
| Driven Type | Hydraulic | Running Mode | Stationary |
| Feature | Explosion-Proof, Insulating | Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm x 2500mm x 600mm | Power Form | Electric-Hydraulic |
DOCK LEVELER SOLUTIONS
Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.

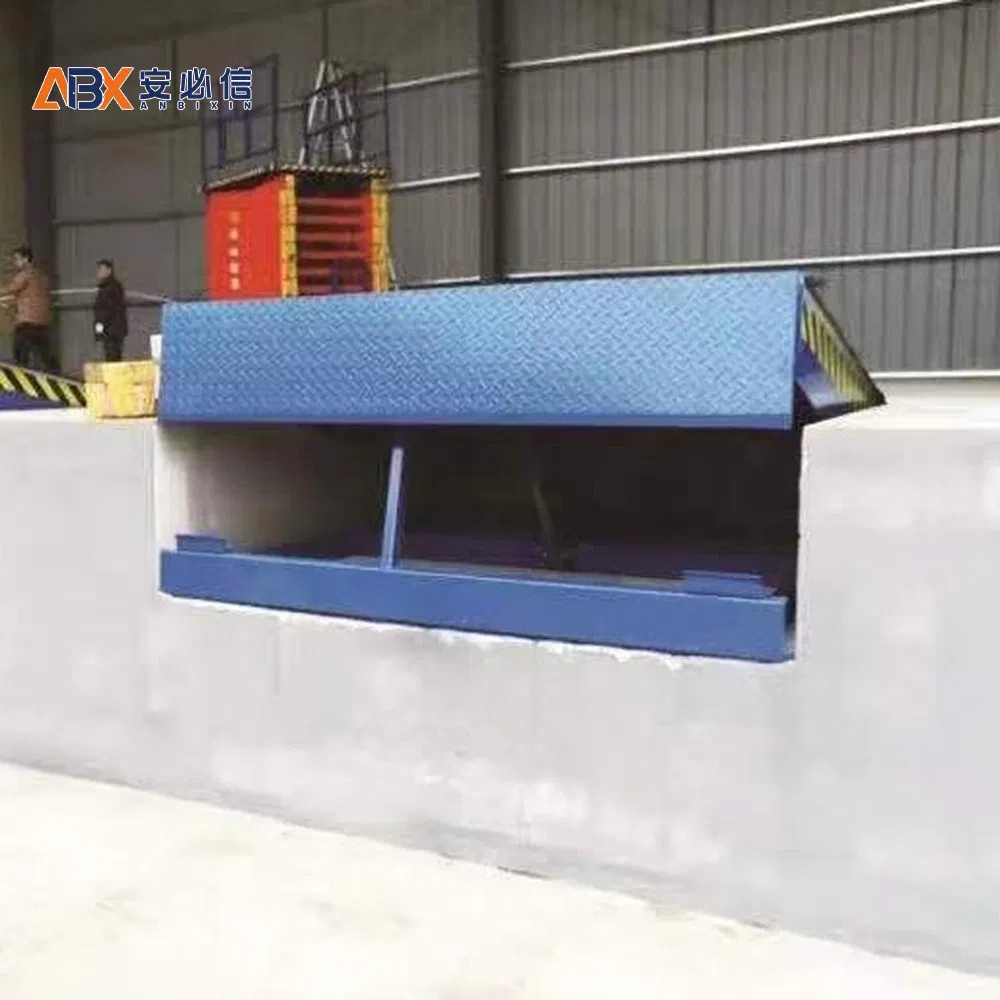

Main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading. It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading.
High-traction, anti-slip surface and weather-resistant components guarantee reliable performance in wet or icy conditions.
Fully customizable solutions for size, capacity, and control systems to fit your unique architectural requirements.

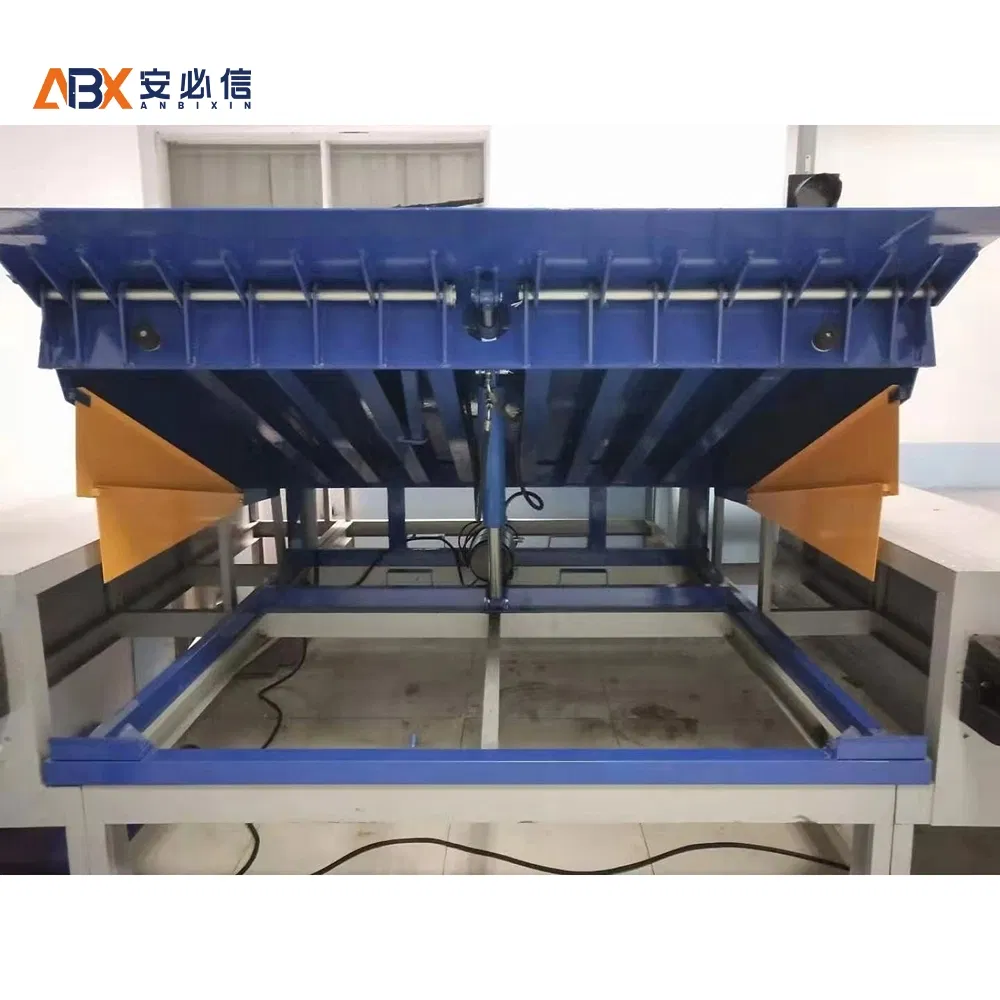

Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed.
| Specification Details | |
|---|---|
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | W: 2000mm, L: 2500mm, H: 600mm |
| Pit Size | W: 2030mm, L: 2500mm, H: 610mm |
| Adjustment Range | +300 / -300 mm |
| Adjust Time | Up ≤ 16s / Down ≤ 10s |
| Board Thickness | 12mm / 400mm |
| Console Panel | 6mm Patterned Board |
| Side Guard | Automatically Retractable Baffles |
| Hydraulic Pressure | 8MPa +/- 1MPa |
| Use Cycles | ≥ 200,000 Times |

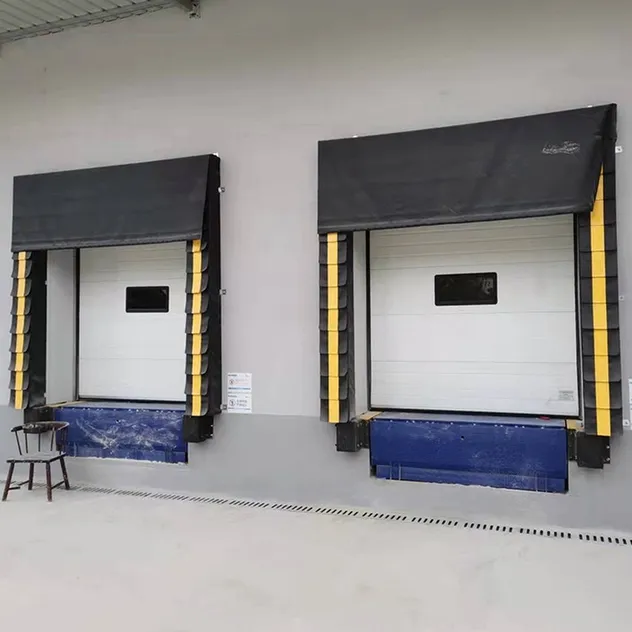

Seamlessly bridge the gap between the loading dock and varying truck heights for smooth forklift flow.

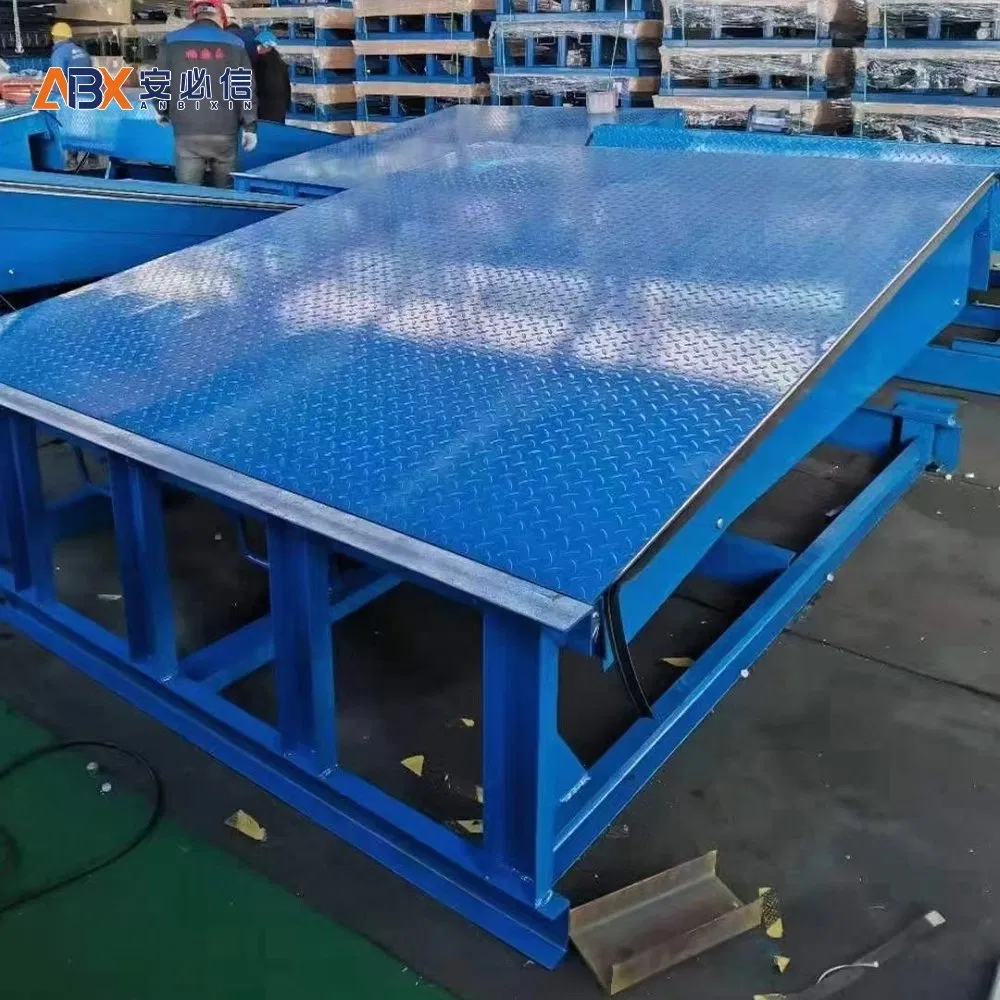

Constructed with high-strength, industrial-grade steel to withstand heavy loads and continuous use.
Equipped with full-range toe guards and velocity fuses to significantly reduce the risk of accidents.
Speeds up loading cycles by providing a stable and reliable platform for throughput efficiency.
