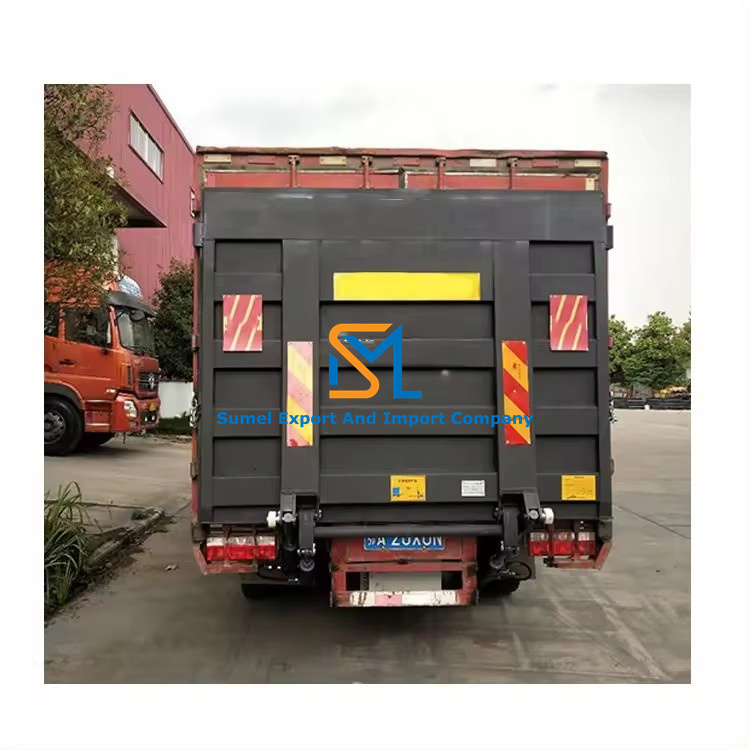

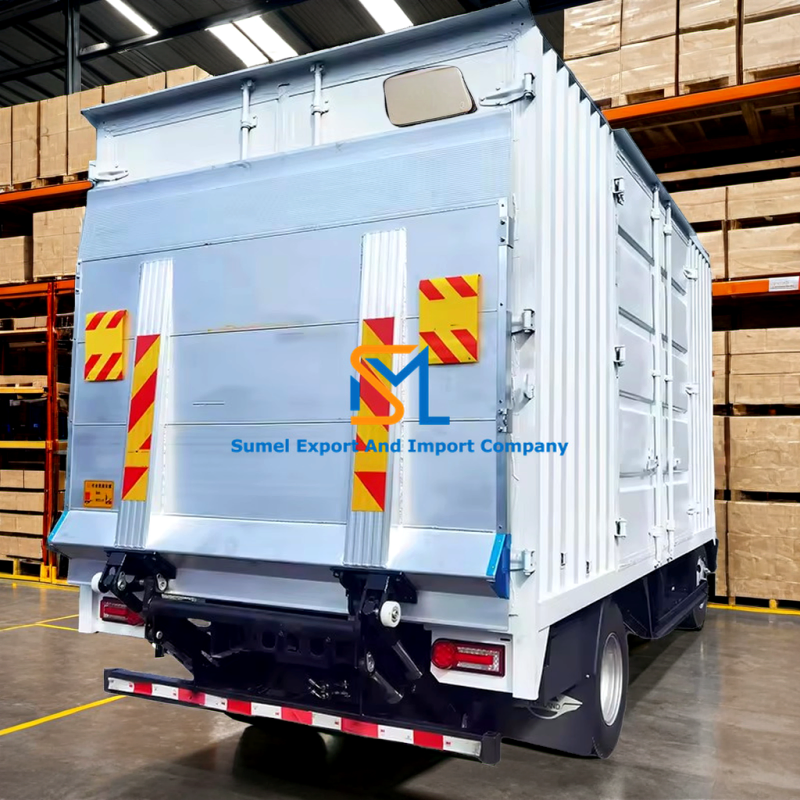

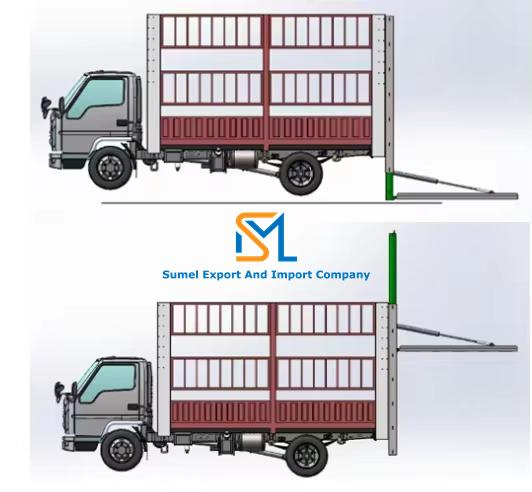

China-Made Steel Alloy Tailgate Lift System - 1500kgs Loading Capacity

1 / 5

China-Made Steel Alloy Tailgate Lift System - 1500kgs Loading Capacity

Customization:	Available
After-sales Service:	Yes
Warranty:	3 Years

Send Inquiry

Product Description

📋 Overview & Basic Info

MaterialSteel

Single Lifting Weight750kg

TypeCantilever Lift

Transport PackagePallets

Specification750KGS/1500KGS/2000KGS

OriginChina

Production Capacity50000PCS/Month

🚚 Product Description

The automobile tailgate spans multiple industries such as logistics, express delivery, transportation, and warehousing, demonstrating its excellent adaptability. Whether your vehicle is a large truck, a container truck or a small truck, our tailgate can handle it easily, bringing you an efficient and convenient cargo loading and unloading experience, and significantly improving the overall operational efficiency of the logistics industry.

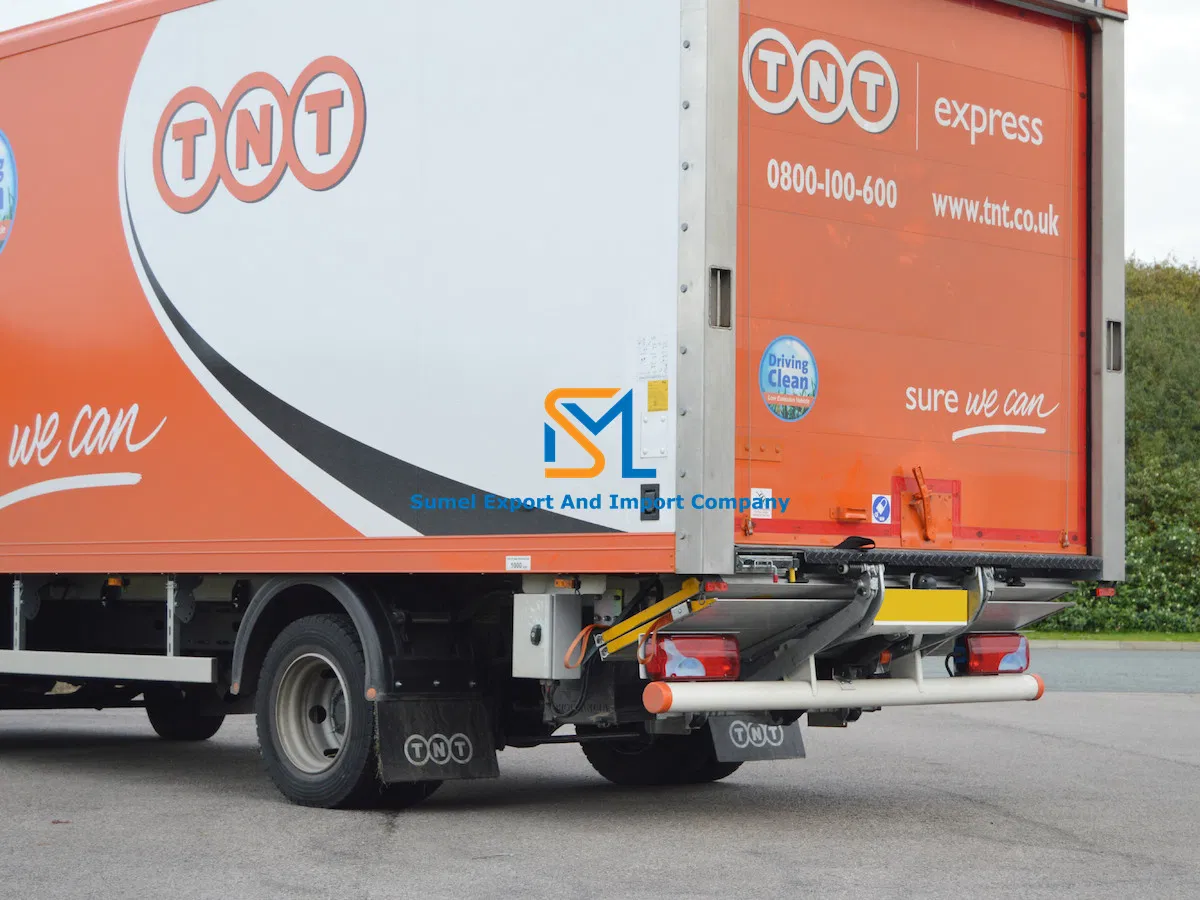

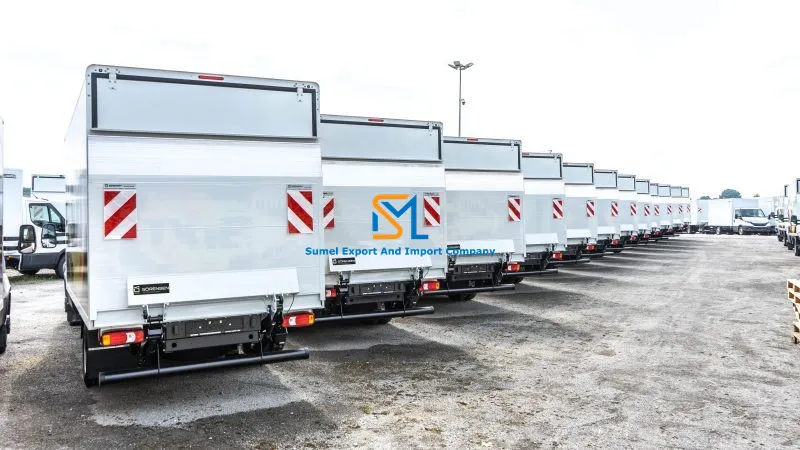

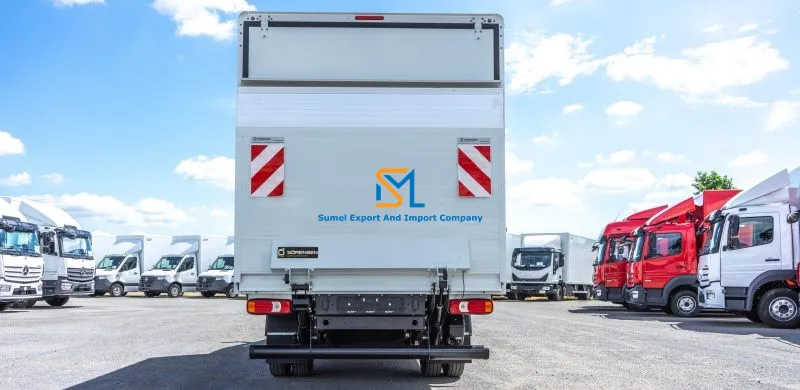

✔ Cantilever Tailgate

The cantilever tailgate is popular among users for its unique design and stability.

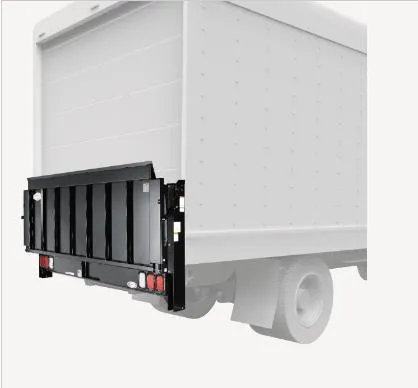

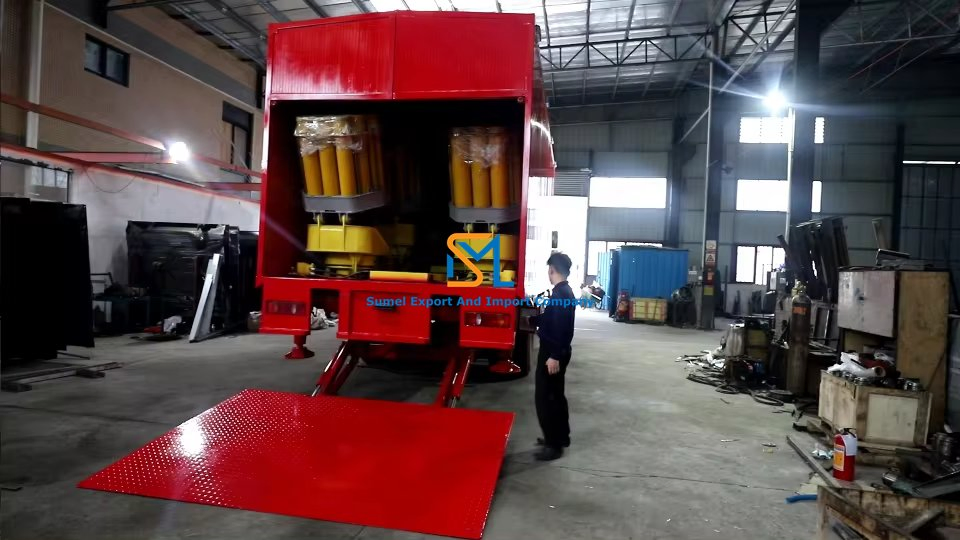

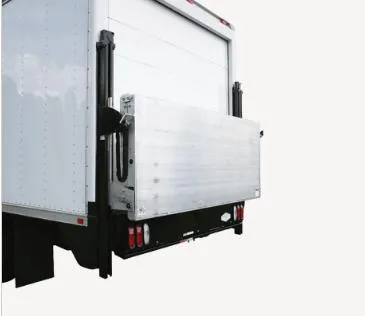

✔ Foldable Tailgate

The foldable tailgate is a great helper in the logistics field with its convenient storage and deployment functions. Featuring a dual-cylinder, parallel-arm design which utilizes a pair of hydraulic cylinders to lower and raise the lift by applying direct power to both sides of the platform.

📊 Product Parameters

Our material is Q700, which is an ideal choice for carrying heavy objects and long-term use due to its high strength and wear resistance.

Load capacity (kg)	Hoist hydraulics	Dead weight (kg)	Load distance (mm)	Mounting Head coupling	Permitted Total weight (t)
750	1x lifting cylinder / 1x lock cylinder	168	600	possible	3.5/5.5/7.5
750	1x lifting cylinder / 1x lock cylinder	167	600	possible	3.5/5.5/7.5
750	1x lifting cylinder / 1x lock cylinder	160	600	possible	3.5/5.5/7.5
750	1x lifting cylinder / 1x lock cylinder	168	600	possible	3.5/5.5/7.5

DIMENSIONS

Platform height (mm)	Lifting arm lengths (mm)	Max loading height unloaded (mm)	Min loading height loaded (mm)	Offset dimension (mm)
1450 / 1600	575 / 650	1100	700	580
1450 / 1600	575 / 650	1100	700	580
1450 / 1600	575 / 650	1100	700	580
1450 / 1600	575 / 650	1100	700	580

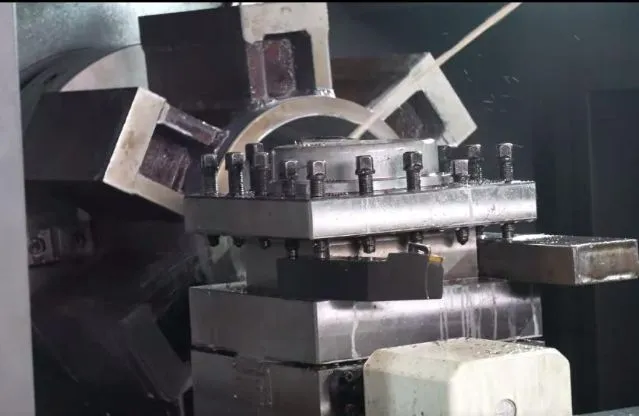

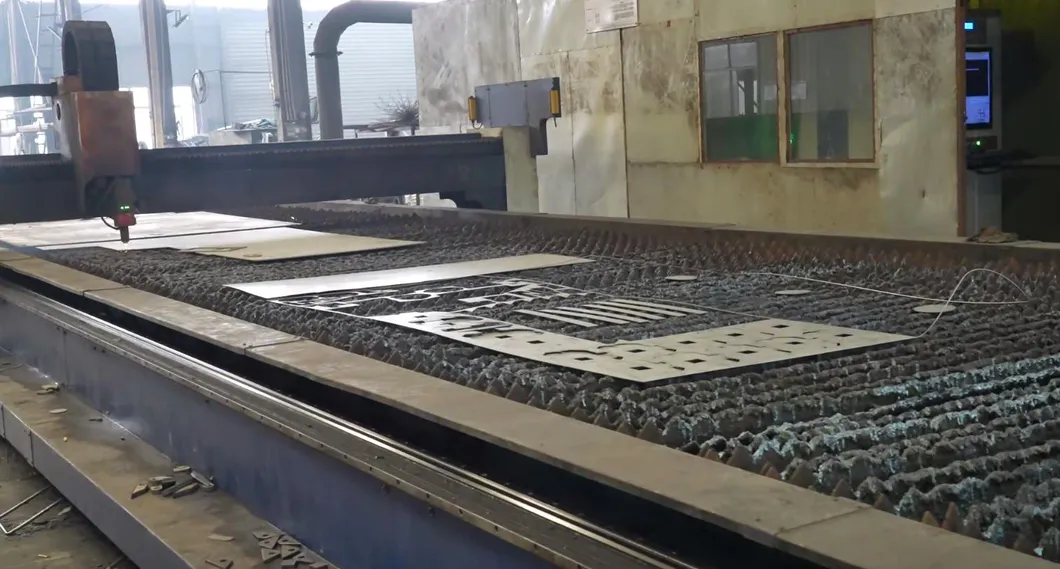

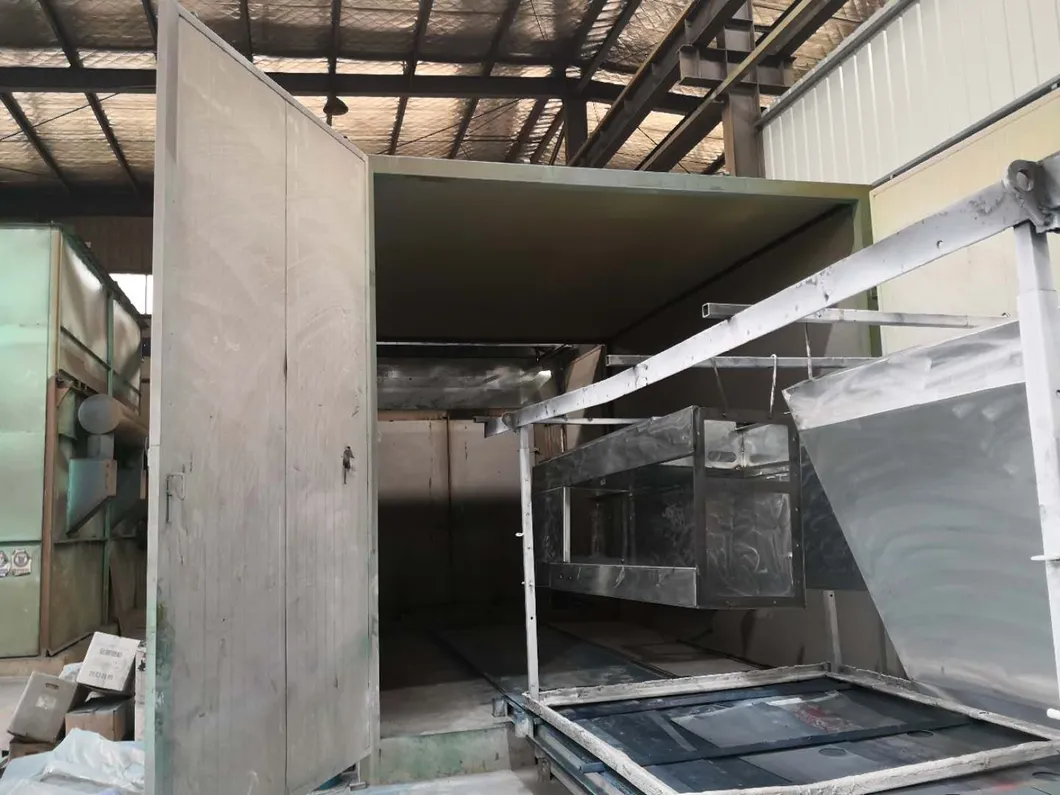

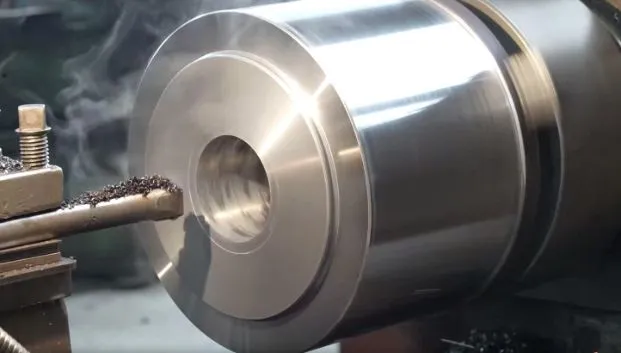

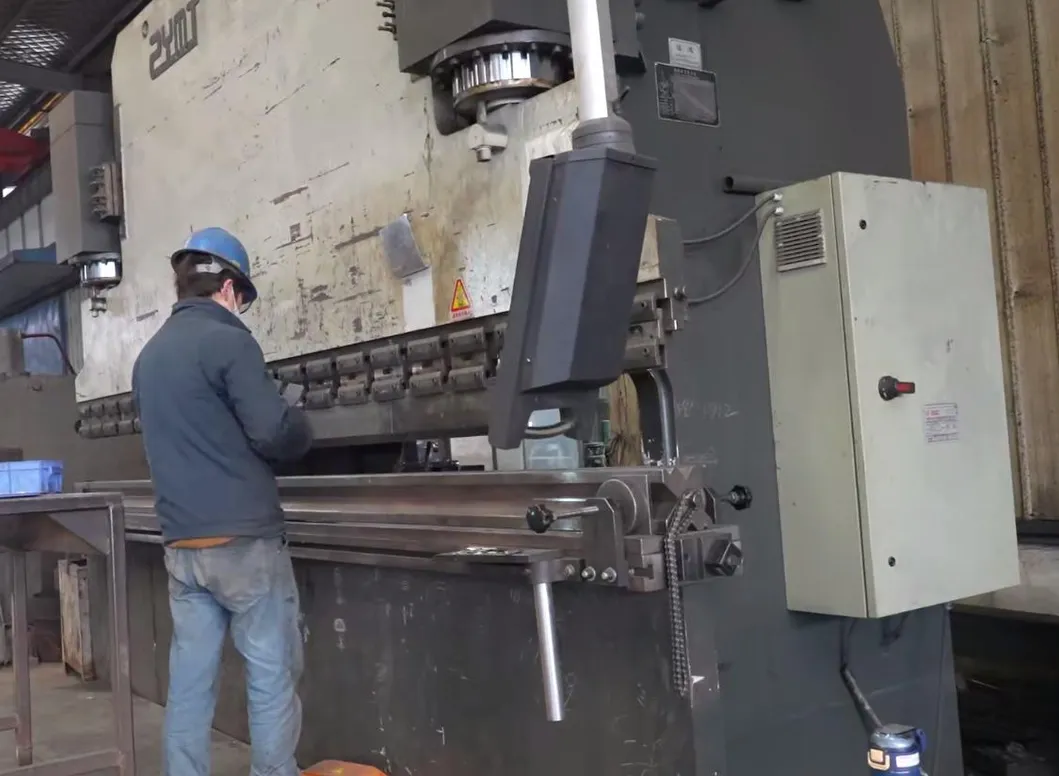

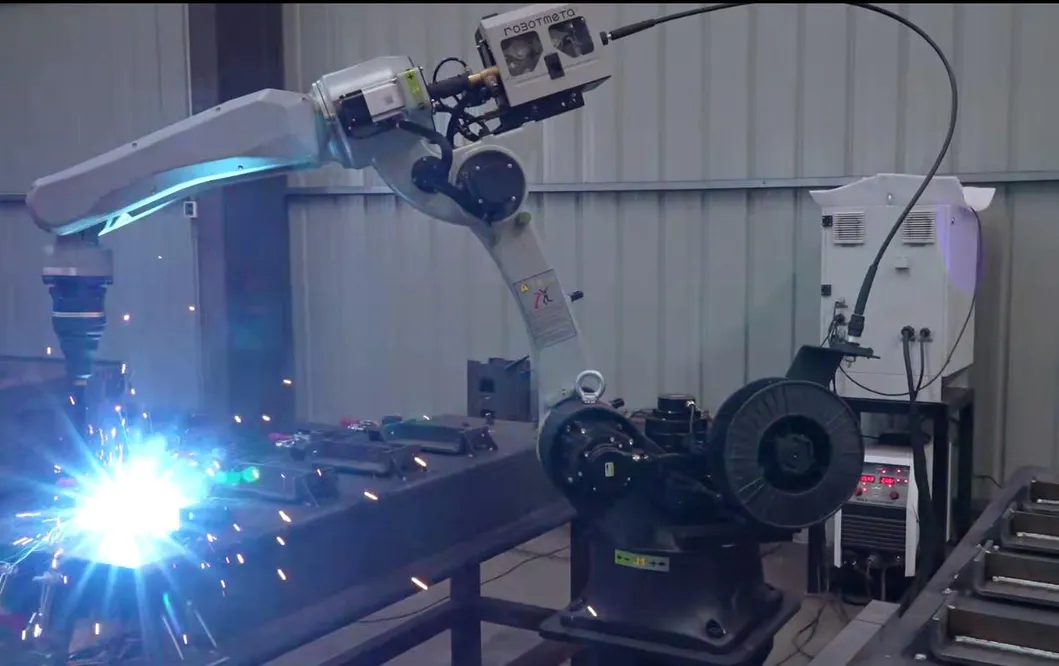

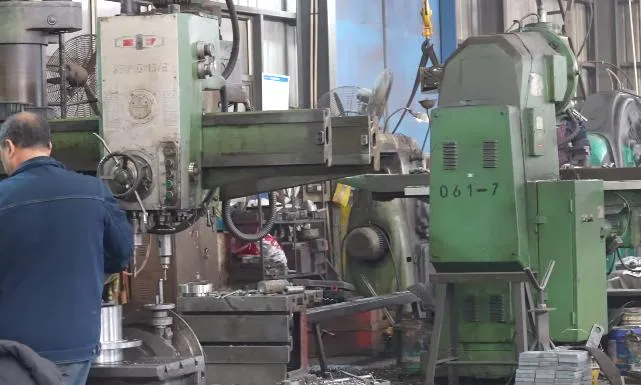

🔧 Truck Body Fabrication Equipments

Robust steel dump body specifically crafted for Heavy Duty Steel / Aluminum liftgate. This fabrication equipment comes with a 3-year warranty, automatic transmission, and a readily available supply of spare parts, ensuring unmatched reliability and strength.

❓ Frequently Asked Questions

What materials are used in the construction of the tailgate?

We use high-strength Q700 steel, which provides exceptional durability and wear resistance, making it ideal for heavy-duty lifting and long-term industrial use.

What is the loading capacity of these lift systems?

The lift systems are available in multiple specifications, including 750kg, 1500kg, and 2000kg load capacities to suit different transportation needs.

Are these tailgates compatible with all vehicle types?

Yes, our tailgate systems are highly adaptable and can be easily installed on large trucks, container trucks, and small trucks across various industries like logistics and warehousing.

What is the advantage of the dual-cylinder design?

The dual-cylinder parallel-arm design applies direct hydraulic power to both sides of the platform, ensuring a stable, balanced, and powerful lift during operation.

What kind of warranty is provided for the equipment?

The heavy-duty steel/aluminum liftgate fabrication equipment comes with a comprehensive 3-year warranty for peace of mind.

Are spare parts readily available?

Yes, we maintain a readily available supply of spare parts to ensure minimal downtime and continued operational efficiency for your logistics vehicle.
