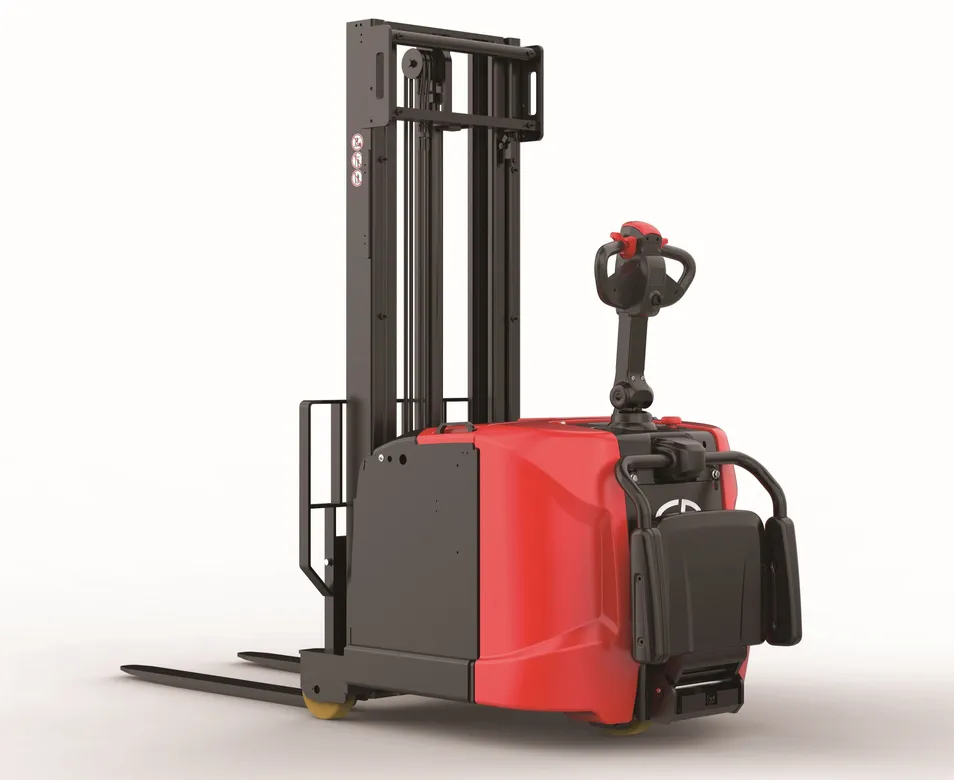

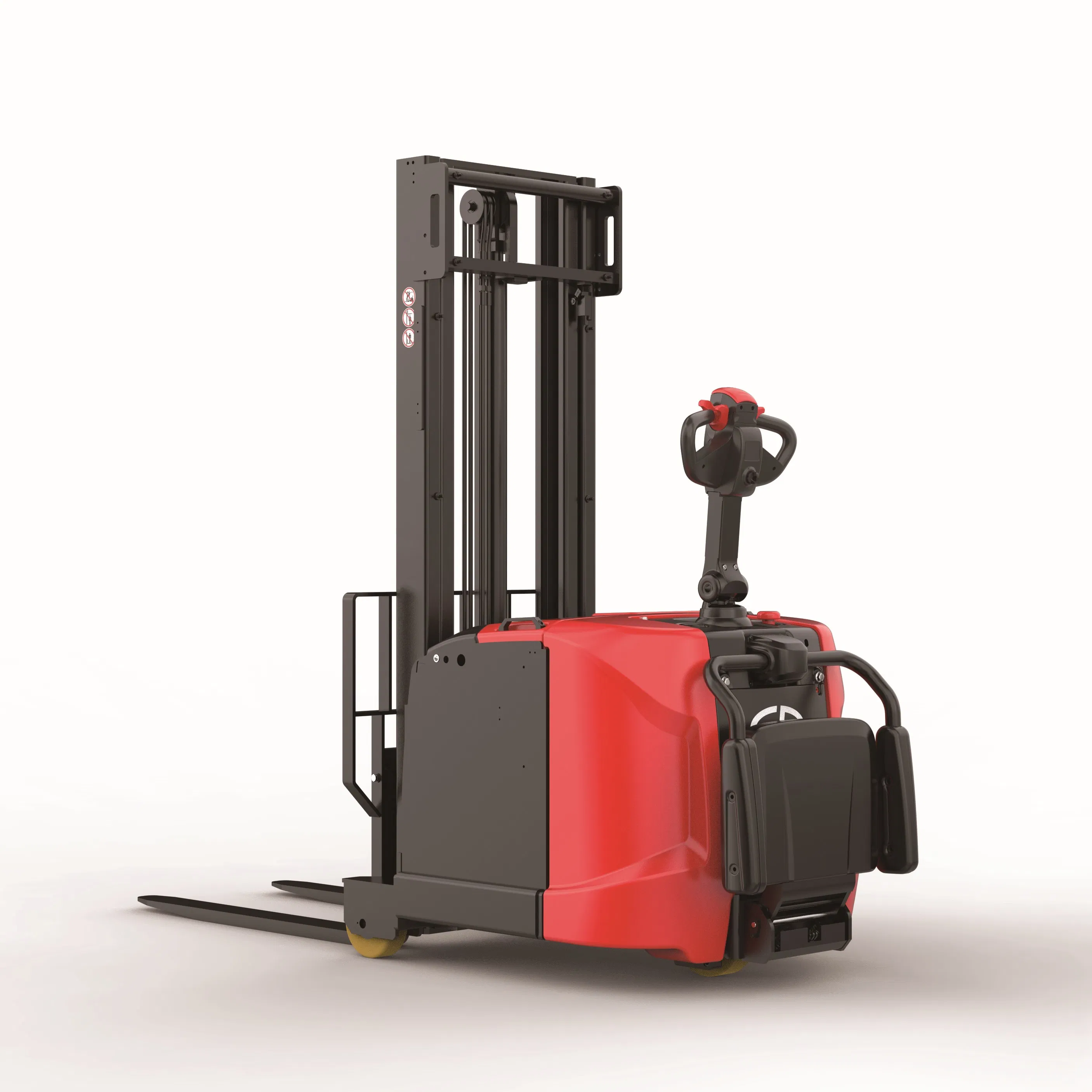

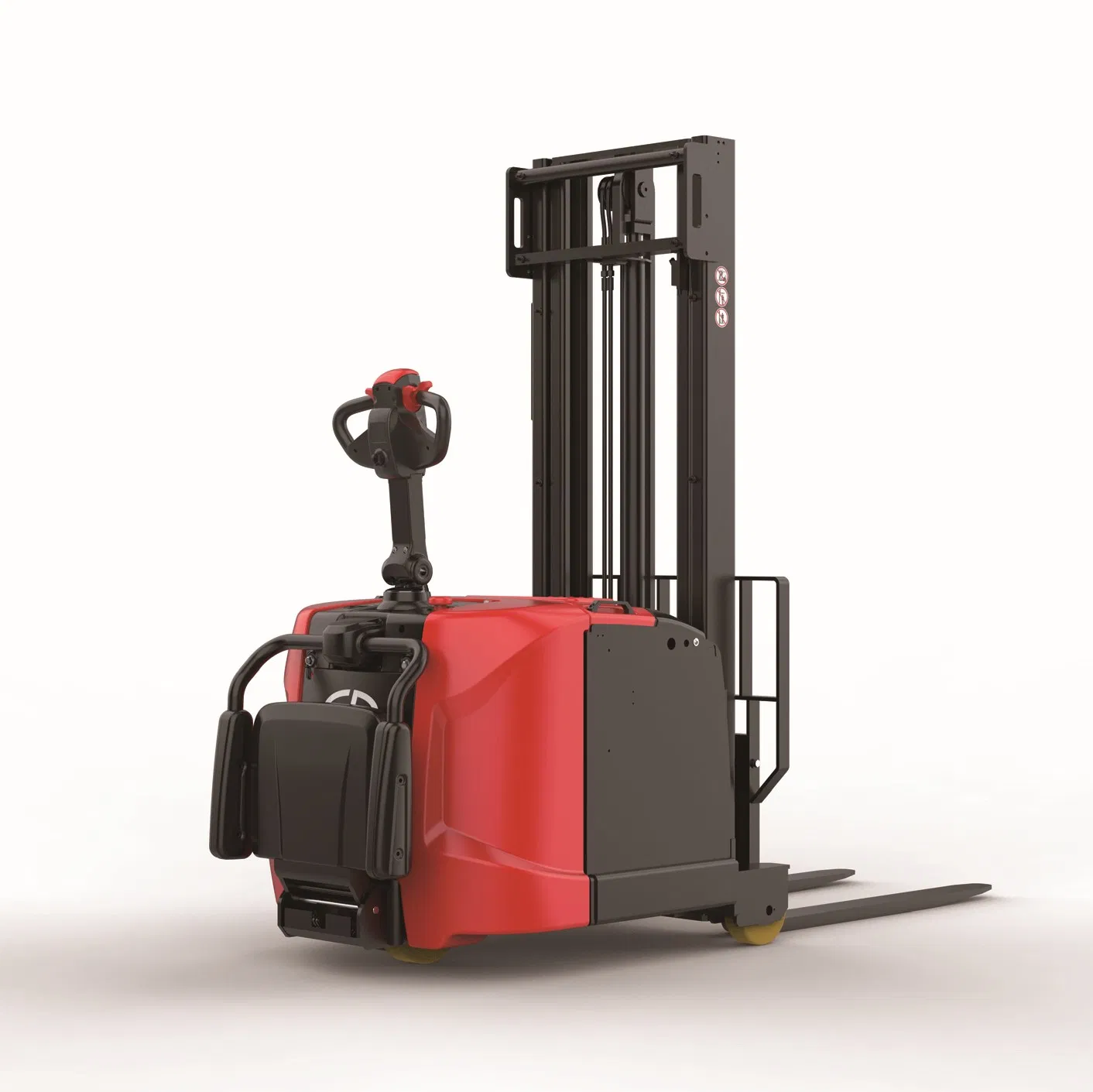

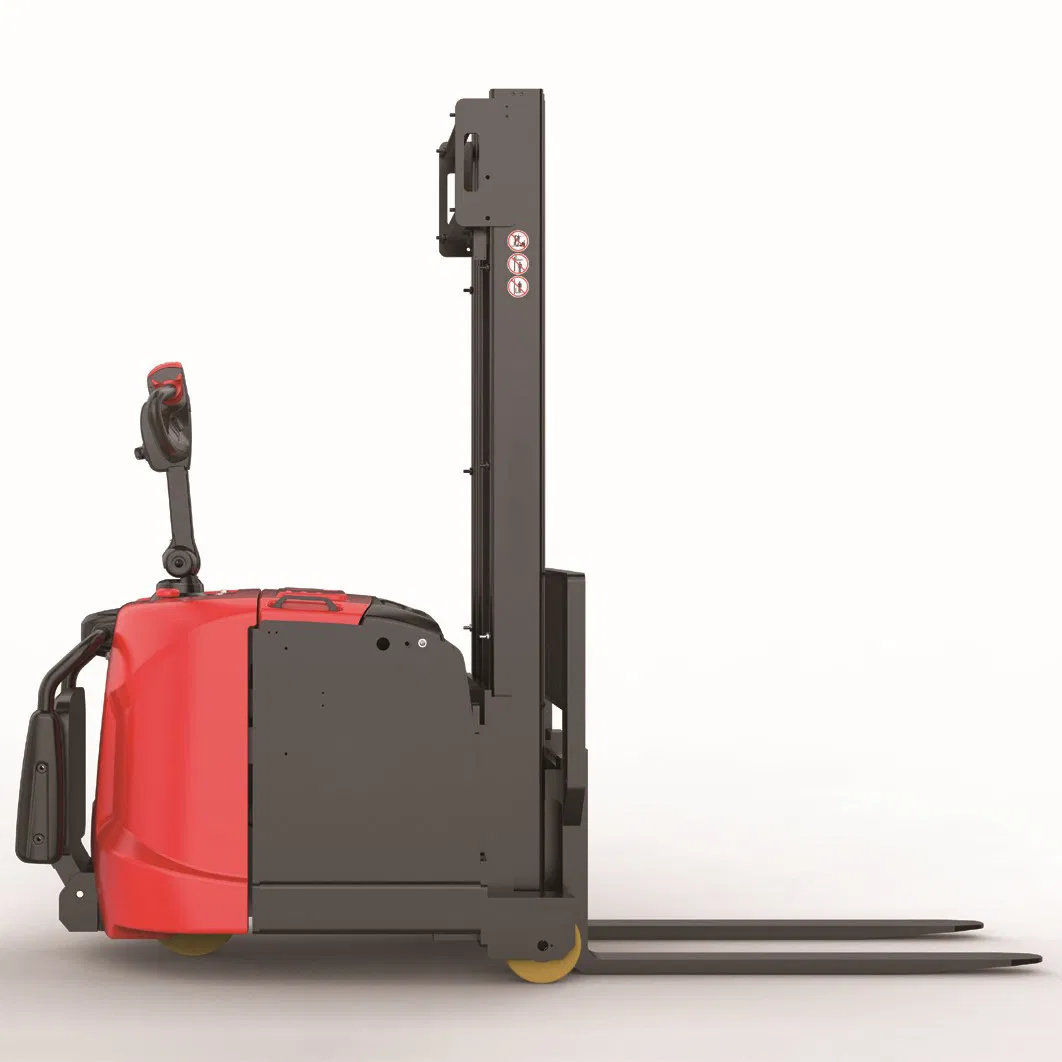

The RSC082/122/152 is an electric counterbalance stacker, with a capacity of up to 1.5 ton at heights up to 3.3m. It features a foldable platform for long-distance operation with minimal operator effort and fast travelling speed for efficient operations. Equipped with a rigid mast and forks, this stacker is suitable for all types of pallets.

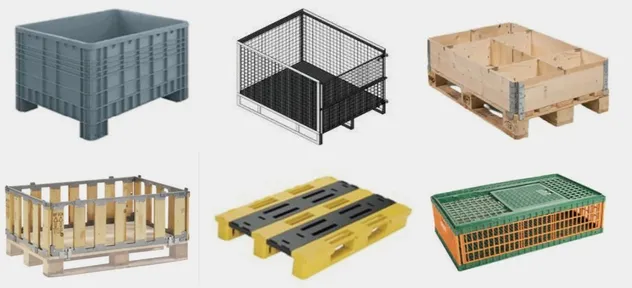

Universal for various pallets

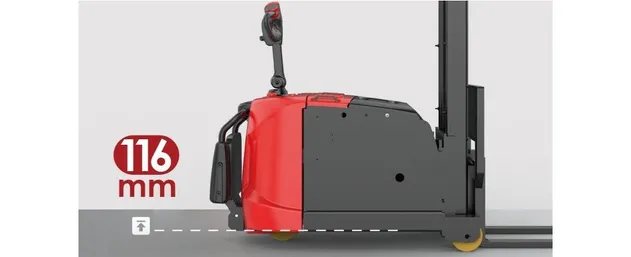

High ground clearance

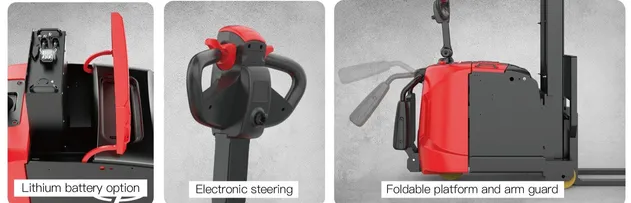

Proportional lifting system
| Item | Description | RSC082 | RSC122 | RSC152 |
|---|---|---|---|---|
| 1.3 | Drive | Electric | Electric | Electric |
| 1.4 | Drive mode | Pedestrian | Pedestrian | Pedestrian |
| 1.5 | Load capacity (kg) | 800 | 1200 | 1500 |
| 1.6 | Load center distance (mm) | 400 | 500 | 500 |
| 4.4 | Lift height (mm) | 3000 | 3000 | 3000 |
| 4.35 | Turning radius (mm) | 1250 | 1510 | 1707 |
| 5.1 | Travel speed, laden/unladen (km/h) | 5.5/6.0 | 5.5/6.0 | 5.5/6.0 |
| 6.4 | Battery voltage/nominal capacity | 24V/210AH | 24V/210AH | 24V/210AH |

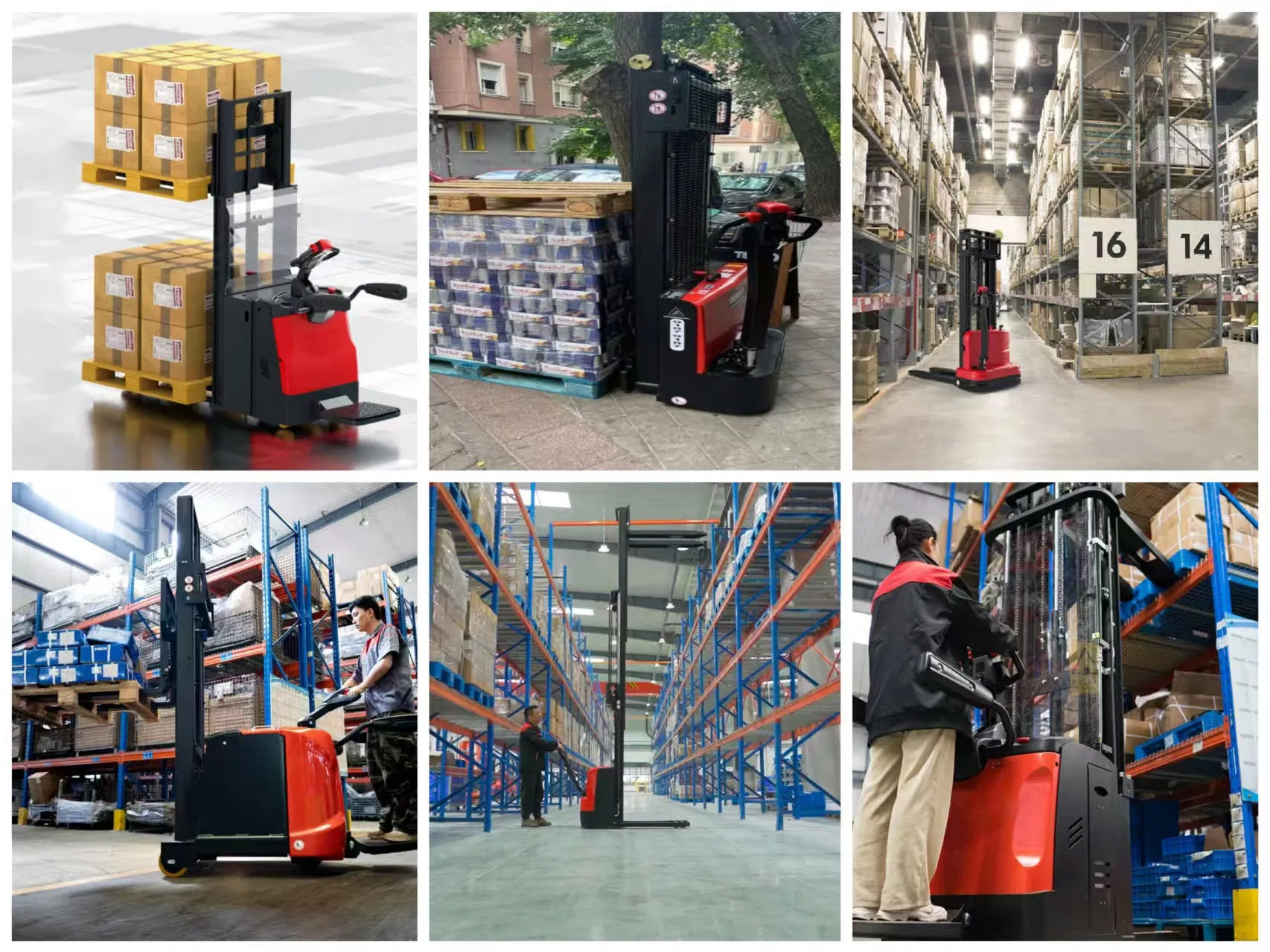

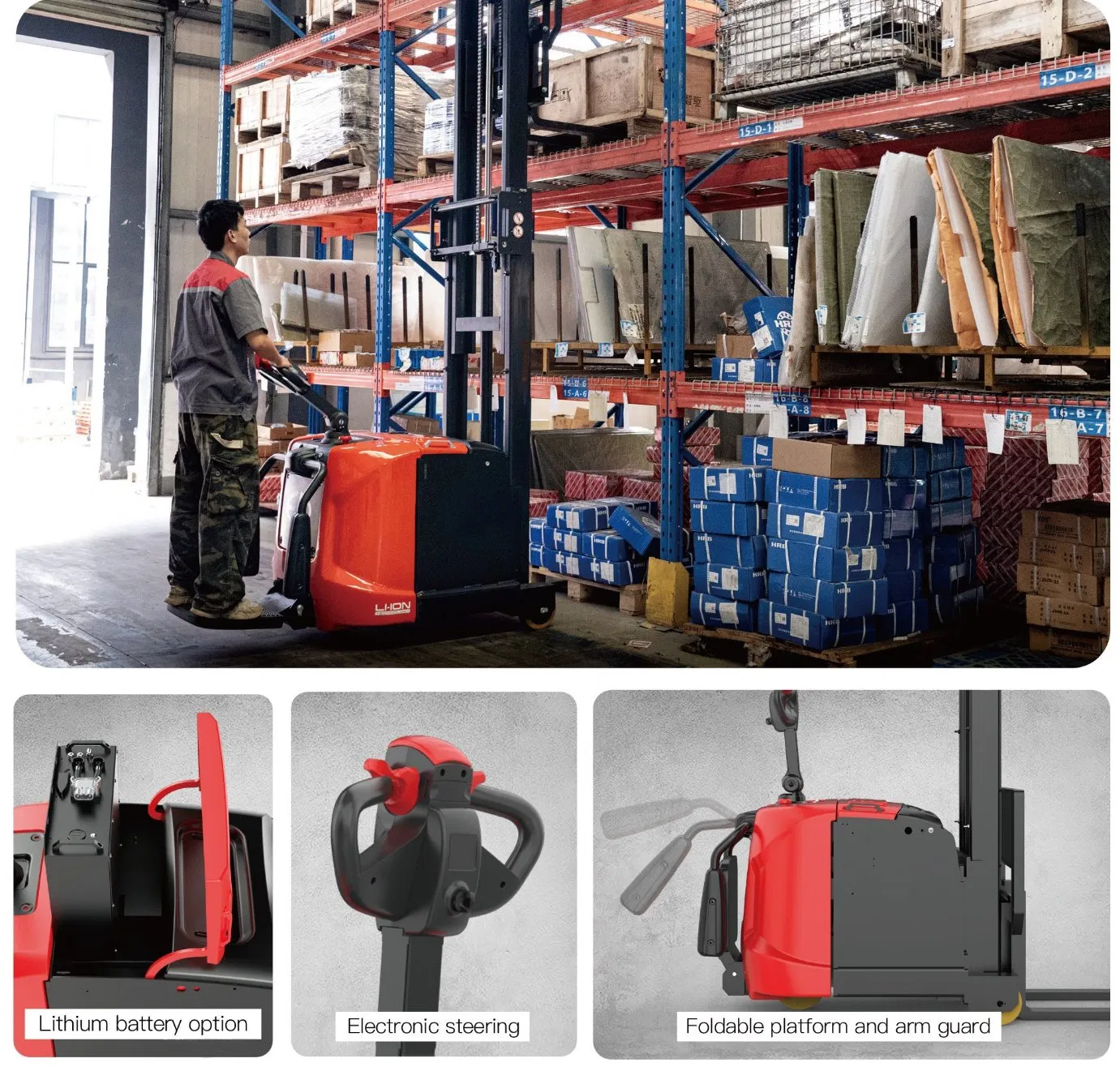

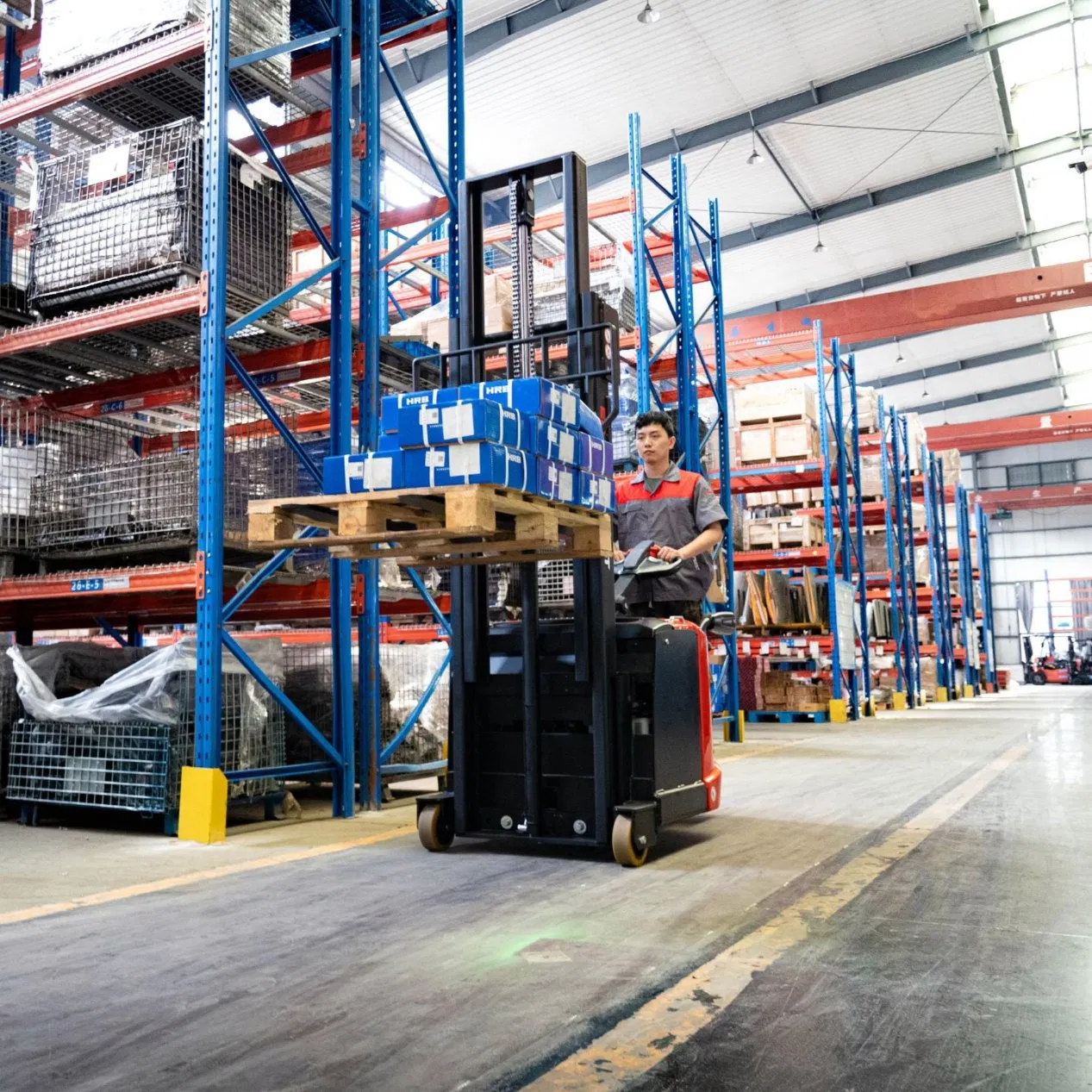

Narrow Aisles: The compact pallet stacker is ideal for small to medium logistics centers and warehouses where space is limited but variety in pallets and loads exists.
Rugged Environment: With a high ground clearance and compact size, it navigates rugged spaces effectively.

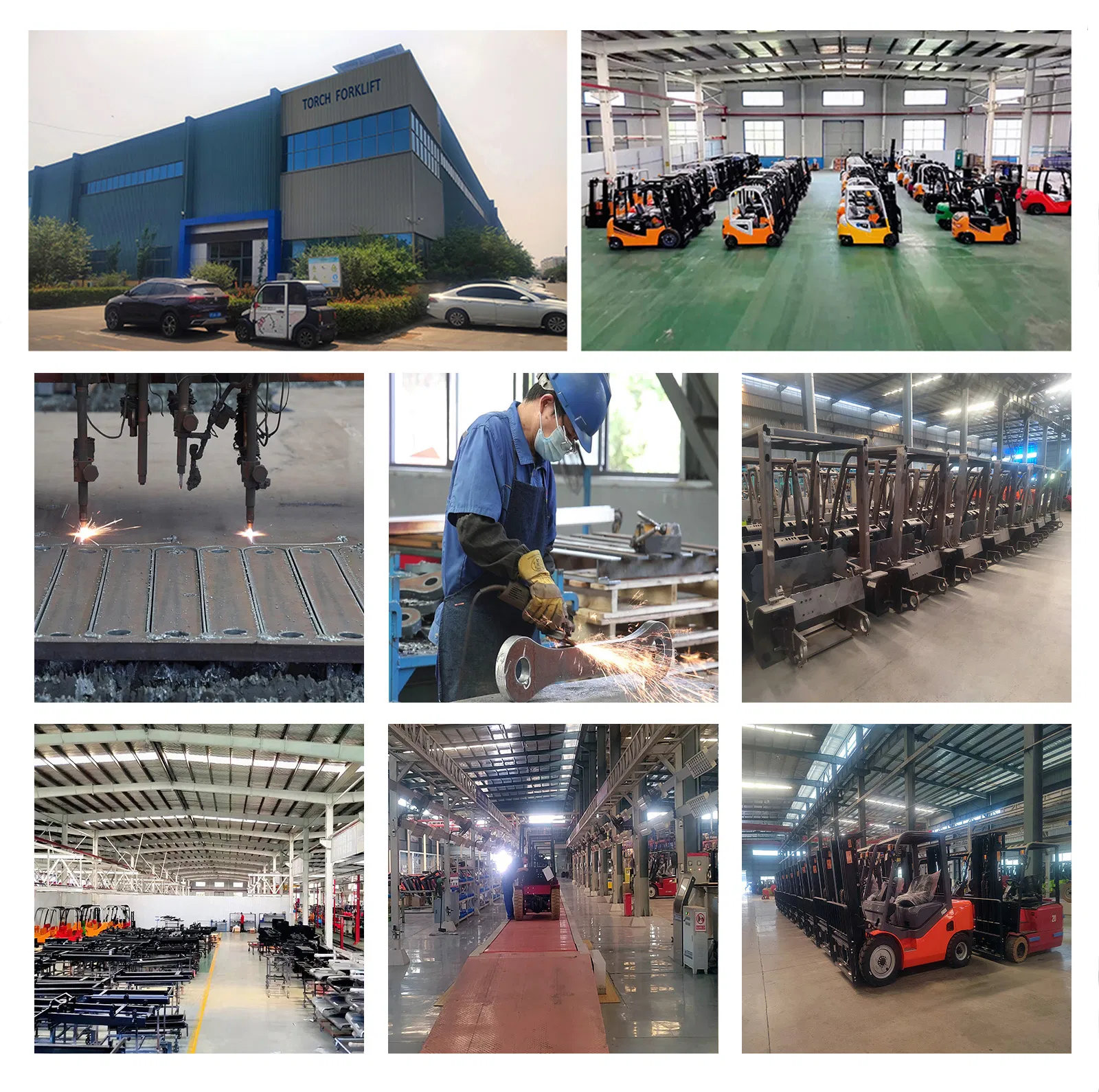

Established in 2020, we are a leading machinery manufacturer specializing in R&D, production, sales, and service of high-performance material handling equipment. Our product range includes electric forklifts, electric stackers, pallet trucks, and industrial AGVs.
Our equipment has been exported to more than 100 countries including the United States, Mexico, Canada, and Russia. With high-quality products and fast service response, we have earned a strong reputation among leading enterprises globally.
