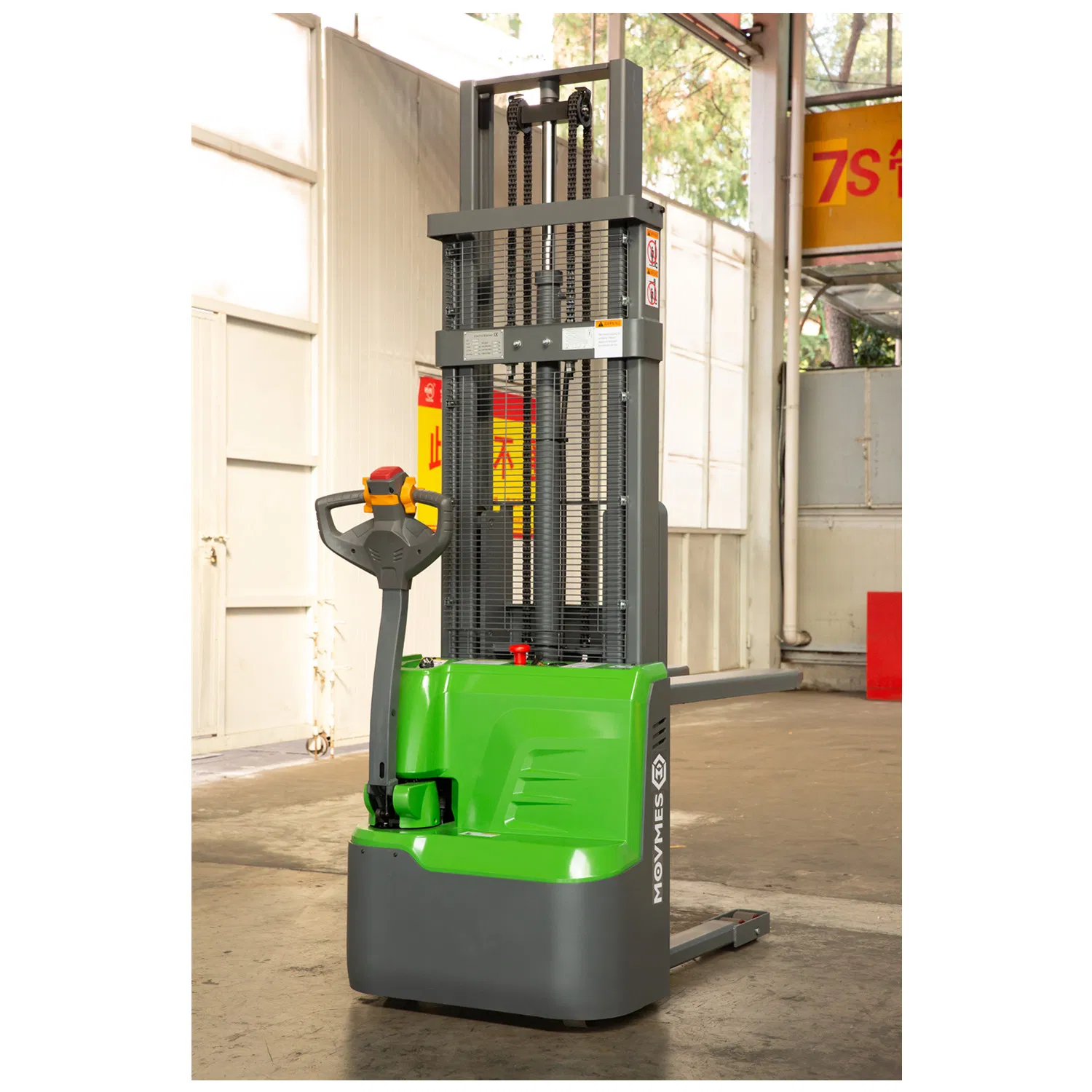

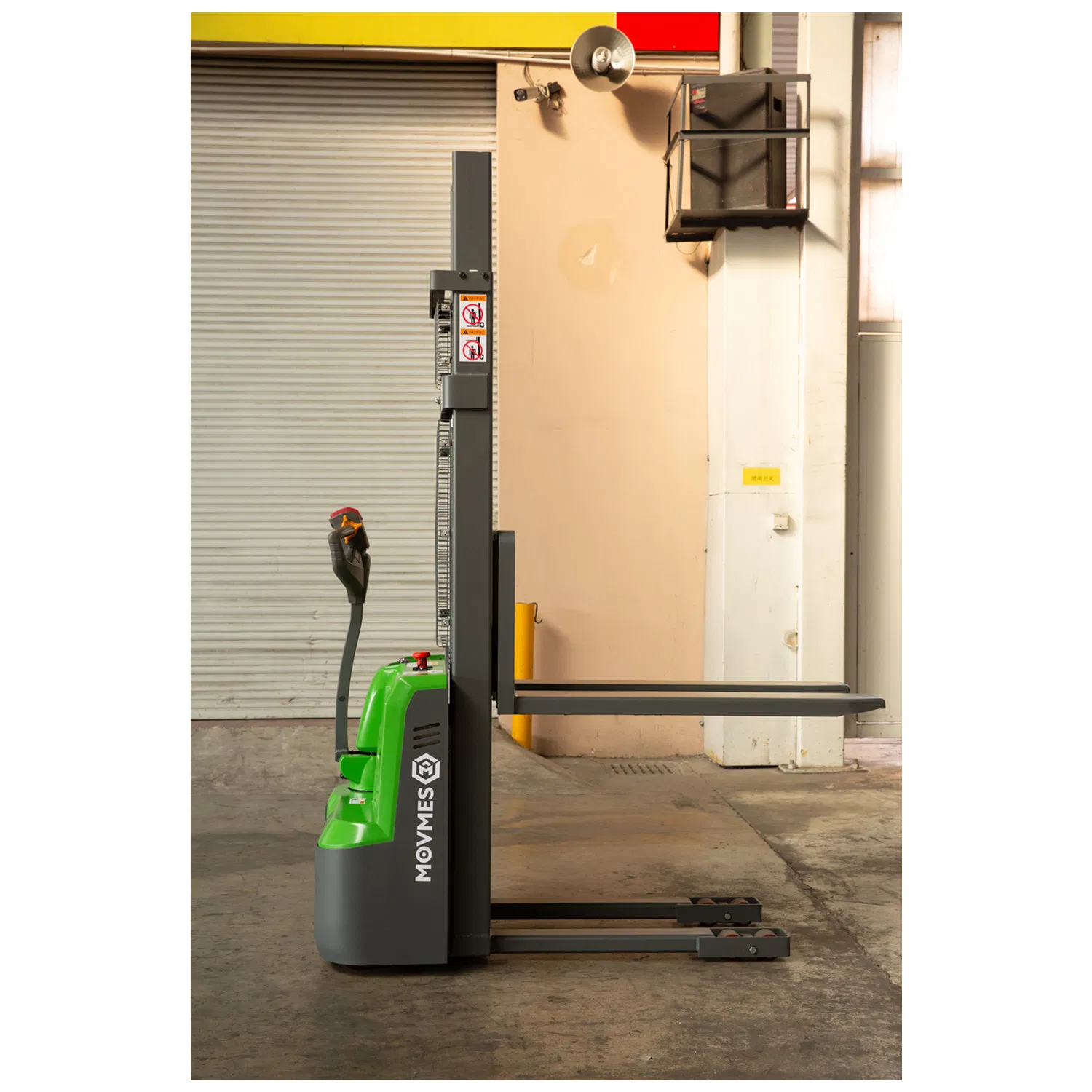

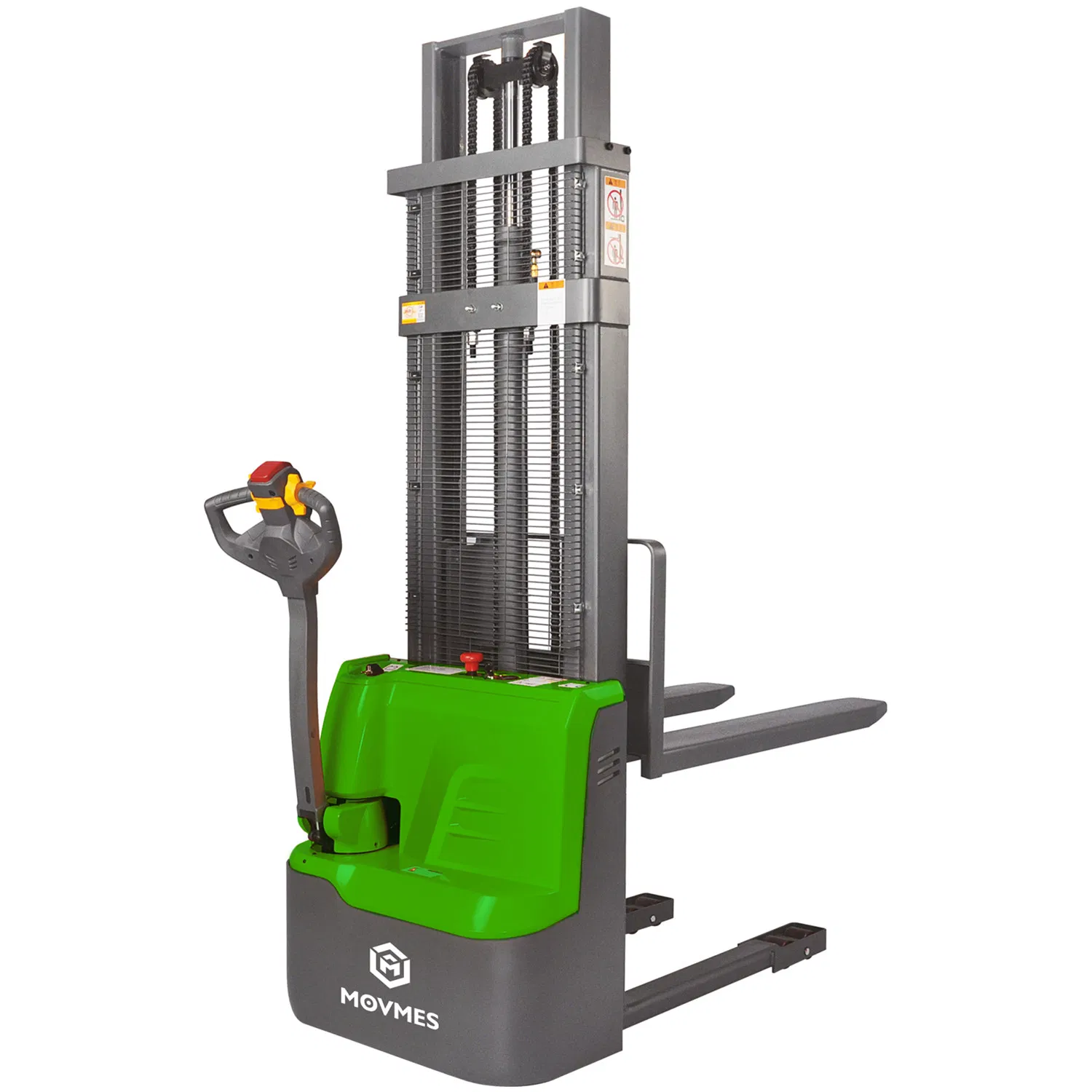

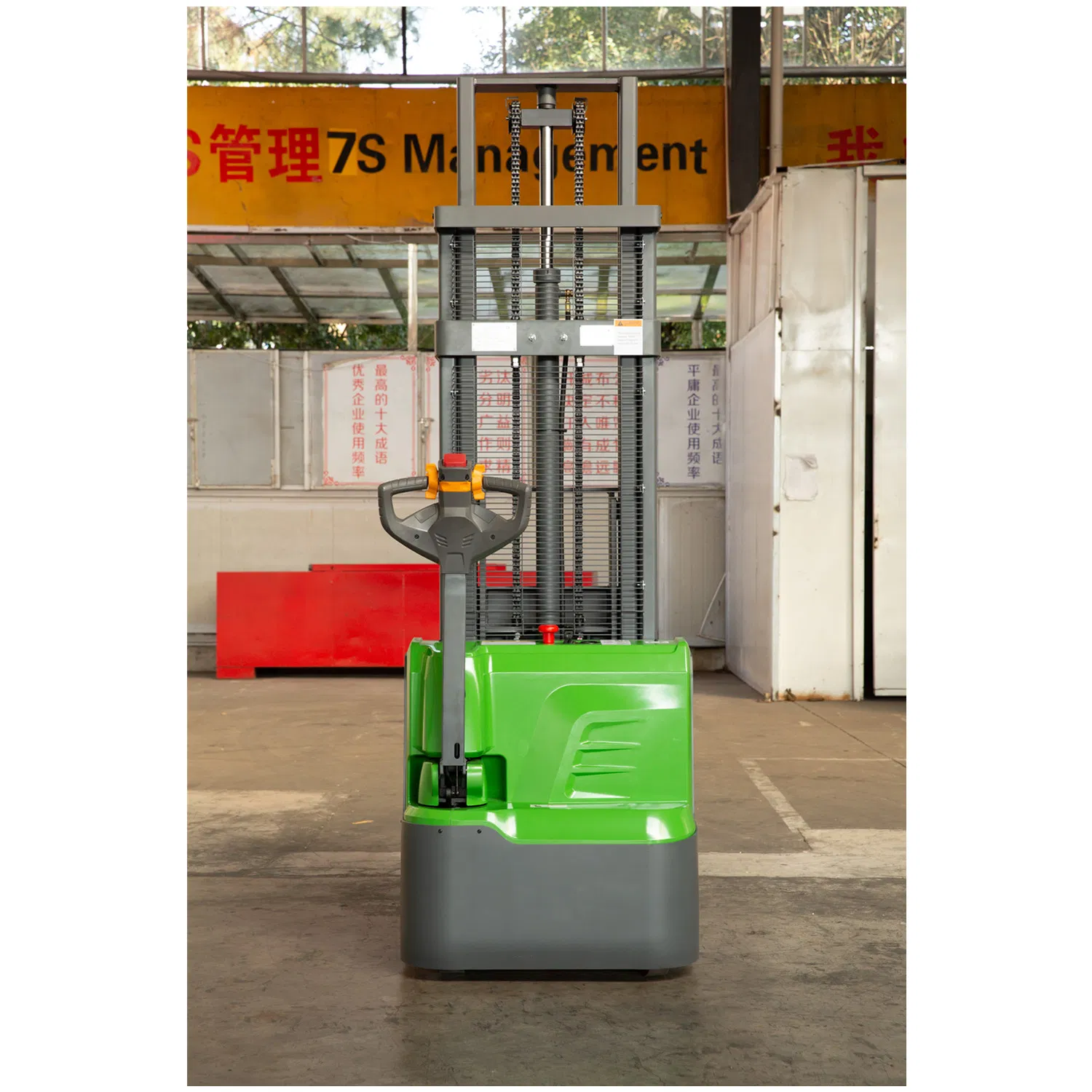

Electric Pallet Stacker Hydraulic Loading 1500kg 1.6m 2ton 2m 3.5m 2 Ton Power Fully Stand on Electric Stacker

1 / 4

Electric Pallet Stacker Hydraulic Loading 1500kg 1.6m 2ton 2m 3.5m 2 Ton Power Fully Stand on Electric Stacker

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

CDDR10 12-EN

Type

Stacker

Power

DC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load Center

500mm

Lift Height

3000~5000mm

Condition

New

Turning Radius

1365 mm

Battery Voltage

24V / 105Ah

HS Code

8427109000

Origin

China

🏗️

Product Description

Electric pallet stacker hydraulic loading 1500kg 1.6m 2ton 2m 3.5m 2 ton power fully stand on electric stacker.

Main Configuration
1. 24V DC POWER	2. CURTIS CONTROLLER
3. RUYI TILLER	4. 24V105AH GEL BATTERY
5. 24V8A CHARGER

📊

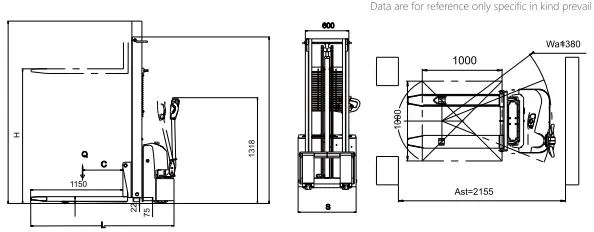

Technical Parameters

Model	Unit	CDD10RE19	CDD12RE19
Load capacity	Q(kg)	1000	1200
Load center	c(mm)	600	600
Height, lowered	h13(mm)	90	90
Tyre size, front	mm	Dia195x70	Dia195x70
Tyre size, rear	mm	Dia80x70	Dia80x70
Max. lift height	h3(mm)	1600-3500	1600-3500
Overall length	I1(mm)	1748	1748
Overall width	b1(mm)	800	800
Turning radius	Wa(mm)	1365	1365
Travel speed (laden/unladen)	Km/h	4.5/5	4.5/5
Battery voltage	V/Ah	24/105	24/105

⭐

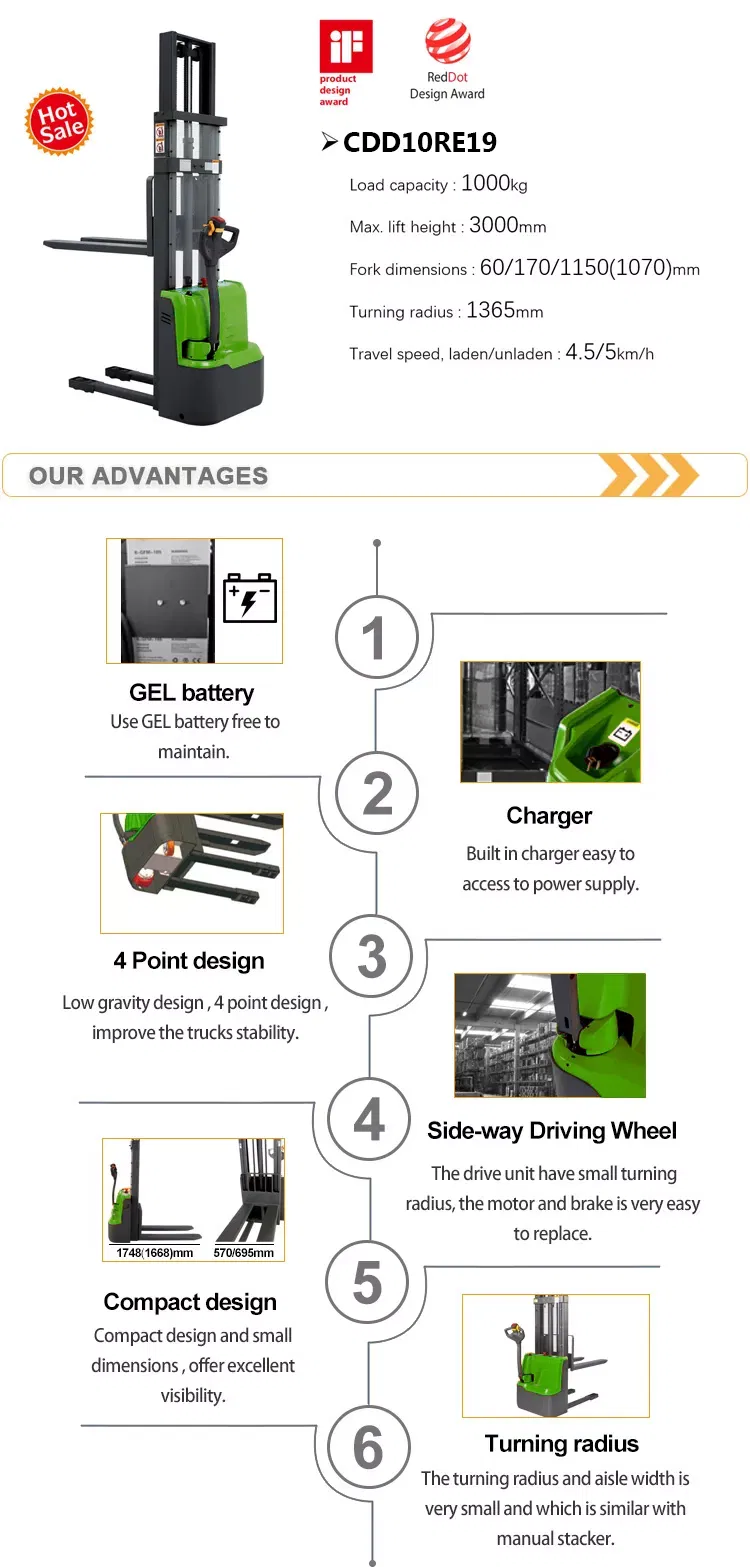

Core Advantages

The super light electric walkie stacker with small turning radius is widely used in small warehouses and supermarkets. Ideal for low-level stacking and short-distance transportation.

Maintenance-Free: Equipped with GEL battery for easy upkeep.
Easy Charging: Built-in charger allows easy access to power supply.
High Stability: Low gravity and 4-point design for improved truck stability.
Easy Maintenance: Drive unit features a motor and brake that are simple to replace.
Compact Design: Small dimensions offer excellent visibility and maneuverability.
Narrow Aisle Operation: Turning radius and aisle width are optimized for tight spaces.

🔗

Related Series

CDDR15-III: 1.5ton, 1600-5600mm lift height, AC motor.

CDDK20: 2.0ton, 2500-5600mm lift height, 24V300Ah battery.

CDDR15 FULL-ELECTRIC: 1.5ton with 3000mm lifting height.

📦

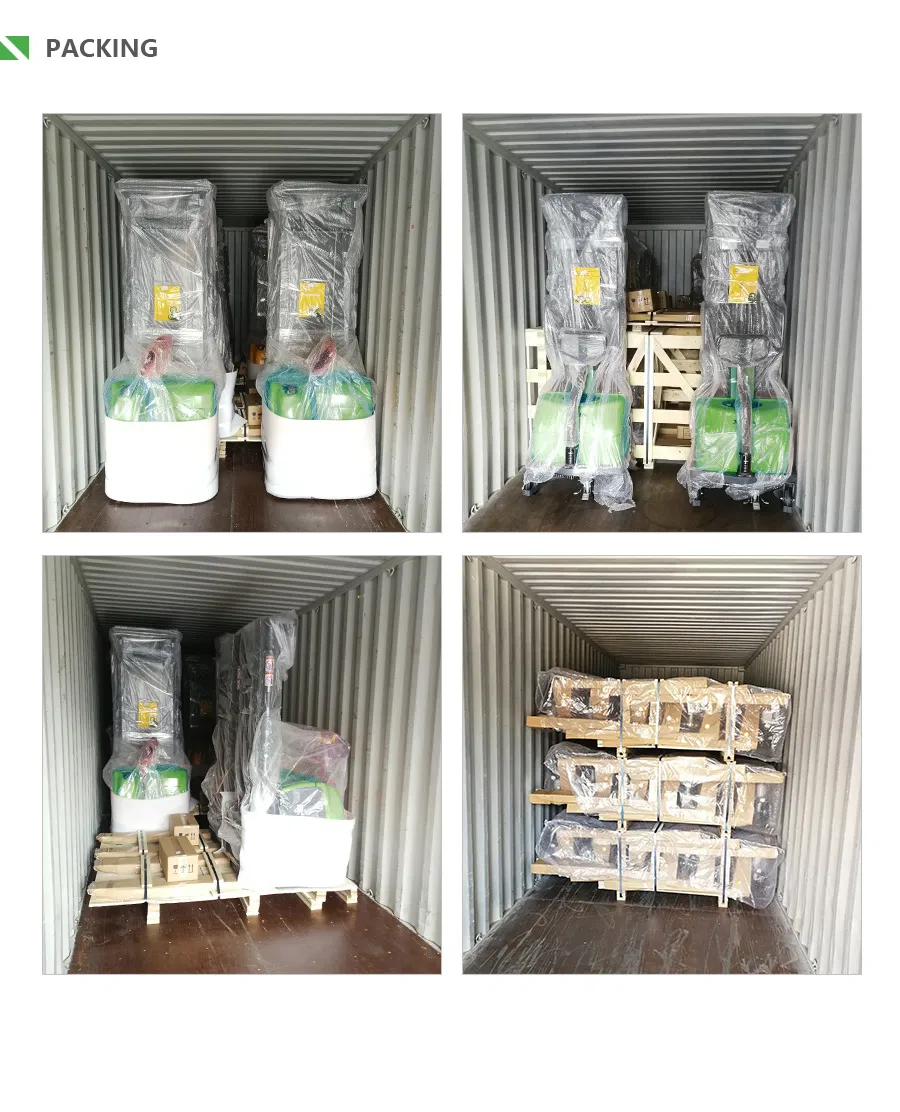

Packing and Delivery

Each truck is carefully packaged according to delivery requirements. Photos and videos are provided before dispatch to ensure customer approval. Production time is typically 30-45 days after receiving the advanced payment.

🛡️

Certifications & Strength

ISO9001:2008 Quality Management System
ISO14001:2004 Environmental Management System
OHSAS18001:2007 Occupational Health and Safety
TUV/GS/CE Certified Products

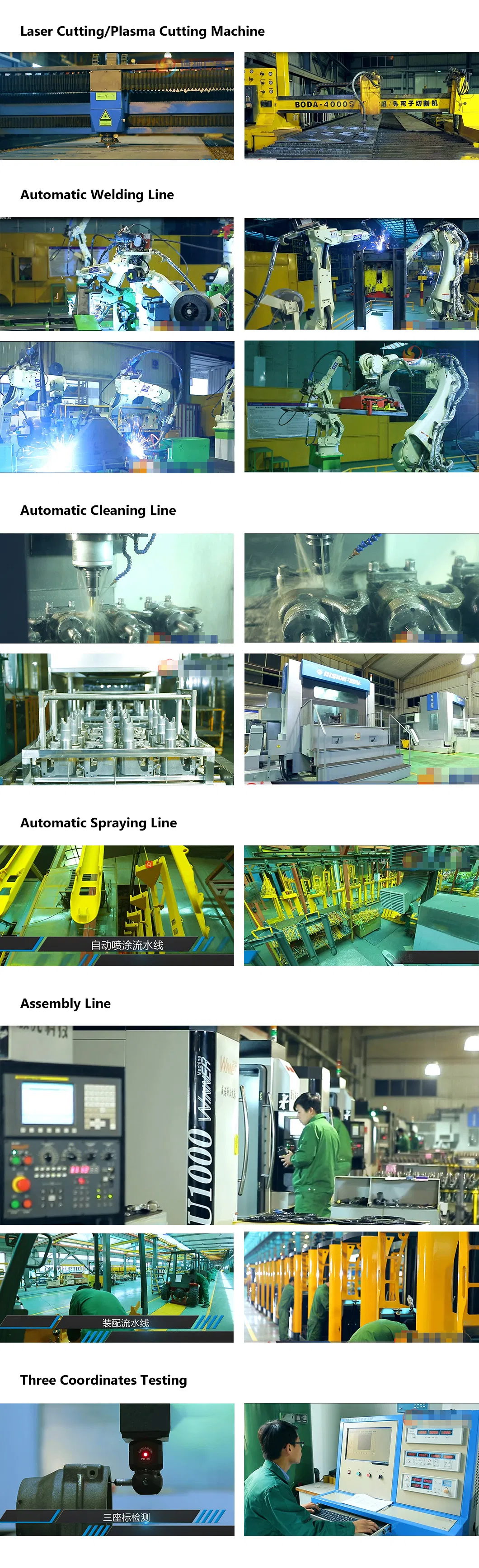

Factory Area

150,000 m²

Employees

1,200+

Technicians

188 Professional Mechanical Technicians

🌍

Global Partnership

Seeking agents worldwide to expand high-end warehousing and logistics solutions. We offer high-quality products matching world-renowned brands.

❓

Frequently Asked Questions

Q1: What is the continuous working time for the electric truck? The battery continuous working time is around 3-6 hours, depending on the battery volume. Charging usually takes 3-6 hours.

Q2: What are the charger specifications for the CDD10R19? It uses a 24V105Ah GEL battery charger. Power plugs can be customized to USA/UK/AUSTRALIA/EUROPEAN standards.

Q3: Do you provide customized OEM or ODM products? Yes, we have been professionally developing warehouse equipment since 1985 and can provide tailored solutions including OEM services.

Q4: How long is the warranty period? We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.

Q5: Is the GEL battery really maintenance-free? Yes, the GEL battery is designed to be fully sealed and maintenance-free, meaning you don't need to add water or perform regular electrolyte checks.

Q6: Are the products CE certified for the European market? Yes, up to 90% of our products have approved CE certificates from TUV, complying with ISO3691-1, EN1175-1, and EN16307-1 standards.
