| Model NO. | CQD20-D | Type | Stacker |
| Power | AC Motor | Load Capacity | 1T - 5T |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | >5000mm | Condition | New |
| Wheel | PU | Wheelbase | 1510 mm |
| Battery Voltage | 48/500 Ah | Service Weight | 4205 Kg |

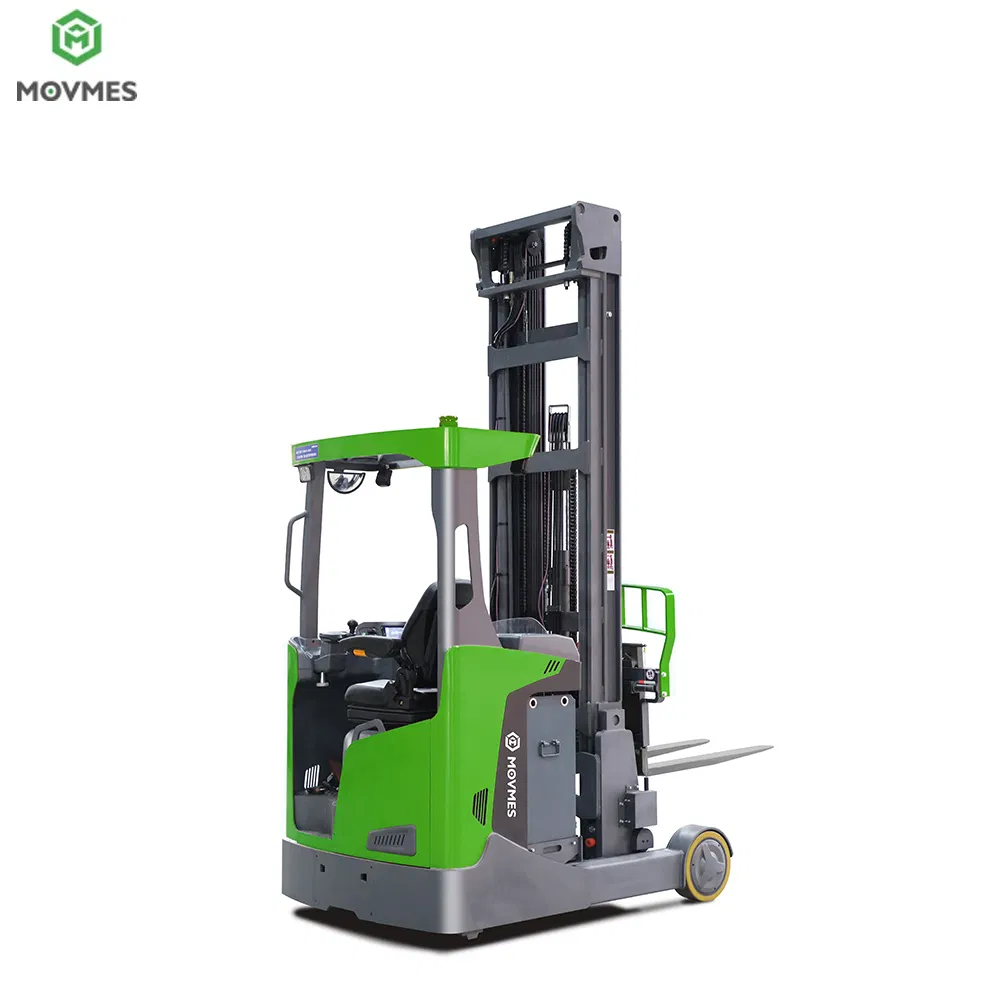

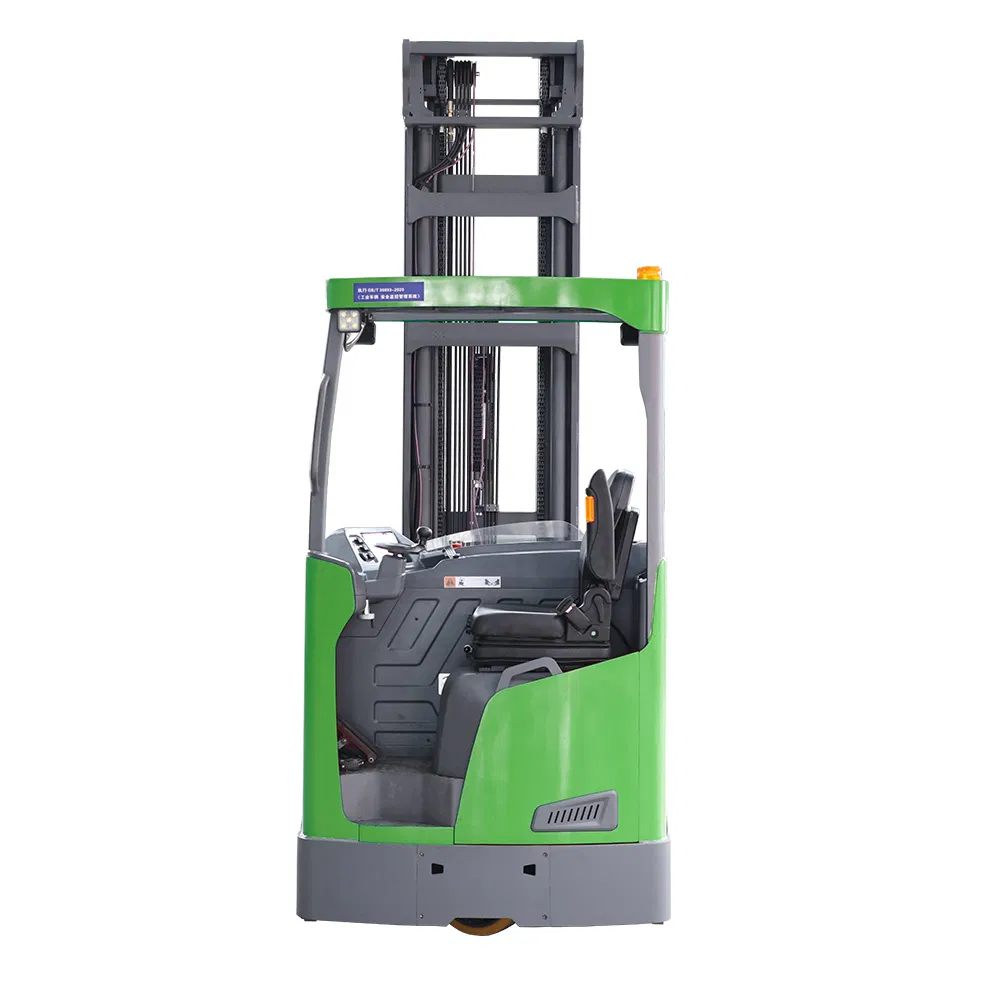

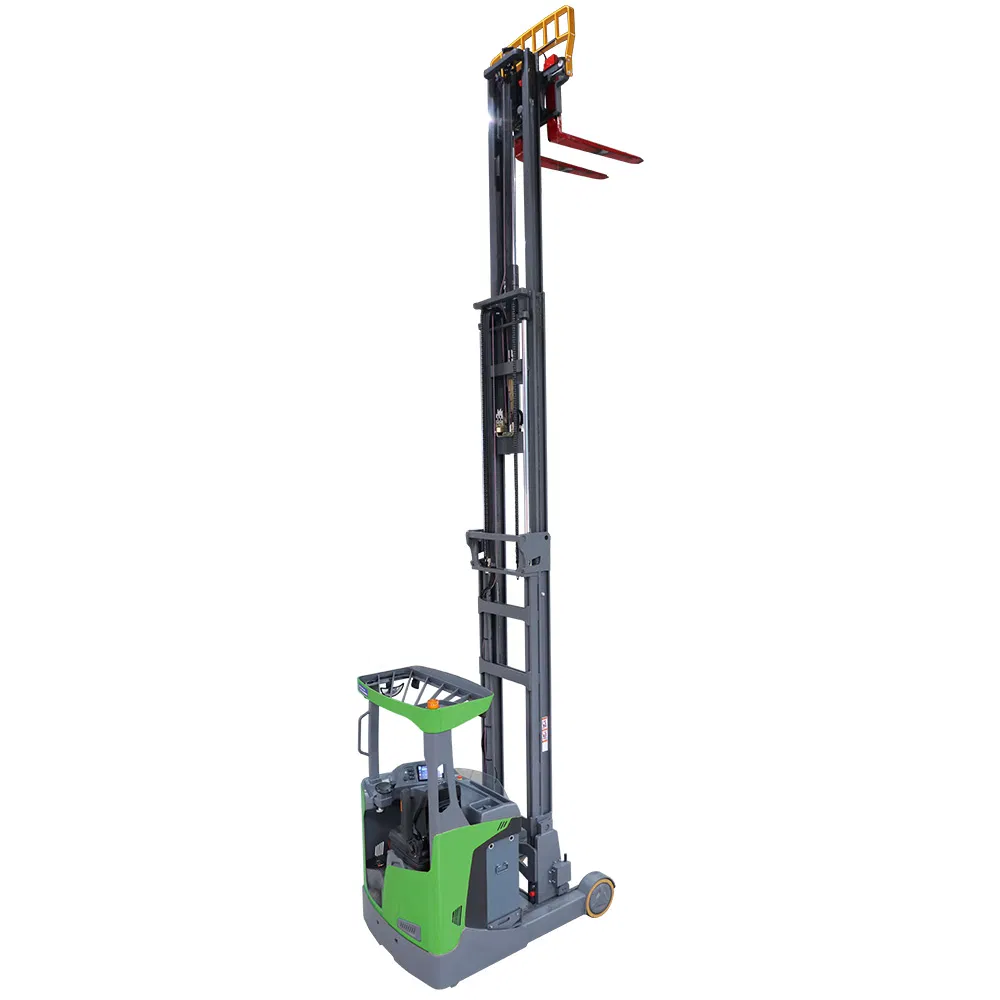

The CQD20-D Reach Truck is engineered for efficient and precise material handling in narrow aisle and high-racking warehouse environments. Its compact design and stable reach system allow operators to stack and retrieve pallets safely, even in confined spaces.

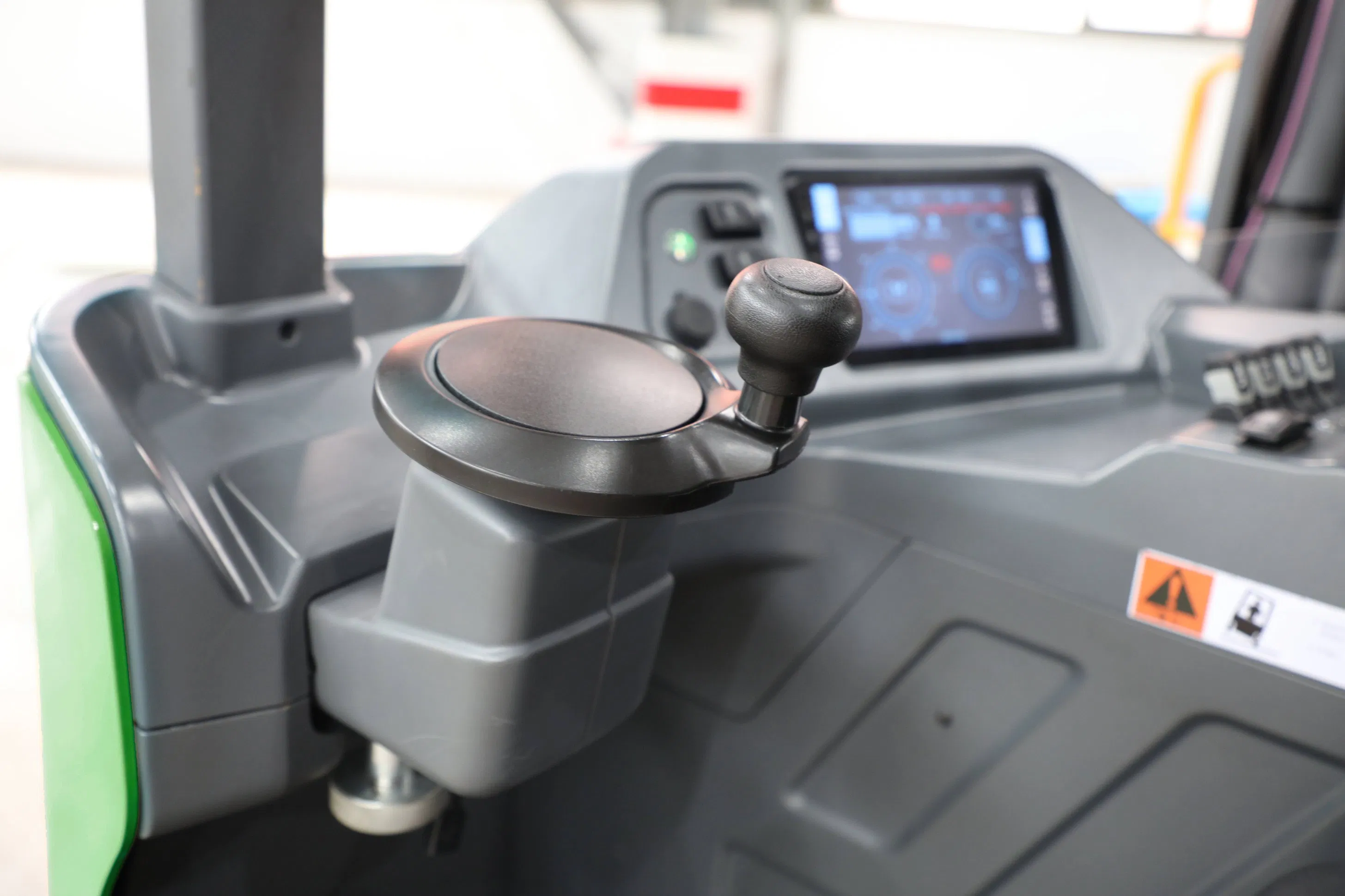

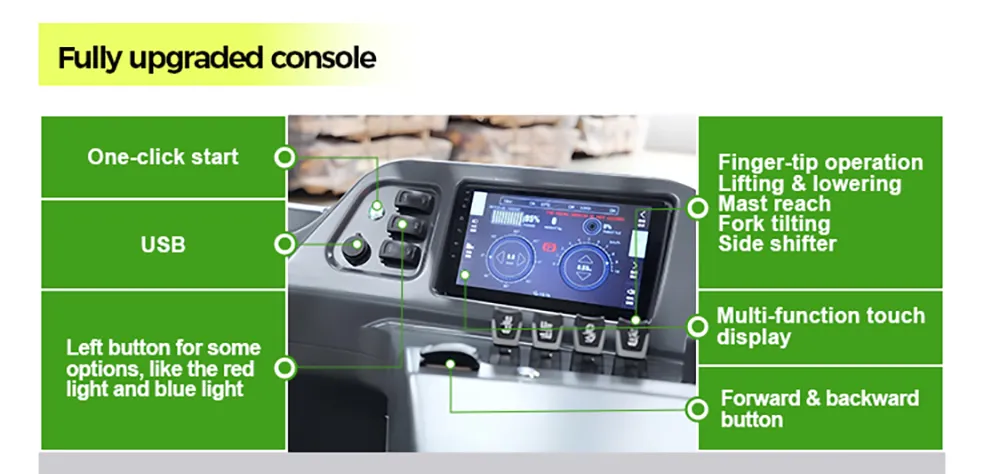

Powered by a reliable electric drive system, it delivers smooth operation, low noise, and zero emissions—making it an ideal solution for indoor logistics, distribution centers, and modern warehouses. The ergonomic operator compartment and responsive controls help improve productivity while reducing operator fatigue.

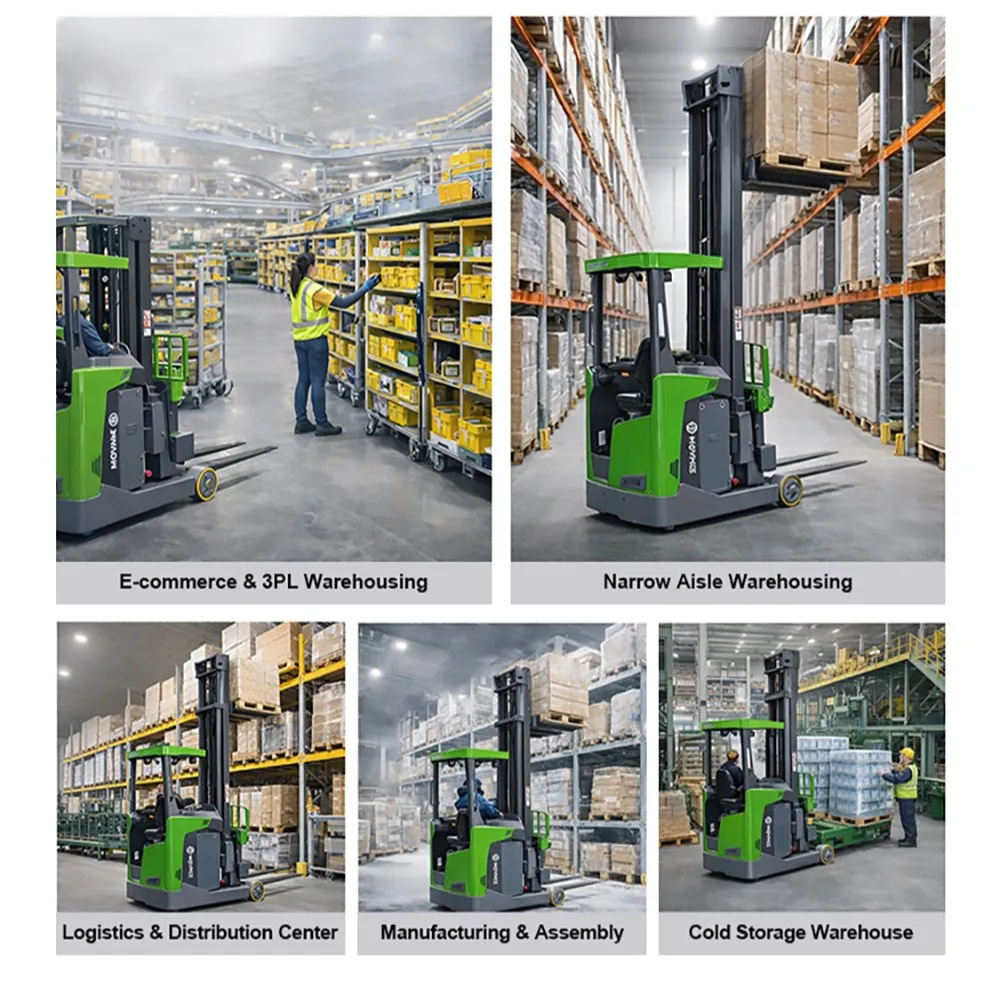

Ideal for: Narrow aisle warehouses · High-bay storage · Logistics centers · Manufacturing warehouses
| Parameter | Unit | CQD20-D Value |
|---|---|---|
| Operator type | - | Seated |

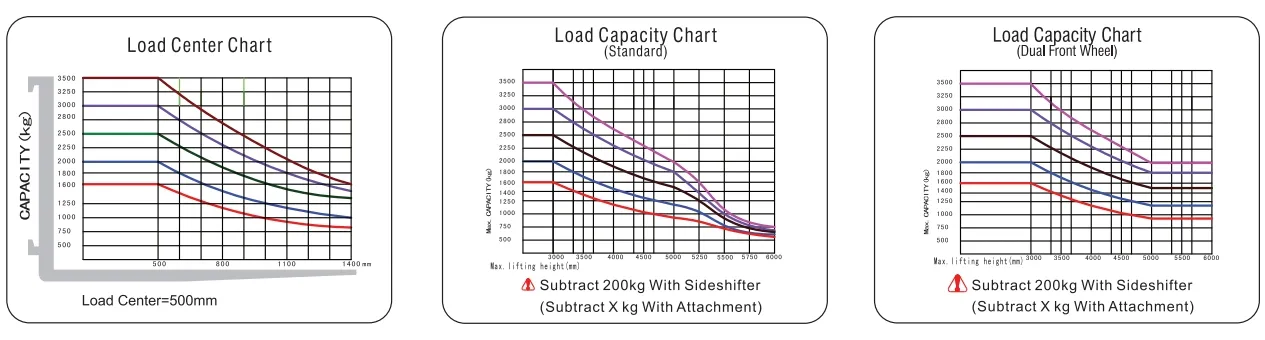

| Rated load | Q(kg) | 2000 |
| Load center distance | C(mm) | 600 |
| Wheelbase | Y(mm) | 1510 |
| Travel speed, laden/unladen | km/h | 10.5/11 |
| Lift speed, laden/unladen | m/s | 0.3/0.46 |

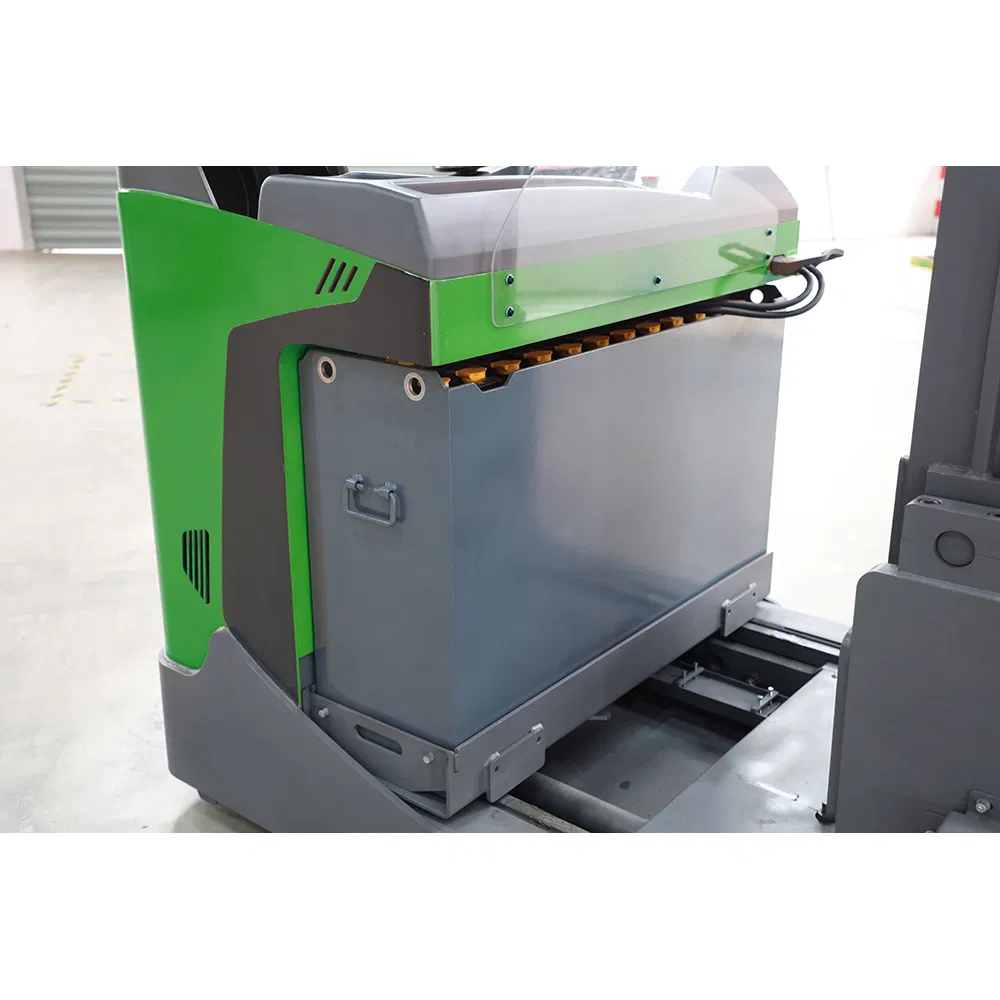

| Battery voltage/capacity | V/Ah | 48/500 |
