DLI AutoLogix
1 / 5

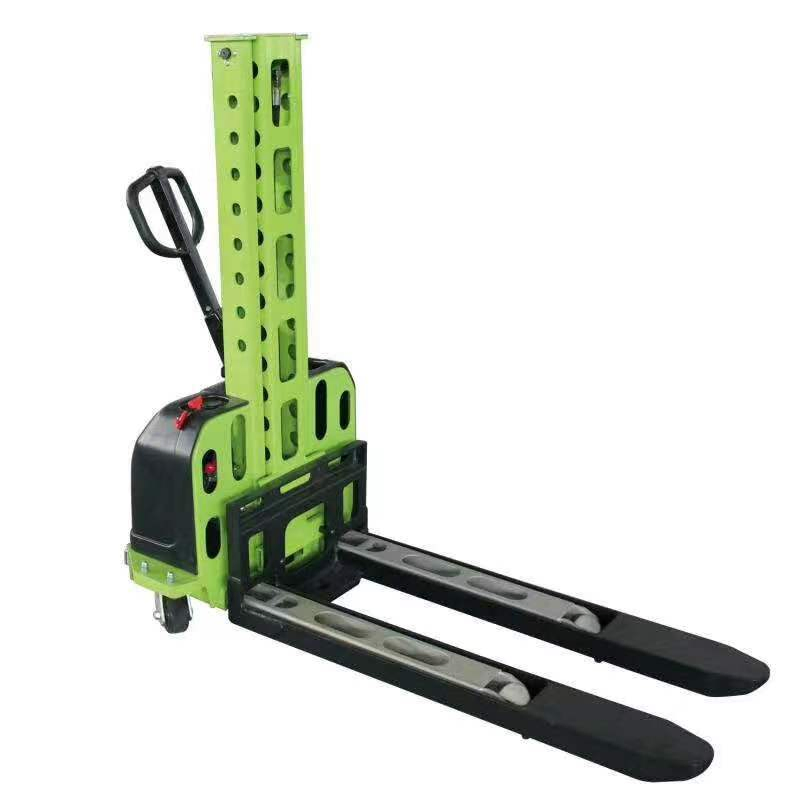

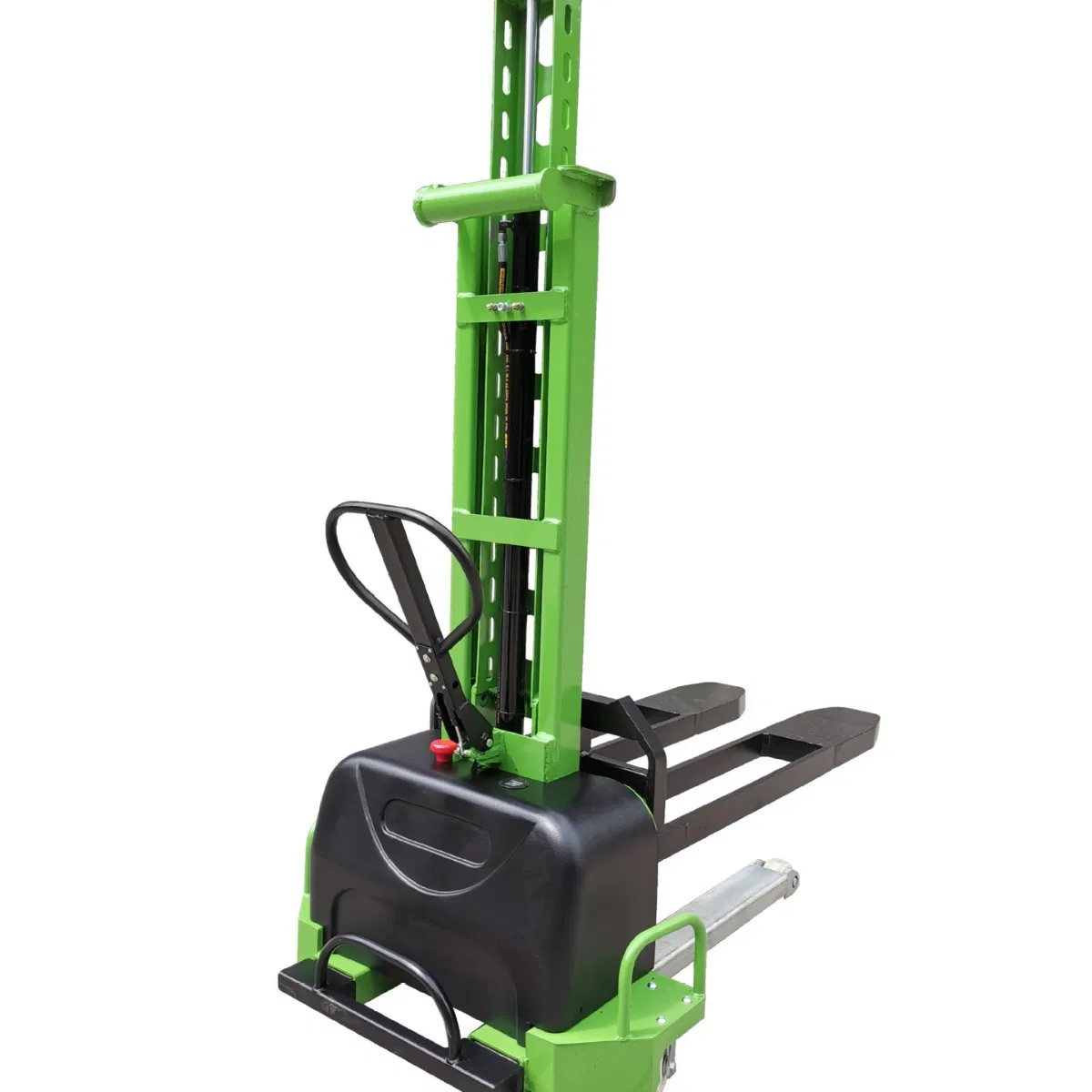

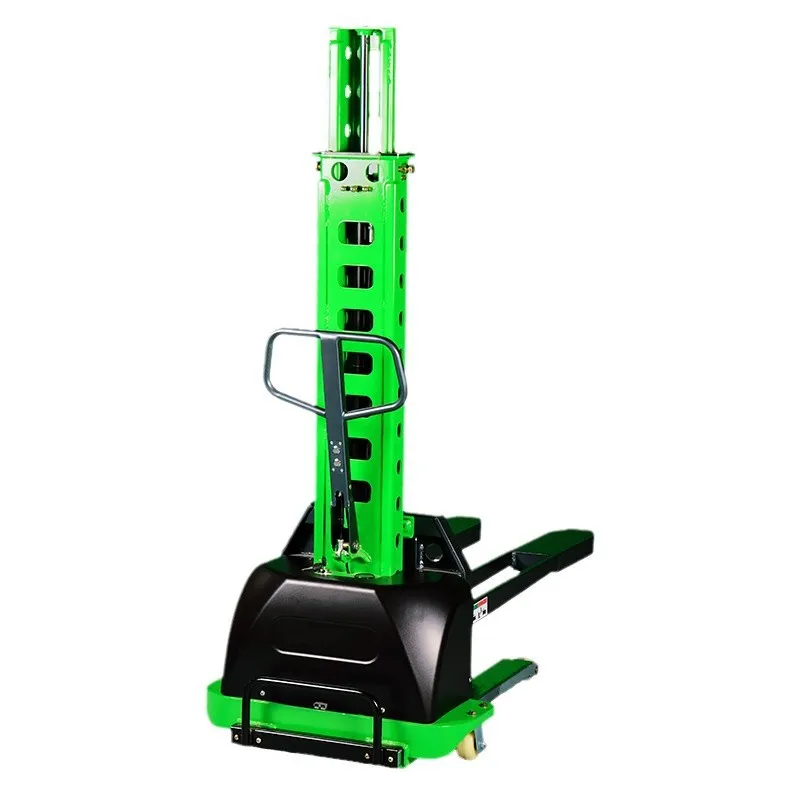

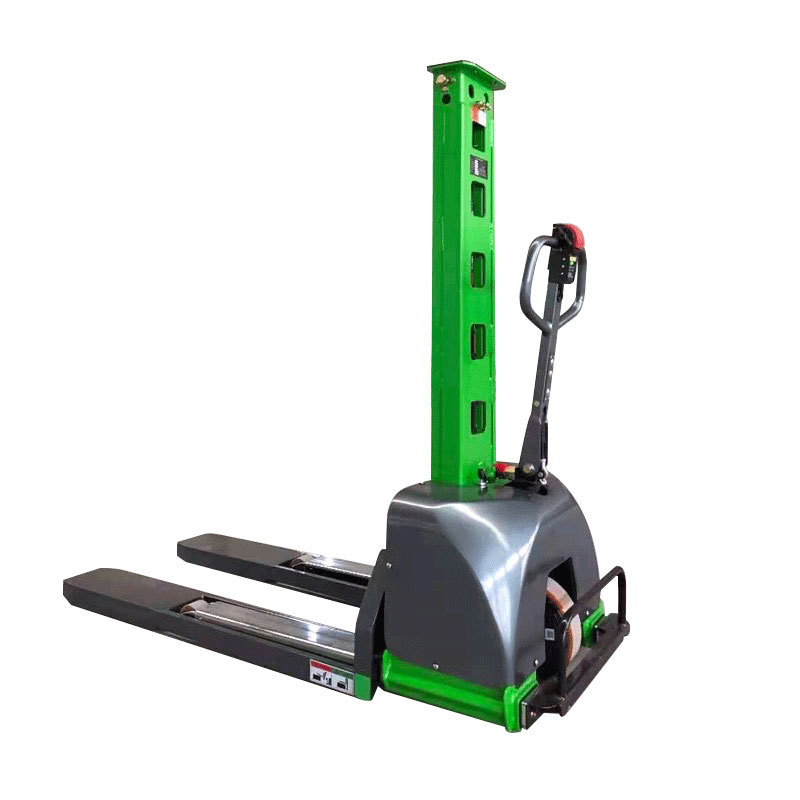

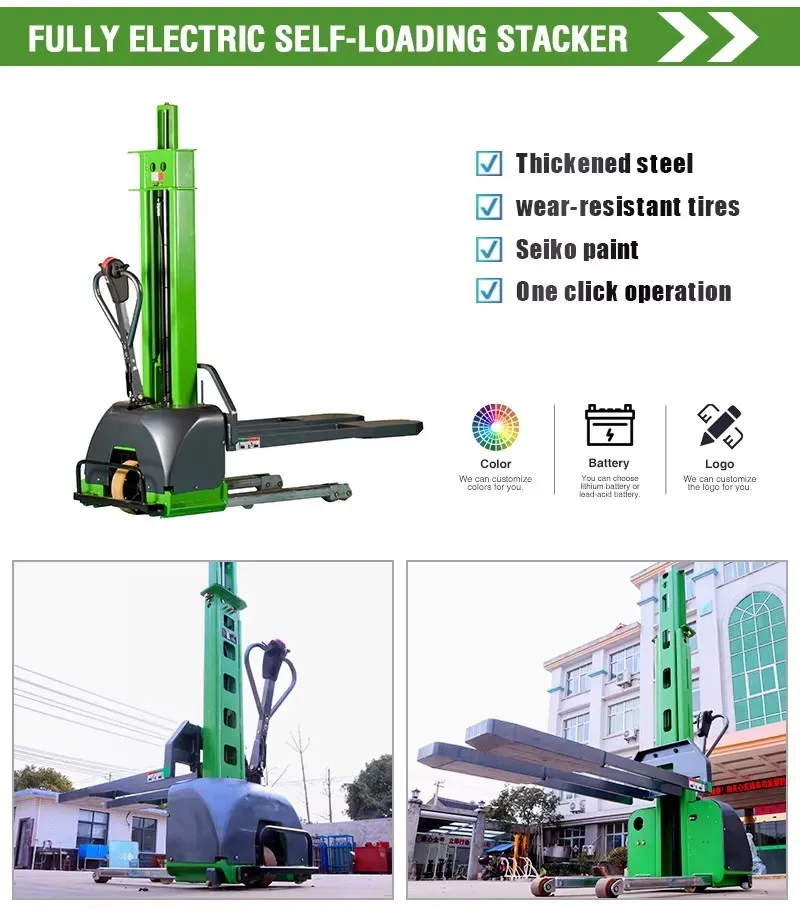

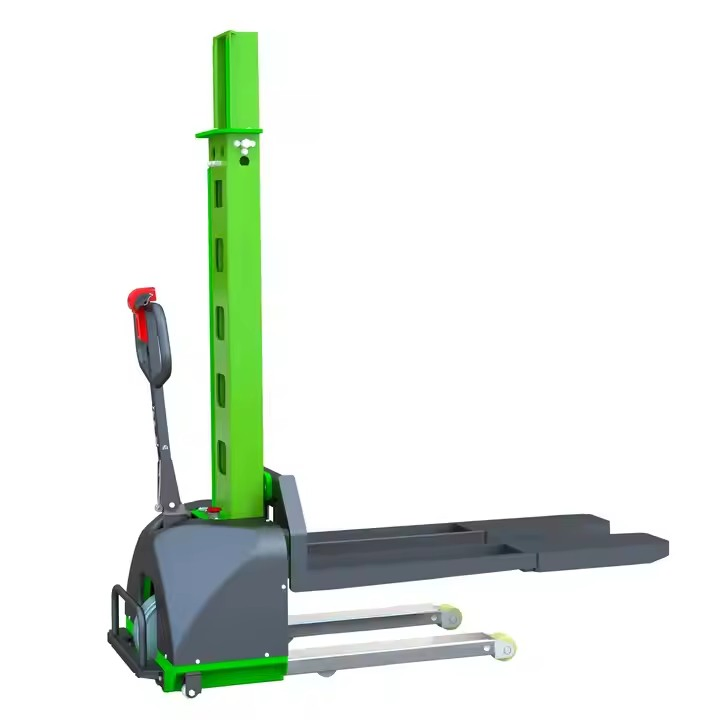

A compact lifting device that can load itself and cargo onto vehicles. It combines stacking and self-loading functions, ideal for warehouses, deliveries, and small logistics operations.
Combines stacking and self-loading in one compact machine.
Speeds up loading and unloading without extra equipment.
Easily moves in tight warehouse or truck spaces.
Operates without needing forklifts or ramps.
Reduces labor and equipment expenses over time.
| Specifications | Unit | 900mm | 1000mm | 1100mm | 1300mm | 1500mm |
|---|---|---|---|---|---|---|
| Load capacity | kg | 500 | 500 | 500 | 500 | 500 |
| Load center | mm | 400 | 400 | 400 | 400 | 400 |

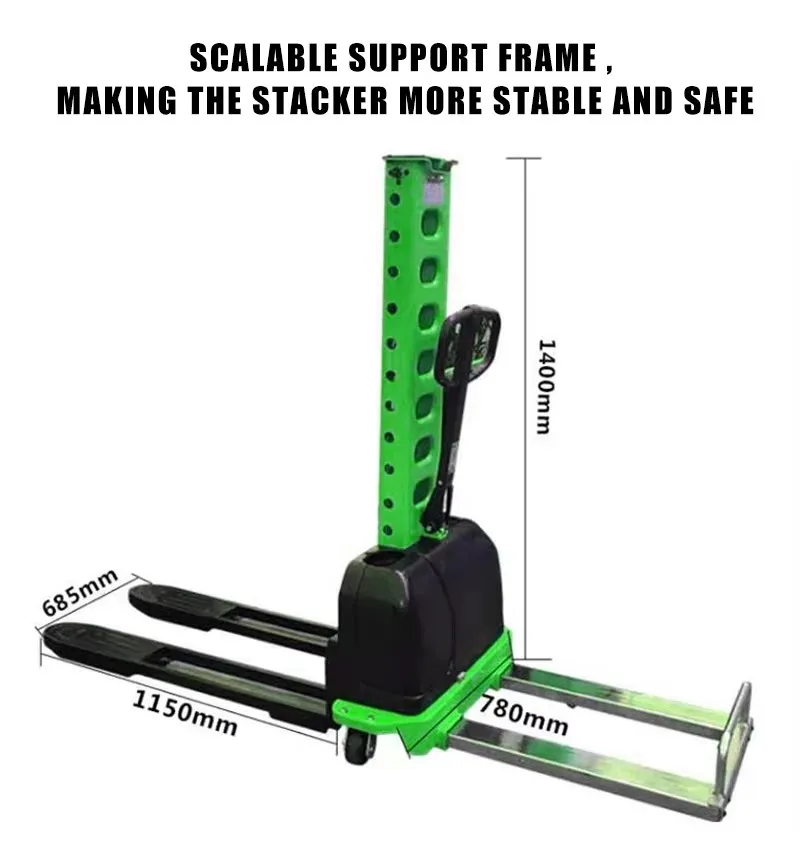

| Overall length | mm | 1565 | 1565 | 1600 | 1600 | 1600 |
| Overall width | mm | 790 | 790 | 790 | 790 | 790 |
| Max lifted height | mm | 2100 | 2300 | 2500 | 2900 | 3080 |
| Fork length | mm | 1150 | 1150 | 1150 | 1150 | 1150 |
| Fork outside width | mm | 535 | 535 | 535 | 535 | 535 |
| Rated output | V/kw | 12/0.8 | 12/0.8 | 12/0.8 | 12/0.8 | 12/0.8 |
| Battery Capacity | V/AH | 12/33 | 12/33 | 12/33 | 12/33 | 12/33 |
| Self weight | kg | 185 | 196 | 207 | 229 | 251 |
