Product Overview

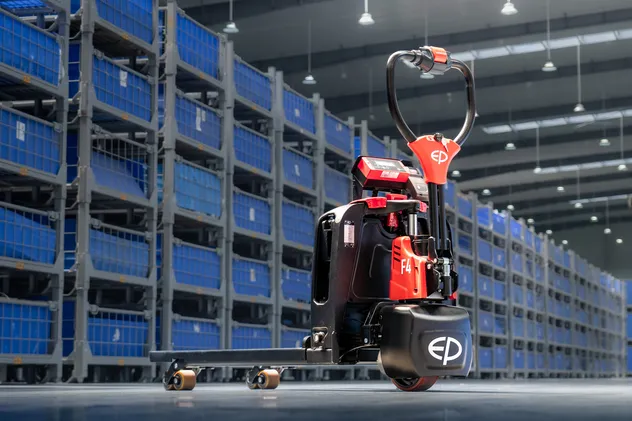

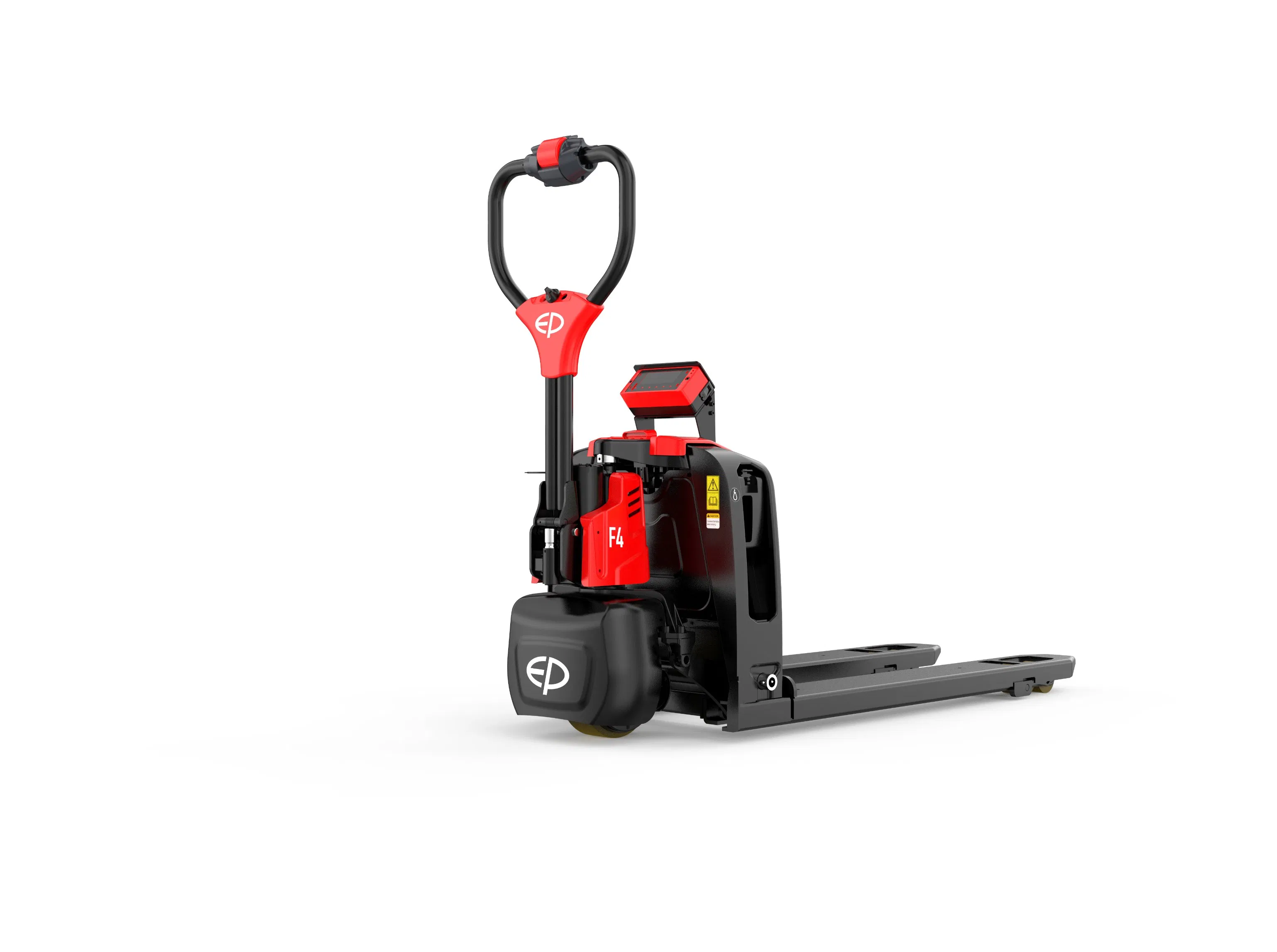

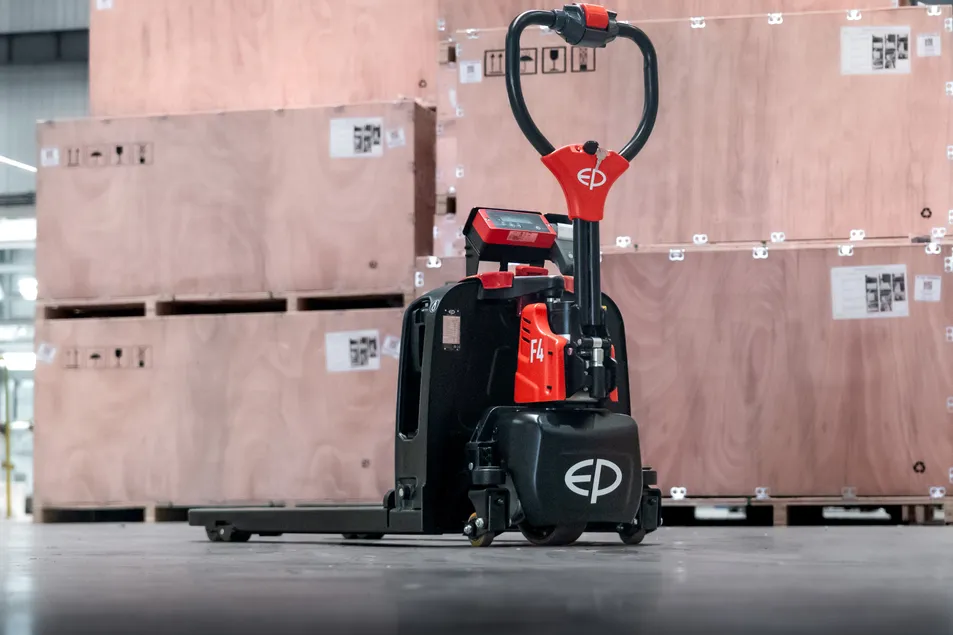

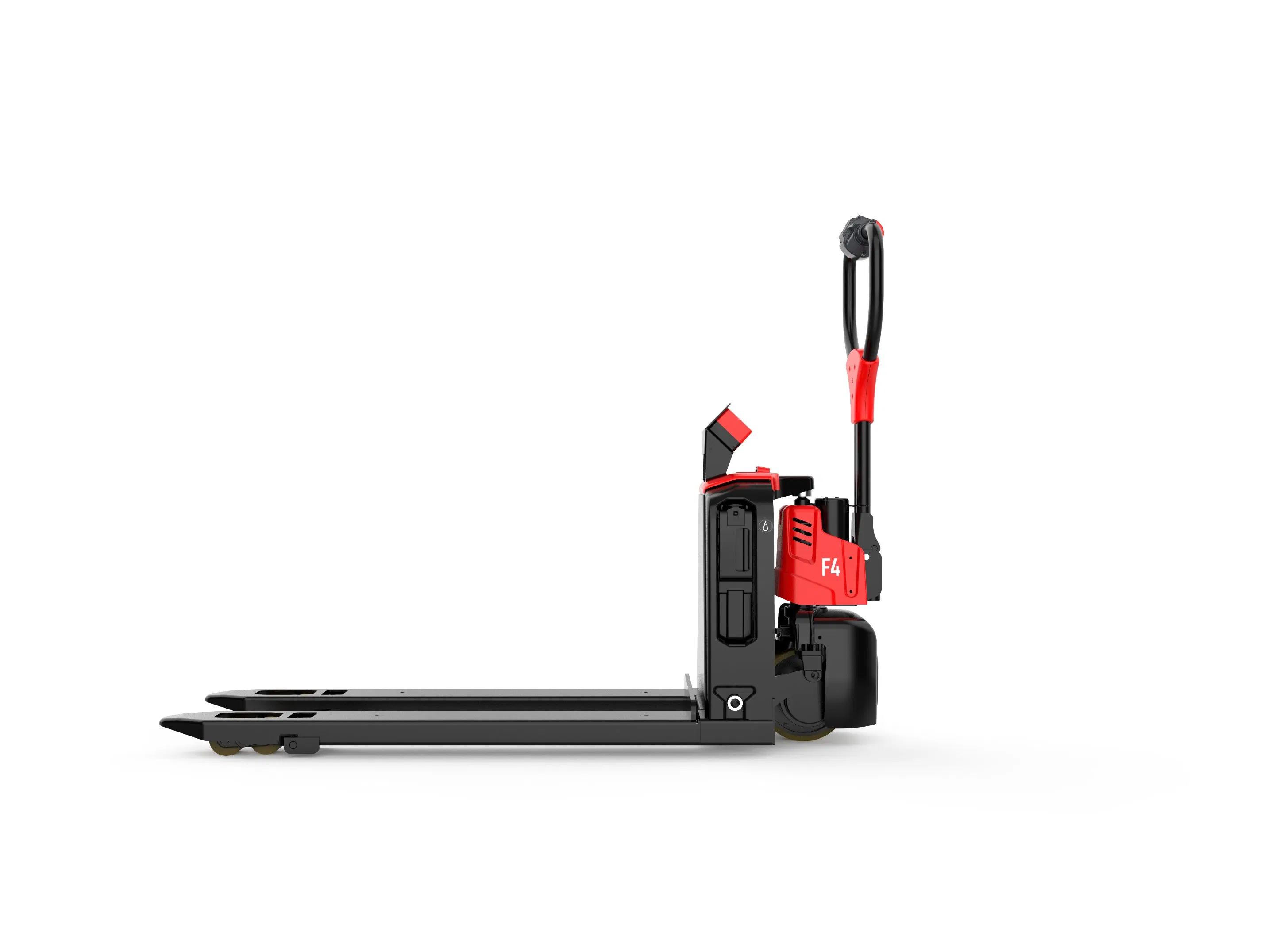

In the modern logistics and distribution industry, efficiency and flexibility are essential. The F4 with scales is ideal for weighing in warehouses and plays a helpful role in a smooth supply chain. This functional tool allows the operator to check the weight of loads accurately at different locations, reducing the need for unnecessary movement of goods and improving work efficiency. Operational flexibility is also greatly enhanced.

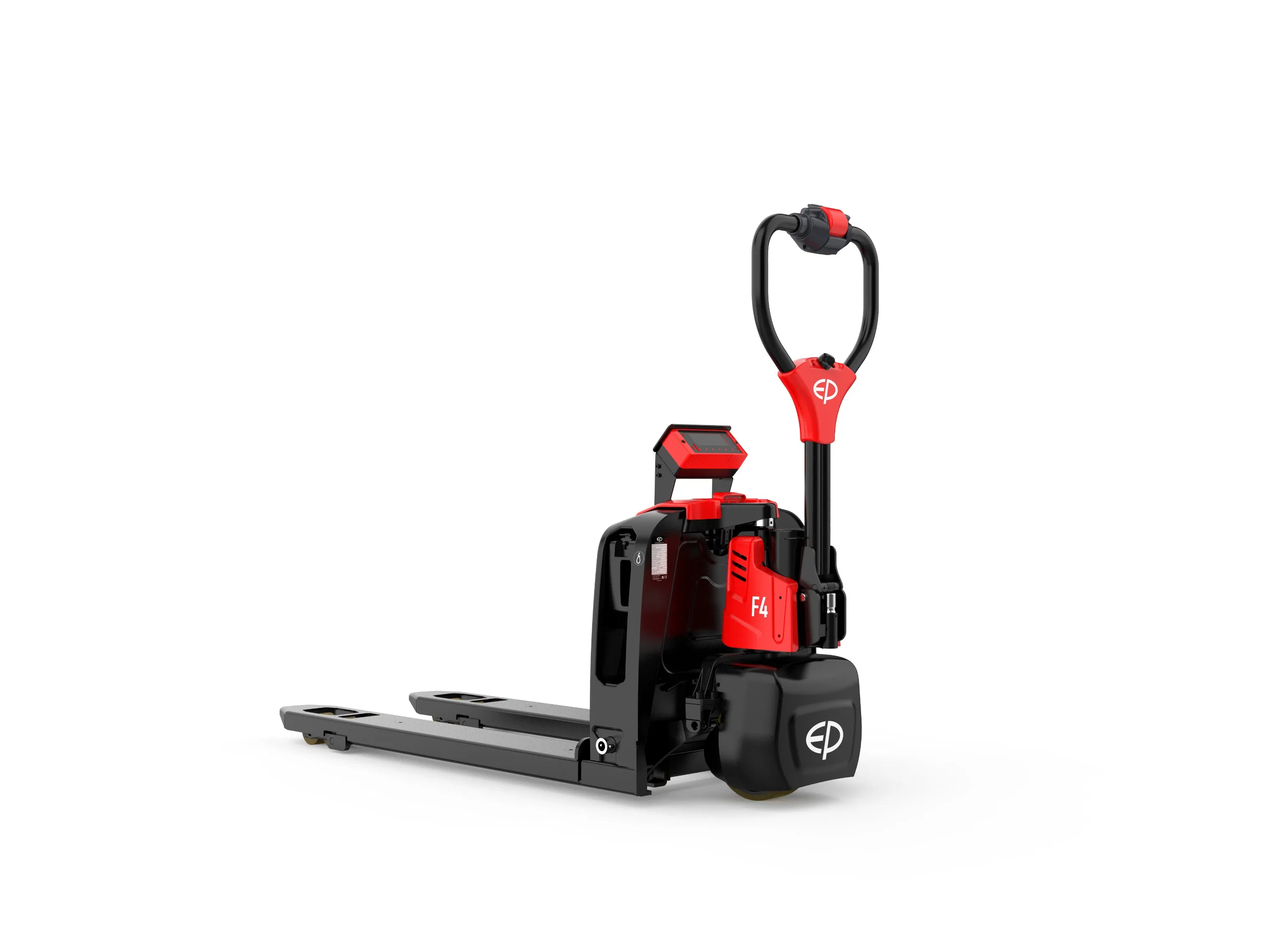

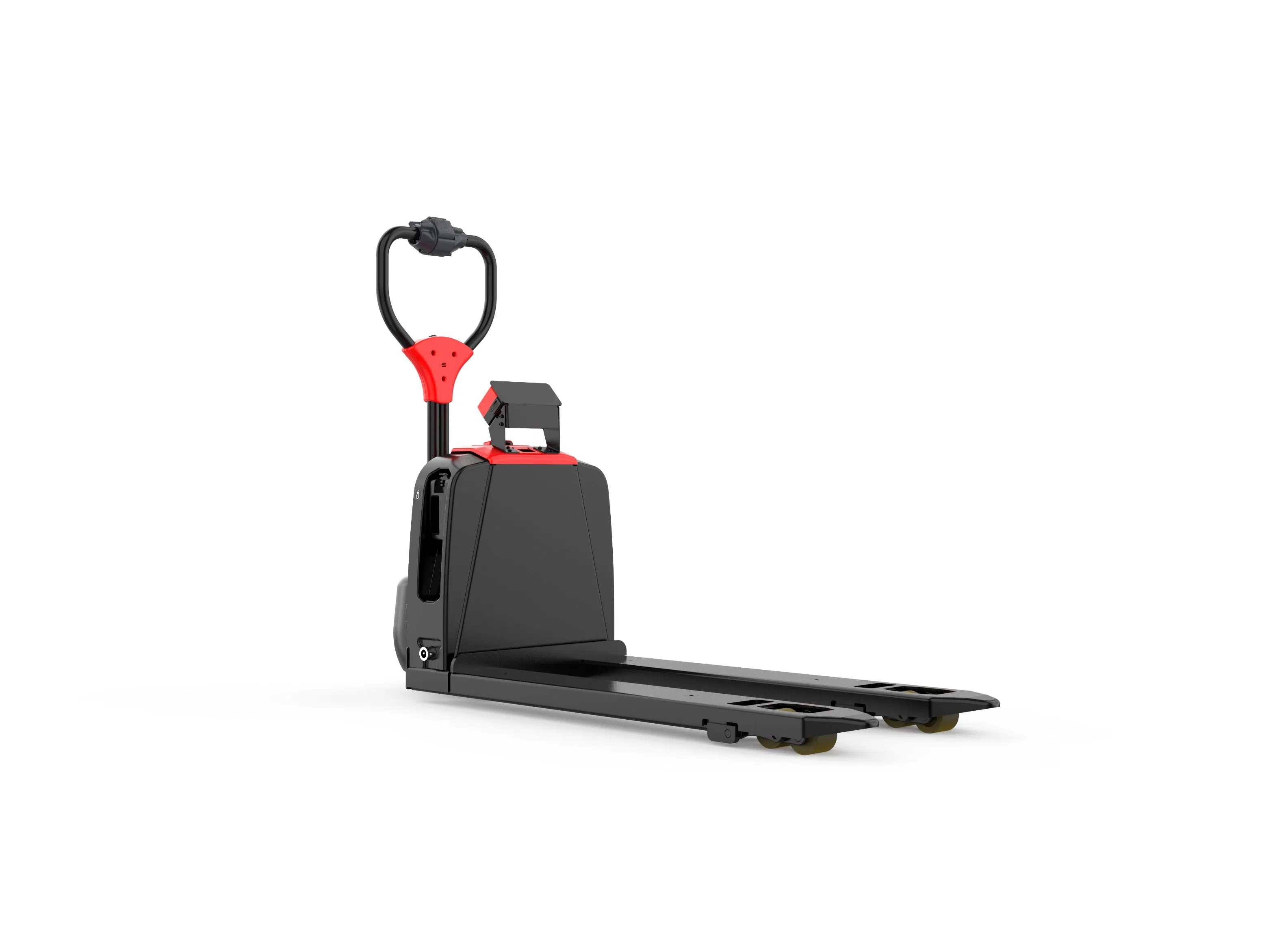

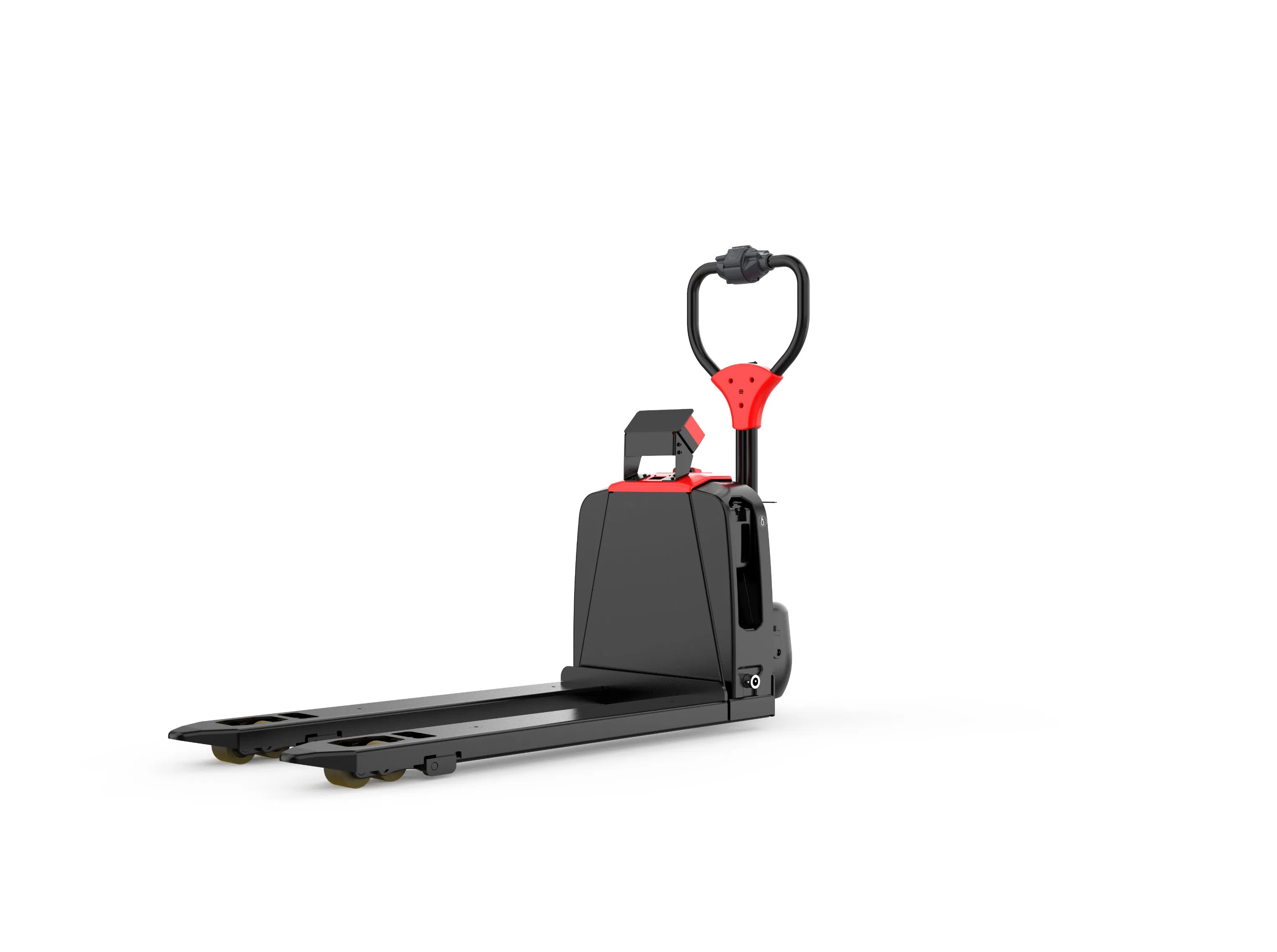

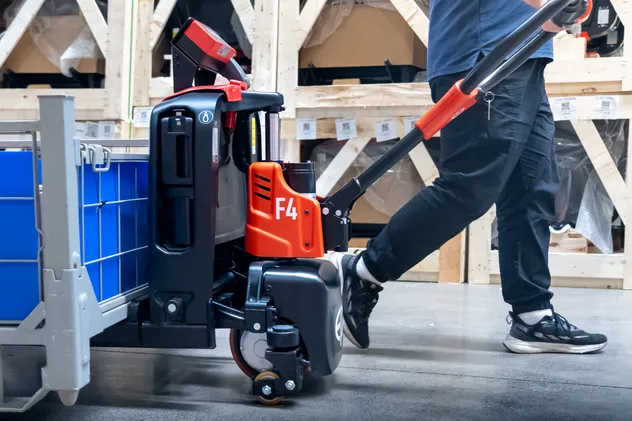

The F4 itself is the most flexible truck in its series owing to its configurations. Featuring a two-battery slot design, the F4 is an all-rounder to cope with various levels of applications with two battery options, from occasional usage to long work shifts.
Standard Configurations

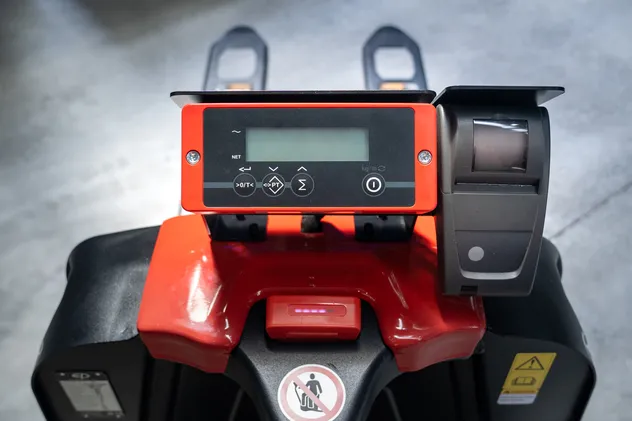

RAVAS 1100 mobile scale display
Frame with double forks with 4 load cells
1150*560 fork
Turtle speed mode
24V/20Ah Li-ion battery * 1
24V/5A external charger as standard
0.75kW drive motor
φ210*70 PU drive wheel
φ80*60 PU double loading wheels
Advanced tiller head
Why Choose F4 with Scale?
Time Saving and Accuracy: The ability to weigh goods on the move saves time and energy if the weighing station is remote. Precise measurement results help reduce human error and ensure reliable stock management, boosting overall efficiency.
Flexibility and Mobility: Data can be obtained anywhere within the warehouse, such as at receiving or shipping points. This eliminates reliance on fixed weighing stations and saves valuable warehouse space. An optional built-in printer is available for printing gross, tare, and net weights.
Manufacturer Profile

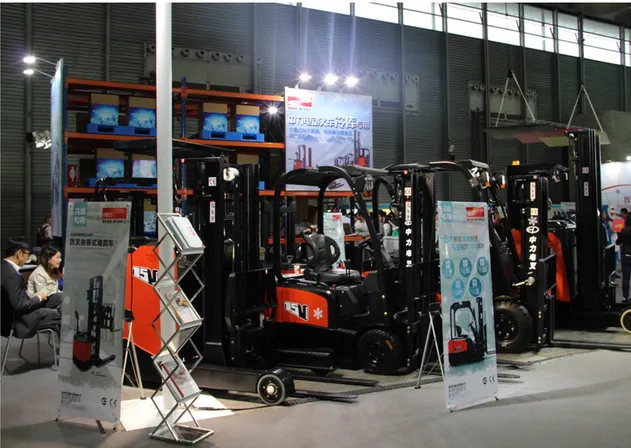

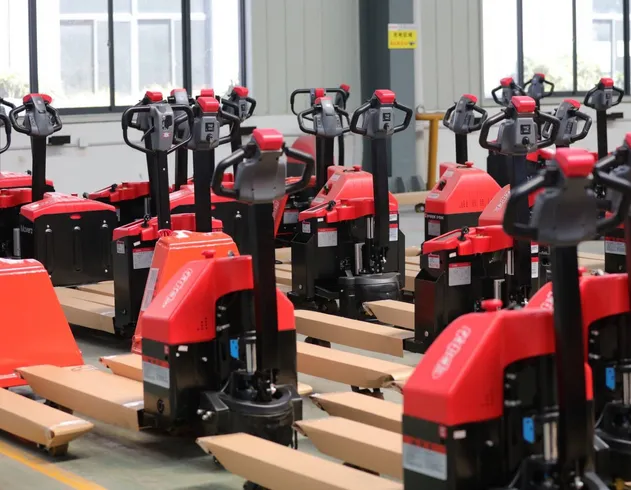

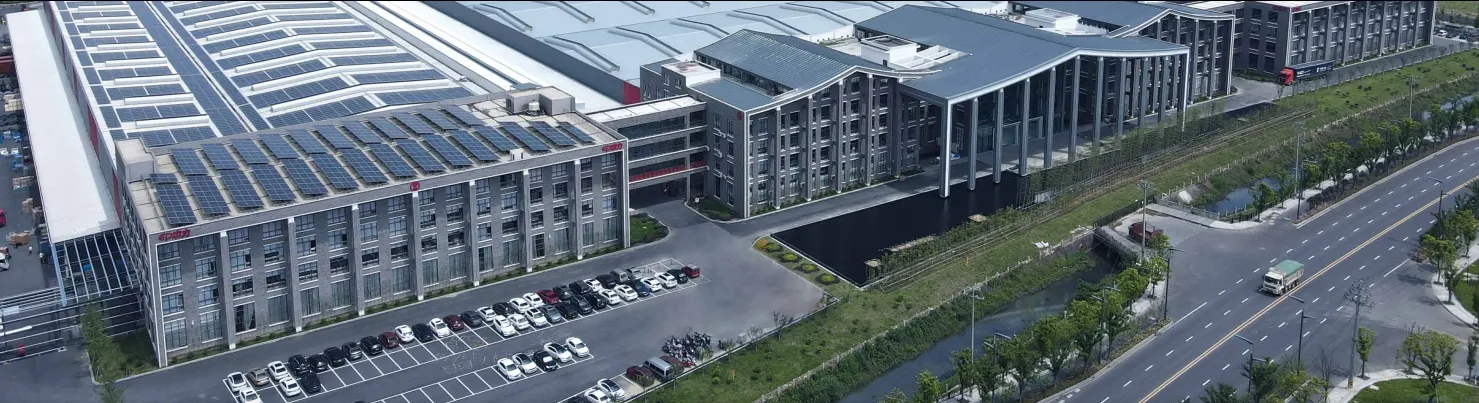

Founded in 2007, the manufacturer is a leading specialist in lithium-powered warehouse equipment. By driving progress with products and leading revolution through innovation, the company has pioneered industry changes and broken through the ceiling of industry development with innovative models and products. In just over a decade, it has ranked among the world's leading manufacturers of electric forklifts and intelligent logistics equipment.
Frequently Asked Questions
What is the load capacity of the F4 with scale?
The F4 powered pallet truck has a maximum load capacity of 1.5 tons (1500kg), making it suitable for a wide range of warehouse tasks.
How does the mobile weighing function benefit operations?

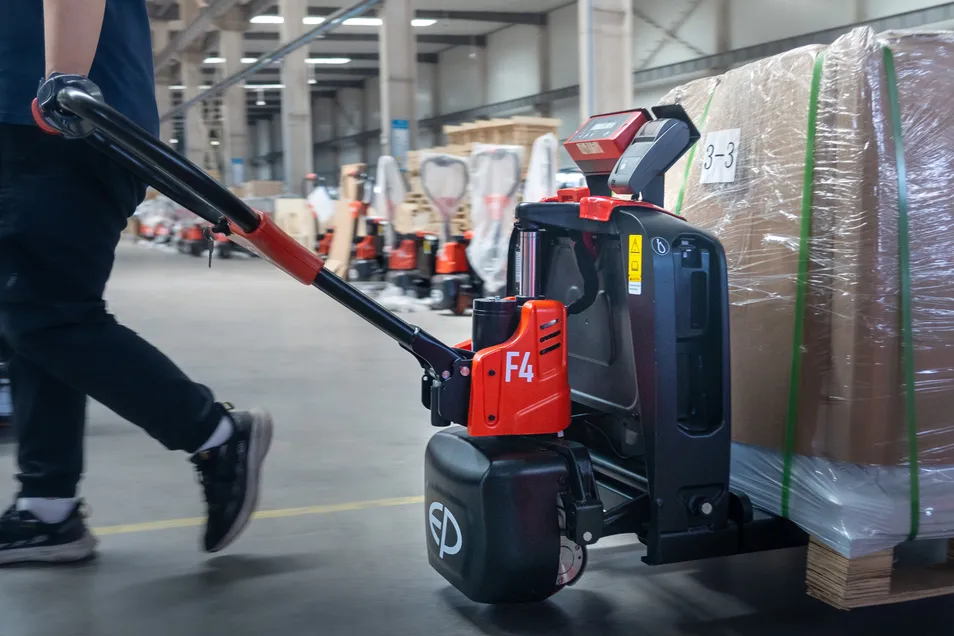

It allows operators to weigh goods and count pieces on the go. This eliminates the need to travel to fixed weighing stations, saving time and optimizing warehouse space.
What type of battery does this pallet truck use?
The truck uses a 24V/20Ah Li-ion battery. It features a two-battery slot design, allowing for extended work shifts by using an additional battery.
Can the F4 operate in harsh industrial environments?
Yes, the F4 is designed for reliability and water resistance, enabling it to cope with various industrial settings and harsh environments.
Is there a way to record the weight data physically?

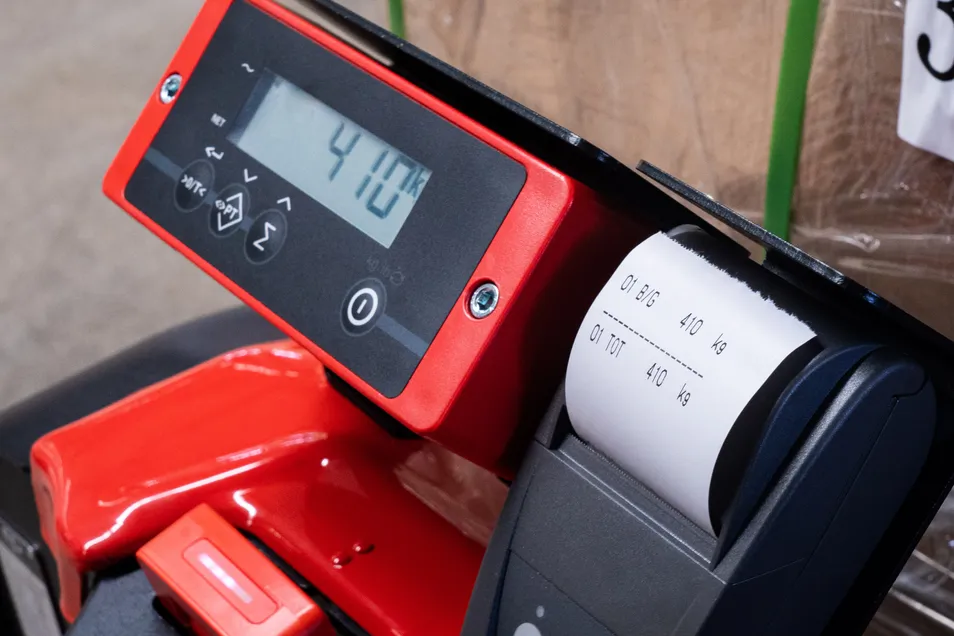

Yes, there is an option to equip the unit with a built-in printer (RAVAS2100) to print gross, tare, and net weights in kg or lb.
What is the standard lift height of this model?
The F4 with scale features a lift height of 105mm, which is standard for efficient pallet handling.
