The manual hydraulic pallet truck is a compact, convenient, flexible, heavy-duty, and durable cargo handling tool. In addition to the function of consigning goods, the truck has a hydraulic device between the chassis and the wheels in order to facilitate the lifting and lowering of the goods, which can easily push the truck under the base of the cargo box, and then use the hydraulic pressure to raise the chassis and lift it up.
The cargo can be dragged to move. After reaching the destination, the chassis will be lowered hydraulically, and the cargo will land accordingly, and the truck can be easily drawn out. Eliminates the complicated process of manual handling. It is a good helper for the cargo handling in the workshop.

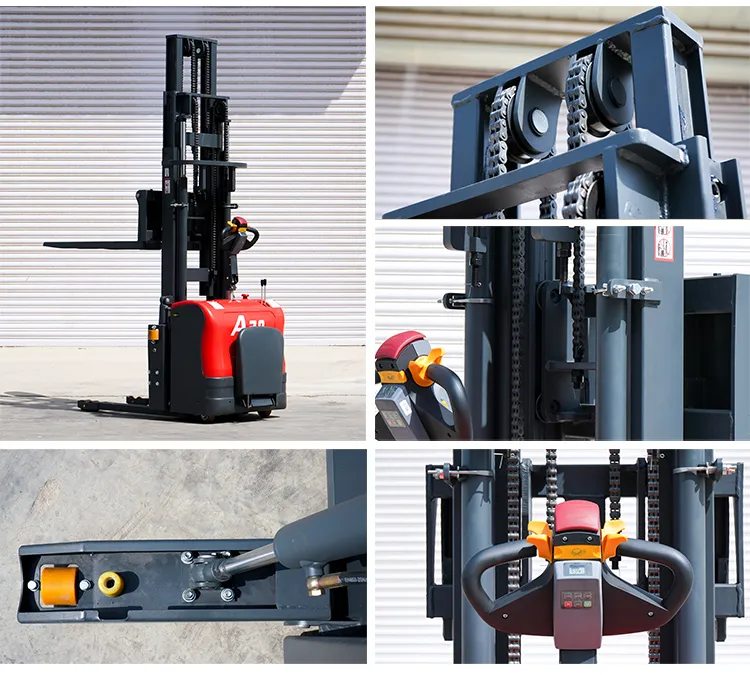

| Power | Electric |
| Operation mode | Stand-on type |
| Rated load capacity | 1500kg |
| Load center distance | 600mm |
| Wheelbase | 1180mm |
| Weight including battery | 560kg |
| Tire type | Polyurethane wheel |
| Tire size front/rear | 80*70/115*75mm |
| Front wheel distance | 700mm |
| Mast retracted height | 2000mm |
| Free height gain | 200mm |
| Maximum lifting height | 1600mm |
| Maximum height during operation | 2000mm |
| Handle height | 1500mm |
| Minimum height of fork | 80mm |
| Vehicle body length (pedals retracted) | 1850mm |
| Car body density | 815mm |
| Fork size | 60*160*1150mm |
| Minimum ground clearance | 35mm |
| Minimum turning radius | 1400mm |
| Door frame size | 8*120mm |
