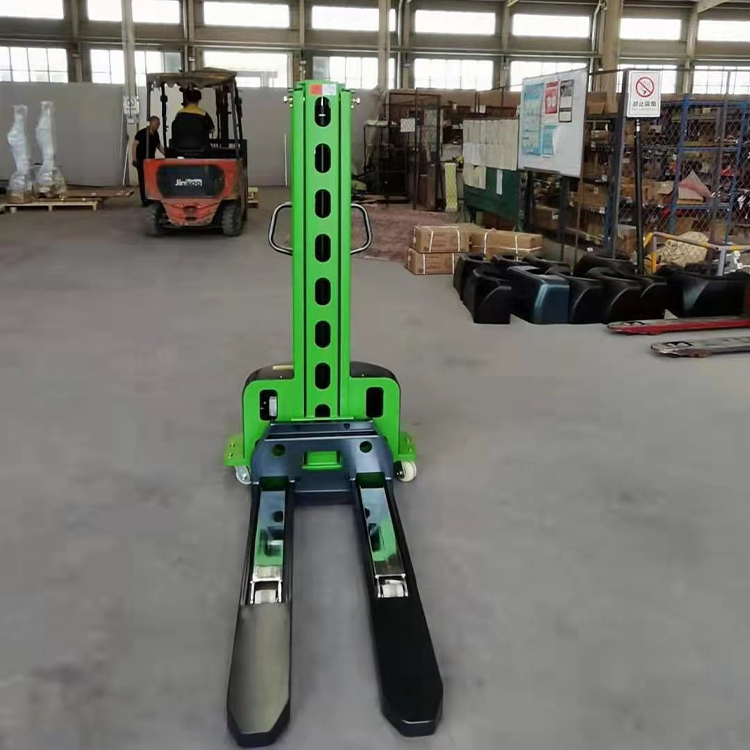

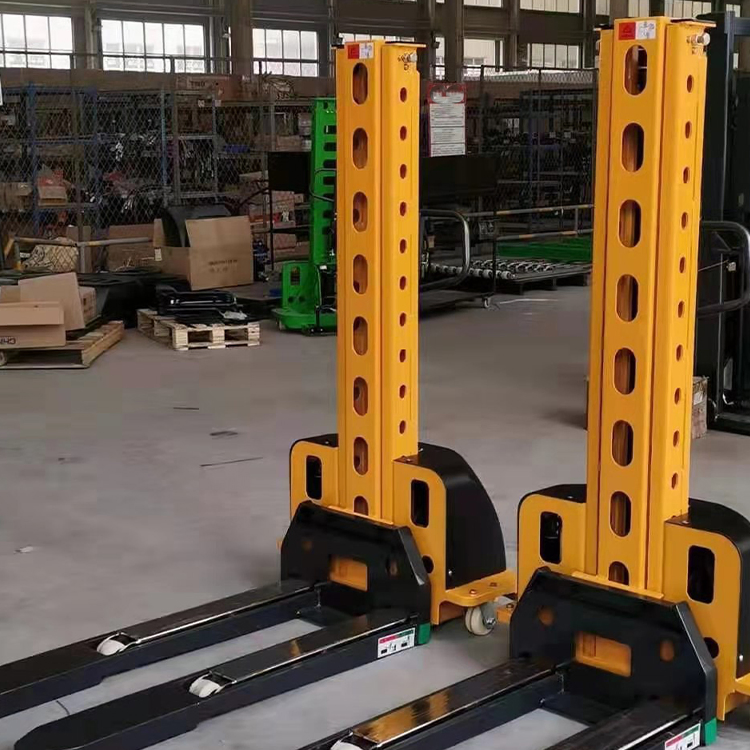

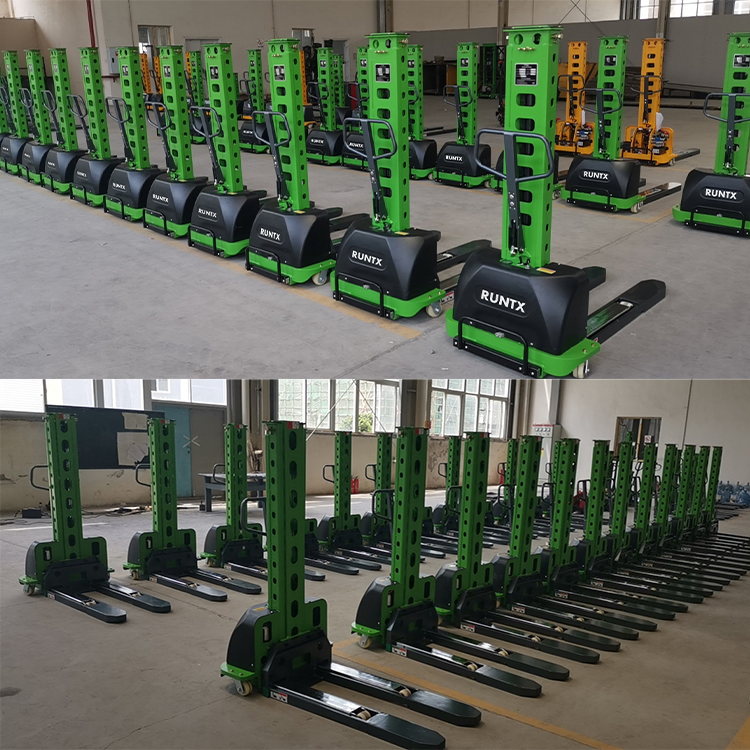

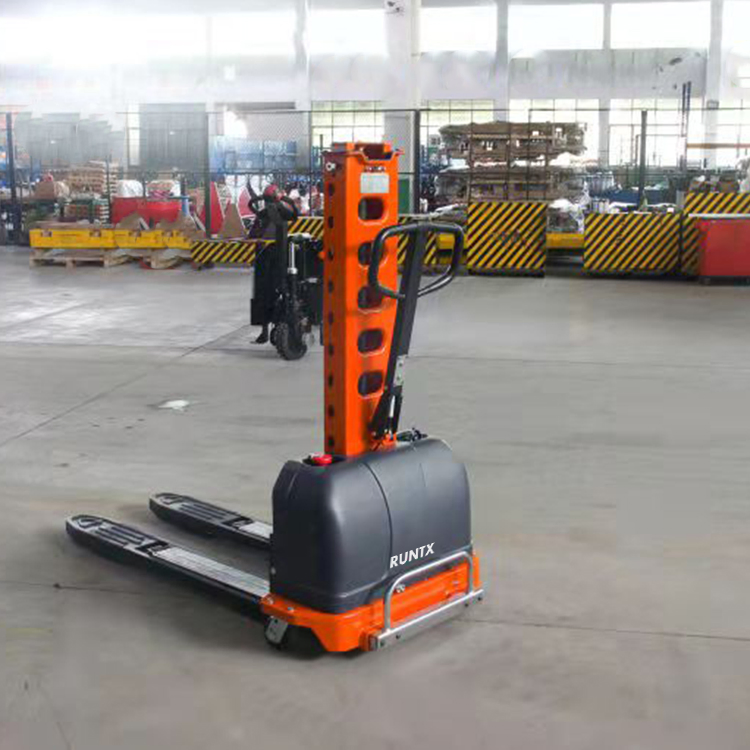

Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery
Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery
Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery
Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery
Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery
1 / 5
Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery
Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery
Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery
Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery
Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery

Hot Sales Power Supply 12V Stacker Forklift 500kgs 0.5ton Semi Electric Pallet Stacker with Lithium Battery

Customization: Available
After-sales Service: Online Serves
Warranty: 1y/2000h Work Time
Send Inquiry

Product Description

Basic Information
Model NO.
CDD05A
Type
Stacker
Power
AC Motor
Load Capacity
500kg
Fuel
Electric
Load Center
500mm
Lift Height
1300mm
Condition
New
Origin
China
HS Code
8427209000
Product Presentation

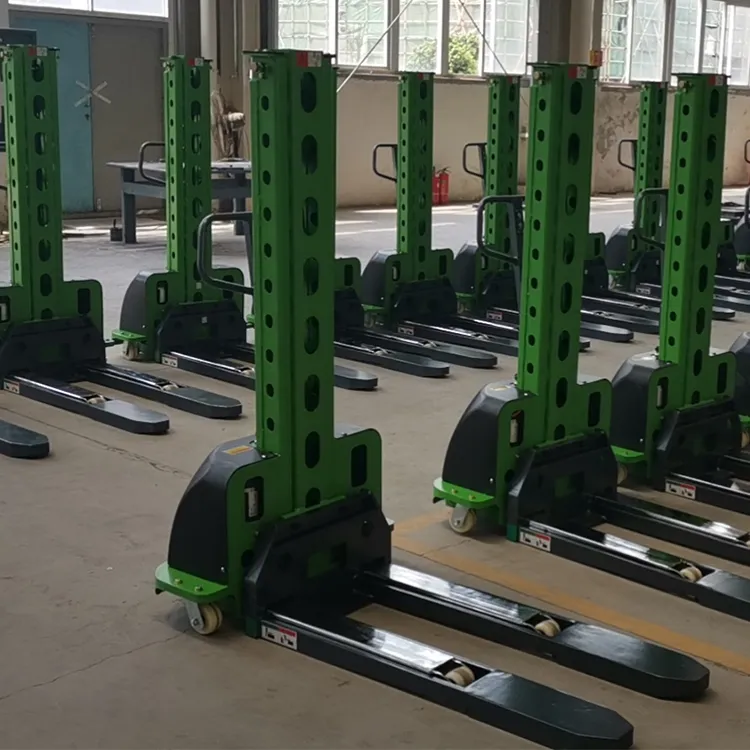

Electric Pallet Stacker 0.5ton

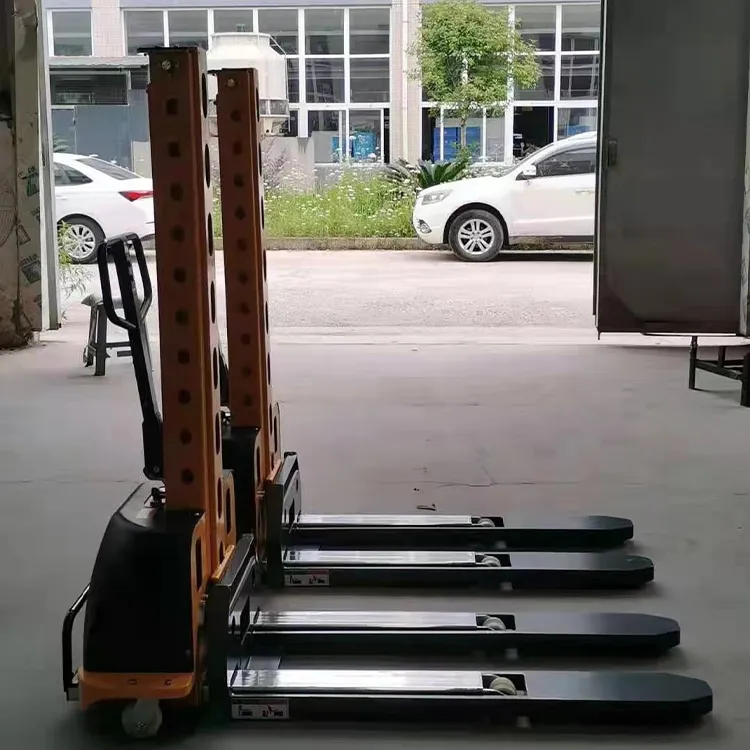

Semi Electric Pallet Stacker
Technical Specifications
Parameter Specifications
Power unitBattery
Operator typeManual Driving, Electrical Lifting
Rated load500kg
Operating weight175kg186kg197kg219kg
Battery performance12V/33AH12V/33AH12V/33AH12V/33AH
Max. lifting height900mm1000mm1100mm1300mm
Load center400mm400mm400mm400mm
Overall dimension1600*790*1200mm
Min. turning radius1120mm
Rated powerDC0.8kw
Lifting speed80/110mm/s
MastSingle mast
Key Features & Highlights
📏
Flexible Lifting: Optional lifting height from 800 mm to 1600 mm (Standard 1300mm).
🛡️
Safety First: Explosion-proof pump ensures safe operation in various environments.
📊
Monitoring: Integrated battery meters for real-time power status tracking.
🔑
Security: Manual locker equipped with keys for authorized use.
🔋
Maintenance Free: High-performance battery designed for long-term use without maintenance.
🔌
Global Standard: Customizable charger plugs to match local voltage standards.
Workshop & Quality Control

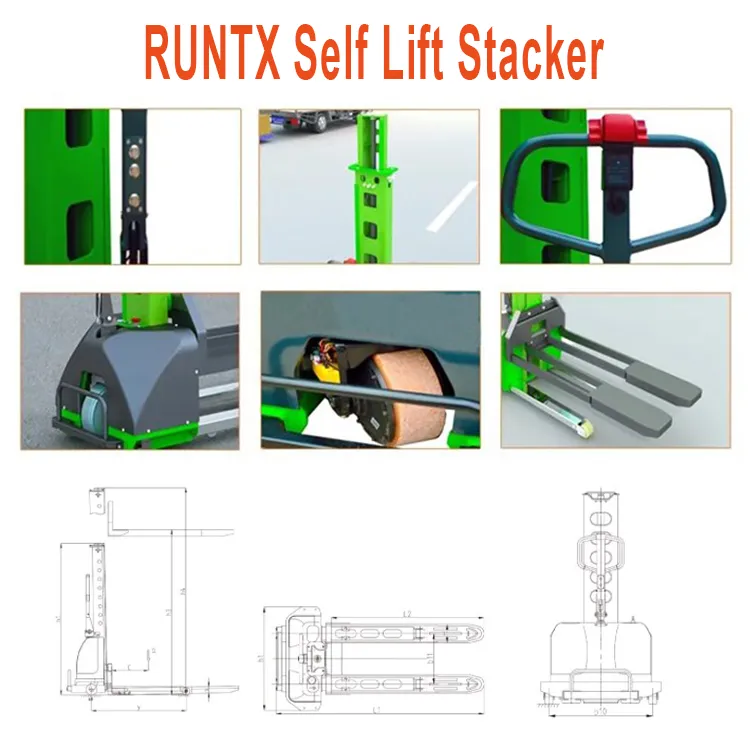

Production Detail 1

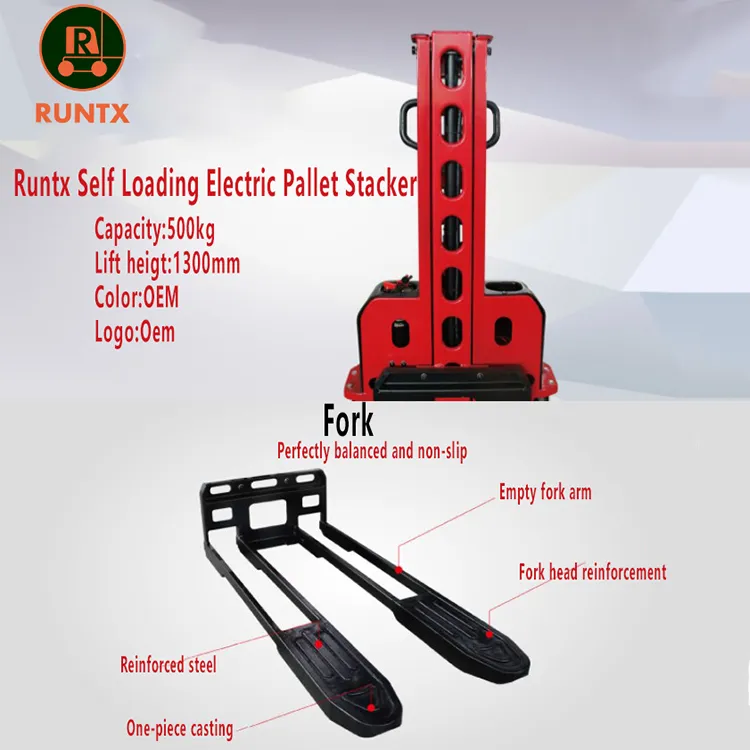

Production Detail 2

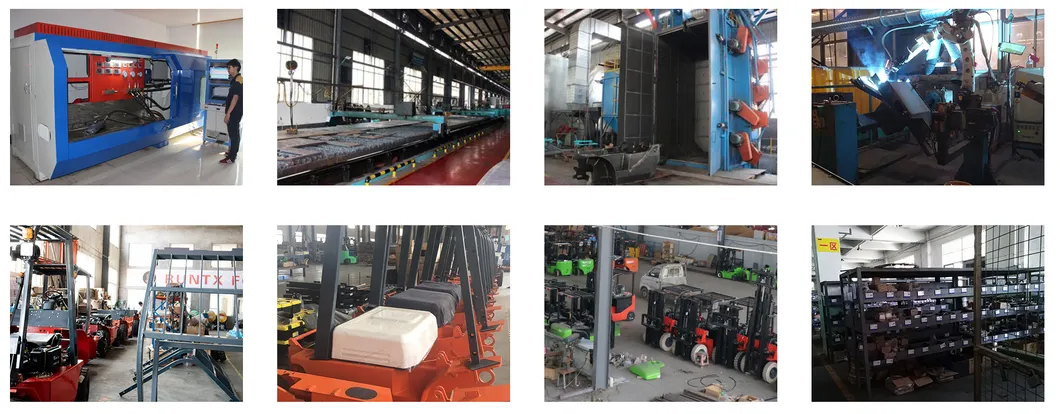

Manufacturing Facility
Shipping & After Sales

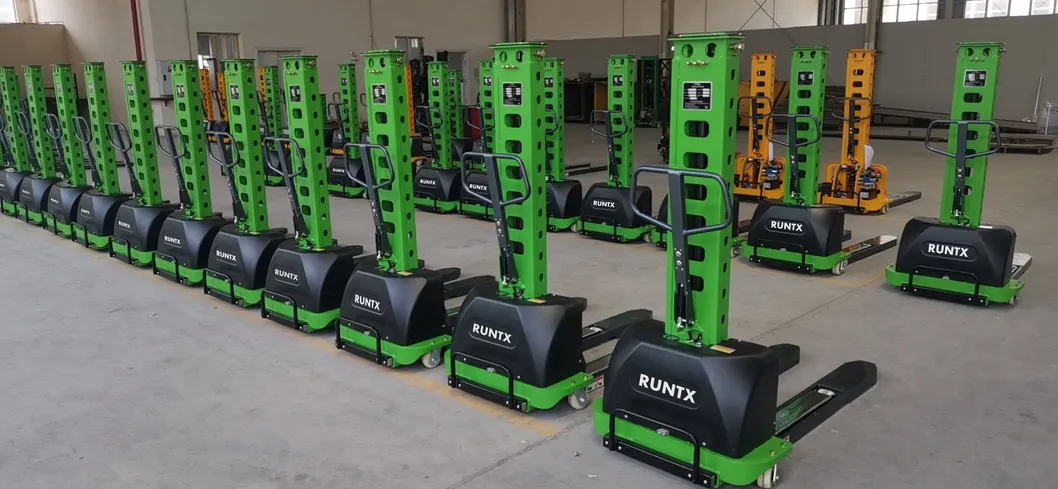

Shipping Process

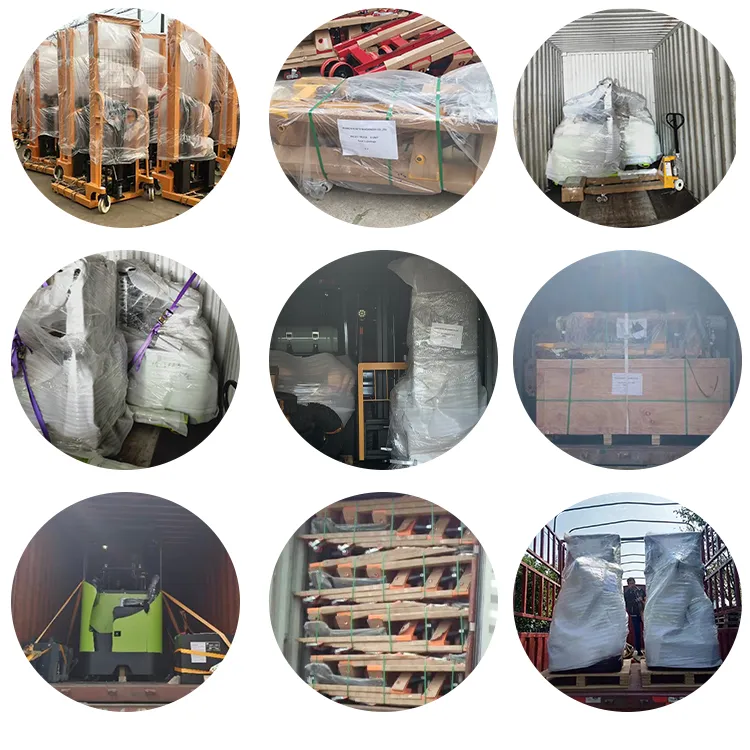

Product Loading

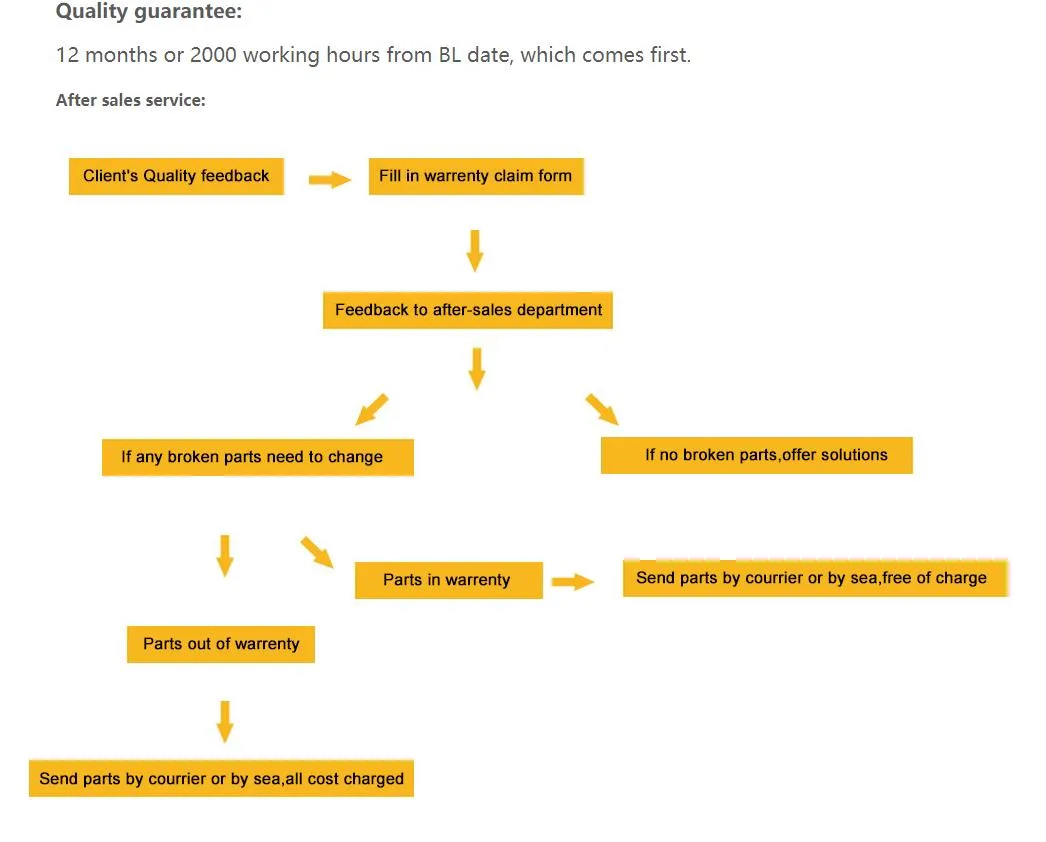

After Sales Service Support
Frequently Asked Questions
What is the maximum load capacity of this stacker?
The rated load capacity for this model is 500kg (0.5 ton).
What type of power source does it use?
It is powered by a 12V/33AH battery and utilizes a DC0.8kw lifting motor for electrical lifting.
Is the driving manual or electric?
This is a semi-electric stacker, meaning it features manual driving/pushing and electrical lifting.
What are the available lifting heights?
The standard lifting height is 1300mm, but optional heights from 800mm up to 1600mm are available.
Can I use this stacker in small warehouse spaces?
Yes, with a minimum turning radius of only 1120mm and a compact overall dimension, it is ideal for narrow aisles and small spaces.
How do I monitor the battery level?
The unit is equipped with clear battery meters, making it easy to see the power usage and when a recharge is needed.
