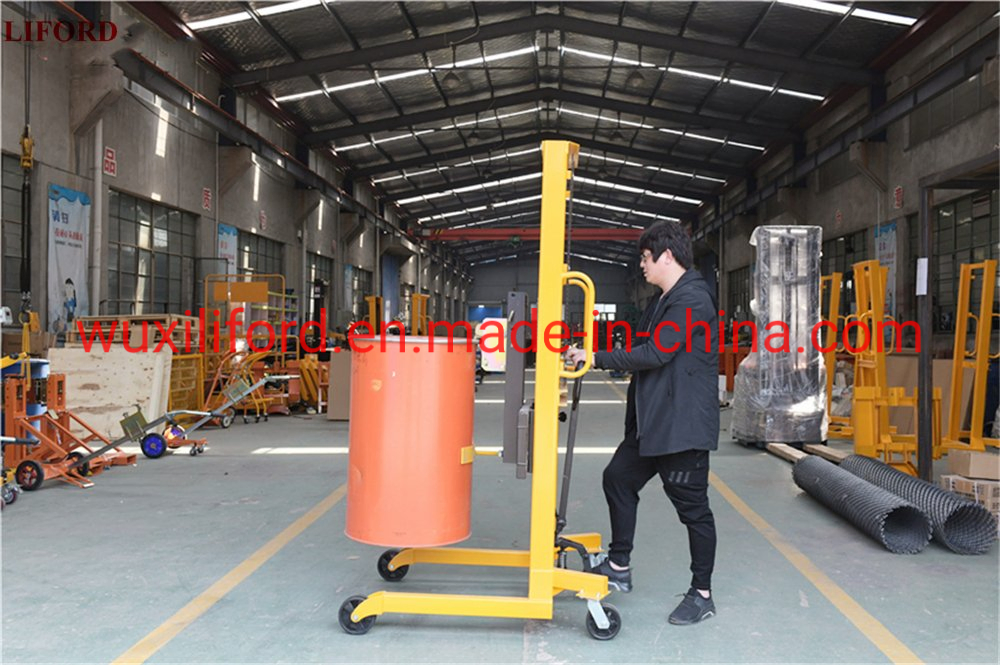

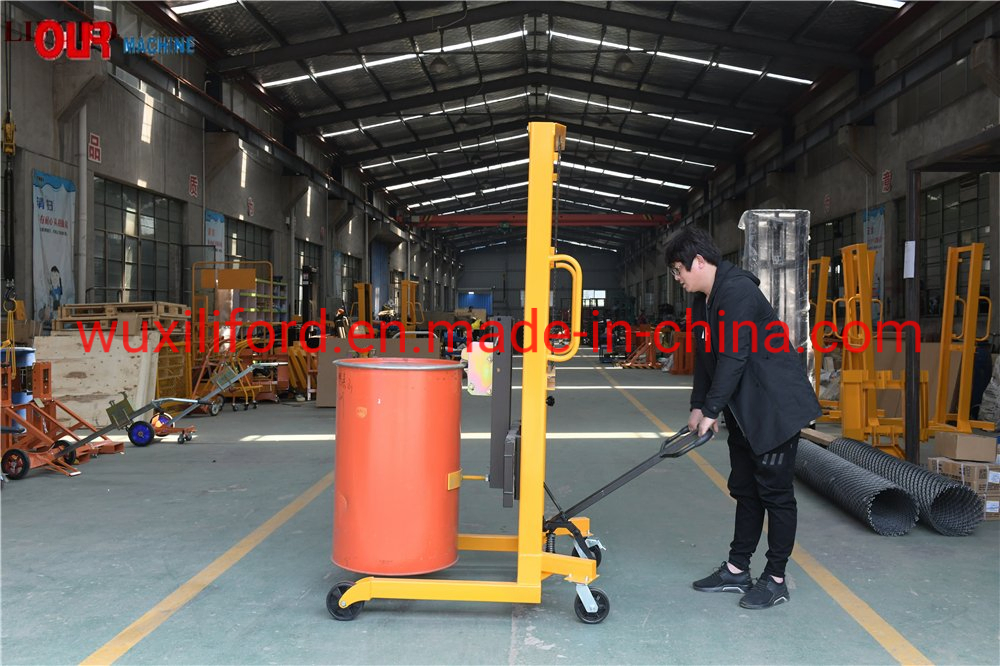

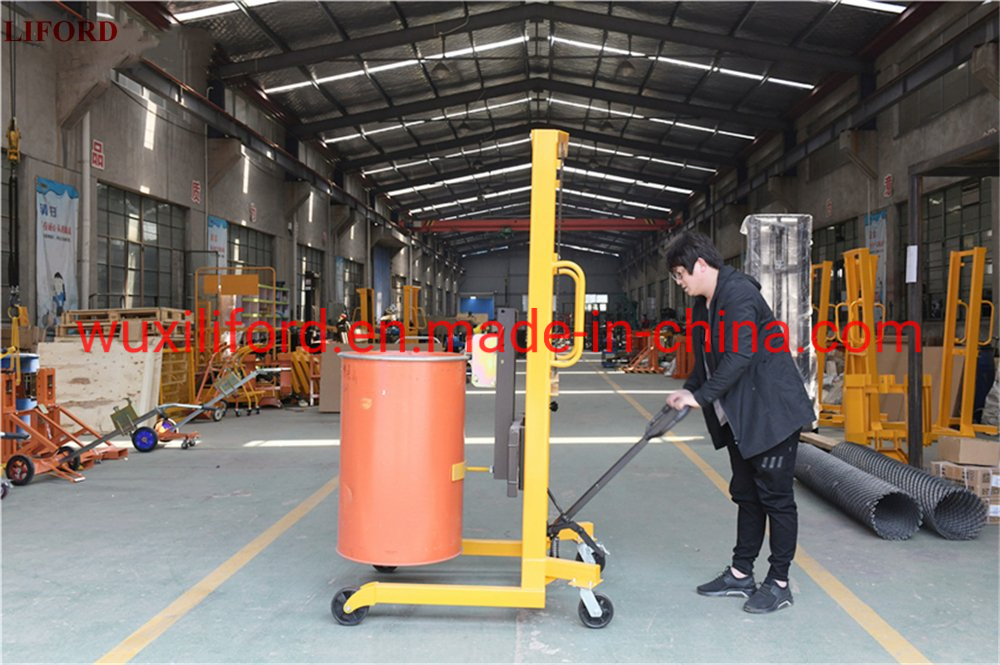

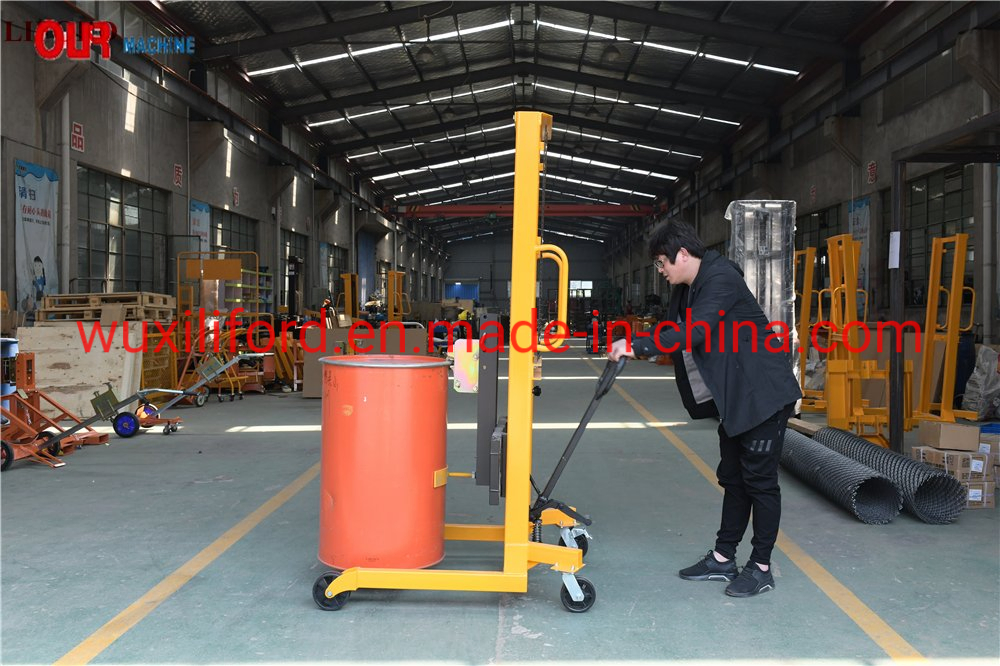

400kg Hydraulic Drum Stackers Manual Drum Lifter with Weighing Scale Dt400A-1

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
DT400A, DT400A-1
Certificate
ISO9001:2015, ISO14001:2015
Product Name
Hydraulic Drum Lifter Stacker
Capacity
400kg
Lifting Height
1500mm
Wheel Dimension
150*50mm
Feature
Floor Lock
After-sales Service
Available
Warranty
1 Year
Transport Package
Packed Onto Pallet
Specification
1110*900*2100mm
Origin
Jiangsu
HS Code
84289090
Production Capacity
5000PCS/Month
Hydraulic Drum Stacker
📋

Product Description

400kg Hydraulic Drum Stackers Drum Lifter with weighing scale

Equipped with the Automatic Clamping Mechanism for handling rimmed drums, this manual hydraulic drum lifting stacker is allowing operators safely and efficiently to grip, lift, move and stack steel, fiber and plastic rimmed drums in trucks, warehouses and other material-handling environments. It is available to move the drums to rack up to 1500mm high.

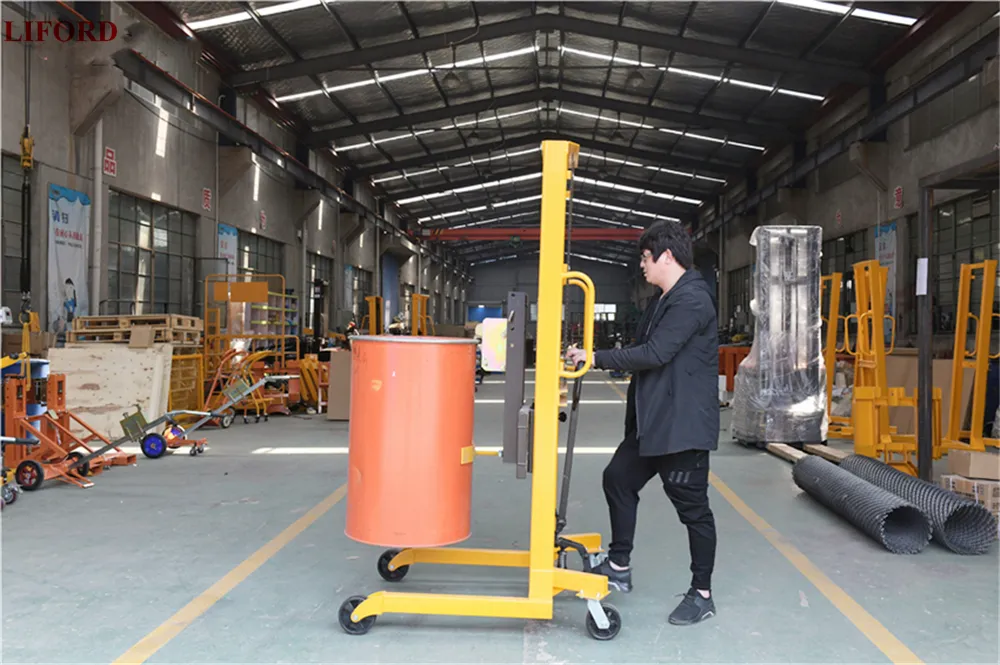

Drum Lifter Detail 1 Drum Lifter Detail 2

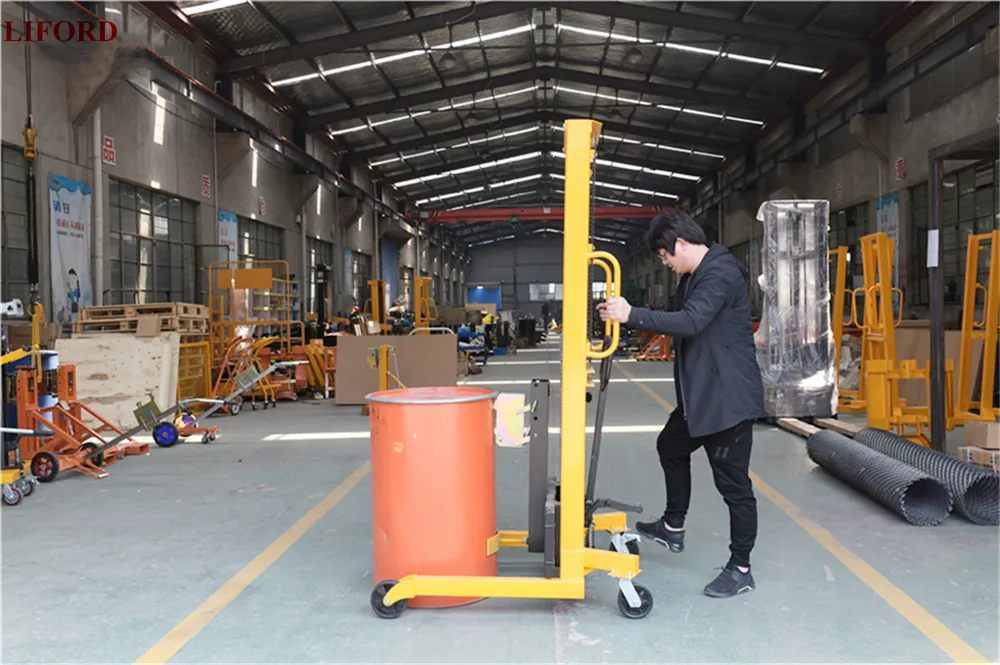

Operation 1 Operation 2 Operation 3

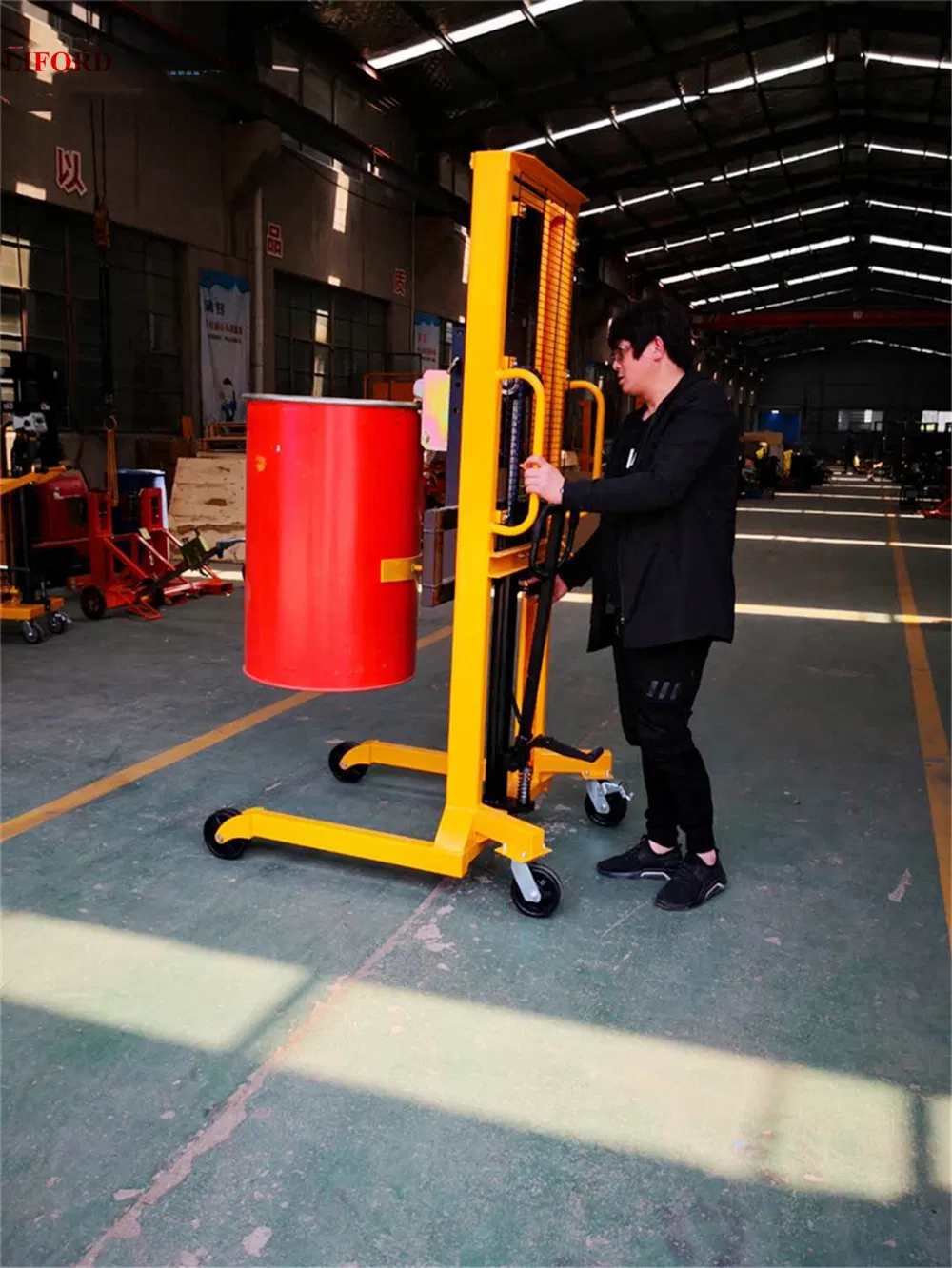

Manual Drum Lifter

Key Features

Ergonomic Casters: two Swivel & two Rigid
Ergonomic step-Down Foot Floor Lock for Added Safety
Safety Yellow Powder Coating
Easy to lift, transport and stack 55 gallon steel and 210L plastic drums
Designed to carry the drum to rack 1350mm high
Special rolling technology manufactured C-shaped steel frame which is strong and safe
Eagle-grip structure, suitable for rimmed drums - steel, poly & fiber
Foot operated hydraulic pump
Optional Single Eagle-grip and Double Eagle-grip
Adjustable clamp for moving barrels of different heights

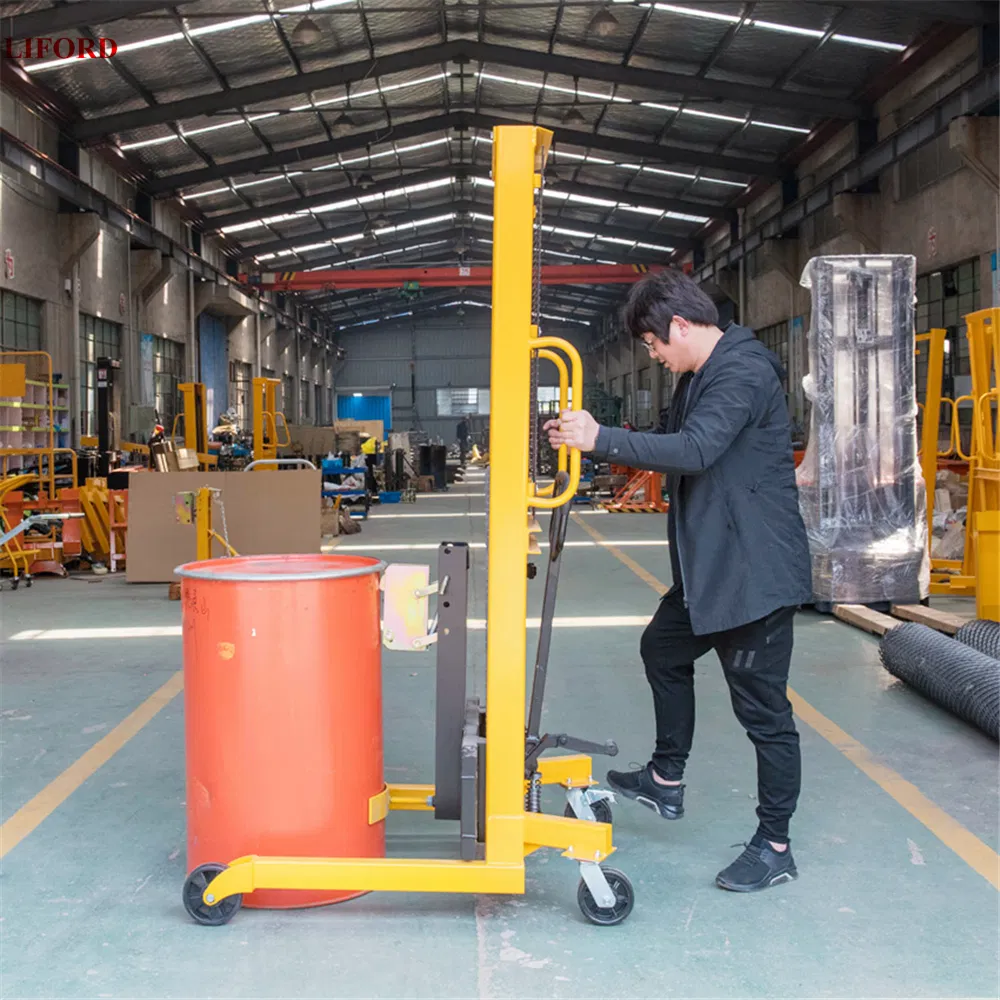

Mechanism View

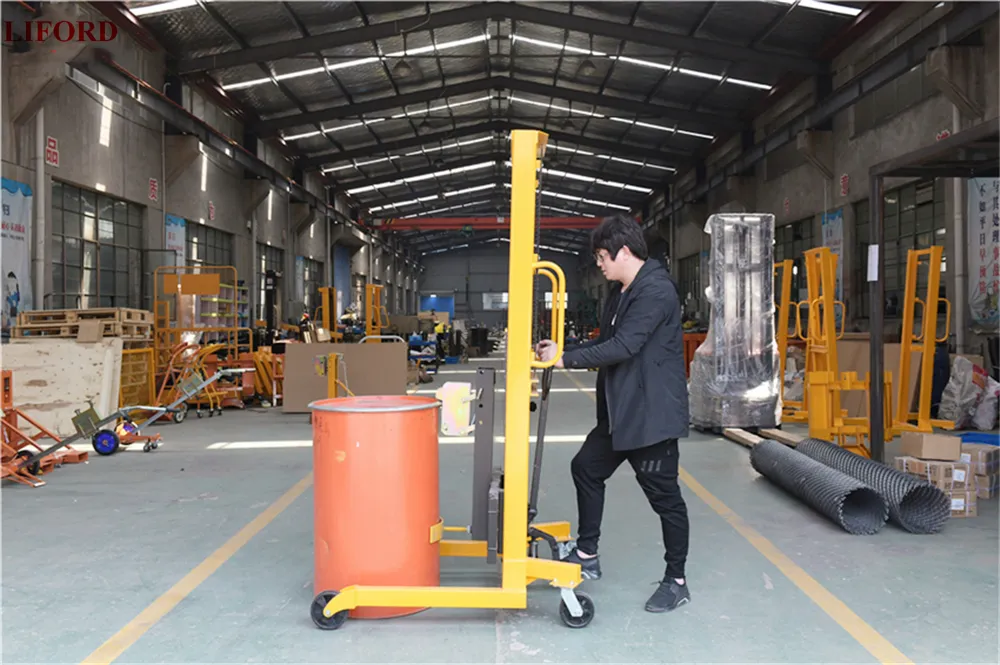

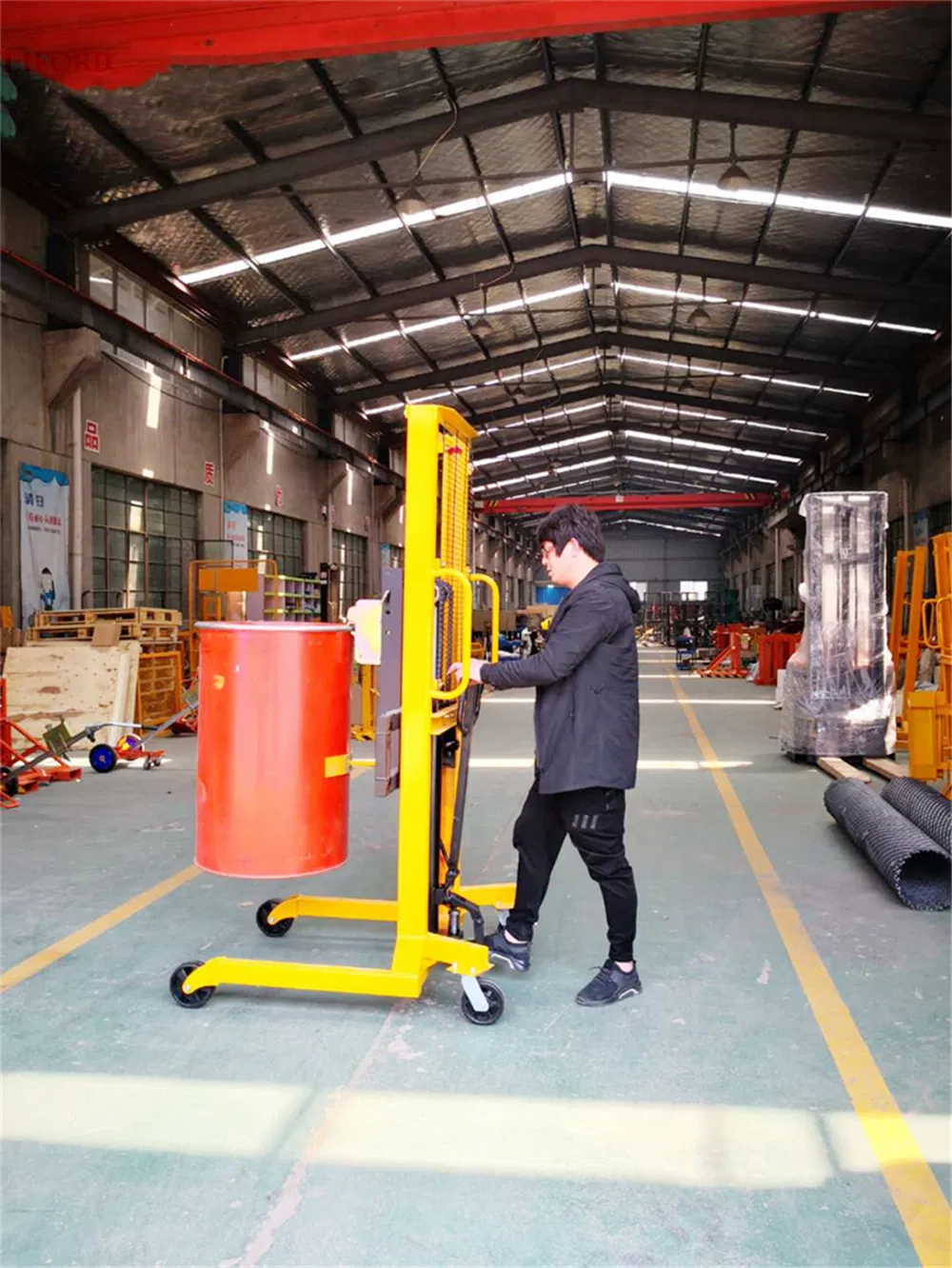

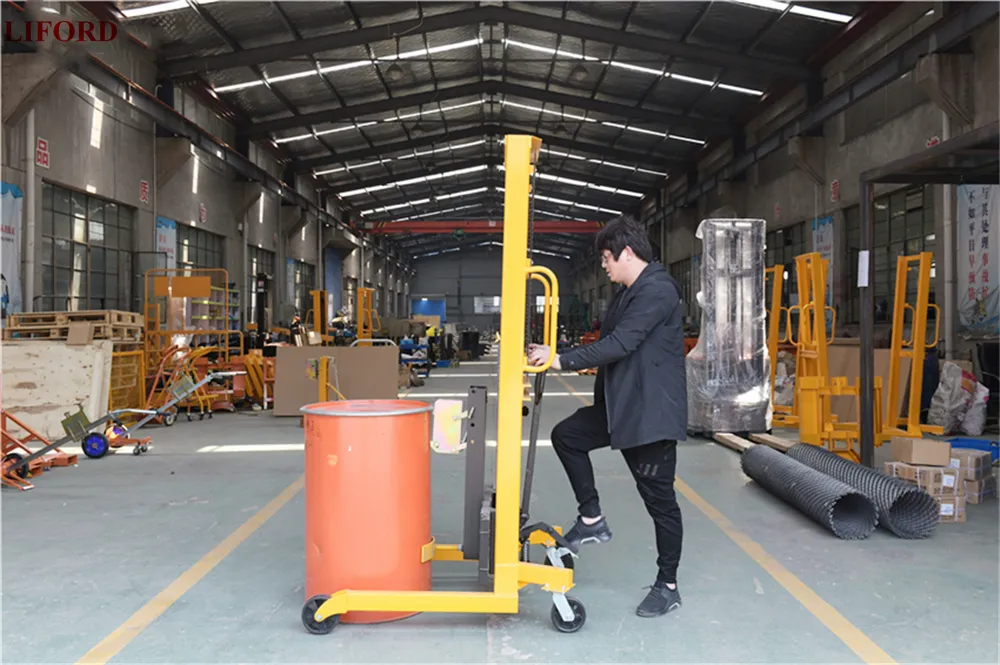

Detail Image 1 Detail Image 2 Detail Image 3

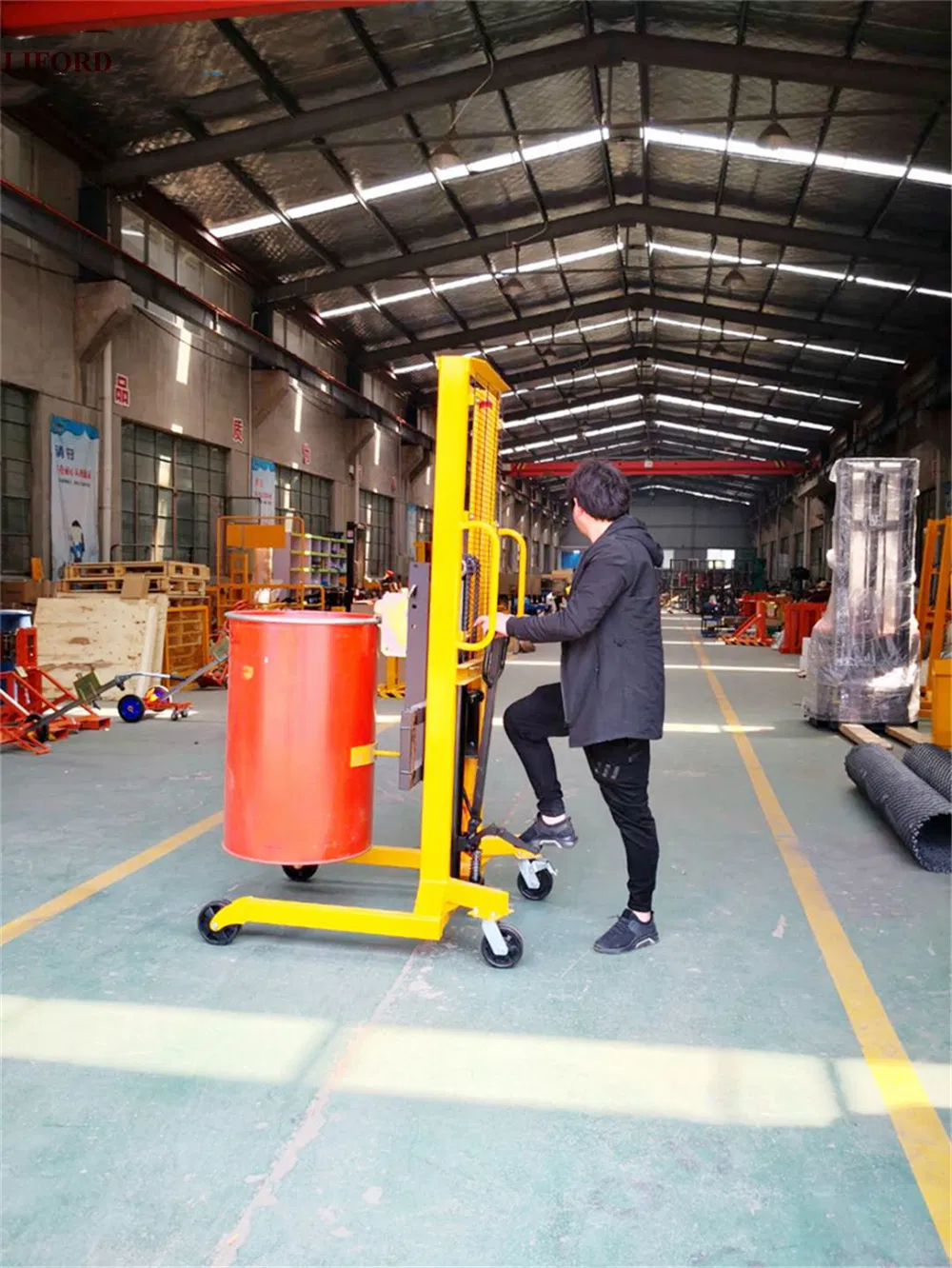

Structure Detail

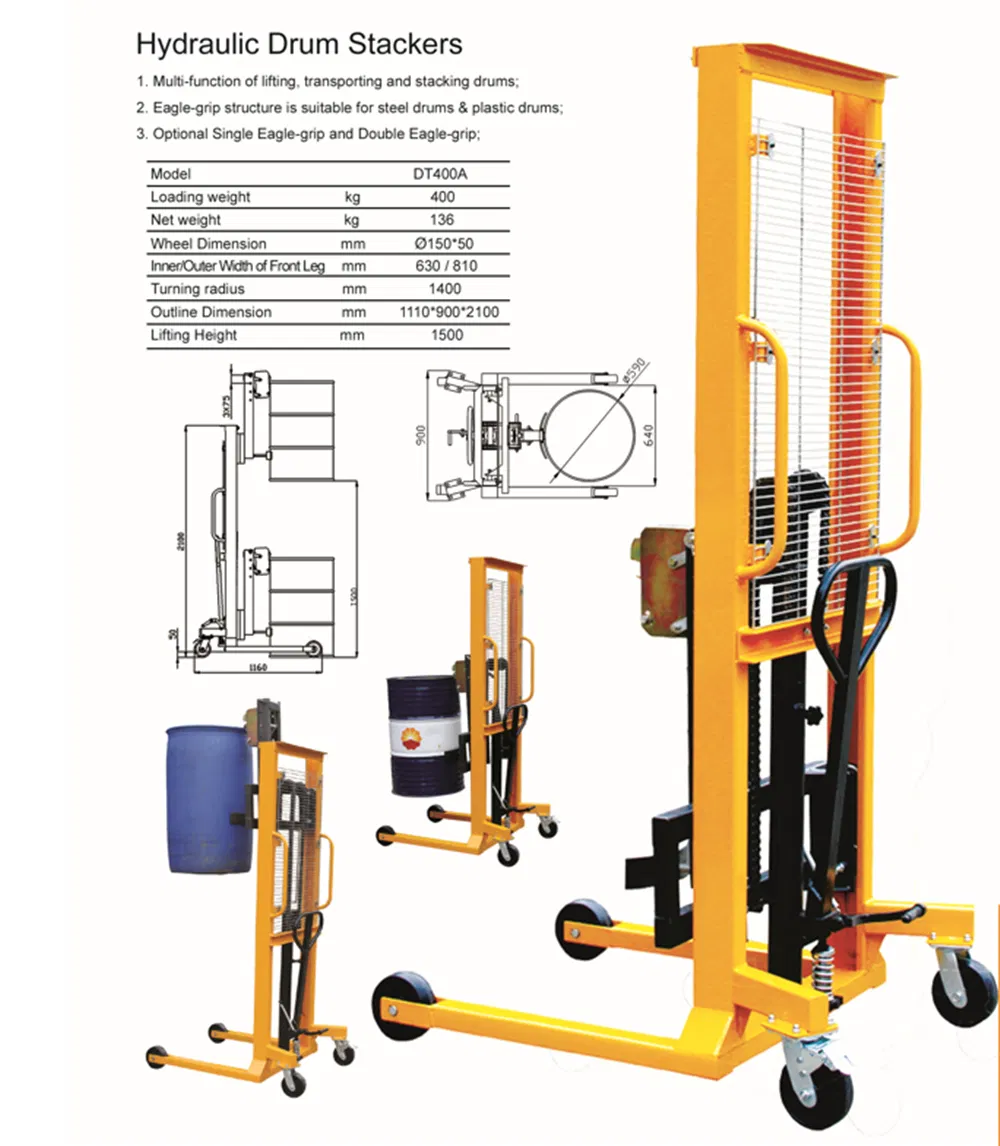

Technical Data

Parameter Unit Specification (DT400A)
Loading weight kg 400
Net weight kg 136
Wheel Dimension mm Ø150*50
Inner/Outer Width of Front Leg mm 630 / 810
Turning radius mm 1400
Outline Dimension mm 1110*900*2100
Lifting Height mm 1500

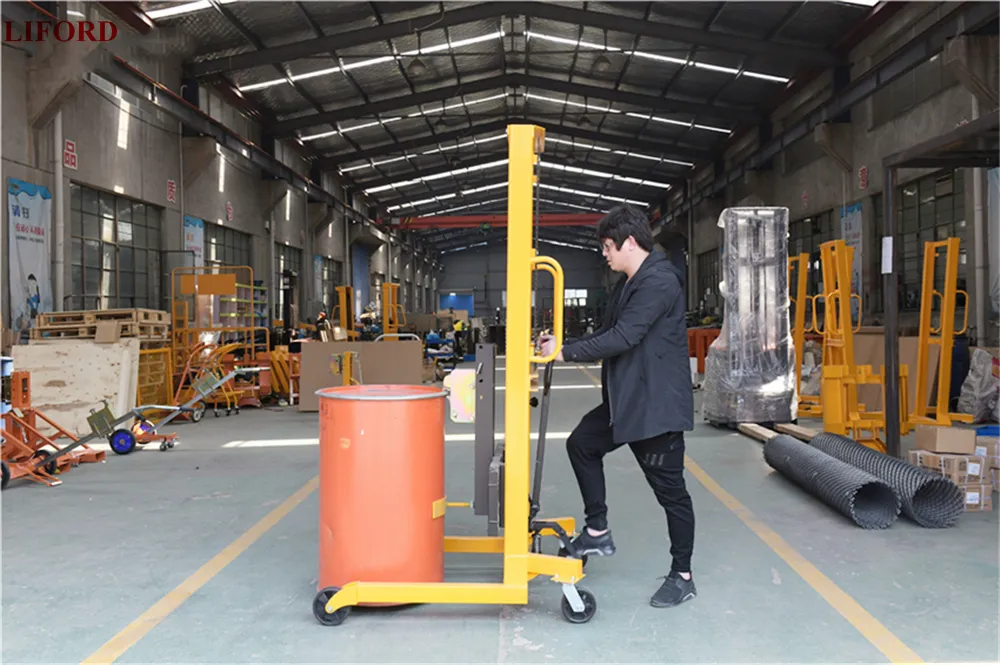

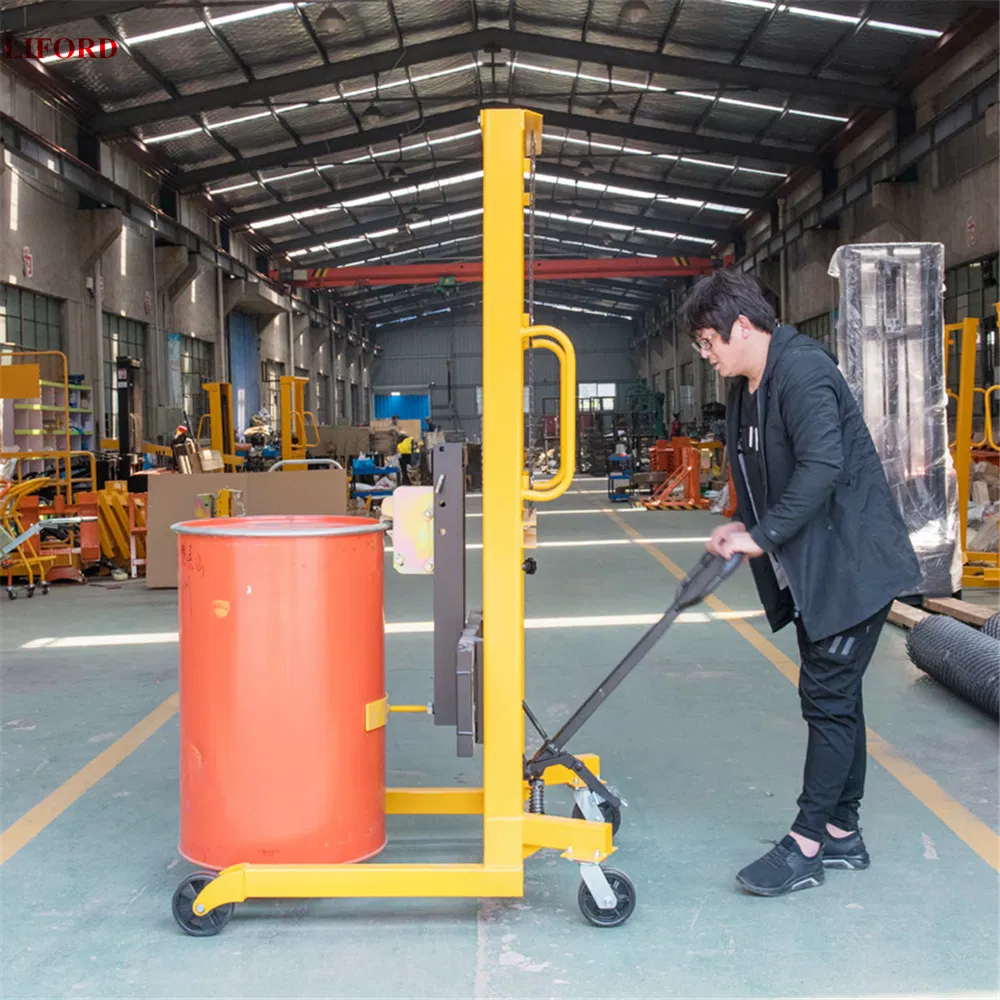

Tech View 1 Tech View 2

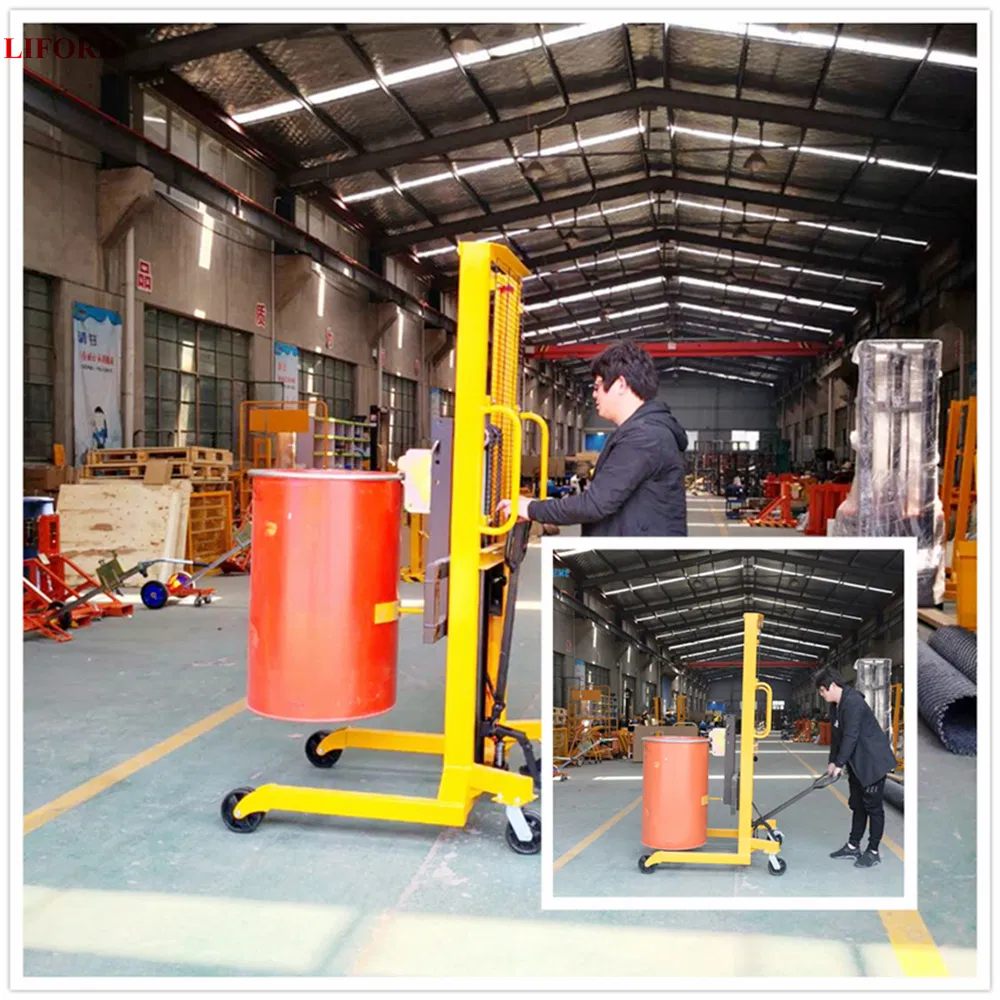

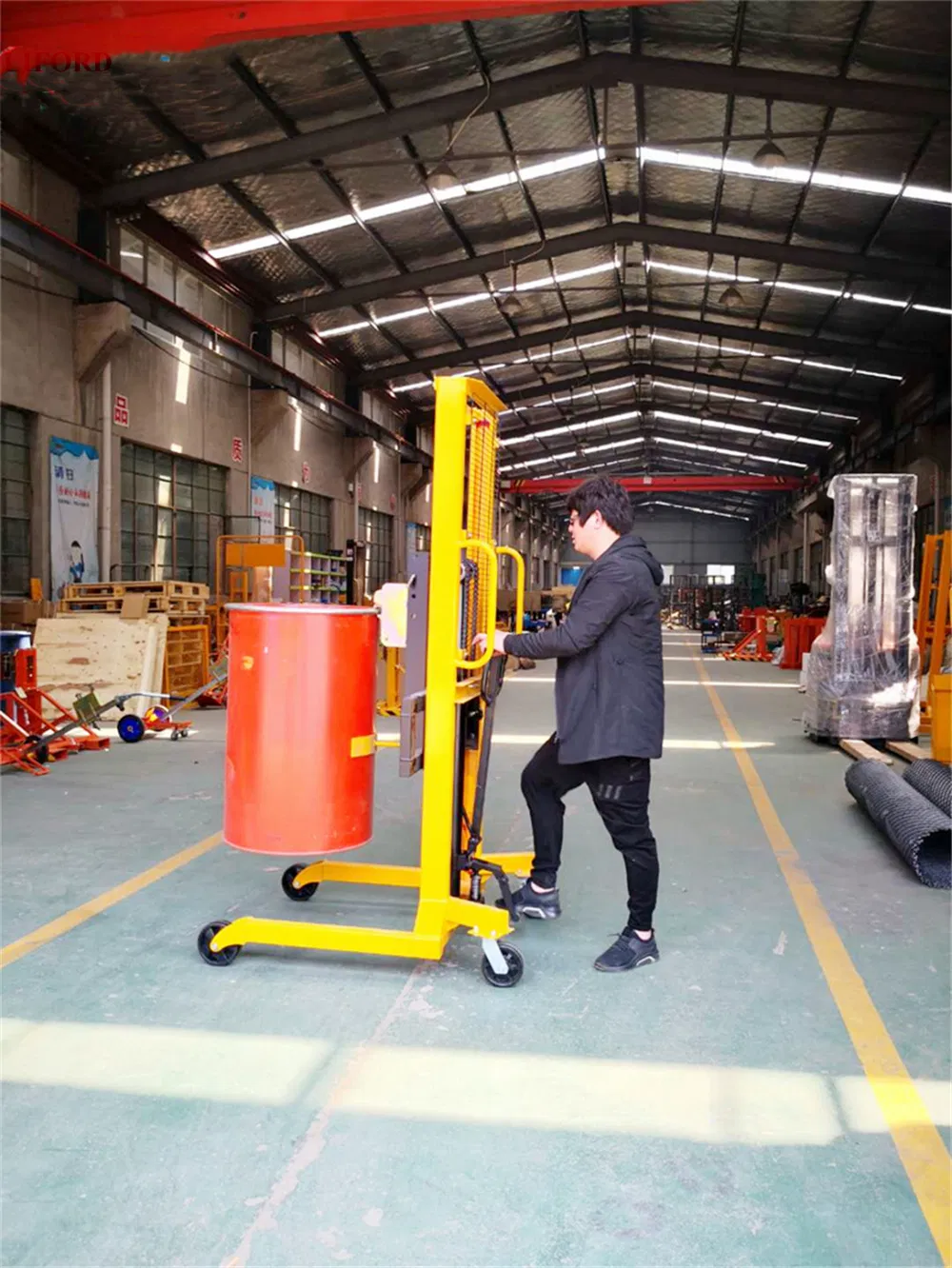

Tech View 3 Tech View 4 Tech View 5
🏭

Applications

Featured by its simple-and-light-structure design which enables a single person to complete transporting, stacking, and loading/unloading. This Hand Drum Stacker is widely used to grip, lift and transport rimmed steel and plastic drums in chemical plants and food plants for transferring and compounding materials of fluids, such as dyes, paints, adhesives, petrol, and edible oils.

Industrial Application
💎

Professional Services

1 10+ years' professional experience in electro-coating and material handling.
2 Fast production & in-time delivery.
3 OEM/ODM Services for non-standard equipment needs.
4 100% inspection before shipment.
5 One-year warranty and spare parts provided.

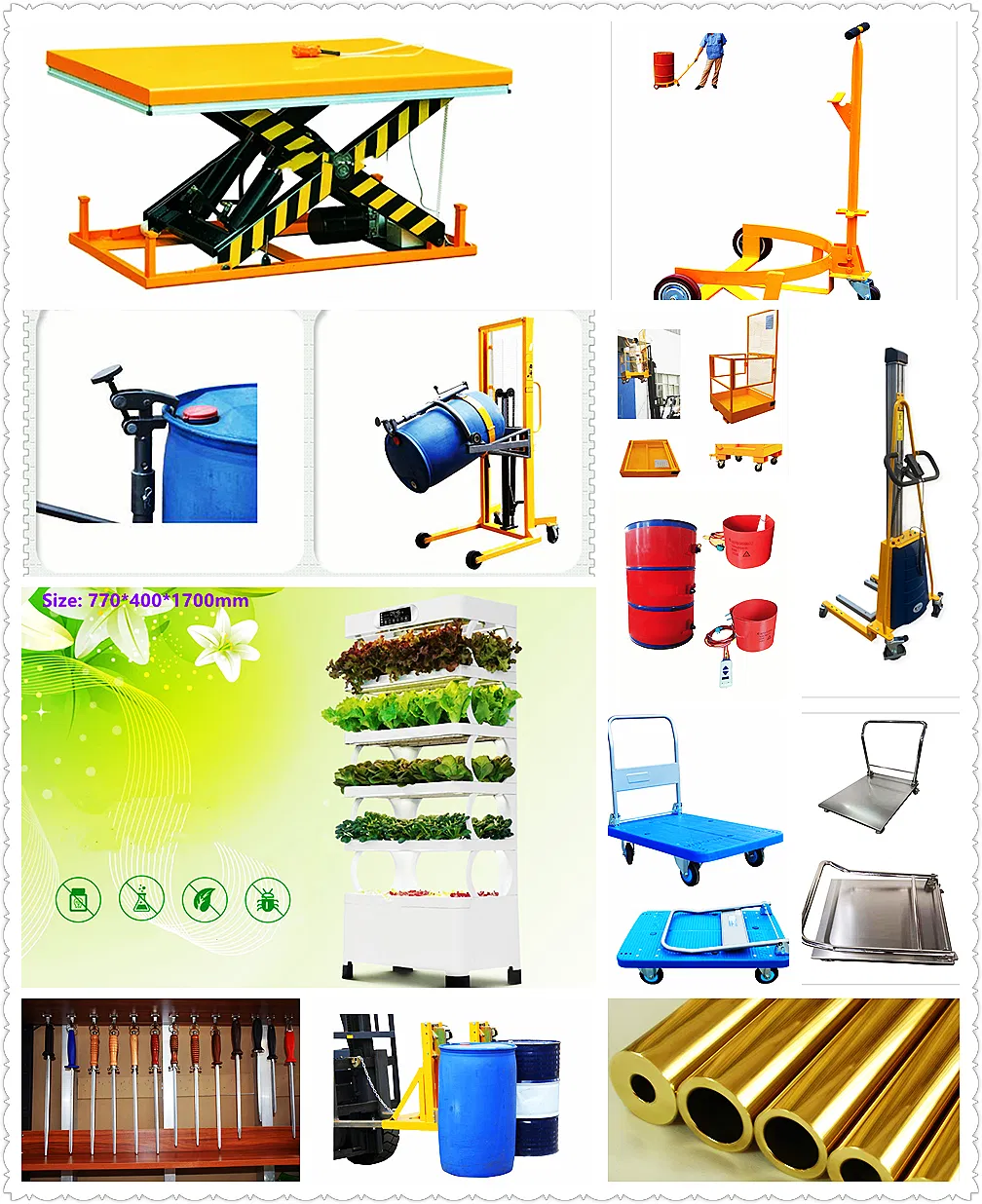

Range of Handlers Factory Visit
Logistics Packing Quality Control Manufacturing Facility

Frequently Asked Questions

Q1: What is the maximum load capacity of the DT400A?
The DT400A series hydraulic drum stacker has a maximum lifting capacity of 400kg.
Q2: Can this stacker handle plastic drums?
Yes, it is designed with an eagle-grip structure suitable for rimmed drums made of steel, fiber, and plastic (including 210L poly drums).
Q3: What is the maximum lifting height?
This model can lift drums to a height of 1500mm, allowing for easy stacking on racks or trucks.
Q4: Does the equipment include safety features?
Yes, it features an ergonomic step-down foot floor lock for added safety during operation and a robust C-shaped steel frame.
Q5: Is there a warranty for this product?
Yes, we provide a 1-year warranty period and related spare parts are prepared for the machine.
Q6: What is the difference between DT400A and DT400A-1?
The DT400A-1 model typically includes an integrated weighing scale for real-time monitoring of drum weight during handling.
