Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Specification
2000*2000*600 mm
HS Code
84254290
Production Capacity
10000/ Year
📦

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg
Transport Package
Wrapping Film
✓

Product Description

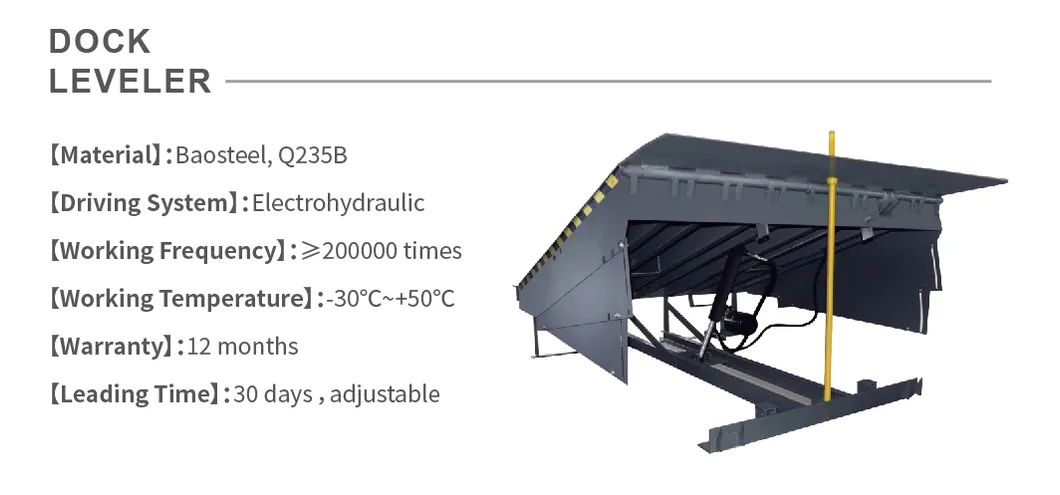

Hydraulic Lifting Table

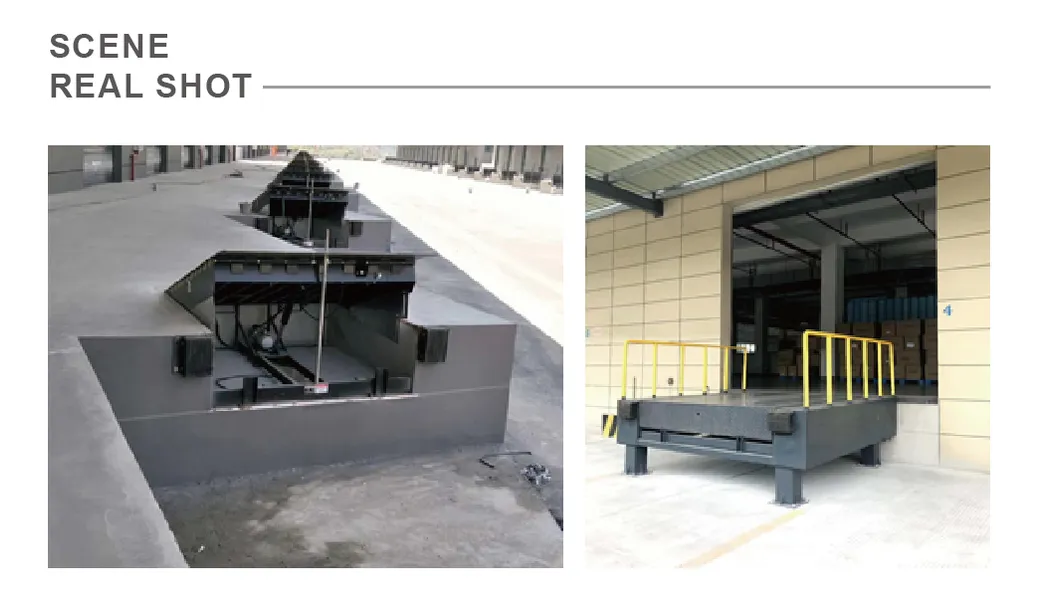

Loading Bay Equipment

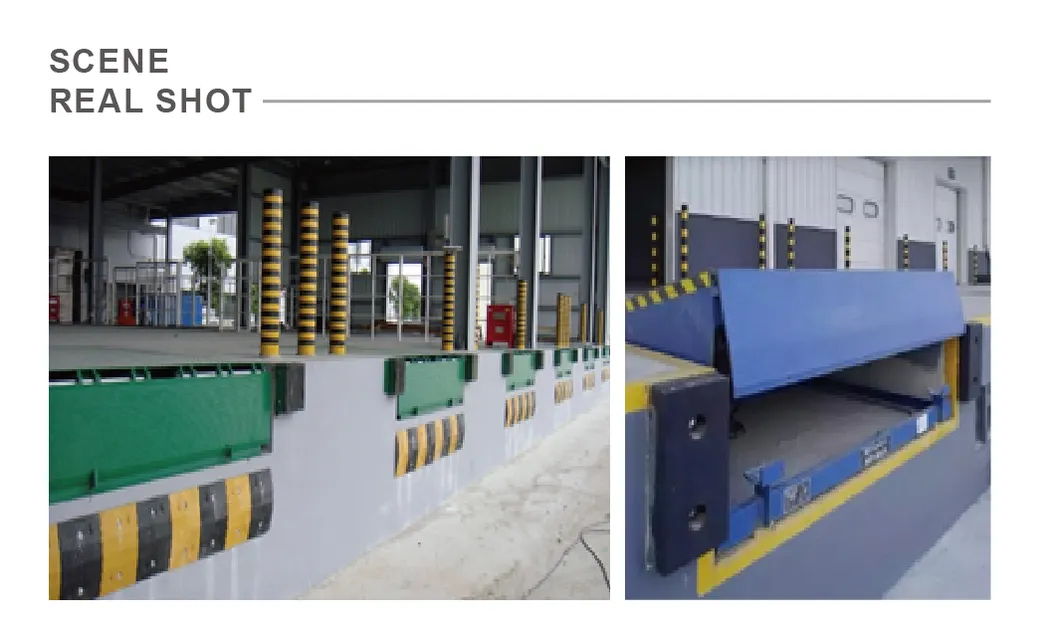

Forklift Unloading Platform

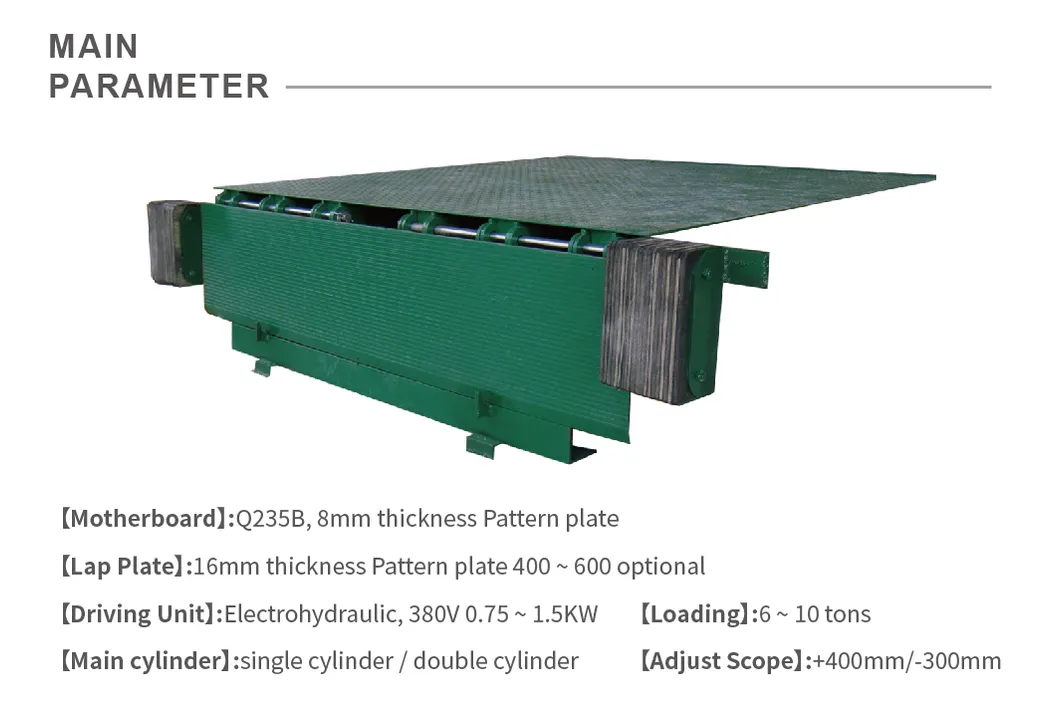

Logistic Warehouse Platform
DETAILED TECHNICAL PARAMETERS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6/8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14/16mm; blasting and powder coating
Loading WeightDynamic load: 6T / 8T / 10T / 12T / 15T
DrivingElectrohydraulic, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main cylinderSingle cylinder / double cylinders
Main Board Stiffener8 pcs of 14# I-Beam, height: 140mm
Side BafflesAutomatic retraction to ensure safety
Working Temperature-30ºC ~ +50ºC
Anti-collision Bumper300*200*100 mm
Safety PartExplosion proof valve
Working Frequency≥ 200,000 times

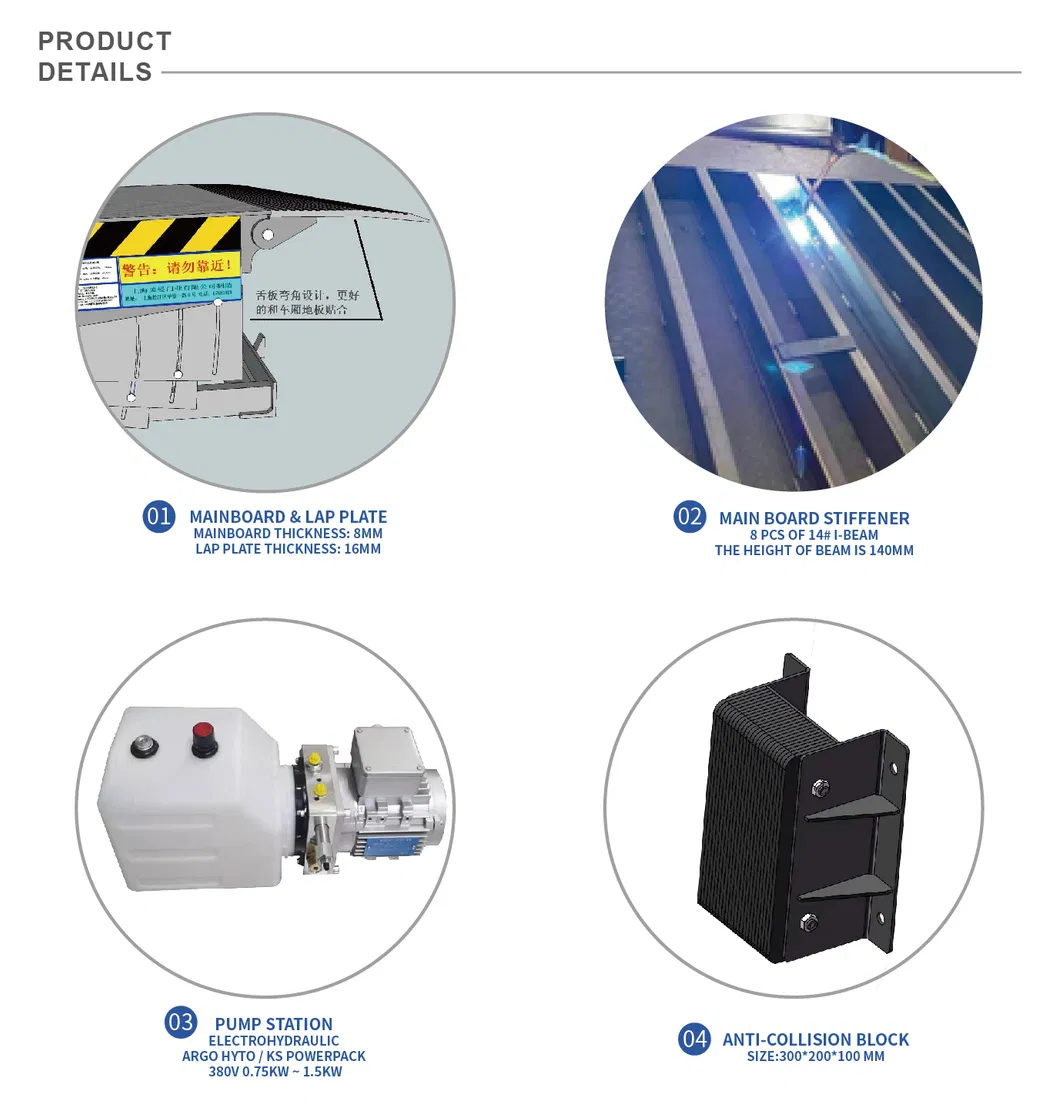

Detailed View 1
Detailed View 2
Detailed View 3
Key Features & Certification:
• Professional industrial design and manufacturing excellence.
• Products designed for diverse customer needs and professional logistic solutions.
• Advanced equipment processing for high-quality outcomes.
• Quality Management: ISO9001: 2000 and CE Certification.
?

Frequently Asked Questions

1. What is the maximum carrying capacity of the hydraulic dock leveler?
The system supports dynamic loads ranging from 6 tons, 8 tons, up to 15 tons, depending on the specific model requirements.
2. What are the materials used for the main board and lap plate?
Both the main board and lap plate are constructed from Q235B steel plate with an anti-slide pattern. The main board thickness is 6-8mm, while the lap plate is 14-16mm.
3. Can this equipment operate in extreme weather conditions?
Yes, the equipment is designed to operate efficiently within a wide temperature range from -30ºC to +50ºC.
4. What is the adjustment range for the lifting table?
The adjustment scope for the dock leveler is +400mm upwards and -300mm downwards to accommodate different truck heights.
5. What safety features are included in the system?
The unit includes an explosion-proof safety valve, automatic retraction side baffles, and anti-collision bumpers (300*200*100 mm) to ensure safe operation.
6. What type of power supply and hydraulic oil is required?
It operates on 220V or 380V (50Hz) power and uses 32# Anti-wear hydraulic oil with a working pressure of 8Mpa.
