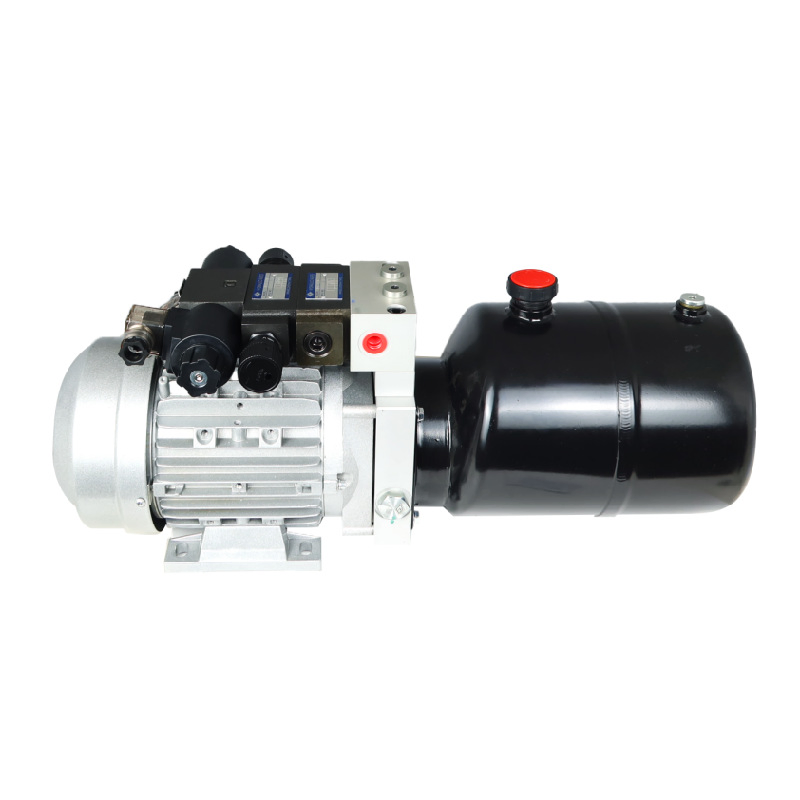

Integrated Hydraulic Power Unit Tail Lift System G3/8 Port

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

z-power

Work Temperature

Normal Temperature

Voltage

12V 24V 48V 220V 380V

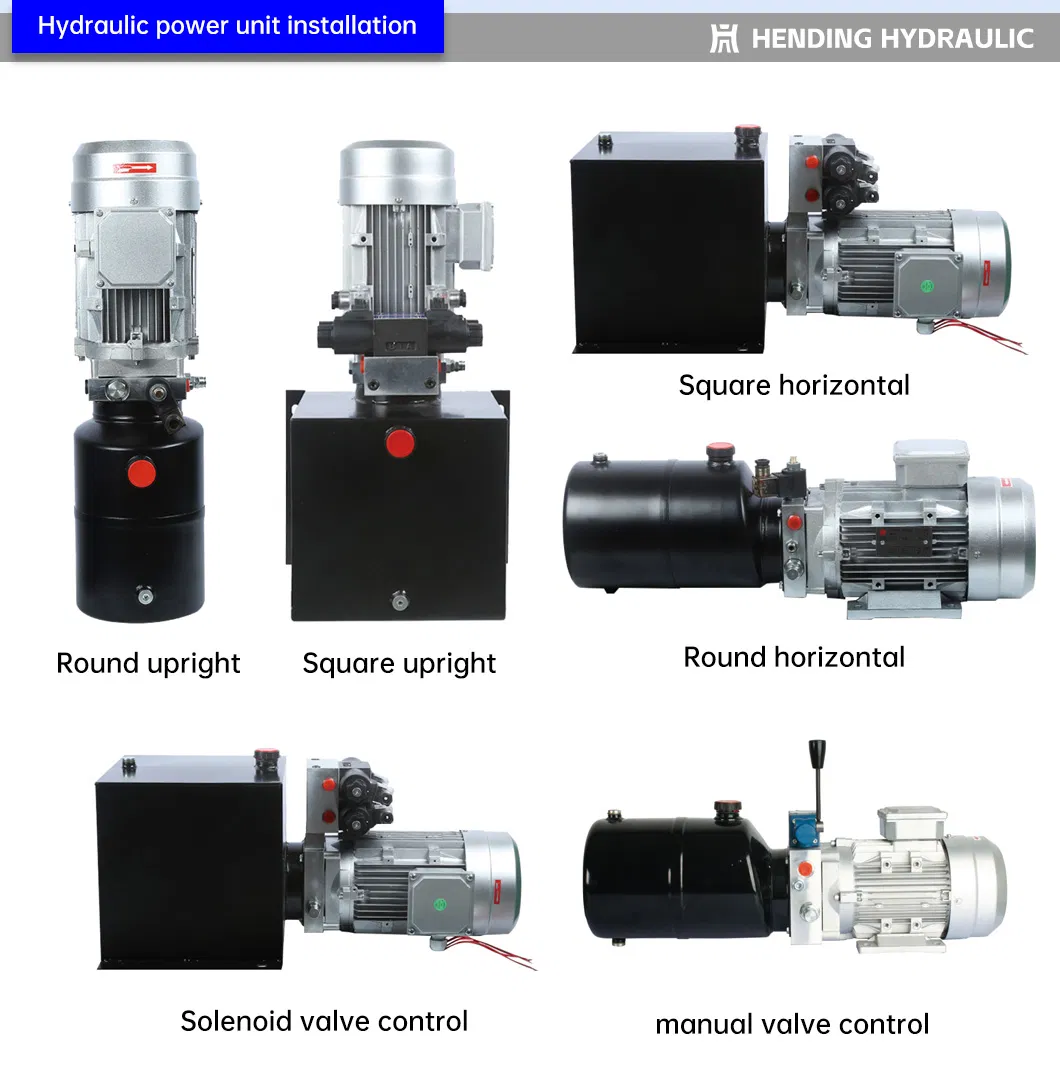

Installation

Vertical Horizontal

Material

Cast Iron

Mounting Style

Earrings, Flange, Foot Mounting, Screw Thread

Warranty

1 Year

Advantage

Good Stability

Merit

Price Cheap

Product Description

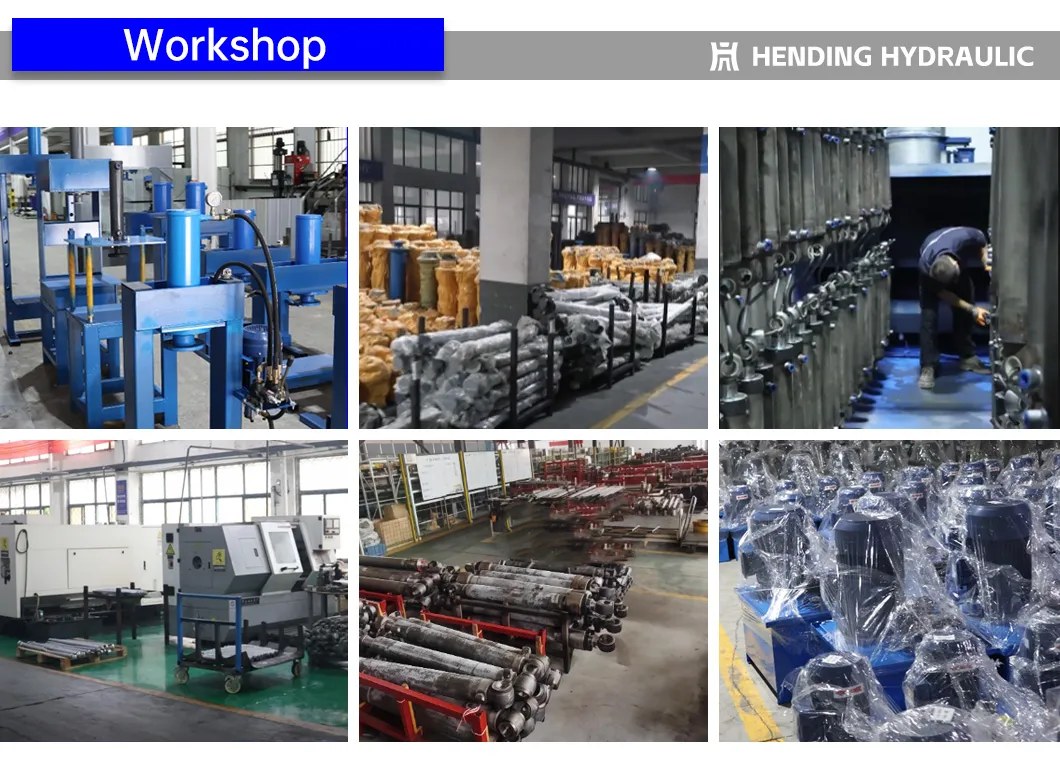

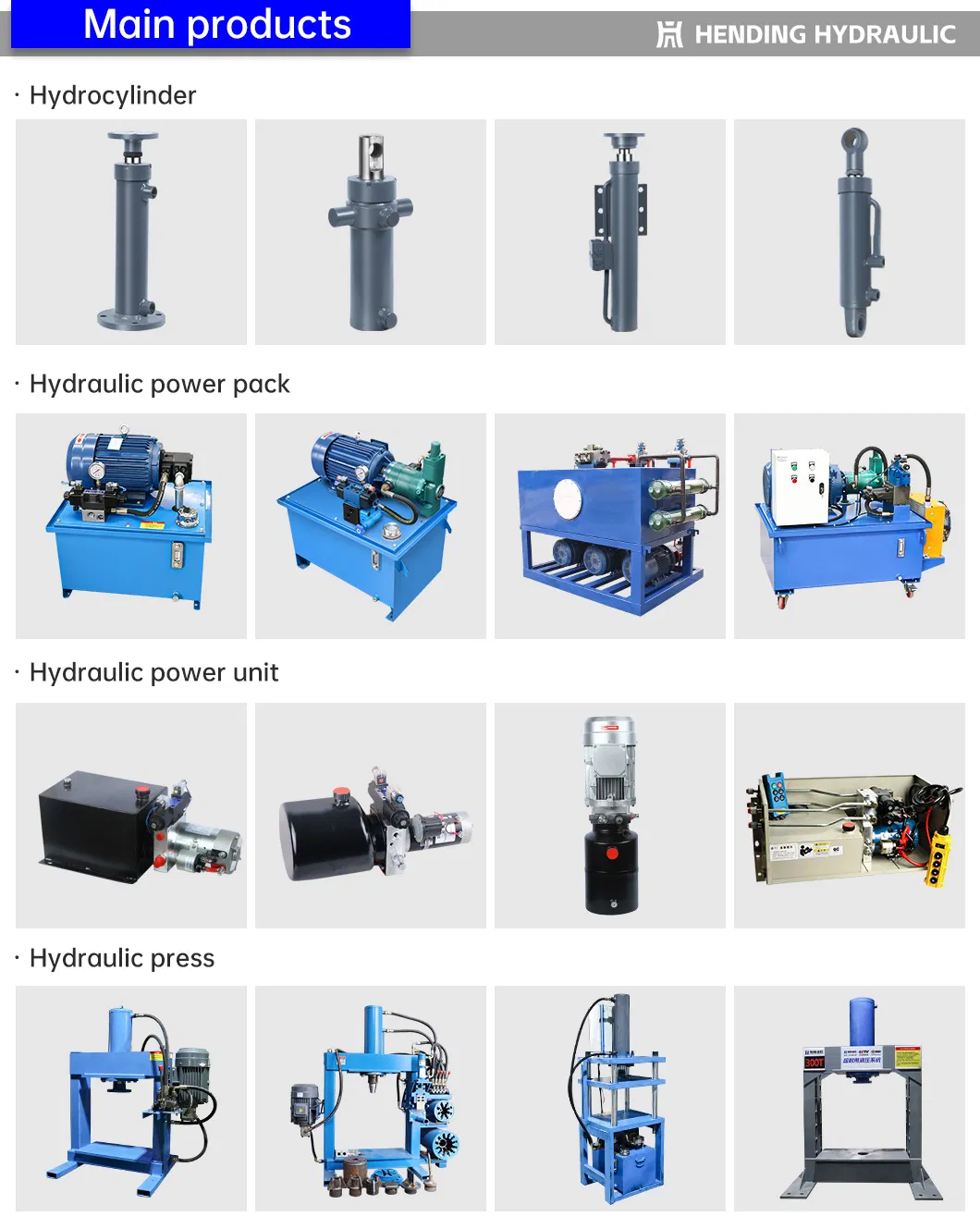

We are a manufacturer specializing in the sales and manufacturing of hydraulic and mechanical equipment. Founded in 2013, our factory provides a complete range of hydraulic cylinder products, including tie rod hydraulic cylinders, welding hydraulic cylinders, double acting and single acting hydraulic cylinders. We offer standard series and non-standard customization to meet special needs.

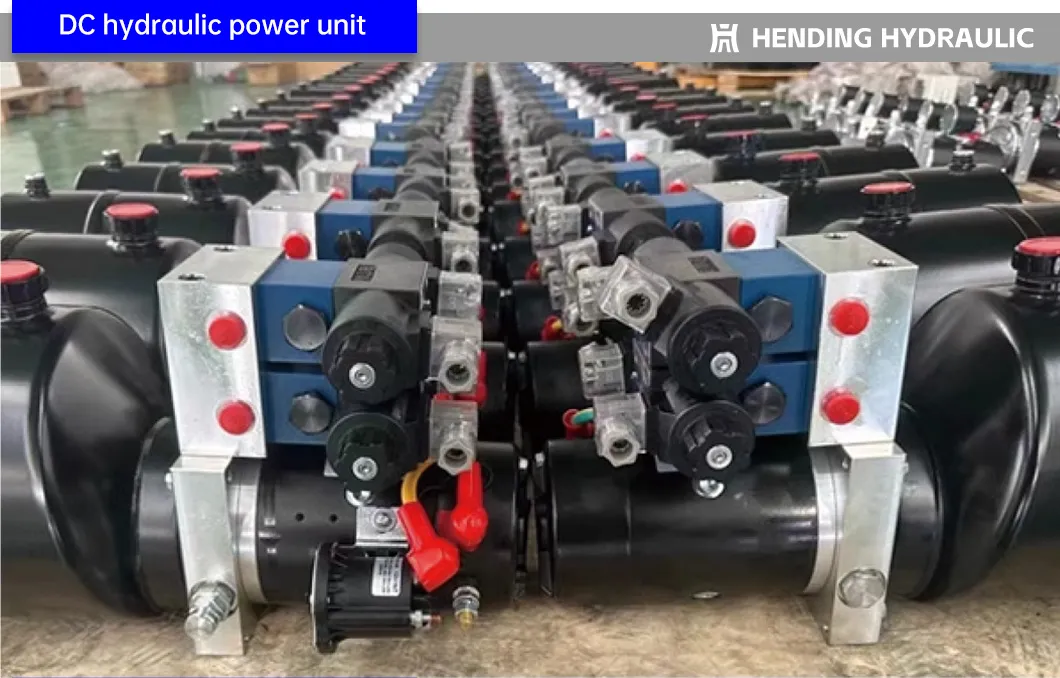

DC Hydraulic Power Unit

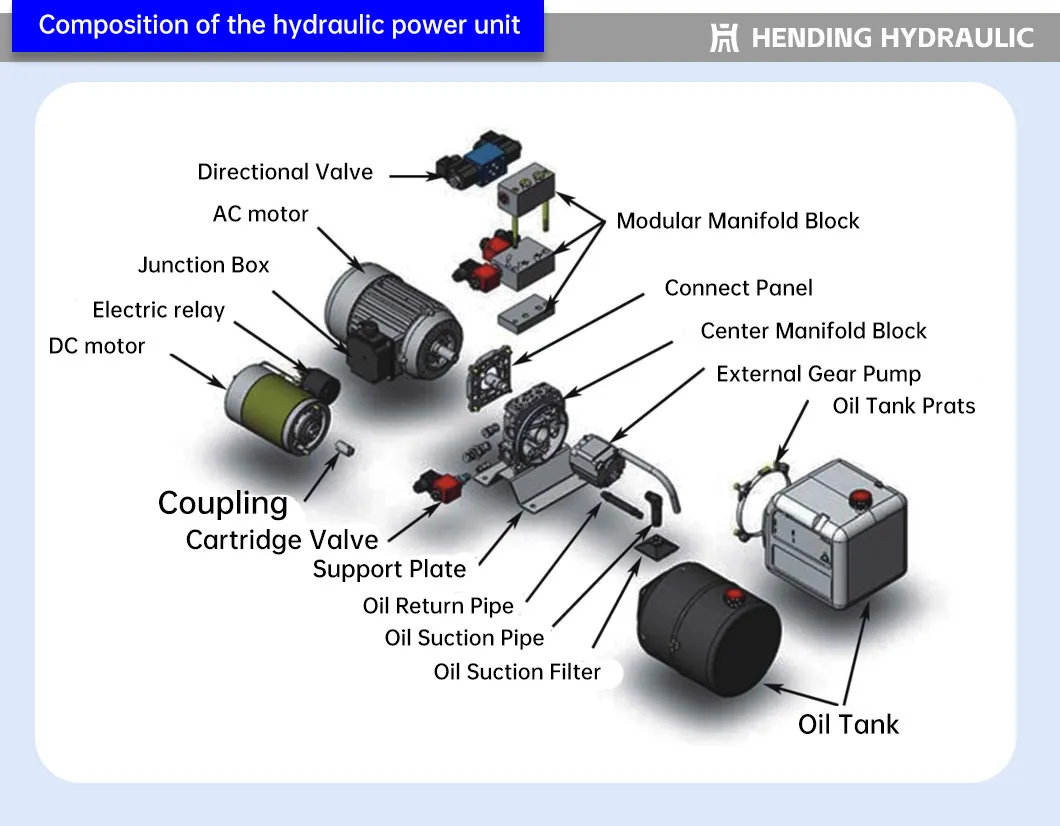

The DC hydraulic power unit integrates components such as an oil pump, motor, multi-purpose integrated block, and hydraulic valves into a single unit. It utilizes advanced high-pressure gear pumps and cartridge valves. It is smaller, lighter, more energy-efficient, and reliable. Mainly used in truck tailgate lifting, dump trucks, work platforms, and machine tools.

Motor Voltage	Speed	Motor Power	Pump Displacement	Pressure	Tank Capacity
12V/24V/48V DC	2800 RPM	1.5KW - 3KW	1.1 - 3.2 ML/R	6 - 20 MPa	4L - 10L

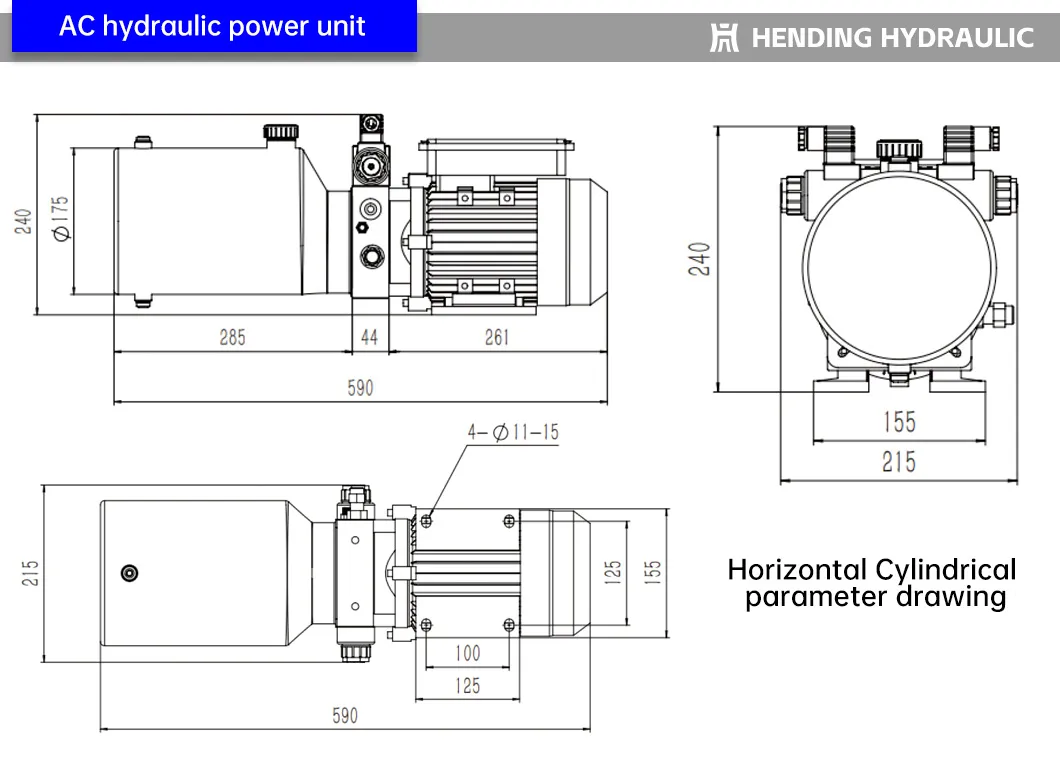

AC Hydraulic Power Unit

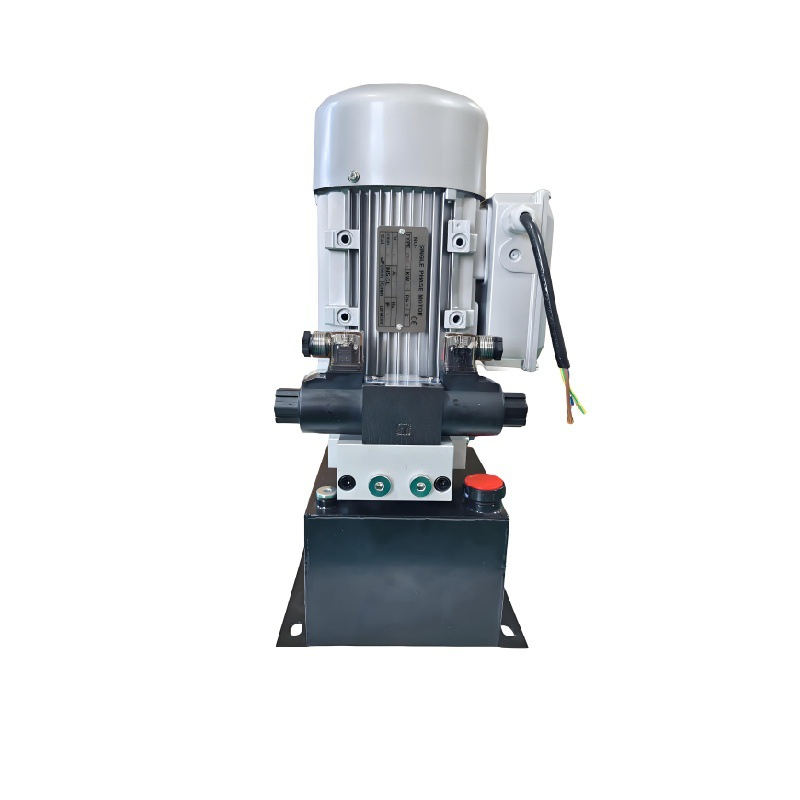

Utilizes AC voltage (220V/380V) for stable operation in industrial environments. Integrated design ensures high efficiency and stability for work platforms and presses.

Motor Voltage	Motor Power	Pump Displacement	Pressure	Tank Capacity
220V/380V AC	0.75KW - 3KW	1.1 - 3.2 ML/R	6 - 20 MPa	4L - 10L

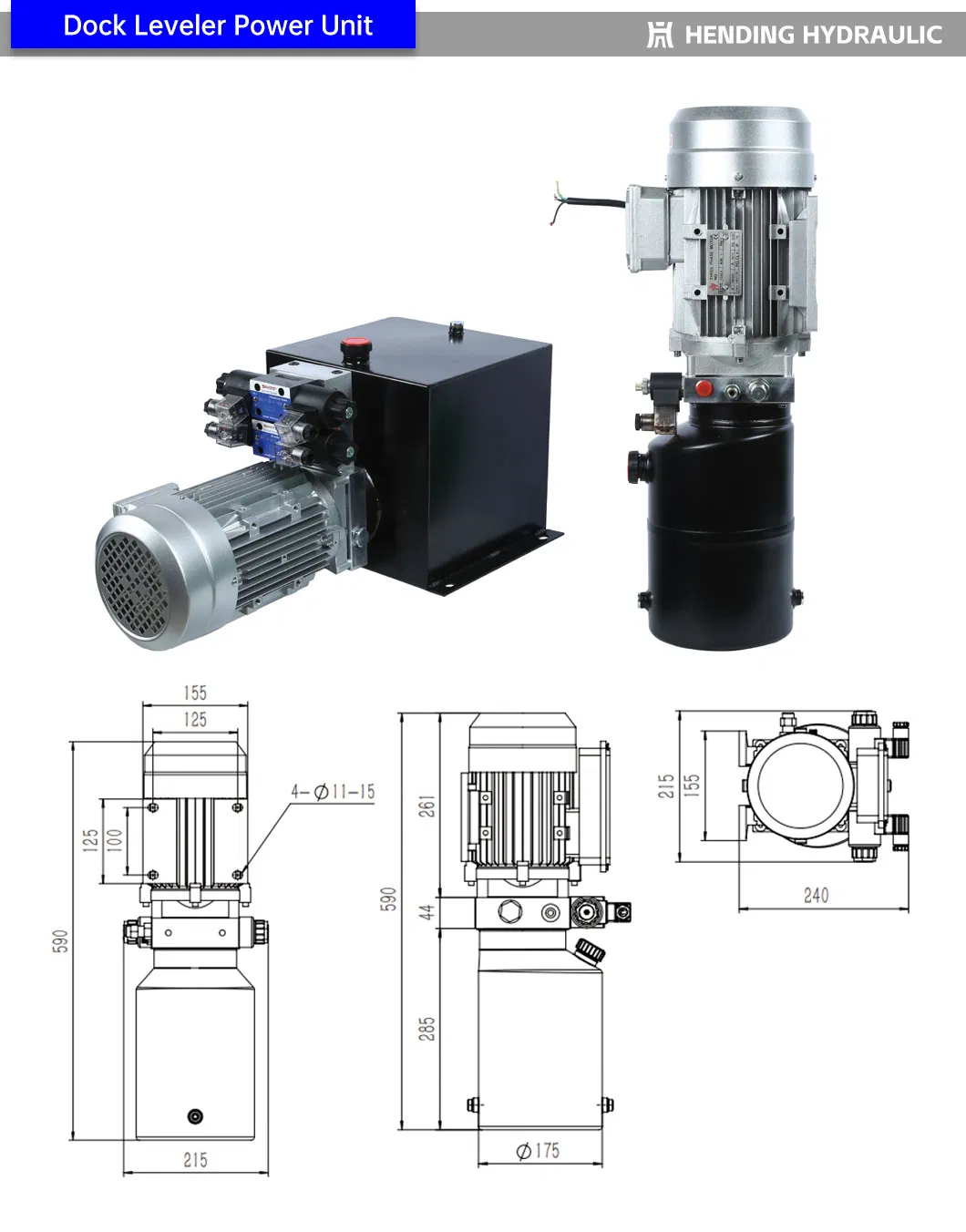

Dock Leveler Power Unit

Converts engine power into hydraulic energy to drive loading ramp movements. Features a compact modular design and high stability for various working conditions.

Hydraulic Pump: High-pressure generation.

Hydraulic Motor: Drives lifting mechanisms.

Hydraulic Valves: Precise flow and direction control.

Technical Parameters

Theoretical thrust for various cylinder/rod diameters at different pressure ratings (unit: tons):

Cylinder Dia	Rod Dia	5 MPa (Thrust/Pull)	10 MPa (Thrust/Pull)	21 MPa (Thrust/Pull)	31.5 MPa (Thrust/Pull)
40	25	0.6 / 0.3	1.2 / 0.7	2.6 / 1.6	3.9 / 2.4
50	28	0.9 / 0.6	1.9 / 1.3	4.1 / 2.8	6.1 / 4.2
63	35	1.5 / 1.0	3.1 / 2.1	6.5 / 4.5	9.8 / 6.7
80	50	2.5 / 1.5	5.0 / 3.0	10.5 / 6.4	15.8 / 9.6
100	63	3.9 / 2.3	7.8 / 4.7	16.4 / 9.9	24.7 / 14.9

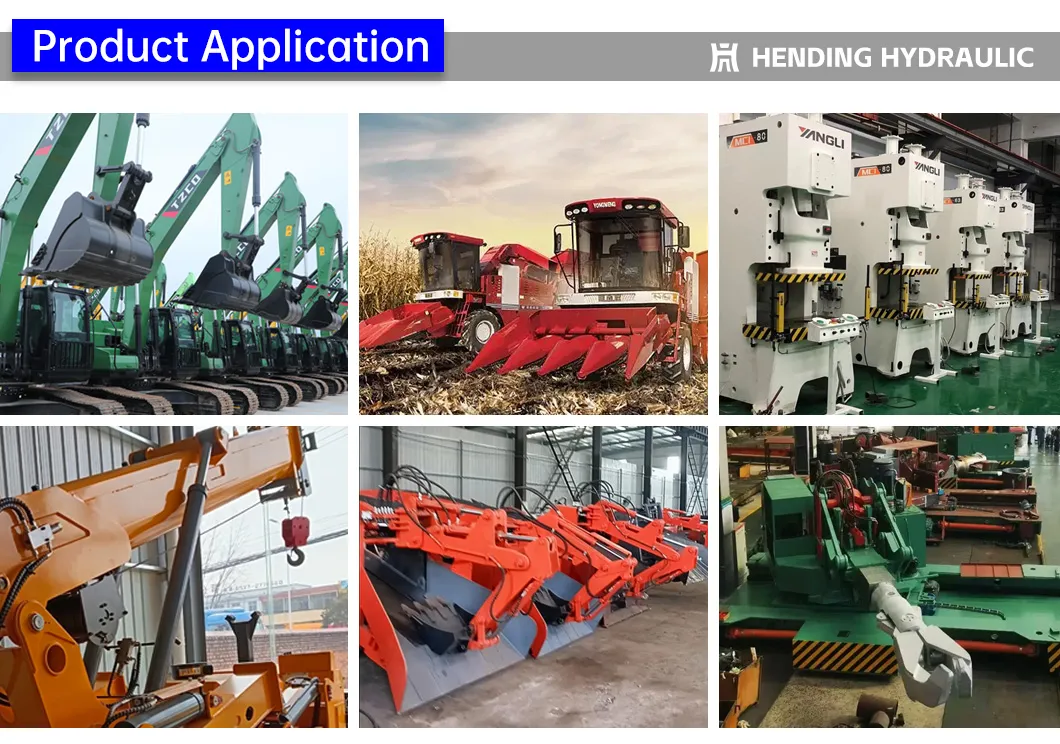

Industry Applications

Our custom hydraulic cylinders and power units are successfully used in:

Aerospace & Aerial Work Platforms (AWP)
Agricultural Harvesters, Loaders, and Tractors
Civil Engineering: Bulldozers and Excavators
Construction: Concrete Pumps and Paving
Materials Handling & Mechanical Engineering
Mining, Oil, and Gas Industries

Frequently Asked Questions

Q1: Are you a manufacturer or trading company? A: We are a manufacturer with over 20 years of production experience.

Q2: Can the hydraulic products be customized? A: Yes, both standard and non-standard products can be customized based on your specific requirements or drafts.

Q3: How do you ensure product quality? A: We strictly follow the quality process for production and perform 100% inspection on every batch of products.

Q4: What is the typical delivery time? A: It depends on the quantity, but normally a standard order can be completed within 1 month.

Q5: Is there a minimum order quantity (MOQ)? A: There is no limit on minimum order quantity; we accept small orders, even for a single unit.

Q6: What is the warranty period for your hydraulic cylinders? A: We provide a one-year quality guarantee for our cylinders.
