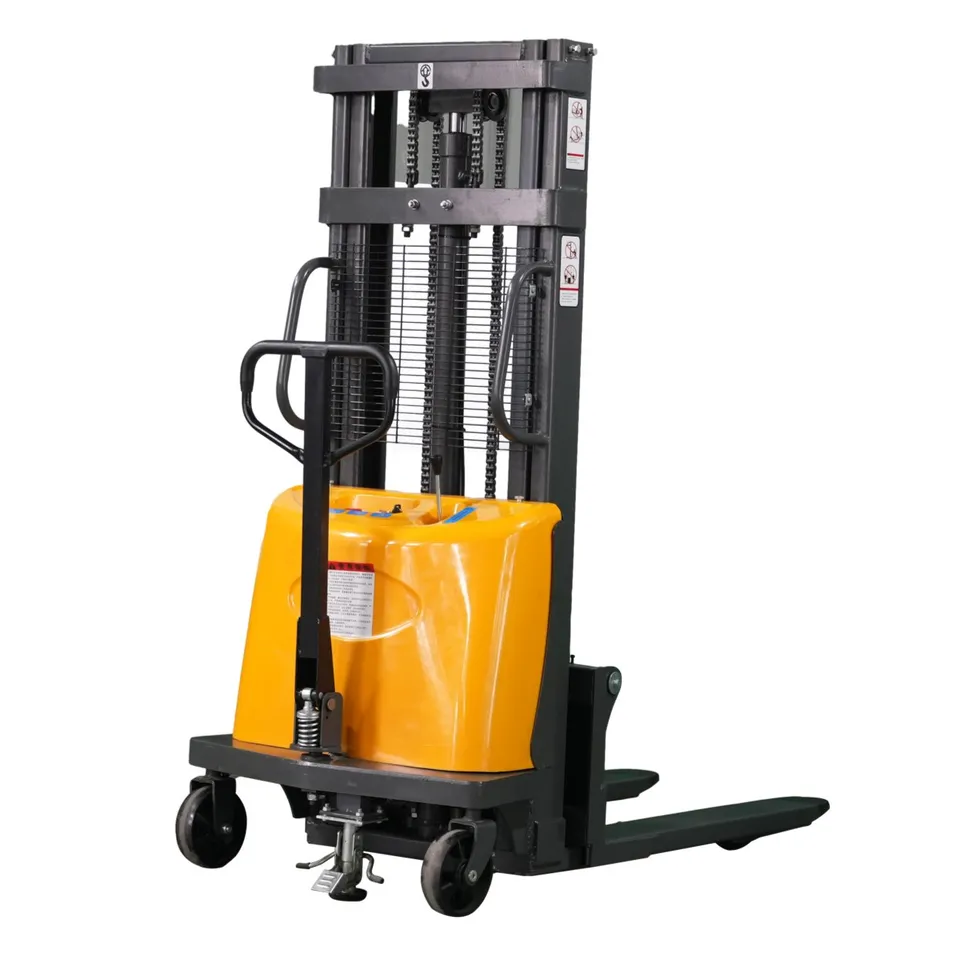

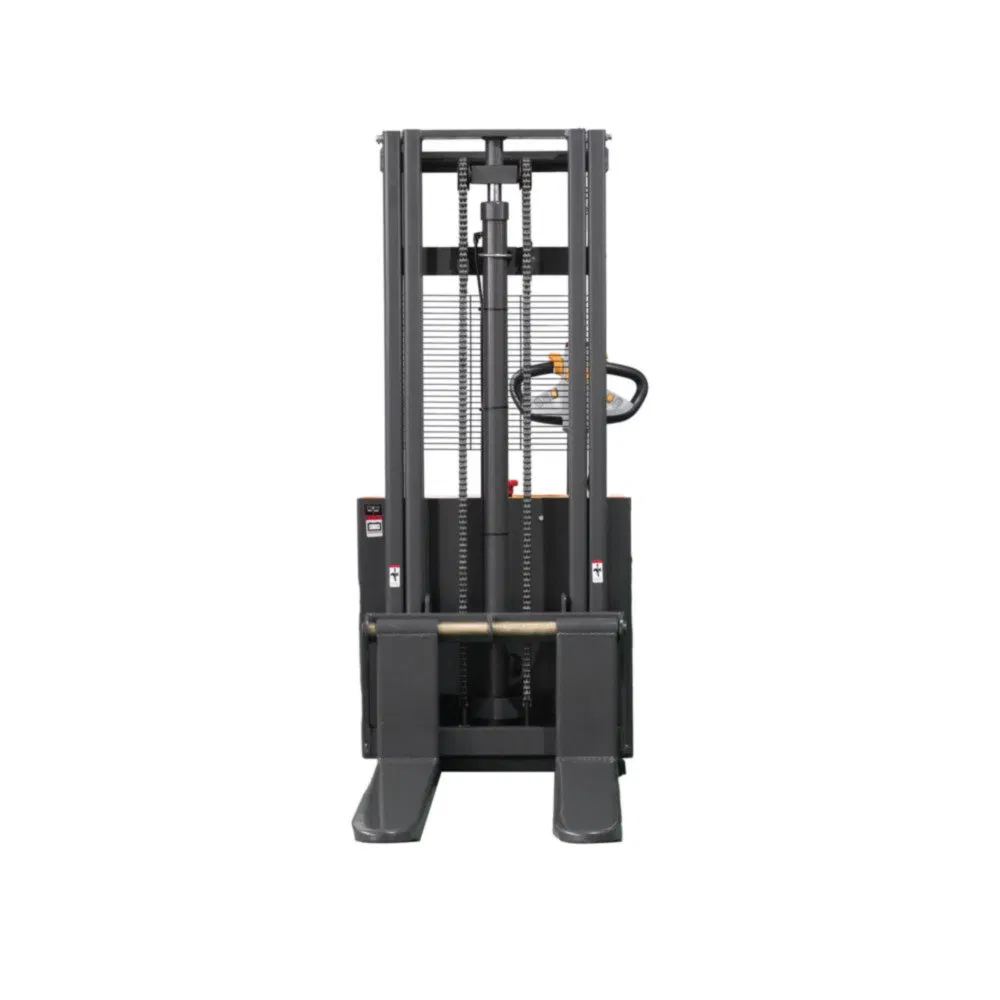

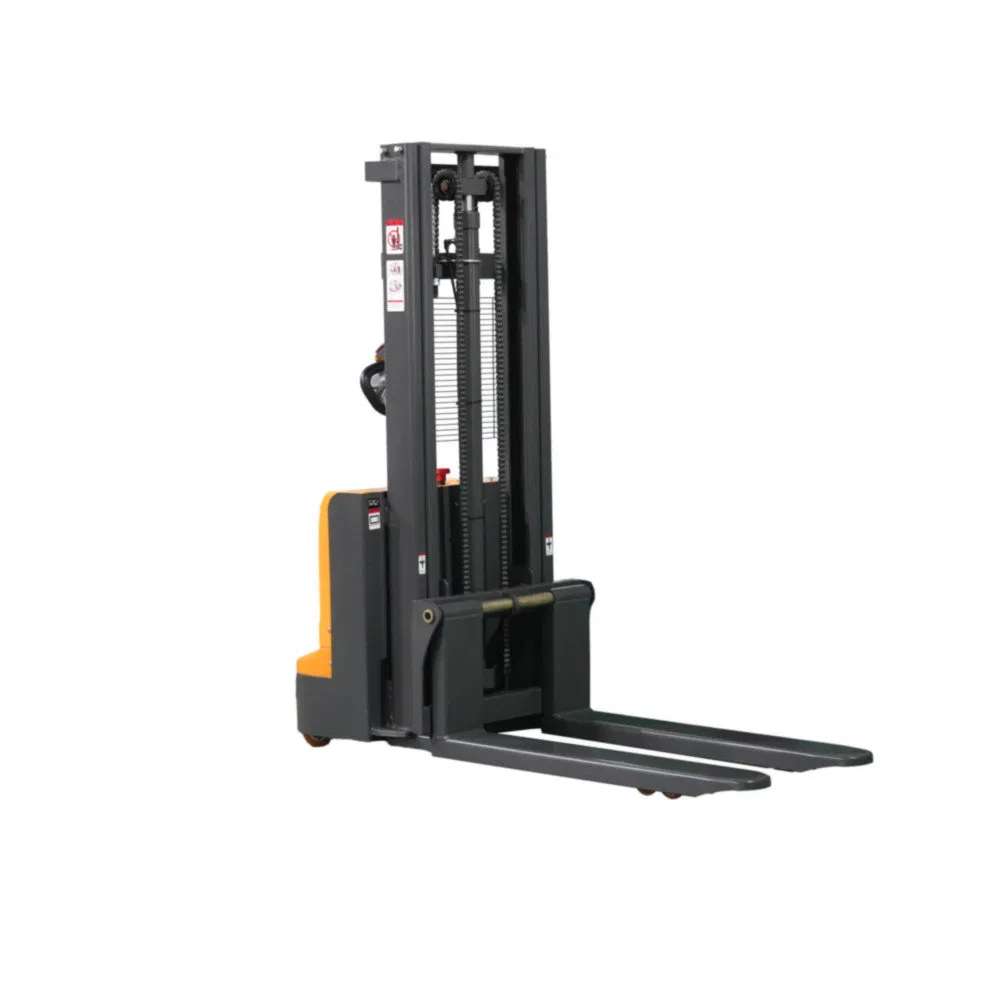

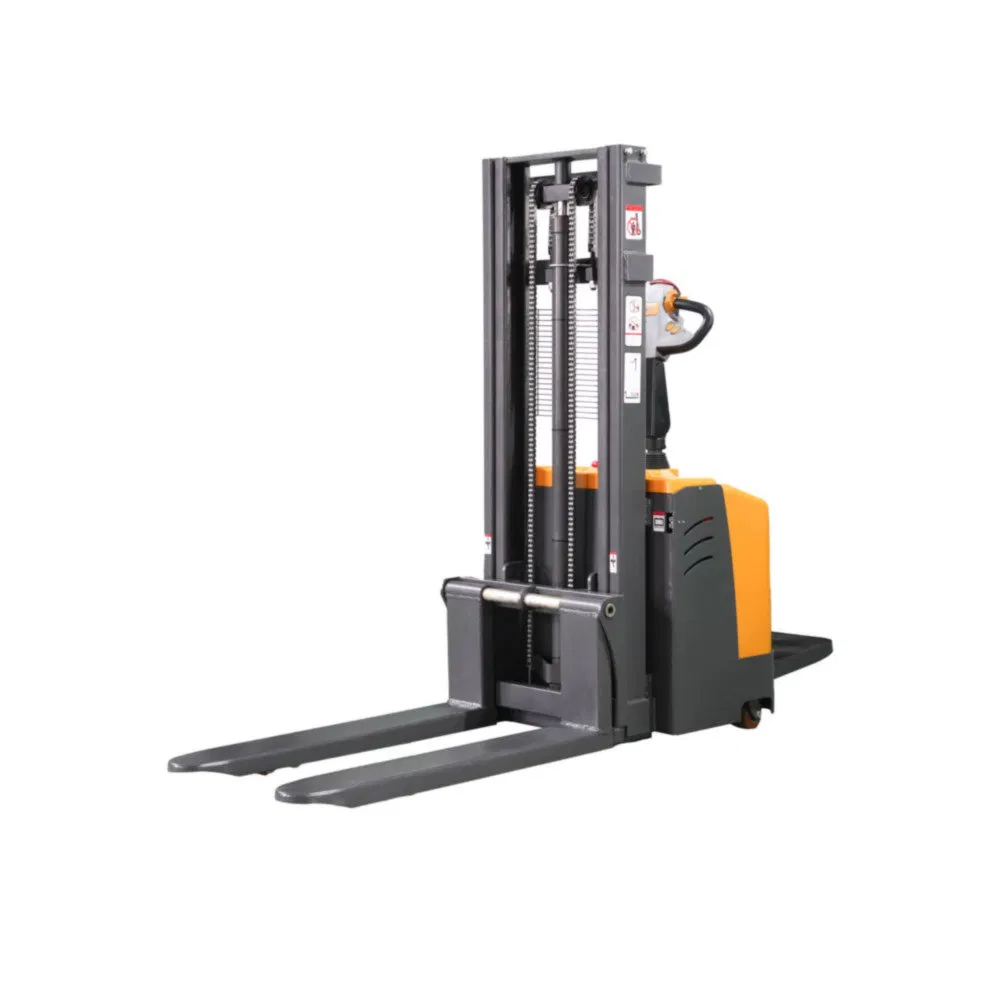

Featuring a robust AC driving motor, this battery-powered stacker delivers exceptional lifting capacity of 1,500kg to 2,000kg with adjustable fork heights ranging from 1.6m to 3.5m, making it ideal for diverse pallet stacking applications.

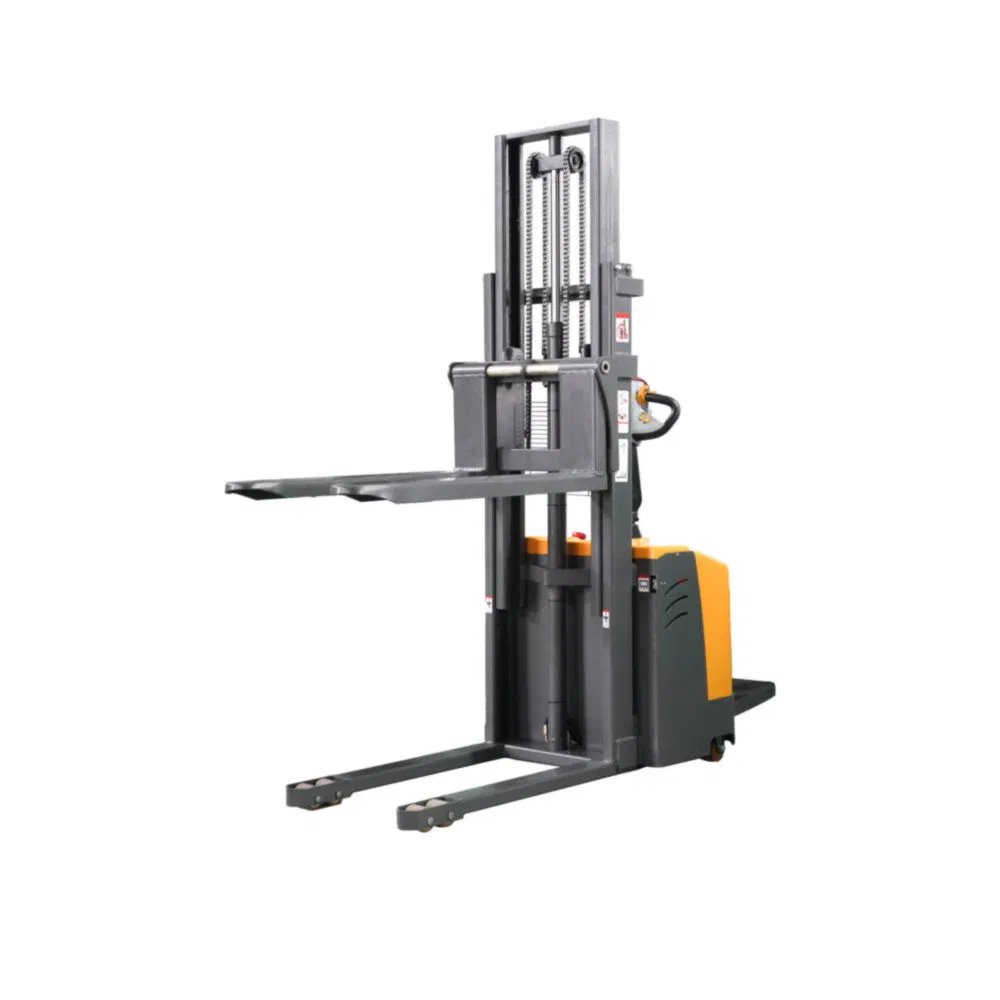

Engineered with a straddle leg design and adjustable forks, this electric lift stacker handles both open and closed pallets with ease. The compact footprint and tight turning radius allow seamless operation in narrow aisles and shipping containers.
| Model | Unit | CDD-A15 | CDD-B15 | CDD-B20 |
|---|---|---|---|---|
| Rated Load | Q(kg) | 1500 | 1500 | 2000 |
| Load Center Distance | C(mm) | 500 | 500 | 500 |
| Weight (With Battery) | kg | 520 | 580-780 | 650-860 |
| Front Wheel Size | mm | φ210*75 | φ210*75 | φ250*75 |
| Lifting Height of Fork | H3(mm) | 1600-3500 | 1600-3500 | 1600-3500 |
| Overall Length | L(mm) | 1791 | 2140 | 2140 |
| Driving Motor Power | kw | 0.75 | 0.75 | 1.5 |
| Lifting Motor Power | kw | 2.2 | 2.2 | 2.2 |
| Battery 24V | Ah | 85Ah | 120/210 | 120/210 |

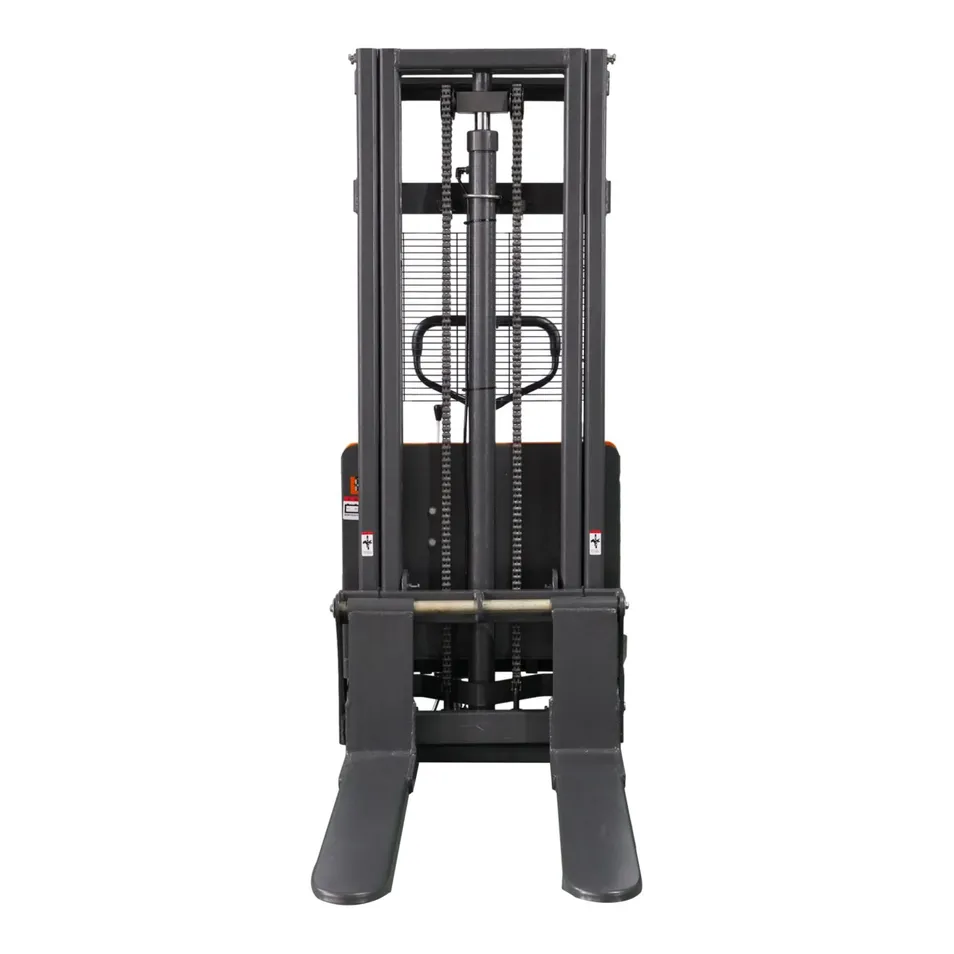

Equipped with a high-efficiency 0.75kW–1.5kW AC drive motor and 2.2kW lifting motor, delivering smooth acceleration and reduced energy consumption.

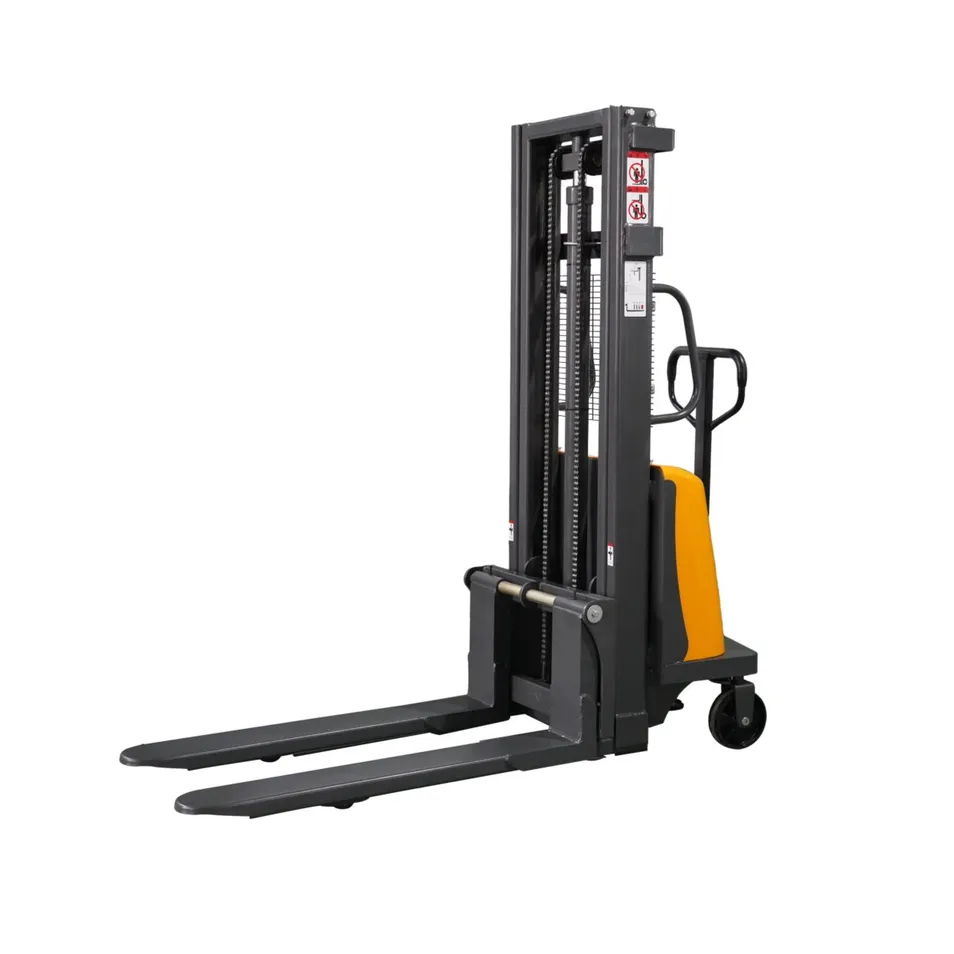

Built-in safety features include emergency reverse device, emergency power-off switch, turtle-speed slow mode, and overload protection.

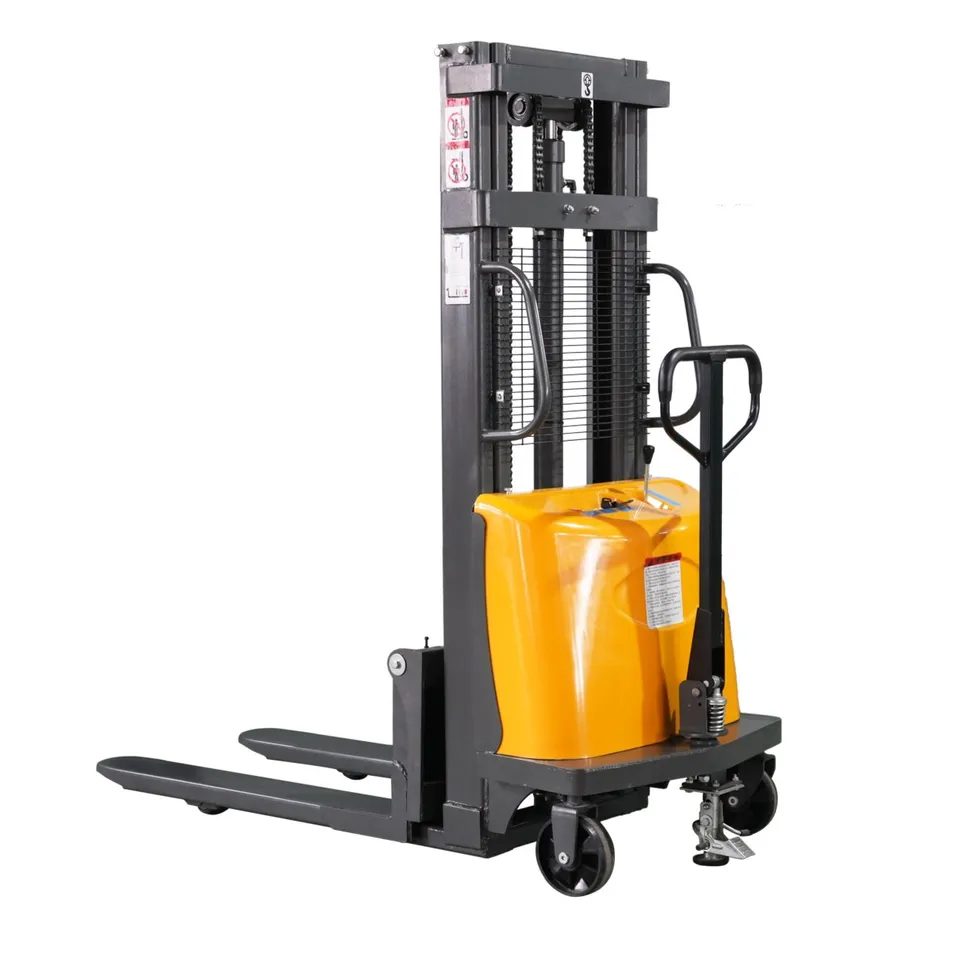

Foldable thickened pedals with protective guard bars offer superior comfort and safety during stand-on operation.
Ideal for stacking and organizing palletized goods on racking systems up to 3.5m.
Streamline order fulfillment and shipping operations with fast pallet transport.
Efficiently move raw materials and finished goods between production lines.
Sealed drive systems operate reliably in refrigerated warehouse environments.
