Lm800 Forklift Accessories Bucket Pouring Machine Mechanical Drum Rotator

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LM800

Material

Carbon Steel

Surface Treatment

Powder Coating

Name

Below-Hook Tilting Drum Dispenser

Lifting Capacity

400kg

Type

Drum Handling Equipment

Advantage

Forklift and Crane Mounted

Specification

900*600*950mm

Production Capacity

9000PCS/Month

Product Description

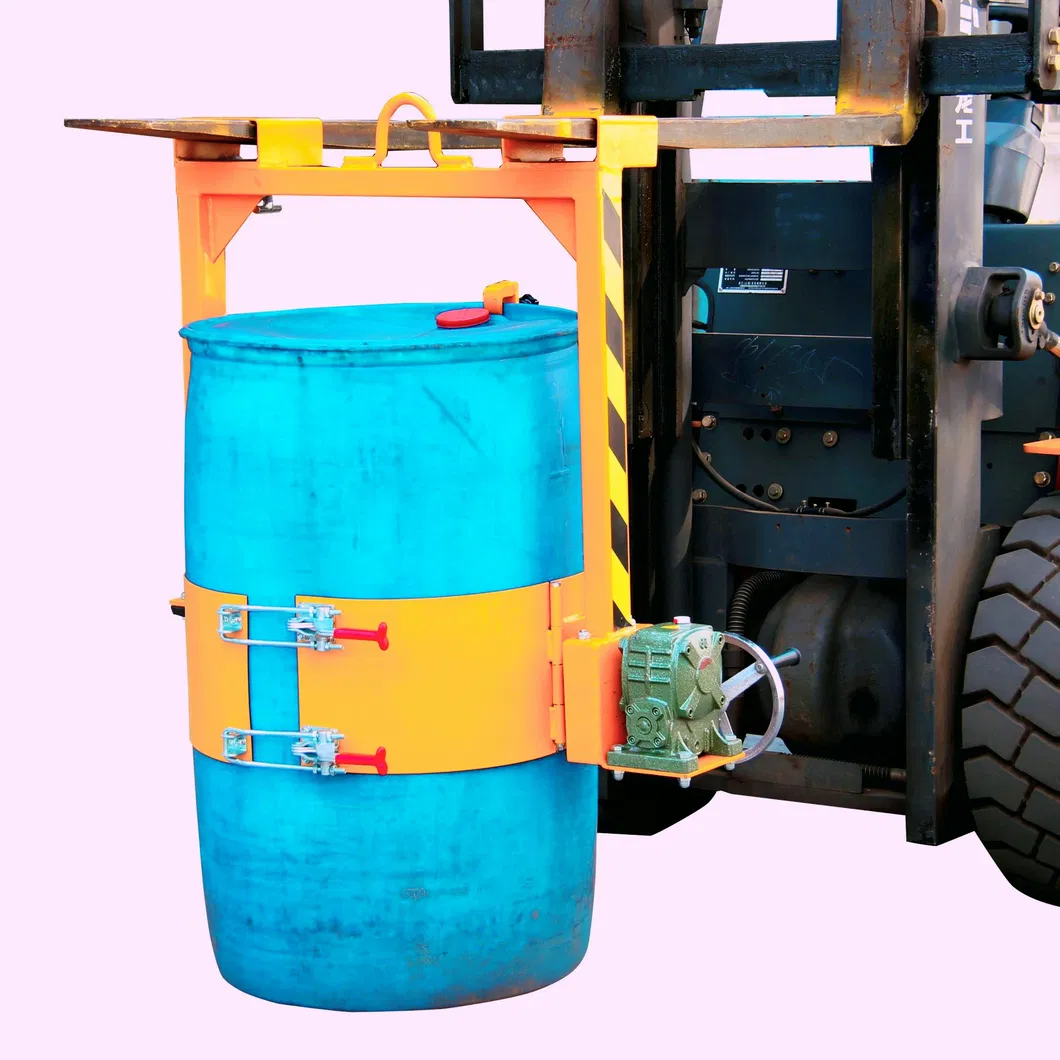

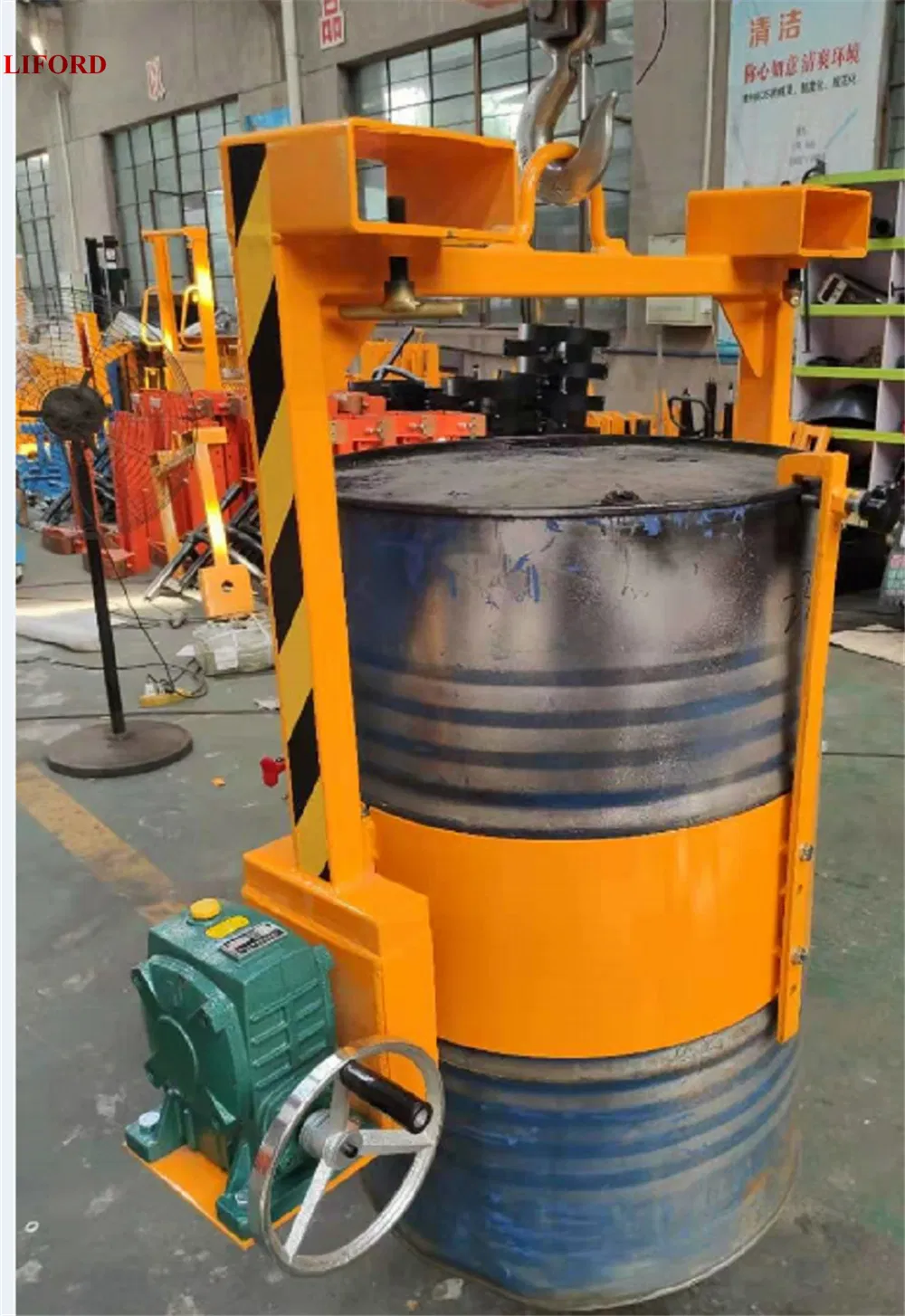

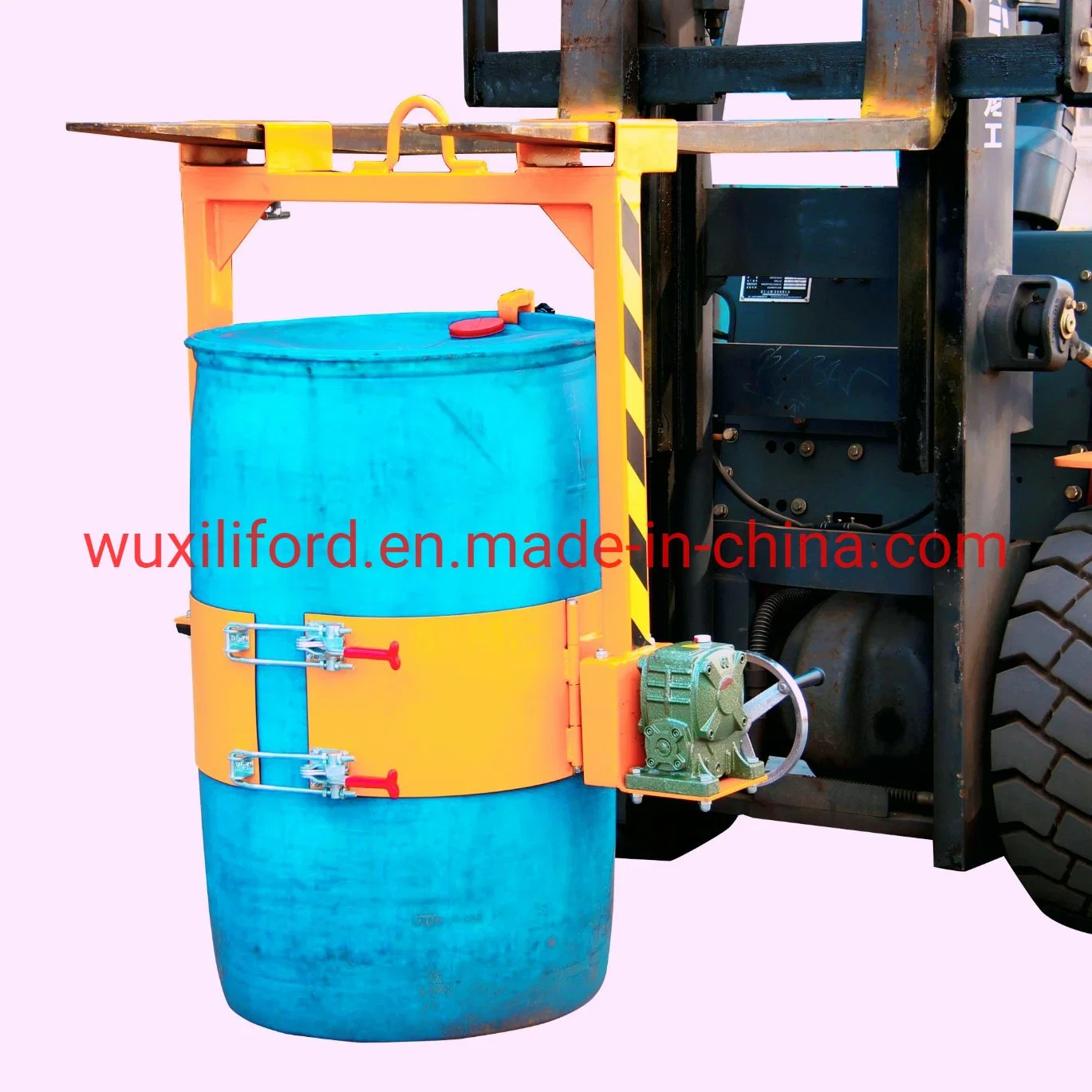

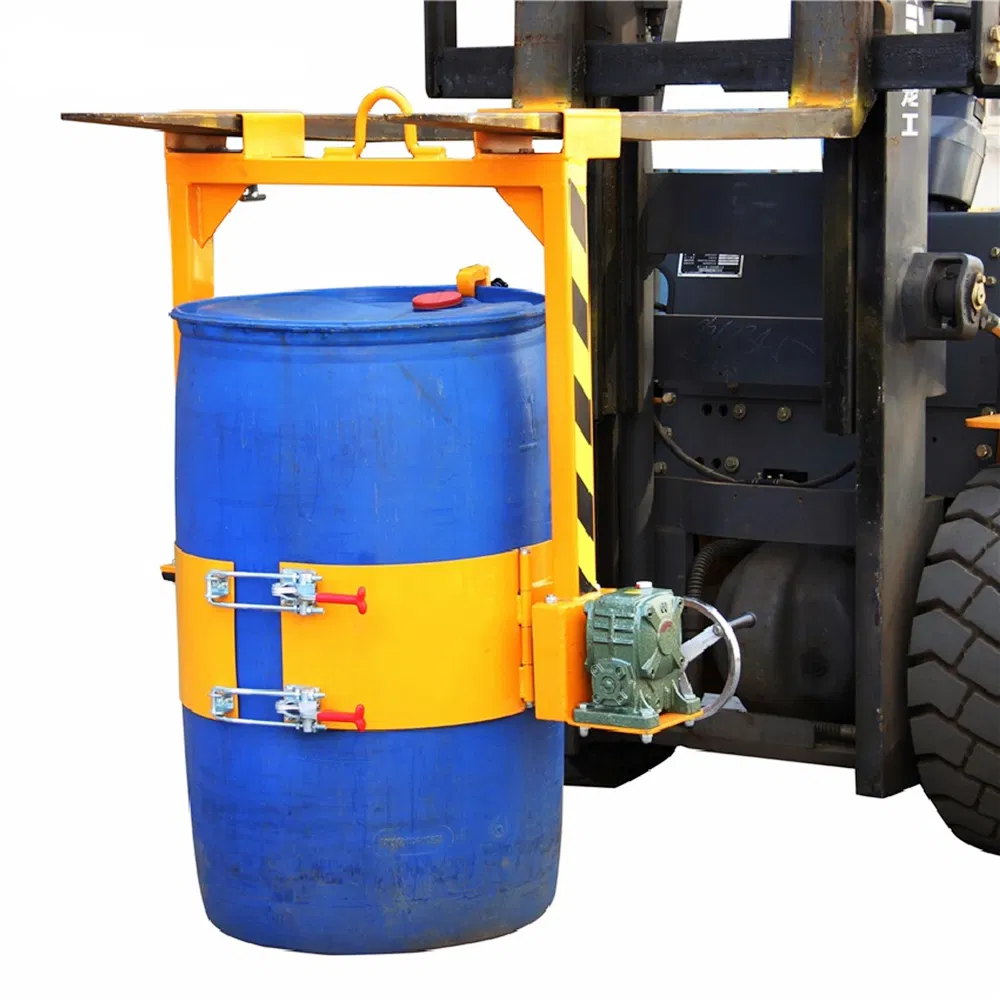

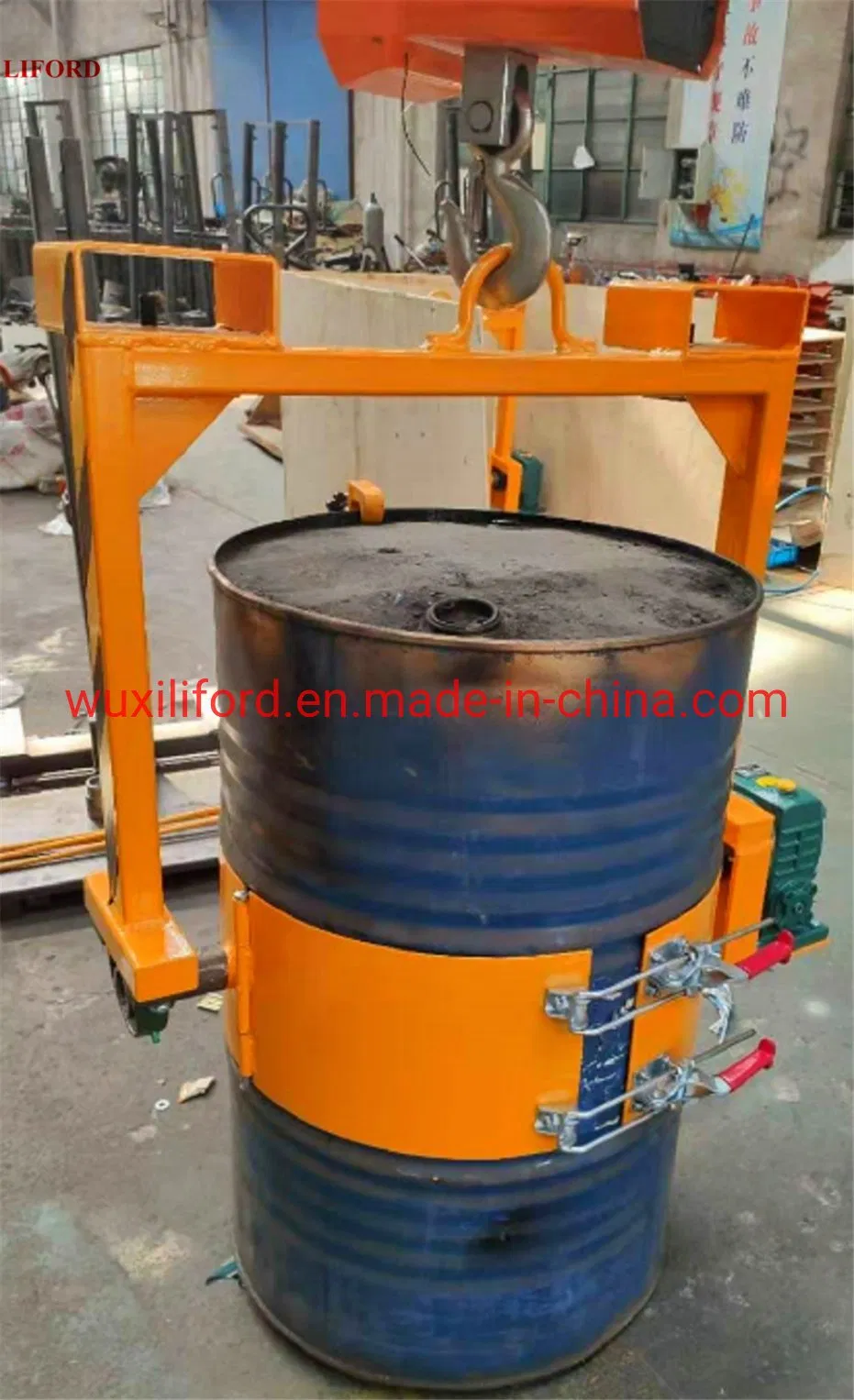

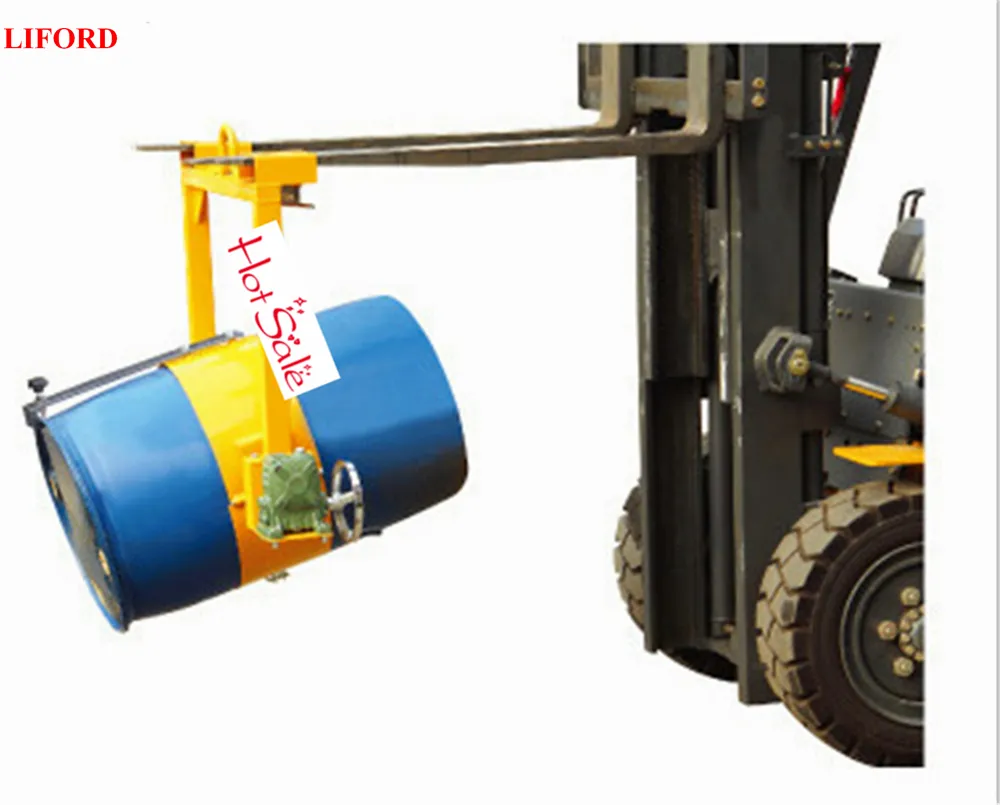

Vertical Drum Lifter / Drum Dispenser LM800 can be easily mounted on forklifts and cranes to lift steel and plastic drums and dispense contents. This simple structure drum lifter is a type of one-person operated drum handler, which greatly saves time, reduces spilling waste, and improves productivity. Simply attach or hang the lifter on a hook from an overhead hoist or crane, cinch the saddle around the drum, and raise it to the desired height and position.

Key Features

Lift, transport, and pour from open and closed head drums;
Suitable for 55 gallon steel or 200 liter double closed plastic drums;
Ideal for lower level powering and dumping operations;
Positive tilt lock on drum saddle to hold drum upright in transit;
Locks also hold drum in horizontal position;
One-person operation saves time and improves productivity;

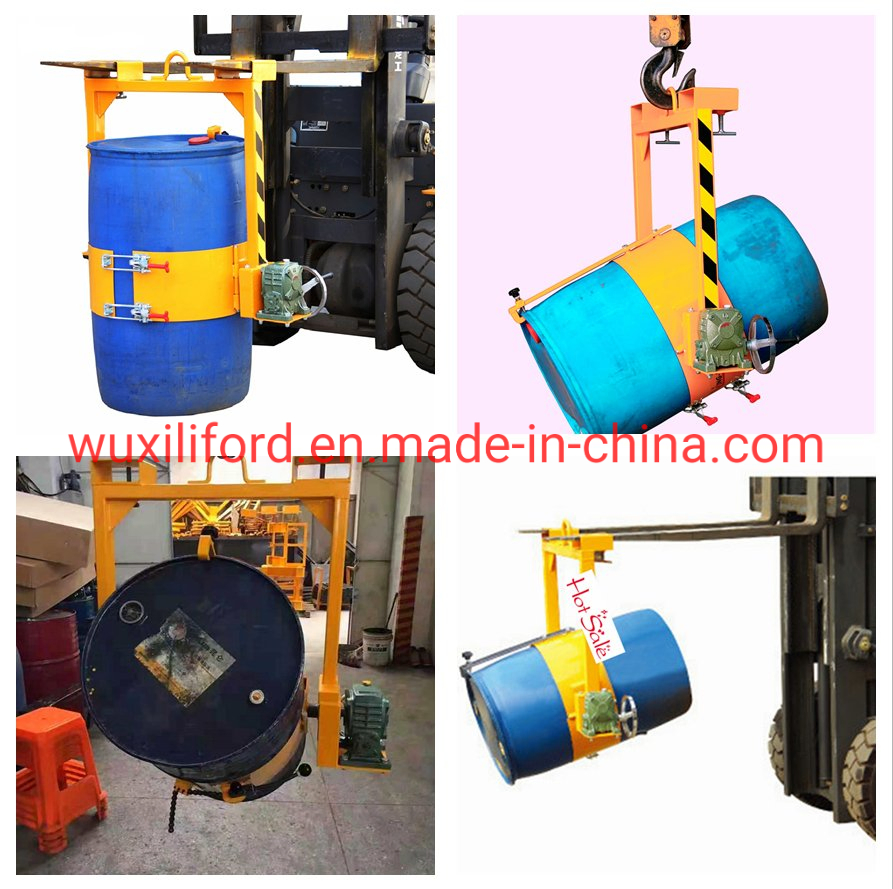

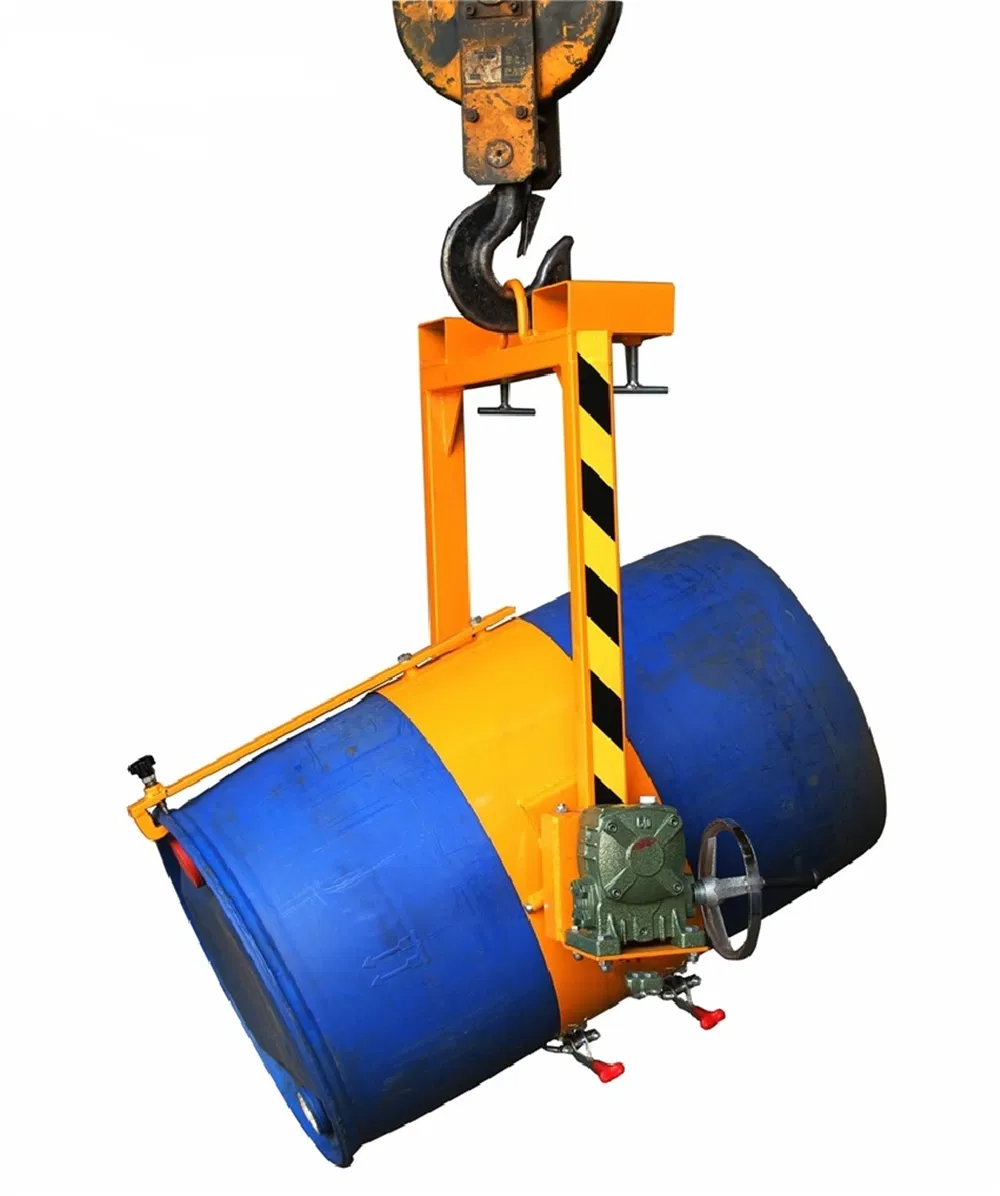

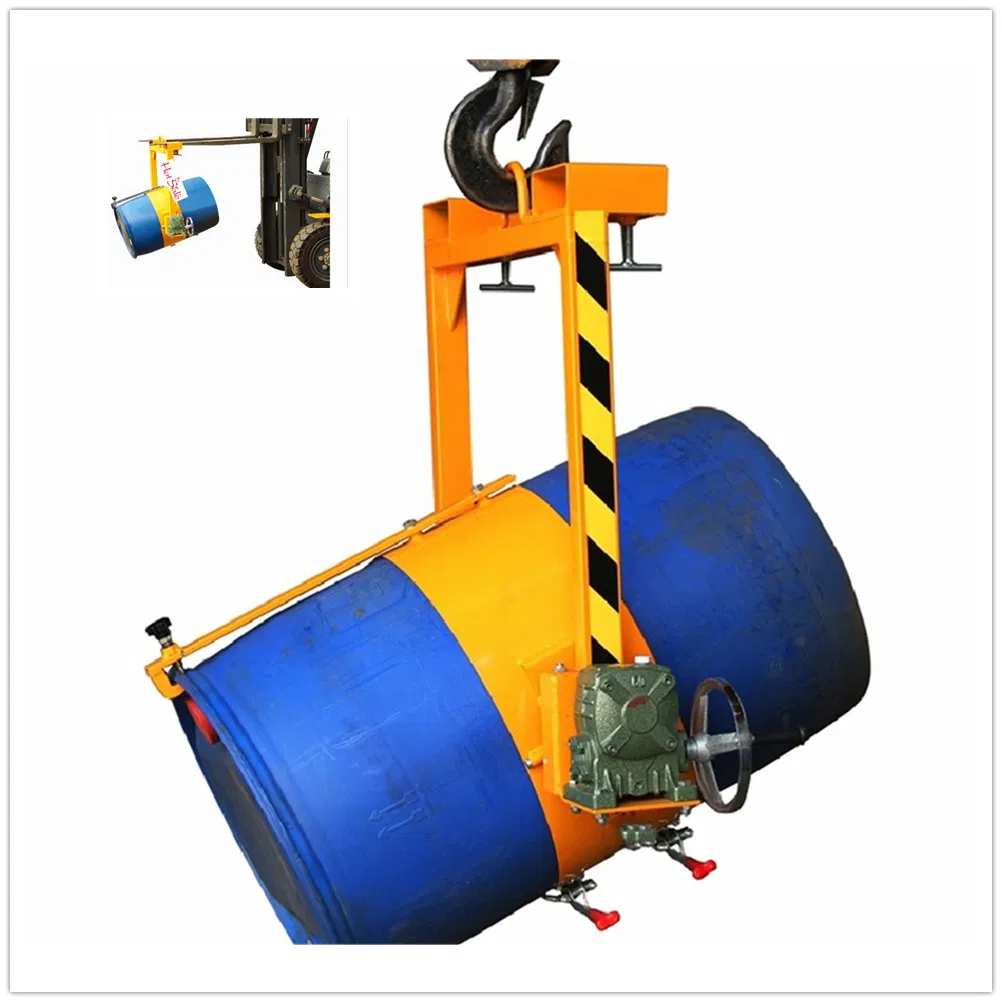

Rotated 360 degrees in either direction for controlled pouring;
Compatible with overhead hoists, cranes, or forklifts.

Technical Data

Model	Unit	Below Hook Drum Lifter LM800
Rated load capacity	kg	400
Net Weight	kg	44
Inner diameter of the single supporting leg	mm	150*55
Inside width of supporting legs	mm	420
Outside width of supporting legs	mm	720
Overall size	mm	900600950

Applications

The Forklift Mounted and Crane Mounted Type Tilting Drum Dispenser is widely applicable for handling drums in chemical plants and food plants. It is ideal for transferring, loading & unloading, charging, and compounding fluids such as dyes, paints, adhesives, petrol, and edible oils.

Service & Quality Assurance

Expertise: More than 10 years of professional experience in material handling industry.
OEM/ODM: Custom design and production for non-standard parts available.
Inspection: 100% inspection for all finished products before shipment.
Packaging: Strong pallet and carton packaging to ensure perfect arrival condition.
Support: Original customized designs for complete coating and handling lines.
Warranty: One-year warranty period with prepared spare parts.

Frequently Asked Questions (FAQ)

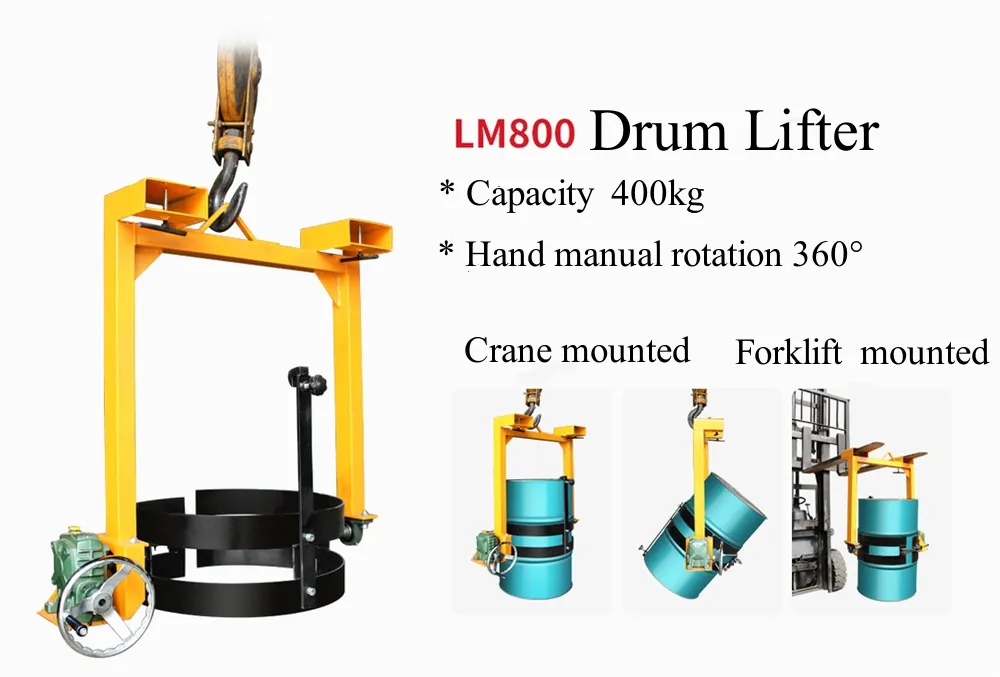

1. What is the maximum load capacity of the LM800 Drum Lifter? The LM800 Below-Hook Drum Lifter has a rated load capacity of 400kg, making it suitable for most standard industrial drum handling needs.

2. Which types of drums are compatible with this equipment? It is specifically designed to handle 55-gallon steel drums or 200-liter double-closed plastic drums.

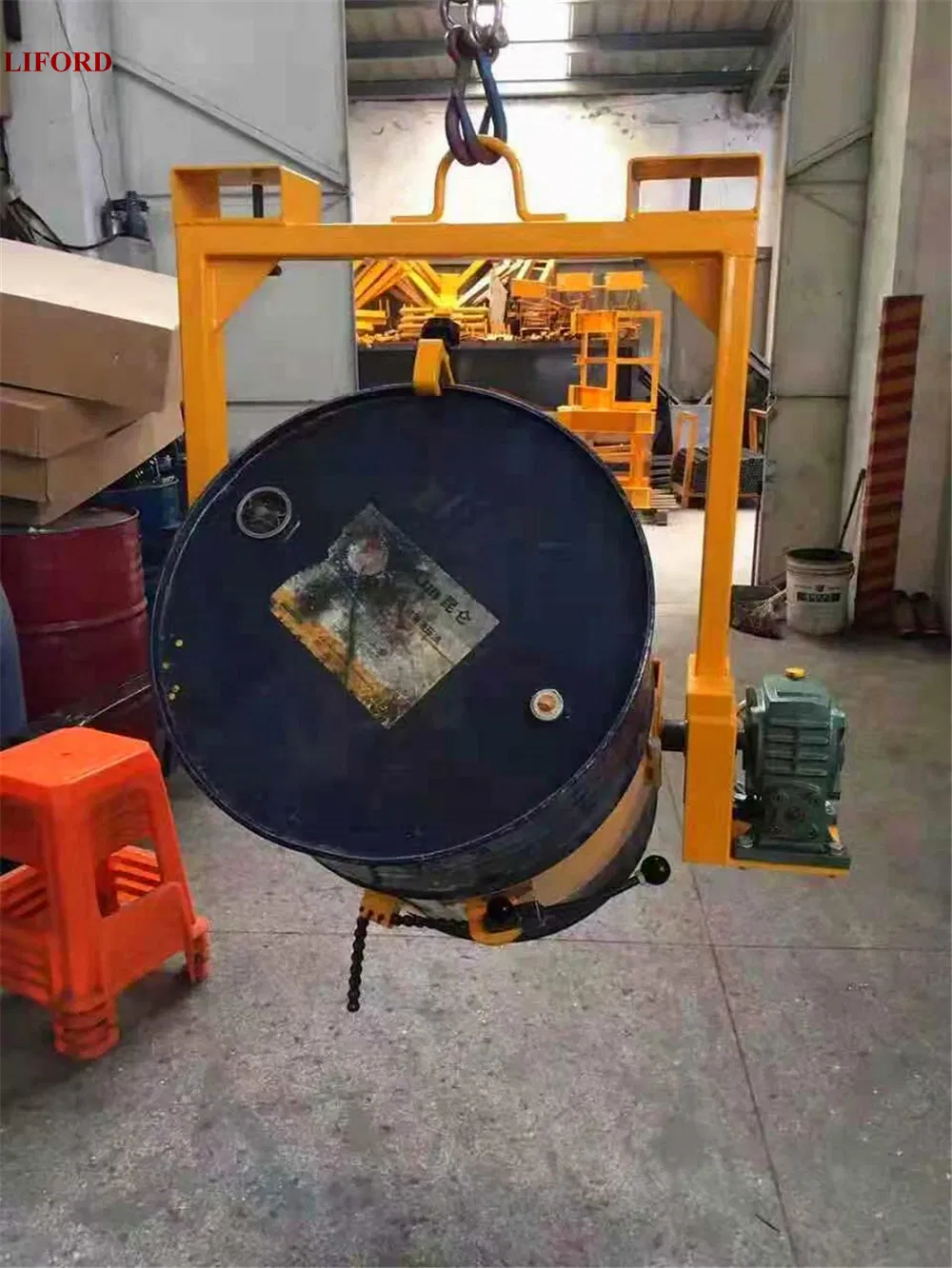

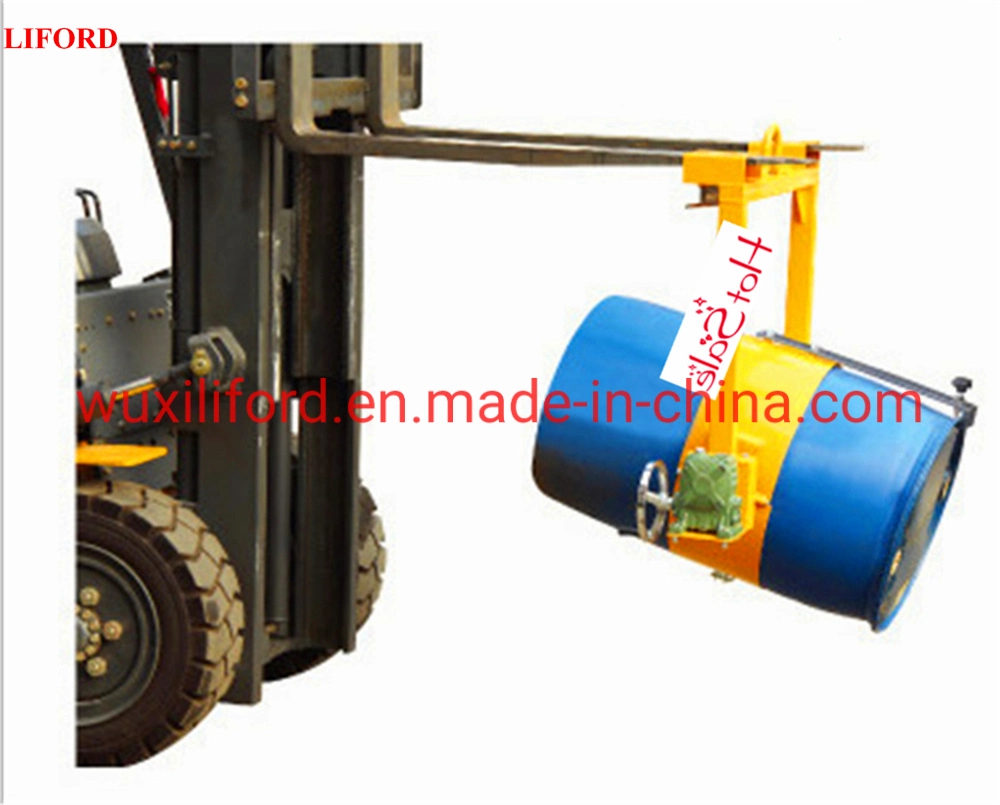

3. Can the LM800 rotate the drum for pouring? Yes, it allows for a full 360-degree rotation in either direction, enabling precise control during pouring and dumping operations.

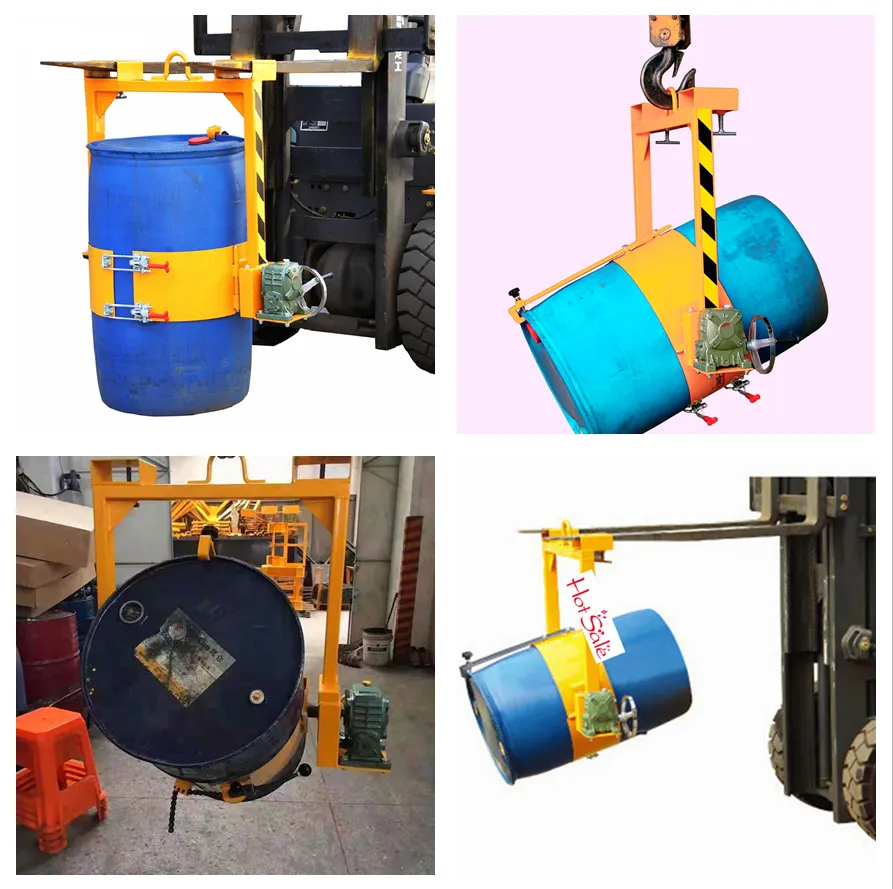

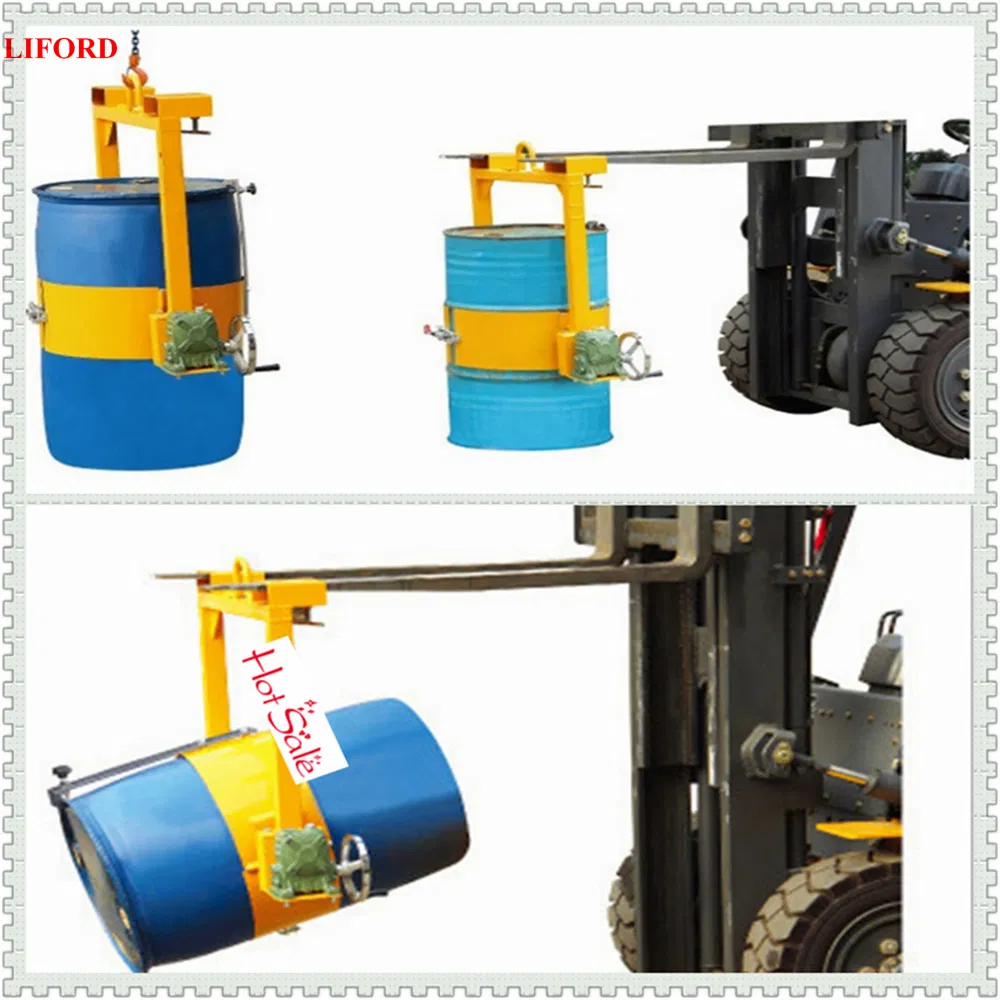

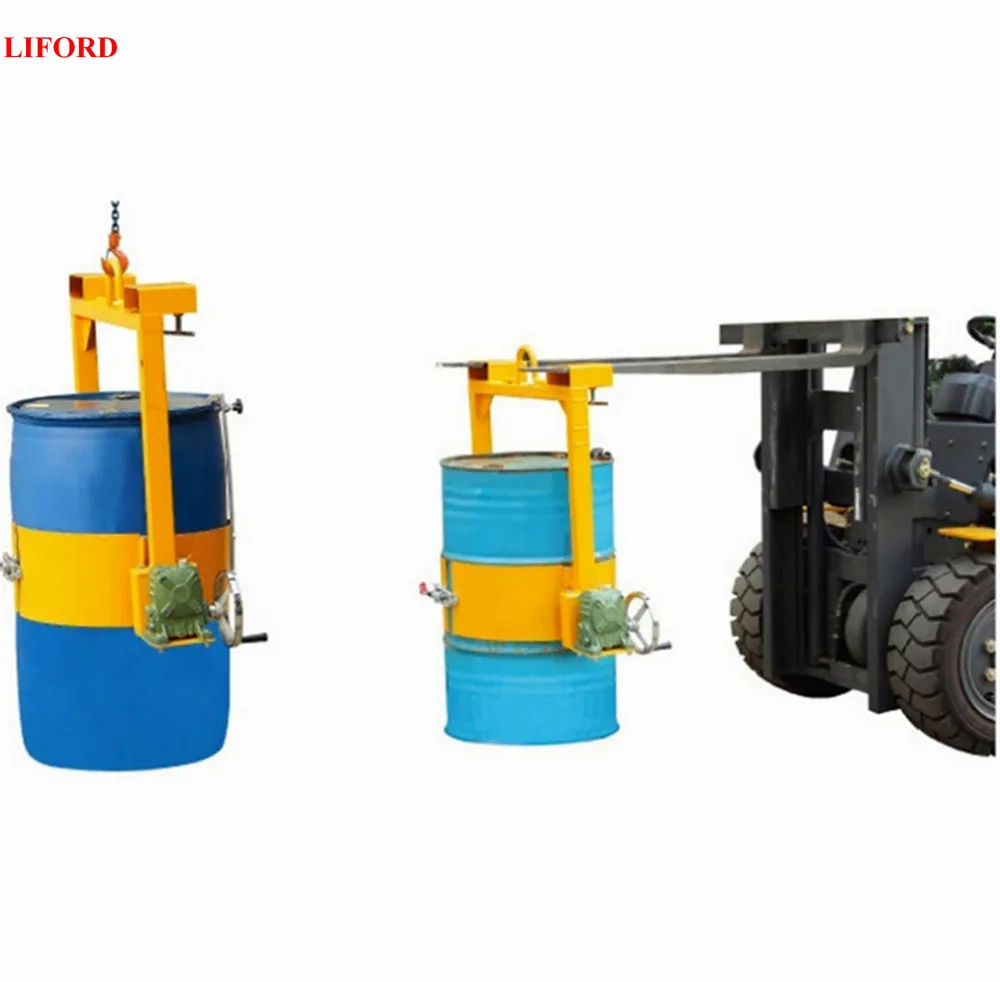

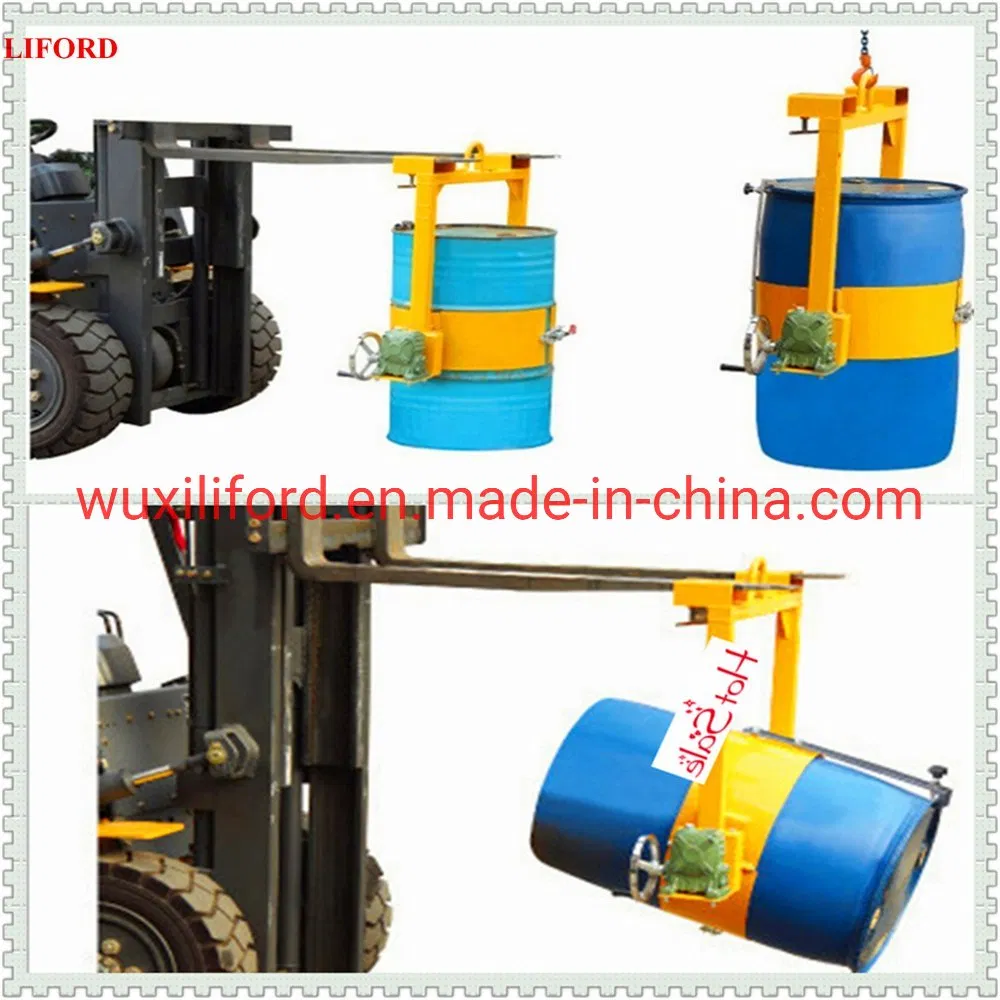

4. Can this unit be used with both forklifts and cranes? Absolutely. The LM800 is a versatile below-hook type dispenser that can be easily mounted on both forklift attachments and overhead crane hooks.

5. Is there a safety mechanism to prevent accidental tilting? Yes, the unit features a positive tilt lock on the drum saddle which holds the drum securely in an upright position during transit or in a horizontal position when needed.

6. What is the material and surface finish of the lifter? The lifter is constructed from high-quality carbon steel and finished with a durable powder coating (standard yellow) to ensure long-term resistance to wear and corrosion.
