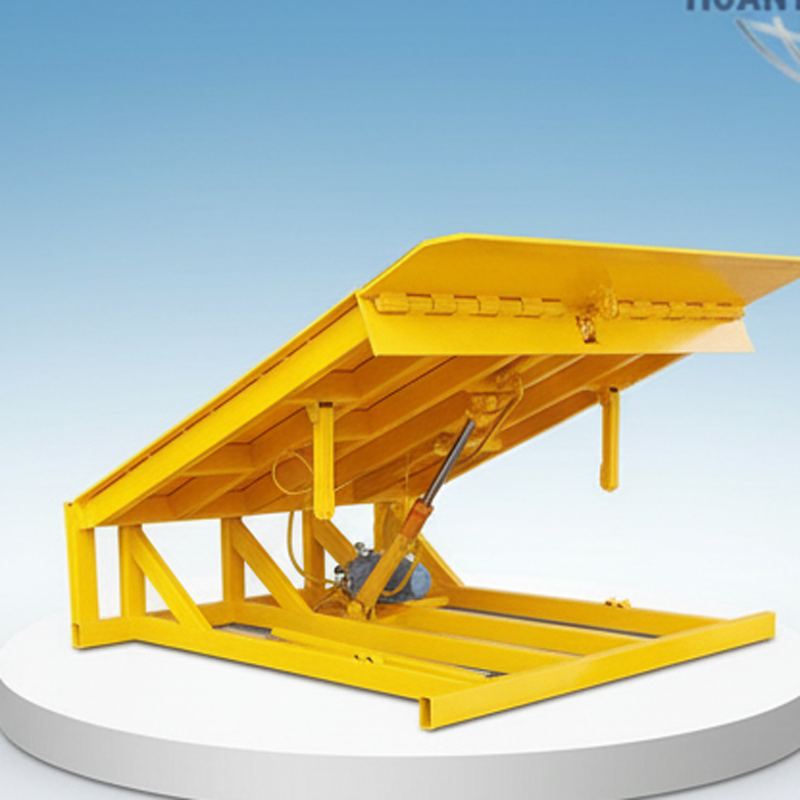

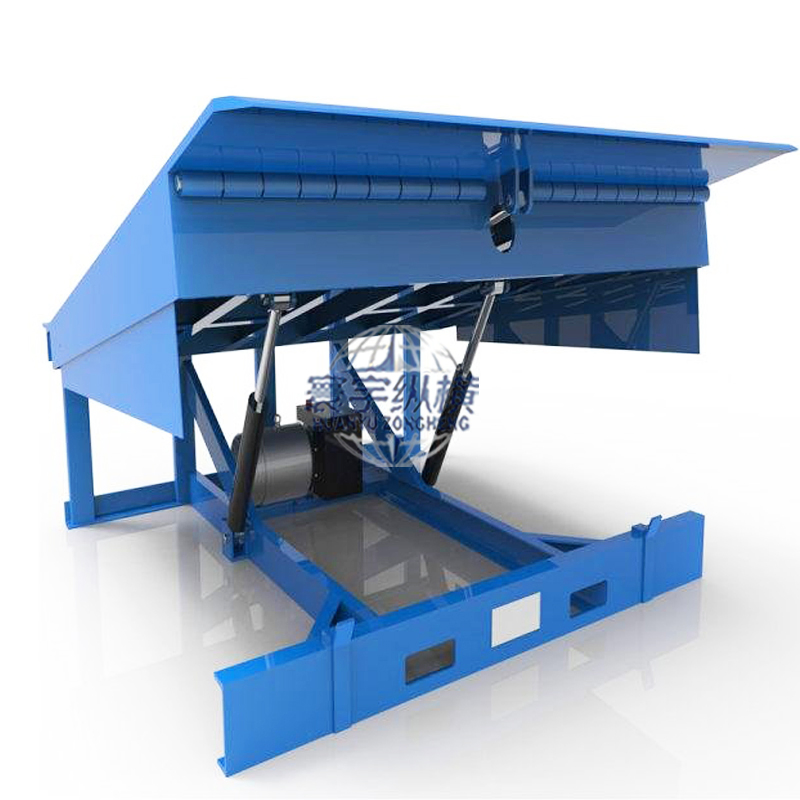

Main Shaft Wholesale Loading Equipment Dock Leveler Price Fixed Hydraulic Platform
The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential. We offer a wide range of dock levelling solutions, including Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

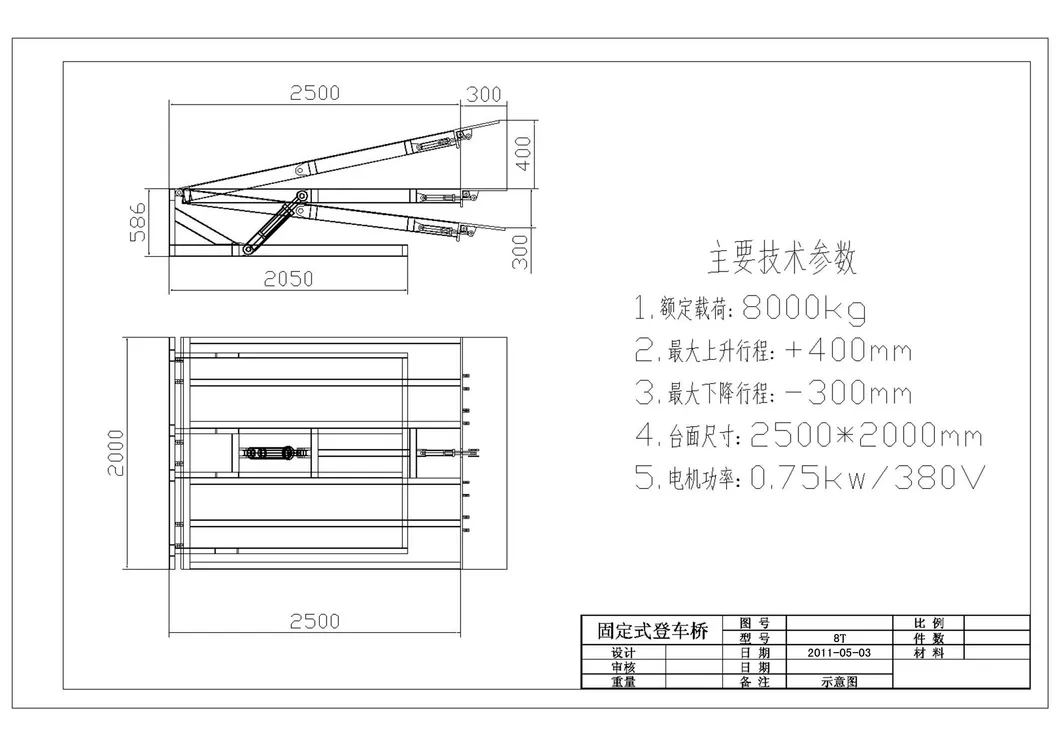

| Model | Capacity (T) | Platform Size | Distance | Lip board size | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ6 | 6 | 2000*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2000*2000mm | 100 | 400mm | 0.75KW |

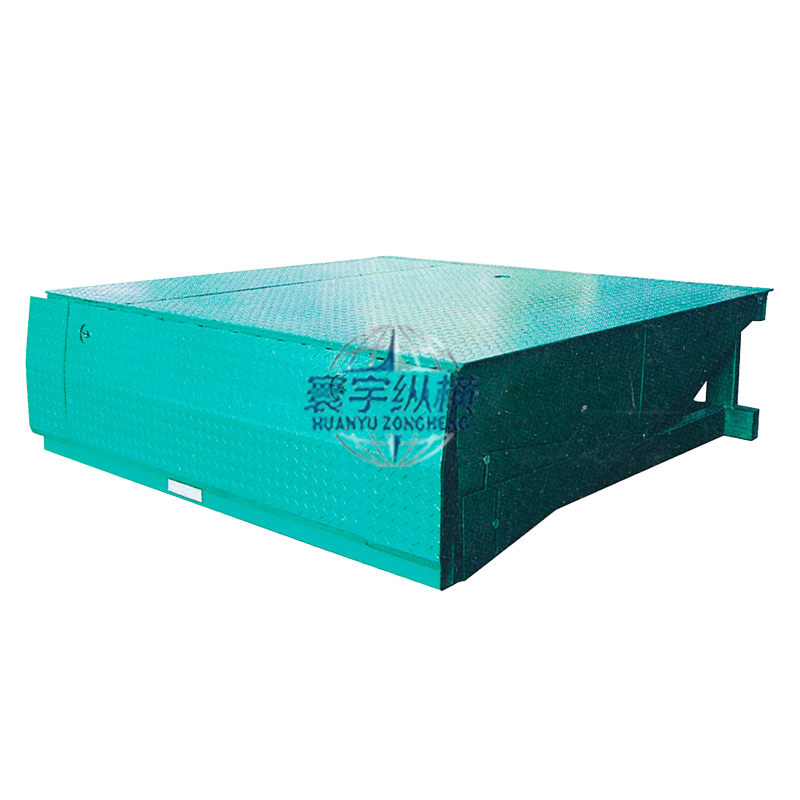

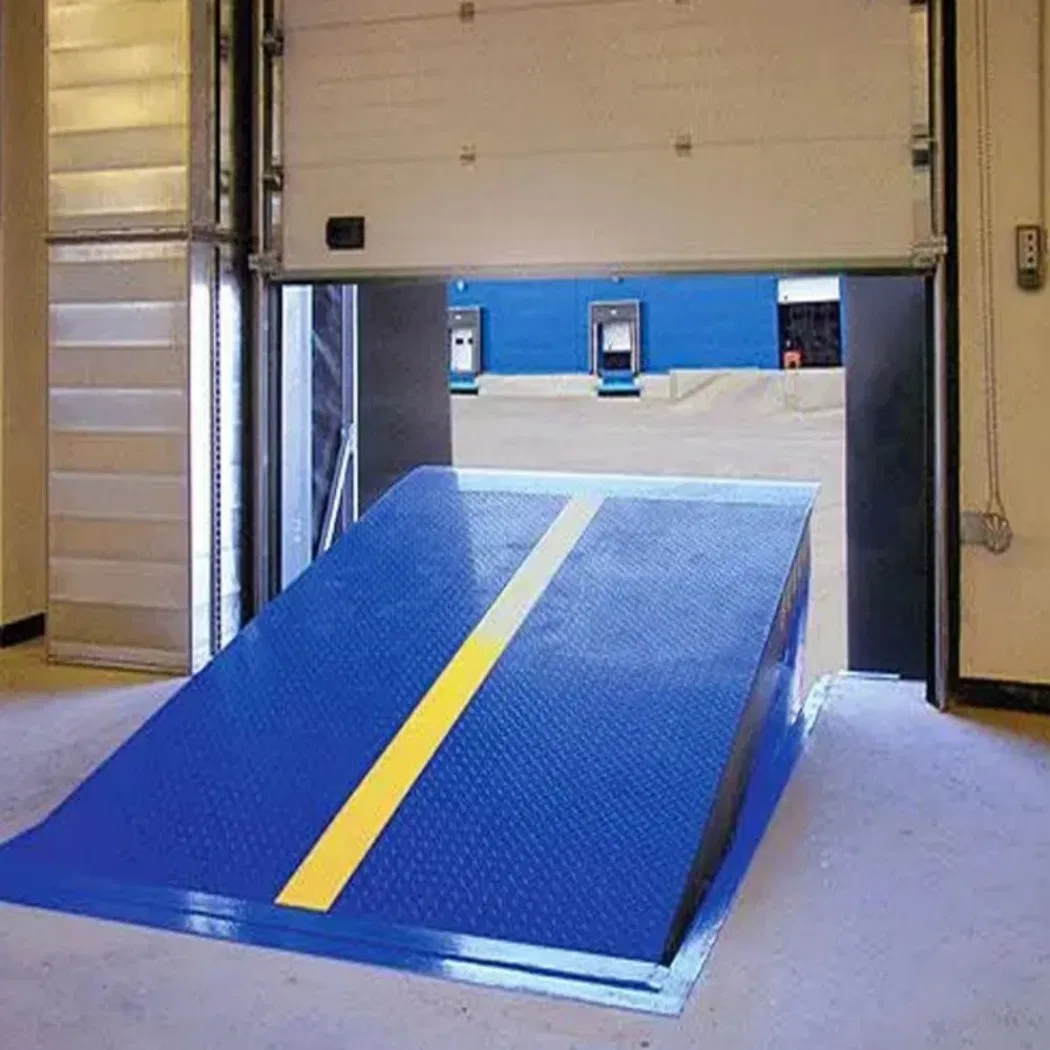

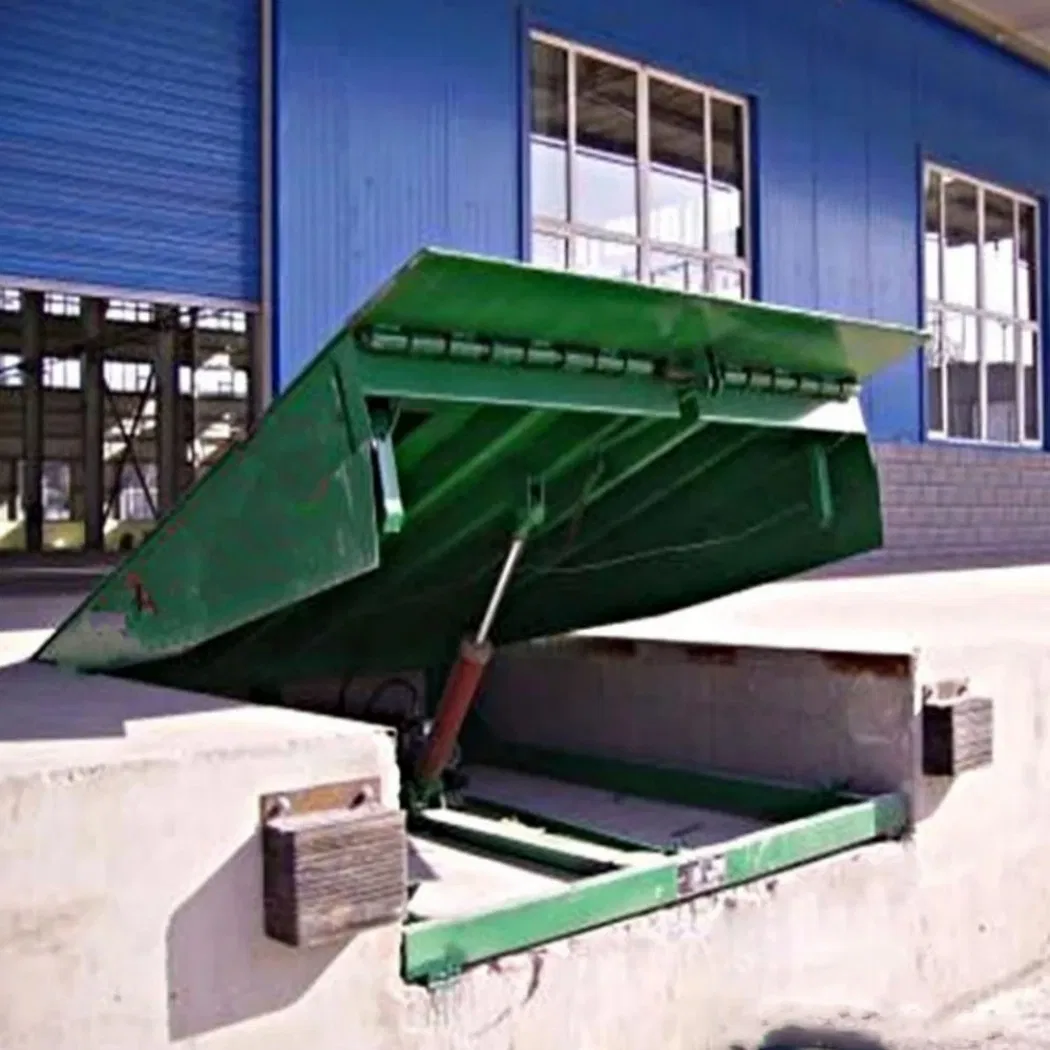

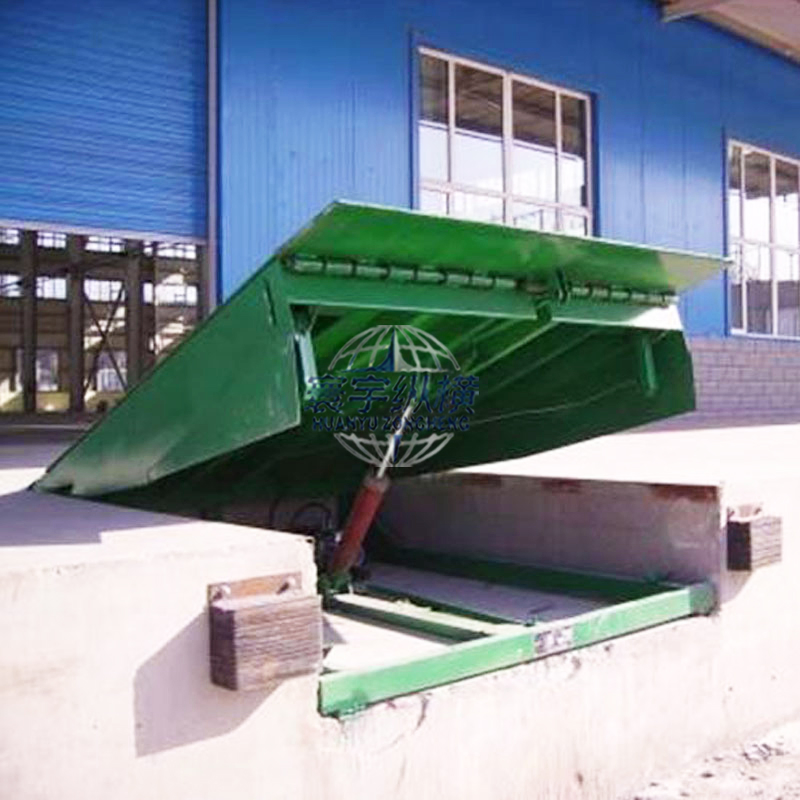

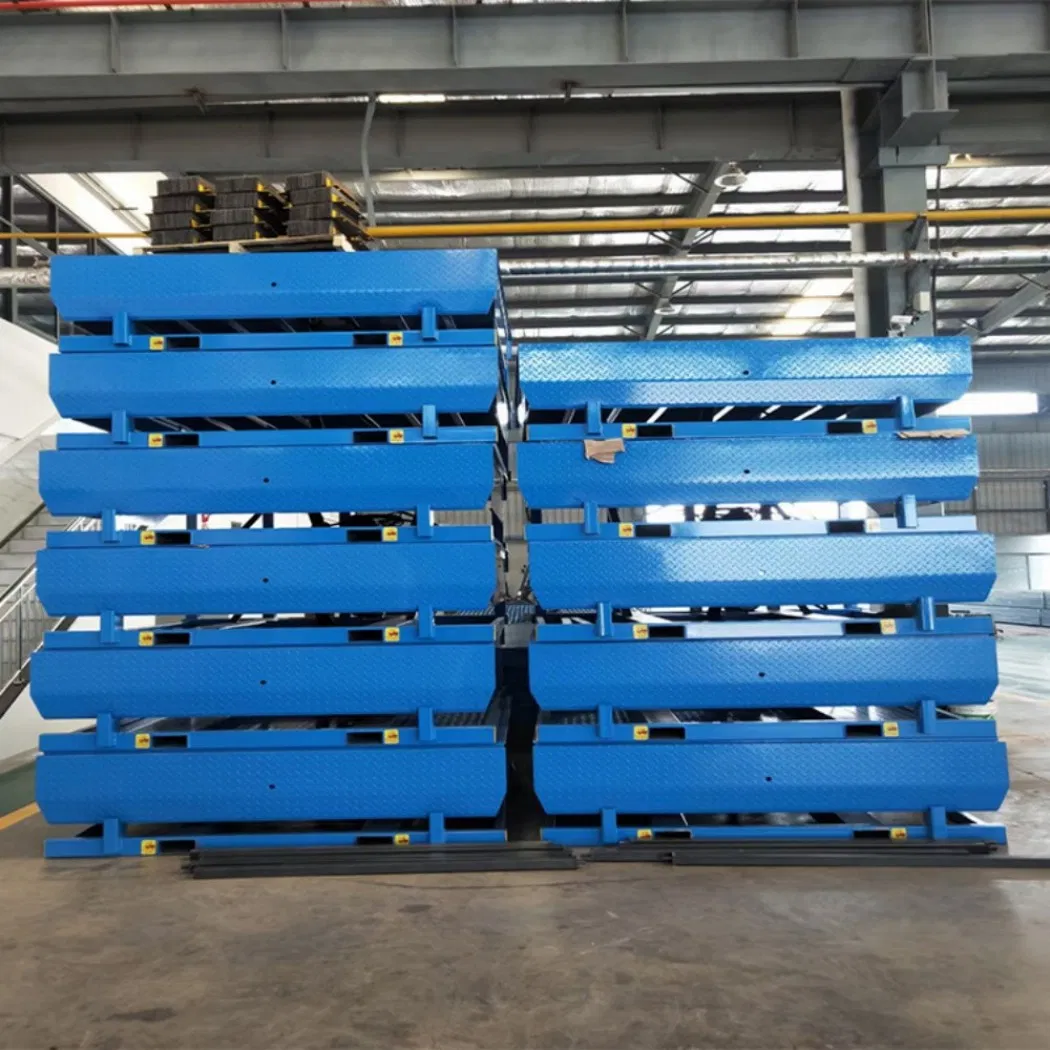

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.

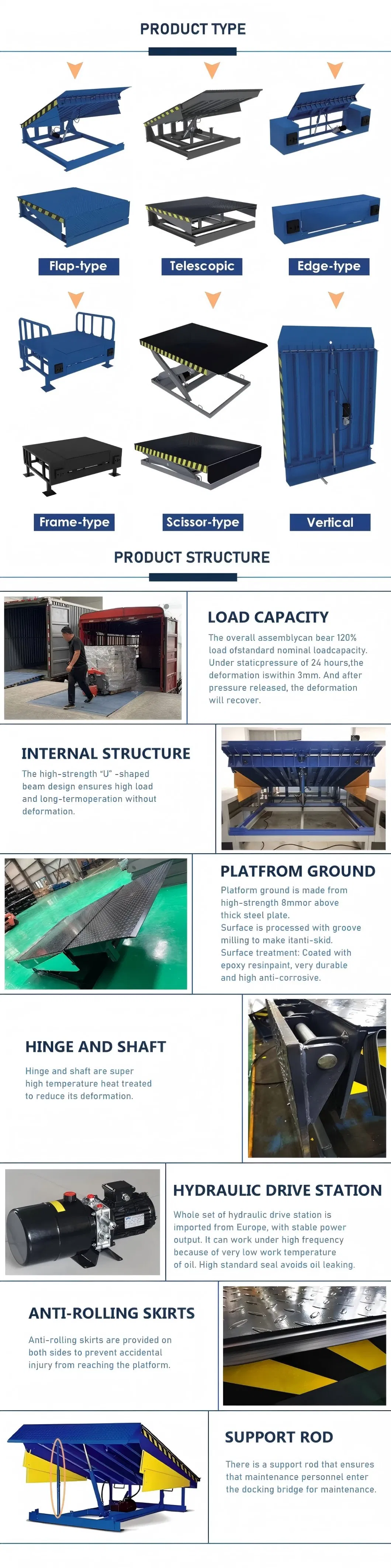

| System | Free maintenance design idea for a long run using application. |
|---|---|
| Design | Hydraulic driving system will lead to the operation of the main deck and lip. Hydraulic Velocity fuse (≤75 mm) makes the leveler stop automatically during heavy loading. |
| Safety | Full range foot guard to ensure safety. Penetrating safety support bar included. Front tubular hinge and galvanized long shaft treatment prevent rust. |
| Structure |
• Main dock plate made of 8mm high strength embossed non-slip steel. • Deck plate adopts 8 Channels Unique 14# I-beam steel. • 15mm thickness extension lip plate. • Double wire mesh hydraulic oil tube (max load 48MPA). |

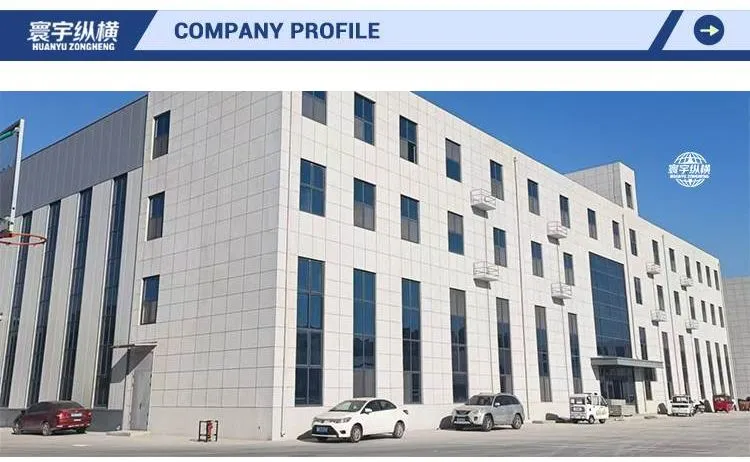

We are a modern technology-based manufacturing enterprise integrating design, production, sales, installation, and after-sales service. Our product portfolio consists of multiple series, mainly including Wrapping Machines, lifting work platforms, and vehicle boarding bridges. We primarily undertake the design and production of various non-standard products, offering a wide range of specifications with guaranteed quality.
The equipment produced has successively obtained ISO system certification, CE safety certification, and multiple national invention patents. Complying with national industry standards, the products are widely used in industries such as glass products, papermaking, chemicals, building materials, textiles, electronics, and metallurgy. Our products are sold worldwide and have received high praise from international customers.
