Basic Info Overview
Model NO.DYMG
ApplicationWorkshop, Shipboard, Warehouse, Building Crane
Lift MechanismLift Chain
Carrying CapacityMiddle-Level
Driven TypeHydraulic
FeatureExplosion-Proof
CertificationGS, CE, ISO 9001
Load Capacity6-15t
Control ModelManual, AC, DC
Adjustable Height1.1-1.8m
MaterialHigh Strength Steel
OriginChina
Product Description

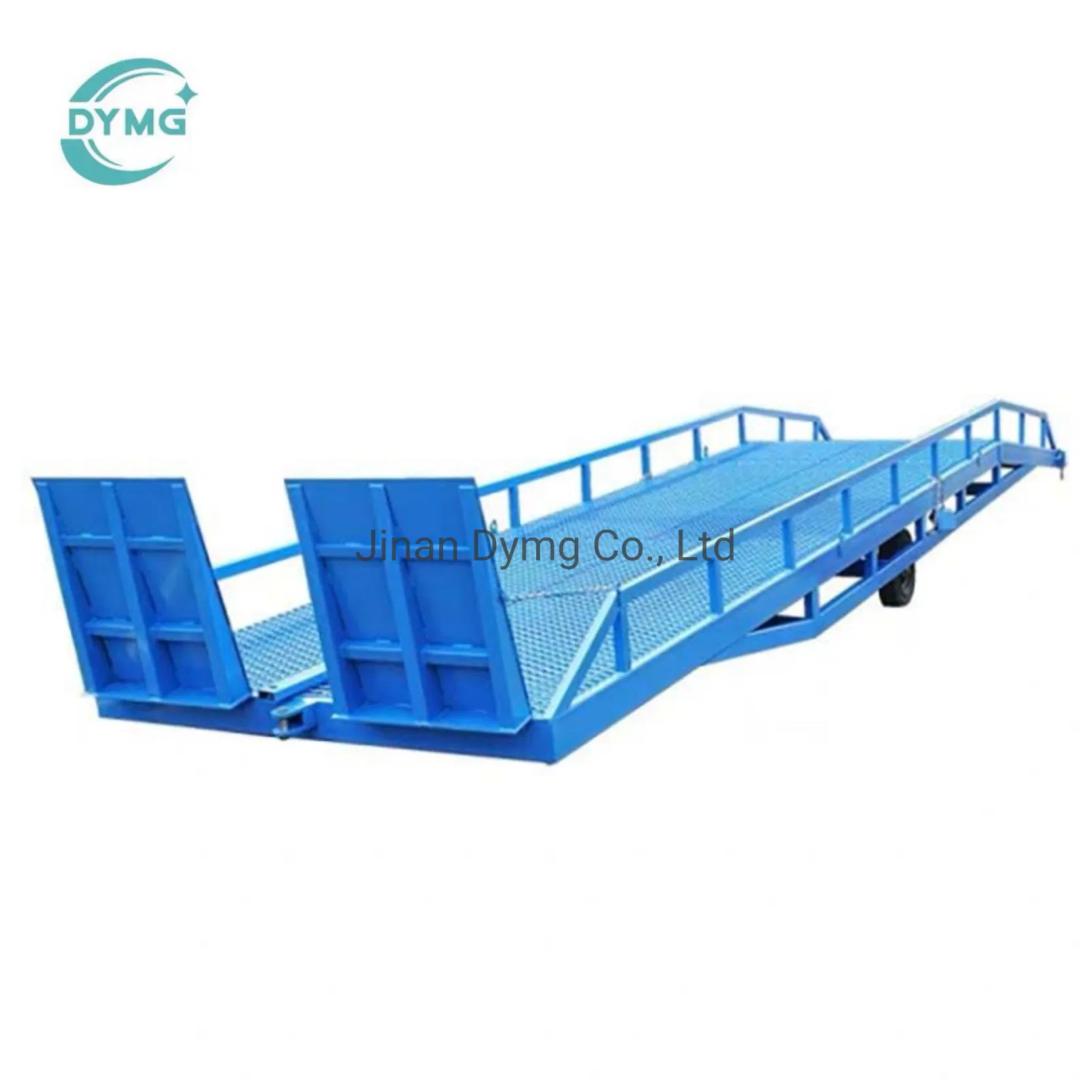

Mobile hydraulic yard ramp is a kind of accessorial equipment which combines using with forklift for loading and unloading goods. With it, the forklift can go directly inside the truck. Only one man operation is enough, fast and safely loading and unloading the goods. It helps reduce labor force, improving working efficiency, and faster material circulation for more economic benefits.

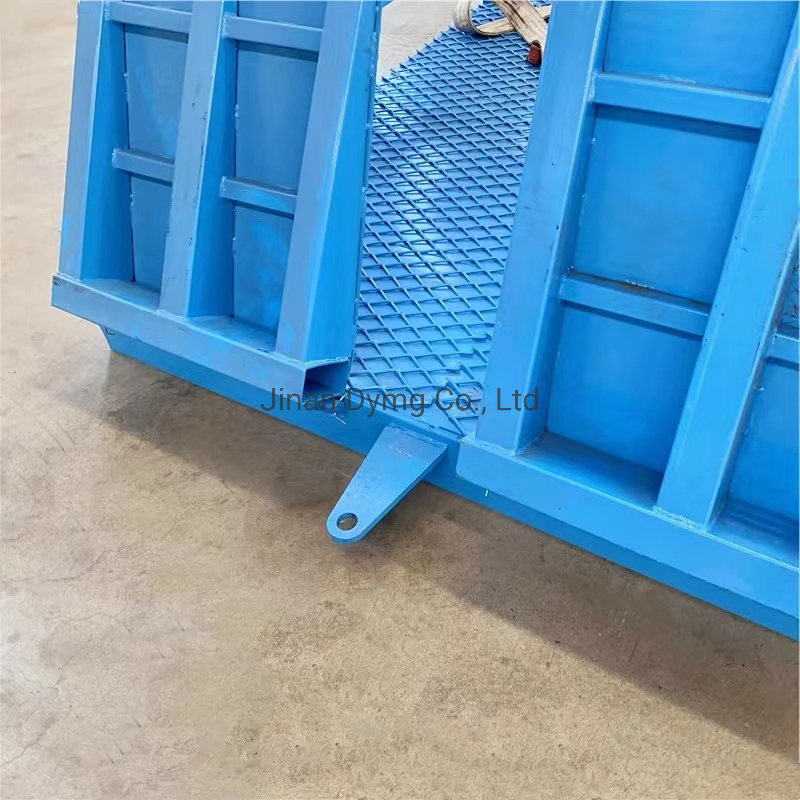

The surface adopts a special diamond-shaped mesh plate, which has reliable strength and ensures long-term use without deformation. Its diamond-shaped mesh structure ensures excellent anti-slip performance, giving the forklift better climbing ability and maneuverability, even in rainy and snowy weather.
Product Parameters
| Description |
DYMG-8T |
DYMG-10T |
DYMG-12T |
DYMG-15T |
| Load capacity (T) | 8 | 10 | 12 | 15 |
| Overall size (m) | 11.4*2.1*1.1 | 11.4*2.1*1.1 | 11.4*2.1*1.1 | 11.4*2.1*1.1 |
| Adjustment range (m) | 1.1-1.8 | 1.1-1.8 | 1.1-1.8 | 1.1-1.8 |
| Ramp length (mm) | 7500 | 7500 | 7500 | 7500 |
| Plane size (mm) | 2500 | 2500 | 2500 | 2500 |
| Inside width (mm) | 2000 | 2000 | 2000 | 2000 |
| Steel plate thickness (mm) | 3 | 4 | 5 | 6 |
| Steel mesh thickness (mm) | 6 | 6 | 8 | 8 |
| Solid tire | 600-9 | 600-9 | 700-9 | 700-9 |

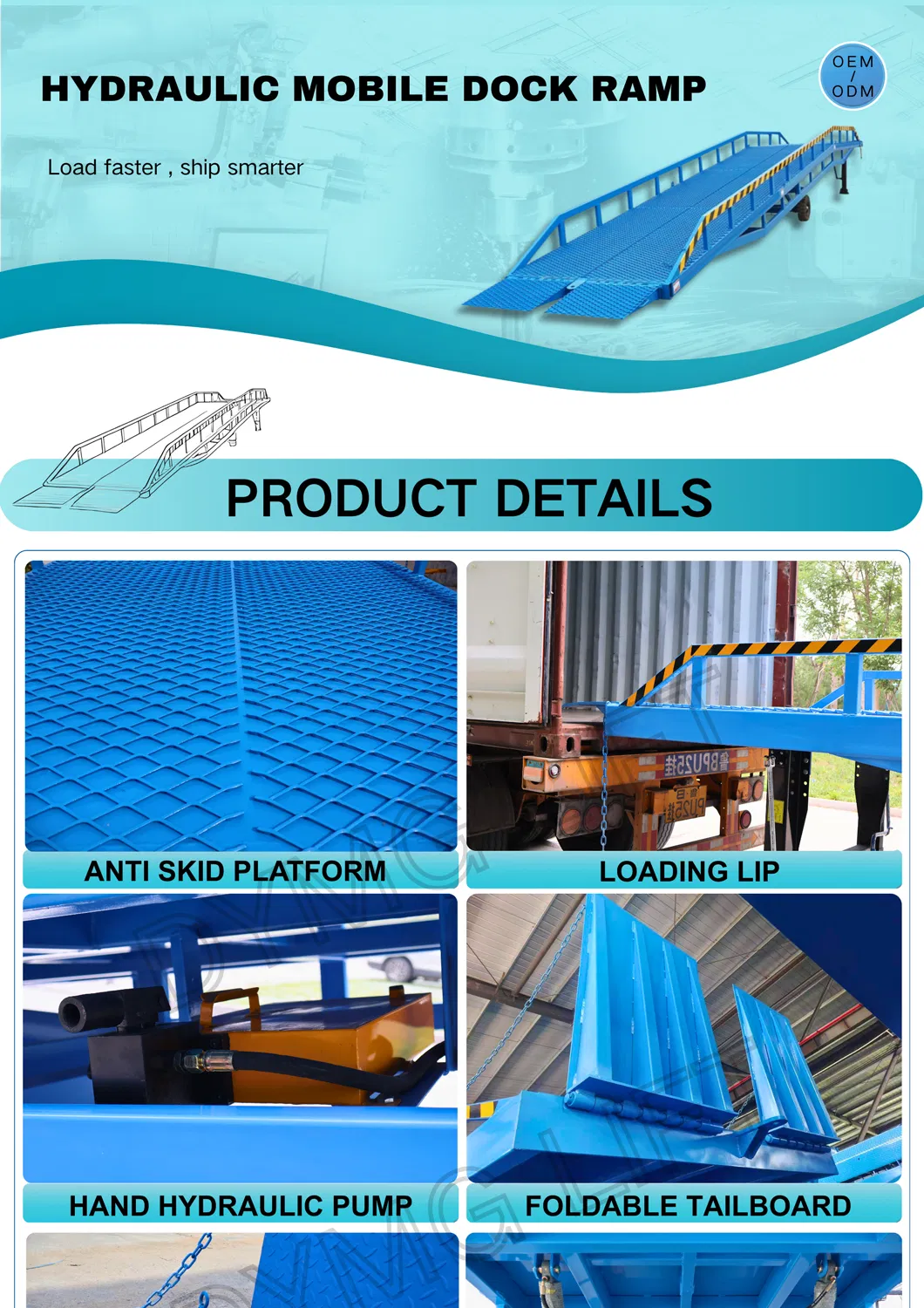

Our Advantages

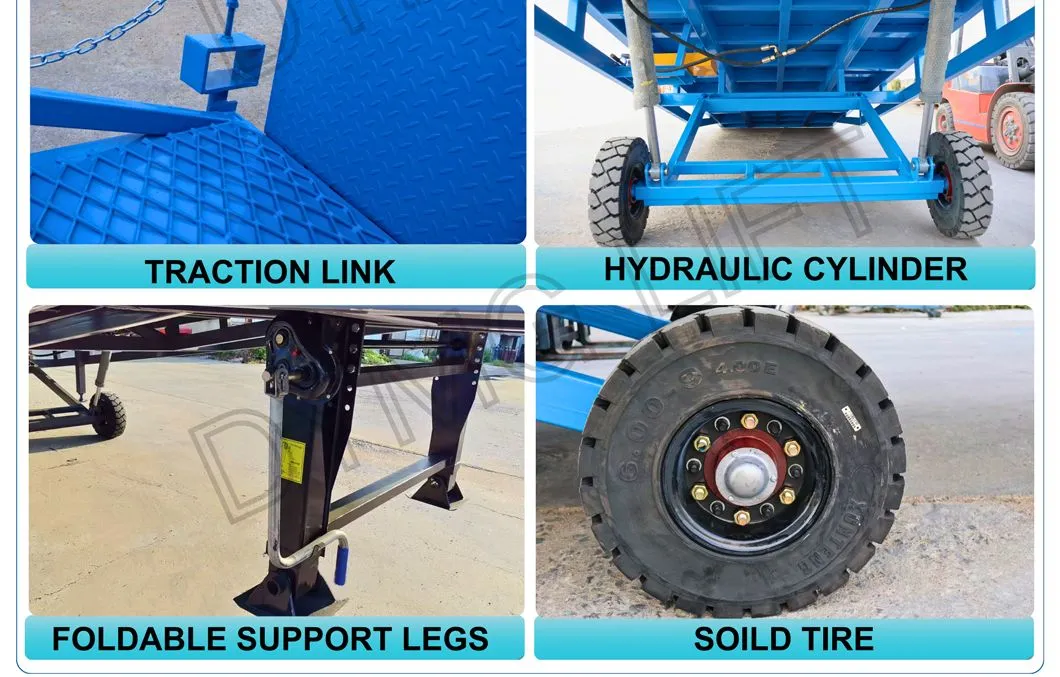

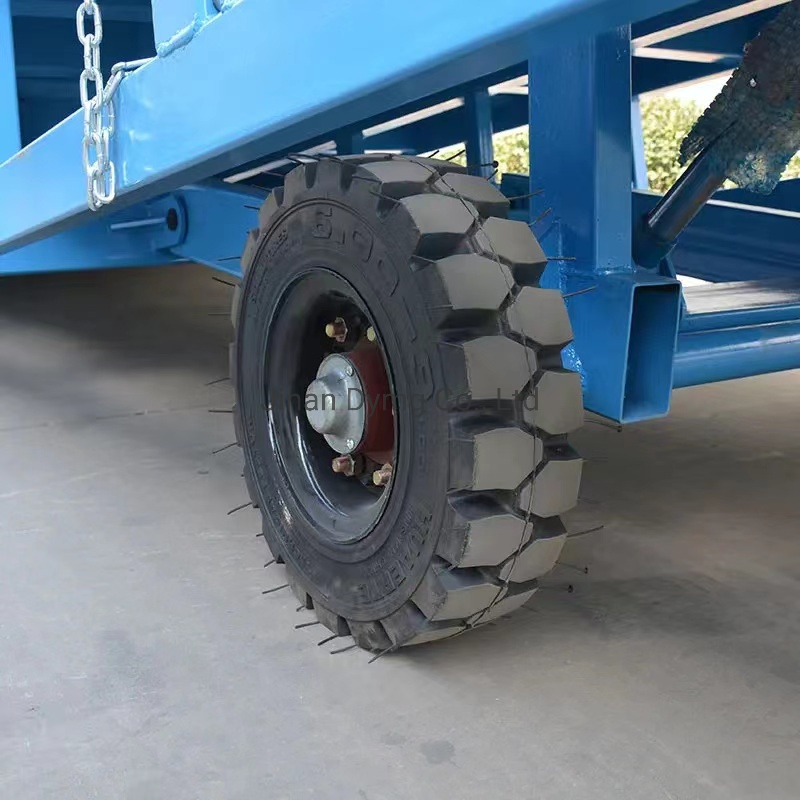

1. Heavy-duty Mobile TyreMobile wheels adopt solid tyres, no need for inflation, durable, and cooperate with brake pads to guarantee operation safety.
2. Adjustable Height Supporting LegsPrevents vehicle gravity from concentrating on the tail, ensuring operation safety for different vehicle heights.

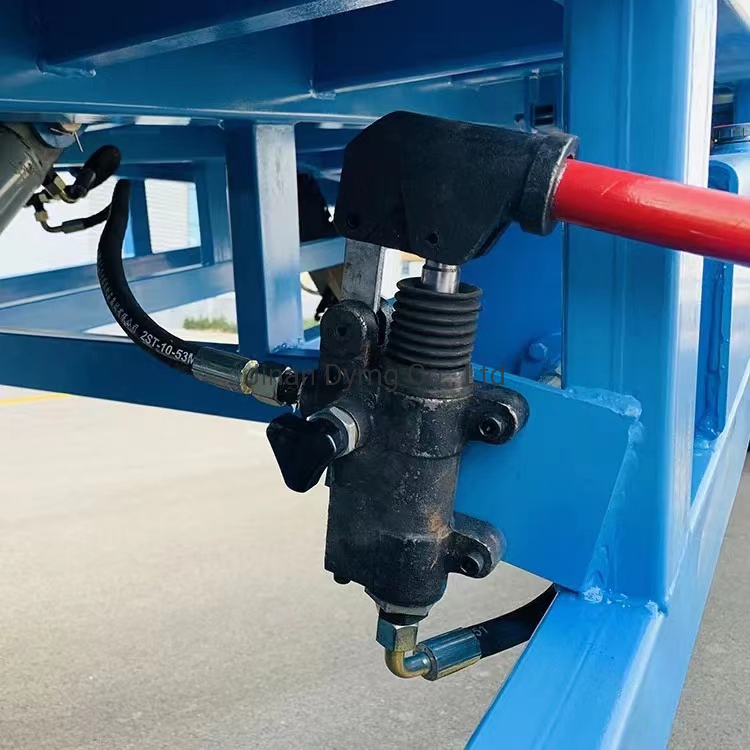

3. Manual Hydraulic Elevator SystemEquipped with a handle hydraulic device for direct height adjustment without the need for electricity.
4. Fold-down Transition BoardThe tail and transition plate with folding hooks allow for convenient mobile climbing.

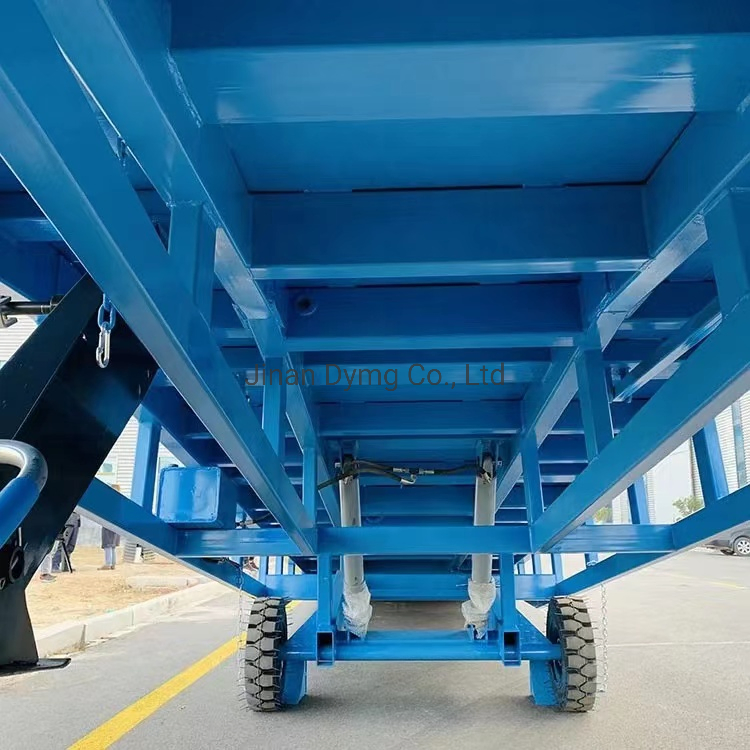

5. Bridge Body StructureHigh bearing capacity using high-strength manganese steel for large carrying durability.
6. Antiskid Steel NetsSpecial rhombic grid plate ensures excellent slip resistance even in rain or snow.

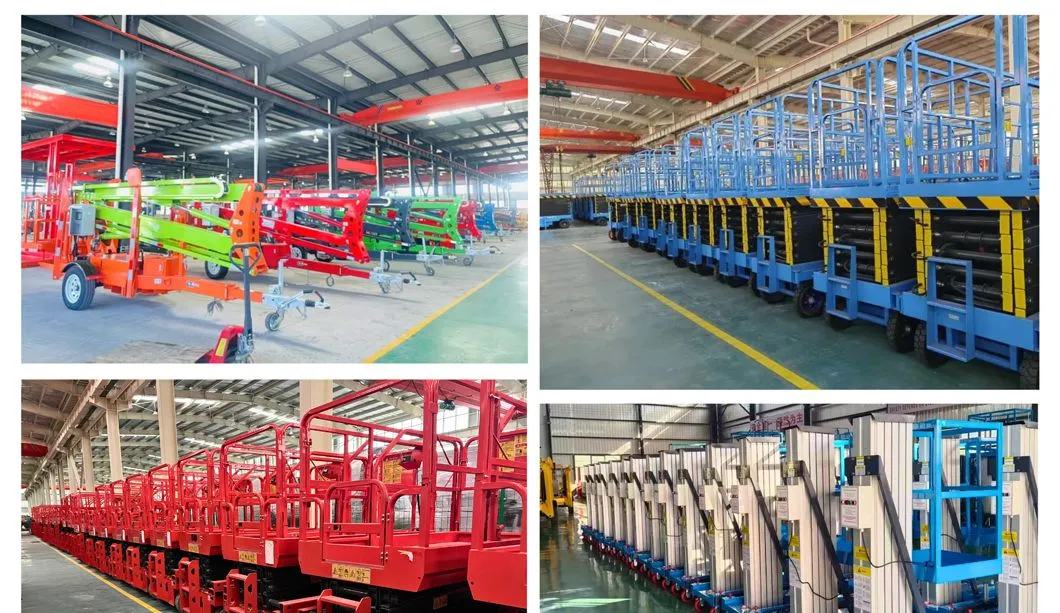

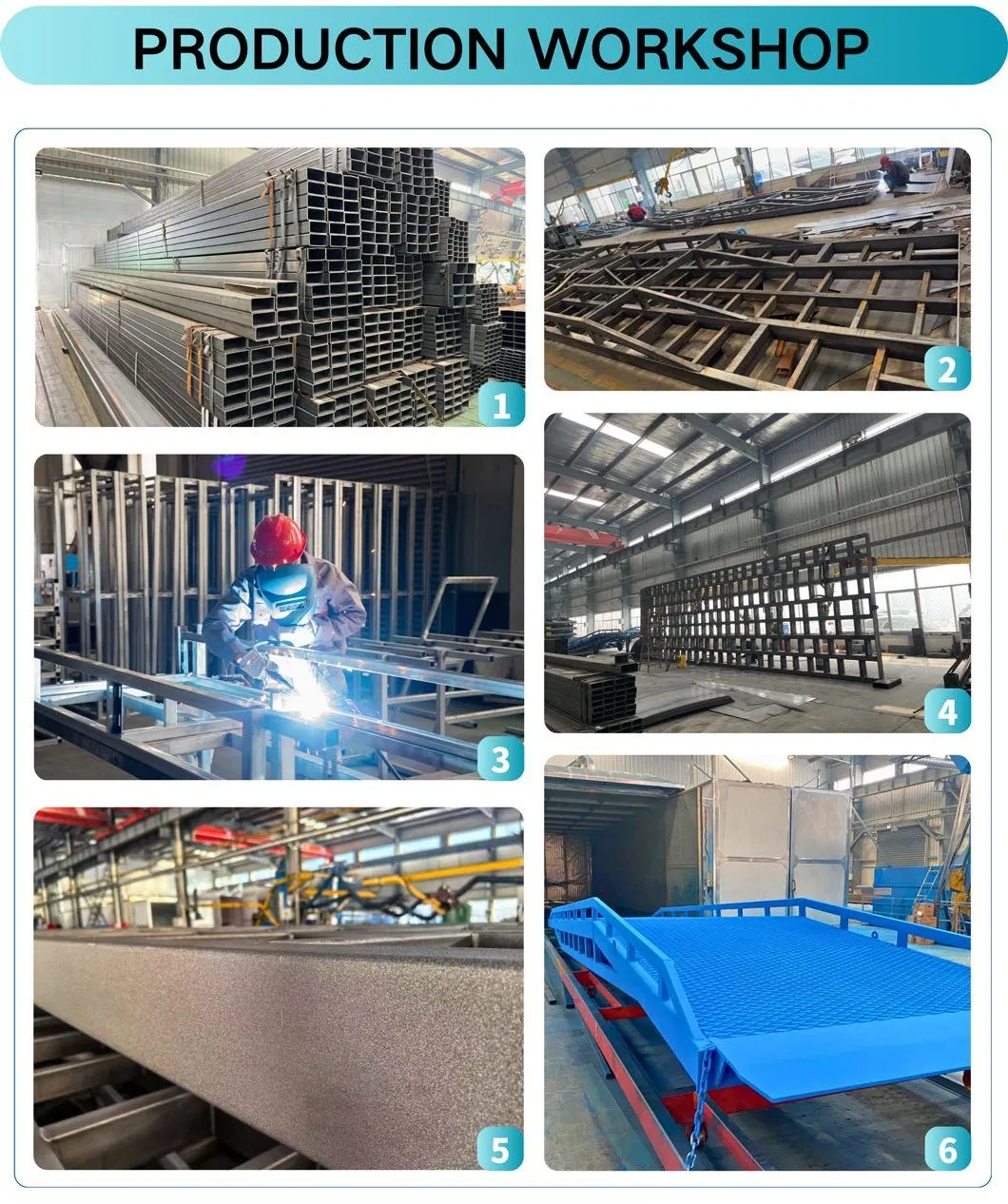

Production & Capability
As a professional manufacturer of hydraulic lifting platforms in China, our factory features advanced production equipment, strong technical force, and reasonable technological processes. Our systems utilize high-quality components, including explosion-proof devices and hydraulic self-locking mechanisms.
Our products are widely used in plant maintenance, industrial installation, warehouse management, aviation, and more. We offer scissor lifts, aluminum alloy mast lifts, boom lifts, car lifts, and mobile ramps, all conforming to national industry standards and exported to over 150 countries.
After Sales Service
- ✓ User-friendly English manual for machine operation and maintenance.
- ✓ One year warranty for the whole machine without man-made faults.
- ✓ Free replacement parts for non-human factor problems during warranty.
- ✓ 24-hour technical support via email or telephone.
Frequently Asked Questions
What is the load capacity of the mobile yard ramp?
We offer different models with load capacities ranging from 6 tons to 15 tons to meet various industrial needs.
Does the ramp require electricity to operate?
No, it is equipped with a manual hydraulic system for height adjustment, allowing it to be used anywhere without a power source.
Can the ramp be used outdoors in bad weather?
Yes, the platform uses special antiskid steel diamond mesh, which provides excellent grip even in rainy or snowy conditions.
Is the height adjustable for different trucks?
Yes, the height can be adjusted between 1.1m and 1.8m, making it compatible with most standard container trucks and vehicles.
What kind of maintenance is required?
Maintenance is simple. Regularly check the hydraulic oil levels and lubricate moving parts. We provide a detailed English manual to guide you.
What is the warranty period?
We provide a one-year warranty for the entire machine covering all non-human-made faults.
