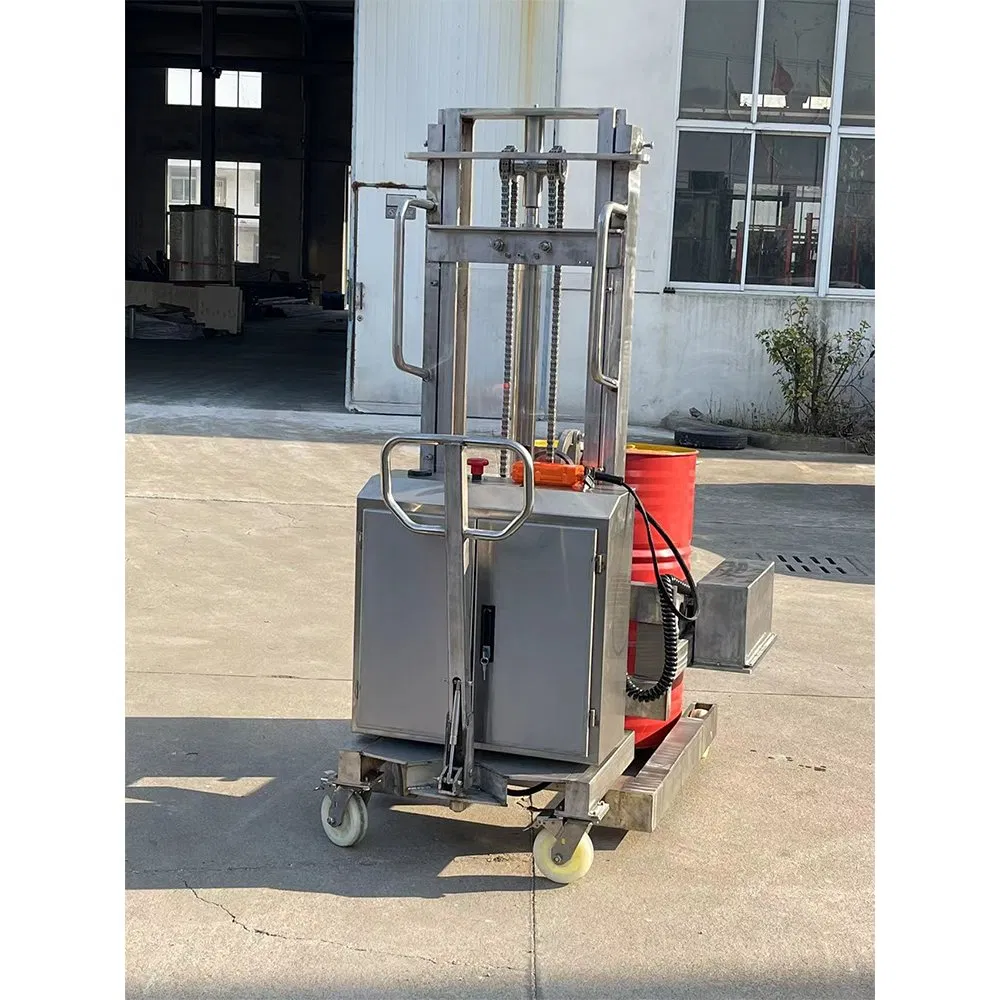

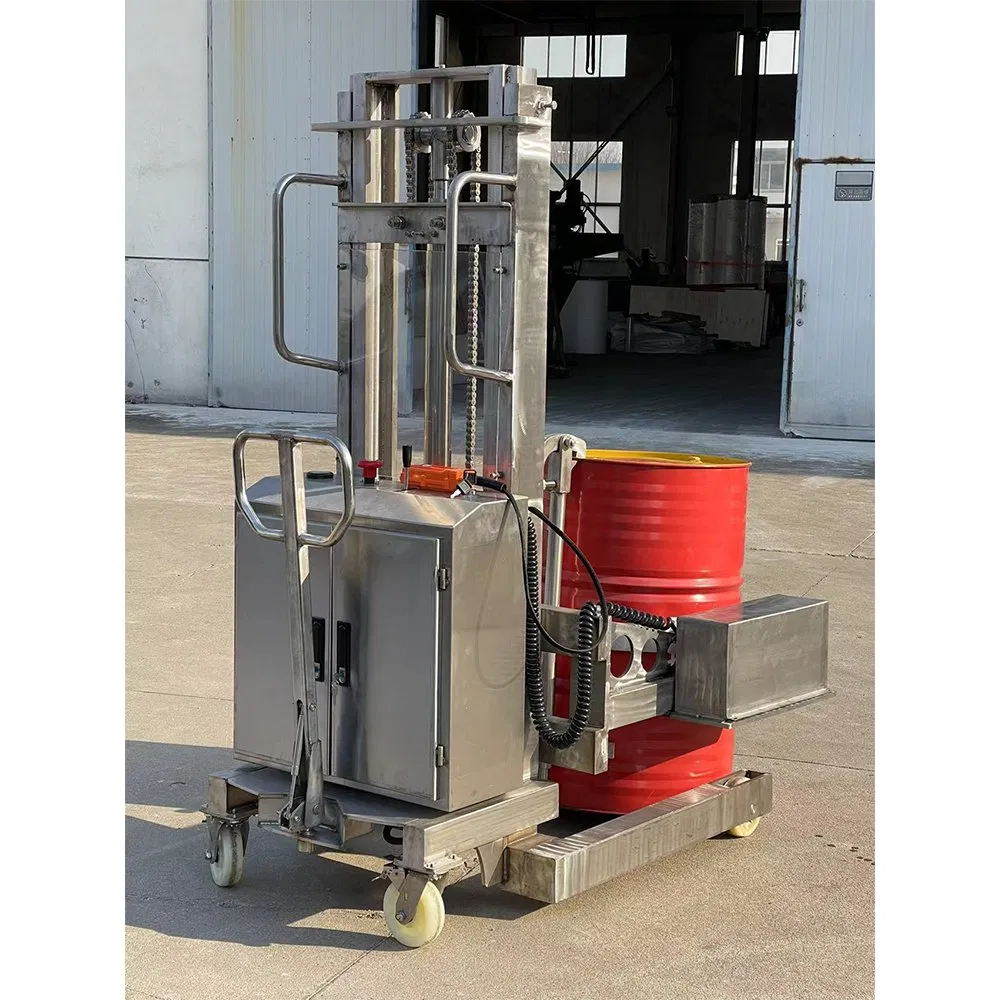

Oil Stacker 350kg Hydraulic Vertical Drum Lifter Automatic Drum Tilter for Lifter Drum

Type:	Electric Drum Lifter
Power Source:	Battery
Load Capacity:	350kg

i

Overview & Basic Info

Model NO.

HZSS350-4

Wheel Type

Nylon

Compatible Containers

Steel Drums

Application

Chemical

Lift Mechanism

Lift Chain

Driven Type

Hydraulic

Material

Stainless Steel

Acceptable Drum Size

55 Gallon Drum

Certification

GS, CE, RoHS, ISO 9001

Warranty

1 Years

D

Product Description

The semi electric stainless steel oil drum lifter is made of high-quality 304 stainless steel material and is a specialized oil drum handling equipment designed to meet the needs of oil bucket handling and lifting in various industrial scenarios, which can be supplied rated to a lifting capacity of 350kg. The stainless steel drum gripper is designed for lifting steel, plastic and fibreboard drums and barrels from 55 gallons.

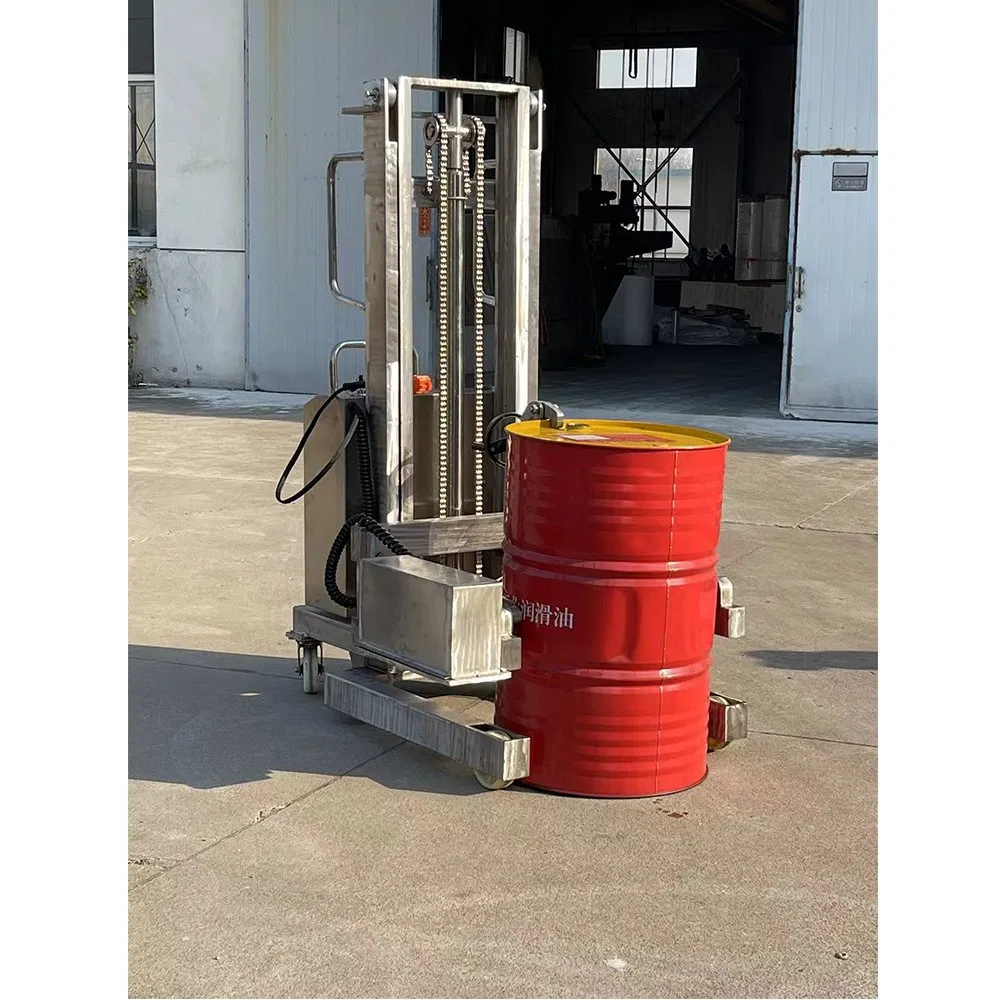

Oil Stacker 350kg Hydraulic Vertical Drum Lifter

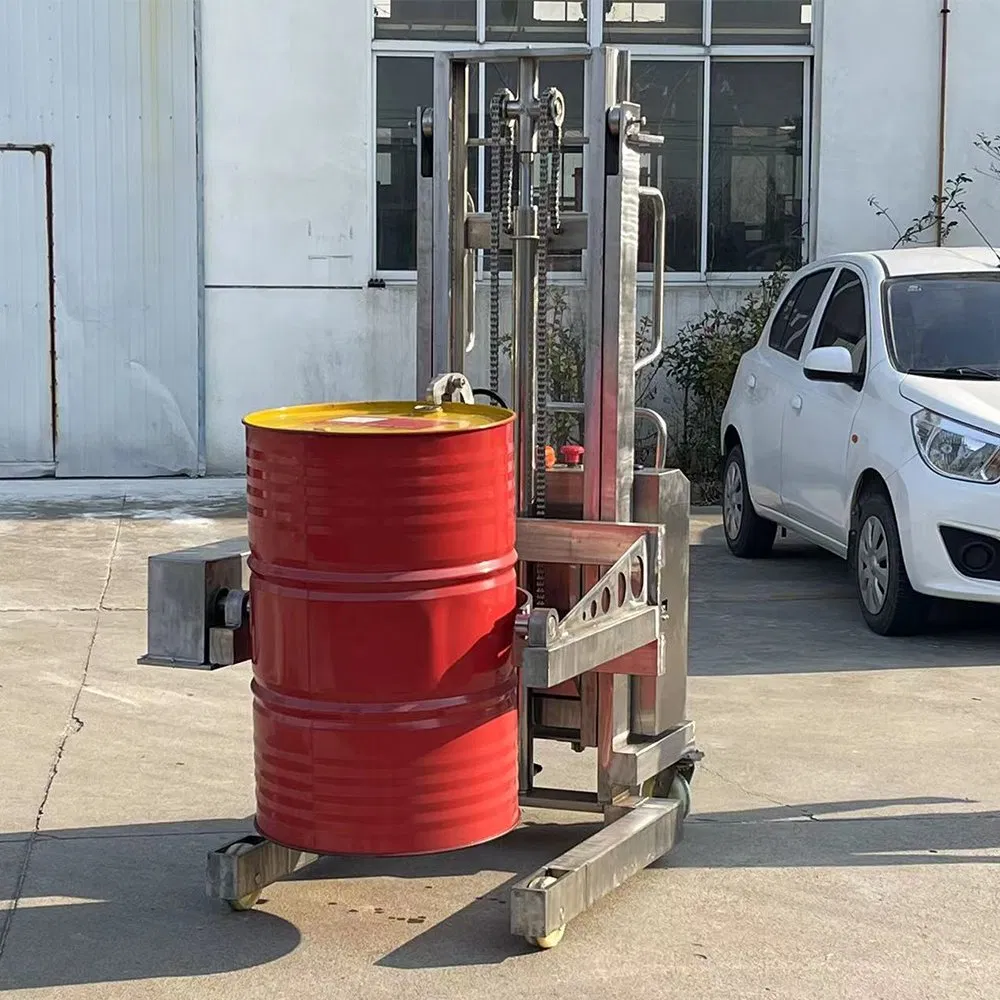

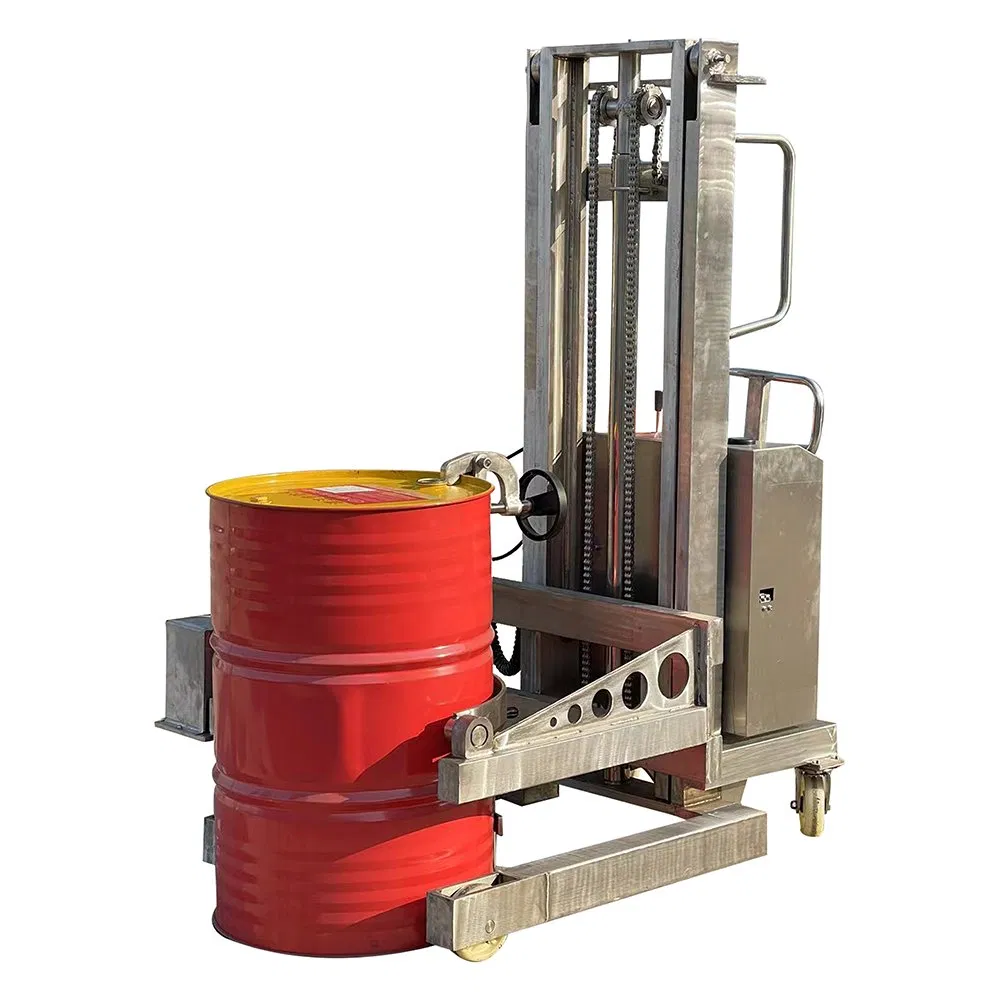

Semi Electric Stainless Steel Drum Lifter Detail

P

Product Parameters

Model	HZSS350
Rated Load Capacity	350 Kg
Lifting Height	1600 mm
Turning Radius	1910 mm
Min. Height of Clamp	580 mm
Max. Height of Clamp	2000 mm
Overall Length	1374 mm
Overall Width	975 mm
Drum Diameter	Φ 600 mm
Lifting Motor Power	1.6 Kw
Battery Voltage/Capacity	12V / 120Ah
Charger	12V / 15A
Rotating Range	> 180°
Net Weight	426 Kg

S

Manufacturing & Quality

F

Frequently Asked Questions

What is the maximum lifting capacity of this drum lifter?

The rated load capacity of this semi-electric drum lifter is 350kg, making it suitable for standard heavy-duty industrial drums.

Is the equipment suitable for use in chemical industries?

Yes, the unit is constructed from high-quality 304 stainless steel, which provides excellent corrosion resistance for chemical and food-grade environments.

What types of drums can this lifter handle?

It is specifically designed to handle 55-gallon steel, plastic, and fibreboard drums with a diameter of approximately 600mm.

What are the power requirements for the lifting mechanism?

The lifter uses a hydraulic system powered by a 1.6Kw motor and a 12V/120Ah battery, providing reliable lifting performance.

Does the lifter support tilting and rotating?

Yes, this model features a rotating range of over 180°, allowing for efficient pouring and positioning of drums.

What is the maximum lifting height?

The unit can lift drums to a maximum height of 1600mm, with the clamp reaching up to 2000mm at its highest point.
