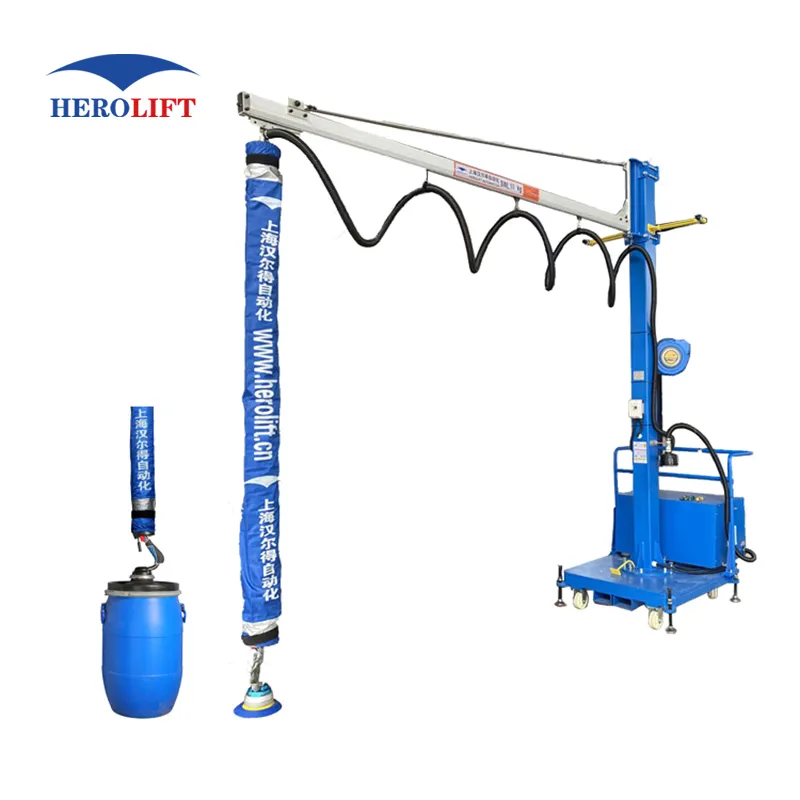

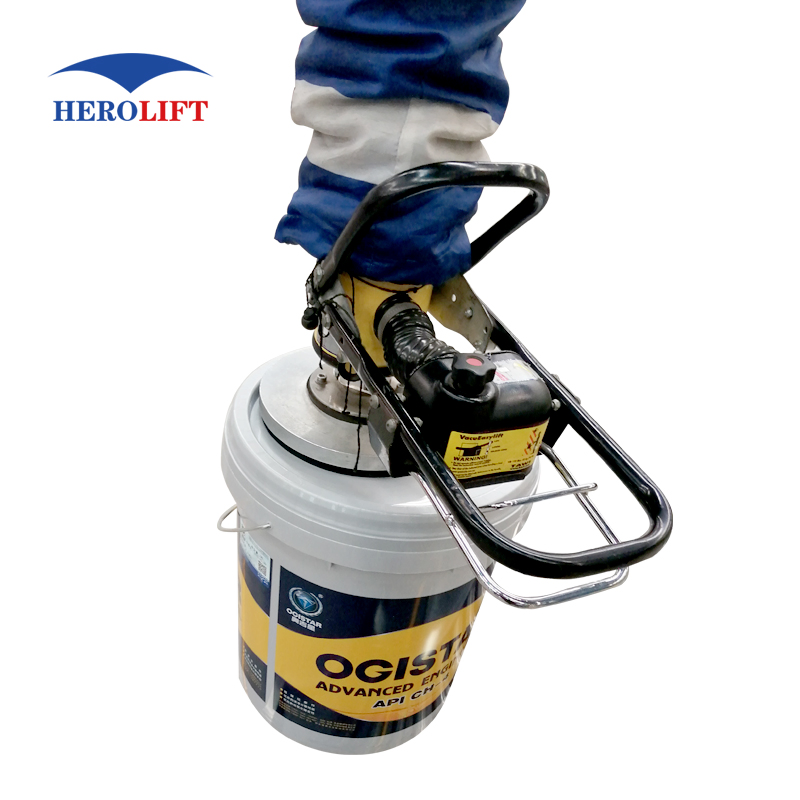

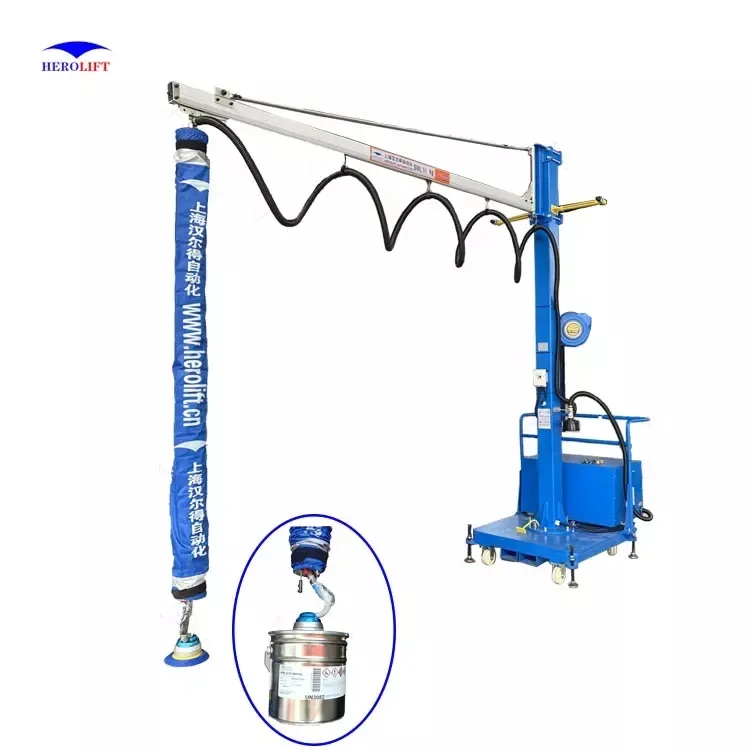

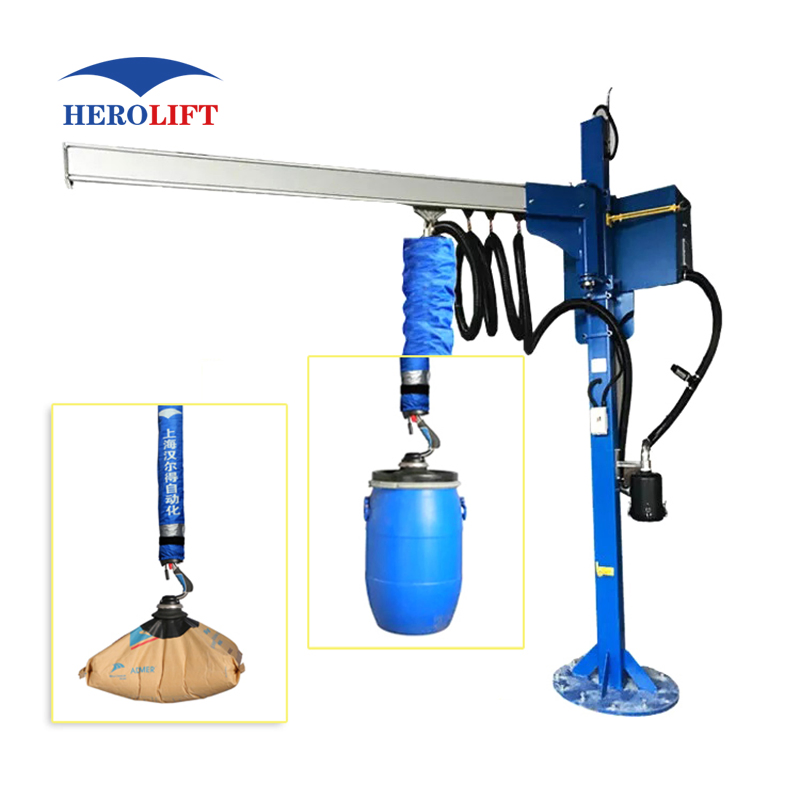

Paint Industry Vacuum Lifting Device Drum Handling Stacker Mobile Vacuum Tube Lifter

1 / 5

Paint Industry Vacuum Lifting Device Drum Handling Stacker Mobile Vacuum Tube Lifter

Customization:	Available
After-sales Service:	Provide After-Sales Service
Warranty:	12 Months

Send Inquiry

Product Description

📊 Basic Information

Model NO.	VEL120U
Cup Quantity	1
Application	Lifting Bag/Box/Rubber/Plane
Vacuum Source	Oil-Free Vacuum Pump
Safety Certification	CE Certificate
Safety System	Pressure Holding
Max Loading	20/40/60kg (Customizable)
Control Mode	Manual Valve
Transport Package	Wooden Case
HS Code	8428909090
Production Capacity	5000 pieces/Year

🔍 Product Description

In today's fast-paced industrial world, the need for efficient and safe material handling is becoming ever more important. Manual handling is often inefficient, labor-intensive, and presents commercial risks to employee well-being. The mobile vacuum tube lifter is a game-changer in the material handling arena.

This innovative solution is designed for easy material handling with a portable design that solves frequent problems of material transfer and pallet changing in warehouses. Its versatility allows it to be moved to multiple workstations, ensuring products meet unique requirements across different industries.

The mobile vacuum tube lifter utilizes cutting-edge vacuum suction technology and a powerful drive system. It enables lifting, moving, and rotating materials without heavy manual labor. The suction cups firmly grip materials, preventing accidents during transport.

⚙️ Key Characteristics

⚖️

Lifting Capacity: < 270 kg
Lifting Speed: 0-1 m/s

🛠️

Handle Options: Standard, one-hand, flex, or extended handles.

🔄

Flexibility: 360-degree rotation with a 240-degree swing angle.

🔋

Power Options: 24VDC rechargeable battery or AC power switching.

📋 Technical Specifications

Type	VEL100	VEL120	VEL140	VEL160	VEL180	VEL200	VEL230	VEL250	VEL300
Capacity (kg)	30	50	60	70	90	120	140	200	300
Tube Dia (mm)	100	120	140	160	180	200	230	250	300
Lift Speed	Approx 1m/s
Lift Height (mm)	1800/2500					1700/2400		1500/2200

✨ Core Features

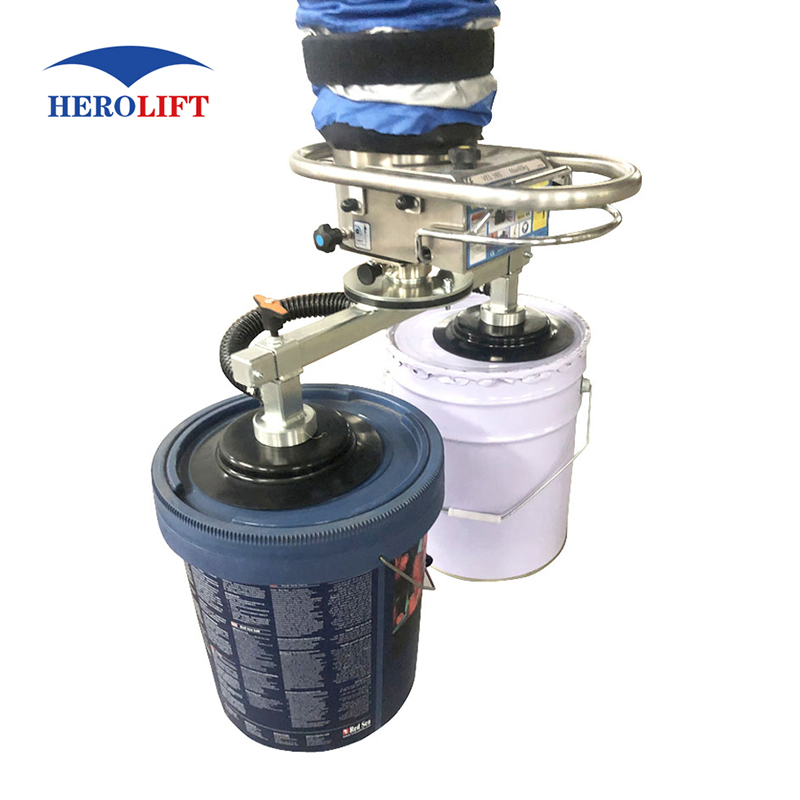

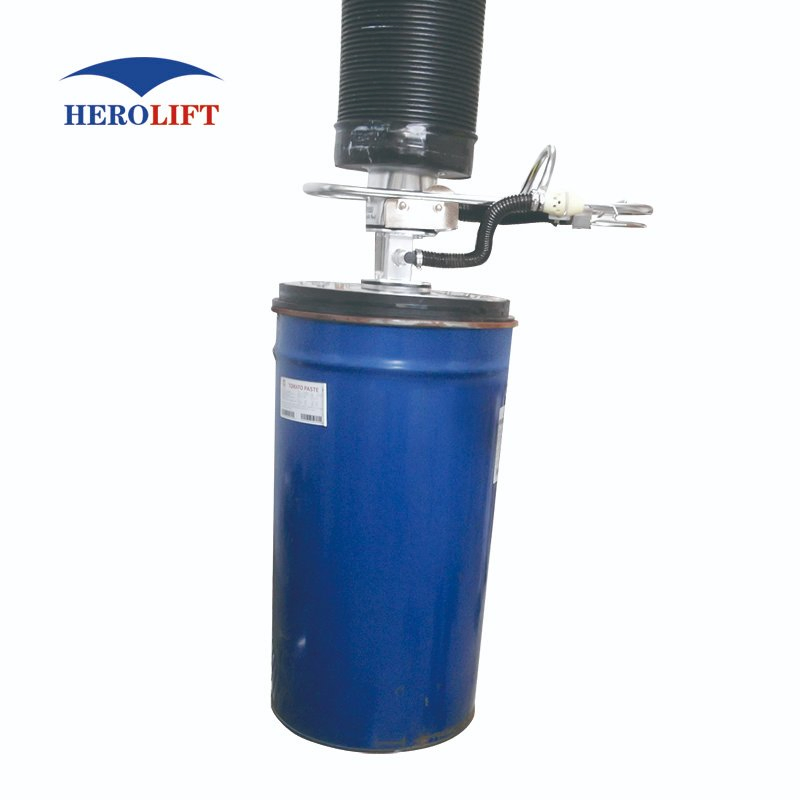

Suction Foot Assembly
Easy to replace, rotate pad head, protects workpiece surface.

Jib Crane Limit
Shrinkage or elongation to achieve precise vertical displacement.

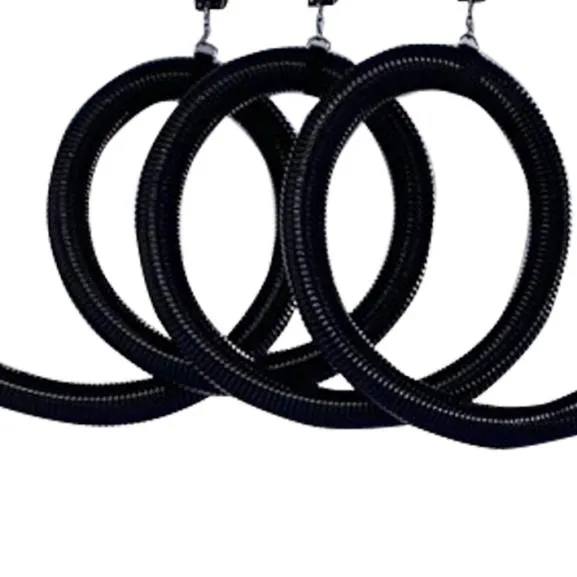

Air Tube
High-pressure corrosion resistance, provides maximum security.

Crane Systems
Lightweight design saving more than 60% of manual force.

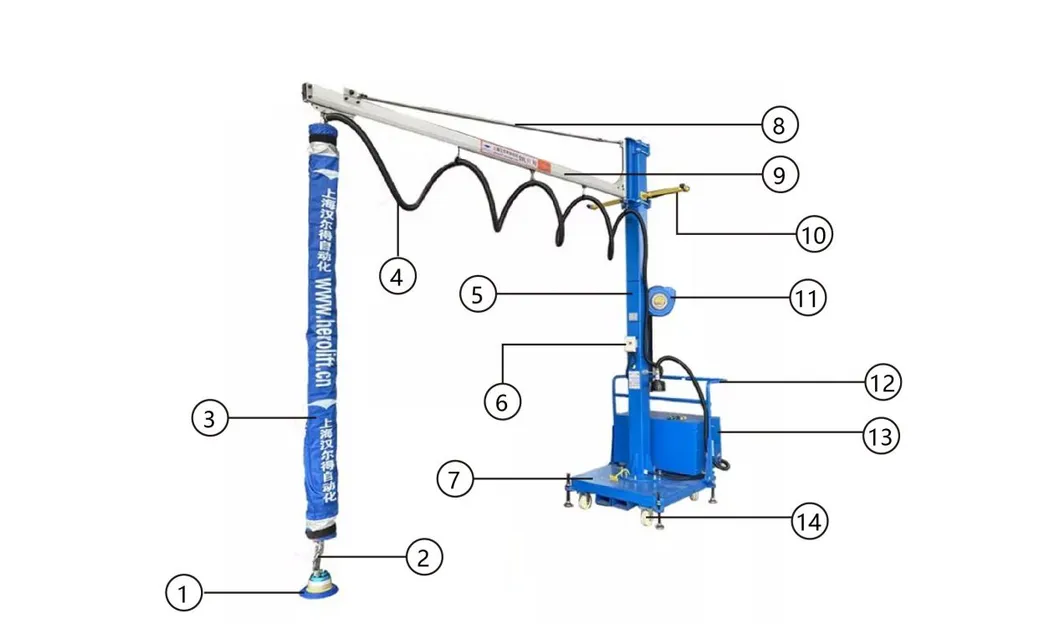

🔍 Detail Display

1. Suction Foot
2. Control Handle
3. Load Tube
4. Air Tube

5. Steel Column
6. Electrical Control Box
7. Steel Movable Base
8. Jib Rail Brace

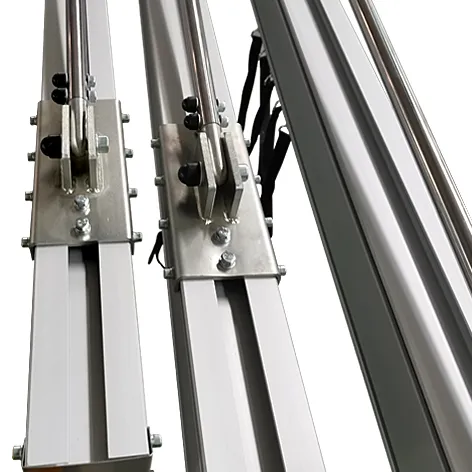

9. Rail

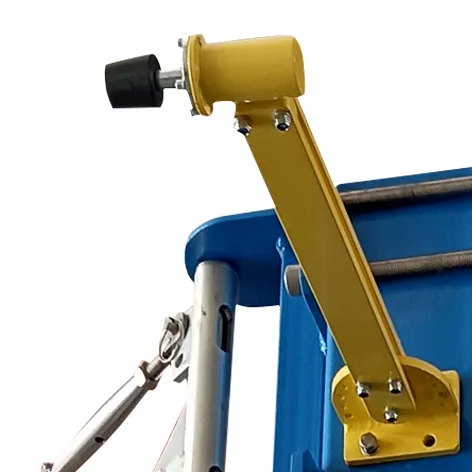

10. Rail Stopper
11. Cable Reel
12. Push Handle

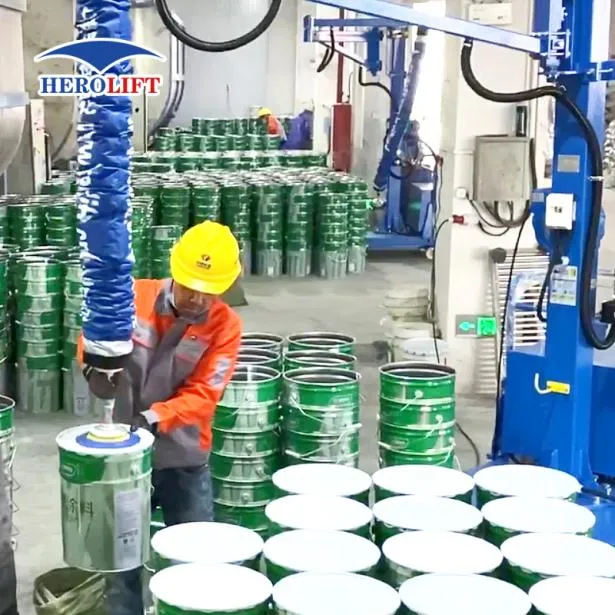

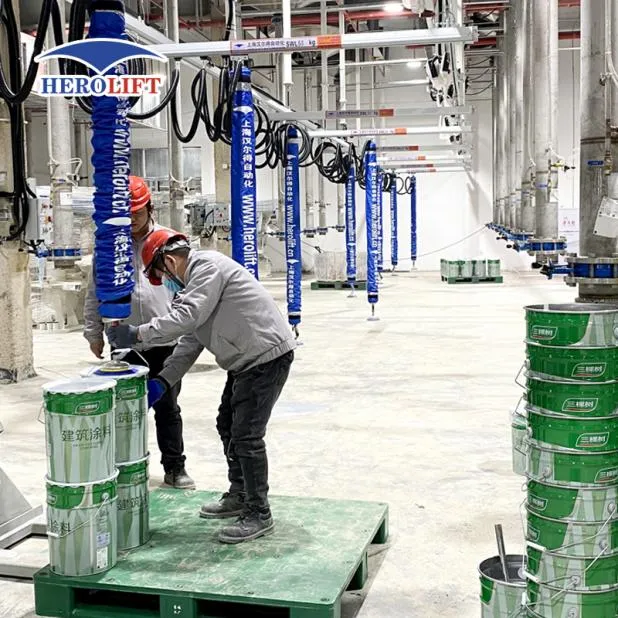

🚀 Function & Application

Weightless Control: Handle heavy loads with minimal effort.
Versatility: Suitable for sacks, cardboard boxes, wooden sheets, drums, electrical appliances, and glass.
Safety: Eliminates manual lifting risks and injuries.
Efficiency: Streamlines processes in manufacturing, warehousing, and logistics.

🏭 Production & Quality

❓ Frequently Asked Questions

How can I get the best machine for my needs?

Please provide details about your working material and specific tasks through pictures or video. We will recommend the best model based on our extensive industry experience.

Is this machine easy to operate for a first-time user?

Yes. We provide technical training and operating instructions in English. Support is also available via phone or email if you have any questions during the learning process.

What should I do if the machine encounters a problem?

If a problem occurs under normal use during the warranty period, we will send replacement parts free of charge. You would only be responsible for the postage costs.

What is the guarantee if the machine breaks down?

The machine comes with a one-year guarantee. Our technicians will diagnose the issue based on your feedback and replace non-consumable parts for free if the fault is due to quality.

How long is the typical delivery time?

Standard machines usually take 20-30 days. For non-standard or customized machines built to specific requirements, delivery typically ranges from 45 to 60 days.

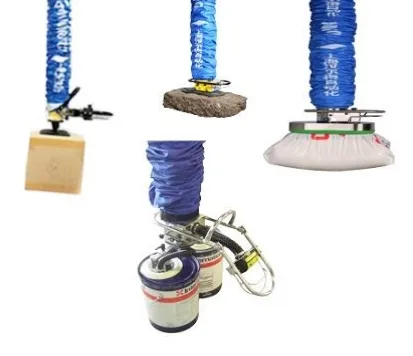

Can the lifting feet be customized for specific products?

Absolutely. We offer a large range of standardized grippers and accessories, such as swivels and angle joints, which can be adapted to your exact load requirements.
