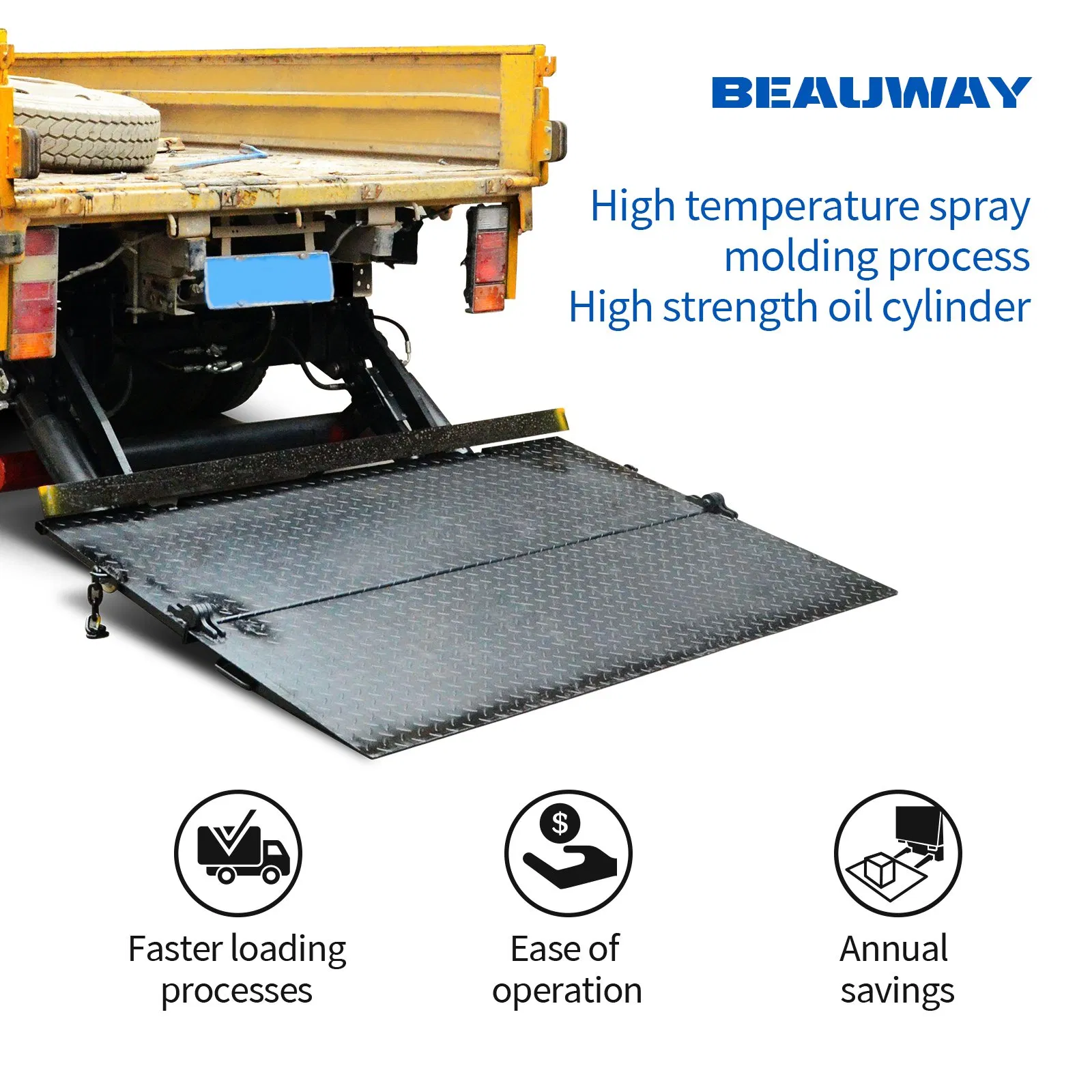

0.5ton-2ton Remote Control Tail Lift Hydraulic Tailgate Lift System for Trucks

1 / 5

0.5ton-2ton Remote Control Tail Lift Hydraulic Tailgate Lift System for Trucks

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

BW-PP-05/10/15/20

Material

Steel

Single Lifting Weight

1500kg

Type

Column Lift

Working Voltage

12V/24V(DC)

Max. Loading

2000kg

Platform Width

2000-2500mm

Platform Height

1400-1800mm

Condition

New

Lifting Speed

80mm/S

Working Pressure

16 MPa

Production Capacity

1500 Pieces/Month

📊

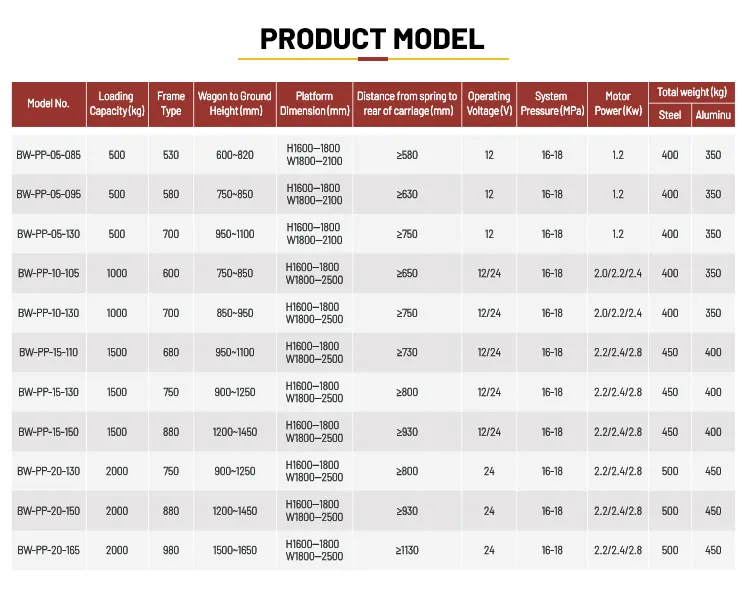

Technical Specifications

MODEL	BW-PP05	BW-PP10/130	BW-PP15/150	BW-PP20/130
Rated load(KG)	500	1000	1500	2000
Platform size	2200*1800mm	2200*1800mm	2300*1800mm	2400*1800mm

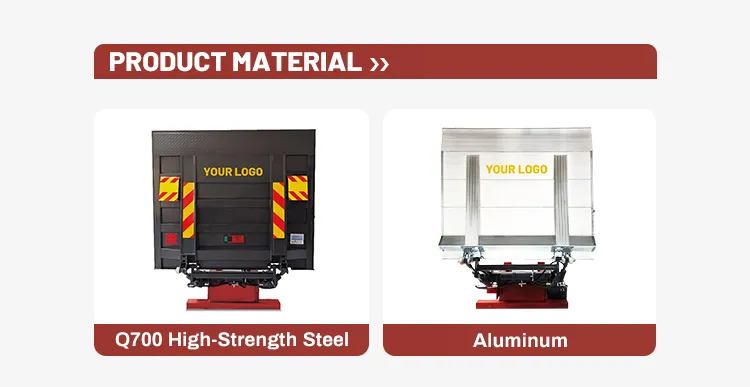

Material	Steel or aluminum	Steel or aluminum	Steel or aluminum	Steel or aluminum
Lifting height	600-1100mm	700-1100mm	900-1500mm	900-1600mm
Operating Voltage	DC12V/24V	DC12V/24V	DC12V/24V	DC12V/24V
Lifting speed	60-80mm/s	60-80mm/s	60-80mm/s	60-80mm/s

📷

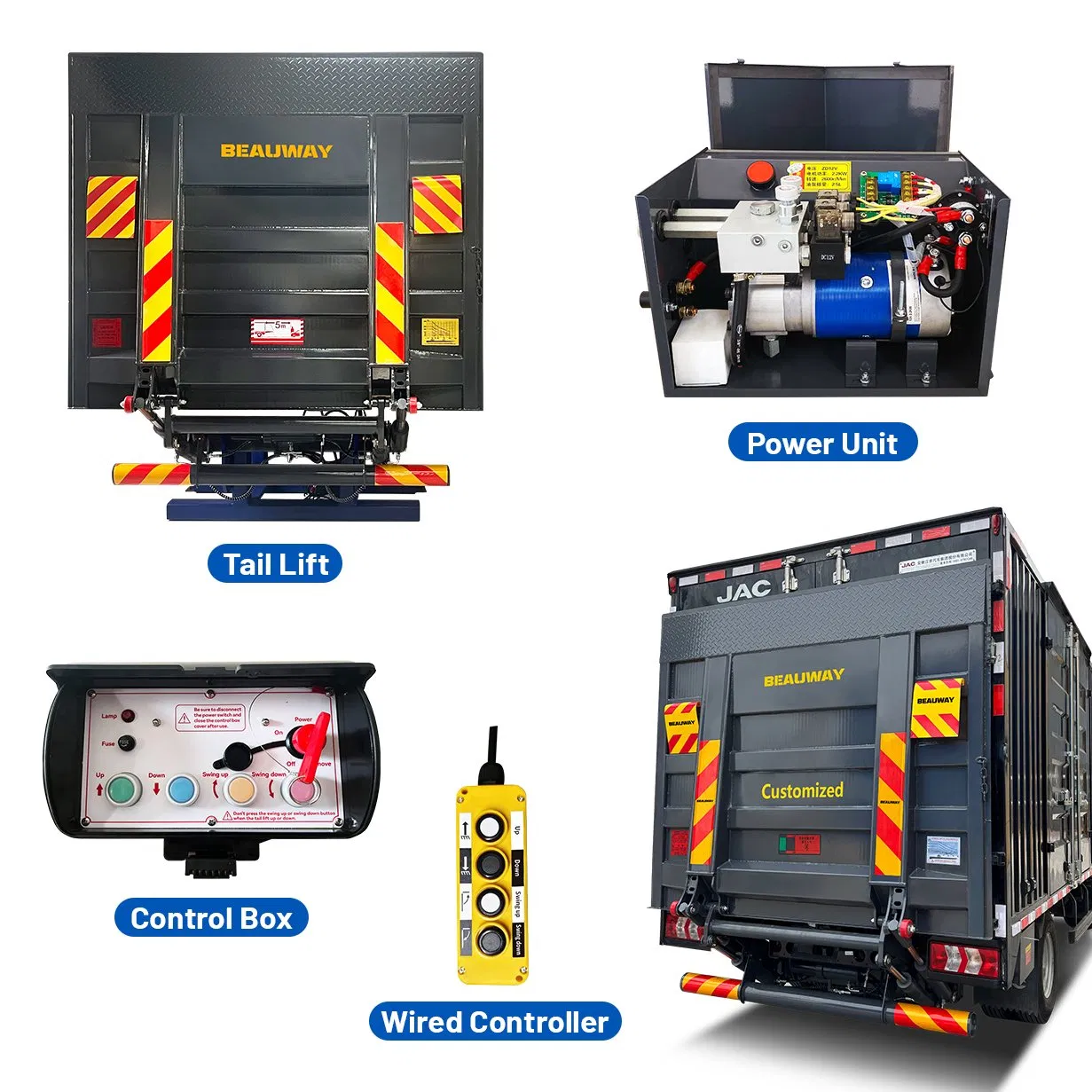

Product Presentation

🏢

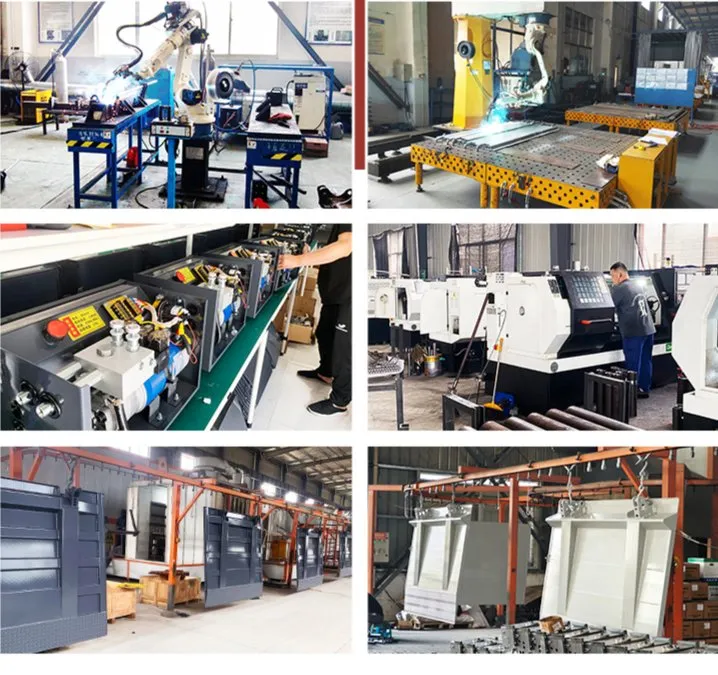

Company Overview & Certifications

📦

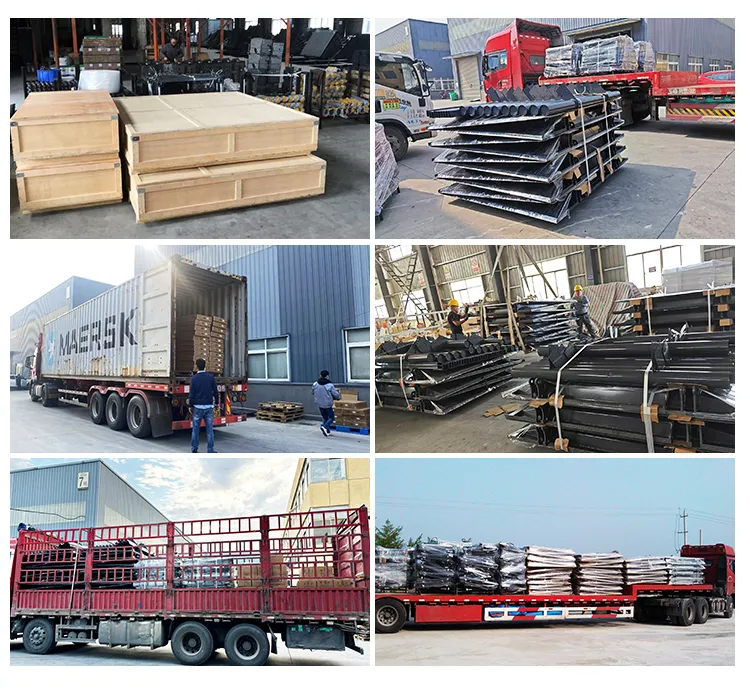

Packing & Delivery

Package Size

250.00cm * 190.00cm * 70.00cm

Gross Weight

500.000kg

Package Type

Wooden Box or Pallet

❓

Frequently Asked Questions

What capacity models of truck tail lifts do you offer?

We produce high-quality truck tail lifts with rated loads ranging from 0.5 Ton to 2 Ton to suit various transport needs.

Which truck chassis brands are compatible with your tail lifts?

Our tail lifts can be installed on a wide range of truck chassis, including Dongfeng, Shacman, FOTON, IS-ZU, FAW, HOWO, and T-King models.

What are the available payment methods for orders?

We support multiple payment options including T/T, L/C, Western Union, Paypal, Money Gram, and Alipay.

What is the typical production and delivery timeframe?

Standard production time is between 7-15 days. Delivery is typically completed within 20 days after receiving the deposit.

How are the tail lifts transported internationally?

We provide safe transport of the tail lifts using FCL (Full Container Load) or LCL (Less than Container Load) shipping methods, secured in wooden boxes or pallets.

What kind of warranty is provided for the equipment?

All our tail lift systems come with a comprehensive one-year warranty service for your peace of mind.
