Basic Information
Model NO.:VCL120U
Cup Quantity:1
Application:Lifting Bag/Box/Rubber/Plane
Vacuum Source:Oil-Free Vacuum Pump
Safety Certificate:CE Certificate
Safety System:Pressure Holding
Max Loading:20/40/60kg (Customizable)
Control Mode:Manual Valve
Usage:Palletizing Material Handling
Origin:China
HS Code:8428909090
Product Description

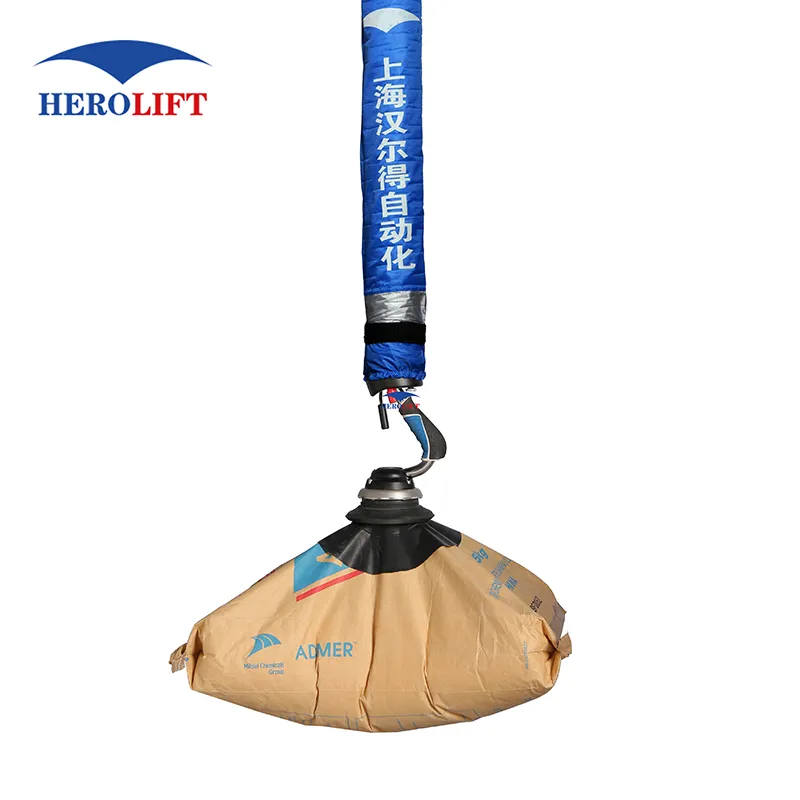

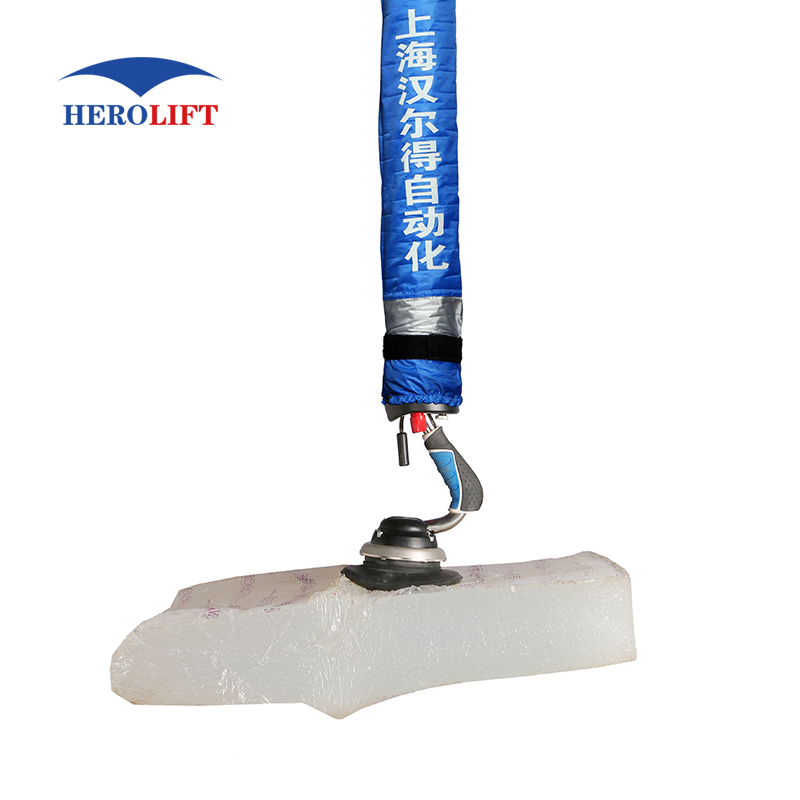

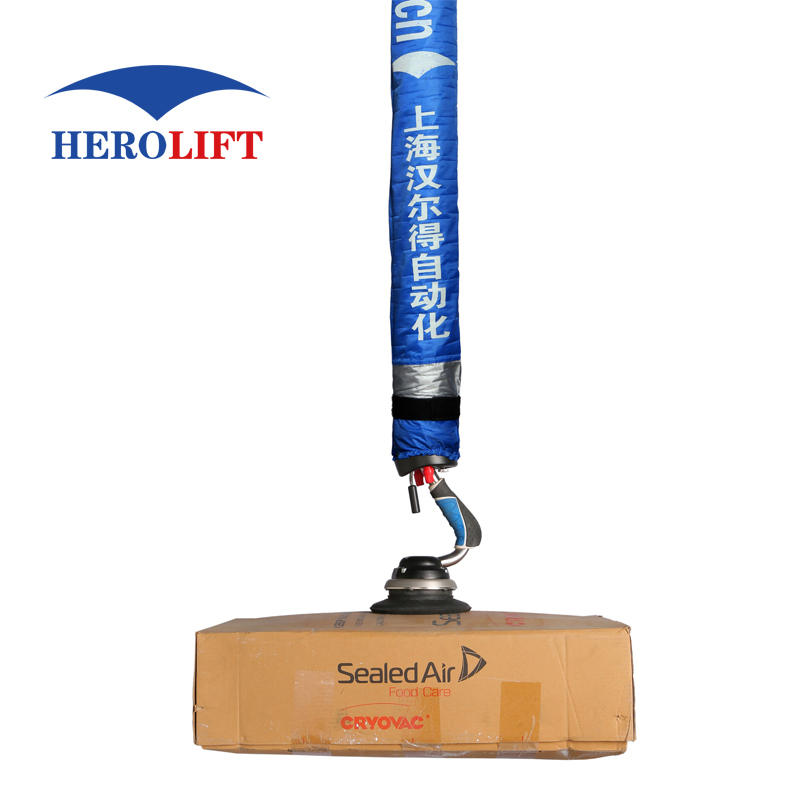

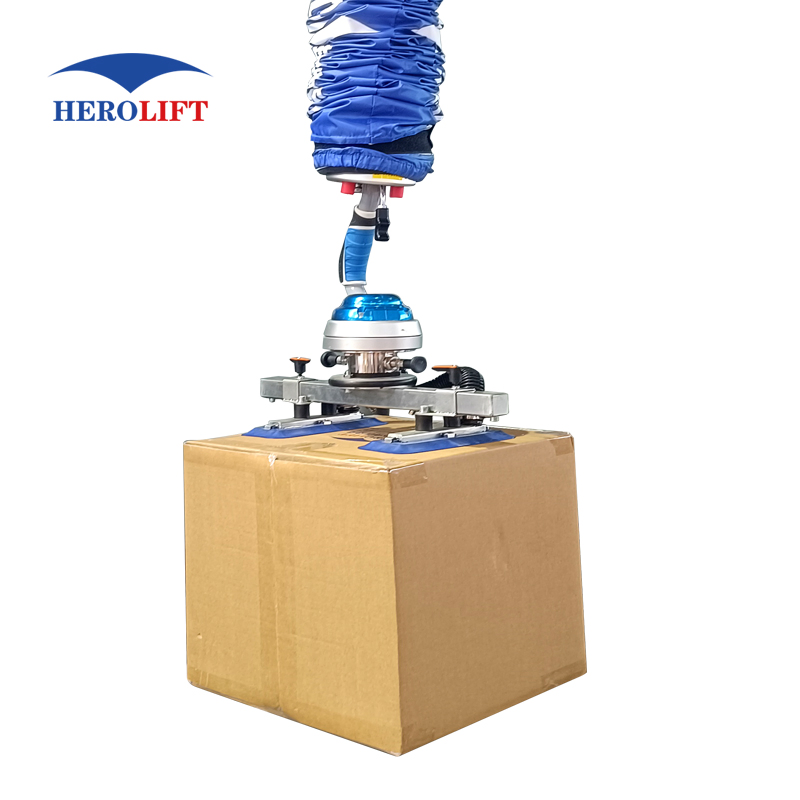

VCL is a compact tube lifter used for very quick lifting with a capacity of 10-50kg. It is widely used in warehouses, logistics centers, and container loading/unloading areas. The workpiece can be rotated 360 degrees horizontally and turned 90 degrees vertically.

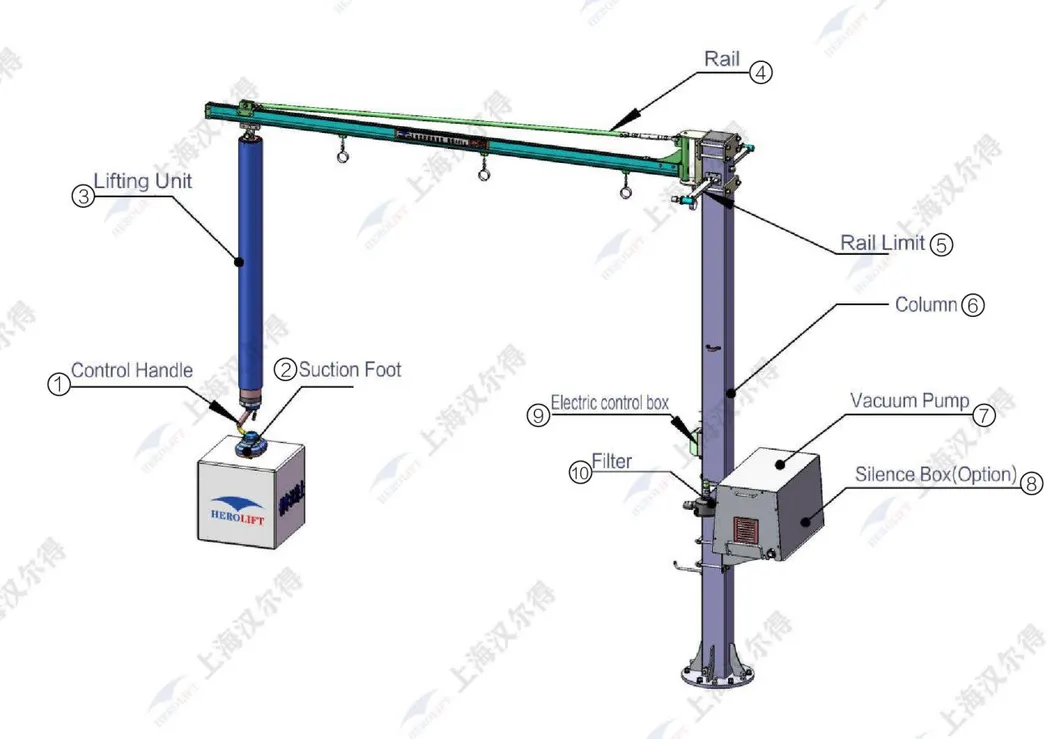

The vacuum lifting device features a modular design, bringing ease and convenience to handling sacks, luggage, cardboard boxes, and sheet materials such as glass and metal. Using vacuum technology, it transforms heavy manual work into light, user-friendly tasks, emphasizing safety at work.
Increased productivity
Reduce employee injury risk
Increase employee motivation
Single-person operation
Key Characteristics
1. Performance:
- Max. SWL 50KG
- Low pressure warning system

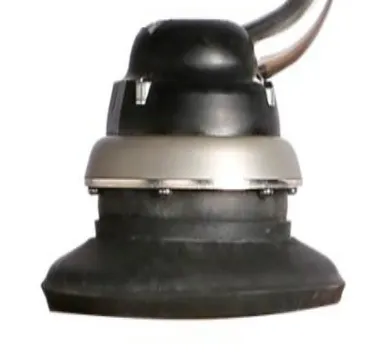

- Adjustable suction cup & Remote control
- CE Certification EN13155:2003
- Designed to German UVV18 standards
2. Design Benefits:
- Easy to customize: Large range of standardized grippers and quick connections.

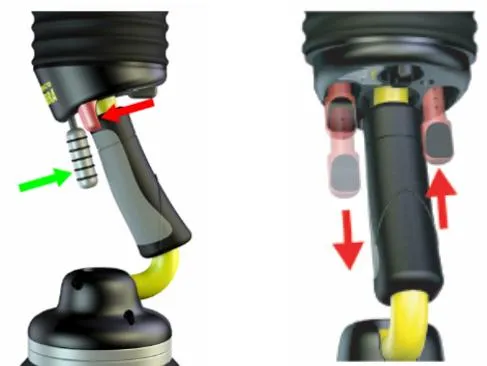

- Ergonomic handle: Regulated lifting/lowering with intuitive controls.
- Energy-saving: Designed to ensure minimum leakage and low consumption.
Technical Specifications
| Type |
VCL50 |
VCL80 |
VCL100 |
VCL120 |
VCL140 |
| Capacity (kg) |
12 |
20 |
30 |
40 |
50 |

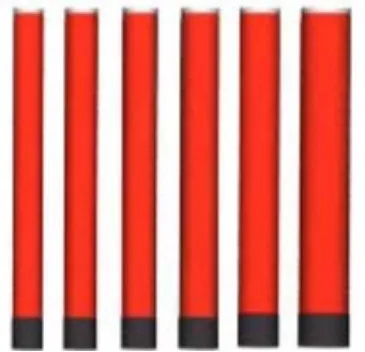

| Tube Diameter (mm) |
50 |
80 |
100 |
120 |
140 |
| Stroke (mm) |
1550 |
1550 |
1550 |
1550 |
1550 |
| Power (KW) |
0.9 |
1.5 |
1.5 |
2.2 |
2.2 |
Applications

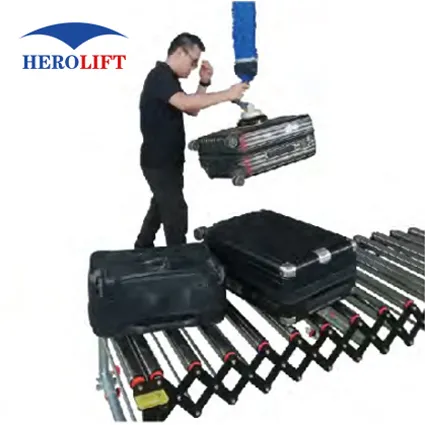

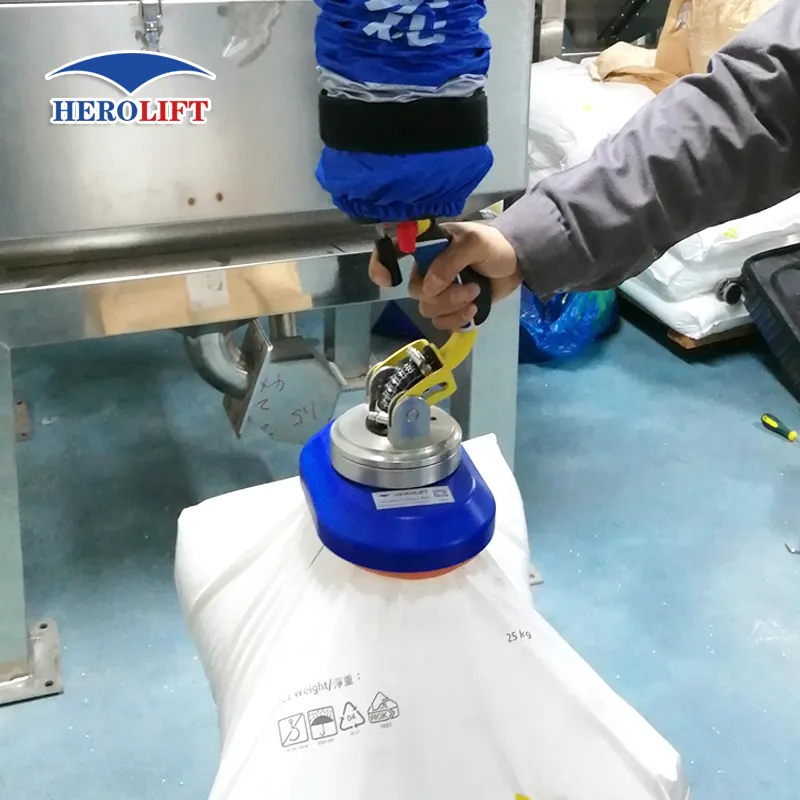

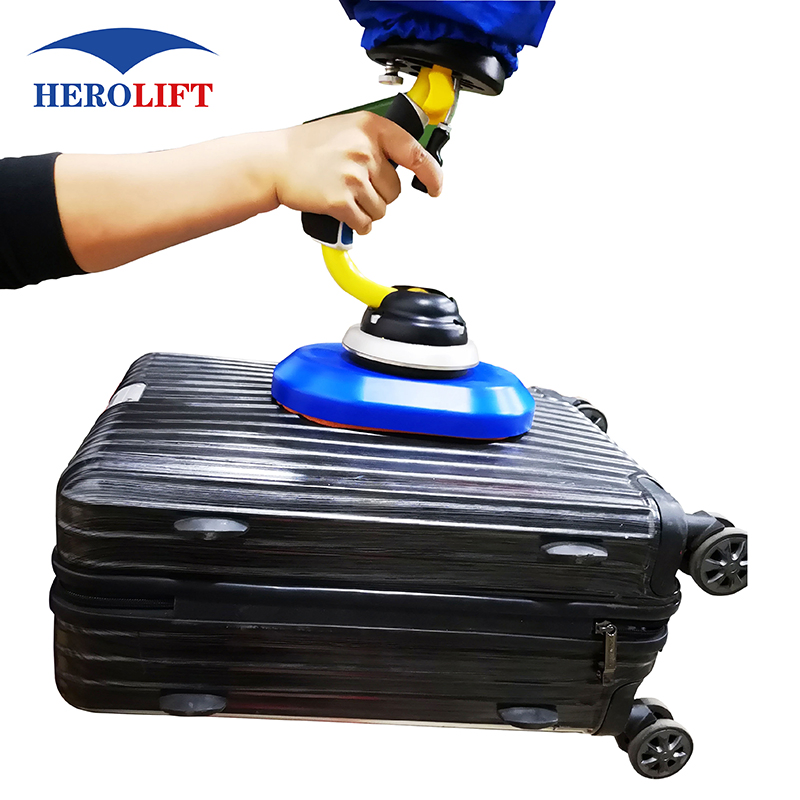

Suitable for sacks, cardboard boxes, wooden sheets, sheet metal, drums, electrical appliances, cans, baled waste, glass plates, baggage, plastic sheets, wood slabs, coils, doors, batteries, and stone.

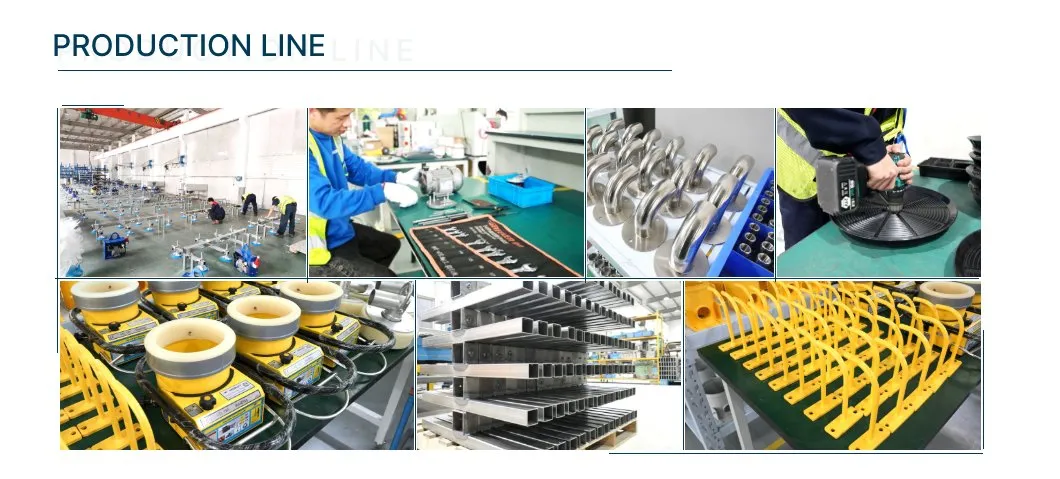

Production & Certifications
Frequently Asked Questions
Q1: How can I determine the best machine for my needs?
A: You can share your working material and specific task requirements with us. Based on our experience, we can suggest the most suitable model for your application.
Q2: Is this vacuum lifter easy to operate for a first-time user?
A: Yes, the machine is designed for ease of use. We provide technical training and operating instructions in English to ensure your team can handle the equipment safely and efficiently.
Q3: What safety features are included for power failures?
A: The equipment includes protection against power failure, ensuring that the absorbed material will not fall even if the power is cut. It also features leakage and current overload protection.
Q4: What is the warranty period for the equipment?
A: The machine comes with a one-year guarantee. During the warranty period, parts (excluding consumables) will be replaced for free if problems are caused by quality faults under normal use.
Q5: How long is the standard delivery time?
A: For standard machines, the delivery time is typically 20-30 days. For customized solutions tailored to specific requirements, it may range from 45 to 60 days.
Q6: Can the lifting capacity be customized?
A: Yes, while standard capacities range from 10kg to 50kg, the max loading is customizable (e.g., 20/40/60kg) to meet your specific industrial requirements.
