Vertical Oil Drum Lifters LM800 Lifting Clamps Drum Rotator Tools

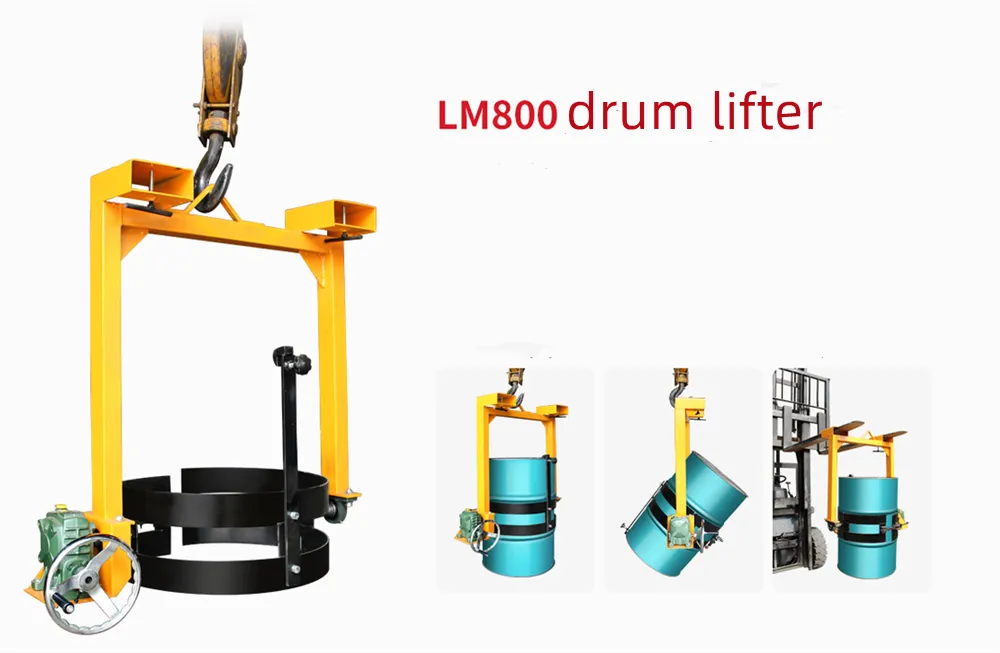

Vertical Drum Lifters/Dispensers LM800

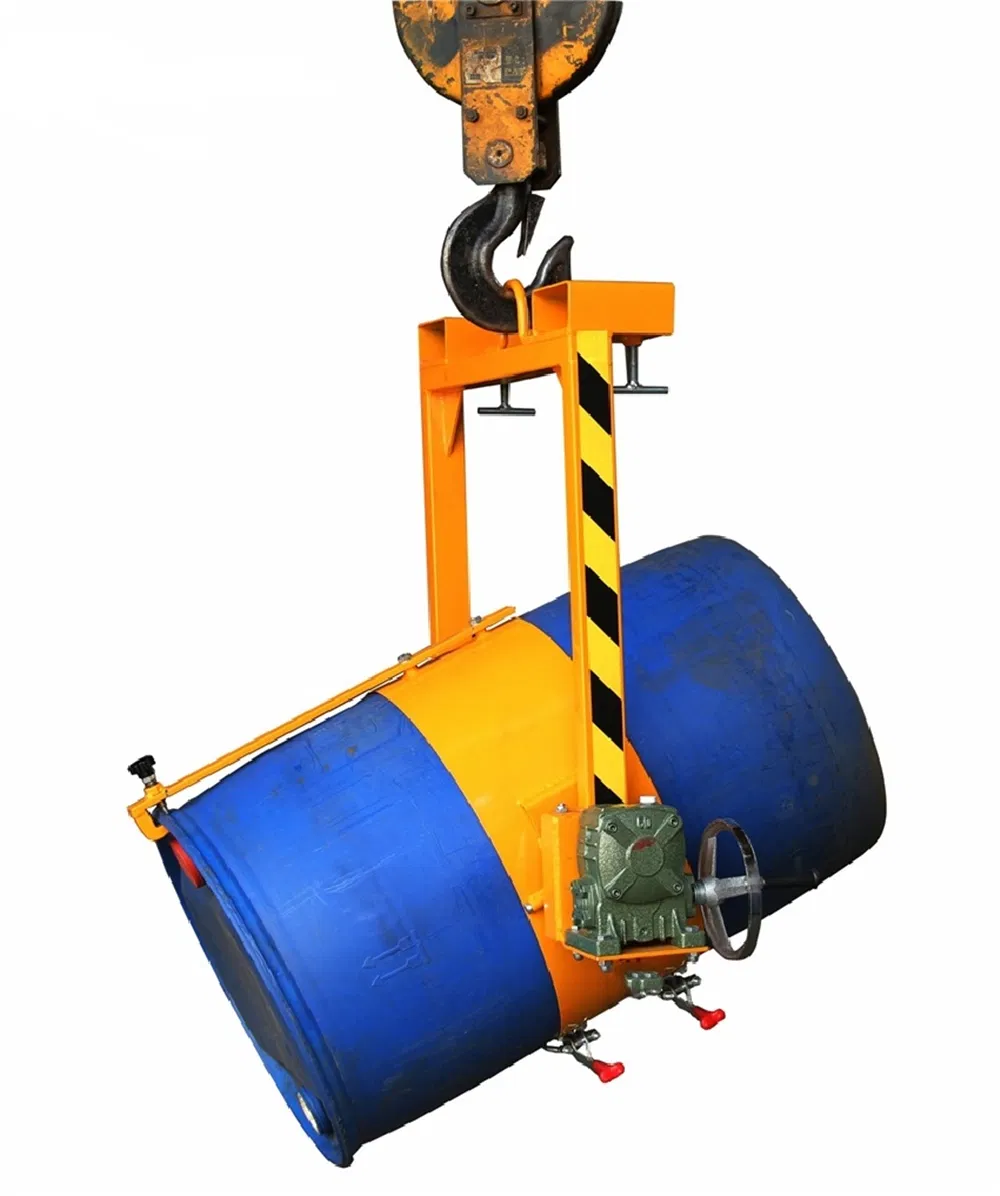

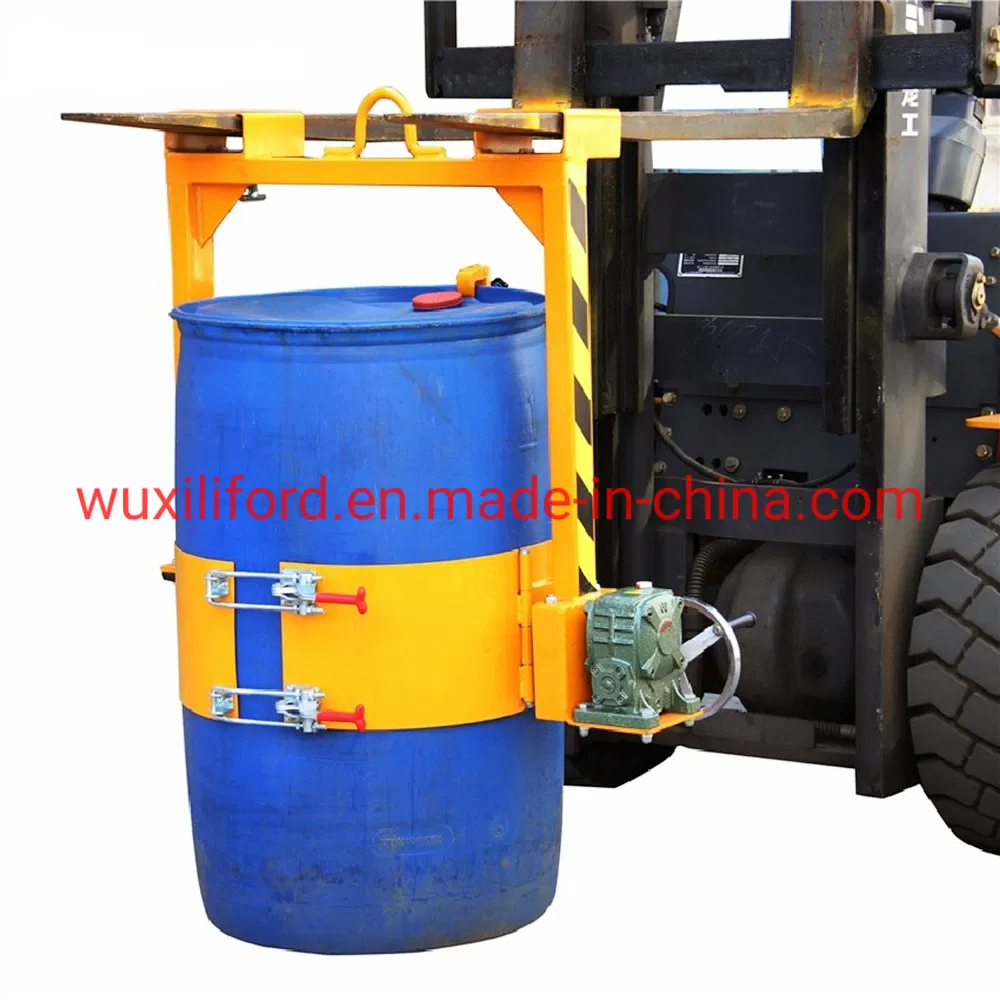

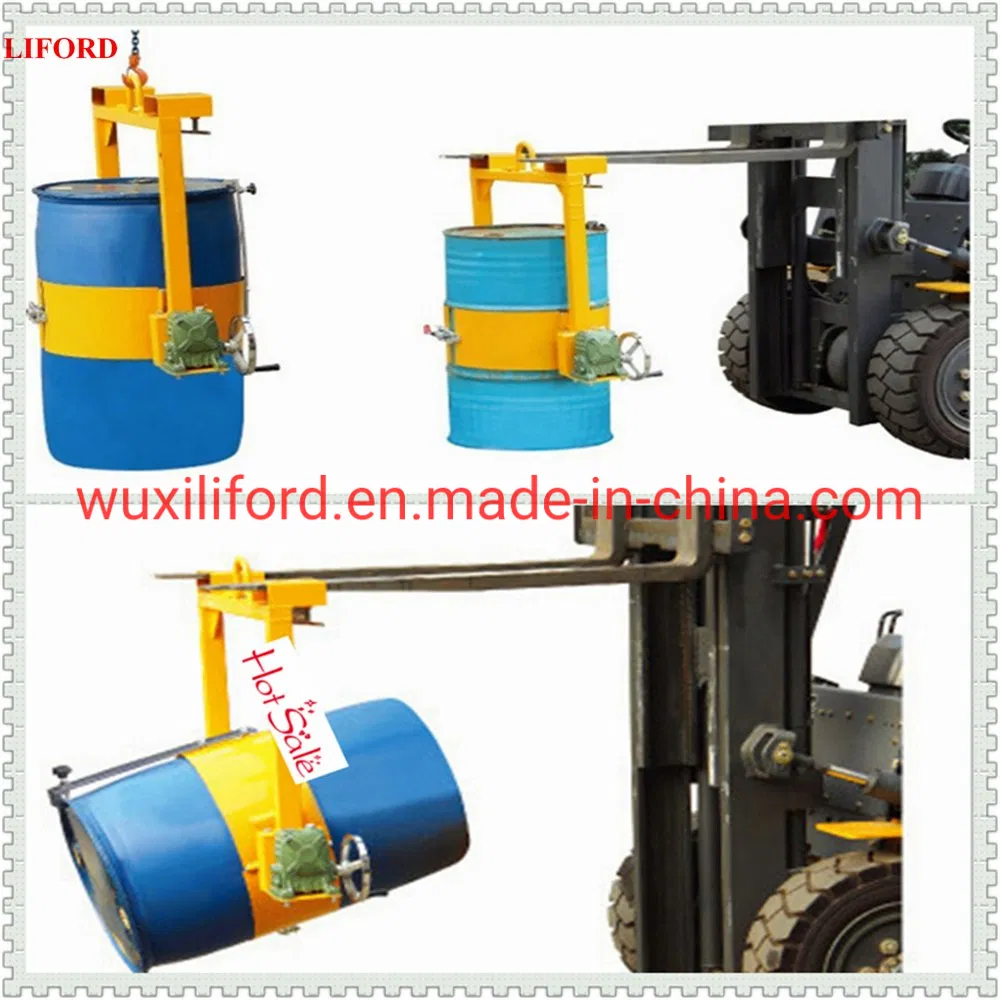

This Vertical Drum Lifter and Dispenser LM800 can be easily mounted on forklift and crane to lift steel and plastic drums, and dispense contents. This simple structure drum lifter is a type of One-person Operated drum handlers, which can greatly save time, reduce spilling waste, and improve productivity. Simply attach or hang lifter on hook from an overhead hoist or crane, cinch saddle around drum, and raise to desired height and position.
| Model | Unit | Below Hook Drum Lifter LM800 |
|---|---|---|
| Rated load capacity | kg | 400 |
| Net Weight | kg | 44 |
| Inner diameter of the single supporting leg | mm | 150*55 |
| Inside width of supporting legs | mm | 420 |
| Outside width of supporting legs | mm | 720 |
| Overall size | mm | 900*600*950 |
Applicable for handling drums in chemical plants and food plants for transferring, loading & unloading, charging and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.
The LM800 Vertical Drum Lifter has a rated load capacity of 400kg.
It is suitable for standard 55-gallon steel drums and 200-liter double closed plastic drums.

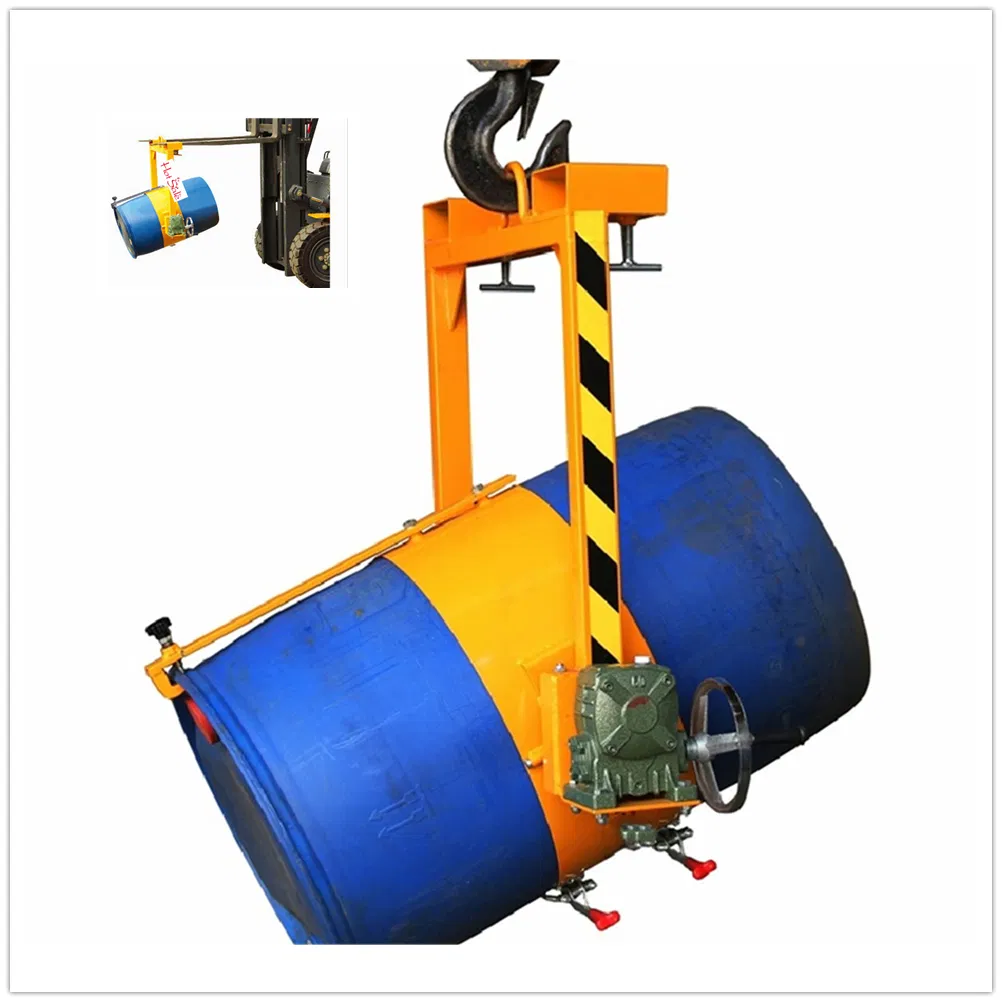

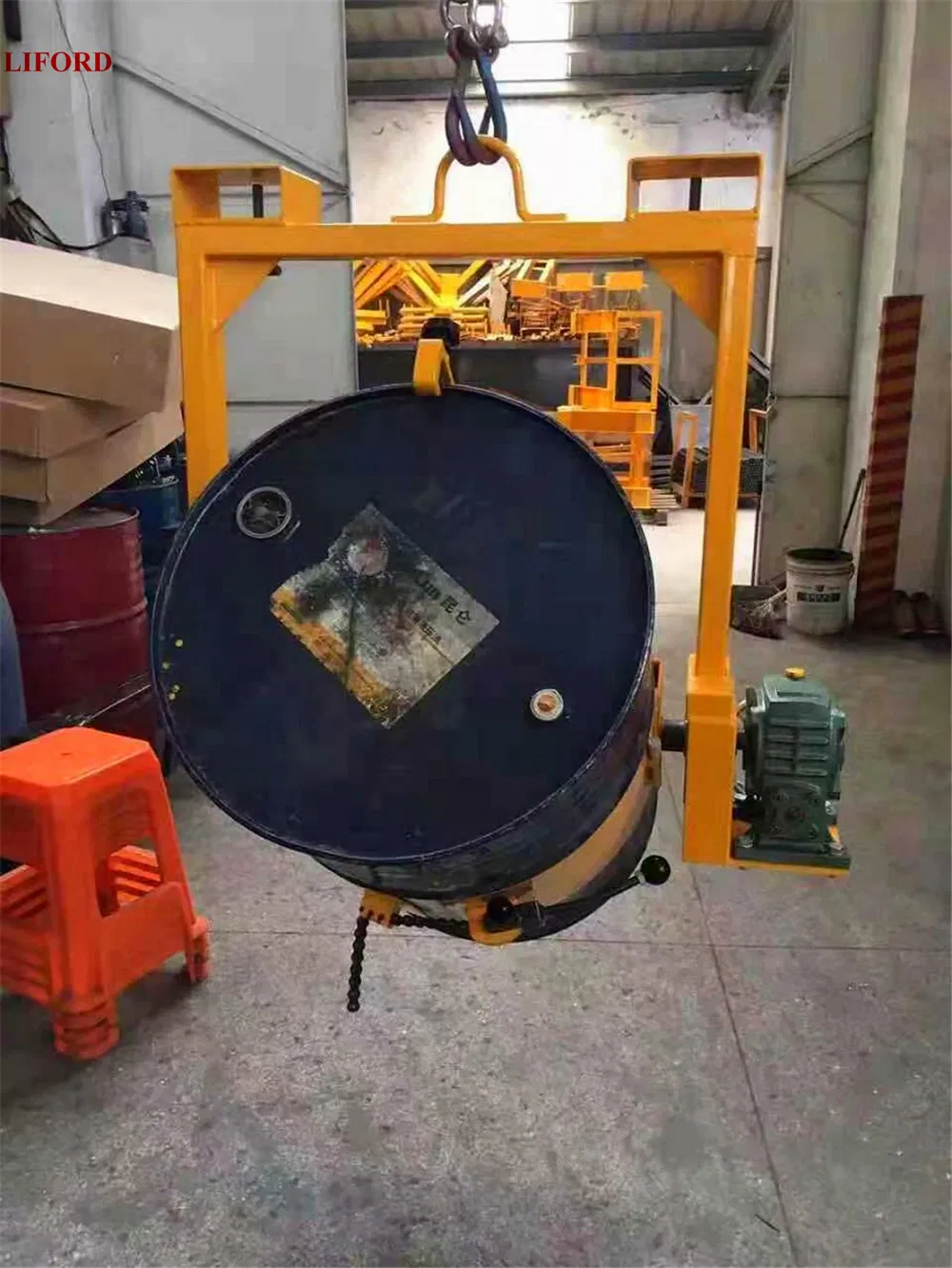

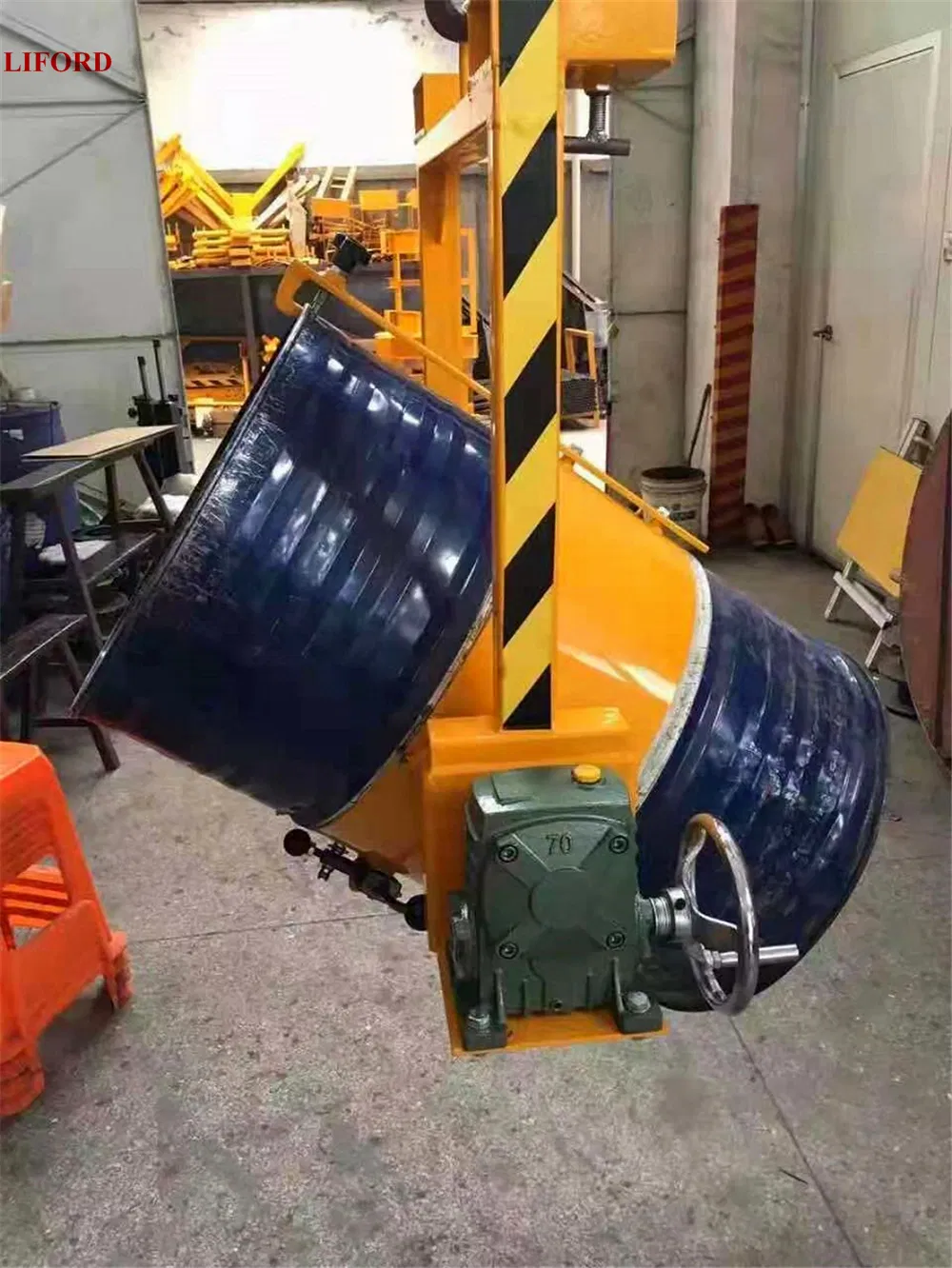

Yes, the unit allows the operator to manually tilt and rotate the drum 360 degrees in either direction for precise pouring control.

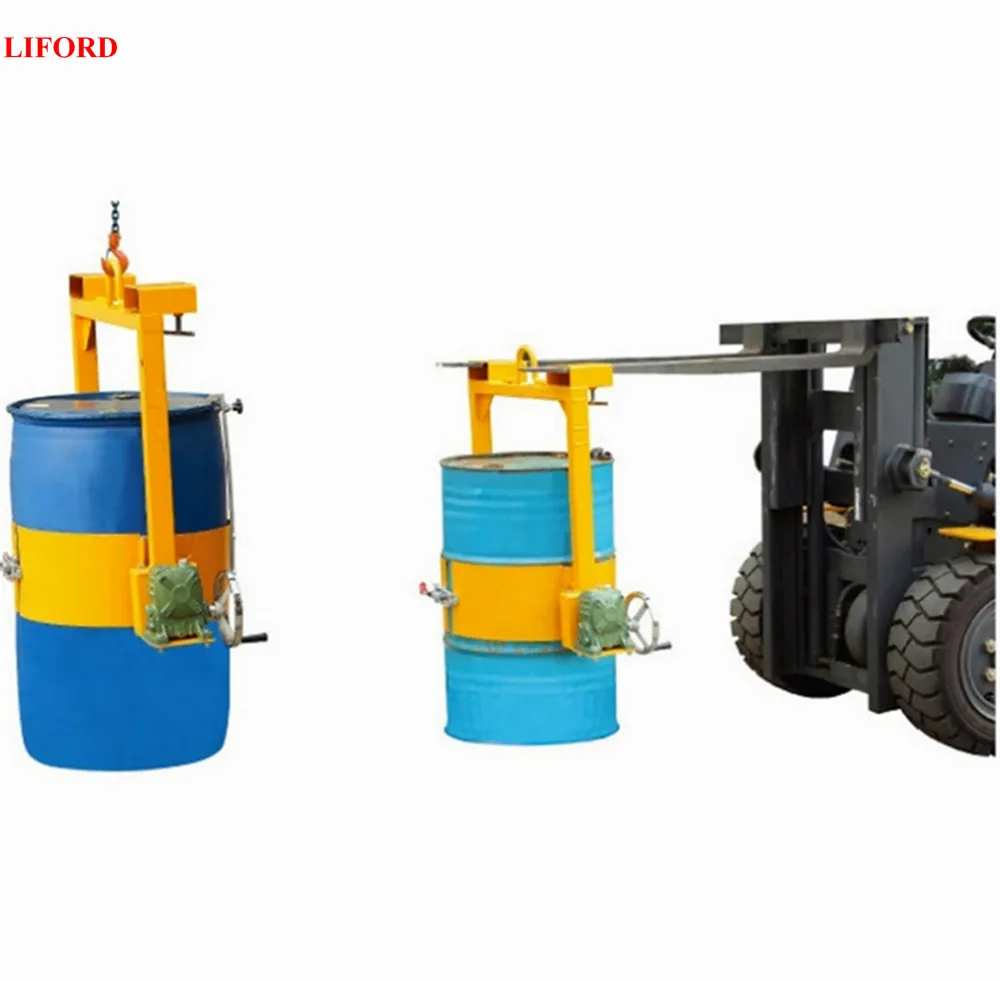

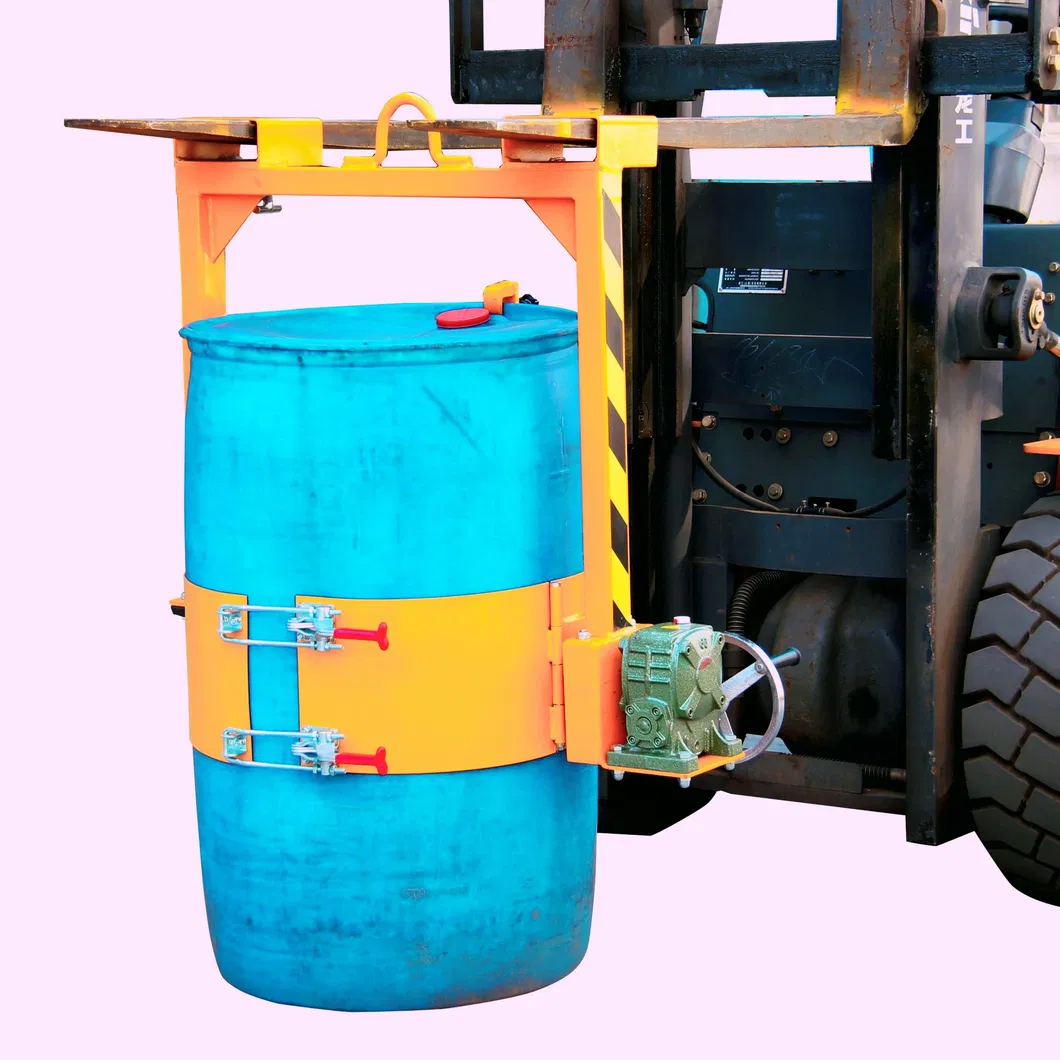

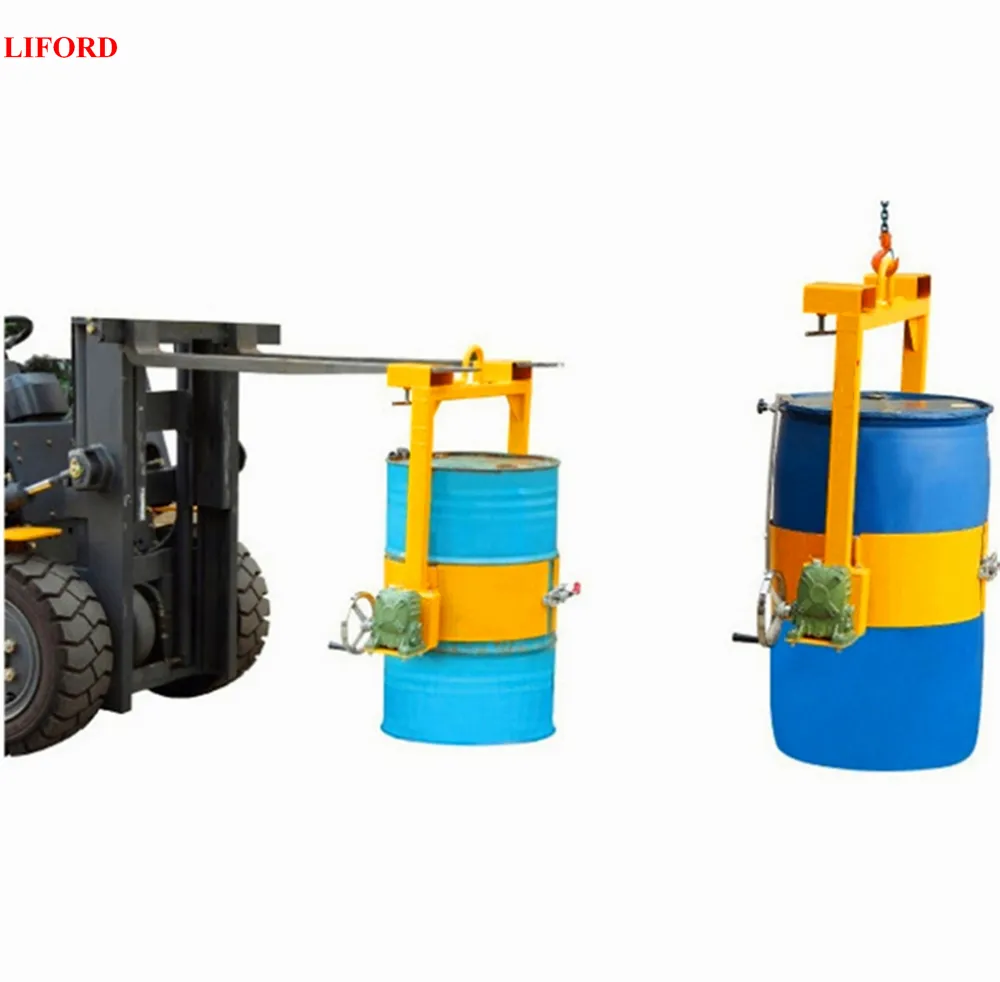

Yes, the LM800 is designed to be easily mounted on both forklifts and overhead cranes or hoists.
Yes, it features a positive tilt lock on the drum saddle to hold the drum securely in an upright or horizontal position during transit.
The lifter is constructed from high-quality carbon steel and finished with a durable powder coating for long-lasting use.
