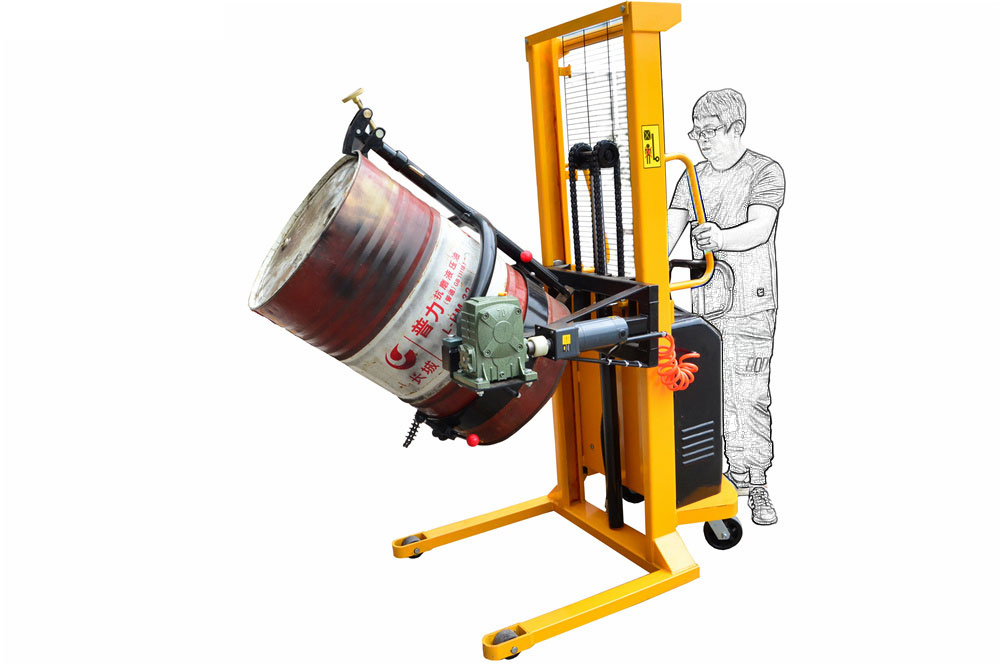

YL520 Semi-Electric Drums Rotator with Maintenance-Free Battery
The Multi-function Electric Drum Lifter YL520 is a versatile solution designed for drum lifting, transporting, stacking, and controlled pouring. It securely handles 520kg steel and plastic drums during movement and discharge operations. Its ergonomic design allows for precise rotation from vertical to horizontal planes for efficient dumping.
| Parameter Item | Unit | Specifications |
|---|---|---|
| Load Capacity | kg | 520 |
| Net Weight | kg | 273 |
| Wheel Dimension (Front/Rear) | mm | Ø80*55 / Ø150*50 |
| Inner/Outer Width of Front Leg | mm | 640/800 |
| Outline Dimension | mm | 1400*980*2080 |
| Turning Radius | mm | 1620 |
| Pump Unit Power | KW/h | 1.6 |
| Battery Parameter | Ah/V | 120/12 |
| Lifting Height | mm | 1580 |
| Lifting Speed | mm/s | 120 |
This drum handler is the ultimate solution for quick and safe drum handling in warehouses and plants. It is widely utilized in chemical plants and food processing facilities for:
